9.1.8 DataSetReader model

9.1.8.1 Overview

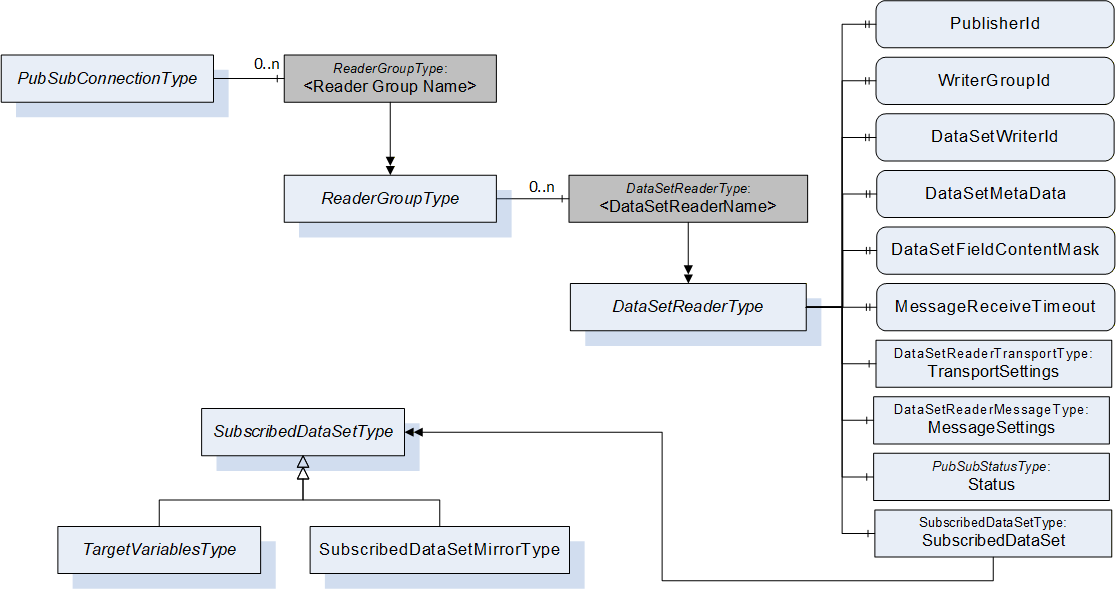

Figure 50 depicts the ObjectType for the PubSub DataSetReader model and its components and the relations to other parts of the model.

9.1.8.2 DataSetReaderType

This ObjectType defines receiving behaviour of DataSetMessages and the decoding to DataSets. The DataSetReaderType is formally defined in Table 291.

The SubscribedDataSetType defined in 9.1.9.1 describes the processing of the received DataSet in a Subscriber.

The Properties PublisherId, WriterGroupId, DataSetWriterId and DataSetClassId define filters for received NetworkMessages. If the value of the Property is set, it is used as filter and all messages that do not match the filter are dropped.

The PublisherId is defined in 6.2.9.1.

The WriterGroupId is defined in 6.2.9.2.

The DataSetWriterId is defined in 6.2.9.3.

The DataSetMetaData is defined in 6.2.9.4. If the DataSetReader receives an updated DataSetMetaData, the DataSetReader shall update the Property DataSetMetaData.

The DataSetFieldContentMask is defined in 6.2.9.5.

The MessageReceiveTimeout is defined in 6.2.9.6.

The KeyFrameCount is defined in 6.2.9.7.

The HeaderLayoutUri is defined in 6.2.9.8.

The SecurityMode is defined in 6.2.9.9. If present or if the value is not INVALID, it overwrites the settings on the group.

The SecurityGroupId is defined in 6.2.9.10.

The SecurityKeyServices is defined in 6.2.9.11.

The DataSetReaderProperties is defined in 6.2.9.12.

The transport protocol mapping specific setting settings are provided in the optional Object TransportSettings. The DataSetReaderTransportType is defined in 9.1.8.3. The Object shall be present if the transport protocol mapping defines specific parameters.

The message mapping specific setting settings are provided in the optional Object MessageSettings. The DataSetReaderMessageType is defined in 9.1.8.4. The Object shall be present if the message mapping defines specific parameters.

The Status Object provides the current operational state of the DataSetReader. The PubSubStatusType is defined in 9.1.10. The state machine for the status and the relation to other PubSub Objects like PubSubConnection and PubSubGroup are defined in 6.2.1.

The Diagnostics Object provides the current diagnostic information for a DataSetReaderType Object. The PubSubDiagnosticsDataSetReaderType is defined in 9.1.11.12.

The SubscribedDataSet Object contains the metadata for the subscribed DataSet and the information for the processing of a DataSetMessage. The SubscribedDataSetType and the available subtypes are defined in 9.1.9. If the DataSetReader is configured to receive heartbeat DataSetMessages, the Object shall be of the base type SubscribedDataSetType.

9.1.8.3 DataSetReaderTransportType

This ObjectType is the abstract base type for Objects defining the transport protocol-specific parameters for DataSetReaders. The DataSetReaderTransportType is formally defined in Table 292.

9.1.8.4 DataSetReaderMessageType

This ObjectType is the abstract base type for Objects representing message mapping specific settings for DataSetReaders. The DataSetReaderMessageType is formally defined in Table 293.

9.1.8.5 CreateTargetVariables Method

This Method is used to initially set the SubscribedDataSet to TargetVariablesType and to create the list of target Variables of a SubscribedDataSetType.

The Client shall be authorized to modify the configuration for the PubSub functionality when invoking this Method on the Server.

Signature

	CreateTargetVariables (
		[in]	ConfigurationVersionDataType		ConfigurationVersion,
		[in]	FieldTargetDataType[]			TargetVariablesToAdd,
		[out] StatusCode[]				AddResults
		);


Method Result Codes

Operation Result Codes

Table 294 specifies the AddressSpace representation for the CreateTargetVariables Method.

9.1.8.6 CreateDataSetMirror Method

This Method is used to set the SubscribedDataSet to SubscribedDataSetMirrorType used to represents the fields of the DataSet as Variables in the Subscriber Address Space. This Method creates an Object below the SubscribedDataSet and below this Object it creates a Variable Node for every field in the DataSetMetaData. The detailed rules for the Object creation are defined in 9.1.9.3.

If the SubscribedDataSet already has a specific subtype, this subtype is replaced with a SubscribedDataSetMirrorType instance.

The Client shall be authorized to modify the configuration for the PubSub functionality when invoking this Method on the Server.

Signature

	CreateDataSetMirror (
		[in]	String			ParentNodeName,
		[in]	RolePermissionType[]	RolePermissions,
		[out]	NodeId			ParentNodeId
		);


Method Result Codes

Table 295 specifies the AddressSpace representation for the CreateDataSetMirror Method.
