8 PubSub Security Key Service model

8.1 Overview

Clause 8 specifies the OPC UA Information Model for a Security Key Service (SKS). The functionality and behaviour of an SKS is described in 5.4.5. It defines the distribution framework for cryptographic keys used for message security. A Publisher or Subscriber can pull the keys from the SKS or the SKS can push the keys to the Publisher or Subscriber. The sequences for pull and push are described in 5.4.5.3.

The SKS can be a network service used to manage keys for all Publishers and Subscribers or it can be part of a Publisher to manage the keys for the NetworkMessages sent by this Publisher.

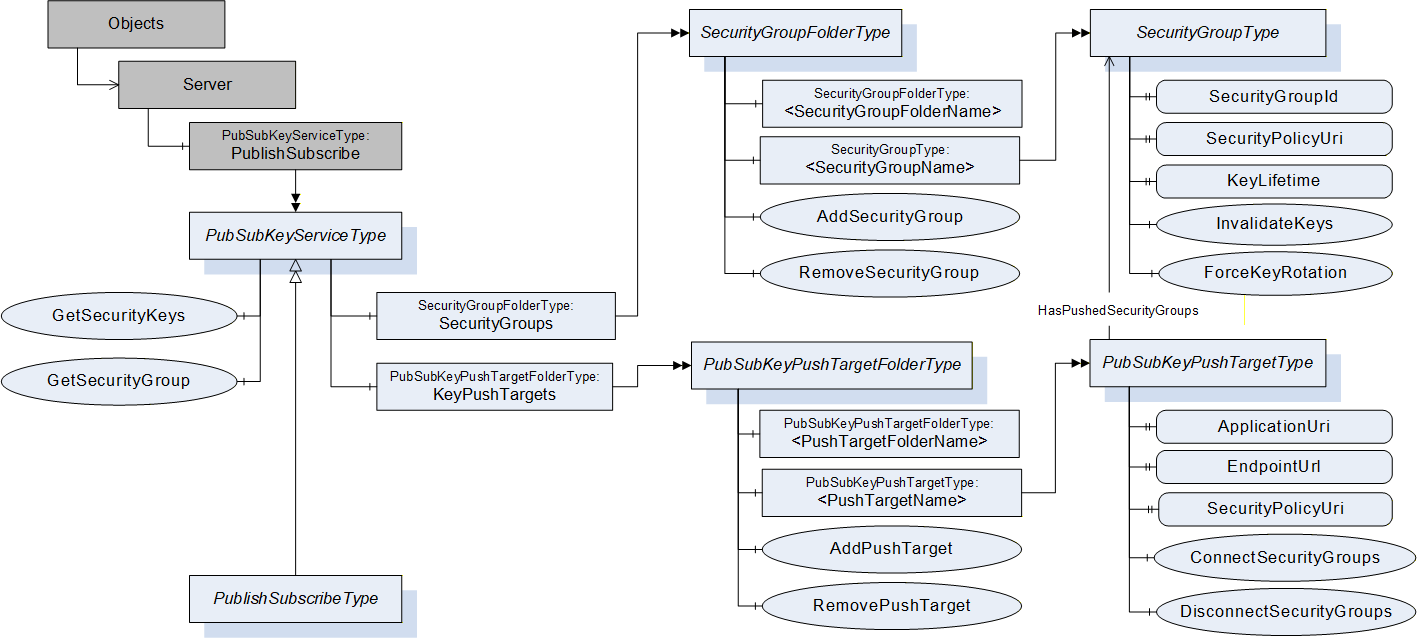

Figure 41 depicts the ObjectTypes and their components used to represent the SKS functionality in the PublishSubscribe Object.

The PublishSubscribe Object is the root node for all PubSub related configuration Objects. It is an instance of the PubSubKeyServiceType or the PublishSubscribeType and a component of the Server Object.

The PubSubKeyServiceType defines the Method for pull access to security keys and the related management of SecurityGroups. This ObjectType is used for the PublishSubscribe Object if only the Security Key Service functionality is provided. If the PubSub configuration functionality is provided, the PublishSubscribeType is used instead.

A SecurityGroup manages keys used for securing PubSub NetworkMessages. The SecurityGroups are organized by the SecurityGroupFolderType and represented by instances of the SecurityGroupType.

A PubSubKeyPushTarget is a Server to which the SKS should push keys. Each push target is related to a list of SecurityGroups.

The push targets are organized by the PubSubKeyPushTargetFolderType and represented by instances of the PubSubKeyPushTargetType. These instances are used by the SKS to push the security keys for related SecurityGroups into the Publisher or Subscriber.

The PublishSubscribeType contains the entry points for the PubSub configuration model defined in clause 9.

8.2 PublishSubscribe Object

To provide interoperability between Publishers, Subscribers, Security Key Services and configuration tools, all PubSub related Objects shall be exposed through an Object called “PublishSubscribe” that is of the type PubSubKeyServiceType or a subtype. This Object shall be a component of the Server Object. It is formally defined in Table 209.

8.3 PubSubKeyServiceType

8.3.1 PubSubKeyServiceType definition

The PubSubKeyServiceType is formally defined in Table 210.

The PubSubKeyServiceType ObjectType is a concrete type and can be used directly.

The SecurityGroups folder organizes the Objects representing the SecurityGroup configuration.

The KeyPushTargets folder organizes the Objects representing the PubSubKeyPushTarget configuration.

8.3.2 GetSecurityKeys Method

This Method is used to retrieve the security keys for a SecurityGroup.

This Method is required to access the security keys of a PubSubGroup where the SecurityGroup manages the security keys for PubSubGroups. The PubSubGroup Object contains the SecurityGroupId that shall be passed to this Method in order to access the keys for the PubSubGroup. Note that multiple PubSubGroups can share a SecurityGroupId.

The configuration parameter RolePermissions contained in the SecurityGroupDataType controls the access to the security keys for the SecurityGroupId. If the user used to call this Method does not have the Call Permission set for the RolePermissions parameter for the related SecurityGroupType Object, the Server shall return Bad_UserAccessDenied for this Method. The SecurityGroupType is defined in 8.4.

Encryption is required for this Method. The Method shall return Bad_SecurityModeInsufficient if the communication is not encrypted.

The information necessary to access the Server that implements the GetSecurityKeys Method for the SecurityGroup is also contained in the SecurityKeyServices setting of WriterGroup, ReaderGroup and DataSetReader.

The GetSecurityKeys Method can be implemented by a Publisher or by a central SKS. In both cases, the well-known NodeIds for the PublishSubscribe Object and the related GetSecurityKeys Method are used to call the GetSecurityKeys Method.

If the Publisher implements the GetSecurityKeys Method and the related SecurityGroup management, the keys are made invalid immediately after a SecurityGroup is removed or keys for a SecurityGroup are revoked.

If a central SKS implements the GetSecurityKeys Method and the related SecurityGroup management, the keys are no longer valid after a SecurityGroup is removed or keys for a SecurityGroup are revoked. However, Subscribers shall be prepared for Publishers using invalid keys until they have called the GetSecurityKeys Method.

Publishers using a central SKS shall call GetSecurityKeys always with StartingTokenId set to 0 and shall call the Method at a period of half the KeyLifetime. They can still request more than one key to bridge longer unavailability time of the SKS.

Subscribers should use a StartingTokenId of 0 the first time they call GetSecurityKeys. Subsequent call to request older or future keys can use specific StartingTokenIds.

Signature

	GetSecurityKeys (
		[in]	String 		SecurityGroupId,
		[in]	IntegerId		StartingTokenId,
		[in]	UInt32 		RequestedKeyCount,
		[out]	String 		SecurityPolicyUri,
	[out]	IntegerId 		FirstTokenId,
	[out]	ByteString[]	Keys,
	 	[out]	Duration 		TimeToNextKey,
		[out]	Duration 		KeyLifetime
		);


Method Result Codes

Table 211 specifies the AddressSpace representation for the GetSecurityKeys Method.

8.3.3 GetSecurityGroup Method

This Method provides a direct lookup of the NodeId of a SecurityGroupType Object based on a SecurityGroupId. It is used by a security administration tool to get the SecurityGroup Object for configuration of access permissions for the keys.

The SecurityGroupId is the identifier for the SecurityGroup in Publishers, Subscribers and the key Server. This Method returns the NodeId of the corresponding SecurityGroup Object Node providing the configuration and diagnostic options for a SecurityGroup.

Signature

	GetSecurityGroup (
		[in]	String	SecurityGroupId,
		[out]	NodeId	SecurityGroupNodeId
		);


Method Result Codes

Table 212 specifies the AddressSpace representation for the GetSecurityGroup Method.

8.4 SecurityGroupType

8.4.1 SecurityGroupType definition

The SecurityGroupType is formally defined in Table 213.

The configuration parameter RolePermissions contained in the SecurityGroupDataType controls the access to the security keys for the SecurityGroup through the Method GetSecurityKeys. The GetSecurityKeys Method is defined in 8.3.2. The Permission to access the keys is different to the Permission necessary to modify the configuration of SecurityGroups.

The Property SecurityGroupId contains the identifier for the SecurityGroup used in the key exchange Methods GetSecurityKeys and SetSecurityKeys in the PubSubGroupType.

The Property KeyLifetime defines the lifetime of a key in milliseconds.

The Property SecurityPolicyUri is the identifier for a SecurityPolicy. SecurityPolicies define the set of algorithms and key lengths used to secure the messages exchanged in the context of the SecurityGroup. The SecurityPolicies are defined in OPC 10000-7.

The Property MaxFutureKeyCount defines the maximum number of future keys returned by the Method GetSecurityKeys.

The Property MaxPastKeyCount defines the maximum number of historical keys stored by the SKS. The historical keys are necessary to allow Subscribers to request keys for older NetworkMessages.

8.4.2 InvalidateKeys Method

This Method invalidates the current and all future keys of this SecurityGroup. The keys will be replaced by new keys; indicated by a new current SecurityTokenId. The new current SecurityTokenId shall be incremented beyond the SecurityTokenId of the last invalidated future key.

If the SecurityGroup is related to one or more PubSubKeyPushTargets, the SKS shall push the new set of keys to all related PubSubKeyPushTargets.

The Client shall be authorized to modify the configuration for the SKS functionality and shall use at least a signed communication channel when invoking this Method on the Server.

Signature

	InvalidateKeys ();


Method Result Codes

Table 214 specifies the AddressSpace representation for the InvalidateKeys Method.

8.4.3 ForceKeyRotation Method

This Method forces a key update prior to expiration of KeyLifetime, i.e. it initiates an unplanned key rotation. The future keys of this SecurityGroup remain valid.

InvalidateKeys makes all keys invalid immediately and most likely this causes communication interruptions. The ForceKeyRotation Method allows faster rotation of keys without breaking communication e.g. for removing applications from a UDP multicast group.

If the SecurityGroup is related to one or more PushTargets, the SKS shall push an updated set of keys to all PushTargets.

The Client shall be authorized to modify the configuration for the SKS functionality and shall use at least a signed communication channel when invoking this Method on the Server.

Signature

	ForceKeyRotation ();


Method Result Codes

Table 215 specifies the AddressSpace representation for the ForceKeyRotation Method.

8.5 SecurityGroupFolderType

8.5.1 SecurityGroupFolderType definition

The SecurityGroupFolderType is formally defined Table 216.

The SecurityGroupFolderType ObjectType is a concrete type and can be used directly.

Instances of the SecurityGroupFolderType can contain SecurityGroup Objects or other instances of the SecurityGroupFolderType. This can be used to build a tree of folder Objects used to organize the configured SecurityGroups.

The SecurityGroup Objects are added as components to the instance of the SecurityGroupFolderType. A SecurityGroup Object is referenced only from one folder. If the folder is deleted, all referenced SecurityGroup Objects are deleted with the folder.

The SupportedSecurityPolicyUris Property contains a String array with the SecurityPolicyUris supported by the SKS. The Property shall be provided at the root SecurityGroupFolder. The default SecurityPolicyUri is the first array element.

8.5.2 AddSecurityGroup Method

This Method is used to add a SecurityGroupType Object to the SecurityGroupFolderType Object or to return an existing Object if the parameters match the configuration of an existing Object.

The Client shall be authorized to modify the configuration for the SKS functionality and shall use at least a signed communication channel when invoking this Method on the Server.

Signature

	AddSecurityGroup (
		[in]	String	SecurityGroupName,
		[in]	Duration	KeyLifetime,
		[in]	String	SecurityPolicyUri,
		[in]	UInt32	MaxFutureKeyCount,
		[in]	UInt32	MaxPastKeyCount,
		[out]	String	SecurityGroupId,
	[out]	NodeId	SecurityGroupNodeId
		);


Method Result Codes

Table 217 specifies the AddressSpace representation for the AddSecurityGroup Method.

8.5.3 RemoveSecurityGroup Method

This Method is used to remove a SecurityGroupType Object from the SecurityGroupFolderType Object.

The Client shall be authorized to modify the configuration for the SKS functionality and shall use at least a signed communication channelwhen invoking this Method on the Server.

See 8.3.2 for details on the lifetime of keys previously issued for this SecurityGroup.

Signature

	RemoveSecurityGroup (
		[in]	NodeId	SecurityGroupNodeId
		);


Method Result Codes

Table 218 specifies the AddressSpace representation for the RemoveSecurityGroup Method.

8.5.4 AddSecurityGroupFolder Method

This Method is used to add a SecurityGroupFolderType Object to a SecurityGroupFolderType Object.

The Client shall be authorized to modify the configuration for the PubSub functionality when invoking this Method on the Server.

Signature

	AddSecurityGroupFolder (
		[in]	String	Name,
		[out]	NodeId	SecurityGroupFolderNodeId
		);


Method Result Codes

Table 219 specifies the AddressSpace representation for the AddSecurityGroupFolder Method.

8.5.5 RemoveSecurityGroupFolder Method

This Method is used to remove a SecurityGroupFolderType Object from the parent SecurityGroupFolderType Object.

A successful removal of the SecurityGroupFolderType Object removes recursively all contained SecurityGroupType Objects and all contained SecurityGroupFolderType Objects.

The Client shall be authorized to modify the configuration for the PubSub functionality when invoking this Method on the Server.

Signature

	RemoveSecurityGroupFolder (
		[in]	NodeId	SecurityGroupFolderNodeId
		);


Method Result Codes

Table 220 specifies the AddressSpace representation for the RemoveSecurityGroupFolder Method.

8.6 PubSubKeyPushTargetType

8.6.1 PubSubKeyPushTargetType definition

The PubSubKeyPushTargetType is formally defined in Table 221.

An instance of this ObjectType includes all information required to establish a secure connection to the Server that is the target of a push operation as described in 5.4.5.3. If any of the connection information changes, the PubSubKeyPushTarget must be removed and a new PubSubKeyPushTarget with updated connection information must be added.

The Property ApplicationUri is the ApplicationUri of the Server that is the target of a push. The push operation shall fail if the ApplicationUri of the connected target Server does not match this parameter.

The Property EndpointUrl is the URL of the Endpoint of the Server that is the target of a push.

The Property SecurityPolicyUri is a String that contains the security policy the SKS shall use to establish a SecureChannel to the PubSubKeyPushTarget. The MessageSecurityMode shall always be SignAndEncrypt.

The Property UserTokenType contains the type of user toke to be used for the connection to the PubSubKeyPushTarget. The default is Anonymous and authorization is accomplished in this case with the application identity of the SKS.

The Property RequestedKeyCount is the number of keys that are to be pushed on each update. The minimum setting for this is three.

The Property RetryInterval defines the interval the SKS shall use to retry pushing keys after an error appeared.

The Property LastPushExecutionTime indicates the time the last push operation was executed successfully on the PubSubKeyPushTarget. A null DateTime value indicates that no successful push was executed.

The Property LastPushErrorTime indicates the last time a push operation failed on the PubSubKeyPushTarget. A null DateTime value indicates that no error has occurred.

8.6.2 Behaviour

The first push is started at the time a SecurityGroup is assigned to the PubSubKeyPushTarget. The assignment is done with the Method ConnectSecurityGroups or with a successful update of the PubSubKeyPushTargets with PubSubConfigurationType CloseAndUpdate. The sequence for push is described in 5.4.5.3.

In a period of half the KeyLifetime of a SecurityGroup, the SKS shall open a secure communication to each related PubSubKeyPushTargets and shall call SetSecurityKeys to push the security keys for a SecurityGroup into a Publisher or Subscriber. The SKS shall push the previous security key, the current key, and at least one future key to bridge longer unavailability time of the SKS. If it is not possible to push security keys to a PubSubKeyPushTarget due to errors in establishing the communication or due to errors returned from the SetSecurityKeys Method call, the SKS shall retry pushing the security keys in a period of RetryInterval. If multiple future security keys are pushed, it is up to the SKS to define when security keys are pushed, but at a minimum it shall be at the half KeyLifetime of the current key when only one future key is remaining.

Since the SKS is unaware of the state of a PubSubKeyPushTarget, it is recommended for a PubSubKeyPushTarget to persist security keys. This allows the PubSubKeyPushTarget to continue secured PubSub communication after a power cycle, as long as the outage time is smaller than the time covered with currentKey and FutureKeys. If keys are not persisted, it may take up to half the KeyLifetime to get the first set of security keys. The PubSubKeyPushTargets persisting security keys shall have an understanding of time (either synchronized or battery backup) allowing them to determine whether the current key is still valid to use, or whether to use a future key following a power interruption.

8.6.3 ConnectSecurityGroups

This Method connects instances of SecurityGroupType to this PubSubKeyPushTarget. This indicates that the SKS shall use the push model to distribute the keys of the SecurityGroup to the PubSubKeyPushTarget.

The SKS shall push keys following this assignment. If an assignment does already exist, the entry is ignored.

If the assignment for a SecurityGroup already exists, a Good_EntryReplaced should be returned for that SecurityGroup and a new push of the existing keys shall be triggered to the push target.

The Client shall be authorized to modify the configuration for the SKS functionality and shall use at least a signed communication channel when invoking this Method on the Server.

Signature

	ConnectSecurityGroups (
		[in]	NodeId[]		SecurityGroupIds,
		[out]	StatusCode[]	ConnectResults
	);


Method Result Codes

Operation Result Codes

Table 222 specifies the AddressSpace representation for the ConnectSecurityGroups Method.

8.6.4 DisconnectSecurityGroups Method

This Method disconnects instances of SecurityGroupType from this PubSubKeyPushTarget. This indicates that the SKS shall stop using the push model to distribute the keys of those SecurityGroups to the PubSubKeyPushTarget.

The Client shall be authorized to modify the configuration for the SKS functionality and shall use at least a signed communication channel when invoking this Method on the Server.

Signature

	DisconnectSecurityGroups (
		[in]	NodeId[]		SecurityGroupIds,
		[out]	StatusCode[]	DisconnectResults
	);


Method Result Codes

Operation Result Codes

Table 223 specifies the AddressSpace representation for the DisconnectSecurityGroups Method.

8.6.5 TriggerKeyUpdate Method

This Method triggers a key update of all SecurityGroups related to the PubSubKeyPushTarget. The SKS shall push the new set of keys for all related SecurityGroups, even if not currently scheduled.

The Client shall be authorized to modify the configuration for the SKS functionality and shall use at least a signed communication channel when invoking this Method on the Server.

Signature

	TriggerKeyUpdate ();


Method Result Codes

8.6.6 HasPushedSecurityGroup

The HasPushedSecurityGroup ReferenceType is a concrete ReferenceType that can be used directly. It is a subtype of the HierarchicalReferences ReferenceType.

The SourceNode of References of this type shall be an Object of ObjectType PubSubKeyPushTargetType or an ObjectType that is a subtype of PubSubKeyPushTargetType defined in 8.6.1.

The TargetNode of this ReferenceType shall be an Object of the ObjectType SecurityGroupType defined in 8.4.1.

Servers shall provide the inverse Reference that relates a SecurityGroup Object back to a PubSubKeyPushTargetType Object.

The representation of the HasPushedSecurityGroup ReferenceType in the AddressSpace is specified in Table 224.

Table 225 specifies the AddressSpace representation for the TriggerKeyUpdate Method.

8.7 PubSubKeyPushTargetFolderType

8.7.1 PubSubKeyPushTargetFolderType definition

The PubSubKeyPushTargetFolderType is formally defined Table 226.

Instances of the PubSubKeyPushTargetFolderType can contain PubSubKeyPushTarget Objects or other instances of the PubSubKeyPushTargetFolderType. This can be used to build a tree of folder Objects used to organize the configured PubSubKeyPushTargets.

The PubSubKeyPushTarget Objects are added as components to the instance of the PubSubKeyPushTargetFolderType. A PubSubKeyPushTargets is referenced only from one folder. If the folder is deleted, all referenced PubSubKeyPushTargets are deleted with the folder.

8.7.2 AddPushTarget Method

This Method is used to add a PubSubKeyPushTarget to a PubSubKeyPushTargetFolder or to return an existing Object if the parameters match the configuration of an existing Object.

The Client shall be authorized to modify the configuration for the SKS functionality and shall use at least a signed communication channel when invoking this Method on the Server.

Signature

	AddPushTarget (
		[in]	String		ApplicationUri,
	[in]	String		EndpointUrl,
	[in]	String		SecurityPolicyUri,
	[in]	UserTokenPolicy	UserTokenType,
	[in] 	UInt16		RequestedKeyCount,
	[in]	Duration 		RetryInterval,
	[out] NodeId		PushTargetId
	);


Method Result Codes

Table 227 specifies the AddressSpace representation for the AddPushTarget Method.

8.7.3 RemovePushTarget Method

This Method is used to remove a PubSubKeyPushTarget from the PushTargetFolder.

The Client shall be authorized to modify the configuration for the SKS functionality and shall use at least a signed communication channel when invoking this Method on the Server.

Signature

	RemovePushTarget (
		[in]	NodeId	PushTargetId
	);


Method Result Codes

Table 228 specifies the AddressSpace representation for the RemovePushTarget Method.

8.7.4 AddPushTargetFolder Method

This Method is used to add a PubSubKeyPushTargetFolderType Object to a PubSubKeyPushTargetFolderType Object.

The Client shall be authorized to modify the configuration for the PubSub functionality when invoking this Method on the Server.

Signature

	AddPushTargetFolder (
		[in]	String	Name,
		[out]	NodeId	PushTargetFolderNodeId
		);


Method Result Codes

Table 229 specifies the AddressSpace representation for the AddPushTargetFolder Method.

8.7.5 RemovePushTargetFolder Method

This Method is used to remove a PubSubKeyPushTargetFolderType Object from the parent PubSubKeyPushTargetFolderType Object.

A successful removal of the PubSubKeyPushTargetFolderType Object removes recursively all contained PubSubKeyPushTargetType Objects and all contained PubSubKeyPushTargetFolderType Objects.

The Client shall be authorized to modify the configuration for the PubSub functionality when invoking this Method on the Server.

Signature

	RemovePushTargetFolder (
		[in]	NodeId	PushTargetFolderNodeId
		);


Method Result Codes

Table 230 specifies the AddressSpace representation for the RemovePushTargetFolder Method.

8.8 Security Key Service Roles

A SKS should support the well-known Roles for SKS which are defined in Table 231. The NodeIds for the well-known Roles are defined in OPC 10000-6.
