7.18.1 General

This OPC UA ObjectType represents a BACnet Loop object type. This type defines the externally visible characteristics of a feedback control loop.

Figure 27 shows an overview for the BACnetLoopType with its Properties and related ObjectTypes. It is formally defined in Table 33.

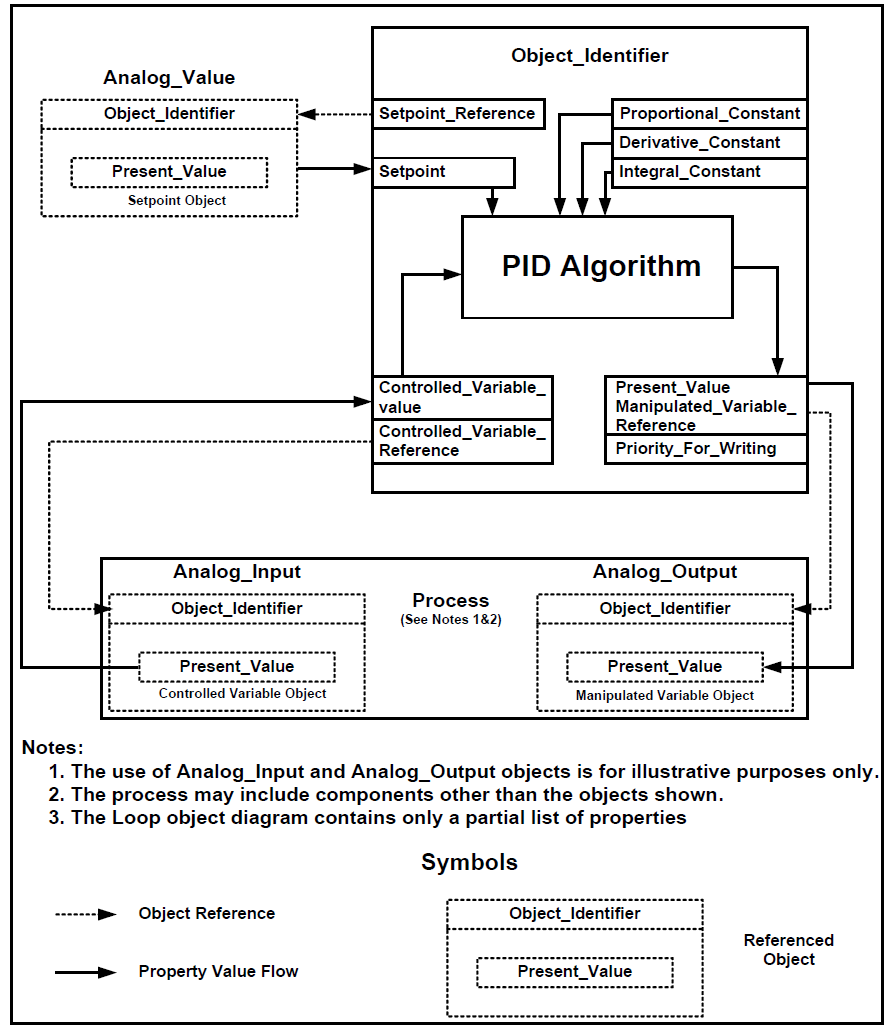

Figure 27 – BACnetLoopType overview (example PID loop)
