7.5 WeighingRangeElementType Definition
7.5.1 Overview

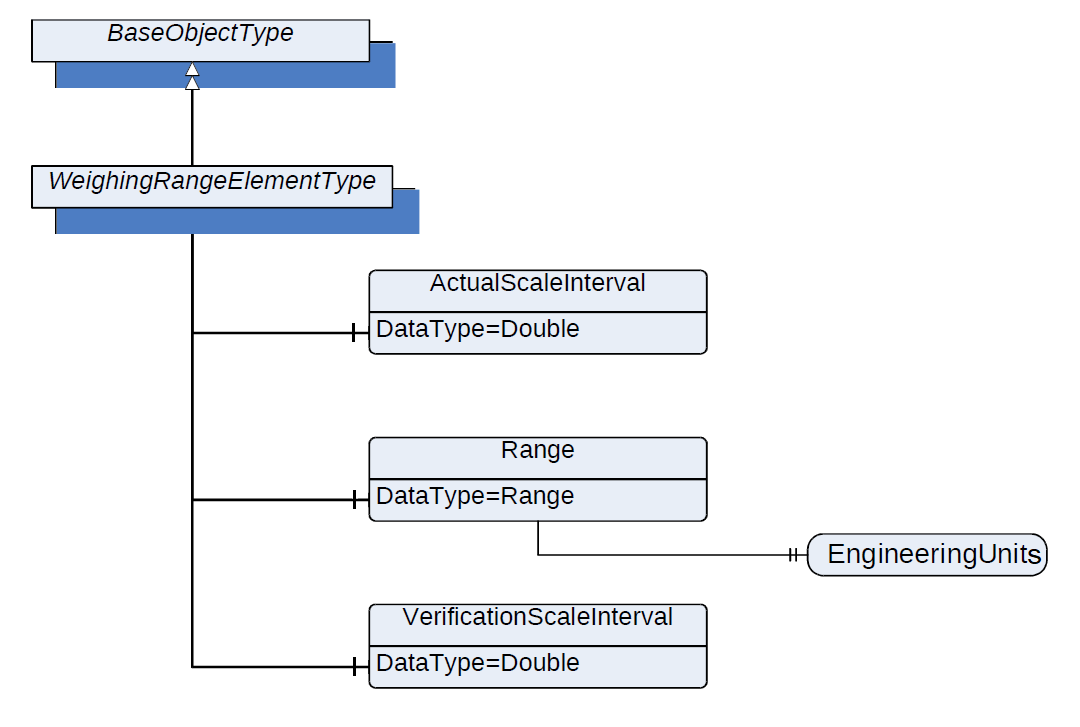

The WeighingRangeElementType defines the structure of an Object of WeighingRangeElementType. Figure 17 shows the hierarchical structure and details of the composition. It is formally defined in Table 25.
7.5.2 ObjectType Definition
| Attribute | Value | ||||
| BrowseName | WeighingRangeElementType | ||||
| IsAbstract | False | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | ModellingRule |
|---|---|---|---|---|---|
| Subtype of the BaseObjectType defined in OPC 10000-5 | |||||
| 0:HasComponent | Variable | ActualScaleInterval | 0:Double | AnalogUnitType | Mandatory |
| 0:HasComponent | Variable | Range | 0:Range | BaseDataVariableType | Mandatory |
| 0:HasComponent | Variable | VerificationScaleInterval | 0:Double | AnalogUnitType | Mandatory |
| Conformance Units | |||||
|---|---|---|---|---|---|
| Scales ScaleDeviceType |
7.5.3 ObjectType Description
ActualScaleInterval defines the difference between two consecutive indicated values.
Range defines the range within the scale that may be operated depending on the additional parameters within this type.
Range.EngineeringUnit defines the engineering unit of the range.
VerificationScaleInterval defines the value, expressed in units of mass, used for the classification and verification of an instrument.
The components of the WeighingRangeElementType have additional references which are defined in Table 26
| Source Path | References | NodeClass | BrowseName | DataType | TypeDefinition | Others |
| Range | 0:HasProperty | Variable | 0:EngineeringUnits | 0:EUInformation | 0:PropertyType | Mandatory |
