12.2 Profiles

12.2.1 Profile list

Table 163 lists all Profiles defined in this document and defines their URIs.

12.2.2 Server Facets

12.2.2.1 Overview

The following sections specify the Facets available for Servers that implement the Weighing Technology companion specification. Each section defines and describes a Facet or Profile.

12.2.2.2 Scales V2 Base Scale Server Facet

Table 164 defines a Facet for servers that implement a simple scale device.

12.2.2.3 Scales V2 Scale System Server Facet

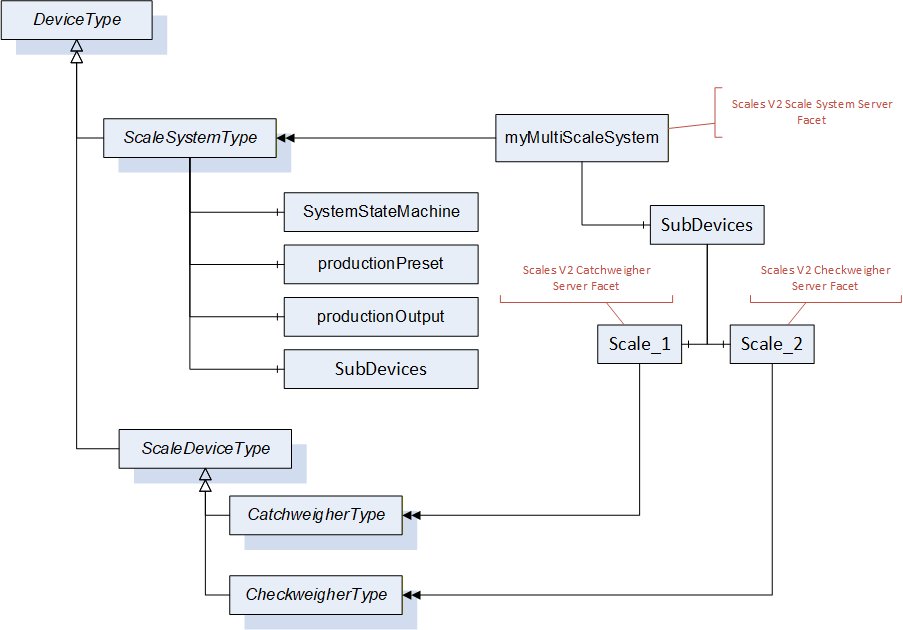

Table 165 defines a Facet for servers that implement a multi scale device with a ScaleSystemType. Figure 70 shows an example of a scale system with two scales as subdevices: a catchweigher and a checkweigher.

12.2.2.4 Scales V2 Feeder Module Server Facet

Table 166 defines a Facet for servers that implement feeder subdevices.

12.2.2.5 Scales V2 Printer Module Server Facet

Table 167 defines a Facet for servers that implement printer subdevices.

12.2.2.6 Scales V2 Minimal Production Preset Server Facet

12.2.2.7 Scales V2 Full Production Preset Server Facet

Table 169 defines a Facet for servers that implement a full production solution. This solution requires a dynamic address space. For each product a product Object will be created with the method AddProduct.

12.2.2.8 Scales V2 International System of Units Server Facet

Table 170 defines a Facet for servers that use only SI units or units derived from SI units.

12.2.2.9 Scales V2 AutomaticFillingScale Server Facet

Table 171 defines a Facet for servers that implement an AutomaticFillingScale.

12.2.2.10 Scales V2 Catchweigher Server Facet

Table 172 defines a Facet for servers that implement a catchweigher.

12.2.2.11 Scales V2 AutomaticWeightPriceLabeler Server Facet

Table 173 defines a Facet for servers that implement an automatic weight-price labeler.

12.2.2.12 Scales V2 Checkweigher Server Facet

Table 174 defines a Facet for servers that implement a checkweigher.

12.2.2.13 Scales V2 Continuous Scale Server Facet

Table 175 defines a Facet for servers that implement a continuous scale.

12.2.2.14 Scales V2 LossInWeight Scale Server Facet

Table 176 defines a Facet for servers that implement a loss in weight scale.

12.2.2.15 Scales V2 PieceCountingScale Server Facet

Table 177 defines a Facet for servers that implement a piece counting scale.

12.2.2.16 Scales V2 RecipeScale Server Facet

Table 178 defines a Facet for servers that implement a recipe scale.

12.2.2.17 Scales V2 Totalizing Hopper Scale Server Facet

Table 179 defines a Facet for servers that implement a totalizing hopper scale.

12.2.2.18 Scales V2 Simple Scale Server Facet

Table 180 defines a Facet for servers that implement a simple scale.

12.2.2.19 Scales V2 Laboratory Scale Server Facet

Table 181 defines a Facet for servers that implement a laboratory scale.

12.2.2.20 Scales V2 Hopper Scale Server Facet

Table 182 defines a Facet for servers that implement a hopper scale.

12.2.2.21 Scales V2 Weighing Bridge Server Facet

Table 183 defines a Facet for servers that implement a weighing module.

12.2.2.22 Scales V2 Vehicle Scale Server Facet

Table 184 Table 183 defines a Facet for servers that implement a vehicle scale.
