F.1 DataTypes for Connection Manager Configuration

F.1.1 Overview

This section describes DataTypes that can be used to serialise the Objects that compose a ConnectionConfigurationSet (see 6.8 and 6.10) into a single structure (ConnectionConfigurationSetDataType). The ConnectionConfigurationSetDataType can, for example, be used for persisting a ConnectionConfigurationSet, for storing it within a File (see F.2), or for maintaining the configuration of a ConnectionManager (see F.3).

For the base principles used for the mapping, see clause F.1.2.

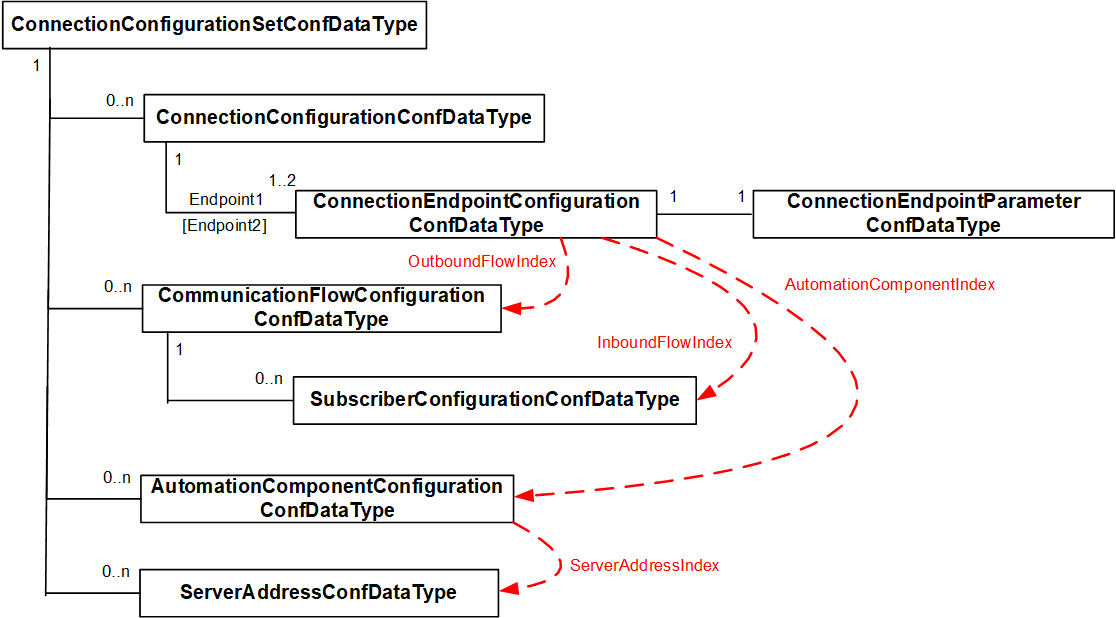

Figure F.1 depicts the different components of the ConnectionConfigurationSetDataType and their relation to each other.

Figure F.1 – ConnectionConfigurationSet serialisation

F.1.2 Base principles

F.1.2.1 References

References between Objects in different Object lists are mapped using an array index field for the related structure array. For example, the AutomationComponentConfigurationDataType has ServerAddressIndex that contains an index into the ServerAddress in the ConnectionConfigurationSetConfDataType. Indices are defined as Int32; a negative number indicates no Reference exists.

F.1.2.2 Namespaces

OPC UA uses Namespaces, and in a defined scope, all identifiers (NodeId, QualifiedName) use a NamespaceIndex instead of a NamespaceUri. The scope has a NamespaceArray with URIs where the NamespaceIndex is defined as an index into this array. For a Server, the scope is the complete Server. For a UANodeSet XML file, it is the file.

A ConnectionConfigurationSet (see 6.8.2) contains node identifiers related to different scopes, as illustrated in Figure F.2. In this illustration, the ConnectionConfigurationSet contains information for two different Servers. Node identifiers in the Information Model for the ConnectionManager (i.e., an instance of ConnectionConfigurationSetType) use PortableNodeIdentifier (see 10.36) to support the resolution for the dedicated scope (see also 13.3).

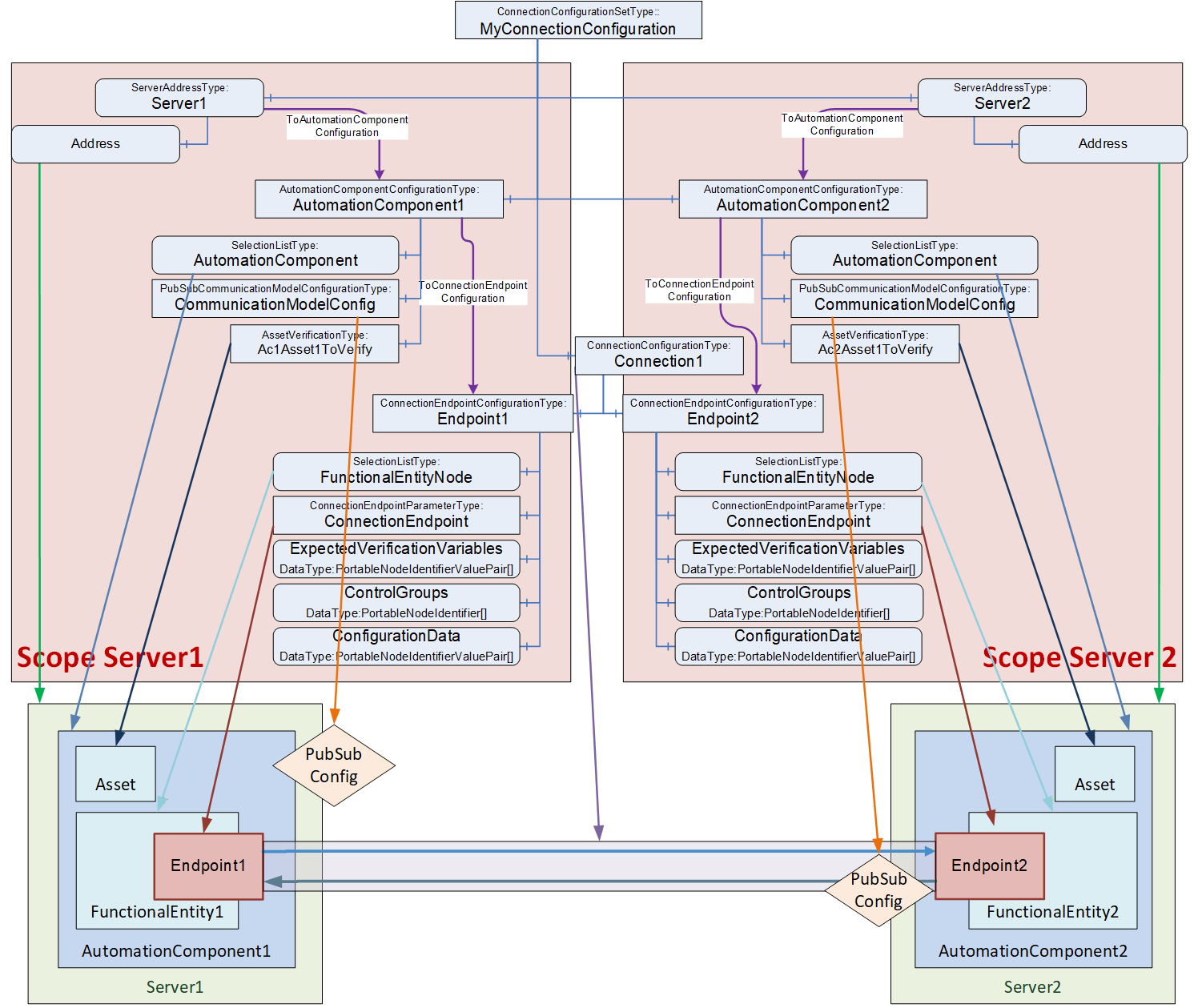

Figure F.2 – Scopes within a ConnectionConfigurationSet

To reduce the overall size of the DataTypes defined in this Clause (i.e. ConnectionConfigurationSetConfDataType), NodeId, AliasName and RelativePath are used instead of their portable version. The scope of those identifiers is defined by the related ServerAddressConfDataType structure, containing a Namespace array. The NamespaceIndex of a node identifier is used as an index into the Namespace array of the related ServerAddressConfDataType.

A ConnectionManager can map NodeId and RelativePath contained in the DataTypes to their portable versions using the NamespaceUri from the Namespace array when it loads the ConnectionConfigurationSet from the data structure.

F.1.2.3 SelectionListType

There is no generic DataType defined to represent a SelectionListType Variable. A generic definition would create additional overhead since the values can have different DataTypes.

To simplify the handling of SelectionListType, each Variable that is of SelectionListType is mapped to:

A Structure field with the corresponding DataType representing the current value. The field name is constructed from the Variable name (<Variable name>).

A Structure field with an array of the corresponding DataType representing the additional selection options (selectable values associated with the selection list – the list can contain only the current value if this selection list currently does not provide for modifications). The field name is constructed from the Variable name with a ‘Selection’ suffix (<Variable name>Selection).

A Structure field with DataType Boolean indicates if the list of selectable values is editable by a Client. The field is omitted if the specification requires that RestrictToList is set to TRUE (i.e. no values can be entered; only a selection is possible). The field name is constructed from the Variable name with a ‘Modify’ suffix (<Variable name>Modify).

F.1.2.4 Extensibility

Structured DataTypes can only be extended by subtyping. This is a problem if Structures are embedded into other Structures, e.g., the ConnectionConfigurationSet-related Structure has an array of AutomationComponent-related Structures. Therefore, each Structure has an additional field with an array of KeyValuePairs that can be used for potential future standardised or vendor-specific extensions.

F.1.2.5 Optional fields

Connection configuration and communication flow-related configuration Structures use Structures with optional fields to handle the optional Variables.

In other configuration Structures, AllowSubtypes is needed. Since AllowSubtypes cannot be combined with IsOptional, optional handling is done with empty arrays or null values for the used DataType.

F.1.3 ConnectionConfigurationSetConfDataType

This Structure DataType is used to hold the information for a ConnectionConfigurationSet.

It is semantically equivalent to the ConnectionConfigurationSetType as defined in 6.8.2, with the exception that the elements ConnectionConfigurationSetStateMachine, Edit, and Lock, as defined in the ConnectionConfigurationSetType, are not part of this DataType. If this DataType is converted to an Object, the ConnectionConfigurationSetStateMachine shall be in State Ready, the Edit shall be set to False, and the Lock shall be assigned to the ConnectionManager.

The ConnectionConfigurationSetConfDataType is formally defined in Table F.1.

Table F.1 – ConnectionConfigurationSetConfDataType structure

Name	Type	Description	Allow Subtypes
ConnectionConfigurationSetConfDataType	Structure	Subtype of Structure defined in OPC 10000-5
BrowseName	0:String	String part of the BrowseName of the ConnectionConfigurationSet.	False
ConnectionConfigurationSetFolder	0:String[]	Optional path of the ConnectionConfigurationSet folder used to group ConnectionConfigurationSets, where each entry in the String array represents one level in the folder hierarchy. If no grouping is needed, the parameter is a null or empty String array.	False
Connections	4:ConnectionConfigurationConfDataType[]	A list of Connection configurations to be established.	False
CommunicationFlows	4:CommunicationFlowConfigurationConfDataType[]	A list of communication model-specific configurations to apply to Connections.	True
ServerAddresses	4:ServerAddressConfDataType[]	A list of addressing information for AutomationComponents.	False
AutomationComponentConfigurations	4:AutomationComponentConfigurationConfDataType[]	A list of AutomationComponents used for Connection establishment.	False
RollbackOnError	0:Boolean	Indicates the behaviour that should be followed when there is an error on Connection establishment. If this Property is TRUE and an error occurs during the Connection establishment sequence, processing of the set will stop, and all established Connections that are part of this set shall be closed.	False
SecurityKeyServer	4:SecurityKeyServerAddressConfDataType	The location of the SKS to be used for PubSub security configuration of this ConnectionConfigurationSet, including SecurityGroups and PubSubKeyPushTargets. If the optional SKS configuration is to be omitted, the field shall be set to null.	False
Version	0:UInt32	The version of the ConnectionConfigurationSet.	False
ConnectionConfigurationSetProperties	0:KeyValuePair[]	The KeyValuePair array provides additional configuration properties for the ConnectionConfigurationSet.	False

The ConnectionConfigurationSetConfDataType representation in the AddressSpace is formally defined in Table F.2.

Table F.2 – ConnectionConfigurationSetConfDataType definition

Attribute		Value
BrowseName		4:ConnectionConfigurationSetConfDataType
IsAbstract		False

References	NodeClass		BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the 0:Structure defined in OPC 10000-5

ConformanceUnits
UAFX ConnectionManager File Configuration

F.1.4 ConnectionConfigurationConfDataType

This Structure DataType holds the information for a Connection configuration.

It is semantically equivalent to the ConnectionConfigurationType as defined in 6.10.2, except that the element ProcessingResult, as defined in the ConnectionConfigurationType, is not part of this DataType. If this DataType is converted to an Object, the ProcessingResult shall be set to Good.

The ConnectionConfigurationConfDataType is formally defined in Table F.3.

Table F.3 – ConnectionConfigurationConfDataType structure

Name	Type	Description	Optional
ConnectionConfigurationConfDataType	Structure	Subtype of Structure defined in OPC 10000-5
BrowseName	0:String	BrowseName of the ConnectionConfiguration	False
Endpoint1	4:ConnectionEndpointConfigurationConfDataType	The configuration information for the first endpoint of the Connection.	False
Endpoint2	4:ConnectionEndpointConfigurationConfDataType	The configuration information for the optional second endpoint of the Connection.	True
ConnectionProperties	0:KeyValuePair[]	The KeyValuePair array provides additional optional properties to configure the ConnectionConfigurationSet.	True

The ConnectionConfigurationConfDataType representation in the AddressSpace is formally defined in Table F.4.

Table F.4 – ConnectionConfigurationConfDataType definition

Attribute		Value
BrowseName		4:ConnectionConfigurationConfDataType
IsAbstract		False

References	NodeClass		BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the 0:Structure defined in OPC 10000-5

ConformanceUnits
UAFX ConnectionManager File Configuration

F.1.5 ConnectionEndpointConfigurationConfDataType

This Structure DataType holds the information for a ConnectionEndpoint configuration, including its parameters.

It is semantically equivalent to the ConnectionEndpointConfigurationType as defined in 6.11.2 and the ConnectionEndpointParameterType as defined in 6.12.2.

The ConnectionEndpointConfigurationConfDataType is formally defined in Table F.5.

Table F.5 – ConnectionEndpointConfigurationConfDataType structure

Name	Type	Description	Optional
ConnectionEndpointConfigurationConfDataType	Structure	Subtype of Structure defined in OPC 10000-5
FunctionalEntityNode	4:NodeIdentifier	FunctionalEntityNode specifies the identifier of the FunctionalEntity to configure for the Connection. If a RelativePath is specified, the path shall be relative to FxRoot.	False
FunctionalEntityNodeSelection	4:NodeIdentifier[]	Selection list options for FunctionalEntityNode.	True
FunctionalEntityNodeModify	0:Boolean	Flag indicating if the FunctionalEntityNode options can be modified.	True
Name	0:String	BrowseName of the ConnectionEndpoint to create in the AutomationComponent.	False
NameSelection	0:String[]	Selection list options for the endpoint name.	True
NameModify	0:Boolean	Flag indicating if the Name options can be modified.	True
ConnectionEndpointTypeId	0:NodeId	ConnectionEndpointTypeId specifies the well-known NodeId of the type definition, which shall be used to create the ConnectionEndpoint. This can be any of the subtypes of the ConnectionEndpointType (for example, PubSubConnectionEndpointType).	False
InputVariableIds	4:NodeIdentifier[]	InputVariableIds specifies a list of node identifiers to be used as inputs. If InputVariableIds is present, it shall contain at least one element. If the SubscribedDataSetData is configured, the size and order of the variables shall match the target variables in the SubscribedDataSetData. If the array is null or empty, the optional InputVariableIds node is not available. If a RelativePath is specified, the path shall be relative to the FunctionalEntityNode specified in the ConnectionEndpointConfigurations.	True
OutputVariableIds	4:NodeIdentifier[]	OutVariableIds specifies a list of node identifiers to be used as outputs. If OutputVariableIds is present, it shall contain at least one element. If the PublishedDataSetData is configured, the size and order of the variables shall match the source variables in the PublishedDataSetData. If the array is null or empty, the optional OutputVariableIds node is not available. If a RelativePath is specified, the path shall be relative to the FunctionalEntityNode specified in the ConnectionEndpointConfigurations.	True
IsPersistent	0:Boolean	IsPersistent, if TRUE, specifies that the created ConnectionEndpoint shall be persistent.	False
CleanupTimeout	0:Duration	CleanupTimeout specifies the value to be used for the clean-up timeout. A negative number indicates an infinite timeout. A zero indicates an immediate clean-up.	False
IsPreconfigured	0:Boolean	IsPreconfigured, if TRUE, specifies that the ConnectionEndpoint is preconfigured.	False
CommunicationLinks	0:Structure	CommunicationLinks specifies the configuration data related to this ConnectionEndpoint within the CommunicationModelConfiguration. If this field is set, it shall contain a subtype of 2:Communication LinkConfigurationDataType.	True
PreconfiguredPublishedDataSet	0:String	If it is not an empty string, it specifies the name of a preconfigured PublishedDataSet to be used for connecting the OutputVariables.	True
PublishedDataSetData	0:PublishedDataSetDataType	If not null, it specifies a PublishedDataSet to be used for connecting the OutputVariables.	True
PreconfiguredSubscribedDataSet	0:String	If it is not an empty string, it specifies the name of a preconfigured StandaloneSubscribedDataSet to be used for connecting the InputVariables. If the OutputVariableIds are not configured with NodeIds, the source variable NodeIds shall be null. They must be filled in by the ConnectionManager after getting the NodeIds from the AutomationComponent during connection establishment.	True
SubscribedDataSetData	0:StandaloneSubscribedDataSetDataType	If not null, it specifies a SubscribedDataSet to be used for connecting the InputVariables. If the InputVariableIds are not configured with NodeIds, the target variable NodeIds shall be null. They must be filled in by the ConnectionManager after getting the NodeIds from the AutomationComponent during connection establishment. If the InputVariableIds are not configured with NodeIds, the target variable NodeIds shall be null. They must be filled in by the ConnectionManager after getting the NodeIds from the AutomationComponent during connection establishment.	True
ExpectedVerificationVariables	NodeIdentifierValuePair[]	Specifies the Variables and values to be verified. If a RelativePath is specified as Key, the path shall be relative to FunctionalEntityNode. If the array is null or empty or the field is not present, no Variables are verified.	True
ControlGroups	NodeIdentifier[]	Specifies the ControlGroups to be controlled. If a RelativePath is specified as Key, the path shall be relative to FunctionalEntityNode. If the array is null or empty or the field is not present, no ControlGroups are controlled.	True
ConfigurationData	NodeIdentifierValuePair[]	Specifies the parameters to apply for the configuration of the FunctionalEntityNode. If a RelativePath is specified as Key, the path shall be relative to FunctionalEntityNode. If the array is null or empty or the field is not present, no parameters are set.	True
EndpointProperties	0:KeyValuePair[]	The KeyValuePair array provides additional configuration properties for the endpoint.	True
AutomationComponentIndex	0:Int32	Reference to the related AutomationComponent in the AutomationComponentConfigurations array of the connection set structure.	False
OutboundFlowIndex	0:Int32	Reference to the related communication flow in the CommunicationFlows array of the connection set structure. Any negative number indicates that no outbound is configured.	True
InboundFlowIndex	0:Int32 [2]	Reference to the related communication flow in the CommunicationFlows array (Publisher configuration) of the connection set structure (first index in the array) and to the contained SubscriberConfiguration (second index in the array).	True

The ConnectionEndpointConfigurationConfDataType representation in the AddressSpace is formally defined in Table F.6.

Table F.6 – ConnectionEndpointConfigurationConfDataType definition

Attribute		Value
BrowseName		4:ConnectionEndpointConfigurationConfDataType
IsAbstract		False

References	NodeClass		BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the 0:Structure defined in OPC 10000-5

ConformanceUnits
UAFX ConnectionManager File Configuration

F.1.6 CommunicationFlowConfigurationConfDataType

This abstract Structure DataType holds the information for an information flow.

It is semantically equivalent to the CommunicationFlowConfigurationType as defined in 6.13.2.

The CommunicationFlowConfigurationConfDataType is formally defined in Table F.7.

Table F.7 – CommunicationFlowConfigurationConfDataType structure

Name	Type	Description	Optional
CommunicationFlowConfigurationConfDataType	Structure	Subtype of Structure defined in OPC 10000-5
BrowseName	0:String	BrowseName of the information flow.	False
FlowProperties	0:KeyValuePair[]	The KeyValuePair array provides additional configuration properties for the flow.	True

The FlowProperties KeyValuePair array allows setting of optional configuration properties that extend the parameters defined for the CommunicationFlowConfigurationConfDataType.

The NamespaceIndex of the QualifiedName in the KeyValuePair for properties defined in this document shall be the namespace that has index 4 in this document. The Name of the QualifiedName is the property key from Table F.8. The DataType of the Value in the KeyValuePair shall be the DataType defined in Table F.8.

Table F.8 formally defines the CommunicationFlowConfigurationConfDataType configuration properties.

Table F.8 – CommunicationFlowConfigurationConfDataType properties

Key

DataType

Description

4:PubSubConnectionAddress

NetworkAddressDataType

Allows the configuration of the PubSubConnection Address for Publishers of a unidirectional connection without heartbeat or other cases where the Address configuration in the flow does not include the information needed to set the Address in the PubSubConnection.

One example is a unidirectional connection without heartbeat using UDP unicast.

The CommunicationFlowConfigurationConfDataType representation in the AddressSpace is formally defined in Table F.9.

Table F.9 – CommunicationFlowConfigurationConfDataType definition

Attribute		Value
BrowseName		4:CommunicationFlowConfigurationConfDataType
IsAbstract		True

References	NodeClass		BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the 0:Structure defined in OPC 10000-5

ConformanceUnits
UAFX ConnectionManager File Configuration

F.1.7 PubSubCommunicationFlowConfigurationConfDataType

This Structure DataType contains the configuration needed for both the publishing and subscribing of an information flow.

It is semantically equivalent to the PubSubCommunicationFlowConfigurationType as defined in 6.13.2.

The PubSubCommunicationFlowConfigurationConfDataType is formally defined in Table F.10.

Table F.10 – PubSubCommunicationFlowConfigurationConfDataType structure

Name	Type	Description	Optional
PubSubCommunicationFlowConfigurationConfDataType	Structure	Subtype of CommunicationFlowConfigurationConfDataType defined in F.1.4
Address	4:AddressSelectionDataType	Address specifies the destination network address to be used for transmission of NetworkMessages by the Publisher of the information flow.	True
TransportProfileUri	0:String	Optional TransportProfileUri specifies the transport protocol mapping and the message mapping to be used. If TransportProfileUri is omitted, the default transport protocol for the Address shall be used.	True
TransportProfileUriSelection	0:String[]	Selection list options for TransportProfileUri.	True
TransportProfileUriModify	0:Boolean	Flag indicating if the TransportProfileUri options can be modified.	True
HeaderLayoutUri	0:String	Optional HeaderLayoutUri specifies the UADP header formats for both NetworkMessages and DataSetMessages. If HeaderLayoutUri is omitted, a fixed layout for periodic data shall be used.	True
HeaderLayoutUriSelection	0:String[]	Selection list options for HeaderLayoutUri.	True
HeaderLayoutUriModify	0:Boolean	Flag indicating if the HeaderLayoutUri options can be modified.	True
PublishingInterval	0:Duration	PublishingInterval specifies the interval to be used for publishing NetworkMessages.	True
PublishingIntervalSelection	0:Duration[]	Selection list options for PublishingInterval.	True
PublishingIntervalModify	0:Boolean	Flag indicating if the PublishingInterval options can be modified.	True
Qos	4:CommunicationFlowQosDataType	The optional Qos specifies the Quality of Service to be used for the information flow.	True
QosSelection	4:CommunicationFlowQosDataType[]	Selection list options for Qos.	True
QosModify	0:Boolean	Flag indicating if the Qos options can be modified.	True
SecurityMode	0:MessageSecurityMode	The optional SecurityMode specifies the security mode to be used for the information flow.	True
SecurityModeSelection	0:MessageSecurityMode[]	Selection list options for SecurityMode.	True
SecurityModeModify	0:Boolean	Flag indicating if the SecurityMode options can be modified.	True
SecurityGroupId	0:String	The optional SecurityGroupId specifies the security group to be used for the information flow.	True
SecurityGroupIdSelection	0:String[]	Selection list options for SecurityGroupId.	True
SecurityGroupIdModify	0:Boolean	Flag indicating if the SecurityGroupId options can be modified.	True
SubscriberConfigurations	4:SubscriberConfigurationConfDataType[]	Defines the configuration for Subscriber(s) of the information flow.	True

The PubSubCommunicationFlowConfigurationConfDataType representation in the AddressSpace is formally defined in Table F.11.

Table F.11 – PubSubCommunicationFlowConfigurationConfDataType definition

Attribute		Value
BrowseName		4:PubSubCommunicationFlowConfigurationConfDataType
IsAbstract		False

References	NodeClass		BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the 4:CommunicationFlowConfigurationConfDataType defined in OPC 10000-5

ConformanceUnits
UAFX ConnectionManager File Configuration

F.1.8 SubscriberConfigurationConfDataType

This structure DataType describes the Subscriber-specific information for the Subscriber of an information flow.

It is semantically equivalent to the SubscriberConfigurationType as defined in 6.13.3.3.

The SubscriberConfigurationConfDataType is formally defined in Table F.12.

Table F.12 – SubscriberConfigurationConfDataType structure

Name	Type	Description	Optional
SubscriberConfigurationConfDataType	Structure	Subtype of Structure defined in OPC 10000-5
BrowseName	0:String	BrowseName of the flow.	False
Address	4:AddressSelectionDataType	Address specifies the network address to be used for the reception of NetworkMessages at the Subscriber of the information flow.	True
MessageReceiveTimeout	0:Duration	MessageReceiveTimeout specifies the maximum acceptable time between DataSetMessages received by the Subscriber.	False
MessageReceiveTimeoutSelection	0:Duration[]	Selection list options for MessageReceiveTimeout.	True
MessageReceiveTimeoutModify	0:Boolean	Flag indicating if the MessageReceiveTimeout options can be modified.	True
ReceiveQos	4:ReceiveQosSelectionDataType	The optional ReceiveQos specifies the Quality of Service to be used for the Subscriber of the information flow. It shall only be present if Qos is present in the parent Object.	True
SubscriberProperties	0:KeyValuePair[]	The KeyValuePair array provides additional configuration properties for the flow.	True

The SubscriberConfigurationConfDataType representation in the AddressSpace is formally defined in Table F.13.

Table F.13 – SubscriberConfigurationConfDataType definition

Attribute		Value
BrowseName		4:SubscriberConfigurationConfDataType
IsAbstract		False

References	NodeClass		BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the 0:Structure defined in OPC 10000-5

ConformanceUnits
UAFX ConnectionManager File Configuration

F.1.9 AutomationComponentConfigurationConfDataType

This Structure DataType holds the information related to the AutomationComponent participating in a Connection.

It is semantically equivalent to the AutomationComponentConfigurationType as defined in 6.13.2.

The AutomationComponentConfigurationConfDataType is formally defined in Table F.14.

Table F.14 – AutomationComponentConfigurationConfDataType structure

Name	Type	Description	Allow Subtypes
AutomationComponentConfigurationConfDataType	Structure	Subtype of Structure defined in OPC 10000-5
BrowseName	0:String	BrowseName of the AutomationComponent.	False
AutomationComponentNode	4:NodeIdentifier	AutomationComponentNode specifies the AutomationComponent that is to be used for establishing Connections. If a RelativePath is specified, the path shall be relative to FxRoot.	False
AutomationComponentNodeSelection	4:NodeIdentifier[]	Selection list options for AutomationComponentNode.	False
AutomationComponentNodeModify	0:Boolean	Flag indicating if the AutomationComponentNode options can be modified.	False
CommandBundleRequired	0:Boolean	CommandBundleRequired, when TRUE, specifies that the ConnectionManager shall bundle commands to this AutomationComponent.	False
AssetVerification	4:AssetVerificationConfDataType[]	The Asset verification parameters for Assets associated with the AutomationComponent. If the optional AssetVerification is not available, the field is null.	False
CommunicationModelConfig	4:CommunicationModelConfigurationDataType	Provides the ConfigurationData specific to the communication model utilised by the Connections. If the optional CommunicationModelConfig is to be omitted, the field shall be set to null.	True
AutomationComponentProperties	0:KeyValuePair[]	The KeyValuePair array provides additional configuration properties for the AutomationComponent.	False
ServerAddressIndex	0:Int32	Reference to the related Server in the ServerAddresses array of the connection set structure.	False

The AutomationComponentConfigurationConfDataType representation in the AddressSpace is formally defined in Table F.15.

Table F.15 – AutomationComponentConfigurationConfDataType definition

Attribute		Value
BrowseName		4:AutomationComponentConfigurationConfDataType
IsAbstract		False

References	NodeClass		BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the 0:Structure defined in OPC 10000-5

ConformanceUnits
UAFX ConnectionManager File Configuration

F.1.10 SecurityKeyServerAddressConfDataType

This Structure DataType holds the information for the SecurityKeyServer.

The SecurityKeyServerAddressConfDataType is formally defined in Table F.16.

Table F.16 – SecurityKeyServerAddressConfDataType definition

Name	Type	Description	Optional
SecurityKeyServerAddressConfDataType	Structure	Subtype of Structure defined in OPC 10000-5
Address	0:UriString	Address is specified as a DiscoveryUrl of the server to connect to for connection establishment.	False
AddressSelection	0:UriString[]	Selection list options for Address.	True
AddressModify	0:Boolean	Flag indicating if the Address options can be modified.	True
SecurityPolicyUri	0:String	SecurityPolicyUri is a string that contains the security policy to use when establishing the secure communication.	False
SecurityPolicyUriSelection	0:String[]	Selection list options for SecurityPolicyUri.	True
SecurityPolicyUriModify	0:Boolean	Flag indicating if the SecurityPolicyUri options can be modified.	True
ServerUri	0:UriString	ServerUri is a string that reflects the ApplicationUri of the Server. It can be used to cryptographically verify the Server. The ServerUri can also be a null string, in which case it will not be used to validate the Server.	False
ServerUriSelection	0:UriString[]	Selection list options for ServerUri.	True
ServerUriModify	0:Boolean	Flag indicating if the ServerUri options can be modified.	True
UsePushModel	0:Boolean	If TRUE, use the SKS push model. If FALSE, use the SKS pull model.	False
SecurityGroups	0:SecurityGroupDataType[]	Defines the security groups to be applied at the SKS for PubSub security configuration of this ConnectionConfigurationSet.	True
PubSubKeyPushTargets	0:PubSubKeyPushTargetDataType[]	Defines the push key targets to be applied at the SKS for PubSub security configuration of this ConnectionConfigurationSet.	True
SksProperties	0:KeyValuePair[]	The KeyValuePair array provides additional configuration properties for the SecurityKeyServer.	True

The SecurityKeyServerAddressConfDataType representation in the AddressSpace is formally defined in Table F.17.

Table F.17 – SecurityKeyServerAddressConfDataType definition

Attribute		Value
BrowseName		4:SecurityKeyServerAddressConfDataType
IsAbstract		False

References	NodeClass		BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the 0:Structure defined in OPC 10000-5

ConformanceUnits
UAFX ConnectionManager File Configuration

F.1.11 ServerAddressConfDataType

This Structure DataType holds the information for the Server address.

It is semantically equivalent to the ServerAddressType as defined in 9.2.2, except that the field Namespaces is added to the ServerAddressConfDataType. For the handling of this field, see F.1.2.2.

The ServerAddressConfDataType is formally defined in Table F.18.

Table F.18 – ServerAddressConfDataType structure

Name	Type	Description	Optional
ServerAddressConfDataType	Structure	Subtype of Structure defined in OPC 10000-5
BrowseName	0:String	BrowseName of the Server address.	False
Address	0:UriString	Address is specified as a DiscoveryUrl of the server to connect to for connection establishment.	False
AddressSelection	0:UriString[]	Selection list options for Address.	True
AddressModify	0:Boolean	Flag indicating if the Address options can be modified.	True
SecurityMode	0:MessageSecurityMode	SecurityMode is the MessageSecurityMode to be used for establishing a secure communication to the Address.	False
SecurityModeSelection	0:MessageSecurityMode[]	Selection list options for SecurityMode.	True
SecurityModeModify	0:Boolean	Flag indicating if the SecurityMode options can be modified.	True
SecurityPolicyUri	0:String	SecurityPolicyUri is a string that contains the security policy to use when establishing the secure communication.	False
SecurityPolicyUriSelection	0:String[]	Selection list options for SecurityPolicyUri.	True
SecurityPolicyUriModify	0:Boolean	Flag indicating if the SecurityPolicyUri options can be modified.	True
ServerUri	0:UriString	ServerUri is a string that reflects the ApplicationUri of the Server. It can be used to cryptographically verify the Server. The ServerUri can also be a null string, in which case it will not be used to validate the Server.	False
ServerUriSelection	0:UriString[]	Selection list options for ServerUri.	True
ServerUriModify	0:Boolean	Flag indicating if the ServerUri options can be modified.	True
ServerProperties	0:KeyValuePair[]	The KeyValuePair array provides additional configuration properties for the Server.	True
Namespaces	0:String[]	Namespace table for translation of NodeIds and RelativePaths related to this Server. For further details, see F.1.2.2.	False

The ServerAddressConfDataType representation in the AddressSpace is formally defined in Table F.19.

Table F.19 – ServerAddressConfDataType definition

Attribute		Value
BrowseName		4:ServerAddressConfDataType
IsAbstract		False

References	NodeClass		BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the 0:Structure defined in OPC 10000-5

ConformanceUnits
UAFX ConnectionManager File Configuration

F.1.12 AssetVerificationConfDataType

The AssetVerificationDataConfType is used to store the information needed for Asset verification.

It is semantically equivalent to the AssetVerificationType as defined in 6.15.2.

The AssetVerificationConfDataType is formally defined in Table F.20.

Table F.20 – AssetVerificationConfDataType structure

Name	Type	Description	Optional
AssetVerificationConfDataType	Structure	Subtype of Structure defined in OPC 10000-5
AssetToVerify	4:NodeIdentifier	Specifies the expected Asset to be verified. If a RelativePath is specified, the path shall be relative to AutomationComponentNode.	False
VerificationMode	2:AssetVerificationModeEnum	The mode to use for the verification (compatibility and/or identity).	False
ExpectedVerificationResult	2:AssetVerificationResultEnum	The expected level of compatibility that this Asset shall provide	False
ExpectedVerificationVariables	4:NodeIdentifierValuePair[]	The variables to be verified for compatibility and/or identity. If a RelativePath is specified, the path shall be relative to the expected Asset.	False
ExpectedAdditionalVerificationVariables	4:NodeIdentifierValuePair[]	The additional variables to be verified for compatibility and/or identity. If a RelativePath is specified, the path shall be relative to the expected Asset.	False
AssetProperties	0:KeyValuePair[]	The KeyValuePair array provides additional configuration properties for the Asset verification.	True

The AssetVerificationConfDataType representation in the AddressSpace is formally defined in Table F.21.

Table F.21 – AssetVerificationConfDataType definition

Attribute		Value
BrowseName		4:AssetVerificationConfDataType
IsAbstract		False

References	NodeClass		BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the 0:Structure defined in OPC 10000-5

ConformanceUnits
UAFX ConnectionManager File Configuration

F.1.13 CommunicationModelConfigurationDataType

The CommunicationModelConfigurationDataType is formally defined in Table F.22.

It is semantically equivalent to the CommunicationModelConfigurationType as defined in 6.16.2.

Table F.22 – CommunicationModelConfigurationDataType structure

Name	Type	Description
CommunicationModelConfigurationDataType	Structure	Subtype of Structure defined in OPC 10000-5

The CommunicationModelConfigurationDataType representation in the AddressSpace is formally defined in Table F.23.

Table F.23 – CommunicationModelConfigurationDataType definition

Attribute		Value
BrowseName		4:CommunicationModelConfigurationDataType
IsAbstract		True

References	NodeClass		BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the 0:Structure defined in OPC 10000-5

ConformanceUnits
UAFX ConnectionManager File Configuration

F.1.14 PubSubCommunicationModelConfigurationDataType

The PubSubCommunicationModelConfigurationDataType is formally defined in Table F.24.

It is semantically equivalent to the PubSubCommunicationModelConfigurationType as defined in 6.16.3.2.

Table F.24 – PubSubCommunicationModelConfigurationDataType structure

Name	Type	Description
PubSubCommunicationModelConfigurationDataType	Structure	Subtype of CommunicationModelConfigurationDataType defined in F.1.13.
PubSubConfiguration	0:PubSubConfiguration2DataType	PubSub configuration for the addressed Server when establishing Connections.
TranslationTable	4:NodeIdTranslationDataType[]	NodeIds contained in the PubSubConfiguration, which use the special namespace “http://opcfoundation.org/UA/FX/CM/Translation/”, are not valid NodeIds but placeholders which shall be resolved before the ConnectionManager can use the PubSubConfiguration for connection establishment.
ConfigurationReferences	0:PubSubConfigurationRefDataType[]	ConfigurationReferences points to elements within the PubSubConfiguration and indicates whether they are to be added, matched, modified, or removed.

The PubSubCommunicationModelConfigurationDataType representation in the AddressSpace is formally defined in Table F.25.

Table F.25 – PubSubCommunicationModelConfigurationDataType definition

Attribute		Value
BrowseName		4:PubSubCommunicationModelConfigurationDataType
IsAbstract		False

References	NodeClass		BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of CommunicationModelConfigurationDataType defined in F.1.13

ConformanceUnits
UAFX ConnectionManager File Configuration

F.1.15 NodeIdentifier

The NodeIdentifier is used to store an identifier, where the identifier can be NodeId, Alias String, or a RelativePath.

It is semantically equivalent to the PortableNodeIdentifier as defined in 10.36, except it uses the optimisation as described in F.1.2.2.

The NodeIdentifier DataType is formally defined in Table F.26.

Table F.26 – NodeIdentifier union

Name	Type	Description
NodeIdentifier	Union	Subtype of Union defined in OPC 10000-5
Node	0:NodeId	The NodeId of the Node. The NamespaceIndex of the NodeId relates to the Namespaces in the ServerAddressConfDataType (see F.1.11) of the related Server.
Alias	0:String	The AliasName of the Node.
IdentifierBrowsePath	0:RelativePath	The IdentifierBrowsePath to the Node. The starting Node of the IdentifierBrowsePath shall be specified where this type is used. A NamespaceIndex in the RelativePath relates to the Namespaces in the ServerAddressConfDataType (see F.1.11) of the related Server.

The NodeIdentifier representation in the AddressSpace is formally defined in Table F.27.

Table F.27 – NodeIdentifier definition

Attribute		Value
BrowseName		4:NodeIdentifier
IsAbstract		False

References	NodeClass		BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the 0:Union defined in OPC 10000-5

ConformanceUnits
UAFX ConnectionManager File Configuration

F.1.16 NodeIdentifierValuePair

The NodeIdentifierValuePair is used to provide a key-value pair where the key is a Variable Node.

It is semantically equivalent to the PortableKeyValuePair as defined in 10.35 with the optimisation as described in F.1.2.2.

The NodeIdentifierValuePair DataType is formally defined in Table F.28.

Table F.28 – NodeIdentifierValuePair structure

Name	Type	Description
NodeIdentifierValuePair	Structure	Subtype of Structure defined in OPC 10000-5
Key	4:NodeIdentifier	The Key to the Variable.
ArrayIndex	0:UInt32[]	If Key refers to a Variable with ValueRank >= 1, the ArrayIndex specifies the index for a specific value referenced by Key (Not the entire array, but a specific element in it). The ArrayIndex is required to have the same dimension as the dimension of the node. If Key is not of array type, or if no specific index shall be referenced, then the array shall be null or empty.
Value	0:BaseDataType	The value associated with the key/array item.

The NodeIdentifierValuePair representation in the AddressSpace is formally defined in Table F.29.

Table F.29 – NodeIdentifierValuePair definition

Attribute		Value
BrowseName		4:NodeIdentifierValuePair
IsAbstract		False

References	NodeClass		BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the 0:Structure defined in OPC 10000-5

ConformanceUnits
UAFX ConnectionManager File Configuration

F.1.17 NodeIdTranslationConfDataType

This NodeIdTranslationConfDataType is used to provide table entries for the conversion of NodeId to NodeIdentifier (see F.1.15).

It is semantically equivalent to the NodeIdTranslationDataType as defined in 10.33 with the optimisation as described in F.1.2.2.

The NodeIdTranslationConfDataType is formally defined in Table F.30.

Table F.30 – NodeIdTranslationConfDataType structure

Name	Type	Description
NodeIdTranslationConfDataType	Structure	Subtype of Structure defined in OPC 10000-5
NodePlaceholder	0:NodeId	NodeId to be converted to the result of resolving the NodeIdentifier.
Node	4:NodeIdentifier	Specifies the NodeIdentifier corresponding to the NodeId of the NodePlaceholder.

The NodeIdTranslationConfDataType representation in the AddressSpace is formally defined in Table F.31.

Table F.31 – NodeIdTranslationConfDataType definition

Attribute		Value
BrowseName		4:NodeIdTranslationConfDataType
IsAbstract		False

References	NodeClass		BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the 0:Structure defined in OPC 10000-5

ConformanceUnits
UAFX ConnectionManager File Configuration

F.1.18 AddressSelectionDataType

The AddressSelectionDataType holds the selection list for a network address (see F.1.2.3). It allows the address selection to be optional, where this DataType is used (see F.1.7 and F.1.8).

The AddressSelectionDataType is formally defined in Table F.32.

Table F.32 – AddressSelectionDataType structure

Name	Type	Description	Allow Subtypes
AddressSelectionDataType	Structure	Subtype of Structure defined in OPC 10000-5
Address	0:NetworkAddressDataType	Network address configured.	True
AddressSelection	0:NetworkAddressDataType[]	Selection list options for Address.	True
AddressModify	0:Boolean	Flag indicating if the Address options can be modified.	False

The AddressSelectionDataType representation in the AddressSpace is formally defined in Table F.33.

Table F.33 – AddressSelectionDataType definition

Attribute		Value
BrowseName		4:AddressSelectionDataType
IsAbstract		False

References	NodeClass		BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the 0:Structure defined in OPC 10000-5

ConformanceUnits
UAFX ConnectionManager File Configuration

F.1.19 ReceiveQosSelectionDataType

The ReceiveQosSelectionDataType holds the selection list for a receive QoS configuration (see F.1.2.3). It allows making the receive QoS selection optional, where this DataType is used (see F.1.7 and F.1.8).

The ReceiveQosSelectionDataType is formally defined in Table F.34.

Table F.34 – ReceiveQosSelectionDataType structure

Name	Type	Description	Allow Subtypes
ReceiveQosSelectionDataType	Structure	Subtype of Structure defined in OPC 10000-5
ReceiveQos	0:ReceiveQosDataType[]	The ReceiveQos configuration.	True
ReceiveQosSelection	0:BaseDataType	Selection list options for ReceiveQos. The field will contain a matrix of subtypes of ReceiveQosDataType. If the field is not provided, it is null.	False
ReceiveQosModify	0:Boolean	Flag indicating if the ReceiveQos options can be modified.	False

The ReceiveQosSelection is of BaseDataType and thus requires a subtype to be used. The flag AllowSubtypes is only set if the type can be used as well as subtypes.

The ReceiveQosSelectionDataType representation in the AddressSpace is formally defined in Table F.35.

Table F.35 – ReceiveQosSelectionDataType definition

Attribute		Value
BrowseName		4:ReceiveQosSelectionDataType
IsAbstract		False

References	NodeClass		BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the 0:Structure defined in OPC 10000-5

ConformanceUnits
UAFX ConnectionManager File Configuration
