10.44 ReserveCommunicationIdsResultDataType
10.44.1 Overview
The ReserveCommunicationIdsResultDataType is an abstract structure used to return the requested communication model-specific identifier from the EstablishConnections Method.

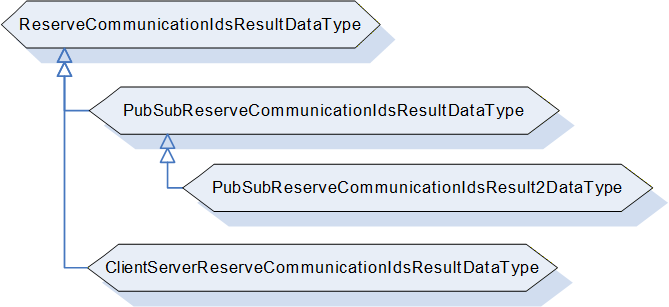

The ReserveCommunicationIdsResultDataType is illustrated in Figure 61.
10.44.2 ReserveCommunicationIdsResultDataType definition
The ReserveCommunicationIdsResultDataType, formally defined in Table 215, is an abstract type that has no structure and is expected to be subtyped.
| Attributes | Value | ||
| BrowseName | 2:ReserveCommunicationIdsResultDataType | ||
| IsAbstract | True | ||
| References | Node Class | BrowseName | Description |
|---|---|---|---|
| Subtype of the 0:Structure defined in OPC 10000-5 | |||
| HasSubtype | DataType | 2:PubSubReserveCommunicationIdsResultDataType | Defined in 10.44.3 |
| ConformanceUnits | |||
|---|---|---|---|
| UAFX AutomationComponent Base | |||
| UAFX ConnectionManager Base |
10.44.3 PubSubReserveCommunicationIdsResultDataType
The PubSubReserveCommunicationIdsResultDataType is formally defined in Table 216.
| Name | Type | Description |
|---|---|---|
| PubSubReserveCommunicationIdsResultDataType | Structure | Subtype of the ReserveCommunicationIdsResultDataType |
| Result | 0:StatusCode | Indicates the overall result of reserving the IDs. |
| DefaultPublisherId | 0:BaseDataType | Indicates the default PublisherId of the addressed Server for the requested TransportProfileUri. |
| WriterGroupIds | 0:UInt16[] | Indicates the reserved IDs for WriterGroups for the requested TransportProfileUri. |
| DataSetWriterIds | 0:UInt16[] | Indicates the reserved IDs for DataSetWriters for the requested TransportProfileUri. |
The PubSubReserveCommunicationIdsResultDataType representation in the AddressSpace is formally defined in Table 217.
| Attribute | Value | |||||
| BrowseName | 2:PubSubReserveCommunicationIdsResultDataType | |||||
| IsAbstract | False | |||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other | |
|---|---|---|---|---|---|---|
| Subtype of the 2:ReserveCommunicationIdsResultDataType | ||||||
| ConformanceUnits | ||||||
|---|---|---|---|---|---|---|
| UAFX AutomationComponent PubSub Connections | ||||||
| UAFX ConnectionManager PubSubCommunicationFlowConfiguration |
10.44.4 PubSubReserveCommunicationIdsResult2DataType
The PubSubReserveCommunicationIdsResult2DataType is formally defined in Table 218.
| Name | Type | Description |
|---|---|---|
| PubSubReserveCommunicationIdsResult2DataType | Structure | Subtype of the PubSubReserveCommunicationIdsResultDataType. |
| TransportSpecificInfo | 0:BaseDataType | Transport-profile-specific information needed by the ConnectionManager to create a valid PubSubConfiguration for an AutomationComponent. If transport-specific information was requested for UDP-UADP, this field shall contain the UDP port number used by the addressed AutomationComponent for receiving UDP unicast traffic, encoded as UInt16. If transport-specific information was not requested, or if AutomationComponent has no transport-specific info for the given TransportProfileUri, this field shall be set to NULL. |
The PubSubReserveCommunicationIdsResult2DataType representation in the AddressSpace is formally defined in Table 219.
| Attribute | Value | |||||
| BrowseName | 2:PubSubReserveCommunicationIdsResult2DataType | |||||
| IsAbstract | False | |||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other | |
|---|---|---|---|---|---|---|
| Subtype of the 2:PubSubReserveCommunicationIdsResultDataType | ||||||
| ConformanceUnits | ||||||
|---|---|---|---|---|---|---|
| UAFX AutomationComponent PubSub Connections | ||||||
| UAFX ConnectionManager PubSubCommunicationFlowConfiguration |
10.44.5 ClientServerReserveCommunicationIdsResultDataType
This data type will be specified in a later version of this document.
