12.1 Overview

The OPC UA FX Information Model defines well-known instances (see Table 255 and Table 256) that are used to group OPC UA FX Object instances. OPC UA FX Object instances may also exist in other Folders or in other groupings. Figure 63 provides an overview of these instances.

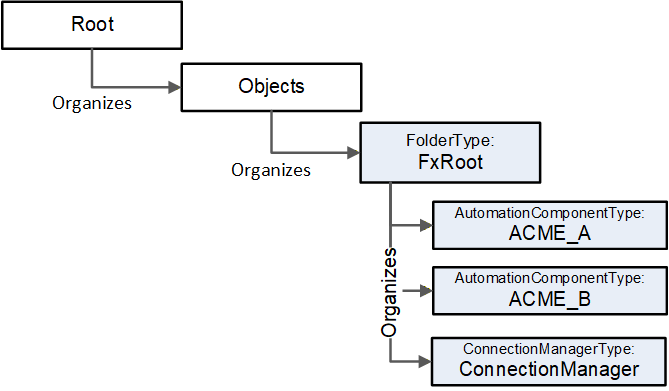

Figure 63 - FxRoot overview/example
