The CommunicationModelConfigurationType ObjectType provides the configuration data specific to the communication model utilized by the Connections.

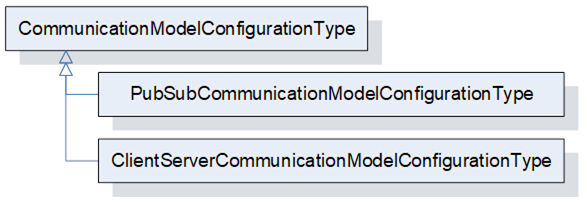

The CommunicationModelConfigurationType is illustrated in Figure 47.
Figure 47 – CommunicationModelConfigurationType illustration
PubSubCommunicationModelConfigurationType provides the configuration data specific to the usage of PubSub as the communication model for the Connections. It is formally defined in 6.16.3.
ClientServerCommunicationModelConfigurationType indicates the usage of Client / Server as the communication model for the Connections. It may be defined in a future release.
