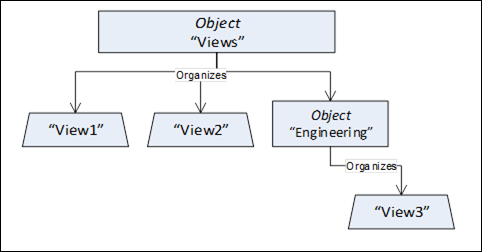

This standard Object is the browse entry point for Views. Only Organizes References are used to relate View Nodes to the "Views" standard Object. All View Nodes in the AddressSpace shall be referenced by this Node, either directly or indirectly. That is, the "Views" Object may reference other Objects using Organizes References. Those Objects may reference additional Views. Figure 2 illustrates the Views organization. The "Views" standard Object directly references the Views "View1" and "View2" and indirectly "View3" by referencing another Object called "Engineering".
The "Views" Object shall not reference any other NodeClasses. The "Views" Object is formally defined in Table 97.
Attribute |
Value |
||
BrowseName |
Views |
||
References |
NodeClass |
BrowseName |
Comment |
HasTypeDefinition |
ObjectType |
FolderType |
Defined in 6.6 |
Conformance Units |
|||
Base Info Core Views Folder |
