12 Standard DataTypes

12.1 General

12.2 DataTypes defined in OPC 10000-3

12.3 DataTypes defined in OPC 10000-4

12.4 BuildInfo

12.5 RedundancySupport

12.6 ServerState

12.7 RedundantServerDataType

12.8 SamplingIntervalDiagnosticsDataType

12.9 ServerDiagnosticsSummaryDataType

12.10 ServerStatusDataType

12.11 SessionDiagnosticsDataType

12.12 SessionSecurityDiagnosticsDataType

12.13 ServiceCounterDataType

12.14 StatusResult

12.15 SubscriptionDiagnosticsDataType

12.16 ModelChangeStructureDataType

12.17 SemanticChangeStructureDataType

12.18 BitFieldMaskDataType

12.19 NetworkGroupDataType

12.20 EndpointUrlListDataType

12.21 KeyValuePair

12.22 RationalNumber

12.23 Vector

12.24 3DVector

12.25 CartesianCoordinates

12.26 3DCartesianCoordinates

12.27 Orientation

12.28 3DOrientation

12.29 Frame

12.30 3DFrame

12.31 DataTypeSchemaHeader

12.32 DataTypeDescription

12.33 StructureDescription

12.34 EnumDescription

12.35 SimpleTypeDescription

12.36 UABinaryFileDataType

12.37 PortableQualifiedName

12.38 PortableNodeId

12.39 UriString

12.40 UnsignedRationalNumber

12.41 SemanticVersionString DataType

12.42 Handle

12.43 TrimmedString

12.44 RedundantServerMode

12.45 BitFieldDefinition

12.2.1 BaseDataType

12.2.2 Boolean

12.2.3 ByteString

12.2.4 DateTime

12.2.5 Enumeration

12.2.6 Guid

12.2.7 LocalizedText

12.2.8 NodeId

12.2.9 Number

12.2.10 QualifiedName

12.2.11 String

12.2.12 Structure

12.2.13 XmlElement

12.3.1 AddNodesItem

12.3.2 AddReferencesItem

12.3.3 ApplicationDescription

12.3.4 ContentFilter

12.3.5 DataValue

12.3.6 DeleteNodesItem

12.3.7 DeleteReferencesItem

12.3.8 DiagnosticInfo

12.3.9 ExpandedNodeId

12.3.10 MessageSecurityMode

12.3.11 NumericRange

12.3.12 SecurityTokenRequestType

12.3.13 SignedSoftwareCertificate

12.3.14 StatusCode

12.3.15 UserIdentityToken

12.3.16 VersionTime

12.2.3.1 AudioDataType

12.2.3.2 Image

12.2.3.3 ImageBMP

12.2.3.4 ImageGIF

12.2.3.5 ImageJPG

12.2.3.6 ImagePNG

12.2.4.1 UtcTime

12.2.5.1 IdType

12.2.5.2 NodeClass

12.2.5.3 StructureType

12.2.9.1 Decimal

12.2.9.2 Double

12.2.9.3 Duration

12.2.9.4 Float

12.2.9.5 Integer

12.2.9.6 Int16

12.2.9.7 Int32

12.2.9.8 Int64

12.2.9.9 SByte

12.2.9.10 UInteger

12.2.9.11 Byte

12.2.9.12 UInt16

12.2.9.13 AccessRestrictionType

12.2.9.14 UInt32

12.2.9.15 UInt64

12.2.11.1 LocaleId

12.2.11.2 NormalizedString

12.2.11.3 DecimalString

12.2.11.4 DurationString

12.2.11.5 TimeString

12.2.11.6 DateString

12.2.12.1 Argument

12.2.12.2 CurrencyUnitType

12.2.12.3 DataTypeDefinition

12.2.12.4 EnumDefinition

12.2.12.5 StructureDefinition

12.2.12.6 EnumValueType

12.2.12.7 EnumField

12.2.12.8 OptionSet

12.2.12.9 RolePermissionType

12.2.12.10 StructureField

12.2.12.11 TimeZoneDataType

12.2.12.12 Union

12.3.15.1 AnonymousIdentityToken

12.3.15.2 IssuedIdentityToken

12.3.15.3 UserNameIdentityToken

12.3.15.4 X509IdentityToken

Standard DataTypes are described in the following subclauses.

OPC 10000-3 defines a set of DataTypes. Their representations in the AddressSpace are defined in the following subclauses.

The representation in the AddressSpace of the BaseDataType DataType is defined in Table 154.

Table 154 – BaseDataType definition

Attributes	Value
BrowseName	BaseDataType
IsAbstract	TRUE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Conformance Units
Base Info Base Types

The representation in the AddressSpace of the Boolean DataType is specified in Table 155.

Table 155 – Boolean definition

Attributes	Value
BrowseName	Boolean
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the BaseDataType DataType defined in Table 154.

Conformance Units
Base Info Base Types

The representation in the AddressSpace of the ByteString DataType is defined in Table 156.

Table 156 – ByteString definition

Attributes	Value
BrowseName	ByteString
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the BaseDataType DataType defined in Table 154.

Conformance Units
Base Info Base Types

The representation in the AddressSpace of the AudioDataType DataType is defined in Table 157.

Table 157 – AudioDataType definition

Attributes	Value
BrowseName	AudioDataType
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the ByteString DataType defined in Table 156.

Conformance Units
Base Info Audio Type

The representation in the AddressSpace of the Image DataType is defined in Table 158.

Table 158 – Image definition

Attributes	Value
BrowseName	Image
IsAbstract	TRUE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the ByteString DataType defined in Table 156.

Conformance Units
Base Info Image DataTypes

The representation in the AddressSpace of the ImageBMP DataType is defined in Table 159.

Table 159 – ImageBMP definition

Attributes	Value
BrowseName	ImageBMP
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the Image DataType defined in Table 158.

Conformance Units
Base Info Image DataTypes

The representation in the AddressSpace of the ImageGIF DataType is defined in Table 160.

Table 160 – ImageGIF definition

Attributes	Value
BrowseName	ImageGIF
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the Image DataType defined in Table 158.

Conformance Units
Base Info Image DataTypes

The representation in the AddressSpace of the ImageJPG DataType is defined in Table 161.

Table 161 – ImageJPG definition

Attributes	Value
BrowseName	ImageJPG
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the Image DataType defined in Table 158.

Conformance Units
Base Info Image DataTypes

The representation in the AddressSpace of the ImagePNG DataType is defined in Table 162.

Table 162 – ImagePNG definition

Attributes	Value
BrowseName	ImagePNG
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the Image DataType defined in Table 158.

Conformance Units
Base Info Image DataTypes

The representation in the AddressSpace of the DateTime DataType is defined in Table 163.

Table 163 – DateTime definition

Attributes	Value
BrowseName	DateTime
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the BaseDataType DataType defined in Table 154.

Conformance Units
Base Info Base Types

The representation in the AddressSpace of the UtcTime DataType is defined in Table 164.

Table 164 – UtcTime definition

Attributes	Value
BrowseName	UtcTime
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the DateTime DataType defined in Table 163.

Conformance Units
Base Info Base Types

The representation in the AddressSpace of the Enumeration DataType is defined in Table 165.

Table 165 – Enumeration definition

Attributes	Value
BrowseName	Enumeration
IsAbstract	TRUE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the BaseDataType DataType defined in Table 154.

Conformance Units
Base Info Base Types

The representation in the AddressSpace of the IdType DataType is defined in Table 166.

Table 166 – IdType definition

Attributes	Value
BrowseName	IdType
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the Enumeration DataType defined in Table 165.
HasProperty	Variable	EnumStrings	LocalizedText[]	PropertyType

Conformance Units
Base Info Base Types

The representation in the AddressSpace of the NodeClass DataType is defined in Table 167.

Table 167 – NodeClass definition

Attributes	Value
BrowseName	NodeClass
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the Enumeration DataType defined in Table 165.
HasProperty	Variable	EnumValues	EnumValueType []	PropertyType

Conformance Units
Base Info Base Types

The representation in the AddressSpace of the StructureType DataType is defined in Table 168.

Table 168 – StructureType definition

Attributes	Value
BrowseName	StructureType
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the Enumeration DataType defined in Table 165.
HasProperty	Variable	EnumStrings	LocalizedText[]	PropertyType

Conformance Units
Address Space DataTypeDefinition Attribute

The representation in the AddressSpace of the Guid DataType is specified in Table 169.

Table 169 – Guid definition

Attributes	Value
BrowseName	Guid
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the BaseDataType DataType defined in Table 154.

Conformance Units
Base Info Base Types

The representation in the AddressSpace of the LocalizedText DataType is specified in Table 170.

Table 170 – LocalizedText definition

Attributes	Value
BrowseName	LocalizedText
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the BaseDataType DataType defined in Table 154.

Conformance Units
Base Info Base Types

The representation in the AddressSpace of the NodeId DataType is specified in Table 171.

Table 171 – NodeId definition

Attributes	Value
BrowseName	NodeId
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the BaseDataType DataType defined in Table 154.

Conformance Units
Base Info Base Types

The representation in the AddressSpace of the Number DataType is defined in Table 172.

Table 172 – Number definition

Attributes	Value
BrowseName	Number
IsAbstract	TRUE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the BaseDataType DataType defined in Table 154.

Conformance Units
Base Info Base Types

The representation in the AddressSpace of the Decimal DataType is defined in Table 173.

Table 173 – Decimal definition

Attributes	Value
BrowseName	Decimal
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the Number DataType defined in Table 172.

Conformance Units
Base Info Decimal DataType

The representation in the AddressSpace of the Double DataType is defined in Table 174.

Table 174 – Double definition

Attributes	Value
BrowseName	Double
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the Number DataType defined in Table 172.

Conformance Units
Base Info Base Types

The representation in the AddressSpace of the Duration DataType is defined inTable 175.

Table 175 – Duration definition

Attributes	Value
BrowseName	Duration
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the Double DataType defined in Table 174.

Conformance Units
Base Info Base Types

The representation in the AddressSpace of the Float DataType is defined in Table 176.

Table 176 – Float definition

Attributes	Value
BrowseName	Float
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the Number DataType defined in Table 172.

Conformance Units
Base Info Base Types

The representation in the AddressSpace of the Integer DataType is defined in Table 177.

Table 177 – Integer definition

Attributes	Value
BrowseName	Integer
IsAbstract	TRUE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the Number DataType defined in Table 172.

Conformance Units
Base Info Base Types

The representation in the AddressSpace of the Int16 DataType is defined in Table 178.

Table 178 – Int16 definition

Attributes	Value
BrowseName	Int16
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the Integer DataType defined in Table 177.

Conformance Units
Base Info Base Types

The representation in the AddressSpace of the Int32 DataType is defined in Table 179.

Table 179 – Int32 definition

Attributes	Value
BrowseName	Int32
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the Integer DataType defined in Table 177.

Conformance Units
Base Info Base Types

The representation in the AddressSpace of the Int64 DataType is defined in Table 180.

Table 180 – Int64 definition

Attributes	Value
BrowseName	Int64
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the Integer DataType defined in Table 177.

Conformance Units
Base Info Base Types

The representation in the AddressSpace of the SByte DataType is defined in Table 181.

Table 181 – SByte definition

Attributes	Value
BrowseName	SByte
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the Integer DataType defined in Table 177.

Conformance Units
Base Info Base Types

The representation in the AddressSpace of the UInteger are defined in Table 182.

Table 182 – UInteger definition

Attributes	Value
BrowseName	UInteger
IsAbstract	TRUE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the Number DataType defined in Table 172.

Conformance Units
Base Info Base Types

The representation in the AddressSpace of the Byte DataType is defined in Table 183.

Table 183 – Byte definition

Attributes	Value
BrowseName	Byte
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the UInteger DataType defined in Table 182.

Conformance Units
Base Info Base Types

The representation in the AddressSpace of the UInt16 DataType is defined in Table 184.

Table 184 – UInt16 definition

Attributes	Value
BrowseName	UInt16
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the UInteger DataType defined in Table 182.

Conformance Units
Base Info Base Types

The representation in the AddressSpace of the AccessRestrictionType DataType is defined in Table 185.

Table 185 – AccessRestrictionType definition

Attributes	Value
BrowseName	AccessRestrictionType
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
HasProperty	Variable	OptionSetValues	LocalizedText[]	PropertyType
Subtype of the UInt16 DataType defined in Table 184.

Conformance Units
Security Role Server Base 2

The representation in the AddressSpace of the UInt32 DataType is defined in Table 186.

Table 186 – UInt32 definition

Attributes	Value
BrowseName	UInt32
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the UInteger DataType defined in Table 182.

Conformance Units
Base Info Base Types

The representation in the AddressSpace of the UInt64 DataType is defined in Table 187.

Table 187 – UInt64 definition

Attributes	Value
BrowseName	UInt64
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the UInteger DataType defined in Table 182.

Conformance Units
Base Info Base Types

The representation in the AddressSpace of the QualifiedName DataType is specified in Table 188.

Table 188 – QualifiedName definition

Attributes	Value
BrowseName	QualifiedName
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the BaseDataType DataType defined in Table 154.

Conformance Units
Base Info Base Types

The representation in the AddressSpace of the String DataType is defined in Table 189.

Table 189 – String definition

Attributes	Value
BrowseName	String
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the BaseDataType DataType defined in Table 154.

Conformance Units
Base Info Base Types

The representation in the AddressSpace of the LocaleId DataType is defined in Table 190.

Table 190 – LocaleId definition

Attributes	Value
BrowseName	LocaleId
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the String DataType defined in Table 189.

Conformance Units
Base Info ServerType

The representation in the AddressSpace of the NormalizedString DataType is defined in Table 191.

Table 191 – NormalizedString definition

Attributes	Value
BrowseName	NormalizedString
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the String DataType defined in Table 189.

Conformance Units
Base Info NormalizedString DataType

The representation in the AddressSpace of the DecimalString DataType is defined in Table 192.

Table 192 – DecimalString definition

Attributes	Value
BrowseName	DecimalString
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the String DataType defined in Table 189.

Conformance Units
Base Info DecimalString DataType

The representation in the AddressSpace of the DurationString DataType is defined in Table 193.

Table 193 – DurationString definition

Attributes	Value
BrowseName	DurationString
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the String DataType defined in Table 189.

Conformance Units
Base Info Date DataTypes

The representation in the AddressSpace of the TimeString DataType is defined in Table 194.

Table 194 – TimeString definition

Attributes	Value
BrowseName	TimeString
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the String DataType defined in Table 189.

Conformance Units
Base Info Date DataTypes

The representation in the AddressSpace of the DateString DataType is defined in Table 195.

Table 195 – DateString definition

Attributes	Value
BrowseName	DateString
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the String DataType defined in Table 189.

Conformance Units
Base Info Date DataTypes

The representation in the AddressSpace of the Structure DataType is defined in Table 196.

Table 196 – Structure definition

Attributes	Value
BrowseName	Structure
IsAbstract	TRUE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the BaseDataType DataType defined in Table 154.

Conformance Units
Base Info Base Types

The representation in the AddressSpace of the Argument DataType is defined in Table 197.

Table 197 – Argument definition

Attributes	Value
BrowseName	Argument
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the Structure DataType defined in Table 196.

Conformance Units
Base Info Method Argument DataType

The representation in the AddressSpace of the CurrencyUnitType DataType is defined in Table 198.

Table 198 – CurrencyUnitType definition

Attributes	Value
BrowseName	CurrencyUnitType
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the Structure DataType defined in Table 196.

Conformance Units
Base Info Currency

The representation in the AddressSpace of the DataTypeDefinition DataType is defined in Table 199.

Table 199 – DataTypeDefinition definition

Attributes	Value
BrowseName	DataTypeDefinition
IsAbstract	TRUE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the Structure DataType defined in Table 196.

Conformance Units
Address Space DataTypeDefinition Attribute

The representation in the AddressSpace of the EnumDefinition DataType is defined in Table 200.

Table 200 – EnumDefinition definition

Attributes	Value
BrowseName	EnumDefinition
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the DataTypeDefinition defined in Table 199.

Conformance Units
Address Space DataTypeDefinition Attribute

The representation in the AddressSpace of the StructureDefinition DataType is defined in Table 201.

Table 201 – StructureDefinition definition

Attributes	Value
BrowseName	StructureDefinition
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the DataTypeDefinition defined in Table 199.

Conformance Units
Address Space DataTypeDefinition Attribute

The representation in the AddressSpace of the EnumValueType DataType is defined in Table 202.

Table 202 – EnumValueType definition

Attributes	Value
BrowseName	EnumValueType
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the Structure DataType defined in Table 196.

Conformance Units
Base Info Base Types

The representation in the AddressSpace of the EnumField DataType is defined in Table 203.

Table 203 – EnumField definition

Attributes	Value
BrowseName	EnumField
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the EnumValueType defined in Table 202.

Conformance Units
Address Space DataTypeDefinition Attribute

The representation in the AddressSpace of the OptionSet DataType is defined in Table 204.

Table 204 – OptionSet definition

Attributes	Value
BrowseName	OptionSet
IsAbstract	TRUE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the Structure DataType defined in Table 196.

Conformance Units
Base Info OptionSet DataType

The representation in the AddressSpace of the RolePermissionType DataType is defined in Table 205.

Table 205 – RolePermissionType definition

Attributes	Value
BrowseName	RolePermissionType
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the Structure DataType defined in Table 196.

Conformance Units
Security Role Server Base 2

The representation in the AddressSpace of the StructureField DataType is defined in Table 206.

Table 206 – StructureField definition

Attributes	Value
BrowseName	StructureField
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the Structure DataType defined in Table 196.

Conformance Units
Address Space DataTypeDefinition Attribute

The representation in the AddressSpace of the TimeZoneDataType DataType is defined in Table 207.

Table 207 – TimeZoneDataType definition

Attributes	Value
BrowseName	TimeZoneDataType
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the Structure DataType defined in Table 196.

Conformance Units
Base Info LocalTime

The representation in the AddressSpace of the Union DataType is defined in Table 208.

Table 208 – Union definition

Attributes	Value
BrowseName	Union
IsAbstract	TRUE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the Structure DataType defined in Table 196.

Conformance Units
Base Info OptionSet DataType

The representation in the AddressSpace of the XmlElement DataType is specified in Table 209.

Table 209 – XmlElement definition

Attributes	Value
BrowseName	XmlElement
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the BaseDataType DataType defined in Table 154.

Conformance Units
Base Info Base Types

OPC 10000-4 defines a set of DataTypes. Their representations in the AddressSpace are defined in the following subclauses.

The representation in the AddressSpace of the AddNodesItem DataType is defined in Table 210.

Table 210 – AddNodesItem definition

Attributes	Value
BrowseName	AddNodesItem
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the Structure DataType defined in Table 196.

Conformance Units
Auditing NodeManagement

The representation in the AddressSpace of the AddReferencesItem DataType is defined in Table 211.

Table 211 – AddReferencesItem definition

Attributes	Value
BrowseName	AddReferencesItem
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the Structure DataType defined in Table 196.

Conformance Units
Auditing NodeManagement

The representation in the AddressSpace of the ApplicationDescription DataType is defined in Table 212.

Table 212 – ApplicationDescription definition

Attributes	Value
BrowseName	ApplicationDescription
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the Structure DataType defined in Table 196.

Conformance Units
Base Info ServerType

The representation in the AddressSpace of the ContentFilter DataType is defined in Table 213.

Table 213 – ContentFilter definition

Attributes	Value
BrowseName	ContentFilter
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the Structure DataType defined in Table 196.

Conformance Units
Base Info ContentFilter

The representation in the AddressSpace of the DateValue DataType is defined in Table 214.

Table 214 – DataValue definition

Attributes	Value
BrowseName	DataValue
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the BaseDataType DataType defined in Table 154.

Conformance Units
Base Info Base Types

The representation in the AddressSpace of the DeleteNodesItem DataType is defined in.Table 215.

Table 215 – DeleteNodesItem definition

Attributes	Value
BrowseName	DeleteNodesItem
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the Structure DataType defined in Table 196.

Conformance Units
Auditing NodeManagement

The representation in the AddressSpace of the DeleteReferencesItem DataType is defined in Table 216.

Table 216 – DeleteReferencesItem definition

Attributes	Value
BrowseName	DeleteReferencesItem
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the Structure DataType defined in Table 196.

Conformance Units
Auditing NodeManagement

The representation in the AddressSpace of the DiagnosticInfo DataType is defined in Table 217.

Table 217 – DiagnosticInfo definition

Attributes	Value
BrowseName	DiagnosticInfo
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the BaseDataType DataType defined in Table 196.

Conformance Units
Base Info Base Types

The representation in the AddressSpace of the ExpandedNodeId DataType is defined in Table 218.

Table 218 – ExpandedNodeId definition

Attributes	Value
BrowseName	ExpandedNodeId
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the BaseDataType DataType defined in Table 196.

Conformance Units
Base Info Base Types

The representation in the AddressSpace of the MessageSecurityMode DataType is defined in Table 219.

Table 219 – MessageSecurityMode definition

Attributes	Value
BrowseName	MessageSecurityMode
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the Enumeration DataType defined in Table 165.
HasProperty	Variable	EnumStrings	LocalizedText[]	PropertyType

Conformance Units
Base Info ServerType

The representation in the AddressSpace of the NumericRange DataType is defined in Table 220.

Table 220 – NumericRange definition

Attributes	Value
BrowseName	NumericRange
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the String DataType defined in Table 189.

Conformance Units
Base Info Base Types

The representation in the AddressSpace of the SecurityTokenRequestType DataType is defined in Table 221.

Table 221 – SecurityTokenRequestType definition

Attributes	Value
BrowseName	SecurityTokenRequestType
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the Enumeration DataType defined in Table 165.
HasProperty	Variable	EnumStrings	LocalizedText[]	PropertyType

Conformance Units
Auditing Connections

The representation in the AddressSpace of the SignedSoftwareCertificate DataType is defined in Table 222.

Table 222 – SignedSoftwareCertificate definition

Attributes	Value
BrowseName	SignedSoftwareCertificate
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the Structure DataType defined in Table 196.

Conformance Units
Auditing Connections

The representation in the AddressSpace of the StatusCode DataType is defined in Table 223.

Table 223 – StatusCode definition

Attributes	Value
BrowseName	StatusCode
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the BaseDataType DataType defined in Table 186.

Conformance Units
Base Info Base Types

The representation in the AddressSpace of the UserIdentityToken DataType is defined in Table 224.

Table 224 – UserIdentityToken definition

Attributes	Value
BrowseName	UserIdentityToken
IsAbstract	TRUE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the Structure DataType defined in Table 196.

Conformance Units
Auditing Connections

The representation in the AddressSpace of the AnonymousIdentityToken DataType is defined in Table 225.

Table 225 – AnonymousIdentityToken definition

Attributes	Value
BrowseName	AnonymousIdentityToken
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the UserIdentityToken DataType defined in Table 224.

Conformance Units
Auditing Connections

The representation in the AddressSpace of the IssuedIdentityToken DataType is defined in Table 226.

Table 226 – IssuedIdentityToken definition

Attributes	Value
BrowseName	IssuedIdentityToken
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the UserIdentityToken DataType defined in Table 224.

Conformance Units
Auditing Connections

The representation in the AddressSpace of the UserNameIdentityToken DataType is defined in Table 227.

Table 227 – UserNameIdentityToken definition

Attributes	Value
BrowseName	UserNameIdentityToken
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the UserIdentityToken DataType defined in Table 224.

Conformance Units
Auditing Connections

The representation in the AddressSpace of the X509IdentityToken DataType is defined in Table 228.

Table 228 – X509IdentityToken definition

Attributes	Value
BrowseName	X509IdentityToken
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the UserIdentityToken DataType defined in Table 224.

Conformance Units
Auditing Connections

The representation in the AddressSpace of the VersionTime DataType is defined in Table 229.

Table 229 – VersionTime definition

Attributes	Value
BrowseName	VersionTime
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the UInt32 DataType defined in Table 186.

Conformance Units
Base Info ServerType

This structure contains elements that describe the build information of the Server. Its elements are defined in Table 230.

Table 230 – BuildInfo Structure

Name	Type	Description
BuildInfo	structure	Information that describes the build of the software.
productUri	String	URI that identifies the software
manufacturerName	String	Name of the software manufacturer.
productName	String	Name of the software.
softwareVersion	String	Software version
buildNumber	String	Build number
buildDate	UtcTime	Date and time of the build.

Its representation in the AddressSpace is defined in Table 231.

Table 231 – BuildInfo definition

Attributes	Value
BrowseName	BuildInfo
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the Structure DataType defined in Table 196.

Conformance Units
Base Info ServerType

This DataType is an enumeration that defines the redundancy support of the Server. Its values are defined in Table 232.

Table 232 – RedundancySupport values

Name	Value	Description
NONE	0	None means that there is no redundancy support.
COLD	1	Cold means that the server supports cold redundancy as defined in OPC 10000-4.
WARM	2	Warm means that the server supports warm redundancy as defined in OPC 10000-4.
HOT	3	Hot means that the server supports hot redundancy as defined in OPC 10000-4.
TRANSPARENT	4	Transparent means that the server supports transparent redundancy as defined in OPC 10000-4.
HOT_AND_MIRRORED	5	HotAndMirrored means that the server supports HotAndMirrored redundancy as defined in OPC 10000-4.

See OPC 10000-4 for a more detailed description of the different values.

Its representation in the AddressSpace is defined in Table 233.

Table 233 – RedundancySupport definition

Attributes	Value
BrowseName	RedundancySupport
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the Enumeration DataType defined in Table 165.
HasProperty	Variable	EnumStrings	LocalizedText[]	PropertyType

Conformance Units
Base Info ServerType

This DataType is an enumeration that defines the execution state of the Server. Its values are defined in Table 234.

Table 234 – ServerState values

Name	Value	Description
RUNNING	0	The Server is running normally. This is the usual state for a Server.
FAILED	1	A vendor-specific fatal error has occurred within the Server. The Server is no longer functioning. The recovery procedure from this situation is vendor-specific. Most Service requests should be expected to fail.
NO_CONFIGURATION	2	The Server is running but has no configuration information loaded and therefore does not transfer data.
SUSPENDED	3	The Server has been temporarily suspended by some vendor-specific method and is not receiving or sending data.
SHUTDOWN	4	The Server initiated a shut down or is in the process of shutting down. This ServerState is intended as an indication to Clients connected to the Server to orderly disconnect from the Server before the Server completes the shut down.
TEST	5	The Server is in Test Mode. The outputs are disconnected from the real hardware, but the Server will otherwise behave normally. Inputs may be real or may be simulated depending on the vendor implementation. StatusCode will generally be returned normally.
COMMUNICATION_FAULT	6	The Server is running properly, but is having difficulty accessing data from its data sources. This may be due to communication problems or some other problem preventing the underlying device, control system, etc. from returning valid data. It may be a complete failure, meaning that no data is available, or a partial failure, meaning that some data is still available. It is expected that items affected by the fault will individually return with a BAD FAILURE status code indication for the items.
UNKNOWN	7	This state is used only to indicate that the OPC UA Server does not know the state of underlying system.

Its representation in the AddressSpace is defined in Table 235.

Table 235 – ServerState definition

Attributes	Value
BrowseName	ServerState
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the Enumeration DataType defined in Table 165.
HasProperty	Variable	EnumStrings	LocalizedText[]	PropertyType

Conformance Units
Base Info ServerType

This structure contains elements that describe the status of the Server. Its composition is defined in Table 236.

Table 236 – RedundantServerDataType Structure

Name	Type	Description
RedundantServerDataType	structure
serverId	String	Identifies the Server uniquely.
serviceLevel	Byte	The service level of the server.
serverState	ServerState	The current state of the server.

Its representation in the AddressSpace is defined in Table 237.

Table 237 – RedundantServerDataType definition

Attributes	Value
BrowseName	RedundantServerDataType
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the Structure DataType defined in Table 196.

Conformance Units
Redundancy Server Transparent

This structure contains diagnostic information about the sampling rates currently used by the Server. Its elements are defined in Table 238.

Table 238 – SamplingIntervalDiagnosticsDataType Structure

Name	Type	Description
SamplingIntervalDiagnosticsDataType	structure
samplingInterval	Duration	The sampling interval in milliseconds.
monitoredItemCount	UInt32	The number of MonitoredItems being sampled at this sample rate.
maxMonitoredItemCount	UInt32	The maximum number of MonitoredItems being sampled at this sample rate at the same time since the server was started (restarted).
disabledMonitoredItemCount	UInt32	The number of MonitoredItems at this sample rate whose sampling is currently disabled.

Its representation in the AddressSpace is defined in Table 239.

Table 239 – SamplingIntervalDiagnosticsDataType definition

Attributes	Value
BrowseName	SamplingIntervalDiagnosticsDataType
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the Structure DataType defined in Table 196.

Conformance Units
Base Info ServerType

This structure contains diagnostic summary information for the Server. Its elements are defined in Table 240.

Table 240 – ServerDiagnosticsSummaryDataType Structure

Name	Type	Description
ServerDiagnosticsSummaryDataType	structure
serverViewCount	UInt32	The number of server-created views in the server.
currentSessionCount	UInt32	The number of client sessions currently established in the server.
cumulatedSessionCount	UInt32	The cumulative number of client sessions that have been established in the server since the server was started (or restarted). This includes the currentSessionCount.
securityRejectedSessionCount	UInt32	The number of client session establishment requests (ActivateSession and CreateSession) that were rejected due to security constraints since the server was started (or restarted).
rejectedSessionCount	UInt32	The number of client session establishment requests (ActivateSession and CreateSession) that were rejected since the server was started (or restarted). This number includes the securityRejectedSessionCount.
sessionTimeoutCount	UInt32	The number of client sessions that were closed due to timeout since the server was started (or restarted).
sessionAbortCount	UInt32	The number of client sessions that were closed due to errors since the server was started (or restarted).
currentSubscriptionCount	UInt32	The number of subscriptions currently established in the server.
cumulatedSubscriptionCount	UInt32	The cumulative number of subscriptions that have been established in the server since the server was started (or restarted). This includes the currentSubscriptionCount.
publishingIntervalCount	UInt32	The number of publishing intervals currently supported in the server.
securityRejectedRequestsCount	UInt32	The number of requests that were rejected due to security constraints since the server was started (or restarted). The requests include all Services defined in OPC 10000-4, also requests to create sessions.
rejectedRequestsCount	UInt32	The number of requests that were rejected since the server was started (or restarted). The requests include all Services defined in OPC 10000-4, also requests to create sessions. This number includes the securityRejectedRequestsCount.

Its representation in the AddressSpace is defined in Table 241.

Table 241 – ServerDiagnosticsSummaryDataType definition

Attributes	Value
BrowseName	ServerDiagnosticsSummaryDataType
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the Structure DataType defined in Table 196.

Conformance Units
Base Info ServerType

This structure contains elements that describe the status of the Server. Its composition is defined in Table 242.

Table 242 – ServerStatusDataType Structure

Name	Type	Description
ServerStatusDataType	structure
startTime	UtcTime	Time (UTC) the Server was started. This is constant for the Server instance and is not reset when the Server changes state. Each instance of a Server should keep the time when the process started.
currentTime	UtcTime	The current time (UTC) as known by the Server.
state	ServerState	The current state of the Server. Its values are defined in 12.6.
buildInfo	BuildInfo
secondsTillShutdown	UInt32	Approximate number of seconds until the Server will be shut down. The value is only relevant once the state changes into SHUTDOWN_4. After the Server shut down is initated, the state changes to SHUTDOWN_4 and the actual shut down should be delayed for a configurable time if Clients are connected to the Server to allow these Clients an orderly disconnect.
shutdownReason	LocalizedText	A localized text indicating the reason for the shutdown. The value is only relevant once the state changes into SHUTDOWN_4. If there is no specific reason for the shutdown, then this value may be set to null or it may be empty.

Its representation in the AddressSpace is defined in Table 243.

Table 243 – ServerStatusDataType definition

Attributes	Value
BrowseName	ServerStatusDataType
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the Structure DataType defined in Table 196.

Conformance Units
Base Info ServerType

This structure contains diagnostic information about client sessions. Its elements are defined in Table 244. Most of the values represented in this structure provide information about the number of calls of a Service, the number of currently used MonitoredItems, etc. Those numbers need not provide the exact value; they need only provide the approximate number, so that the Server is not burdened with providing the exact numbers.

Table 244 – SessionDiagnosticsDataType Structure

Name	Type	Description
SessionDiagnosticsDataType	structure
sessionId	NodeId	Server-assigned identifier of the session.
sessionName	String	The name of the session provided in the CreateSession request.
clientDescription	Application Description	The description provided by the client in the CreateSession request.
serverUri	String	The serverUri request in the CreateSession request.
endpointUrl	String	The endpointUrl passed by the client to the CreateSession request.
localeIds	LocaleId[]	Array of LocaleIds specified by the client in the open session call.
actualSessionTimeout	Duration	The requested session timeout specified by the client in the open session call.
maxResponseMessageSize	UInt32	The maximum size for the response message sent to the client.
clientConnectionTime	UtcTime	The server timestamp when the client opens the session.
clientLastContactTime	UtcTime	The server timestamp of the last request of the client in the context of the session.
currentSubscriptionsCount	UInt32	The number of subscriptions currently used by the session.
currentMonitoredItemsCount	UInt32	The number of MonitoredItems currently used by the session
currentPublishRequestsInQueue	UInt32	The number of publish requests currently in the queue for the session.
totalRequestCount	ServiceCounter DataType	Counter of all Services, identifying the number of received requests of any Services on the session.
unauthorizedRequestCount	UInt32	Counter of all Services, identifying the number of Service requests that were rejected due to authorization failure
readCount	ServiceCounter DataType	Counter of the Read Service, identifying the number of received requests of this Service on the session.
historyReadCount	ServiceCounter DataType	Counter of the HistoryRead Service, identifying the number of received requests of this Service on the session.
writeCount	ServiceCounter DataType	Counter of the Write Service, identifying the number of received requests of this Service on the session.
historyUpdateCount	ServiceCounter DataType	Counter of the HistoryUpdate Service, identifying the number of received requests of this Service on the session.
callCount	ServiceCounter DataType	Counter of the Call Service, identifying the number of received requests of this Service on the session.
createMonitoredItemsCount	ServiceCounter DataType	Counter of the CreateMonitoredItems Service, identifying the number of received requests of this Service on the session.
modifyMonitoredItemsCount	ServiceCounter DataType	Counter of the ModifyMonitoredItems Service, identifying the number of received requests of this Service on the session.
setMonitoringModeCount	ServiceCounter DataType	Counter of the SetMonitoringMode Service, identifying the number of received requests of this Service on the session.
setTriggeringCount	ServiceCounter DataType	Counter of the SetTriggering Service, identifying the number of received requests of this Service on the session.
deleteMonitoredItemsCount	ServiceCounter DataType	Counter of the DeleteMonitoredItems Service, identifying the number of received requests of this Service on the session.
createSubscriptionCount	ServiceCounter DataType	Counter of the CreateSubscription Service, identifying the number of received requests of this Service on the session.
modifySubscriptionCount	ServiceCounter DataType	Counter of the ModifySubscription Service, identifying the number of received requests of this Service on the session.
setPublishingModeCount	ServiceCounter DataType	Counter of the SetPublishingMode Service, identifying the number of received requests of this Service on the session.
publishCount	ServiceCounter DataType	Counter of the Publish Service, identifying the number of received requests of this Service on the session.
republishCount	ServiceCounter DataType	Counter of the Republish Service, identifying the number of received requests of this Service on the session.
transferSubscriptionsCount	ServiceCounter DataType	Counter of the TransferSubscriptions Service, identifying the number of received requests of this Service on the session.
deleteSubscriptionsCount	ServiceCounter DataType	Counter of the DeleteSubscriptions Service, identifying the number of received requests of this Service on the session.
addNodesCount	ServiceCounter DataType	Counter of the AddNodes Service, identifying the number of received requests of this Service on the session.
addReferencesCount	ServiceCounter DataType	Counter of the AddReferences Service, identifying the number of received requests of this Service on the session.
deleteNodesCount	ServiceCounter DataType	Counter of the DeleteNodes Service, identifying the number of received requests of this Service on the session.
deleteReferencesCount	ServiceCounter DataType	Counter of the DeleteReferences Service, identifying the number of received requests of this Service on the session.
browseCount	ServiceCounter DataType	Counter of the Browse Service, identifying the number of received requests of this Service on the session.
browseNextCount	ServiceCounter DataType	Counter of the BrowseNext Service, identifying the number of received requests of this Service on the session.
translateBrowsePathsToNodeIdsCount	ServiceCounter DataType	Counter of the TranslateBrowsePathsToNodeIds Service, identifying the number of received requests of this Service on the session.
queryFirstCount	ServiceCounter DataType	Counter of the QueryFirst Service, identifying the number of received requests of this Service on the session.
queryNextCount	ServiceCounter DataType	Counter of the QueryNext Service, identifying the number of received requests of this Service on the session.
registerNodesCount	ServiceCounter DataType	Counter of the RegisterNodes Service, identifying the number of received requests of this Service on the session.
unregisterNodesCount	ServiceCounter DataType	Counter of the UnregisterNodes Service, identifying the number of received requests of this Service on the session.

Its representation in the AddressSpace is defined in Table 245.

Table 245 – SessionDiagnosticsDataType definition

Attributes	Value
BrowseName	SessionDiagnosticsDataType
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the Structure DataType defined in Table 196.

Conformance Units
Base Info ServerType

This structure contains security-related diagnostic information about client sessions. Its elements are defined in Table 246. Because this information is security-related, it shall only be accessible by authorised users.

Table 246 – SessionSecurityDiagnosticsDataType Structure

Name	Type	Description
SessionSecurityDiagnosticsDataType	structure
sessionId	NodeId	Server-assigned identifier of the session.
clientUserIdOfSession	String	Name of authenticated user when creating the session.
clientUserIdHistory	String[]	Array containing the name of the authenticated user currently active (either from creating the session or from calling the ActivateSession Service) and the history of those names. Each time the active user changes, an entry shall be made at the end of the array. The active user is always at the end of the array. Servers may restrict the size of this array, but shall support at least a size of 2. How the name of the authenticated user can be obtained from the system via the information received as part of the session establishment is defined in 6.4.3.
authenticationMechanism	String	Type of authentication currently used by the session. The String shall be one of the lexical names of the UserIdentityTokenType Enum.
encoding	String	Which encoding is used on the wire. The String shall be ‘XML’, ‘JSON’ or ‘UA Binary’.
transportProtocol	String	Which transport protocol is used. The String shall be the scheme from the URL used to establish the session. For example, ‘opc.tcp’, ‘opc.wss’ or ‘https’. The formal protocol URL scheme strings are defined in OPC 10000-6.
securityMode	MessageSecurityMode	The message security mode used for the session.
securityPolicyUri	String	The name of the security policy used for the session.
clientCertificate	ByteString	The application instance certificate provided by the client in the CreateSession request.

Its representation in the AddressSpace is defined in Table 247.

Table 247 – SessionSecurityDiagnosticsDataType definition

Attributes	Value
BrowseName	SessionSecurityDiagnosticsDataType
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the Structure DataType defined in Table 196.

Conformance Units
Base Info ServerType

This structure contains diagnostic information about subscriptions. Its elements are defined in Table 248.

Table 248 – ServiceCounterDataType Structure

Name	Type	Description
ServiceCounterDataType	structure
totalCount	UInt32	The number of Service requests that have been received.
errorCount	UInt32	The total number of Service requests that were rejected.

Its representation in the AddressSpace is defined in Table 249.

Table 249 – ServiceCounterDataType definition

Attributes	Value
BrowseName	ServiceCounterDataType
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the Structure DataType defined in Table 196.

Conformance Units
Base Info ServerType

This structure combines a StatusCode and diagnostic information and can, for example, be used by Methods to return several StatusCodes and the corresponding diagnostic information that are not handled in the Call Service parameters. The elements of this DataType are defined in Table 250. Whether the diagnosticInfo is returned depends on the setting of the Service calls.

Table 250 – StatusResult Structure

Name	Type	Description
StatusResult	structure
statusCode	StatusCode	The StatusCode.
diagnosticInfo	DiagnosticInfo	The diagnostic information for the statusCode.

Its representation in the AddressSpace is defined in Table 251.

Table 251 – StatusResult definition

Attributes	Value
BrowseName	StatusResult
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the Structure DataType defined in Table 196.

Conformance Units
Base Info StatusResult DataType

This structure contains diagnostic information about subscriptions. Its elements are defined in Table 252.

Table 252 – SubscriptionDiagnosticsDataType Structure

Name	Type	Description
SubscriptionDiagnosticsDataType	structure
sessionId	NodeId	Server-assigned identifier of the session the subscription belongs to.
subscriptionId	UInt32	Server-assigned identifier of the subscription.
priority	Byte	The priority the client assigned to the subscription.
publishingInterval	Duration	The publishing interval of the subscription in milliseconds
maxKeepAliveCount	UInt32	The maximum keep-alive count of the subscription.
maxLifetimeCount	UInt32	The maximum lifetime count of the subscription.
maxNotificationsPerPublish	UInt32	The maximum number of notifications per publish response.
publishingEnabled	Boolean	Whether publishing is enabled for the subscription.
modifyCount	UInt32	The number of ModifySubscription requests received for the subscription.
enableCount	UInt32	The number of times the subscription has been enabled.
disableCount	UInt32	The number of times the subscription has been disabled.
republishRequestCount	UInt32	The number of Republish Service requests that have been received and processed for the subscription.
republishMessageRequestCount	UInt32	The total number of messages that have been requested to be republished for the subscription. Note that due to the design of the Republish Service this number is always equal to the republishRequestCount.
republishMessageCount	UInt32	The number of messages that have been successfully republished for the subscription.
transferRequestCount	UInt32	The total number of TransferSubscriptions Service requests that have been received for the subscription.
transferredToAltClientCount	UInt32	The number of times the subscription has been transferred to an alternate client.
transferredToSameClientCount	UInt32	The number of times the subscription has been transferred to an alternate session for the same client.
publishRequestCount	UInt32	The number of Publish Service requests that have been received and processed for the subscription.
dataChangeNotificationsCount	UInt32	The number of data change Notifications sent by the subscription. A data change Notification is one element of the monitoredItems array in a DataChangeNotification Structure sent in a Publish response.
eventNotificationsCount	UInt32	The number of Event Notifications sent by the subscription. An Event Notification is one event entry in an EventNotificationList sent in a Publish response.
notificationsCount	UInt32	The total number of Notifications sent by the subscription. This is the sum of dataChangeNotificationsCount and eventNotificationsCount.
latePublishRequestCount	UInt32	The number of times the subscription has entered the LATE State, i.e. the number of times the publish timer expires and there are unsent notifications.
currentKeepAliveCount	UInt32	The number of times the subscription has entered the KEEPALIVE State.
currentLifetimeCount	UInt32	The current lifetime count of the subscription.
unacknowledgedMessageCount	UInt32	The number of unacknowledged messages saved in the republish queue.
discardedMessageCount	UInt32	The number of messages that were discarded before they were acknowledged.
monitoredItemCount	UInt32	The total number of monitored items of the subscription, including the disabled monitored items.
disabledMonitoredItemCount	UInt32	The number of disabled monitored items of the subscription.
monitoringQueueOverflowCount	UInt32	The number of DataValue Notifications that have been discarded for all MonitoredItems when the queue size of a MonitoredItem is greater than one.
nextSequenceNumber	UInt32	Sequence number for the next notification message.
eventQueueOverflowCount	UInt32	The number of times a monitored item in the subscription has generated an Event of type EventQueueOverflowEventType.

Its representation in the AddressSpace is defined in Table 253.

Table 253 – SubscriptionDiagnosticsDataType definition

Attributes	Value
BrowseName	SubscriptionDiagnosticsDataType
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the Structure DataType defined in Table 196.

Conformance Units
Base Info ServerType

This structure contains elements that describe changes of the model. Its composition is defined in Table 254.

Table 254 – ModelChangeStructureDataType Structure

Name	Type	Description
ModelChangeStructure DataType	structure
affected	NodeId	NodeId of the Node that was changed. The client should assume that the affected Node has been created or deleted, had a Reference added or deleted, or the DataType has changed as described by the verb.
affectedType	NodeId	If the affected Node was an Object or Variable, affectedType contains the NodeId of the TypeDefinitionNode of the affected Node. Otherwise it is set to null.
verb	Byte	Describes the changes happening to the affected Node. The verb is an 8-bit unsigned integer used as bit mask with the structure defined in the following table: A verb may identify several changes on the affected Node at once. This feature should be used if event compression is used (see OPC 10000-3 for details). Note that all verbs shall always be considered in the context where the ModelChangeStructureDataType is used. A NodeDeleted may indicate that a Node was removed from a view but still exists in other Views.

Its representation in the AddressSpace is defined in Table 255.

Table 255 – ModelChangeStructureDataType definition

Attributes	Value
BrowseName	ModelChangeStructureDataType
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the Structure DataType defined in Table 196.

Conformance Units
Base Info Model Change General

This structure contains elements that describe a change of the model. Its composition is defined in Table 256.

Table 256 – SemanticChangeStructureDataType Structure

Name	Type	Description
SemanticChangeStructureDataType	structure
affected	NodeId	NodeId of the Node that owns the Property that has changed.
affectedType	NodeId	If the affected Node was an Object or Variable, affectedType contains the NodeId of the TypeDefinitionNode of the affected Node. Otherwise it is set to null.

Its representation in the AddressSpace is defined in Table 257.

Table 257 – SemanticChangeStructureDataType definition

Attributes	Value
BrowseName	SemanticChangeStructureDataType
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the Structure DataType defined in Table 196.

Conformance Units
Base Info SemanticChange

This simple DataType is a subtype of UInt64 and represents a bit mask up to 32 bits where individual bits can be written without modifying the other bits.

The first 32 bits (least significant bits) of the BitFieldMaskDataType represent the bit mask and the second 32 bits represent the validity of the bits in the bit mask. When the Server returns the value to the client, the validity provides information of which bits in the bit mask have a meaning. When the client passes the value to the Server, the validity defines which bits should be written. Only those bits defined in validity are changed in the bit mask, all others stay the same. The BitFieldMaskDataType can be used as DataType in the OptionSetType VariableType.

Its representation in the AddressSpace is defined in Table 258.

Table 258 – BitFieldMaskDataType definition

Attributes	Value
BrowseName	BitFieldMaskDataType
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the UInt64 DataType defined in Table 187.

Conformance Units
Base Info BitFieldMaskDataType

This structure contains information on different network paths for one Server. Its composition is defined in Table 259.

Table 259 – NetworkGroupDataType Structure

Name	Type	Description
NetworkGroupDataType	structure
serverUri	String	URI of the Server represented by the network group.
networkPaths	EndpointUrlListDataType[]	Array of different network paths to the Server, for example provided by different network cards in a Server. Each network path can have several Endpoints representing different protocol options for the same path.

Its representation in the AddressSpace is defined in Table 260.

Table 260 – NetworkGroupDataType definition

Attributes	Value
BrowseName	NetworkGroupDataType
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the Structure DataType defined in Table 196.

Conformance Units
Redundancy Server

This structure represents a list of URLs of an Endpoint. Its composition is defined in Table 261.

Table 261 – EndpointUrlListDataType Structure

Name	Type	Description
EndpointUrlListDataType	structure
endpointUrlList	String[]	List of URLs of an Endpoint.

Its representation in the AddressSpace is defined in Table 262.

Table 262 – EndpointUrlListDataType definition

Attributes	Value
BrowseName	EndpointUrlListDataType
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the Structure DataType defined in Table 196.

Conformance Units
Redundancy Server

This structured DataType is used to provide a key value pair. The KeyValuePair is formally defined in Table 263.

Table 263 – KeyValuePair Structure

Name	Type	Description
KeyValuePair	structure
key	QualifiedName	The key of the value.
value	BaseDataType	The value associated with the key.

Its representation in the AddressSpace is defined in Table 264.

Table 264 – KeyValuePair definition

Attributes	Value
BrowseName	KeyValuePair
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the Structure DataType defined in Table 196.

Conformance Units
Base Info KeyValuePair

This Structured DataType defines a rational number as a fraction of two integral numbers. Its elements are described in Table 265.

Table 265 – RationalNumber Structure

Name	Type	Description
RationalNumber	Structure
Numerator	Int32	Numerator of the rational number. The sign of the rational number is reflected in this value
Denominator	UInt32	Denominator of the rational number

Its representation in the AddressSpace is defined in Table 266.

Table 266 – RationalNumber definition

Attributes	Value
BrowseName	RationalNumber
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the Structure DataType defined in Table 196.

Conformance Units
Base Info Rational Number

This abstract Structured DataType is the base to define multi-dimensional vectors. There are no specific elements defined as shown in Table 267.

Table 267 – Vector Structure

Name	Type	Description
Vector	Structure

Its representation in the AddressSpace is defined in Table 268.

Table 268 – Vector definition

Attributes	Value
BrowseName	Vector
IsAbstract	TRUE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the Structure DataType defined in Table 196.

Conformance Units
Base Info Spatial Data

This Structured DataType defines a vector in 3D space, providing the length for each direction (X, Y, and Z). Its elements are described in Table 269.

Table 269 – 3DVector Structure

Name	Type	Description
3DVector	Structure
X	Double	Length of X direction
Y	Double	Length of Y direction
Z	Double	Length of Z direction

Its representation in the AddressSpace is defined in Table 270.

Table 270 – 3DVector definition

Attributes	Value
BrowseName	3DVector
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the Vector DataType defined in Table 268.

Conformance Units
Base Info Spatial Data

This abstract Structured DataType is the base to define multi-dimensional cartesian coordinates. CartesianCoordinates describe a position in a cartesian coordinate system. A cartesian coordinate system is a coordinate system that specifies each point uniquely in a multi-dimensional space by a set of numerical coordinates, which are the signed distances to the point from fixed perpendicular oriented lines, measured in the same unit of length. There are no specific elements defined as shown in Table 271.

Table 271 – CartesianCoordinates Structure

Name	Type	Description
CartesianCoordinates	Structure

Its representation in the AddressSpace is defined in Table 272.

Table 272 – CartesianCoordinates definition

Attributes	Value
BrowseName	CartesianCoordinates
IsAbstract	TRUE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the Structure DataType defined in Table 196.

Conformance Units
Base Info Spatial Data

This Structured DataType defines a position in 3D space, providing the coordinate of each dimension (X, Y, and Z). Its elements are described in Table 273.

Table 273 – 3DCartesianCoordinates Structure

Name	Type	Description
3DCartesianCoordinates	Structure
X	Double	X coordinate
Y	Double	Y coordinate
Z	Double	Z coordinate

Its representation in the AddressSpace is defined in Table 274.

Table 274 – 3DCartesianCoordinates definition

Attributes	Value
BrowseName	3DCartesianCoordinates
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the CartesianCoordinates DataType defined in Table 272.

Conformance Units
Base Info Spatial Data

This abstract Structured DataType is the base to define multi-dimensional orientations. The orientation is given by the rotation of each dimension. There are no specific elements defined as shown in Table 275.

Table 275 – Orientation Structure

Name	Type	Description
Orientation	Structure

Its representation in the AddressSpace is defined Table 276.

Table 276 – Orientation definition

Attributes	Value
BrowseName	Orientation
IsAbstract	TRUE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the Structure DataType defined in Table 196.

Conformance Units
Base Info Spatial Data

This Structured DataType defines the orientation in 3D space, providing the rotation about each dimension. Its elements are described in Table 277.

Table 277 – 3DOrientation Structure

Name	Type	Description
3DOrientation	Structure
A	Double	Rotation around A dimension
B	Double	Rotation around B dimension
C	Double	Rotation around C dimension

Its representation in the AddressSpace is defined Table 278.

Table 278 – 3DOrientation definition

Attributes	Value
BrowseName	3DOrientation
Abstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the Orientation DataType defined in Table 276.

Conformance Units
Base Info Spatial Data

This abstract Structured DataType is the base to define multi-dimensional frames. There are no specific elements defined as shown in Table 279. Subtypes shall add a field called CartesianCoordinates representing the cartesian coordinates of the frame using as DataType a subtype of CartesianCoordinates, and a field called Orientation, representing the orientation of the frame using as DataType a subtype of Orientation. The concrete DataTypes need to be defined by the subtype. Both fields shall have the same number of dimensions.

Table 279 – Frame Structure

Name	Type	Description
Frame	Structure

Its representation in the AddressSpace is defined Table 280.

Table 280 – Frame definition

Attributes	Value
BrowseName	Frame
IsAbstract	TRUE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the Structure DataType defined in Table 196.

Conformance Units
Base Info Spatial Data

This Structured DataType defines a frame in 3D space. Annex G provides examples on how to use the 3DFrame DataType. It is a subtype of the Frame DataType and refines the DataTypes of its elements, as described in Table 281.

Table 281 – 3DFrame Structure

Name	Type	Description
3DFrame	Structure
CartesianCoordinates	3DCartesianCoordinates	Cartesian coordinates of the frame in 3D space.
Orientation	3DOrientation	Orientation of the frame in 3D space.

Its representation in the AddressSpace is defined Table 282.

Table 282 – 3DFrame definition

Attributes	Value
BrowseName	3DFrame
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the Frame DataType defined in Table 280.

Conformance Units
Base Info Spatial Data

This Structure DataType is the abstract base type used to provide OPC UA DataType definitions for an OPC UA Binary encoded byte blob used outside an OPC UA Server AddressSpace.

The DataTypeSchemaHeader is formally defined in Table 283.

Table 283 – DataTypeSchemaHeader structure

Name	Type	Description
DataTypeSchemaHeader	Structure
namespaces	String[]	Defines an array of namespace URIs. The index into the array is referred to as NamespaceIndex. The NamespaceIndex is used in NodeIds and QualifiedNames, rather than the longer namespace URI. NamespaceIndex 0 is reserved for the OPC UA namespace and it is not included in this array. The array contains the namespaces used in the data that follows the DataTypeSchemaHeader. The index used in NodeId and QualifiedNames identify an element in this list. The first entry in this array maps to NamespaceIndex 1.
structureDataTypes	StructureDescription[]	Description of Structure and Union DataTypes used in the data that follows the DataTypeSchemaHeader. This includes nested Structures. DataType NodeIds for Structure DataTypes used in the data refer to entries in this array. The StructureDescription DataType is defined in 12.33.
enumDataTypes	EnumDescription[]	Description of Enumeration or OptionSet DataTypes used in the data that follows the DataTypeSchemaHeader. DataType NodeIds for Enumeration or OptionSet DataTypes used in the data refer to entries in this array. The EnumDescription DataType is defined in 12.34.
simpleDataTypes	SimpleTypeDescription[]	Description of DataTypes derived from built-in DataTypes. This excludes OptionSet DataTypes.

The DataTypeSchemaHeader Structure representation in the AddressSpace is defined in Table 284.

Table 284 – DataTypeSchemaHeader definition

Attributes	Value
BrowseName	DataTypeSchemaHeader
IsAbstract	TRUE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of Structure defined in Table 196.

Conformance Units
Base Info UaBinary File

This Structure DataType is the abstract base type for all DataType descriptions containing the DataType NodeId and the definition for custom DataTypes like Structures and Enumerations. The DataTypeDescription is formally defined in Table 285.

Table 285 – DataTypeDescription structure

Name	Type	Description
DataTypeDescription	Structure
dataTypeId	NodeId	The NodeId of the DataType.
name	QualifiedName	A unique name for the data type.

The DataTypeDescription Structure representation in the AddressSpace is defined in Table 286.

Table 286 – DataTypeDescription definition

Attributes	Value
BrowseName	DataTypeDescription
IsAbstract	TRUE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of Structure defined in Table 196.

Conformance Units
Base Info UaBinary File

This Structure DataType provides the concrete DataTypeDescription for Structure DataTypes. It is a subtype of the DataTypeDescription DataType. The StructureDescription is formally defined in Table 287.

Table 287 – StructureDescription structure

Name

Type

Description

StructureDescription

Structure

structureDefinition

StructureDefinition

The definition of the structure DataType.

The StructureDefinition DataType is defined in OPC 10000-3.

Its representation in the AddressSpace is defined in Table 288.

Table 288 – StructureDescription definition

Attributes	Value
BrowseName	StructureDescription
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of DataTypeDescription defined in 12.32.

Conformance Units
Base Info UaBinary File

This Structure DataType provides the concrete DataTypeDescription for Enumeration or OptionSet DataTypes. It is a subtype of the DataTypeDescription DataType. The EnumDescription is formally defined in Table 289.

Table 289 – EnumDescription structure

Name	Type	Description
EnumDescription	Structure
enumDefinition	EnumDefinition	The definition of the enumeration DataType. The EnumDefinition DataType is defined in OPC 10000-3.
builtInType	Byte	The builtInType indicates if the DataType is an Enumeration or an OptionSet. If the builtInType is Int32, the DataType is an Enumeration. If the builtInType is one of the UInteger DataTypes or ExtensionObject, the DataType is an OptionSet.

Its representation in the AddressSpace is defined in Table 290.

Table 290 – EnumDescription definition

Attributes	Value
BrowseName	EnumDescription
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of DataTypeDescription defined in 12.32.

Conformance Units
Base Info UaBinary File

This Structure DataType provides the information for DataTypes derived from built-in DataTypes. It is a subtype of the DataTypeDescription DataType. The SimpleTypeDescription is formally defined in Table 291.

Table 291 – SimpleTypeDescription structure

Name	Type	Description
SimpleTypeDescription	Structure
baseDataType	NodeId	The base DataType of the simple DataType.
builtInType	Byte	The builtInType used for the encoding of the simple DataType.

Its representation in the AddressSpace is defined in Table 292.

Table 292 – SimpleTypeDescription definition

Attributes	Value
BrowseName	SimpleTypeDescription
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of DataTypeDescription defined in 12.32.

Conformance Units
Base Info UaBinary File

This Structure DataType defines the base layout of an OPC UA Binary encoded file. The content of the file is the UABinaryFileDataType encoded as ExtensionObject.

The file-specific metadata is provided by the DataTypeSchemaHeader which is the base type for the UABinaryFileDataType Structure.

If the file is provided through a FileType Object, the MimeType Property of the Object shall have the value application/opcua+uabinary.

If the file is stored on disc, the file extension shall be uabinary.

The UABinaryFileDataType is formally defined in Table 293.

Table 293 – UABinaryFileDataType structure

Name	Type	Description
UABinaryFileDataType	Structure	Subtype of DataTypeSchemaHeader defined in 12.31.
schemaLocation	String	Reference to a file that contains the DataTypeSchemaHeader for the content of the file represented by an instance of this structure. The schemaLocation is either a fully qualified URL or a URN which is a relative path to the file location. If the schemaLocation is provided, the DataType descriptions can be skipped but the namespaces used shall match the namespaces in the schema file.
fileHeader	KeyValuePair[]	The file-specific header.
body	BaseDataType	The body of the file. The DataTypes used in the body are described through the structureDataTypes, enumDataTypes and simpleDataTypes fields of the DataTypeSchemaHeader Structure which is the base type for the UABinaryFileDataType. DataTypes defined by OPC UA can be omitted.

Its representation in the UABinaryFileDataType is defined in Table 294.

Table 294 – UABinaryFileDataType definition

Attributes	Value
BrowseName	UABinaryFileDataType
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of DataTypeSchemaHeader defined in 12.31.

Conformance Units
Base Info UaBinary File

This structure contains a QualifiedName where the namespace is represented as URI. Its composition is defined in Table 295.

Table 295 – PortableQualifiedName Structure

Name	Type	Description
PortableQualifiedName	structure
namespaceUri	String	The namespace URI portion of the QualifiedName.
name	String	The text portion of the QualifiedName.

Its representation in the AddressSpace is defined in Table 296.

Table 296 – PortableQualifiedName definition

Attributes	Value
BrowseName	PortableQualifiedName
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of Structure defined in Table 196.

Conformance Units
Base Info Portable IDs

This structure contains a NodeId where the namespace is represented as URI. Its elements are defined in Table 297. The structure is typically used to represent a NodeId outside the Server that defines the NodeId.

Table 297 – PortableNodeId Structure

Name	Type	Description
PortableNodeId	structure
namespaceUri	String	The namespace URI portion of the NodeId.
identifier	NodeId	The identifier portion of the NodeId.The namespaceIndex parameter shall be 0 and is ignored in the Server

Its representation in the AddressSpace is defined in Table 298.

Table 298 – PortableNodeId definition

Attributes	Value
BrowseName	PortableNodeId
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of Structure defined in Table 196.

Conformance Units
Base Info Portable IDs

This simple DataType is a subtype of String. It provides semantic information to the String describing the String as a URI as defined by RFC 3986. The UriString is formally defined in Table 299.

Table 299 – UriString definition

Attributes	Value
BrowseName	UriString
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of String defined in Table 189.

Conformance Units
Base Info UriString

This Structure DataType is used to represent an unsigned rational number as a fraction of two integral numbers. The UnsignedRationalNumber is formally defined in Table 300.

Table 300 – UnsignedRationalNumber structure

Name	Type	Description
UnsignedRationalNumber	Structure
Numerator	UInt32	Numerator of the rational number
Denominator	UInt32	Denominator of the rational number

Its representation in the AddressSpace is defined in Table 301.

Table 301 – UnsignedRationalNumber definition

Attributes	Value
BrowseName	UnsignedRationalNumber
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of Structure defined in Table 196.

Conformance Units
Base Info Rational Number

The SemanticVersionString DataType is a subtype of String. It is formally defined in Table 302.

SemanticVersionString can be used if the version follows the rules of the Semantic Versioning 2.0.0. The syntax shall follow the BNF inTable 303.

Table 302 – SemanticVersionString definition

Attributes	Value
BrowseName	SemanticVersionString
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the String DataType defined in Table 189.

Conformance Units
Base Info SemanticVersionString

Table 303 – Backus–Naur Form Grammar for SemanticVersionString

<valid semver> ::= <version core> | <version core> "-" <pre-release> | <version core> "+" <build> | <version core> "-" <pre-release> "+" <build> <version core> ::= <major> "." <minor> "." <patch> <major> ::= <numeric identifier> <minor> ::= <numeric identifier> <patch> ::= <numeric identifier> <pre-release> ::= <dot-separated pre-release identifiers> <dot-separated pre-release identifiers> ::= <pre-release identifier> | <pre-release identifier> "." <dot-separated pre-release identifiers> <build> ::= <dot-separated build identifiers> <dot-separated build identifiers> ::= <build identifier> | <build identifier> "." <dot-separated build identifiers> <pre-release identifier> ::= <alphanumeric identifier> | <numeric identifier> <build identifier> ::= <alphanumeric identifier> | <digits> <alphanumeric identifier> ::= <non-digit> | <non-digit> <identifier characters> | <identifier characters> <non-digit> | <identifier characters> <non-digit> <identifier characters> <numeric identifier> ::= "0" | <positive digit> | <positive digit> <digits> <identifier characters> ::= <identifier character> | <identifier character> <identifier characters> <identifier character> ::= <digit> | <non-digit> <non-digit> ::= <letter> | "-" <digits> ::= <digit> | <digit> <digits> <digit> ::= "0" | <positive digit> <positive digit> ::= "1" | "2" | "3" | "4" | "5" | "6" | "7" | "8" | "9" <letter> ::= "A" | "B" | "C" | "D" | "E" | "F" | "G" | "H" | "I" | "J" | "K" | "L" | "M" | "N" | "O" | "P" | "Q" | "R" | "S" | "T" | "U" | "V" | "W" | "X" | "Y" | "Z" | "a" | "b" | "c" | "d" | "e" | "f" | "g" | "h" | "i" | "j" | "k" | "l" | "m" | "n" | "o" | "p" | "q" | "r" | "s" | "t" | "u" | "v" | "w" | "x" | "y" | "z"

This simple DataType is a subtype of UInt32. It can be used to represent a collection of data managed by a Server. The Handle DataType is formally defined in Table 304.

Table 304 – Handle definition

Attributes	Value
BrowseName	Handle
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the UInt32 DataType defined in Table 186.

Conformance Units
Base Info Handle DataType

This simple DataType is a subtype of String. It is used to represent a String which has no leading or trailing whitespace. When a TrimmedString is specified as a Method input argument or written to a Variable and the incoming TrimmedString contains leading or trailing whitespace, the Server shall return a Bad_TypeMismatch error or shall trim the TrimmedString internally before processing it. Whitespace is defined as those Unicode characters defined as whitespace (i.e. “WSpace=Y”, “WS”) in the Unicode Database. The TrimmedString DataType is formally defined in Table 304.

Table 305 – TrimmedString definition

Attributes	Value
BrowseName	TrimmedString
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the String DataType defined in Table 189.

Conformance Units
Base Info TrimmedString

This DataType is an enumeration that defines the redundancy mode of a Server using non-transparent backup redundancy. Its values are defined in Table 306.

Table 306 – RedundantServerMode values

Name	Value	Description
PRIMARY_WITH_BACKUP	0	The Server is acting as the primary in a non-transparent backup Server Set and one or more other Servers in the set are available to take over
PRIMARY_ONLY	1	The Server is acting as the primary in a non-transparent backup Server Set however no other Server are available to take over
BACKUP_READY	2	The Server is acting as a backup to the primary and is ready to take over as the primary
BACKUP_NOT_READY	3	The Server is acting as a backup to the primary and is not ready to take over as the primary

Its representation in the AddressSpace is defined in Table 307.

Table 307 – RedundantServerMode definition

Attributes	Value
BrowseName	RedundantServerMode
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the Enumeration DataType defined in Table 165.
HasProperty	Variable	EnumStrings	LocalizedText[]	PropertyType

Conformance Units
Base Info ServerType

Attribute

BrowseName

MyBitFieldType

IsAbstract

−1 (−1 = Scalar)

This Structured DataType is used to provide the metadata for a field of a BitFieldType VariableType. The BitFieldDefinition is formally defined in Table 308.

Table 308 – BitFieldDefinition Structure

Name	Type	Description
BitFieldDefinition	Structure
Name	String	A name for the field that is unique within the BitFieldDefinition.
Description	LocalizedText	A localized description of the field.
Reserved	Boolean	True if the range of bits is reserved for future use by the defining Namespace.
StartingBitPosition	UInt32	The bit position of the first bit used by this field.
EndingBitPosition	UInt32	The bit position of the last bit used by this field.

When Reserved is set to True, it indicates that the bitfield shall only be defined by a Subtype of a BitFieldType defined in the same Namespace. Bits not defined or reserved in the BitFieldType may be used by a Subtype which is defined in any Namespace. A Subtype of a BitFieldType shall include, in its BitFieldDefinition all the field definitions of the parent Type. A Subtype of a BitFieldType shall not reallocate bits defined in the parent Type unless they are Reserved. A Reserved field can be refined by a SubType of a BitFieldType however it shall not include any more bits than the parent. In a Subtype of a BitFieldType, a Reserved field may be broken into more than one field if the overall number of bits remain the same as the parent. The Name and Description of a Reserved field may be changed by a Subtype of a BitFieldType.

The StartingBitPosition field shall be equal to or less than the EndingBitPosition field. The StartingBitPosition and EndingBitPosition fields shall be defined as zero being the least significate bit and increasing to most significate. When the BitFieldType is an array the bit numbering begins with the least significate bit of the first element of the array and ends with the most significate bit of the last element of the array.

The DataType of the field is defined by the DataType of the BitFieldType’s child DataVariable for the field. When the DataType of the field is an Integer the most significate bit of the field shall be the sign bit.

Its representation in the AddressSpace is defined in Table 309.

Table 309 – BitFieldDefinition definition

Attributes	Value
BrowseName	BitFieldDefinition
IsAbstract	FALSE

References	NodeClass	BrowseName	DataType	TypeDefinition	ModellingRule
Subtype of the Structure DataType defined in 12.2.12.

Conformance Units

The following example is intended to illustrate the use of the BitFieldType VariableType. In this example the MyBitFieldType, defined in Table 310 and Table 311, consists of three defined fields, a reserved bit, a reserved range of bits and three bits which are not defined. The reserved fields can be used by SubTypes that are defined within the same Namespace as the MyBitFieldType VariableType. Figure 11 illustrates how the fields are extracted from the example BitFieldType. An example of a SubType utilizing the reserved bit is the MyBitFieldSubType defined in Table 312 and Table 313. The three bits which are not defined can be utilized by SubTypes defined in any Namespace.

Table 310 – MyBitFieldType VariableType Example

References	NodeClass	BrowseName	DataType	TypeDefinition	MR
Subtype of the BitFieldType defined in 7.29
HasProperty	Variable	MyBitFieldDefinitions	BitFieldDefinition[]	PropertyType	M
HasComponent	Variable	Counter	Int16	BaseDataVariableType	M
HasComponent	Variable	Enabled	Boolean	BaseDataVariableType	M
HasComponent	Variable	Status	Boolean	BaseDataVariableType	M

Table 311 – MyBitFieldDefinitions BitFieldDefinition Example

Name	Description	Reserved	StartingBit Position	EndingBitPosition
Counter	A 6-bit counter representing a signed integer value. As a signed integer the 6th bit (position 5) is the sign bit.	N	0	5
MyReservedBit	A single bit reserved for future extension	Y	6	6
Enabled	A single bit representing a Boolean enable value	N	7	7
Status	A single bit representing a Boolean status value	N	8	8
MyReserveBlock	A range of 4 reserved bits for future extension	Y	12	15

Note: Bits 9 to 11 are not defined in this example and therefore available to be used by any SubType in any Namespace.

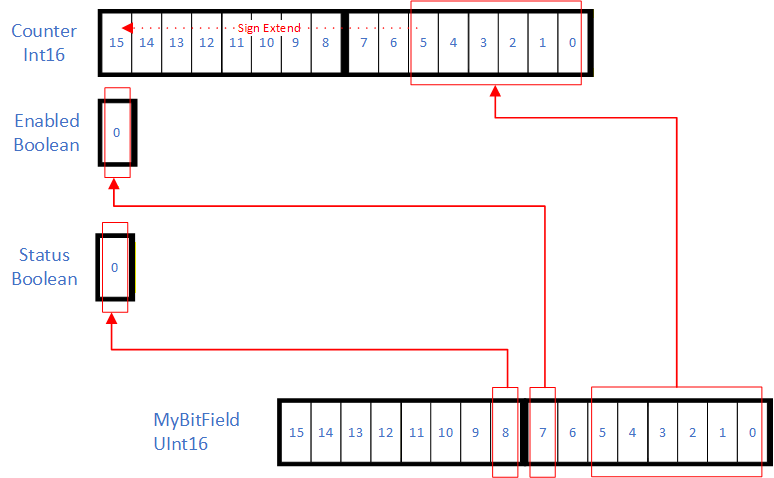

Figure 11 – MyBitFieldType Example Illustration

Table 312 – MyBitFieldSubType VariableType Example

References	NodeClass	BrowseName	DataType	TypeDefinition	MR
Subtype of the MyBitFieldType defined in Table 310
HasProperty	Variable	MyBitFieldSubDefinitions	BitFieldDefinition[]	PropertyType	M
HasComponent	Variable	SubStatus	Boolean	BaseDataVariableType	M

Table 313 – MyBitFieldSubDefinitions BitFieldDefinition Example

Name	Description	Reserved	StartingBit Position	EndingBitPosition
Counter	A 6-bit counter representing a signed integer value. As a signed integer the 6th bit (position 5) is the sign bit.	N	0	5
SubStatus	A single bit representing a Boolean substatus. This field is utilizing the MyReservedBit reserved bit defined in the parent Type	N	6	6
Enabled	A single bit representing a Boolean enable value	N	7	7
Status	A single bit representing a Boolean status value	N	8	8
MyReserveBlock	A range of 4 reserved bits for future extension	Y	12	15

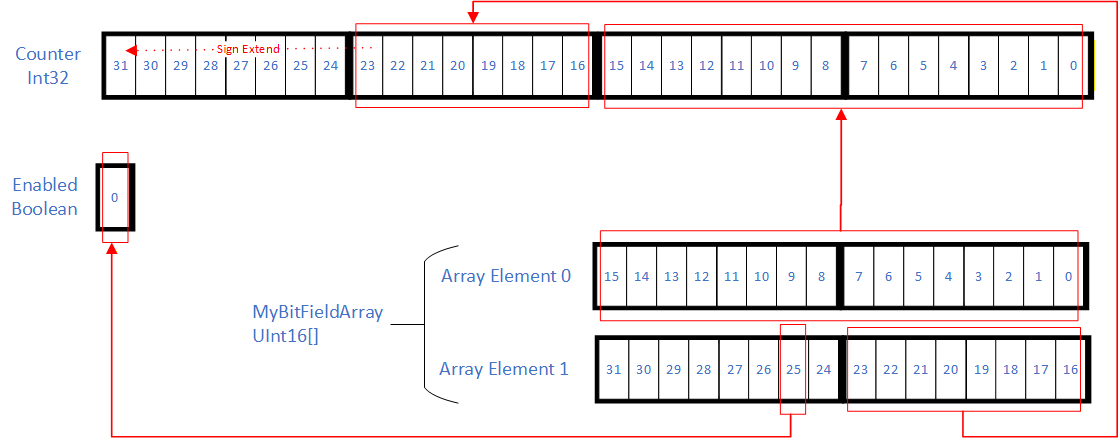

The following is another BitFieldType VariableType example intended to illustrate the use of an Array DataType. In this example the MyBitFieldArrayType, defined in Table 314 and Table 315, uses a UInt16 array and consists of two defined fields, and a reserved bit. The reserved bit can be used by SubTypes that are defined within the same Namespace as the MyBitFieldArrayType VariableType.The example illustrates how the StartBitPosition and EndingBitPosition are used with Array DataTypes. The first element of the array identified as bit positions 0 to 15 represent the lower 16 bits of the Counter. The second element of the array represents the upper 8 bits of the Counter. Figure 12 illustrates how the fields are extracted from the example BitFieldType.

Table 314 – MyBitFieldArrayType VariableType Example

References	NodeClass	BrowseName	DataType	TypeDefinition	MR
Subtype of the BitFieldType defined in defined 7.29
HasProperty	Variable	MyBitFieldArrayDefinitions	BitFieldDefinition[]	PropertyType	M
HasComponent	Variable	Counter	Int32	BaseDataVariableType	M
HasComponent	Variable	Enabled	Boolean	BaseDataVariableType	M

Table 315 – MyBitFieldArrayDefinitions BitFieldDefinition Example

Name	Description	Reserved	StartingBit Position	EndingBitPosition
Counter	A 24-bit counter representing a signed integer value. As a signed integer the 24th bit (position 23) is the sign bit.	N	0	23
MyReservedBit	A single bit reserved for future extension	Y	24	24
Enabled	A single bit representing a Boolean enable value	N	25	25
