7.7.1 Overview

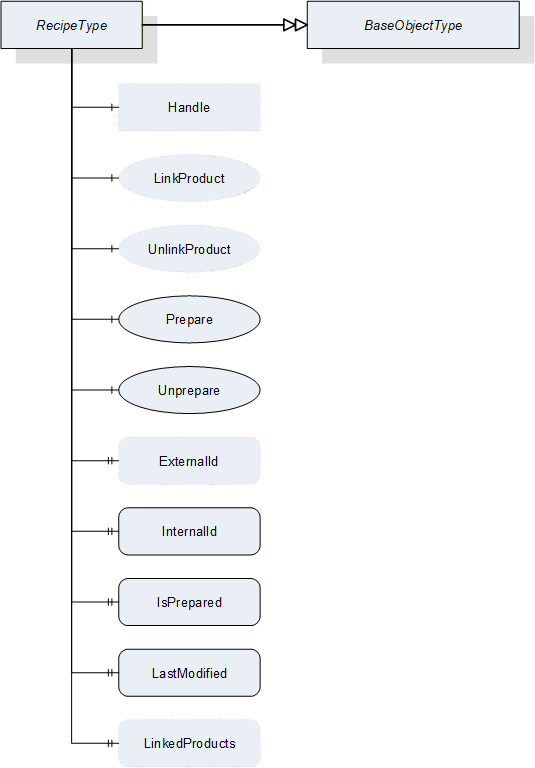

This ObjectType defines the metadata for a recipe and methods for handling individual recipes.
| Attribute | Value | ||||
| BrowseName | RecipeType | ||||
| IsAbstract | False | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | ModellingRule |
|---|---|---|---|---|---|
| Subtype of the BaseObjectType defined in OPC 10000-5 | |||||
| HasProperty | Variable | ExternalId | RecipeIdExternalDataType | PropertyType | Optional |
| HasProperty | Variable | InternalId | RecipeIdInternalDataType | PropertyType | Mandatory |
| HasProperty | Variable | IsPrepared | Boolean | PropertyType | Mandatory |
| HasProperty | Variable | LastModified | UtcTime | PropertyType | Mandatory |
| HasProperty | Variable | LinkedProducts | ProductIdDataType[] | PropertyType | Optional |
| HasComponent | Object | Handle | -- | FileType | Optional |
| HasComponent | Method | LinkProduct | -- | -- | Optional |
| HasComponent | Method | UnlinkProduct | -- | -- | Optional |
| HasComponent | Method | Prepare | -- | -- | Mandatory |
| HasComponent | Method | Unprepare | -- | -- | Mandatory |
ExternalId
RecipeId for identifying the recipe outside the vision system. The ExternalId is only managed by the environment.
InternalId
System-wide unique ID for identifying a recipe. This ID is assigned by the vision system.
LastModified
The time, when this recipe was last modified in the recipe store of the vision system. It is assumed that this value is consistent between recipes on the system so that it can be used to order recipes on the system by modification time. As it is possible that the vision system may not be synchronized with a time server, this value may not be valid for comparisons between systems.
LinkedProducts
Array of ProductIds which this recipe is linked to. May be empty.
Handle
FileType object for handling transfer of recipe data between client and server. The data is treated as a binary blob by the server. This method is optional for clients not supporting transfer of the actual recipe contents.
