The ConfirmationStateMachineType is used to prove a valid Client – Server connection after a restart of the OPC UA Server. This supports the confirmation option of 8.3.4.9.
If several instances of this state machine are provided on a device (due to several instances of the SoftwareUpdateType), all instances should behave as if it is only a single instance. In particular it is sufficient to call one of the confirm methods after reboot.
The ConfirmationStateMachineType is illustrated in Figure 53 and Figure 54 and formally defined in Table 104. The transitions are formally defined in Table 106.

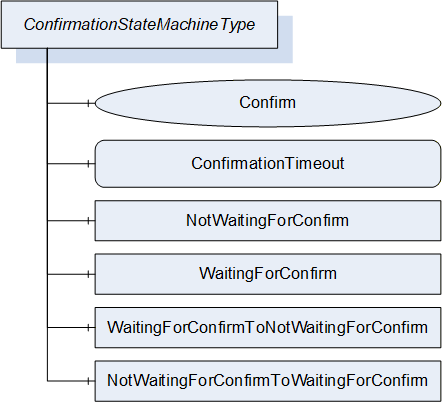

Figure 53 – Confirmation state machineFigure 54 – ConfirmationStateMachineType
Table 104 – ConfirmationStateMachineType
Attribute
Value
BrowseName
1:ConfirmationStateMachineType
IsAbstract
False
References
Node Class
BrowseName
DataType
TypeDefinition
Other
Subtype of the 0:FiniteStateMachineType defined in OPC 10000-5.
0:HasComponent
Method
1:Confirm
M
0:HasComponent
Variable
1:ConfirmationTimeout
0:Duration
0:BaseDataVariableType
M
0:HasComponent
Object
1:NotWaitingForConfirm
0:InitialStateType
0:HasComponent
Object
1:WaitingForConfirm
0:StateType
0:HasComponent
Object
1:NotWaitingForConfirmToWaitingForConfirm
0:TransitionType
0:HasComponent
Object
1:WaitingForConfirmToNotWaitingForConfirm
0:TransitionType
Conformance Units
DI SU Update Confirmation
The component Variables of the ConfirmationStateMachineType have additional Attributes defined in Table 105.
Table 105 – 1:ConfirmationStateMachineType Attribute values for child Nodes
