8.4.1.1 Overview

The SoftwareUpdateType defines an AddIn which can be used to extend Objects with software update features. All software update options are exposed as references of this AddIn. This way a Client can check for the references of the AddIn to determine which options are provided by a Server. If an option is available, it shall be used as specified.

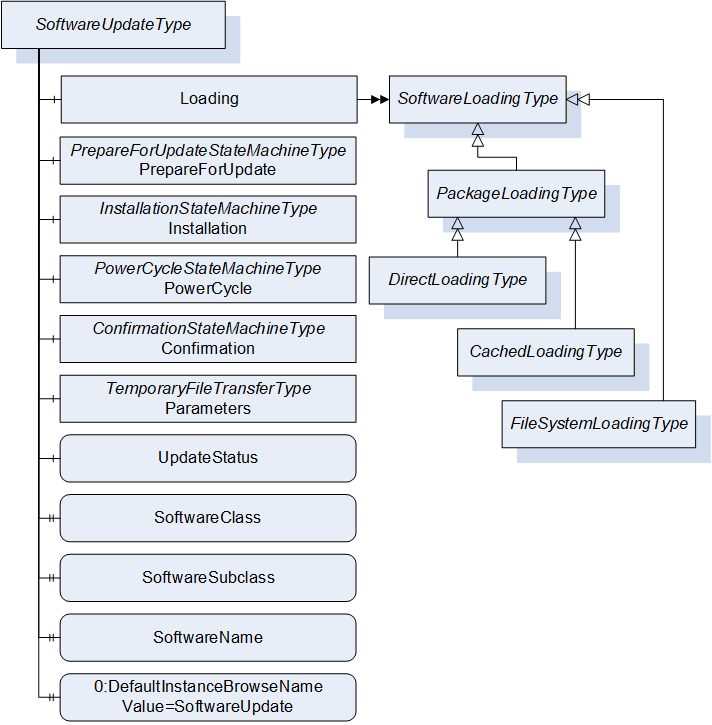

The SoftwareUpdateType is illustrated in Figure 42 and formally described in Table 76.

Table 76 – SoftwareUpdateType definition

Attribute	Value
BrowseName	1:SoftwareUpdateType
IsAbstract	False

References	Node Class	BrowseName	DataType	TypeDefinition	Other
Subtype of the 0:BaseObjectType defined in OPC 10000-5.
0:HasComponent	Object	1:Loading		1:SoftwareLoadingType	O
0:HasComponent	Object	1:PrepareForUpdate		1:PrepareForUpdateStateMachineType	O
0:HasComponent	Object	1:Installation		1:InstallationStateMachineType	O
0:HasComponent	Object	1:PowerCycle		1:PowerCycleStateMachineType	O
0:HasComponent	Object	1:Confirmation		1:ConfirmationStateMachineType	O
0:HasComponent	Object	1:Parameters		0:TemporaryFileTransferType	O
0:HasComponent	Variable	1:UpdateStatus	0:LocalizedText	0:BaseDataVariableType	O
0:HasProperty	Variable	1:SoftwareClass	SoftwareClass	0:PropertyType	O
0:HasProperty	Variable	1:SoftwareSubclass	0:String	0:PropertyType	O
0:HasProperty	Variable	1:SoftwareName	0:String	0:PropertyType	O
0:HasProperty	Variable	1:UnsignedPackageAllowed	0:Boolean	0:PropertyType	O
0:HasComponent	Variable	1:VendorErrorCode	0:Int32	0:BaseDataVariableType	O
0:HasProperty	Variable	0:DefaultInstanceBrowseName	0:QualifiedName	0:PropertyType

Conformance Units
DI SU Software Update
