B.6.6 Valve command – Failed – Fault case 1

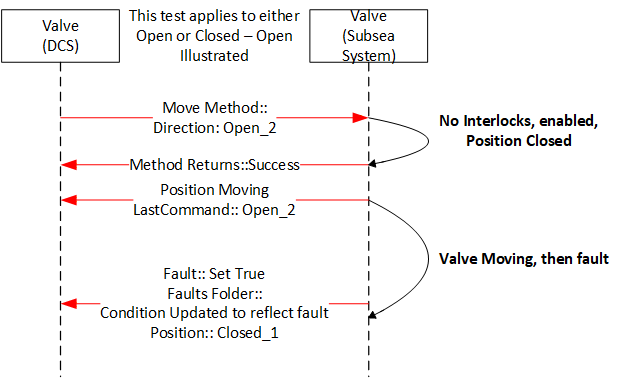

Figure 49 – Valve command – Failed - Fault

Sequence description; the above sequence is a failure of a command. The value fault maybe the result of the lack of action from the valve for a period of time greater that the OpenTimeDuration, it could also be some other fault that is reported from the subsea system.
