PADIMType – OPC UA for Process Automation Devices

7.2 PADIMType

The PADIMType is a subtype of the ComponentType, defined in OPC 10000-100. It is formally defined in Table 109.

Table 109 – PADIMType definition

Attribute	Value
BrowseName	PADIMType
IsAbstract	False

References	NodeClass	BrowseName	DataType	TypeDefinition	Other
Subtype of 2:ComponentType defined in OPC 10000-100, i.e. inheriting the InstanceDeclarations of that Node

Applied from IVendorNameplateType defined on ComponentType in OPC 10000-100
0:HasProperty	Variable	2:Manufacturer	0:LocalizedText	0:PropertyType	M
0:HasProperty	Variable	2:ManufacturerUri	0:String	0:PropertyType	M
0:HasProperty	Variable	2:Model	0:LocalizedText	0:PropertyType	M
0:HasProperty	Variable	2:SerialNumber	0:String	0:PropertyType	M
0:HasProperty	Variable	2:ProductCode	0:String	0:PropertyType	M
0:HasProperty	Variable	2:HardwareRevision	0:String	0:PropertyType	M
0:HasProperty	Variable	2:SoftwareRevision	0:String	0:PropertyType	M
0:HasProperty	Variable	2:DeviceRevision	0:SemanticVersionString	0:PropertyType	O
0:HasProperty	Variable	2:RevisionCounter	0:Int32	0:PropertyType	M
0:HasProperty	Variable	2:ProductInstanceUri	0:String	0:PropertyType	M

Applied from ITagNameplateType defined on ComponentType
0:HasProperty	Variable	2:AssetId	0:String	0:PropertyType	M

0:HasInterface	ObjectType	2:IDeviceHealthType		Defined in OPC 10000-100
0:HasInterface	ObjectType	IAdministrationType		Defined above, see chapter 7.1.1
0:HasInterface	ObjectType	ISignalSetType		Defined above, see chapter 7.1.2

Applied from IDeviceHealthType defined in OPC 10000-100
0:HasComponent	Variable	2:DeviceHealth	2:DeviceHealthEnumeration	0:BaseDataVariableType	M
0:HasComponent	Object	2:DeviceHealthAlarms		0:FolderType	O

Applied from IAdministrationType
0:HasComponent	Variable	DisplayLanguage	0:LocaleId	0:BaseDataVariableType	O
0:HasComponent	Variable	DateOfLastChange	0:DateTime	0:BaseDataVariableType	O
0:HasComponent	Method	FactoryReset	See chapter 9.1		O

Applied from ISignalSetType
0:HasComponent	Object	SignalSet		SignalSetType	O

0:HasDictionaryEntry	Object	3:<DictionaryEntryName>		0:IrdiDictionaryEntryType
0:HasComponent	Object	SubDevices		2:ConfigurableObjectType	O
0:HasComponent	Object	DeviceConditionSet		BaseObjectType	O

0:HasProperty	Variable	0:DefaultInstanceBrowseName	0:QualifiedName	0:PropertyType

Conformance Units
PA-DIM Base
PA-DIM Base Alarming
PA-DIM Browsable Alarms
PA-DIM IAdmin DisplayLanguage
PA-DIM IAdmin DateOfChange
PA-DIM IAdmin FactoryReset
PA-DIM ISignal
PA-DIM SignalSet
PA-DIM SubDevices
PA-DIM DeviceRevision
PA-DIM Device Condition Set
PA-DIM IGeneralDeviceConditionSet Interface
PA-DIM IGeneralDeviceConditionSet DeviceComponentConditions

The DefaultInstanceBrowseName Property – defined in OPC 10000-3 – is used to specify the recommended BrowseName for instances of the PADIMType, see Figure 11. Its Value is defined in Table 112.

The following figure illustrates the usage of DefaultInstanceBrowseName.

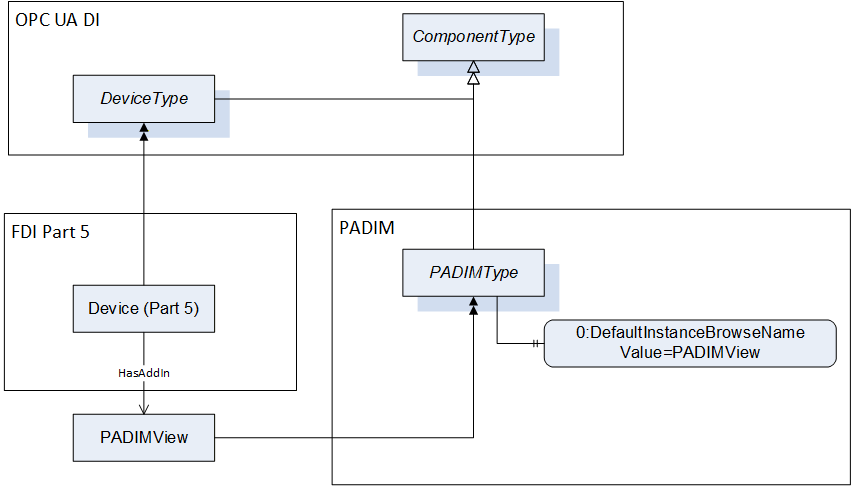

**Figure** **11 – Example of Integration of PA-DIM with FDI Part 5 Information Model**

The IVendorNamePlateType Interface items that are listed are actually inherited from ComponentType and are listed here because the ModellingRule for these instances is revised to be mandatory (they are optional in ComponentType) or restrictions are introduced here (for 2:DeviceRevision).

DeviceRevision provides the overall revision level of a hardware component or the Device. As an example, this Property can be used in ERP systems together with the ProductCode Property. SemanticVersionString (a sub-type of String defined in OPC 10000-5) shall be used when using the Semantic Versioning format. Each of <major>, <minor>, <patch> shall be able to represent a two-byte integer.

The ITagNamePlateType Interface item that is listed is actually inherited from ComponentType and is listed here because the ModellingRule for the instance is revised to be mandatory, it is only optional in ComponentType.

The DateOfLastChange shall be timestamped in the OPC UA Server.

3:<DictionaryEntryName> is an optional placeholder for an object of IrdiDictionaryEntryType that defines a predefined group of one or more classes below ABV000, e.g. Final control element or Measuring instrument. ABV000 is defined in IEC 61987 Common Data Dictionary (CDD). A Measuring instrument could be e.g. a Coriolis mass flow transmitter with the IrdiIdentifier 3:0112/2///61987#ABA763#003.

The optional SubDevices Object is used to expose sub-devices. The contained SupportedTypes Object (see OPC 10000-100) shall only reference PADIMType or ObjectTypes that are subtypes of the PADIMType, and thus all subdevices shall be instances of PADIMType or subtypes.

DeviceConditionSet is a container object for the condition parameters of the device. It has a reference to IGeneralDeviceConditionSetType to add device specific condition variables.

The components of PADIMType have additional references which are defined in Table 110.

Table 110 – PADIMType additional References

SourceBrowsePath	Reference Type	Is Forward	TargetBrowsePath
2:Manufacturer	0:HasDictionaryEntry	True	3:0112/2///61360_7#CBA031#001
2:ManufacturerUri	0:HasDictionaryEntry	True	3:0112/2///61360_7#CBA032#001
2:Model	0:HasDictionaryEntry	True	3:0112/2///61360_7#CBA039#001
2:SerialNumber	0:HasDictionaryEntry	True	3:0112/2///61360_7#CBA050#001
2:ProductCode	0:HasDictionaryEntry	True	3:0112/2///61360_7#CBA040#001
2:HardwareRevision	0:HasDictionaryEntry	True	3:0112/2///61360_7#CBA047#001
2:SoftwareRevision	0:HasDictionaryEntry	True	3:0112/2///61360_7#CBA046#001
2:DeviceRevision	0:HasDictionaryEntry	True	3:0112/2///61987#ABP643#002
2:RevisionCounter	0:HasDictionaryEntry	True	3:0112/2///61987#ABN603#002
2:ProductInstanceUri	0:HasDictionaryEntry	True	3:0112/2///61360_7#CBA055#001
2:AssetId	0:HasDictionaryEntry	True	3:0112/2///61987#ABA038#004
2:DeviceHealth	0:HasDictionaryEntry	True	3:0112/2///61987#ABN972#002

Table 111 – PADIMType additional subcomponents

BrowsePath	References	NodeClass	BrowseName	DataType	TypeDefinition	Others
DeviceConditionSet	0:HasInterface	ObjectType	IGeneralDeviceConditionSetType		Defined above, see chapter 7.1.7
Applied from IGeneralDeviceConditionSetType
DeviceConditionSet	0:HasComponent	Object	GeneralDeviceConditions		GeneralDeviceConditionSetType	O
DeviceConditionSet	0:HasComponent	Object	DeviceComponentConditions		BaseObjectType	O
	0:HasComponent	Object	<DeviceComponentIdentifier>		GeneralDeviceConditionSetType	OP

The child Nodes of the PADIMType have additional Attribute values defined in Table 112. An empty field in the column “Value Attribute” means: the text field of the variable’s value attribute has the length 0.

Table 112 – PADIMType Attribute values for child Nodes

BrowsePath	Value Attribute
2:Manufacturer
2:ManufacturerUri
2:Model
2:SerialNumber
2:ProductCode
2:HardwareRevision
2:SoftwareRevision
2:DeviceRevision	1.0.0
2:RevisionCounter	0
2:ProductInstanceUri
2:AssetId
2:DeviceHealth	0
DisplayLanguage	en
DateOfLastChange	1/1/1601 12:00:00 AM
0:DefaultInstanceBrowseName		PADIMView
