B.3 Meta Model

B.3.1 Base

Base is shown in Figure B.4.

Figure B.4 – Base

B.3.2 ReferenceType

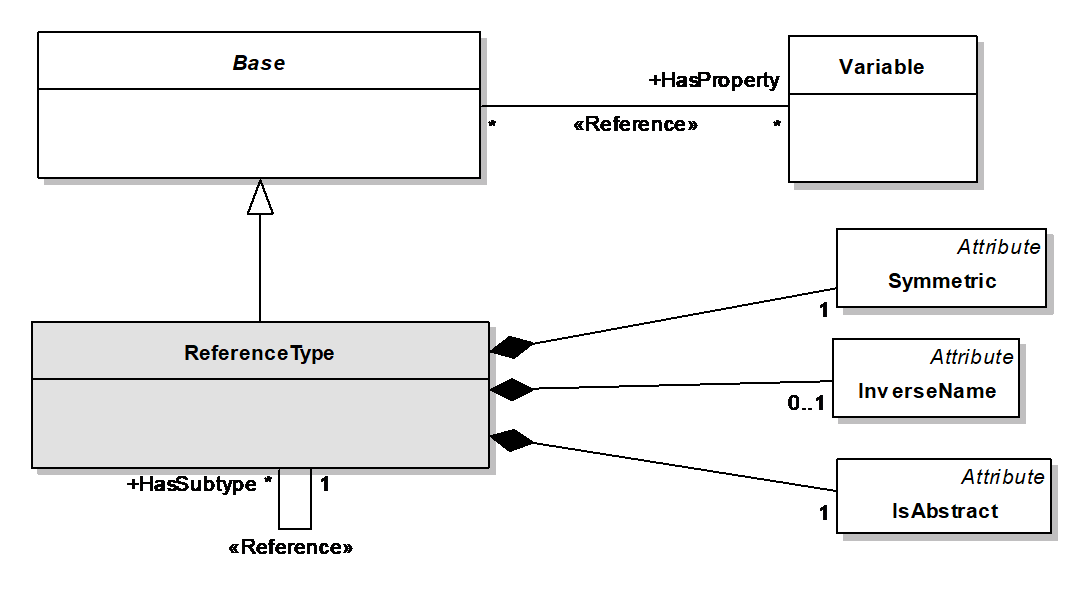

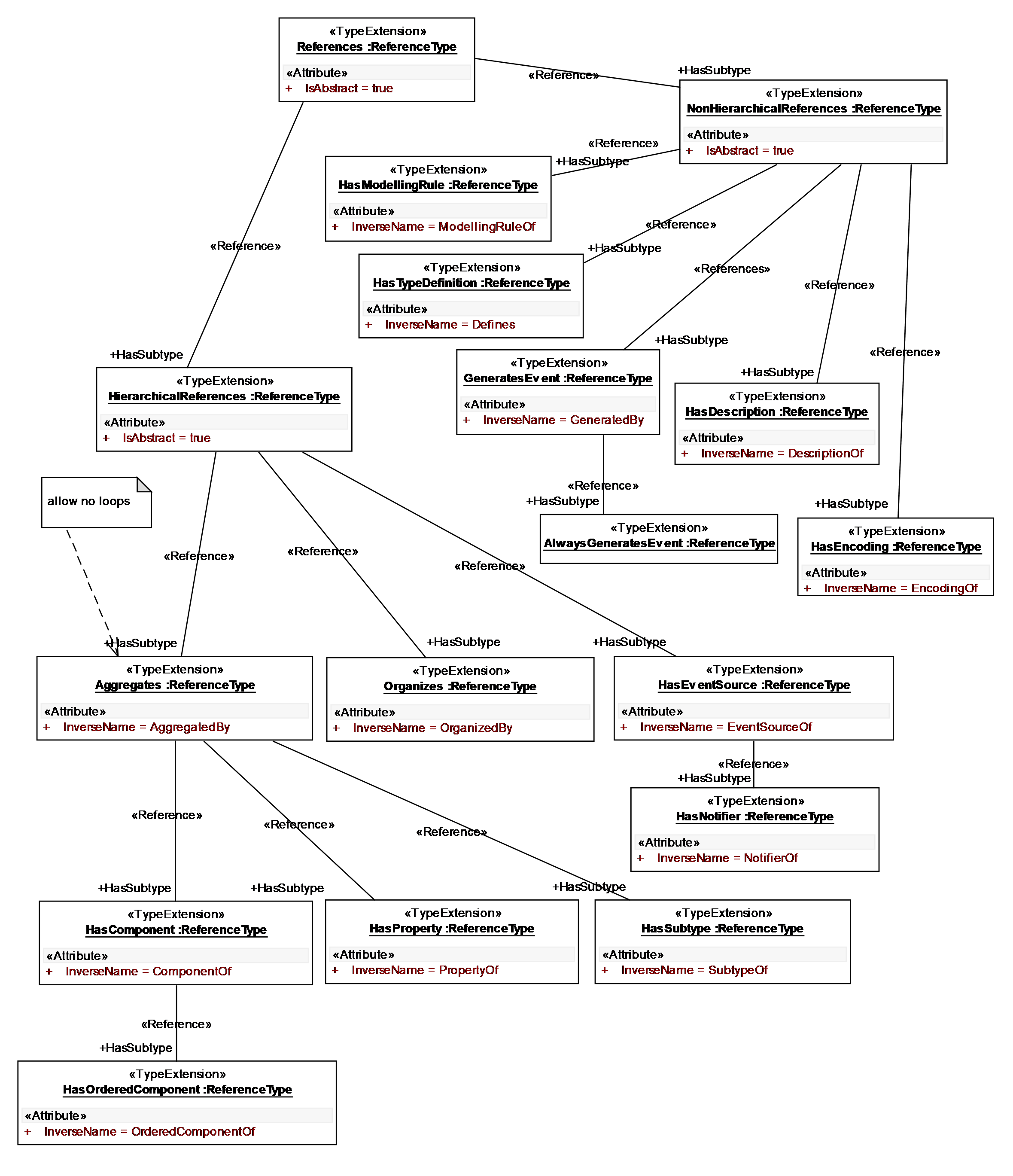

ReferenceType is shown in Figure B.5 and predefined ReferenceTypes in Figure B.6.

Figure B.5 – Reference and ReferenceType

If Symmetric is “false” an InverseName shall be provided.

Figure B.6 – Predefined ReferenceTypes

B.3.3 Attributes

Attributes are shown in Figure B.7.

Figure B.7 – Attributes

There may be more Attributes defined in other parts of this series of standards.

Attributes used for references, which have a NodeId as DataType, are not shown in this diagram but are shown as stereotyped associations in the other diagrams.

B.3.4 Object and ObjectType

Objects and ObjectTypes are shown in Figure B.8.

B.3.5 EventNotifier

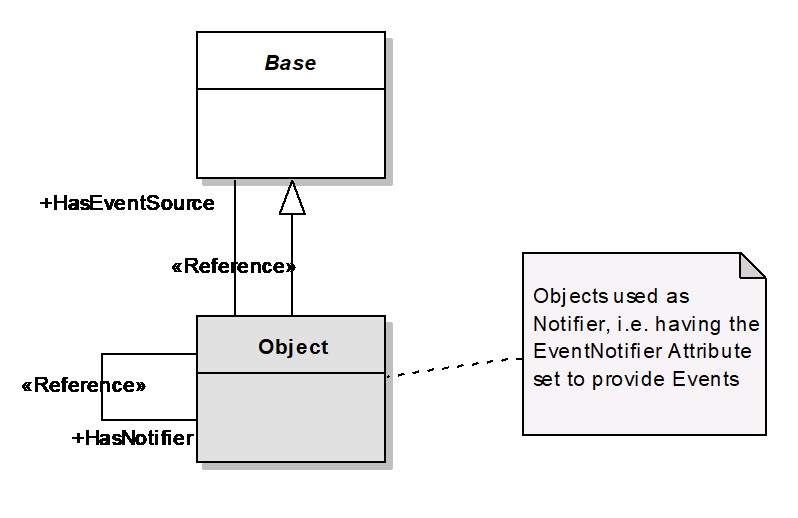

EventNotifier are shown in Figure B.9.

Figure B.9 – EventNotifier

B.3.6 Variable and VariableType

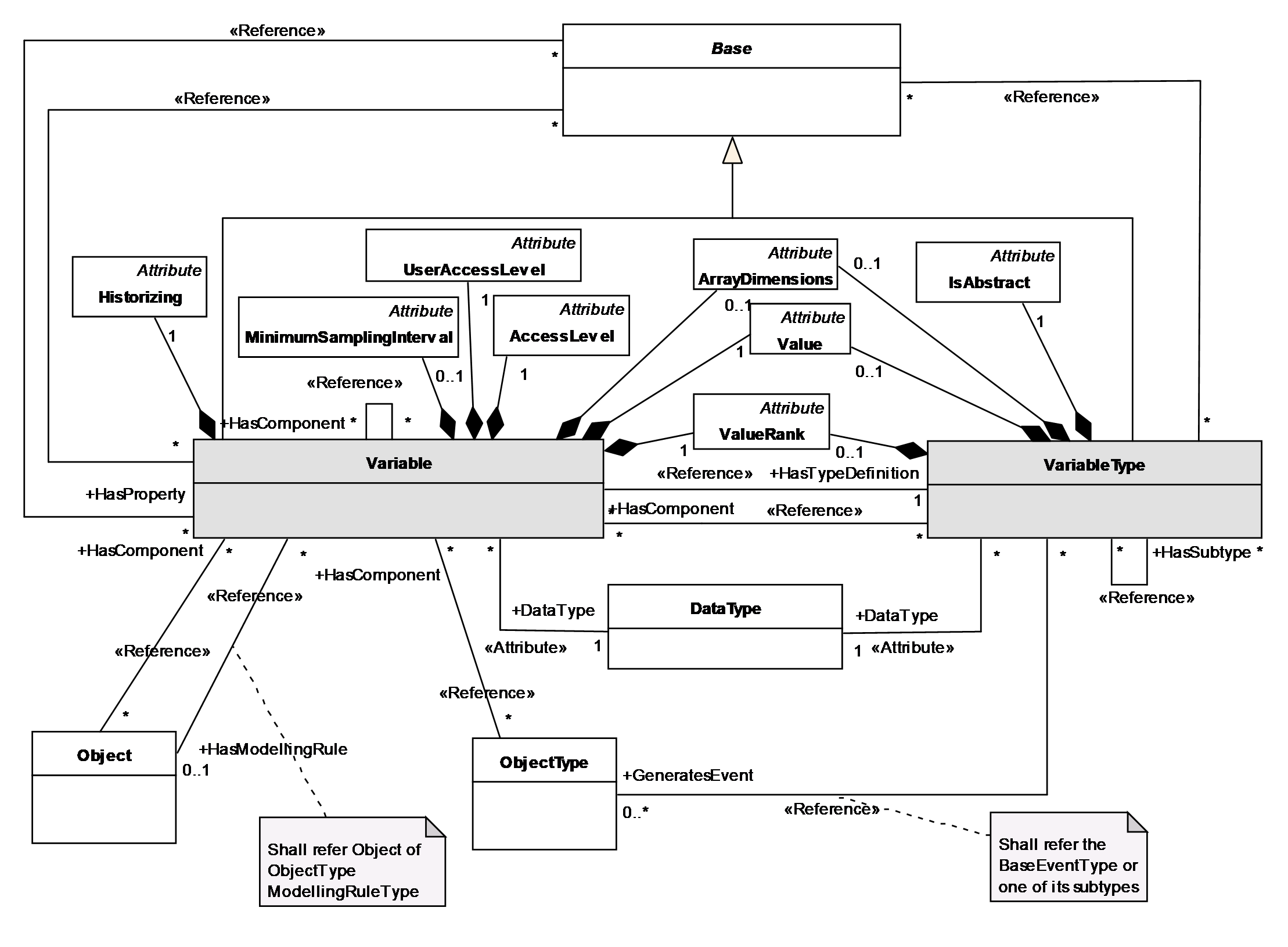

Variable and VariableType are shown in Figure B.10.

Figure B.10 – Variable and VariableType

The DataType of a Variable shall be the same as or a subtype of the DataType of its VariableType (referred with HasTypeDefinition).

If a HasProperty points to a Variable from a Base “A” then the following constraints apply:

B.3.7 Method

Method is shown in Figure B.11.

Figure B.11 – Method

B.3.8 DataType

DataType is shown in Figure B.12.

B.3.9 View

View is shown in Figure B.13.

Figure B.13 – View
