16.2 PowerUnitType
16.2.1 PowerUnitType Definition

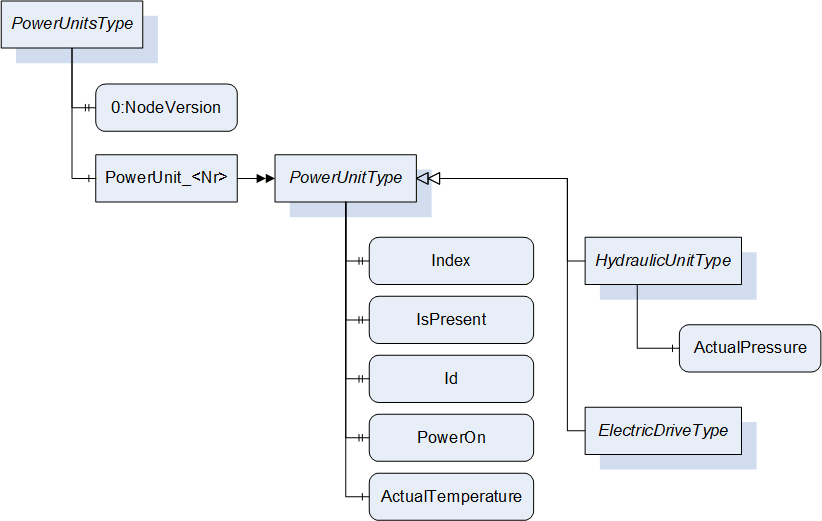

This ObjectType represents information on the hydraulic units and electric drives. It is formally defined in Table 62.
| Attribute | Value | ||||
| BrowseName | PowerUnitType | ||||
| IsAbstract | False | ||||
| References | Node Class | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of 0:BaseObjectType defined in OPC UA Part 5 | |||||
| 0:HasProperty | Variable | Index | 0:UInt32 | 0:PropertyType | M, RO |
| 0:HasProperty | Variable | IsPresent | 0:Boolean | 0:PropertyType | M, RO |
| 0:HasProperty | Variable | Id | 0:String | 0:PropertyType | M, RO |
| 0:HasProperty | Variable | PowerOn | 0:Boolean | 0:PropertyType | M, RO |
| 0:HasComponent | Variable | ActualTemperature | 0:Double | 0:AnalogItemType | O, RO |
| 0:HasSubtype | ObjectType | HydraulicUnitType | Defined in 16.2.7.1 | ||
| 0:HasSubtype | ObjectType | ElectricDriveType | Defined in 16.2.7.2 | ||
16.2.2 Index
The Index Property gives the number of the power unit.
16.2.3 IsPresent
This Property informs the client if the power unit is physically present and connected. May be FALSE e.g. when instances for possible power units are created (depending on the capabilities/connectors of the machine) which are currently not used.
16.2.4 Id
The Id Property represents the Id of the PowerUnit.
16.2.5 PowerOn
The PowerOn Property indicates if the PowerUnit is switched on.
16.2.6 ActualTemperature
The ActualTemperature Variable represents the current temperature of the PowerUnit.
16.2.7 Subtypes of PowerUnitType
There are two subtypes: HydraulicUnitType and ElectricDriveType.
16.2.7.1 HydraulicUnitType
| Attribute | Value | ||||
| BrowseName | HydraulicUnitType | ||||
| IsAbstract | False | ||||
| References | Node Class | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of PowerUnitType | |||||
| 0:HasComponent | Variable | ActualPressure | 0:Double | 0:AnalogItemType | O, RO |
The ActualPressure Variable represents the current pressure of the hydraulic unit.
16.2.7.2 ElectricDriveType
| Attribute | Value | ||||
| BrowseName | ElectricDriveType | ||||
| IsAbstract | False | ||||
| References | Node Class | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of PowerUnitType | |||||
This subtype has no additional child elements.
