8 OPC UA ObjectTypes
This chapter includes the list of tables containing the Object Types related to the DEXPI classes. The “Association to” notes for the object types are capturing non-hierarchical associations present in the DEXPI UML model, they are mentioned in this way so that information is somehow transferred to the OPC UA specification and not lost.

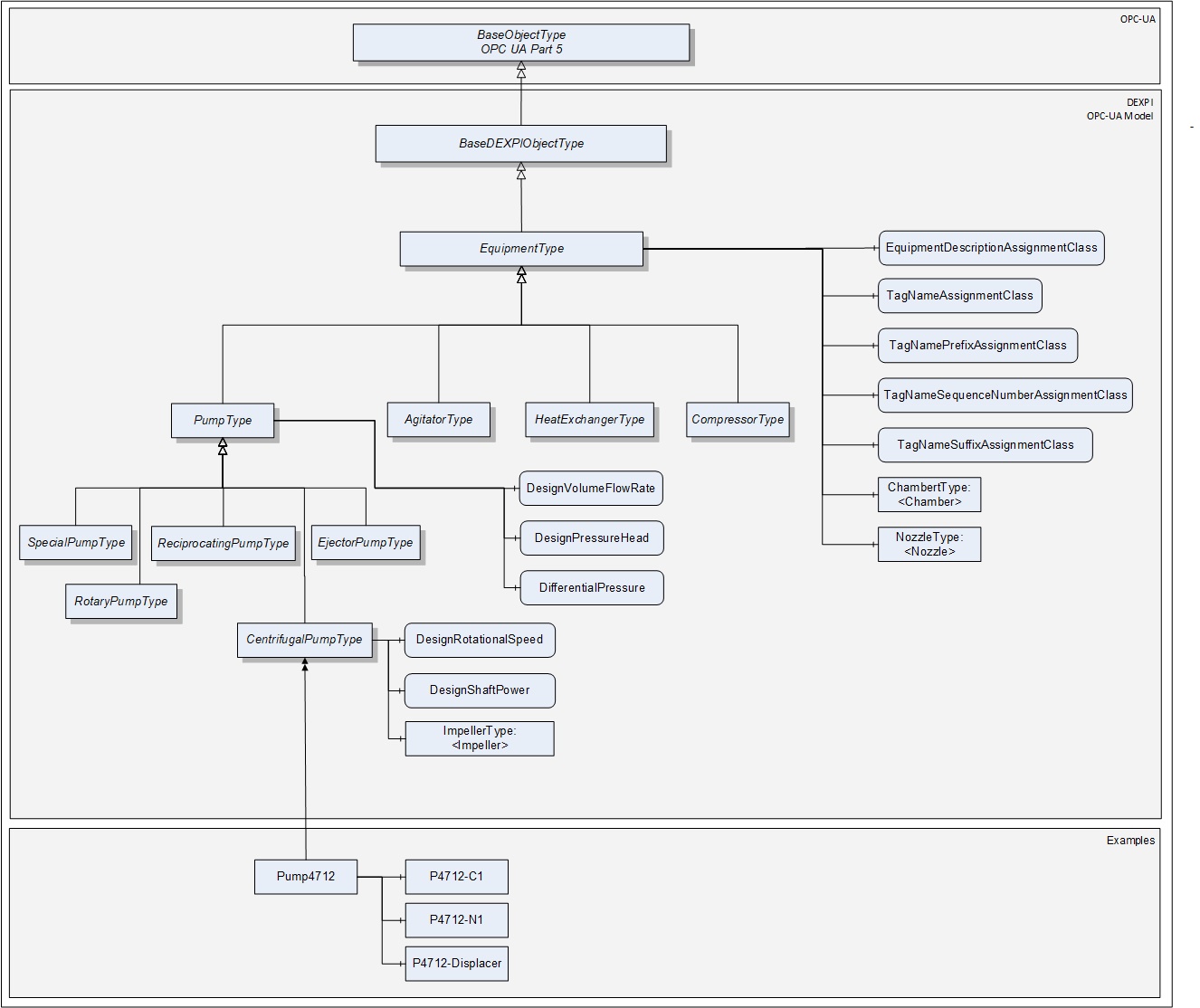

Figure 11 shows as an example the basic relationships of the EquipmentType up to the BaseObjectType of the OPC UA specification and down to the PumpType and specific pump categories with examples of pump instances as OPC UA objects.
8.1 BaseDEXPIObjectType
Base object type, parent for all DEXPI Object types
| Attribute | Value | ||||
| BrowseName | BaseDEXPIObjectType | ||||
| IsAbstract | True | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of BaseObjectType | |||||
8.2 ActuatingFunctionType
A function for acting control structures relating to the process.
Association to ActuatingLocation (PipingNetworkSegment)
Association to Systems (ActuatingSystem)
Association to ParentStructure (TechnicalItemParentStructure)
Association to PlantTrain (PlantTrain)
Association to PlantSystem (PlantSystem)
Association to AreaIsa95 (AreaIsa95)
| Attribute | Value | |||
| BrowseName | ActuatingFunctionType | |||
| IsAbstract | False | |||
| References | NodeClass | BrowseName |
DataType /
TypeDefinition | Other |
|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | ||||
| 0:HasComponent | Variable | ActuatingFunctionNumberAssignment Class | 0:String 0:BaseDataVariableType | O |
ActuatingFunctionNumberAssignmentClass – An identifier for the ActuatingFunction. It usually contains the identifier of the ProcessInstrumentationFunction that includes the ActuatingFunction (see ProcessInstrumentationFunctionNumberAssignmentClass).
8.3 ActuatingSystemType
An assembly of artefacts that is designed to fulfill an ActuatingFunction.
Association to ParentStructure (TechnicalItemParentStructure)
Association to PlantTrain (PlantTrain)
Association to PlantSystem (PlantSystem)
Association to AreaIsa95 (AreaIsa95)
| Attribute | Value | |||
| BrowseName | ActuatingSystemType | |||
| IsAbstract | False | |||
| References | NodeClass | BrowseName |
DataType /
TypeDefinition | Other |
|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | ||||
| 0:HasComponent | Object | <Positioner> | -- PositionerType | OP |
| 0:HasComponent | Object | <ControlledActuator> | -- ControlledActuatorType | OP |
| 0:HasComponent | Object | <ShutOffValveReference> | -- ShutOffValveReferenceType | OP |
| 0:HasComponent | Variable | ActuatingSystemNumberAssignment Class | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | TypicalInformationAssignmentClass | 0:String 0:BaseDataVariableType | O |
<Positioner> – OPC UA Object(s) that are part of the Object Type.
<ControlledActuator> – OPC UA Object(s) that are part of the Object Type.
<ShutOffValveReference> – OPC UA Object(s) that are part of the Object Type.
ActuatingSystemNumberAssignmentClass – The number of the ActuatingSystem.
TypicalInformationAssignmentClass – Typical information about the ActuatingSystem.
8.4 AgitatorRotorType
An agitator rotor.
Association to Chamber (Chamber)
| Attribute | Value | |||
| BrowseName | AgitatorRotorType | |||
| IsAbstract | False | |||
| References | NodeClass | BrowseName |
DataType /
TypeDefinition | Other |
|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | ||||
| 0:HasComponent | Variable | MaterialOfConstructionCode AssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | Diameter | 0:Double 0:AnalogUnitType | O |
| 0:HasComponent | Variable | LengthToMountingFlange | 0:Double 0:AnalogUnitType | O |
| 0:HasComponent | Variable | RotorTypeAssignmentClass | 0:String 0:BaseDataVariableType | O |
MaterialOfConstructionCodeAssignmentClass – A code that gives the material of construction of the AgitatorRotor.
Diameter – The diameter of the AgitatorRotor.
LengthToMountingFlange – The length to the mounting flange of the AgitatorRotor.
RotorTypeAssignmentClass – The rotor type of the AgitatorRotor.
8.5 AngleType
| Attribute | Value | |||
| BrowseName | AngleType | |||
| IsAbstract | False | |||
| References | NodeClass | BrowseName |
DataType /
TypeDefinition | Other |
|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | ||||
| 0:HasComponent | Variable | Unit | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | Value | 0:Double 0:BaseDataVariableType | O |
| HasDEXPIRelationship | ObjectType | PhysicalQuantityType | -- -- | -- |
8.6 AreaIsa95LocatedStructureType
A structure that can be located in an AreaIsa95.
Association to AreaIsa95 (AreaIsa95)
| Attribute | Value | ||||
| BrowseName | AreaIsa95LocatedStructureType | ||||
| IsAbstract | True | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | |||||
8.7 AreaIsa95Type
An area as defined by ISA 95.
| Attribute | Value | |||
| BrowseName | AreaIsa95Type | |||
| IsAbstract | False | |||
| References | NodeClass | BrowseName |
DataType /
TypeDefinition | Other |
|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | ||||
| 0:HasComponent | Variable | AreaNameAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | AreaIdentificationCodeAssignmentClass | 0:String 0:BaseDataVariableType | O |
AreaNameAssignmentClass – The name of the AreaIsa95.
AreaIdentificationCodeAssignmentClass – The identification code of the AreaIsa95.
8.8 AreaType
| Attribute | Value | |||
| BrowseName | AreaType | |||
| IsAbstract | False | |||
| References | NodeClass | BrowseName |
DataType /
TypeDefinition | Other |
|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | ||||
| 0:HasComponent | Variable | Unit | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | Value | 0:Double 0:BaseDataVariableType | O |
| HasDEXPIRelationship | ObjectType | PhysicalQuantityType | -- -- | -- |
8.9 ChamberOwnerType
An object that can have chambers.
| Attribute | Value | ||||
| BrowseName | ChamberOwnerType | ||||
| IsAbstract | True | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | |||||
| 0:HasComponent | Object | <Chamber> | -- | ChamberType | OP |
<Chamber> – OPC UA Object(s) that are part of the Object Type.
8.10 ChamberType
A physical object that is an enclosed space (from http://data.posccaesar.org/rdl/RDS903151421).
| Attribute | Value | |||
| BrowseName | ChamberType | |||
| IsAbstract | False | |||
| References | NodeClass | BrowseName |
DataType /
TypeDefinition | Other |
|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | ||||
| 0:HasComponent | Variable | UpperLimitDesignTemperature | 0:Double 0:AnalogUnitType | O |
| 0:HasComponent | Variable | NominalDiameter | 0:Double 0:AnalogUnitType | O |
| 0:HasComponent | Variable | InsideDiameter | 0:Double 0:AnalogUnitType | O |
| 0:HasComponent | Variable | SubTagNameAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | MaterialOfConstructionCode AssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | Width | 0:Double 0:AnalogUnitType | O |
| 0:HasComponent | Variable | Length | 0:Double 0:AnalogUnitType | O |
| 0:HasComponent | Variable | UpperLimitDesignPressure | 0:Double 0:AnalogUnitType | O |
| 0:HasComponent | Variable | ChamberDescriptionAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | Height | 0:Double 0:AnalogUnitType | O |
| 0:HasComponent | Variable | NominalDiameterTypeRepresentation AssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | ChamberFunctionAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | LowerLimitDesignPressure | 0:Double 0:AnalogUnitType | O |
| 0:HasComponent | Variable | LowerLimitDesignTemperature | 0:Double 0:AnalogUnitType | O |
| 0:HasComponent | Variable | ChamberFunctionSpecialization | ChamberFunctionClassification 0:BaseDataVariableType | O |
UpperLimitDesignTemperature – The highest temperature for which the Chamber is designed.
NominalDiameter – The nominal diameter of the Chamber, given as a length. See also <owner.NominalDiameterTypeRepresentationClass>.
InsideDiameter – The inside diameter of the Chamber.
SubTagNameAssignmentClass – The sub tag name of the Chamber.
MaterialOfConstructionCodeAssignmentClass – A code that gives the material of construction of the Chamber.
Width – The width of the Chamber.
Length – The length of the Chamber.
UpperLimitDesignPressure – The highest pressure for which the Chamber is designed.
ChamberDescriptionAssignmentClass – The description of the Chamber.
Height – The height of the Chamber.
NominalDiameterTypeRepresentationAssignmentClass – A readable representation of the type of the nominal diameter of the Chamber. The purpose of this value is to give a textual representation of the nominal diameter to be used in the graphics of a PID.
ChamberFunctionAssignmentClass – The function of the Chamber.
LowerLimitDesignPressure – The lowest pressure for which the Chamber is designed.
LowerLimitDesignTemperature – The lowest temperature for which the Chamber is designed.
ChamberFunctionSpecialization – A specialization indicating the function of the Chamber.
8.11 ColumnInternalsArrangementType
The internals of a column.
| Attribute | Value | ||||
| BrowseName | ColumnInternalsArrangementType | ||||
| IsAbstract | True | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | |||||
8.12 ColumnPackingsArrangementType
The packings of a column.
| Attribute | Value | |||
| BrowseName | ColumnPackingsArrangementType | |||
| IsAbstract | False | |||
| References | NodeClass | BrowseName |
DataType /
TypeDefinition | Other |
|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | ||||
| 0:HasComponent | Variable | Height | 0:Double 0:AnalogUnitType | O |
| 0:HasComponent | Variable | PackingTypeAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | MaterialOfConstructionCode AssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | NumberOfPackings | 0:Int64 0:BaseDataVariableType | O |
Height – The height of the ColumnPackingsArrangement.
PackingTypeAssignmentClass – The type of the packings in the ColumnPackingsArrangement.
MaterialOfConstructionCodeAssignmentClass – A code that gives the material of construction of the ColumnPackingsArrangement.
NumberOfPackings – The number of packings in the ColumnPackingsArrangement.
8.13 ColumnSectionType
A column section.
| Attribute | Value | ||||
| BrowseName | ColumnSectionType | ||||
| IsAbstract | True | ||||
| References |
Node
Class | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | |||||
| 0:HasComponent | Object | <Internal> | -- | ColumnInternalsArrangementType | OP |
| 0:HasComponent | Variable | Height | 0:Double | 0:AnalogUnitType | O |
| 0:HasComponent | Variable | InsideDiameter | 0:Double | 0:AnalogUnitType | O |
<Internal> – OPC UA Object(s) that are part of the Object Type.
Height – The height of the ColumnSection.
InsideDiameter – The inside diameter of the ColumnSection.
8.14 ColumnTraysArrangementType
The trays of a column.
| Attribute | Value | |||
| BrowseName | ColumnTraysArrangementType | |||
| IsAbstract | False | |||
| References | NodeClass | BrowseName |
DataType /
TypeDefinition | Other |
|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | ||||
| 0:HasComponent | Variable | TrayTypeAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | MaterialOfConstructionCode AssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | NumberOfTrays | 0:Int64 0:BaseDataVariableType | O |
TrayTypeAssignmentClass – The type of the trays in the ColumnTraysArrangement.
MaterialOfConstructionCodeAssignmentClass – A code that gives the material of construction of the ColumnTraysArrangement.
NumberOfTrays – The number of trays in the ColumnTraysArrangement.
8.15 CompressorEquipmentType
Equipment of a Compressor.
| Attribute | Value | ||||
| BrowseName | CompressorEquipmentType | ||||
| IsAbstract | True | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | |||||
8.16 ControlledActuatorType
A transducer that is intended to convert energy (electric, mechanical, pneumatic or hydraulic) from an external source into kinetic energy (motion) in response to a signal or or power input.
| Attribute | Value | |||
| BrowseName | ControlledActuatorType | |||
| IsAbstract | False | |||
| References | NodeClass | BrowseName |
DataType /
TypeDefinition | Other |
|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | ||||
| 0:HasComponent | Variable | FailActionSpecialization | FailActionClassification 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | DeviceTypeNameAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | SubTagNameAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | FailActionRepresentationAssignment Class | 0:String 0:BaseDataVariableType | O |
FailActionSpecialization – The fail action of the ControlledActuator.
DeviceTypeNameAssignmentClass – The device type of the ControlledActuator.
SubTagNameAssignmentClass – The sub tag name of the ControlledActuator.
FailActionRepresentationAssignmentClass – A readable representation of the fail action of the ControlledActuator. This attribute should also be referenced in the graphics if applicable.
8.17 DEXPISupplementaryDataType
Additional data including the original XML source file, the DEXPI specification as UML XMI and used version numbers for the DEXPI specification and the Proteus schema
| Attribute | Value | ||||
| BrowseName | DEXPISupplementaryDataType | ||||
| IsAbstract | False | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | |||||
| 0:HasProperty | Variable | DEXPISpecificationVersion | 0:String | 0:PropertyType | O |
| 0:HasProperty | Variable | ProteusXMLExternalLink | 0:String | 0:PropertyType | O |
| 0:HasProperty | Variable | ProteusSchemaVersion | 0:String | 0:PropertyType | O |
| 0:HasProperty | Variable | DEXPIXMIExternalLink | 0:String | 0:PropertyType | O |
| 0:HasComponent | Object | DEXPIXMIFile | -- | 0:FileType | O |
| 0:HasComponent | Object | ProteusXMLFile | -- | 0:FileType | O |
DEXPISpecificationVersion – Variable which holds the version of DEXPI specification.
ProteusXMLExternalLink – Variable which a link to the XML file of the input P&ID model.
ProteusSchemaVersion – Variable which holds the version of Proteus schema.
DEXPIXMIExternalLink – Variable which holds a link to the XMI file of DEXPI specification as UML.
DEXPIXMIFile – Object that holds the data of the XMI file of DEXPI specification as UML.
ProteusXMLFile – Object that holds the data of the Proteus XML file of DEXPI P&ID model.
8.18 DirectPipingConnectionType
A direct connection between two piping items, i.e. a connection that is not realized by a pipe.
Association to SourceItem (PipingSourceItem)
Association to TargetItem (PipingTargetItem)
Association to SourceNode (PipingNode)
Association to TargetNode (PipingNode)
| Attribute | Value | ||||
| BrowseName | DirectPipingConnectionType | ||||
| IsAbstract | False | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | |||||
8.19 DisplacerType
A displacer.
Association to Chamber (Chamber)
| Attribute | Value | |||
| BrowseName | DisplacerType | |||
| IsAbstract | False | |||
| References | NodeClass | BrowseName |
DataType /
TypeDefinition | Other |
|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | ||||
| 0:HasComponent | Variable | MaterialOfConstructionCode AssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | StageIdentifierAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | VolumePerStroke | 0:Double 0:AnalogUnitType | O |
MaterialOfConstructionCodeAssignmentClass – A code that gives the material of construction of the Displacer.
StageIdentifierAssignmentClass – The stage identfifier of of the Displacer.
VolumePerStroke – The volume per stroke of the Displacer.
8.20 EquipmentType
A piece of equipment.
Association to ParentStructure (TechnicalItemParentStructure)
Association to PlantTrain (PlantTrain)
Association to PlantSystem (PlantSystem)
Association to AreaIsa95 (AreaIsa95)
| Attribute | Value | |||
| BrowseName | EquipmentType | |||
| IsAbstract | True | |||
| References | NodeClass | BrowseName |
DataType /
TypeDefinition | Other |
|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | ||||
| 0:HasComponent | Object | <Chamber> | -- ChamberType | OP |
| 0:HasComponent | Object | <Nozzle> | -- NozzleType | OP |
| 0:HasComponent | Variable | TagNameSequenceNumber AssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | EquipmentDescriptionAssignment Class | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | TagNamePrefixAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | TagNameSuffixAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | TagNameAssignmentClass | 0:String 0:BaseDataVariableType | O |
| HasDEXPIRelationship | ObjectType | NozzleOwnerType | -- -- | -- |
| HasDEXPIRelationship | ObjectType | ChamberOwnerType | -- -- | -- |
| HasDEXPIRelationship | ObjectType | TaggedPlantItemType | -- -- | -- |
<Chamber> – OPC UA Object(s) that are part of the Object Type.
<Nozzle> – OPC UA Object(s) that are part of the Object Type.
TagNameSequenceNumberAssignmentClass – The sequence number part of the tag number of the TaggedPlantItem. For example, the sequence number of the tag number "P4714-A" is "4714".
EquipmentDescriptionAssignmentClass – A short desciption of the Equipment in natural language. So far, there is no support for descriptions in different languages.
TagNamePrefixAssignmentClass – The prefix part of the tag number of the TaggedPlantItem. For example, the prefix of the tag number "P4714-A" is "P". The prefix often indicates the type of the equipment item, e.g., "P" can indicate a pump. See also <owner.TagNameAssignmentClass>.
TagNameSuffixAssignmentClass – The suffix part of the tag number of an TaggedPlantItem item. For example, the suffix of the tag number "P4714-A" is "A".
TagNameAssignmentClass – The tag number of the TaggedPlantItem. See also <owner.TagNamePrefixAssignmentClass>, <owner.TagNameSequenceNumberAssignmentClass>, and <owner.TagNameSuffixAssignmentClass>.
NozzleOwnerType – An object that can have nozzles.
ChamberOwnerType – An object that can have chambers.
TaggedPlantItemType – A fully tagged item in a plant.
8.21 AgitatorType
A dynamic mixer that stir or shake fluids by reaction force from moving vanes (from http://data.posccaesar.org/rdl/RDS16045622).
| Attribute | Value | ||||
| BrowseName | AgitatorType | ||||
| IsAbstract | False | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of EquipmentType | |||||
| 0:HasComponent | Object | <Rotor> | -- | AgitatorRotorType | OP |
| 0:HasComponent | Variable | DesignRotationalSpeed | 0:Double | 0:AnalogUnitType | O |
| 0:HasComponent | Variable | DesignShaftPower | 0:Double | 0:AnalogUnitType | O |
<Rotor> – OPC UA Object(s) that are part of the Object Type.
DesignRotationalSpeed – The design rotational speed of the Agitator.
DesignShaftPower – The design shaft power of the Agitator.
8.22 CompressorType
A 'gas pressure increase device' and an 'artefact' that is driven by a prime mover by which energy is either constantly or periodically added to an amount of gas in order to increase its pressure (from http://data.posccaesar.org/rdl/RDS14286497).
| Attribute | Value | ||||
| BrowseName | CompressorType | ||||
| IsAbstract | False | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of EquipmentType | |||||
| 0:HasComponent | Variable | DesignVolumeFlowRate | 0:Double | 0:AnalogUnitType | O |
| 0:HasComponent | Variable | DifferentialPressure | 0:Double | 0:AnalogUnitType | O |
DesignVolumeFlowRate – The volume flow rate for which the Compressor is designed.
DifferentialPressure – The differential pressure of the Compressor.
8.23 AirEjectorType
An ejector intended to create vacuum using compressed air (from http://data.posccaesar.org/rdl/RDS5770157).
| Attribute | Value | ||||
| BrowseName | AirEjectorType | ||||
| IsAbstract | False | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of CompressorType | |||||
| 0:HasComponent | Object | <Impeller> | -- | ImpellerType | OP |
| 0:HasComponent | Variable | DesignCapacityMotiveFluid | 0:Double | 0:AnalogUnitType | O |
<Impeller> – OPC UA Object(s) that are part of the Object Type.
DesignCapacityMotiveFluid – The design capacity for the motive fluid of the AirEjector.
8.24 AxialCompressorType
A dynamic compressor in which the gas is accelerated by the action of a bladed rotor and where the main flow is along the rotation axis of the rotor (from http://data.posccaesar.org/rdl/RDS417239).
| Attribute | Value | ||||
| BrowseName | AxialCompressorType | ||||
| IsAbstract | False | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of CompressorType | |||||
| 0:HasComponent | Object | <Impeller> | -- | ImpellerType | OP |
| 0:HasComponent | Variable | DesignRotationalSpeed | 0:Double | 0:AnalogUnitType | O |
| 0:HasComponent | Variable | DesignShaftPower | 0:Double | 0:AnalogUnitType | O |
<Impeller> – OPC UA Object(s) that are part of the Object Type.
DesignRotationalSpeed – The design rotational speed of the AxialCompressor.
DesignShaftPower – The design shaft power of the AxialCompressor.
8.25 CentrifugalCompressorType
A dynamic compressor in which one ore more impellers accelerate the gas and where the main flow through the impeller is radial (from http://data.posccaesar.org/rdl/RDS417194).
| Attribute | Value | ||||
| BrowseName | CentrifugalCompressorType | ||||
| IsAbstract | False | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of CompressorType | |||||
| 0:HasComponent | Object | <Impeller> | -- | ImpellerType | OP |
| 0:HasComponent | Variable | DesignRotationalSpeed | 0:Double | 0:AnalogUnitType | O |
| 0:HasComponent | Variable | DesignShaftPower | 0:Double | 0:AnalogUnitType | O |
<Impeller> – OPC UA Object(s) that are part of the Object Type.
DesignRotationalSpeed – The design rotational speed of the CentrifugalCompressor.
DesignShaftPower – The design shaft power of the CentrifugalCompressor.
8.26 ReciprocatingCompressorType
A positive displacement compressor in which forced reduction of gas volume takes place by the movement of a displacing element in a cylinder or enclosure (from http://data.posccaesar.org/rdl/RDS417284).
| Attribute | Value | ||||
| BrowseName | ReciprocatingCompressorType | ||||
| IsAbstract | False | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of CompressorType | |||||
| 0:HasComponent | Object | <Displacer> | -- | DisplacerType | OP |
| 0:HasComponent | Variable | DesignRotationalSpeed | 0:Double | 0:AnalogUnitType | O |
| 0:HasComponent | Variable | DesignShaftPower | 0:Double | 0:AnalogUnitType | O |
<Displacer> – OPC UA Object(s) that are part of the Object Type.
DesignRotationalSpeed – The design rotational speed of the ReciprocatingCompressor.
DesignShaftPower – The design shaft power of the ReciprocatingCompressor.
8.27 RotaryCompressorType
A positive displacement compressor in which compression displacement is effected by the positive action of rotating elements (from http://data.posccaesar.org/rdl/RDS435374).
| Attribute | Value | ||||
| BrowseName | RotaryCompressorType | ||||
| IsAbstract | False | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of CompressorType | |||||
| 0:HasComponent | Object | <Displacer> | -- | DisplacerType | OP |
| 0:HasComponent | Variable | DesignRotationalSpeed | 0:Double | 0:AnalogUnitType | O |
| 0:HasComponent | Variable | DesignShaftPower | 0:Double | 0:AnalogUnitType | O |
<Displacer> – OPC UA Object(s) that are part of the Object Type.
DesignRotationalSpeed – The design rotational speed of the RotaryCompressor.
DesignShaftPower – The design shaft power of the RotaryCompressor.
8.28 SpecialCompressorType
A Compressor that is not covered by any of the sibling classes of SpecialCompressor.
| Attribute | Value | |||
| BrowseName | SpecialCompressorType | |||
| IsAbstract | False | |||
| References | NodeClass | BrowseName |
DataType /
TypeDefinition | Other |
|---|---|---|---|---|
| Subtype of CompressorType | ||||
| 0:HasComponent | Object | <CompressorEquipmentItem> | -- CompressorEquipmentType | OP |
| 0:HasComponent | Variable | DesignRotationalSpeed | 0:Double 0:AnalogUnitType | O |
| 0:HasComponent | Variable | DesignShaftPower | 0:Double 0:AnalogUnitType | O |
| 0:HasComponent | Variable | DesignCapacityMotiveFluid | 0:Double 0:AnalogUnitType | O |
| 0:HasComponent | Variable | TypeNameAssignmentClass | 0:String 0:BaseDataVariableType | O |
<CompressorEquipmentItem> – OPC UA Object(s) that are part of the Object Type.
DesignRotationalSpeed – The design rotational speed of the SpecialCompressor.
DesignShaftPower – The design shaft power of the SpecialCompressor.
DesignCapacityMotiveFluid – The design capacity for the motive fluid of the SpecialCompressor.
TypeNameAssignmentClass – The name of the type of the SpecialCompressor.
8.29 FilterType
A separator intended to remove solids from vapour or liquid (from http://data.posccaesar.org/rdl/RDS300689).
| Attribute | Value | ||||
| BrowseName | FilterType | ||||
| IsAbstract | False | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of EquipmentType | |||||
8.30 GasFilterType
A filter that is specifically designed to filter a gas.
| Attribute | Value | |||
| BrowseName | GasFilterType | |||
| IsAbstract | False | |||
| References | NodeClass | BrowseName |
DataType /
TypeDefinition | Other |
|---|---|---|---|---|
| Subtype of FilterType | ||||
| 0:HasComponent | Object | <FilterUnit> | -- FilterUnitType | OP |
| 0:HasComponent | Variable | UpperLimitAllowableDesignPressureDrop | 0:Double 0:AnalogUnitType | O |
| 0:HasComponent | Variable | DesignRotationalSpeed | 0:Double 0:AnalogUnitType | O |
| 0:HasComponent | Variable | Capacity_VolumeFlowRate | 0:Double 0:AnalogUnitType | O |
| 0:HasComponent | Variable | DesignShaftPower | 0:Double 0:AnalogUnitType | O |
<FilterUnit> – OPC UA Object(s) that are part of the Object Type.
UpperLimitAllowableDesignPressureDrop – The maximum allowable design pressure drop of the GasFilter.
DesignRotationalSpeed – The design rotational speed of the GasFilter.
Capacity_VolumeFlowRate – The handling flow rate for which the GasFilter is designed.
DesignShaftPower – The design shaft power of the GasFilter.
8.31 LiquidFilterType
A filter that is specifically designed to filter a liquid.
| Attribute | Value | |||
| BrowseName | LiquidFilterType | |||
| IsAbstract | False | |||
| References | NodeClass | BrowseName |
DataType /
TypeDefinition | Other |
|---|---|---|---|---|
| Subtype of FilterType | ||||
| 0:HasComponent | Object | <FilterUnit> | -- FilterUnitType | OP |
| 0:HasComponent | Variable | DesignShaftPower | 0:Double 0:AnalogUnitType | O |
| 0:HasComponent | Variable | UpperLimitAllowableDesignPressureDrop | 0:Double 0:AnalogUnitType | O |
| 0:HasComponent | Variable | Capacity_VolumeFlowRate | 0:Double 0:AnalogUnitType | O |
| 0:HasComponent | Variable | DesignRotationalSpeed | 0:Double 0:AnalogUnitType | O |
<FilterUnit> – OPC UA Object(s) that are part of the Object Type.
DesignShaftPower – The design shaft power of the LiquidFilter.
UpperLimitAllowableDesignPressureDrop – The maximum allowable design pressure drop of the LiquidFilter.
Capacity_VolumeFlowRate – The handling flow rate for which the LiquidFilter is designed.
DesignRotationalSpeed – The design rotational speed of the LiquidFilter.
8.32 HeatExchangerType
An artefact that is intended to transfer heat from one object to another (from http://data.posccaesar.org/rdl/RDS304199).
Association to Agitator (Agitator)
| Attribute | Value | ||||
| BrowseName | HeatExchangerType | ||||
| IsAbstract | False | ||||
| References |
Node
Class | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of EquipmentType | |||||
| 0:HasComponent | Variable | DesignHeatFlowRate | 0:Double | 0:AnalogUnitType | O |
| 0:HasComponent | Variable | DesignHeatTransferArea | 0:Double | 0:AnalogUnitType | O |
| 0:HasComponent | Variable | DesignHeatTransferCoefficient | 0:Double | 0:AnalogUnitType | O |
DesignHeatFlowRate – The heat flow rate for which the HeatExchanger is designed.
DesignHeatTransferArea – The design heat transfer area of the HeatExchanger.
DesignHeatTransferCoefficient – The design heat transfer coefficient of the HeatExchanger.
8.33 AirCoolingSystemType
A cooling system which uses air as the cooling medium (from http://data.posccaesar.org/rdl/RDS277379).
| Attribute | Value | ||||
| BrowseName | AirCoolingSystemType | ||||
| IsAbstract | False | ||||
| References |
Node
Class | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of HeatExchangerType | |||||
| 0:HasComponent | Object | <Rotor> | -- | HeatExchangerRotorType | OP |
| 0:HasComponent | Variable | DesignPower | 0:Double | 0:AnalogUnitType | O |
| 0:HasComponent | Variable | DesignRotationalSpeed | 0:Double | 0:AnalogUnitType | O |
| 0:HasComponent | Variable | DesignShaftPower | 0:Double | 0:AnalogUnitType | O |
<Rotor> – OPC UA Object(s) that are part of the Object Type.
DesignPower – The design power of the AirCoolingSystem.
DesignRotationalSpeed – The design rotational speed of the AirCoolingSystem.
DesignShaftPower – The design shaft power of the AirCoolingSystem.
8.34 ElectricHeaterType
A heater in which electric energy is converted into heat for useful purposes (from http://data.posccaesar.org/rdl/RDS14070475).
| Attribute | Value | ||||
| BrowseName | ElectricHeaterType | ||||
| IsAbstract | False | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of HeatExchangerType | |||||
| 0:HasComponent | Object | <TubeBundle> | -- | TubeBundleType | OP |
| 0:HasComponent | Variable | DesignPower | 0:Double | 0:AnalogUnitType | O |
<TubeBundle> – OPC UA Object(s) that are part of the Object Type.
DesignPower – The design power of the ElectricHeater.
8.35 PlateAndShellHeatExchangerType
A corrugated plate heat exchanger that has a corrugated plate pack inside a shell (from http://data.posccaesar.org/rdl/RDS441719).
| Attribute | Value | ||||
| BrowseName | PlateAndShellHeatExchangerType | ||||
| IsAbstract | False | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of HeatExchangerType | |||||
| 0:HasComponent | Variable | NumberOfPlates | 0:Int64 | 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | PlateHeight | 0:Double | 0:AnalogUnitType | O |
| 0:HasComponent | Variable | PlateWidth | 0:Double | 0:AnalogUnitType | O |
NumberOfPlates – The number of plates in the PlateAndShellHeatExchanger.
PlateHeight – The height of the plates in the PlateAndShellHeatExchanger.
PlateWidth – The width of the plates in the PlateAndShellHeatExchanger.
8.36 ShellAndTubeHeatExchangerType
A tubular heat exchanger in which a tube bundle is surrounded by a shell (from http://data.posccaesar.org/rdl/RDS419084).
| Attribute | Value | |||
| BrowseName | ShellAndTubeHeatExchangerType | |||
| IsAbstract | False | |||
| References | NodeClass | BrowseName |
DataType /
TypeDefinition | Other |
|---|---|---|---|---|
| Subtype of HeatExchangerType | ||||
| 0:HasComponent | Object | <TubeBundle> | -- TubeBundleType | OP |
| 0:HasComponent | Variable | TemaStandardTypeAssignmentClass | 0:String 0:BaseDataVariableType | O |
<TubeBundle> – OPC UA Object(s) that are part of the Object Type.
TemaStandardTypeAssignmentClass – The type of the ShellAndTubeHeatExchanger according to the Tubular Exchanger Manufacturers Association, Inc. (TEMA, http://www.tema.org). This is a three-letter code.
8.37 SpiralHeatExchangerType
A spiral heat exchanger
| Attribute | Value | ||||
| BrowseName | SpiralHeatExchangerType | ||||
| IsAbstract | False | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of HeatExchangerType | |||||
8.38 ThinFilmEvaporatorType
A thin film evaporator.
| Attribute | Value | ||||
| BrowseName | ThinFilmEvaporatorType | ||||
| IsAbstract | False | ||||
| References |
Node
Class | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of HeatExchangerType | |||||
| 0:HasComponent | Object | <Rotor> | -- | HeatExchangerRotorType | OP |
| 0:HasComponent | Variable | DesignPower | 0:Double | 0:AnalogUnitType | O |
| 0:HasComponent | Variable | DesignRotationalSpeed | 0:Double | 0:AnalogUnitType | O |
| 0:HasComponent | Variable | DesignShaftPower | 0:Double | 0:AnalogUnitType | O |
<Rotor> – OPC UA Object(s) that are part of the Object Type.
DesignPower – The design power of the ThinFilmEvaporator.
DesignRotationalSpeed – The design rotational speed of the ThinFilmEvaporator.
DesignShaftPower – The design shaft power of the ThinFilmEvaporator.
8.39 MixerType
An object that mixes two or more different ingredients.
| Attribute | Value | |||
| BrowseName | MixerType | |||
| IsAbstract | False | |||
| References | NodeClass | BrowseName |
DataType /
TypeDefinition | Other |
|---|---|---|---|---|
| Subtype of EquipmentType | ||||
| 0:HasComponent | Object | <MixingElementAssembly> | -- MixingElementAssemblyType | OP |
<MixingElementAssembly> – OPC UA Object(s) that are part of the Object Type.
8.40 KneaderType
A kneading machine that kneads different ingredients.
| Attribute | Value | |||
| BrowseName | KneaderType | |||
| IsAbstract | False | |||
| References | NodeClass | BrowseName |
DataType /
TypeDefinition | Other |
|---|---|---|---|---|
| Subtype of MixerType | ||||
| 0:HasComponent | Variable | DesignRotationalSpeed | 0:Double 0:AnalogUnitType | O |
| 0:HasComponent | Variable | DesignShaftPower | 0:Double 0:AnalogUnitType | O |
| 0:HasComponent | Variable | UpperLimitAllowableDesignPressureDrop | 0:Double 0:AnalogUnitType | O |
DesignRotationalSpeed – The design rotational speed of the Kneader.
DesignShaftPower – The design shaft power of the Kneader.
UpperLimitAllowableDesignPressureDrop – The maximum allowable design pressure drop of the Kneader.
8.41 RotaryMixerType
Rotating mixer.
| Attribute | Value | |||
| BrowseName | RotaryMixerType | |||
| IsAbstract | False | |||
| References | NodeClass | BrowseName |
DataType /
TypeDefinition | Other |
|---|---|---|---|---|
| Subtype of MixerType | ||||
| 0:HasComponent | Variable | DesignShaftPower | 0:Double 0:AnalogUnitType | O |
| 0:HasComponent | Variable | UpperLimitAllowableDesignPressureDrop | 0:Double 0:AnalogUnitType | O |
| 0:HasComponent | Variable | DesignRotationalSpeed | 0:Double 0:AnalogUnitType | O |
DesignShaftPower – The design shaft power of the RotaryMixer.
UpperLimitAllowableDesignPressureDrop – The maximum allowable design pressure drop of the RotaryMixer.
DesignRotationalSpeed – The design rotational speed of the RotaryMixer.
8.42 StaticMixerType
A physical object that is intended to mix fluid by means of diverging the flow with static obstacles or by increasing locally the velocity.
| Attribute | Value | |||
| BrowseName | StaticMixerType | |||
| IsAbstract | False | |||
| References | NodeClass | BrowseName |
DataType /
TypeDefinition | Other |
|---|---|---|---|---|
| Subtype of MixerType | ||||
| 0:HasComponent | Variable | UpperLimitAllowableDesignPressureDrop | 0:Double 0:AnalogUnitType | O |
UpperLimitAllowableDesignPressureDrop – The maximum allowable design pressure drop of the StaticMixer.
8.43 ProcessColumnType
A vertical vessel intended to enable chemical reactions or physical processes utilising differences in density of fluids and/or forced flow of fluid (from http://data.posccaesar.org/rdl/RDS4316825224).
| Attribute | Value | |||
| BrowseName | ProcessColumnType | |||
| IsAbstract | False | |||
| References | NodeClass | BrowseName |
DataType /
TypeDefinition | Other |
|---|---|---|---|---|
| Subtype of EquipmentType | ||||
| 0:HasComponent | Object | <ColumnSection> | -- SubTaggedColumnSectionType | OP |
| 0:HasComponent | Variable | NominalCapacityVolume | 0:Double 0:AnalogUnitType | O |
<ColumnSection> – OPC UA Object(s) that are part of the Object Type.
NominalCapacityVolume – The nominal volumetric capacity of the ProcessColumn.
8.44 PumpType
A physical object that is a driven piece of equipment in which energy is either constantly or periodically added to an amount of pumped liquid in order to increase the pressure required for the process in which the pump is in operation (from http://data.posccaesar.org/rdl/RDS327239).
| Attribute | Value | ||||
| BrowseName | PumpType | ||||
| IsAbstract | False | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of EquipmentType | |||||
| 0:HasComponent | Variable | DifferentialPressure | 0:Double | 0:AnalogUnitType | O |
| 0:HasComponent | Variable | DesignVolumeFlowRate | 0:Double | 0:AnalogUnitType | O |
| 0:HasComponent | Variable | DesignPressureHead | 0:Double | 0:AnalogUnitType | O |
DifferentialPressure – The differential pressure of the Pump.
DesignVolumeFlowRate – The volume flow rate for which the Pump is designed.
DesignPressureHead – The design pressure head of the Pump.
8.45 CentrifugalPumpType
A dynamic pump utilizing impellers provided with vanes generating centrifugal force to achieve the required pressure head (from http://data.posccaesar.org/rdl/RDS416834).
| Attribute | Value | ||||
| BrowseName | CentrifugalPumpType | ||||
| IsAbstract | False | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of PumpType | |||||
| 0:HasComponent | Object | <Impeller> | -- | ImpellerType | OP |
| 0:HasComponent | Variable | DesignRotationalSpeed | 0:Double | 0:AnalogUnitType | O |
| 0:HasComponent | Variable | DesignShaftPower | 0:Double | 0:AnalogUnitType | O |
<Impeller> – OPC UA Object(s) that are part of the Object Type.
DesignRotationalSpeed – The design rotational speed of the CentrifugalPump.
DesignShaftPower – The design shaft power of the CentrifugalPump.
8.46 EjectorPumpType
A pump which uses pressurized gas or liquid passing through an ejector to transport liquid (from http://data.posccaesar.org/rdl/RDS860624).
| Attribute | Value | ||||
| BrowseName | EjectorPumpType | ||||
| IsAbstract | False | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of PumpType | |||||
| 0:HasComponent | Variable | DesignCapacityMotiveFluid | 0:Double | 0:AnalogUnitType | O |
DesignCapacityMotiveFluid – The design capacity for the motive fluid of the EjectorPump.
8.47 ReciprocatingPumpType
a positive displacement pump which contains a displacing element intended to be moved in a reciprocating movement to exert pressure on a fluid, typically moving within a cylindrical space (from http://data.posccaesar.org/rdl/RDS416969).
| Attribute | Value | ||||
| BrowseName | ReciprocatingPumpType | ||||
| IsAbstract | False | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of PumpType | |||||
| 0:HasComponent | Object | <Displacer> | -- | DisplacerType | OP |
| 0:HasComponent | Variable | DesignRotationalSpeed | 0:Double | 0:AnalogUnitType | O |
| 0:HasComponent | Variable | DesignShaftPower | 0:Double | 0:AnalogUnitType | O |
<Displacer> – OPC UA Object(s) that are part of the Object Type.
DesignRotationalSpeed – The design rotational speed of the ReciprocatingPump.
DesignShaftPower – The design shaft power of the ReciprocatingPump.
8.48 RotaryPumpType
A positive displacement pump that consists of a chamber containing gears, cams, screws, vanes, plungers or similar elements actuated by relative rotation of the drive shaft or casing and which has no separate inlet and outlet valves (from http://data.posccaesar.org/rdl/RDS420749).
| Attribute | Value | ||||
| BrowseName | RotaryPumpType | ||||
| IsAbstract | False | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of PumpType | |||||
| 0:HasComponent | Object | <Displacer> | -- | DisplacerType | OP |
| 0:HasComponent | Variable | DesignRotationalSpeed | 0:Double | 0:AnalogUnitType | O |
| 0:HasComponent | Variable | DesignShaftPower | 0:Double | 0:AnalogUnitType | O |
<Displacer> – OPC UA Object(s) that are part of the Object Type.
DesignRotationalSpeed – The design rotational speed of the RotaryPump.
DesignShaftPower – The design shaft power of the RotaryPump.
8.49 SpecialPumpType
A Pump that is not covered by any of the sibling classes of SpecialPump.
| Attribute | Value | |||
| BrowseName | SpecialPumpType | |||
| IsAbstract | False | |||
| References | NodeClass | BrowseName |
DataType /
TypeDefinition | Other |
|---|---|---|---|---|
| Subtype of PumpType | ||||
| 0:HasComponent | Object | <PumpEquipmentItem> | -- PumpEquipmentType | OP |
| 0:HasComponent | Variable | DesignShaftPower | 0:Double 0:AnalogUnitType | O |
| 0:HasComponent | Variable | TypeNameAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | DesignCapacityMotiveFluid | 0:Double 0:AnalogUnitType | O |
| 0:HasComponent | Variable | DesignRotationalSpeed | 0:Double 0:AnalogUnitType | O |
<PumpEquipmentItem> – OPC UA Object(s) that are part of the Object Type.
DesignShaftPower – The design shaft power of the SpecialPump.
TypeNameAssignmentClass – The name of the type of the SpecialPump.
DesignCapacityMotiveFluid – The design capacity for the motive fluid of the SpecialPump.
DesignRotationalSpeed – The design rotational speed of the SpecialPump.
8.50 TaggedColumnSectionType
A fully tagged column section.
| Attribute | Value | |||
| BrowseName | TaggedColumnSectionType | |||
| IsAbstract | False | |||
| References | NodeClass | BrowseName |
DataType /
TypeDefinition | Other |
|---|---|---|---|---|
| Subtype of EquipmentType | ||||
| 0:HasComponent | Object | <Internal> | -- ColumnInternalsArrangementType | OP |
| 0:HasComponent | Variable | InsideDiameter | 0:Double 0:AnalogUnitType | O |
| 0:HasComponent | Variable | TagNameAssignment Class | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | TagNamePrefix AssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | Height | 0:Double 0:AnalogUnitType | O |
| 0:HasComponent | Variable | TagNameSequence NumberAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | TagNameSuffix AssignmentClass | 0:String 0:BaseDataVariableType | O |
| HasDEXPIRelationship | ObjectType | TaggedPlantItemType | -- -- | -- |
| HasDEXPIRelationship | ObjectType | ColumnSectionType | -- -- | -- |
<Internal> – OPC UA Object(s) that are part of the Object Type.
InsideDiameter – The inside diameter of the ColumnSection.
TagNameAssignmentClass – The tag number of the TaggedPlantItem. See also <owner.TagNamePrefixAssignmentClass>, <owner.TagNameSequenceNumberAssignmentClass>, and <owner.TagNameSuffixAssignmentClass>.
TagNamePrefixAssignmentClass – The prefix part of the tag number of the TaggedPlantItem. For example, the prefix of the tag number "P4714-A" is "P". The prefix often indicates the type of the equipment item, e.g., "P" can indicate a pump. See also <owner.TagNameAssignmentClass>.
Height – The height of the ColumnSection.
TagNameSequenceNumberAssignmentClass – The sequence number part of the tag number of the TaggedPlantItem. For example, the sequence number of the tag number "P4714-A" is "4714".
TagNameSuffixAssignmentClass – The suffix part of the tag number of an TaggedPlantItem item. For example, the suffix of the tag number "P4714-A" is "A".
TaggedPlantItemType – A fully tagged item in a plant.
ColumnSectionType – A column section.
8.51 VesselType
A container intended for storage and/or processing of fluids (from http://data.posccaesar.org/rdl/RDS414674).
Association to ColumnSections (TaggedColumnSection)
Association to Agitator (Agitator)
| Attribute | Value | ||||
| BrowseName | VesselType | ||||
| IsAbstract | False | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of EquipmentType | |||||
| 0:HasComponent | Variable | NominalCapacityVolume | 0:Double | 0:AnalogUnitType | O |
NominalCapacityVolume – The nominal volumetric capacity of the Vessel.
8.52 PressureVesselType
A vessel intended to withstand external and/or internal pressure (from http://data.posccaesar.org/rdl/RDS427229).
| Attribute | Value | ||||
| BrowseName | PressureVesselType | ||||
| IsAbstract | False | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of VesselType | |||||
| 0:HasComponent | Variable | CylinderLength | 0:Double | 0:AnalogUnitType | O |
CylinderLength – The cylinder length of the PressureVessel.
8.53 SiloType
A vessel that has a bottom in the shape of a cone and is intended to store solid particles (from http://data.posccaesar.org/rdl/RDS1022399).
| Attribute | Value | ||||
| BrowseName | SiloType | ||||
| IsAbstract | False | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of VesselType | |||||
8.54 SpecialVesselType
A Vessel that is not covered by any of other subclasses of Vessel.
| Attribute | Value | |||
| BrowseName | SpecialVesselType | |||
| IsAbstract | False | |||
| References | NodeClass | BrowseName |
DataType /
TypeDefinition | Other |
|---|---|---|---|---|
| Subtype of VesselType | ||||
| 0:HasComponent | Variable | CylinderLength | 0:Double 0:AnalogUnitType | O |
| 0:HasComponent | Variable | TypeNameAssignmentClass | 0:String 0:BaseDataVariableType | O |
CylinderLength – The cylinder length of the SpecialVessel.
TypeNameAssignmentClass – The name of the type of the SpecialVessel.
8.55 TankType
A vessel intended to contain fluid for storage. Typically a receiving or collecting function for further distribution. Typically with a vertical and cylindrical or square shape and a flat or conical bottom (from http://data.posccaesar.org/rdl/RDS445139).
| Attribute | Value | ||||
| BrowseName | TankType | ||||
| IsAbstract | False | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of VesselType | |||||
| 0:HasComponent | Variable | CylinderLength | 0:Double | 0:AnalogUnitType | O |
CylinderLength – The cylinder length of the Tank.
8.56 FilterUnitType
The filtering unit as part of a filter.
Association to Chamber (Chamber)
| Attribute | Value | |||
| BrowseName | FilterUnitType | |||
| IsAbstract | False | |||
| References | NodeClass | BrowseName |
DataType /
TypeDefinition | Other |
|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | ||||
| 0:HasComponent | Variable | LowerLimitPermeableParticleDiameter | 0:Double 0:AnalogUnitType | O |
| 0:HasComponent | Variable | Efficiency | 0:Double 0:AnalogUnitType | O |
| 0:HasComponent | Variable | UpperLimitAllowableSolids Concentration | 0:Double 0:AnalogUnitType | O |
| 0:HasComponent | Variable | MaterialOfConstructionCode AssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | NumberOfFilterElements | 0:Int64 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | FilterArea | 0:Double 0:AnalogUnitType | O |
| 0:HasComponent | Variable | LowerLimitAllowableSolids Concentration | 0:Double 0:AnalogUnitType | O |
| 0:HasComponent | Variable | UpperLimitPermeableParticleDiameter | 0:Double 0:AnalogUnitType | O |
LowerLimitPermeableParticleDiameter – The minimum of the particle size.
Efficiency – The efficiency of the FilterUnit.
UpperLimitAllowableSolidsConcentration – The maximum allowable concentration for solids.
MaterialOfConstructionCodeAssignmentClass – A code that gives the material of construction of the FilterUnit.
NumberOfFilterElements – The number of filter elements in the FilterUnit.
FilterArea – The filter area of the FilterUnit.
LowerLimitAllowableSolidsConcentration – The minimum allowable concentration for solids.
UpperLimitPermeableParticleDiameter – The maximum of the particle size.
8.57 FlowInPipeConnectorSymbolType
A pipe connector symbol that indicates that a preceding part of a PipingNetworkSegment is represented somewhere else, either on the same P&ID, or on some other P&ID.
| Attribute | Value | |||
| BrowseName | FlowInPipeConnectorSymbolType | |||
| IsAbstract | False | |||
| References | NodeClass | BrowseName |
DataType /
TypeDefinition | Other |
|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | ||||
| 0:HasComponent | Object | <Node> | -- PipingNodeType | OP |
| HasDEXPIRelationship | ObjectType | PipeConnectorSymbolType | -- -- | -- |
<Node> – OPC UA Object(s) that are part of the Object Type.
PipeConnectorSymbolType – A pipe connector symbol. It is usually drawn as an arrow.
8.58 FlowOutPipeConnectorSymbolType
A pipe connector symbol that indicates that a subsequent part of a PipingNetworkSegment is represented somewhere else, either on the same P&ID, or on some other P&ID.
| Attribute | Value | |||
| BrowseName | FlowOutPipeConnectorSymbolType | |||
| IsAbstract | False | |||
| References | NodeClass | BrowseName |
DataType /
TypeDefinition | Other |
|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | ||||
| 0:HasComponent | Object | <Node> | -- PipingNodeType | OP |
| HasDEXPIRelationship | ObjectType | PipeConnectorSymbolType | -- -- | -- |
<Node> – OPC UA Object(s) that are part of the Object Type.
PipeConnectorSymbolType – A pipe connector symbol. It is usually drawn as an arrow.
8.59 HeatExchangerRotorType
A heat exchanger rotor.
Association to Chamber (Chamber)
| Attribute | Value | |||
| BrowseName | HeatExchangerRotorType | |||
| IsAbstract | False | |||
| References | NodeClass | BrowseName |
DataType /
TypeDefinition | Other |
|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | ||||
| 0:HasComponent | Variable | MaterialOfConstructionCode AssignmentClass | 0:String 0:BaseDataVariableType | O |
MaterialOfConstructionCodeAssignmentClass – A code that gives the material of construction of the HeatExchangerRotor.
8.60 HeatTransferCoefficientType
| Attribute | Value | |||
| BrowseName | HeatTransferCoefficientType | |||
| IsAbstract | False | |||
| References | NodeClass | BrowseName |
DataType /
TypeDefinition | Other |
|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | ||||
| 0:HasComponent | Variable | Value | 0:Double 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | Unit | 0:String 0:BaseDataVariableType | O |
| HasDEXPIRelationship | ObjectType | PhysicalQuantityType | -- -- | -- |
8.61 ImpellerType
A physical object that is an assembly of rotating vanes within an enclosure which is used to impart energy to or derive energy from a fluid through dynamic force (from http://data.posccaesar.org/rdl/RDS414539).
Association to Chamber (Chamber)
| Attribute | Value | |||
| BrowseName | ImpellerType | |||
| IsAbstract | False | |||
| References | NodeClass | BrowseName |
DataType /
TypeDefinition | Other |
|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | ||||
| 0:HasComponent | Variable | Diameter | 0:Double 0:AnalogUnitType | O |
| 0:HasComponent | Variable | MaterialOfConstructionCode AssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | StageIdentifierAssignmentClass | 0:String 0:BaseDataVariableType | O |
Diameter – The diameter of the Impeller.
MaterialOfConstructionCodeAssignmentClass – A code that gives the material of construction of the Impeller.
StageIdentifierAssignmentClass – The stage identfifier of of the Impeller.
8.62 IndustrialComplexIso10209-2012ParentStructureType
A PlantItemStructure that is a suitable ParentStructure of am IndustrialComplexIso10209-2012.
| Attribute | Value | ||||
| BrowseName | IndustrialComplexIso10209-2012ParentStructureType | ||||
| IsAbstract | True | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | |||||
8.63 IndustrialComplexIso10209-2012Type
An industrial complex as defined by ISO 10209:2012.
Association to ParentStructure (IndustrialComplexIso10209-2012ParentStructure)
Association to AreaIsa95 (AreaIsa95)
| Attribute | Value | |||
| BrowseName | IndustrialComplexIso10209-2012Type | |||
| IsAbstract | False | |||
| References | NodeClass | BrowseName |
DataType /
TypeDefinition | Other |
|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | ||||
| 0:HasComponent | Variable | IndustrialComplexIdentificationCode AssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | IndustrialComplexNameAssignment Class | 0:String 0:BaseDataVariableType | O |
IndustrialComplexIdentificationCodeAssignmentClass – The identification code of the IndustrialComplexIso10209-2012.
IndustrialComplexNameAssignmentClass – The name of the IndustrialComplexIso10209-2012.
8.64 InstrumentationLoopFunctionType
An identified collection of related ProcessInstrumentationFunctions that interact for a known purpose.
Association to ProcessInstrumentationFunctions (ProcessInstrumentationFunction)
Association to ParentStructure (TechnicalItemParentStructure)
Association to PlantTrain (PlantTrain)
Association to PlantSystem (PlantSystem)
Association to AreaIsa95 (AreaIsa95)
| Attribute | Value | |||
| BrowseName | InstrumentationLoopFunctionType | |||
| IsAbstract | False | |||
| References | NodeClass | BrowseName |
DataType /
TypeDefinition | Other |
|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | ||||
| 0:HasComponent | Variable | InstrumentationLoopFunctionNumber AssignmentClass | 0:String 0:BaseDataVariableType | O |
InstrumentationLoopFunctionNumberAssignmentClass – The identification number of the InstrumentationLoopFunction.
8.65 Isa95EnterpriseType
An enterprise as defined by ISA 95.
| Attribute | Value | |||
| BrowseName | Isa95EnterpriseType | |||
| IsAbstract | False | |||
| References | NodeClass | BrowseName |
DataType /
TypeDefinition | Other |
|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | ||||
| 0:HasComponent | Variable | EnterpriseIdentificationCode AssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | EnterpriseNameAssignmentClass | 0:String 0:BaseDataVariableType | O |
EnterpriseIdentificationCodeAssignmentClass – The identification code of the Isa95Enterprise.
EnterpriseNameAssignmentClass – The name of the Isa95Enterprise.
8.66 LengthType
| Attribute | Value | |||
| BrowseName | LengthType | |||
| IsAbstract | False | |||
| References | NodeClass | BrowseName |
DataType /
TypeDefinition | Other |
|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | ||||
| 0:HasComponent | Variable | Value | 0:Double 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | Unit | 0:String 0:BaseDataVariableType | O |
| HasDEXPIRelationship | ObjectType | PhysicalQuantityType | -- -- | -- |
8.67 MassType
| Attribute | Value | |||
| BrowseName | MassType | |||
| IsAbstract | False | |||
| References | NodeClass | BrowseName |
DataType /
TypeDefinition | Other |
|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | ||||
| 0:HasComponent | Variable | Unit | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | Value | 0:Double 0:BaseDataVariableType | O |
| HasDEXPIRelationship | ObjectType | PhysicalQuantityType | -- -- | -- |
8.68 MeasuringLineFunctionType
Information flow function for measured values.
Association to Source (SignalConveyingFunctionSource)
Association to Target (SignalConveyingFunctionTarget)
| Attribute | Value | |||
| BrowseName | MeasuringLineFunctionType | |||
| IsAbstract | False | |||
| References | NodeClass | BrowseName |
DataType /
TypeDefinition | Other |
|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | ||||
| 0:HasComponent | Variable | SignalPointNumberAssignment Class | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | PortStatusSpecialization | PortStatusClassification 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | SignalConveyingType Specialization | SignalConveyingTypeClassification 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | SignalProcessControlFunctions AssignmentClass | 0:String 0:BaseDataVariableType | O |
| HasDEXPIRelationship | ObjectType | SignalConveyingFunctionType | -- -- | -- |
SignalPointNumberAssignmentClass – The signal point number of the SignalConveyingFunction. Typical values are 1 to 6.
PortStatusSpecialization – A classification indicating the port status of the SignalConveyingFunction.
SignalConveyingTypeSpecialization – A classification indicating the signal conveying type of the SignalConveyingFunction.
SignalProcessControlFunctionsAssignmentClass – The process control functions of the SignalConveyingFunction. Values are combinations of characters.
SignalConveyingFunctionType – A function for conveying a signal.
Association to Source (SignalConveyingFunctionSource)
Association to Target (SignalConveyingFunctionTarget).
8.69 MetaDataType
A container for meta data about a PlantModel.
| Attribute | Value | |||
| BrowseName | MetaDataType | |||
| IsAbstract | False | |||
| References | NodeClass | BrowseName |
DataType /
TypeDefinition | Other |
|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | ||||
| 0:HasComponent | Variable | SubProjectNumberAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | UnitIsa95NumberAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | ProjectNameAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | DesignerNameAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | RevisionNumberAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | ReplacedDrawingAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | CompanyNameAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | DrawingSubTitleAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | ModificationDataRepresentation AssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | CheckerNameAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | FileNameAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | SheetNumberAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | ConfidentialitySpecialization | ConfidentialityClassification 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | ProcessCellIsa95NumberAssignment Class | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | ApprovalDescriptionAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | AreaIsa95NameAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | UnitIsa95NameAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | ProjectRangeNumberAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | BlockNameAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | BlockNumberAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | SheetFormatAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | CompanyNumberAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | TotalNumberOfSheets | 0:Int64 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | ArchiveNumberAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | DrawingNumberAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | SubProjectNameAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | CreatorNameAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | ProcessCellIsa95NameAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | ApproverNameAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | DrawingNameAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | DrafterNameAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | ResponsibleDepartmentName AssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | ApprovalDateRepresentation AssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | LocationNameAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | SiteIsa95NameAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | ProjectNumberAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | CreationDateRepresentation AssignmentClass | 0:String 0:BaseDataVariableType | O |
SubProjectNumberAssignmentClass – The number of the related sub-project.
UnitIsa95NumberAssignmentClass – The number of the related unit according to ISA-95.
ProjectNameAssignmentClass – The name of the related project.
DesignerNameAssignmentClass – The name of the designer of the drawing.
RevisionNumberAssignmentClass – The revision number of the drawing.
ReplacedDrawingAssignmentClass – The drawing replaced by this drawing.
CompanyNameAssignmentClass – The name of the company.
DrawingSubTitleAssignmentClass – The sub-title of the drawing.
ModificationDataRepresentationAssignmentClass – A representation of the last modification date of the drawing.
CheckerNameAssignmentClass – The name of the checker of the drawing.
FileNameAssignmentClass – The name of the drawing file.
SheetNumberAssignmentClass – The sheet number of the drawing.
ConfidentialitySpecialization – The confidentiality of the drawing.
ProcessCellIsa95NumberAssignmentClass – The number of the related process cell according to ISA-95.
ApprovalDescriptionAssignmentClass – A description of the approval of the drawing.
AreaIsa95NameAssignmentClass – The name of the related area according to ISA-95.
UnitIsa95NameAssignmentClass – The name of the related unit according to ISA-95.
ProjectRangeNumberAssignmentClass – The range number of he related project.
BlockNameAssignmentClass – The name of the related block.
BlockNumberAssignmentClass – The number of the related block.
SheetFormatAssignmentClass – The sheet format.
CompanyNumberAssignmentClass – The number of the company.
TotalNumberOfSheets – The total number of sheets.
ArchiveNumberAssignmentClass – The archive number of the drawing.
DrawingNumberAssignmentClass – The drawing number.
SubProjectNameAssignmentClass – The name of the related sub-project.
CreatorNameAssignmentClass – The name of the creator of the drawing.
ProcessCellIsa95NameAssignmentClass – The name of the related process cell according to ISA-95.
ApproverNameAssignmentClass – The name of the approver of the drawing.
DrawingNameAssignmentClass – The drawing name.
DrafterNameAssignmentClass – The name of the drafter of the drawing.
ResponsibleDepartmentNameAssignmentClass – The name of the department responsible for the drawing.
ApprovalDateRepresentationAssignmentClass – A representation of the approval date of the drawing.
LocationNameAssignmentClass – The location name.
SiteIsa95NameAssignmentClass – The name of the related site according to ISA-95.
ProjectNumberAssignmentClass – The number of the related project.
CreationDateRepresentationAssignmentClass – A representation of the creation date of the drawing.
8.70 MixingElementAssemblyType
Assembly of mixing elements as part of a mixer.
Association to Chamber (Chamber)
| Attribute | Value | |||
| BrowseName | MixingElementAssemblyType | |||
| IsAbstract | False | |||
| References | NodeClass | BrowseName |
DataType /
TypeDefinition | Other |
|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | ||||
| 0:HasComponent | Variable | MaterialOfConstructionCode AssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | MixingElementAssembly | 0:Int64 0:BaseDataVariableType | O |
MaterialOfConstructionCodeAssignmentClass – A code that gives the material of construction of the MixingElementAssembly.
MixingElementAssembly – The number of mixing elements in the MixingElementAssembly.
8.71 NozzleOwnerType
An object that can have nozzles.
| Attribute | Value | ||||
| BrowseName | NozzleOwnerType | ||||
| IsAbstract | True | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | |||||
| 0:HasComponent | Object | <Nozzle> | -- | NozzleType | OP |
<Nozzle> – OPC UA Object(s) that are part of the Object Type.
8.72 NozzleType
A physical object that has a protruding part through which a stream of fluid is directed (from http://data.posccaesar.org/rdl/RDS415214).
Association to Chamber (Chamber)
| Attribute | Value | |||
| BrowseName | NozzleType | |||
| IsAbstract | False | |||
| References | NodeClass | BrowseName |
DataType /
TypeDefinition | Other |
|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | ||||
| 0:HasComponent | Object | <Node> | -- PipingNodeType | OP |
| 0:HasComponent | Variable | NominalPressureRepresentation AssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | SubTagNameAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | NominalPressureNumericalValue RepresentationAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | NominalPressureStandard Specialization | NominalPressureStandardClassification 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | NominalPressureType RepresentationAssignmentClass | 0:String 0:BaseDataVariableType | O |
| HasDEXPIRelationship | ObjectType | PipingNodeOwnerType | -- -- | -- |
<Node> – OPC UA Object(s) that are part of the Object Type.
NominalPressureRepresentationAssignmentClass – A readable representation of the nominal pressure. The purpose of this value is to give a textual representation of the nominal pressure to be used in the graphics of a PID.
SubTagNameAssignmentClass – The sub tag name of the Nozzle.
NominalPressureNumericalValueRepresentationAssignmentClass – A readable representation of the numerical value of the nominal pressure. The purpose of this value is to give a textual representation of the nominal pressure to be used in the graphics of a PID.
NominalPressureStandardSpecialization – The nominal pressure of the Nozzle, given as a reference to a nominal pressure standard and value.
NominalPressureTypeRepresentationAssignmentClass – A readable representation of the type of the nominal pressure. The purpose of this value is to give a textual representation of the nominal pressure to be used in the graphics of a PID.
PipingNodeOwnerType – An object that can have PipingNodes.
8.73 OrificePlateType
An 'artefact' that is a thin plate with a specified hole in the middle. It is usually placed in a pipe to measure the rate of fluid flow (from http://data.posccaesar.org/rdl/RDS418364).
| Attribute | Value | |||
| BrowseName | OrificePlateType | |||
| IsAbstract | False | |||
| References | NodeClass | BrowseName |
DataType /
TypeDefinition | Other |
|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | ||||
| 0:HasComponent | Variable | PipingComponentNumber AssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | LowerLimitHeatTracing Temperature | 0:Double 0:AnalogUnitType | O |
| 0:HasComponent | Variable | HeatTracingTypeAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | HeatTracingTypeSpecialization | HeatTracingTypeClassification 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | InsulationThickness | 0:Double 0:AnalogUnitType | O |
| 0:HasComponent | Variable | PipingComponentNameAssignment Class | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | InsulationTypeAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | PipingClassCodeAssignmentClass | 0:String 0:BaseDataVariableType | O |
| HasDEXPIRelationship | ObjectType | PipeFittingType | -- -- | -- |
PipingComponentNumberAssignmentClass – The piping component number of the PipeFitting.
LowerLimitHeatTracingTemperature – The temperature that a heat tracing system must ensure for the PipeFitting.
HeatTracingTypeAssignmentClass – The heat tracing type related to the PipeFitting, represented as a string.
HeatTracingTypeSpecialization – A specialization indicating the heat tracing type related to the PipeFitting.
InsulationThickness – The insulation thickness of the PipeFitting.
PipingComponentNameAssignmentClass – The piping component name of the PipeFitting.
InsulationTypeAssignmentClass – The identification code for the insulation type related to the PipeFitting. So far, DEXPI does not define restrictions for valid values.
PipingClassCodeAssignmentClass – The identification code of the piping class of the PipeFitting. So far, DEXPI does not define restrictions for valid values.
PipeFittingType – A pipe fitting.
8.74 PercentageType
| Attribute | Value | |||
| BrowseName | PercentageType | |||
| IsAbstract | False | |||
| References | NodeClass | BrowseName |
DataType /
TypeDefinition | Other |
|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | ||||
| 0:HasComponent | Variable | Unit | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | Value | 0:Double 0:BaseDataVariableType | O |
| HasDEXPIRelationship | ObjectType | PhysicalQuantityType | -- -- | -- |
8.75 PhysicalQuantityType
| Attribute | Value | ||||
| BrowseName | PhysicalQuantityType | ||||
| IsAbstract | True | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | |||||
| 0:HasComponent | Variable | Value | 0:Double | 0:BaseDataVariableType | O |
8.76 PipeConnectorSymbolType
A pipe connector symbol. It is usually drawn as an arrow.
| Attribute | Value | ||||
| BrowseName | PipeConnectorSymbolType | ||||
| IsAbstract | True | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | |||||
| 0:HasComponent | Object | <Node> | -- | PipingNodeType | OP |
| HasDEXPIRelationship | ObjectType | PipingNodeOwnerType | -- | -- | -- |
<Node> – OPC UA Object(s) that are part of the Object Type.
PipingNodeOwnerType – An object that can have PipingNodes.
8.77 PipeType
An elementary piece of piping, i.e., not interrupted by any item.
Association to SourceItem (PipingSourceItem)
Association to TargetItem (PipingTargetItem)
Association to SourceNode (PipingNode)
Association to TargetNode (PipingNode)
| Attribute | Value | ||||
| BrowseName | PipeType | ||||
| IsAbstract | False | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | |||||
8.78 PipingComponentType
A piping component
| Attribute | Value | |||
| BrowseName | PipingComponentType | |||
| IsAbstract | True | |||
| References | NodeClass | BrowseName |
DataType /
TypeDefinition | Other |
|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | ||||
| 0:HasComponent | Object | <Node> | -- PipingNodeType | OP |
| 0:HasComponent | Variable | NominalDiametersRepresentation AssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | OnHoldSpecialization | OnHoldClassification 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | PressureTestCircuitNumber AssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | BasfLineClassAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | FluidCodeAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | PipingClassArtefactSpecialization | PipingClassArtefactClassification 0:BaseDataVariableType | O |
| HasDEXPIRelationship | ObjectType | PipingNodeOwnerType | -- -- | -- |
<Node> – OPC UA Object(s) that are part of the Object Type.
NominalDiametersRepresentationAssignmentClass – A readable representation of the nominal diameters of the ports of the PipingComponent. The purpose of this value is to give a textual representation of the nominal diameters to be used in the graphics of a PID.
OnHoldSpecialization – A specialization indicating if the PipingComponent is on hold or not.
PressureTestCircuitNumberAssignmentClass – The number of the pressure test circuit of the PipingComponent.
BasfLineClassAssignmentClass – The BASF line class of the PipingComponent, represented as a string. Note: This attribute has been included as an example for a company-specific attribute. It should actually be identified by a company-specific RDL reference. As there is currently no BASF RDL, the DEXPI RDL is used.
FluidCodeAssignmentClass – The identification code of the fluid related to the PipingComponent. So far, DEXPI does not define restrictions for valid values.
PipingClassArtefactSpecialization – A specialization indicating if the PipingComponent is an artefact that is described by a piping class.
PipingNodeOwnerType – An object that can have PipingNodes.
8.79 CheckValveType
A valve that permits fluid to flow in one direction only (from http://data.posccaesar.org/rdl/RDS292229).
| Attribute | Value | |||
| BrowseName | CheckValveType | |||
| IsAbstract | False | |||
| References | NodeClass | BrowseName |
DataType /
TypeDefinition | Other |
|---|---|---|---|---|
| Subtype of PipingComponentType | ||||
| 0:HasComponent | Variable | PipingComponentNumberAssignment Class | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | PipingComponentNameAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | HeatTracingTypeAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | InsulationThickness | 0:Double 0:AnalogUnitType | O |
| 0:HasComponent | Variable | InsulationTypeAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | LowerLimitHeatTracingTemperature | 0:Double 0:AnalogUnitType | O |
| 0:HasComponent | Variable | PipingClassCodeAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | HeatTracingTypeSpecialization | HeatTracingTypeClassification 0:BaseDataVariableType | O |
PipingComponentNumberAssignmentClass – The piping component number of the CheckValve.
PipingComponentNameAssignmentClass – The piping component name of the CheckValve.
HeatTracingTypeAssignmentClass – The heat tracing type related to the CheckValve, represented as a string.
InsulationThickness – The insulation thickness of the CheckValve.
InsulationTypeAssignmentClass – The identification code for the insulation type related to the CheckValve. So far, DEXPI does not define restrictions for valid values.
LowerLimitHeatTracingTemperature – The temperature that a heat tracing system must ensure for the CheckValve.
PipingClassCodeAssignmentClass – The identification code of the piping class of the CheckValve. So far, DEXPI does not define restrictions for valid values.
HeatTracingTypeSpecialization – A specialization indicating the heat tracing type related to the CheckValve.
8.80 GlobeCheckValveType
A globe chack valve.
| Attribute | Value | ||||
| BrowseName | GlobeCheckValveType | ||||
| IsAbstract | False | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of CheckValveType | |||||
8.81 SwingCheckValveType
A check valve that is a check valve where the closure member is a disc which swings freely on a hinge and which opens automatically when flow is established and closes automatically when flow ceases or is reversed (from http://data.posccaesar.org/rdl/RDS610424).
| Attribute | Value | ||||
| BrowseName | SwingCheckValveType | ||||
| IsAbstract | False | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of CheckValveType | |||||
8.82 InlinePrimaryElementType
An inline primary element.
| Attribute | Value | |||
| BrowseName | InlinePrimaryElementType | |||
| IsAbstract | False | |||
| References | NodeClass | BrowseName |
DataType /
TypeDefinition | Other |
|---|---|---|---|---|
| Subtype of PipingComponentType | ||||
| 0:HasComponent | Variable | InsulationThickness | 0:Double 0:AnalogUnitType | O |
| 0:HasComponent | Variable | HeatTracingTypeAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | HeatTracingTypeSpecialization | HeatTracingTypeClassification 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | PipingComponentNameAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | InsulationTypeAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | PipingComponentNumberAssignment Class | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | LowerLimitHeatTracingTemperature | 0:Double 0:AnalogUnitType | O |
InsulationThickness – The insulation thickness of the InlinePrimaryElement.
HeatTracingTypeAssignmentClass – The heat tracing type related to the InlinePrimaryElement, represented as a string.
HeatTracingTypeSpecialization – A specialization indicating the heat tracing type related to the InlinePrimaryElement.
PipingComponentNameAssignmentClass – The piping component name of the InlinePrimaryElement.
InsulationTypeAssignmentClass – The identification code for the insulation type related to the InlinePrimaryElement. So far, DEXPI does not define restrictions for valid values.
PipingComponentNumberAssignmentClass – The piping component number of the InlinePrimaryElement.
LowerLimitHeatTracingTemperature – The temperature that a heat tracing system must ensure for the InlinePrimaryElement.
8.83 ElectromagneticFlowMeterType
A velocity flow meter that is measuring flow rate of a conductive fluid running through a magnetic field by measuring the charge created when fluid interacting with the field (from http://data.posccaesar.org/rdl/RDS1009664).
| Attribute | Value | ||||
| BrowseName | ElectromagneticFlowMeterType | ||||
| IsAbstract | False | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of InlinePrimaryElementType | |||||
8.84 FlowDetectorType
A detector that is intended to detect whether a fluid flow exists (from http://data.posccaesar.org/rdl/RDS1008719).
| Attribute | Value | ||||
| BrowseName | FlowDetectorType | ||||
| IsAbstract | False | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of InlinePrimaryElementType | |||||
8.85 FlowNozzleType
A nozzle with a smooth entry and a sharp exit (from http://data.posccaesar.org/rdl/RDS821024).
| Attribute | Value | ||||
| BrowseName | FlowNozzleType | ||||
| IsAbstract | False | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of InlinePrimaryElementType | |||||
8.86 PositiveDisplacementFlowMeterType
A flow meter that measures the volumetric flow rate of a liquid or gas by separating the flow stream into known volumes and counting them over time (from http://data.posccaesar.org/rdl/RDS418094).
| Attribute | Value | ||||
| BrowseName | PositiveDisplacementFlowMeterType | ||||
| IsAbstract | False | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of InlinePrimaryElementType | |||||
8.87 TurbineFlowMeterType
A velocity flow meter that uses a multi bladed rotor to measure fluid flow rate in units of volumetric flow through a closed conduit (from http://data.posccaesar.org/rdl/RDS417914).
| Attribute | Value | ||||
| BrowseName | TurbineFlowMeterType | ||||
| IsAbstract | False | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of InlinePrimaryElementType | |||||
8.88 VariableAreaFlowMeterType
A flow meter consisting of a vertical tube with a conically shaped bore which widens to the top in which a solid body (float) is supported by the force exerted by the fluid stream (from http://data.posccaesar.org/rdl/RDS418229).
| Attribute | Value | ||||
| BrowseName | VariableAreaFlowMeterType | ||||
| IsAbstract | False | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of InlinePrimaryElementType | |||||
8.89 VenturiTubeType
A 'measuring device' that has a constriction with a relative long passage with a smooth coned entry and exit (from http://data.posccaesar.org/rdl/RDS648044).
| Attribute | Value | ||||
| BrowseName | VenturiTubeType | ||||
| IsAbstract | False | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of InlinePrimaryElementType | |||||
8.90 VolumetricFlowDetectorType
A volumetric flow detector.
| Attribute | Value | ||||
| BrowseName | VolumetricFlowDetectorType | ||||
| IsAbstract | False | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of InlinePrimaryElementType | |||||
8.91 PipeFittingType
A pipe fitting.
| Attribute | Value | |||
| BrowseName | PipeFittingType | |||
| IsAbstract | False | |||
| References | NodeClass | BrowseName |
DataType /
TypeDefinition | Other |
|---|---|---|---|---|
| Subtype of PipingComponentType | ||||
| 0:HasComponent | Variable | InsulationThickness | 0:Double 0:AnalogUnitType | O |
| 0:HasComponent | Variable | PipingComponentNumberAssignment Class | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | PipingComponentNameAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | HeatTracingTypeSpecialization | HeatTracingTypeClassification 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | HeatTracingTypeAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | PipingClassCodeAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | InsulationTypeAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | LowerLimitHeatTracingTemperature | 0:Double 0:AnalogUnitType | O |
InsulationThickness – The insulation thickness of the PipeFitting.
PipingComponentNumberAssignmentClass – The piping component number of the PipeFitting.
PipingComponentNameAssignmentClass – The piping component name of the PipeFitting.
HeatTracingTypeSpecialization – A specialization indicating the heat tracing type related to the PipeFitting.
HeatTracingTypeAssignmentClass – The heat tracing type related to the PipeFitting, represented as a string.
PipingClassCodeAssignmentClass – The identification code of the piping class of the PipeFitting. So far, DEXPI does not define restrictions for valid values.
InsulationTypeAssignmentClass – The identification code for the insulation type related to the PipeFitting. So far, DEXPI does not define restrictions for valid values.
LowerLimitHeatTracingTemperature – The temperature that a heat tracing system must ensure for the PipeFitting.
8.92 BlindFlangeType
A pipe flange that is without a central opening and used to shut off a flanged pipe end (from http://data.posccaesar.org/rdl/RDS414719).
| Attribute | Value | ||||
| BrowseName | BlindFlangeType | ||||
| IsAbstract | False | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of PipeFittingType | |||||
8.93 ClampedFlangeCouplingType
A clamped flange coupling.
| Attribute | Value | ||||
| BrowseName | ClampedFlangeCouplingType | ||||
| IsAbstract | False | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of PipeFittingType | |||||
8.94 CompensatorType
A device compensating for axial or radial movement between two elements that is connected (from http://data.posccaesar.org/rdl/RDS1280084541).
| Attribute | Value | ||||
| BrowseName | CompensatorType | ||||
| IsAbstract | False | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of PipeFittingType | |||||
8.95 ConicalStrainerType
A strainer where the screen has a conical tubular shape (from http://data.posccaesar.org/rdl/RDS16044540).
| Attribute | Value | ||||
| BrowseName | ConicalStrainerType | ||||
| IsAbstract | False | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of PipeFittingType | |||||
8.96 FlangeType
A physical object that is a projecting flat rim, plate,collar, or rib (from http://data.posccaesar.org/rdl/RDS13307654).
| Attribute | Value | ||||
| BrowseName | FlangeType | ||||
| IsAbstract | False | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of PipeFittingType | |||||
8.97 FlangedConnectionType
A flanged connection.
| Attribute | Value | ||||
| BrowseName | FlangedConnectionType | ||||
| IsAbstract | False | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of PipeFittingType | |||||
8.98 FunnelType
A hollow cone with a tube extending from the smaller end and that is designed to catch and direct a downward flow (from http://data.posccaesar.org/rdl/RDS6689917).
| Attribute | Value | ||||
| BrowseName | FunnelType | ||||
| IsAbstract | False | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of PipeFittingType | |||||
8.99 HoseType
A tubular which is flexible and capable of conveying liquids under pressure (from http://data.posccaesar.org/rdl/RDS302174).
| Attribute | Value | ||||
| BrowseName | HoseType | ||||
| IsAbstract | False | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of PipeFittingType | |||||
8.100 IlluminatedSightGlassType
An illuminated sight glass.
| Attribute | Value | ||||
| BrowseName | IlluminatedSightGlassType | ||||
| IsAbstract | False | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of PipeFittingType | |||||
8.101 InLineMixerType
A static mixer that is intended to be supported by connected equipment. Typically supported by piping (from http://data.posccaesar.org/rdl/RDS43167562195).
| Attribute | Value | ||||
| BrowseName | InLineMixerType | ||||
| IsAbstract | False | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of PipeFittingType | |||||
8.102 LineBlindType
A functional unit used to blind off a process stream (from http://data.posccaesar.org/rdl/RDS280034).
| Attribute | Value | ||||
| BrowseName | LineBlindType | ||||
| IsAbstract | False | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of PipeFittingType | |||||
8.103 PenetrationType
A device intended to provide a penetration (from http://data.posccaesar.org/rdl/RDS13068275).
| Attribute | Value | ||||
| BrowseName | PenetrationType | ||||
| IsAbstract | False | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of PipeFittingType | |||||
8.104 PipeCouplingType
An 'artefact' that is a one-piece cylindrical section intended to join pipes and/or piping components (from http://data.posccaesar.org/rdl/RDS415664).
| Attribute | Value | ||||
| BrowseName | PipeCouplingType | ||||
| IsAbstract | False | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of PipeFittingType | |||||
8.105 PipeFlangeSpacerType
A 'spacer' and an 'artefact' that is intended to be inserted between two pipe flanged ends to provide the distance between the flanges required to insert a 'pipe flange spade' (from http://data.posccaesar.org/rdl/RDS472724).
| Attribute | Value | ||||
| BrowseName | PipeFlangeSpacerType | ||||
| IsAbstract | False | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of PipeFittingType | |||||
8.106 PipeFlangeSpadeType
A 'line blind' and an 'artefact' that is a circular plate with no central opening and holes to match mating flanged ends. It is also equipped with a handle (from http://data.posccaesar.org/rdl/RDS472679).
| Attribute | Value | ||||
| BrowseName | PipeFlangeSpadeType | ||||
| IsAbstract | False | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of PipeFittingType | |||||
8.107 PipeReducerType
An 'artefact' that has different nominal pipe size at the two ends, intended to connect pipes or piping components (from http://data.posccaesar.org/rdl/RDS416294).
| Attribute | Value | ||||
| BrowseName | PipeReducerType | ||||
| IsAbstract | False | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of PipeFittingType | |||||
8.108 PipeTeeType
An 'artefact' that has three piping ends in T-shape, including a branch at 90 degrees (from http://data.posccaesar.org/rdl/RDS427724).
| Attribute | Value | ||||
| BrowseName | PipeTeeType | ||||
| IsAbstract | False | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of PipeFittingType | |||||
8.109 SightGlassType
A physical object that is transparent and intended for viewing a vessel or piping system interior (from http://data.posccaesar.org/rdl/RDS648674).
| Attribute | Value | ||||
| BrowseName | SightGlassType | ||||
| IsAbstract | False | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of PipeFittingType | |||||
8.110 SafetyValveOrFittingType
A safety valve or fitting.
| Attribute | Value | |||
| BrowseName | SafetyValveOrFittingType | |||
| IsAbstract | False | |||
| References | NodeClass | BrowseName |
DataType /
TypeDefinition | Other |
|---|---|---|---|---|
| Subtype of PipingComponentType | ||||
| 0:HasComponent | Variable | PositionNumberAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | FlowOutPipingClassCodeAssignment Class | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | LocationRegistrationNumber AssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | FlowInPipingClassCodeAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | SetPressureLow | 0:Double 0:AnalogUnitType | O |
| 0:HasComponent | Variable | SetPressureHigh | 0:Double 0:AnalogUnitType | O |
PositionNumberAssignmentClass – The position number of the SafetyValveOrFitting.
FlowOutPipingClassCodeAssignmentClass – The code of the piping class at the flow out side of SafetyValveOrFitting.
LocationRegistrationNumberAssignmentClass – The location registration number of the SafetyValveOrFitting.
FlowInPipingClassCodeAssignmentClass – The code of the piping class at the flow in side of SafetyValveOrFitting.
SetPressureLow – The low pressure at which the SafetyValveOrFitting is activated.
SetPressureHigh – The high pressure at which the SafetyValveOrFitting is activated.
8.111 BreatherValveType
A breather valve.
| Attribute | Value | ||||
| BrowseName | BreatherValveType | ||||
| IsAbstract | False | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of SafetyValveOrFittingType | |||||
8.112 FlameArrestorType
An 'arrestor' which is a trap covering an opening, e.g of a ventilation system or a pipe, to prevent flames from entering the system (from http://data.posccaesar.org/rdl/RDS1325028651).
| Attribute | Value | |||
| BrowseName | FlameArrestorType | |||
| IsAbstract | False | |||
| References | NodeClass | BrowseName |
DataType /
TypeDefinition | Other |
|---|---|---|---|---|
| Subtype of SafetyValveOrFittingType | ||||
| 0:HasComponent | Variable | ExplosionProofArtefactSpecialization | ExplosionProofArtefactClassification 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | FireResistantArtefactSpecialization | FireResistantArtefactClassification 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | DetonationProofArtefactSpecialization | DetonationProofArtefactClassification 0:BaseDataVariableType | O |
ExplosionProofArtefactSpecialization – A specialization indicating if the FlameArrestor is explosion-proof.
FireResistantArtefactSpecialization – A specialization indicating if the FlameArrestor is fire-resistant.
DetonationProofArtefactSpecialization – A specialization indicating if the FlameArrestor is detonation-proof.
8.113 RuptureDiscType
A physical object that is designed to burst at a certain excess pressure. It is part of a rupture disc assembly (from http://data.posccaesar.org/rdl/RDS8372601).
| Attribute | Value | ||||
| BrowseName | RuptureDiscType | ||||
| IsAbstract | False | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of SafetyValveOrFittingType | |||||
8.114 SpringLoadedAngleGlobeSafetyValveType
A spring-loaded angle globe safety valve.
| Attribute | Value | ||||
| BrowseName | SpringLoadedAngleGlobeSafetyValveType | ||||
| IsAbstract | False | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of SafetyValveOrFittingType | |||||
8.115 SpringLoadedGlobeSafetyValveType
A spring-loaded globe safety valve.
| Attribute | Value | ||||
| BrowseName | SpringLoadedGlobeSafetyValveType | ||||
| IsAbstract | False | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of SafetyValveOrFittingType | |||||
8.116 ShutOffValveType
A shut off valve.
| Attribute | Value | |||
| BrowseName | ShutOffValveType | |||
| IsAbstract | False | |||
| References | NodeClass | BrowseName |
DataType /
TypeDefinition | Other |
|---|---|---|---|---|
| Subtype of PipingComponentType | ||||
| 0:HasComponent | Variable | PipingClassCodeAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | HeatTracingTypeAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | NumberOfPortsSpecialization | NumberOfPortsClassification 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | InsulationThickness | 0:Double 0:AnalogUnitType | O |
| 0:HasComponent | Variable | InsulationTypeAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | LowerLimitHeatTracingTemperature | 0:Double 0:AnalogUnitType | O |
| 0:HasComponent | Variable | PipingComponentNumberAssignment Class | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | PipingComponentNameAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | HeatTracingTypeSpecialization | HeatTracingTypeClassification 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | OperationSpecialization | OperationClassification 0:BaseDataVariableType | O |
PipingClassCodeAssignmentClass – The identification code of the piping class of the ShutOffValve. So far, DEXPI does not define restrictions for valid values.
HeatTracingTypeAssignmentClass – The heat tracing type related to the ShutOffValve, represented as a string.
NumberOfPortsSpecialization – A specialization indicating the number of ports of the ShutOffValve.
InsulationThickness – The insulation thickness of the ShutOffValve.
InsulationTypeAssignmentClass – The identification code for the insulation type related to the ShutOffValve. So far, DEXPI does not define restrictions for valid values.
LowerLimitHeatTracingTemperature – The temperature that a heat tracing system must ensure for the ShutOffValve.
PipingComponentNumberAssignmentClass – The piping component number of the ShutOffValve.
PipingComponentNameAssignmentClass – The piping component name of the ShutOffValve.
HeatTracingTypeSpecialization – A specialization indicating the heat tracing type related to the ShutOffValve.
OperationSpecialization – A specialization indicating the operation of the ShutOffValve.
8.117 AngleBallValveType
An angle ball valve.
| Attribute | Value | ||||
| BrowseName | AngleBallValveType | ||||
| IsAbstract | False | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of ShutOffValveType | |||||
8.118 AngleGlobeValveType
A globe valve that deviates from the in-line design, i.e. with a body shape designed to adjust the flow direction with a specified angle relative to the straight through-flow an in-line valve would have provided for (from http://data.posccaesar.org/rdl/RDS882944).
| Attribute | Value | ||||
| BrowseName | AngleGlobeValveType | ||||
| IsAbstract | False | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of ShutOffValveType | |||||
8.119 AnglePlugValveType
An angle plug valve.
| Attribute | Value | ||||
| BrowseName | AnglePlugValveType | ||||
| IsAbstract | False | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of ShutOffValveType | |||||
8.120 AngleValveType
A valve that has valve ports which are not in-line (from http://data.posccaesar.org/rdl/RDS5789384).
| Attribute | Value | ||||
| BrowseName | AngleValveType | ||||
| IsAbstract | False | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of ShutOffValveType | |||||
8.121 BallValveType
A rotary valve that has a ball closure member (from http://data.posccaesar.org/rdl/RDS416654).
| Attribute | Value | ||||
| BrowseName | BallValveType | ||||
| IsAbstract | False | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of ShutOffValveType | |||||
8.122 ButterflyValveType
A rotary valve that has a closure member of a disc type with a shaft parallel, or near parallel, to the plane of the disc, with an axis of rotation transverse to the flow direction (from http://data.posccaesar.org/rdl/RDS416609).
| Attribute | Value | ||||
| BrowseName | ButterflyValveType | ||||
| IsAbstract | False | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of ShutOffValveType | |||||
8.123 GateValveType
A valve that is a valve where the closure member is a gate or disc with a linear motion parallel, or nearly parallel, to the plane of flat seats, which are transverse to the direction of flow (from http://data.posccaesar.org/rdl/RDS416519).
| Attribute | Value | ||||
| BrowseName | GateValveType | ||||
| IsAbstract | False | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of ShutOffValveType | |||||
8.124 GlobeValveType
A valve that is a valve where the closure member is a disc or piston operating with linear motion normal to the flat or shaped seat (from http://data.posccaesar.org/rdl/RDS416204).
| Attribute | Value | ||||
| BrowseName | GlobeValveType | ||||
| IsAbstract | False | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of ShutOffValveType | |||||
8.125 NeedleValveType
A globe valve that has a closure member with the shape of a conical plug (needle) which closes into a small seat (from http://data.posccaesar.org/rdl/RDS421064).
| Attribute | Value | ||||
| BrowseName | NeedleValveType | ||||
| IsAbstract | False | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of ShutOffValveType | |||||
8.126 PlugValveType
A rotary valve that has a quarter turn action in which the closure member is a cylindrical or tapered plug which operates by rotating on its axis and sealing against a downstream seat (from http://data.posccaesar.org/rdl/RDS421109).
| Attribute | Value | ||||
| BrowseName | PlugValveType | ||||
| IsAbstract | False | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of ShutOffValveType | |||||
8.127 StraightwayValveType
A valve that is straight, i.e. the centerlines perpendicular to the ends are in-line with no offset (from http://data.posccaesar.org/rdl/RDS9390905).
| Attribute | Value | ||||
| BrowseName | StraightwayValveType | ||||
| IsAbstract | False | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of ShutOffValveType | |||||
8.128 PipingConnectionType
An elementary connection between two piping items.
Association to SourceItem (PipingSourceItem)
Association to TargetItem (PipingTargetItem)
Association to SourceNode (PipingNode)
Association to TargetNode (PipingNode)
| Attribute | Value | ||||
| BrowseName | PipingConnectionType | ||||
| IsAbstract | True | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | |||||
8.129 PipingNetworkSegmentItemType
An item that can be part of a PipingNetworkSegment.
| Attribute | Value | ||||
| BrowseName | PipingNetworkSegmentItemType | ||||
| IsAbstract | True | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | |||||
8.130 PipingNetworkSegmentType
The piping limited by a Node and a Break, Node and Connector, two Nodes, two Breaks, two Connectors or a Break and a Connector. The last five providing there are no Breaks or Connectors in between. In the last three cases the Segment will coincide with a Piping Branch (from http://data.posccaesar.org/rdl/RDS267704).
Association to SourceItem (PipingSourceItem)
Association to SourceNode (PipingNode)
Association to TargetItem (PipingTargetItem)
Association to TargetNode (PipingNode)
| Attribute | Value | |||
| BrowseName | PipingNetworkSegmentType | |||
| IsAbstract | False | |||
| References | NodeClass | BrowseName |
DataType /
TypeDefinition | Other |
|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | ||||
| 0:HasComponent | Object | <Item> | -- PipingNetworkSegmentItemType | OP |
| 0:HasComponent | Object | <Connection> | -- PipingConnectionType | OP |
| 0:HasComponent | Variable | FlowDirectionSpecialization | PipingNetworkSegmentFlowClassification 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | HeatTracingTypeSpecialization | HeatTracingTypeClassification 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | PrimarySecondaryPiping NetworkSegment Specialization | PrimarySecondaryPipingNetworkSegmentClassification 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | InsulationThickness | 0:Double 0:AnalogUnitType | O |
| 0:HasComponent | Variable | LowerLimitHeatTracing Temperature | 0:Double 0:AnalogUnitType | O |
| 0:HasComponent | Variable | SiphonSpecialization | SiphonClassification 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | PressureTestCircuitNumber AssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | InsulationTypeAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | ColorCodeAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | PipingClassCodeAssignment Class | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | NominalDiameterType RepresentationAssignment Class | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | SlopeSpecialization | PipingNetworkSegmentSlopeClassification 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | NominalDiameterStandard Specialization | NominalDiameterStandardClassification 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | SegmentNumberAssignment Class | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | OperatingTemperature | 0:Double 0:AnalogUnitType | O |
| 0:HasComponent | Variable | HeatTracingTypeAssignment Class | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | JacketedPipeSpecialization | JacketedPipeClassification 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | FluidCodeAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | Inclination | 0:Double 0:AnalogUnitType | O |
| 0:HasComponent | Variable | NominalDiameterNumerical ValueRepresentation AssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | NominalDiameter RepresentationAssignment Class | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | BasfLineClassAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | OnHoldSpecialization | OnHoldClassification 0:BaseDataVariableType | O |
<Item> – OPC UA Object(s) that are part of the Object Type.
<Connection> – OPC UA Object(s) that are part of the Object Type.
FlowDirectionSpecialization – A specialization indicating if the PipingNetworkSegment enables dual flow or not.
HeatTracingTypeSpecialization – A specialization indicating the heat tracing type related to the PipingNetworkSegment.
PrimarySecondaryPipingNetworkSegmentSpecialization – A specialization indicating whether the PipingNetworkSegment is a primary or secondary PipingNetworkSegment.
InsulationThickness – The insulation thickness of the PipingNetworkSegment.
LowerLimitHeatTracingTemperature – The temperature that a heat tracing system must ensure for the PipingNetworkSegment.
SiphonSpecialization – A specialization indicating if the PipingNetworkSegment is a siphon or not.
PressureTestCircuitNumberAssignmentClass – The number of the pressure test circuit of the PipingNetworkSegment.
InsulationTypeAssignmentClass – The identification code for the insulation type related to the PipingNetworkSegment. So far, DEXPI does not define restrictions for valid values.
ColorCodeAssignmentClass – The color code of the PipingNetworkSegment, represented as a string.
PipingClassCodeAssignmentClass – The identification code of the piping class of the PipingNetworkSegment. So far, DEXPI does not define restrictions for valid values.
NominalDiameterTypeRepresentationAssignmentClass – A readable representation of the type of the nominal diameter of the PipingNetworkSegment. The purpose of this value is to give a textual representation of the nominal diameter to be used in the graphics of a PID.
SlopeSpecialization – A specialization indicating if the PipingNetworkSegment is sloped or not.
NominalDiameterStandardSpecialization – The nominal diameter of the PipingNetworkSegment, given as a reference to a nominal diameter standard and value.
SegmentNumberAssignmentClass – The segment number of a PipingNetworkSegment. Values are typically (but not necessarily) string representations of numbers with a prefix.
OperatingTemperature – The operating temperature of the PipingNetworkSegment.
HeatTracingTypeAssignmentClass – The heat tracing type related to the PipingNetworkSegment, represented as a string.
JacketedPipeSpecialization – A specialization indicating whether the PipingNetworkSegment is jacketed.
FluidCodeAssignmentClass – The identification code of the fluid related to the PipingNetworkSegment. So far, DEXPI does not define restrictions for valid values.
Inclination – The inclination (slope) of the PipingNetworkSegment in percent.
NominalDiameterNumericalValueRepresentationAssignmentClass – A readable representation of the numerical value of the nominal diameter of the PipingNetworkSegment. The purpose of this value is to give a textual representation of the nominal diameter to be used in the graphics of a PID.
NominalDiameterRepresentationAssignmentClass – A readable representation of the nominal diameter of the PipingNetworkSegment. The purpose of this value is to give a textual representation of the nominal diameter to be used in the graphics of a PID.
BasfLineClassAssignmentClass – The BASF line class of the PipingNetworkSegment, represented as a string. Note: This attribute has been included as an example for a company-specific attribute. It should actually be identified by a company-specific RDL reference. As there is currently no BASF RDL, the DEXPI RDL is used.
OnHoldSpecialization – A specialization indicating if the PipingNetworkSegment is on hold or not.
8.131 PipingNetworkSystemType
A fluid system of interconnected piping network branches limited by Unit Operation Inlet/Outlet and Piping Network Terminators. In this context Piping includes e.g. plumbing and tubing (from http://data.posccaesar.org/rdl/RDS270359).
Association to ParentStructure (TechnicalItemParentStructure)
Association to PlantTrain (PlantTrain)
Association to PlantSystem (PlantSystem)
Association to AreaIsa95 (AreaIsa95)
| Attribute | Value | |||
| BrowseName | PipingNetworkSystemType | |||
| IsAbstract | False | |||
| References | NodeClass | BrowseName |
DataType /
TypeDefinition | Other |
|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | ||||
| 0:HasComponent | Object | <Segment> | -- PipingNetworkSegmentType | OP |
| 0:HasComponent | Object | <PropertyBreak> | -- PropertyBreakType | OP |
| 0:HasComponent | Variable | NominalDiameterRepresentation AssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | LowerLimitHeatTracing Temperature | 0:Double 0:AnalogUnitType | O |
| 0:HasComponent | Variable | PipingClassCodeAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | FluidCodeAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | HeatTracingTypeSpecialization | HeatTracingTypeClassification 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | JacketedPipeSpecialization | JacketedPipeClassification 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | LineNumberAssignmentClassOf PipingNetworkSystem | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | JacketedLineNumberAssignment Class | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | NominalDiameterNumericalValue RepresentationAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | OnHoldSpecialization | OnHoldClassification 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | InsulationThickness | 0:Double 0:AnalogUnitType | O |
| 0:HasComponent | Variable | InsulationTypeAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | NominalDiameterStandard Specialization | NominalDiameterStandardClassification 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | HeatTracingTypeAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | PipingNetworkSystemGroup NumberAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | JacketLineNumberAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | NominalDiameterType RepresentationAssignmentClass | 0:String 0:BaseDataVariableType | O |
<Segment> – OPC UA Object(s) that are part of the Object Type.
<PropertyBreak> – OPC UA Object(s) that are part of the Object Type.
NominalDiameterRepresentationAssignmentClass – A readable representation of the nominal diameter of the PipingNetworkSystem. The purpose of this value is to give a textual representation of the nominal diameter to be used in the graphics of a PID.
LowerLimitHeatTracingTemperature – The temperature that a heat tracing system must ensure for the PipingNetworkSystem.
PipingClassCodeAssignmentClass – The identification code of the piping class of the PipingNetworkSystem. So far, DEXPI does not define restrictions for valid values.
FluidCodeAssignmentClass – The identification code of the fluid related to the PipingNetworkSystem. So far, DEXPI does not define restrictions for valid values.
HeatTracingTypeSpecialization – A specialization indicating the heat tracing type related to the PipingNetworkSystem.
JacketedPipeSpecialization – A specialization indicating whether the PipingNetworkSystem is jacketed.
LineNumberAssignmentClassOfPipingNetworkSystem – The line number of a PipingNetworkSystem. Values are typically (but not necessarily) string representations of numbers.
JacketedLineNumberAssignmentClass – The line number of the PipingNetworkSystem for which this PipingNetworkSystem is the jacket.
NominalDiameterNumericalValueRepresentationAssignmentClass – A readable representation of the numerical value of the nominal diameter of the PipingNetworkSystem. The purpose of this value is to give a textual representation of the nominal diameter to be used in the graphics of a PID.
OnHoldSpecialization – A specialization indicating if the PipingNetworkSystem is on hold or not.
InsulationThickness – The insulation thickness of the PipingNetworkSystem.
InsulationTypeAssignmentClass – The identification code for the insulation type related to the PipingNetworkSystem. So far, DEXPI does not define restrictions for valid values.
NominalDiameterStandardSpecialization – The nominal diameter of the PipingNetworkSystem, given as a reference to a nominal diameter standard and value.
HeatTracingTypeAssignmentClass – The heat tracing type related to the PipingNetworkSystem, represented as a string.
PipingNetworkSystemGroupNumberAssignmentClass – The number of the piping network system group of the PipingNetworkSystem, represented as a string.
JacketLineNumberAssignmentClass – The line number of the PipingNetworkSystem that is the jacket of this PipingNetworkSystem.
NominalDiameterTypeRepresentationAssignmentClass – A readable representation of the type of the nominal diameter of the PipingNetworkSystem. The purpose of this value is to give a textual representation of the nominal diameter to be used in the graphics of a PID.
8.132 PipingNodeOwnerType
An object that can have PipingNodes.
| Attribute | Value | ||||
| BrowseName | PipingNodeOwnerType | ||||
| IsAbstract | True | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | |||||
| 0:HasComponent | Object | <Node> | -- | PipingNodeType | OP |
<Node> – OPC UA Object(s) that are part of the Object Type.
8.133 PipingNodeType
A possible connection point for a PipingConnection.
| Attribute | Value | |||
| BrowseName | PipingNodeType | |||
| IsAbstract | False | |||
| References | NodeClass | BrowseName |
DataType /
TypeDefinition | Other |
|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | ||||
| 0:HasComponent | Variable | NodeFlowSpecialization | NodeFlowClassification 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | NominalDiameterStandard Specialization | NominalDiameterStandardClassification 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | NominalDiameterNumericalValue RepresentationAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | NominalDiameterRepresentation AssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | NominalDiameterTypeRepresentation AssignmentClass | 0:String 0:BaseDataVariableType | O |
NodeFlowSpecialization – A classification of the flow direction in the PipingNode with respect to its PipingNodeOwner.
NominalDiameterStandardSpecialization – The nominal diameter of the PipingNode, given as a reference to a nominal diameter standard and value.
NominalDiameterNumericalValueRepresentationAssignmentClass – A readable representation of the numerical value of the nominal diameter of the PipingNode. The purpose of this value is to give a textual representation of the nominal diameter to be used in the graphics of a PID.
NominalDiameterRepresentationAssignmentClass – A readable representation of the nominal diameter of the PipingNode. The purpose of this value is to give a textual representation of the nominal diameter to be used in the graphics of a PID.
NominalDiameterTypeRepresentationAssignmentClass – A readable representation of the type of the nominal diameter of the PipingNode. The purpose of this value is to give a textual representation of the nominal diameter to be used in the graphics of a PID.
8.134 PipingSourceItemType
An item that can be the source of a PipingConnection (attribute SourceItem) or a PipingNetworkSegment (attribute SourceItem).
| Attribute | Value | ||||
| BrowseName | PipingSourceItemType | ||||
| IsAbstract | True | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | |||||
8.135 PipingTargetItemType
An item that can be the target of a PipingConnection (attribute TargetItem) or a PipingNetworkSegment (attribute TargetItem).
| Attribute | Value | ||||
| BrowseName | PipingTargetItemType | ||||
| IsAbstract | True | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | |||||
8.136 PlantModelType
A model of a chemical plant. It includes various aspects such as the engineering content, a diagram, and metadata.
| Attribute | Value | ||||
| BrowseName | PlantModelType | ||||
| IsAbstract | False | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | |||||
| 0:HasComponent | Object | <MetaData> | -- | MetaDataType | OP |
| 0:HasComponent | Object | <StructureItem> | -- | PlantStructureItemType | OP |
| 0:HasComponent | Object | <Plant> | -- | PlantType | OP |
<MetaData> – OPC UA Object(s) that are part of the Object Type.
<StructureItem> – OPC UA Object(s) that are part of the Object Type.
<Plant> – OPC UA Object(s) that are part of the Object Type.
8.137 PlantSectionIso10209-2012ParentStructureType
A PlantItemStructure that is a suitable ParentStructure of a PlantSectionIso10209-2012.
| Attribute | Value | ||||
| BrowseName | PlantSectionIso10209-2012ParentStructureType | ||||
| IsAbstract | True | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | |||||
8.138 PlantSectionIso10209-2012Type
A plant section as defined by ISO 10209:2012.
Association to ParentStructure (PlantSectionIso10209-2012ParentStructure)
Association to AreaIsa95 (AreaIsa95)
| Attribute | Value | |||
| BrowseName | PlantSectionIso10209-2012Type | |||
| IsAbstract | False | |||
| References | NodeClass | BrowseName |
DataType /
TypeDefinition | Other |
|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | ||||
| 0:HasComponent | Variable | PlantSectionIdentificationCode AssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | PlantSectionNameAssignmentClass | 0:String 0:BaseDataVariableType | O |
PlantSectionIdentificationCodeAssignmentClass – The identification code of the PlantSectionIso10209-2012.
PlantSectionNameAssignmentClass – The name of the PlantSectionIso10209-2012.
8.139 PlantStructureItemType
Item of the plant break down structure.
| Attribute | Value | ||||
| BrowseName | PlantStructureItemType | ||||
| IsAbstract | True | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | |||||
8.140 PlantSystemLocatedStructureType
A structure can be located in a PlantSystem.
Association to PlantSystem (PlantSystem)
| Attribute | Value | ||||
| BrowseName | PlantSystemLocatedStructureType | ||||
| IsAbstract | True | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | |||||
8.141 PlantSystemType
A plant system.
| Attribute | Value | |||
| BrowseName | PlantSystemType | |||
| IsAbstract | False | |||
| References | NodeClass | BrowseName |
DataType /
TypeDefinition | Other |
|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | ||||
| 0:HasComponent | Variable | PlantSystemIdentificationCode AssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | PlantSystemNameAssignmentClass | 0:String 0:BaseDataVariableType | O |
PlantSystemIdentificationCodeAssignmentClass – The identification code of the PlantSystem.
PlantSystemNameAssignmentClass – The name of the PlantSystem.
8.142 PlantTrainLocatedStructureType
A structure can be located in a PlantTrain.
Association to PlantTrain (PlantTrain)
| Attribute | Value | ||||
| BrowseName | PlantTrainLocatedStructureType | ||||
| IsAbstract | True | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | |||||
8.143 PlantTrainType
A plant train.
| Attribute | Value | |||
| BrowseName | PlantTrainType | |||
| IsAbstract | False | |||
| References | NodeClass | BrowseName |
DataType /
TypeDefinition | Other |
|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | ||||
| 0:HasComponent | Variable | PlantTrainIdentificationCode AssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | PlantTrainNameAssignmentClass | 0:String 0:BaseDataVariableType | O |
PlantTrainIdentificationCodeAssignmentClass – The identification code of the PlantTrain.
PlantTrainNameAssignmentClass – The name of the PlantTrain.
8.144 PlantType
The engineering content of a PlantModel.
| Attribute | Value | |||
| BrowseName | PlantType | |||
| IsAbstract | False | |||
| References | NodeClass | BrowseName |
DataType /
TypeDefinition | Other |
|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | ||||
| 0:HasComponent | Object | <TaggedPlantItem> | -- TaggedPlantItemType | OP |
| 0:HasComponent | Object | <ActuatingSystem> | -- ActuatingSystemType | OP |
| 0:HasComponent | Object | <InstrumentationLoop Function> | -- InstrumentationLoopFunctionType | OP |
| 0:HasComponent | Object | <ProcessSignalGenerating System> | -- ProcessSignalGeneratingSystemType | OP |
| 0:HasComponent | Object | <PipingNetworkSystem> | -- PipingNetworkSystemType | OP |
| 0:HasComponent | Object | <ProcessInstrumentation Function> | -- ProcessInstrumentationFunctionType | OP |
<TaggedPlantItem> – OPC UA Object(s) that are part of the Object Type.
<ActuatingSystem> – OPC UA Object(s) that are part of the Object Type.
<InstrumentationLoopFunction> – OPC UA Object(s) that are part of the Object Type.
<ProcessSignalGeneratingSystem> – OPC UA Object(s) that are part of the Object Type.
<PipingNetworkSystem> – OPC UA Object(s) that are part of the Object Type.
<ProcessInstrumentationFunction> – OPC UA Object(s) that are part of the Object Type.
8.145 PositionerType
A positioner.
| Attribute | Value | |||
| BrowseName | PositionerType | |||
| IsAbstract | False | |||
| References | NodeClass | BrowseName |
DataType /
TypeDefinition | Other |
|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | ||||
| 0:HasComponent | Variable | DeviceTypeNameAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | SubTagNameAssignmentClass | 0:String 0:BaseDataVariableType | O |
DeviceTypeNameAssignmentClass – The device type of the Positioner.
SubTagNameAssignmentClass – The sub tag name of the Positioner.
8.146 PowerType
| Attribute | Value | |||
| BrowseName | PowerType | |||
| IsAbstract | False | |||
| References | NodeClass | BrowseName |
DataType /
TypeDefinition | Other |
|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | ||||
| 0:HasComponent | Variable | Unit | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | Value | 0:Double 0:BaseDataVariableType | O |
| HasDEXPIRelationship | ObjectType | PhysicalQuantityType | -- -- | -- |
8.147 PressureType
| Attribute | Value | |||
| BrowseName | PressureType | |||
| IsAbstract | False | |||
| References | NodeClass | BrowseName |
DataType /
TypeDefinition | Other |
|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | ||||
| 0:HasComponent | Variable | Value | 0:Double 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | Unit | 0:String 0:BaseDataVariableType | O |
| HasDEXPIRelationship | ObjectType | PhysicalQuantityType | -- -- | -- |
8.148 PrimaryElementType
An artefact that converts the input variable into a signal suitable for measurement.
| Attribute | Value | |||
| BrowseName | PrimaryElementType | |||
| IsAbstract | False | |||
| References | NodeClass | BrowseName |
DataType /
TypeDefinition | Other |
|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | ||||
| 0:HasComponent | Variable | SubTagNameAssignmentClass | 0:String 0:BaseDataVariableType | O |
SubTagNameAssignmentClass – The sub tag name of the PrimaryElement.
8.149 InlinePrimaryElementReferenceType
A reference to an InlinePrimaryElement that is part of a PipingNetworkSegment.
Association to InlinePrimaryElement (InlinePrimaryElement)
| Attribute | Value | ||||
| BrowseName | InlinePrimaryElementReferenceType | ||||
| IsAbstract | False | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of PrimaryElementType | |||||
8.150 OfflinePrimaryElementType
A PrimaryElement that is not part of a PipingNetworkSegment.
| Attribute | Value | |||
| BrowseName | OfflinePrimaryElementType | |||
| IsAbstract | False | |||
| References | NodeClass | BrowseName |
DataType /
TypeDefinition | Other |
|---|---|---|---|---|
| Subtype of PrimaryElementType | ||||
| 0:HasComponent | Variable | InsulationTypeAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | ConnectionNominalDiameterNumerical ValueRepresentationAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | ConnectionNominalDiameterType RepresentationAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | ConnectionNominalDiameter RepresentationAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | LocationNominalDiameter RepresentationAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | LowerLimitHeatTracingTemperature | 0:Double 0:AnalogUnitType | O |
| 0:HasComponent | Variable | ConnectionNominalDiameterStandard Specialization | NominalDiameterStandardClassification 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | LocationNominalDiameterStandard Specialization | NominalDiameterStandardClassification 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | LocationNominalDiameterType RepresentationAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | FluidCodeAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | InsulationThickness | 0:Double 0:AnalogUnitType | O |
| 0:HasComponent | Variable | HeatTracingTypeAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | HeatTracingTypeSpecialization | HeatTracingTypeClassification 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | LocationNominalDiameterNumerical ValueRepresentationAssignmentClass | 0:String 0:BaseDataVariableType | O |
InsulationTypeAssignmentClass – The identification code for the insulation type related to the OfflinePrimaryElement. So far, DEXPI does not define restrictions for valid values.
ConnectionNominalDiameterNumericalValueRepresentationAssignmentClass – A readable representation of the numerical value of the nominal diameter at the device connection of the OfflinePrimaryElement. The purpose of this value is to give a textual representation of the nominal diameter to be used in the graphics of a PID.
ConnectionNominalDiameterTypeRepresentationAssignmentClass – A readable representation of the type of the nominal diameter at the device connection of the OfflinePrimaryElement. The purpose of this value is to give a textual representation of the nominal diameter to be used in the graphics of a PID.
ConnectionNominalDiameterRepresentationAssignmentClass – A readable representation of the nominal diameter at the device connection of the OfflinePrimaryElement. The purpose of this value is to give a textual representation of the nominal diameter to be used in the graphics of a PID.
LocationNominalDiameterRepresentationAssignmentClass – A readable representation of the nominal diameter at the location of the OfflinePrimaryElement. The purpose of this value is to give a textual representation of the nominal diameter to be used in the graphics of a PID.
LowerLimitHeatTracingTemperature – The temperature that a heat tracing system must ensure for the OfflinePrimaryElement.
ConnectionNominalDiameterStandardSpecialization – The nominal diameter of the device connection of the OfflinePrimaryElement, given as a reference to a nominal diameter standard and value.
LocationNominalDiameterStandardSpecialization – The nominal diameter of the location of the OfflinePrimaryElement, given as a reference to a nominal diameter standard and value.
LocationNominalDiameterTypeRepresentationAssignmentClass – A readable representation of the type of the nominal diameter at the location of the OfflinePrimaryElement. The purpose of this value is to give a textual representation of the nominal diameter to be used in the graphics of a PID.
FluidCodeAssignmentClass – The identification code of the fluid related to the OfflinePrimaryElement. So far, DEXPI does not define restrictions for valid values.
InsulationThickness – The insulation thickness of the OfflinePrimaryElement.
HeatTracingTypeAssignmentClass – The heat tracing type related to the OfflinePrimaryElement, represented as a string.
HeatTracingTypeSpecialization – A specialization indicating the heat tracing type related to the OfflinePrimaryElement.
LocationNominalDiameterNumericalValueRepresentationAssignmentClass – A readable representation of the numerical value of the nominal diameter at the location of the OfflinePrimaryElement. The purpose of this value is to give a textual representation of the nominal diameter to be used in the graphics of a PID.
8.151 ProcessControlFunctionType
A requirement for control structures relating to Process Engineering.
Association to ParentStructure (TechnicalItemParentStructure)
Association to PlantTrain (PlantTrain)
Association to PlantSystem (PlantSystem)
Association to AreaIsa95 (AreaIsa95)
| Attribute | Value | |||
| BrowseName | ProcessControlFunctionType | |||
| IsAbstract | False | |||
| References | NodeClass | BrowseName |
DataType /
TypeDefinition | Other |
|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | ||||
| 0:HasComponent | Object | <ProcessSignal GeneratingFunction> | -- ProcessSignalGeneratingFunctionType | OP |
| 0:HasComponent | Object | <ActuatingFunction> | -- ActuatingFunctionType | OP |
| 0:HasComponent | Object | <SignalConveying Function> | -- SignalConveyingFunctionType | OP |
| 0:HasComponent | Variable | Process Instrumentation FunctionsAssignment Class | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | GuaranteedSupply Function Specialization | GuaranteedSupplyFunctionClassification 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | VendorCompany NameAssignment Class | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | Process Instrumentation FunctionCategory AssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | PanelIdentification CodeAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | SafetyRelevanceClass AssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | GmpRelevance Specialization | GmpRelevanceClassification 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | Location Specialization | LocationClassification 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | Process Instrumentation FunctionModifier AssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | TypicalInformation AssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | QualityRelevance Specialization | QualityRelevanceClassification 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | DeviceInformation AssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | VotingSystem Representation AssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | Process Instrumentation FunctionNumber AssignmentClass | 0:String 0:BaseDataVariableType | O |
| HasDEXPIRelationship | ObjectType | Process Instrumentation FunctionType | -- -- | -- |
<ProcessSignalGeneratingFunction> – OPC UA Object(s) that are part of the Object Type.
<ActuatingFunction> – OPC UA Object(s) that are part of the Object Type.
<SignalConveyingFunction> – OPC UA Object(s) that are part of the Object Type.
ProcessInstrumentationFunctionsAssignmentClass – Additional functions of the ProcessInstrumentationFunction (i.e., in addition to the function category, see ProcessInstrumentationFunctionCategoryAssignmentClass).
GuaranteedSupplyFunctionSpecialization – A classification indicating if the ProcessInstrumentationFunction is a guaranteed supply function.
VendorCompanyNameAssignmentClass – The vendor company name the ProcessInstrumentationFunction.
ProcessInstrumentationFunctionCategoryAssignmentClass – The function category of the ProcessInstrumentationFunction. The value is a string, typically one or two letters. Recent standards for PIDs normally enforce a single letter from a fixed list. However, there are no formal DEXPI restrictions for valid strings.
PanelIdentificationCodeAssignmentClass – The panel identification code of the ProcessInstrumentationFunction.
SafetyRelevanceClassAssignmentClass – The safety relevance class the ProcessInstrumentationFunction.
GmpRelevanceSpecialization – A classification indicating if the ProcessInstrumentationFunction is relevant for GMP (good manufacturing practise).
LocationSpecialization – A specialization indicating the location of the ProcessInstrumentationFunction.
ProcessInstrumentationFunctionModifierAssignmentClass – The modifier of the ProcessInstrumentationFunction. The value is a string, typically a single letter, e.g., D for difference. So far, there are no formal DEXPI restrictions for valid strings.
TypicalInformationAssignmentClass – Typical information about the ProcessInstrumentationFunction.
QualityRelevanceSpecialization – A classification indicating if the ProcessInstrumentationFunction is quality relevant.
DeviceInformationAssignmentClass – Device information the ProcessInstrumentationFunction, e.g., for a detector.
VotingSystemRepresentationAssignmentClass – A representation of the voting system of the ProcessInstrumentationFunction.
ProcessInstrumentationFunctionNumberAssignmentClass – A unique identifier for the ProcessInstrumentationFunction. If the ProcessInstrumentationFunction is part of a InstrumentationLoopFunction, the identifier of the ProcessInstrumentationFunction usually contains the identifier of the InstrumentationLoopFunction (see InstrumentationLoopFunctionNumberAssignmentClass).
ProcessInstrumentationFunctionType – A requirement for instrumentation and/or control structures relating to Process Engineering.
Association to ParentStructure (TechnicalItemParentStructure)
Association to PlantTrain (PlantTrain)
Association to PlantSystem (PlantSystem)
Association to AreaIsa95 (AreaIsa95).
8.152 ProcessInstrumentationFunctionType
A requirement for instrumentation and/or control structures relating to Process Engineering.
Association to ParentStructure (TechnicalItemParentStructure)
Association to PlantTrain (PlantTrain)
Association to PlantSystem (PlantSystem)
Association to AreaIsa95 (AreaIsa95)
| Attribute | Value | |||
| BrowseName | ProcessInstrumentationFunctionType | |||
| IsAbstract | False | |||
| References | NodeClass | BrowseName |
DataType /
TypeDefinition | Other |
|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | ||||
| 0:HasComponent | Object | <ActuatingFunction> | -- ActuatingFunctionType | OP |
| 0:HasComponent | Object | <ProcessSignalGenerating Function> | -- ProcessSignalGeneratingFunctionType | OP |
| 0:HasComponent | Object | <SignalConveying Function> | -- SignalConveyingFunctionType | OP |
| 0:HasComponent | Variable | GuaranteedSupply FunctionSpecialization | GuaranteedSupplyFunctionClassification 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | LocationSpecialization | LocationClassification 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | ProcessInstrumentation FunctionsAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | QualityRelevance Specialization | QualityRelevanceClassification 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | ProcessInstrumentation FunctionCategory AssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | ProcessInstrumentation FunctionModifier AssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | DeviceInformation AssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | SafetyRelevanceClass AssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | VotingSystem Representation AssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | ProcessInstrumentation FunctionNumber AssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | TypicalInformation AssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | VendorCompanyName AssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | GmpRelevance Specialization | GmpRelevanceClassification 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | PanelIdentificationCode AssignmentClass | 0:String 0:BaseDataVariableType | O |
<ActuatingFunction> – OPC UA Object(s) that are part of the Object Type.
<ProcessSignalGeneratingFunction> – OPC UA Object(s) that are part of the Object Type.
<SignalConveyingFunction> – OPC UA Object(s) that are part of the Object Type.
GuaranteedSupplyFunctionSpecialization – A classification indicating if the ProcessInstrumentationFunction is a guaranteed supply function.
LocationSpecialization – A specialization indicating the location of the ProcessInstrumentationFunction.
ProcessInstrumentationFunctionsAssignmentClass – Additional functions of the ProcessInstrumentationFunction (i.e., in addition to the function category, see ProcessInstrumentationFunctionCategoryAssignmentClass).
QualityRelevanceSpecialization – A classification indicating if the ProcessInstrumentationFunction is quality relevant.
ProcessInstrumentationFunctionCategoryAssignmentClass – The function category of the ProcessInstrumentationFunction. The value is a string, typically one or two letters. Recent standards for PIDs normally enforce a single letter from a fixed list. However, there are no formal DEXPI restrictions for valid strings.
ProcessInstrumentationFunctionModifierAssignmentClass – The modifier of the ProcessInstrumentationFunction. The value is a string, typically a single letter, e.g., D for difference. So far, there are no formal DEXPI restrictions for valid strings.
DeviceInformationAssignmentClass – Device information the ProcessInstrumentationFunction, e.g., for a detector.
SafetyRelevanceClassAssignmentClass – The safety relevance class the ProcessInstrumentationFunction.
VotingSystemRepresentationAssignmentClass – A representation of the voting system of the ProcessInstrumentationFunction.
ProcessInstrumentationFunctionNumberAssignmentClass – A unique identifier for the ProcessInstrumentationFunction. If the ProcessInstrumentationFunction is part of a InstrumentationLoopFunction, the identifier of the ProcessInstrumentationFunction usually contains the identifier of the InstrumentationLoopFunction (see InstrumentationLoopFunctionNumberAssignmentClass).
TypicalInformationAssignmentClass – Typical information about the ProcessInstrumentationFunction.
VendorCompanyNameAssignmentClass – The vendor company name the ProcessInstrumentationFunction.
GmpRelevanceSpecialization – A classification indicating if the ProcessInstrumentationFunction is relevant for GMP (good manufacturing practise).
PanelIdentificationCodeAssignmentClass – The panel identification code of the ProcessInstrumentationFunction.
8.153 ProcessPlantParentStructureType
A PlantItemStructure that is a suitable ParentStructure of a ProcessPlant.
| Attribute | Value | ||||
| BrowseName | ProcessPlantParentStructureType | ||||
| IsAbstract | True | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | |||||
8.154 ProcessPlantType
A plant employed in carrying out chemical processes, including the required supporting processes (from http://data.posccaesar.org/rdl/RDS7151859).
Association to ParentStructure (ProcessPlantParentStructure)
Association to AreaIsa95 (AreaIsa95)
| Attribute | Value | |||
| BrowseName | ProcessPlantType | |||
| IsAbstract | False | |||
| References | NodeClass | BrowseName |
DataType /
TypeDefinition | Other |
|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | ||||
| 0:HasComponent | Variable | ProcessPlantNameAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | ProcessPlantIdentificationCode AssignmentClass | 0:String 0:BaseDataVariableType | O |
ProcessPlantNameAssignmentClass – The name of the ProcessPlant.
ProcessPlantIdentificationCodeAssignmentClass – The identification code of the ProcessPlant.
8.155 ProcessSignalGeneratingFunctionType
A function for instrumentation and/or control structures relating to Process Engineering
Association to Systems (ProcessSignalGeneratingSystem)
Association to SensingLocation (SensingLocation)
Association to ParentStructure (TechnicalItemParentStructure)
Association to PlantTrain (PlantTrain)
Association to PlantSystem (PlantSystem)
Association to AreaIsa95 (AreaIsa95)
| Attribute | Value | |||
| BrowseName | ProcessSignalGeneratingFunctionType | |||
| IsAbstract | False | |||
| References | NodeClass | BrowseName |
DataType /
TypeDefinition | Other |
|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | ||||
| 0:HasComponent | Variable | SensorTypeAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | ProcessSignalGeneratingFunction NumberAssignmentClass | 0:String 0:BaseDataVariableType | O |
SensorTypeAssignmentClass – The sensor type of the ProcessSignalGeneratingFunction.
ProcessSignalGeneratingFunctionNumberAssignmentClass – An identifier for the ProcessSignalGeneratingFunction. It usually contains the identifier of the ProcessInstrumentationFunction that includes the ProcessSignalGeneratingFunction (see ProcessInstrumentationFunctionNumberAssignmentClass).
8.156 ProcessSignalGeneratingSystemType
An assembly of artefacts that is designed to fulfill one or more ProcessSignalGeneratingFunctions.
Association to ParentStructure (TechnicalItemParentStructure)
Association to PlantTrain (PlantTrain)
Association to PlantSystem (PlantSystem)
Association to AreaIsa95 (AreaIsa95)
| Attribute | Value | |||
| BrowseName | ProcessSignalGeneratingSystemType | |||
| IsAbstract | False | |||
| References | NodeClass | BrowseName |
DataType /
TypeDefinition | Other |
|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | ||||
| 0:HasComponent | Object | <PrimaryElement> | -- PrimaryElementType | OP |
| 0:HasComponent | Object | <Transmitter> | -- TransmitterType | OP |
| 0:HasComponent | Variable | TypicalInformationAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | ProcessSignalGeneratingSystem NumberAssignmentClass | 0:String 0:BaseDataVariableType | O |
<PrimaryElement> – OPC UA Object(s) that are part of the Object Type.
<Transmitter> – OPC UA Object(s) that are part of the Object Type.
TypicalInformationAssignmentClass – Typical information about the ProcessSignalGeneratingSystem.
ProcessSignalGeneratingSystemNumberAssignmentClass – The number of the ProcessSignalGeneratingSystem.
8.157 PropertyBreakType
A symbol indicating a change in the piping properties.
| Attribute | Value | |||
| BrowseName | PropertyBreakType | |||
| IsAbstract | False | |||
| References | NodeClass | BrowseName |
DataType /
TypeDefinition | Other |
|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | ||||
| 0:HasComponent | Object | <Node> | -- PipingNodeType | OP |
| 0:HasComponent | Variable | InsulationBreakSpecialization | InsulationBreakClassification 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | CompositionBreakSpecialization | CompositionBreakClassification 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | NominalDiameterBreak Specialization | NominalDiameterBreakClassification 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | PipingClassBreakSpecialization | PipingClassBreakClassification 0:BaseDataVariableType | O |
| HasDEXPIRelationship | ObjectType | PipingNodeOwnerType | -- -- | -- |
<Node> – OPC UA Object(s) that are part of the Object Type.
InsulationBreakSpecialization – A specialization indicating if the PropertyBreak is an insulation break or not.
CompositionBreakSpecialization – A specialization indicating if the PropertyBreak is a composition break or not.
NominalDiameterBreakSpecialization – A specialization indicating if the PropertyBreak is a nominal diameter break or not.
PipingClassBreakSpecialization – A specialization indicating if the PropertyBreak is a composition break or not.
PipingNodeOwnerType – An object that can have PipingNodes.
8.158 PumpEquipmentType
Equipment of a Pump.
| Attribute | Value | ||||
| BrowseName | PumpEquipmentType | ||||
| IsAbstract | True | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | |||||
8.159 RotationalSpeedType
| Attribute | Value | |||
| BrowseName | RotationalSpeedType | |||
| IsAbstract | False | |||
| References | NodeClass | BrowseName |
DataType /
TypeDefinition | Other |
|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | ||||
| 0:HasComponent | Variable | Value | 0:Double 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | Unit | 0:String 0:BaseDataVariableType | O |
| HasDEXPIRelationship | ObjectType | PhysicalQuantityType | -- -- | -- |
8.160 SensingLocationType
An object than can act as a SensingLocation of a ProcessSignalGeneratingFunction.
| Attribute | Value | ||||
| BrowseName | SensingLocationType | ||||
| IsAbstract | True | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | |||||
8.161 ShutOffValveReferenceType
A reference to a ShutOffValve.
Association to Valve (ShutOffValve)
| Attribute | Value | |||
| BrowseName | ShutOffValveReferenceType | |||
| IsAbstract | False | |||
| References | NodeClass | BrowseName |
DataType /
TypeDefinition | Other |
|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | ||||
| 0:HasComponent | Variable | SubTagNameAssignmentClass | 0:String 0:BaseDataVariableType | O |
SubTagNameAssignmentClass – The sub tag name of the ShutOffValveReference.
8.162 SignalConveyingFunctionSourceType
An object than can act as the Source of a SignalConveyingFunction.
| Attribute | Value | ||||
| BrowseName | SignalConveyingFunctionSourceType | ||||
| IsAbstract | True | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | |||||
8.163 SignalConveyingFunctionTargetType
An object than can act as the Target of a SignalConveyingFunction.
| Attribute | Value | ||||
| BrowseName | SignalConveyingFunctionTargetType | ||||
| IsAbstract | True | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | |||||
8.164 SignalConveyingFunctionType
A function for conveying a signal.
Association to Source (SignalConveyingFunctionSource)
Association to Target (SignalConveyingFunctionTarget)
| Attribute | Value | |||
| BrowseName | SignalConveyingFunctionType | |||
| IsAbstract | False | |||
| References | NodeClass | BrowseName |
DataType /
TypeDefinition | Other |
|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | ||||
| 0:HasComponent | Variable | SignalConveyingTypeSpecialization | SignalConveyingTypeClassification 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | SignalPointNumberAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | SignalProcessControlFunctions AssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | PortStatusSpecialization | PortStatusClassification 0:BaseDataVariableType | O |
SignalConveyingTypeSpecialization – A classification indicating the signal conveying type of the SignalConveyingFunction.
SignalPointNumberAssignmentClass – The signal point number of the SignalConveyingFunction. Typical values are 1 to 6.
SignalProcessControlFunctionsAssignmentClass – The process control functions of the SignalConveyingFunction. Values are combinations of characters.
PortStatusSpecialization – A classification indicating the port status of the SignalConveyingFunction.
8.165 SignalLineFunctionType
Information flow function for signals.
Association to Source (SignalConveyingFunctionSource)
Association to Target (SignalConveyingFunctionTarget)
| Attribute | Value | |||
| BrowseName | SignalLineFunctionType | |||
| IsAbstract | False | |||
| References | NodeClass | BrowseName |
DataType /
TypeDefinition | Other |
|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | ||||
| 0:HasComponent | Variable | SignalPointNumberAssignment Class | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | SignalProcessControlFunctions AssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | SignalConveyingType Specialization | SignalConveyingTypeClassification 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | PortStatusSpecialization | PortStatusClassification 0:BaseDataVariableType | O |
| HasDEXPIRelationship | ObjectType | SignalConveyingFunctionType | -- -- | -- |
SignalPointNumberAssignmentClass – The signal point number of the SignalConveyingFunction. Typical values are 1 to 6.
SignalProcessControlFunctionsAssignmentClass – The process control functions of the SignalConveyingFunction. Values are combinations of characters.
SignalConveyingTypeSpecialization – A classification indicating the signal conveying type of the SignalConveyingFunction.
PortStatusSpecialization – A classification indicating the port status of the SignalConveyingFunction.
SignalConveyingFunctionType – A function for conveying a signal.
Association to Source (SignalConveyingFunctionSource)
Association to Target (SignalConveyingFunctionTarget).
8.166 SilencerType
A device intended to reduce a noise level (from http://data.posccaesar.org/rdl/RDS1049368591).
| Attribute | Value | |||
| BrowseName | SilencerType | |||
| IsAbstract | False | |||
| References | NodeClass | BrowseName |
DataType /
TypeDefinition | Other |
|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | ||||
| 0:HasComponent | Variable | HeatTracingTypeSpecialization | HeatTracingTypeClassification 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | InsulationThickness | 0:Double 0:AnalogUnitType | O |
| 0:HasComponent | Variable | PipingComponentNameAssignment Class | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | InsulationTypeAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | PipingClassCodeAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | PipingComponentNumber AssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | LowerLimitHeatTracing Temperature | 0:Double 0:AnalogUnitType | O |
| 0:HasComponent | Variable | HeatTracingTypeAssignmentClass | 0:String 0:BaseDataVariableType | O |
| HasDEXPIRelationship | ObjectType | PipeFittingType | -- -- | -- |
HeatTracingTypeSpecialization – A specialization indicating the heat tracing type related to the PipeFitting.
InsulationThickness – The insulation thickness of the PipeFitting.
PipingComponentNameAssignmentClass – The piping component name of the PipeFitting.
InsulationTypeAssignmentClass – The identification code for the insulation type related to the PipeFitting. So far, DEXPI does not define restrictions for valid values.
PipingClassCodeAssignmentClass – The identification code of the piping class of the PipeFitting. So far, DEXPI does not define restrictions for valid values.
PipingComponentNumberAssignmentClass – The piping component number of the PipeFitting.
LowerLimitHeatTracingTemperature – The temperature that a heat tracing system must ensure for the PipeFitting.
HeatTracingTypeAssignmentClass – The heat tracing type related to the PipeFitting, represented as a string.
PipeFittingType – A pipe fitting.
8.167 SiteIsa95Type
A site as defined by ISA 95.
Association to ParentStructure (Isa95Enterprise)
| Attribute | Value | |||
| BrowseName | SiteIsa95Type | |||
| IsAbstract | False | |||
| References | NodeClass | BrowseName |
DataType /
TypeDefinition | Other |
|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | ||||
| 0:HasComponent | Variable | SiteIdentificationCodeAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | SiteNameAssignmentClass | 0:String 0:BaseDataVariableType | O |
SiteIdentificationCodeAssignmentClass – The identification code of the SiteIsa95.
SiteNameAssignmentClass – The name of the SiteIsa95.
8.168 SteamTrapType
A trap that consists of a chamber into which condensed steam from steam pipes etc. is allowed to drain, and which automatically ejects it without permitting the escape of steam (from http://data.posccaesar.org/rdl/RDS5782388).
| Attribute | Value | |||
| BrowseName | SteamTrapType | |||
| IsAbstract | False | |||
| References | NodeClass | BrowseName |
DataType /
TypeDefinition | Other |
|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | ||||
| 0:HasComponent | Variable | HeatTracingTypeAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | HeatTracingTypeSpecialization | HeatTracingTypeClassification 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | InsulationThickness | 0:Double 0:AnalogUnitType | O |
| 0:HasComponent | Variable | PipingComponentNameAssignment Class | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | InsulationTypeAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | PipingClassCodeAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | PipingComponentNumber AssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | LowerLimitHeatTracing Temperature | 0:Double 0:AnalogUnitType | O |
| HasDEXPIRelationship | ObjectType | PipeFittingType | -- -- | -- |
HeatTracingTypeAssignmentClass – The heat tracing type related to the PipeFitting, represented as a string.
HeatTracingTypeSpecialization – A specialization indicating the heat tracing type related to the PipeFitting.
InsulationThickness – The insulation thickness of the PipeFitting.
PipingComponentNameAssignmentClass – The piping component name of the PipeFitting.
InsulationTypeAssignmentClass – The identification code for the insulation type related to the PipeFitting. So far, DEXPI does not define restrictions for valid values.
PipingClassCodeAssignmentClass – The identification code of the piping class of the PipeFitting. So far, DEXPI does not define restrictions for valid values.
PipingComponentNumberAssignmentClass – The piping component number of the PipeFitting.
LowerLimitHeatTracingTemperature – The temperature that a heat tracing system must ensure for the PipeFitting.
PipeFittingType – A pipe fitting.
8.169 StrainerType
A mechanical separator that is separating solid particles from a fluid by passing the fluid through a wire mesh, screen or metal plates containing perforations or slits (from http://data.posccaesar.org/rdl/RDS422504).
| Attribute | Value | |||
| BrowseName | StrainerType | |||
| IsAbstract | False | |||
| References | NodeClass | BrowseName |
DataType /
TypeDefinition | Other |
|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | ||||
| 0:HasComponent | Variable | PipingClassCodeAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | InsulationTypeAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | PipingComponentNumber AssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | PipingComponentNameAssignment Class | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | LowerLimitHeatTracing Temperature | 0:Double 0:AnalogUnitType | O |
| 0:HasComponent | Variable | InsulationThickness | 0:Double 0:AnalogUnitType | O |
| 0:HasComponent | Variable | HeatTracingTypeAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | HeatTracingTypeSpecialization | HeatTracingTypeClassification 0:BaseDataVariableType | O |
| HasDEXPIRelationship | ObjectType | PipeFittingType | -- -- | -- |
PipingClassCodeAssignmentClass – The identification code of the piping class of the PipeFitting. So far, DEXPI does not define restrictions for valid values.
InsulationTypeAssignmentClass – The identification code for the insulation type related to the PipeFitting. So far, DEXPI does not define restrictions for valid values.
PipingComponentNumberAssignmentClass – The piping component number of the PipeFitting.
PipingComponentNameAssignmentClass – The piping component name of the PipeFitting.
LowerLimitHeatTracingTemperature – The temperature that a heat tracing system must ensure for the PipeFitting.
InsulationThickness – The insulation thickness of the PipeFitting.
HeatTracingTypeAssignmentClass – The heat tracing type related to the PipeFitting, represented as a string.
HeatTracingTypeSpecialization – A specialization indicating the heat tracing type related to the PipeFitting.
PipeFittingType – A pipe fitting.
8.170 SubTaggedColumnSectionType
A sub tagged column section.
| Attribute | Value | |||
| BrowseName | SubTaggedColumnSectionType | |||
| IsAbstract | False | |||
| References | NodeClass | BrowseName |
DataType /
TypeDefinition | Other |
|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | ||||
| 0:HasComponent | Object | <Internal> | -- ColumnInternalsArrangementType | OP |
| 0:HasComponent | Variable | Height | 0:Double 0:AnalogUnitType | O |
| 0:HasComponent | Variable | InsideDiameter | 0:Double 0:AnalogUnitType | O |
| 0:HasComponent | Variable | SubTagNameAssignment Class | 0:String 0:BaseDataVariableType | O |
| HasDEXPIRelationship | ObjectType | ColumnSectionType | -- -- | -- |
<Internal> – OPC UA Object(s) that are part of the Object Type.
Height – The height of the ColumnSection.
InsideDiameter – The inside diameter of the ColumnSection.
SubTagNameAssignmentClass – The sub tag name of the SubTaggedColumnSection.
ColumnSectionType – A column section.
8.171 TaggedPlantItemType
A fully tagged item in a plant.
| Attribute | Value | |||
| BrowseName | TaggedPlantItemType | |||
| IsAbstract | True | |||
| References | NodeClass | BrowseName |
DataType /
TypeDefinition | Other |
|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | ||||
| 0:HasComponent | Variable | TagNameSequenceNumberAssignment Class | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | TagNameAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | TagNamePrefixAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | TagNameSuffixAssignmentClass | 0:String 0:BaseDataVariableType | O |
TagNameSequenceNumberAssignmentClass – The sequence number part of the tag number of the TaggedPlantItem. For example, the sequence number of the tag number "P4714-A" is "4714".
TagNameAssignmentClass – The tag number of the TaggedPlantItem. See also <owner.TagNamePrefixAssignmentClass>, <owner.TagNameSequenceNumberAssignmentClass>, and <owner.TagNameSuffixAssignmentClass>.
TagNamePrefixAssignmentClass – The prefix part of the tag number of the TaggedPlantItem. For example, the prefix of the tag number "P4714-A" is "P". The prefix often indicates the type of the equipment item, e.g., "P" can indicate a pump. See also <owner.TagNameAssignmentClass>.
TagNameSuffixAssignmentClass – The suffix part of the tag number of an TaggedPlantItem item. For example, the suffix of the tag number "P4714-A" is "A".
8.172 TechnicalItemParentStructureType
A PlantItemStructure that is a suitable ParentStructure of a TechnicalItem.
| Attribute | Value | ||||
| BrowseName | TechnicalItemParentStructureType | ||||
| IsAbstract | True | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | |||||
8.173 TechnicalItemType
An item at the lowest level of the plant structure.
Association to ParentStructure (TechnicalItemParentStructure)
Association to PlantTrain (PlantTrain)
Association to PlantSystem (PlantSystem)
Association to AreaIsa95 (AreaIsa95)
| Attribute | Value | ||||
| BrowseName | TechnicalItemType | ||||
| IsAbstract | True | ||||
| References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | |||||
8.174 TemperatureType
| Attribute | Value | |||
| BrowseName | TemperatureType | |||
| IsAbstract | False | |||
| References | NodeClass | BrowseName |
DataType /
TypeDefinition | Other |
|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | ||||
| 0:HasComponent | Variable | Value | 0:Double 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | Unit | 0:String 0:BaseDataVariableType | O |
| HasDEXPIRelationship | ObjectType | PhysicalQuantityType | -- -- | -- |
8.175 TransmitterType
A detecting instrument that generates a process variable signal and converts it into an output signal.
| Attribute | Value | |||
| BrowseName | TransmitterType | |||
| IsAbstract | False | |||
| References | NodeClass | BrowseName |
DataType /
TypeDefinition | Other |
|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | ||||
| 0:HasComponent | Variable | DeviceTypeNameAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | SubTagNameAssignmentClass | 0:String 0:BaseDataVariableType | O |
DeviceTypeNameAssignmentClass – The device type of the Transmitter.
SubTagNameAssignmentClass – The sub tag name of the Transmitter.
8.176 TubeBundleType
A bundle that consists of several tubes assembled together allowing multiple flow paths from a single source (from http://data.posccaesar.org/rdl/RDS415259).
Association to Chamber (Chamber)
| Attribute | Value | |||
| BrowseName | TubeBundleType | |||
| IsAbstract | False | |||
| References | NodeClass | BrowseName |
DataType /
TypeDefinition | Other |
|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | ||||
| 0:HasComponent | Variable | NumberOfTubes | 0:Int64 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | TubeLength | 0:Double 0:AnalogUnitType | O |
| 0:HasComponent | Variable | TubeMaterialOfConstructionCode AssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | TubeNominalDiameterStandard Specialization | NominalDiameterStandardClassification 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | TubeNominalDiameterNumericalValue RepresentationAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | TubeNominalDiameterRepresentation AssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | TubeNominalDiameterType RepresentationAssignmentClass | 0:String 0:BaseDataVariableType | O |
NumberOfTubes – The number of tubes of the TubeBundle.
TubeLength – The length of the tubes of the TubeBundle.
TubeMaterialOfConstructionCodeAssignmentClass – A code that gives the material of construction of the tubes of the TubeBundle.
TubeNominalDiameterStandardSpecialization – The nominal diameter of the tubes, given as a reference to a nominal diameter standard and value.
TubeNominalDiameterNumericalValueRepresentationAssignmentClass – A readable representation of the numerical value of the nominal diameter of the tubes. The purpose of this value is to give a textual representation of the nominal diameter to be used in the graphics of a PID.
TubeNominalDiameterRepresentationAssignmentClass – A readable representation of the nominal diameter of the tubes. The purpose of this value is to give a textual representation of the nominal diameter to be used in the graphics of a PID.
TubeNominalDiameterTypeRepresentationAssignmentClass – A readable representation of the type of the nominal diameter of the tubes. The purpose of this value is to give a textual representation of the nominal diameter to be used in the graphics of a PID.
8.177 VentilationDeviceType
A 'device' that allows gas or vapour to leave a container under excess pressure (from http://data.posccaesar.org/rdl/RDS1049335351).
| Attribute | Value | |||
| BrowseName | VentilationDeviceType | |||
| IsAbstract | False | |||
| References | NodeClass | BrowseName |
DataType /
TypeDefinition | Other |
|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | ||||
| 0:HasComponent | Variable | LowerLimitHeatTracing Temperature | 0:Double 0:AnalogUnitType | O |
| 0:HasComponent | Variable | PipingClassCodeAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | PipingComponentNumber AssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | PipingComponentNameAssignment Class | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | HeatTracingTypeSpecialization | HeatTracingTypeClassification 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | HeatTracingTypeAssignmentClass | 0:String 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | InsulationThickness | 0:Double 0:AnalogUnitType | O |
| 0:HasComponent | Variable | InsulationTypeAssignmentClass | 0:String 0:BaseDataVariableType | O |
| HasDEXPIRelationship | ObjectType | PipeFittingType | -- -- | -- |
LowerLimitHeatTracingTemperature – The temperature that a heat tracing system must ensure for the PipeFitting.
PipingClassCodeAssignmentClass – The identification code of the piping class of the PipeFitting. So far, DEXPI does not define restrictions for valid values.
PipingComponentNumberAssignmentClass – The piping component number of the PipeFitting.
PipingComponentNameAssignmentClass – The piping component name of the PipeFitting.
HeatTracingTypeSpecialization – A specialization indicating the heat tracing type related to the PipeFitting.
HeatTracingTypeAssignmentClass – The heat tracing type related to the PipeFitting, represented as a string.
InsulationThickness – The insulation thickness of the PipeFitting.
InsulationTypeAssignmentClass – The identification code for the insulation type related to the PipeFitting. So far, DEXPI does not define restrictions for valid values.
PipeFittingType – A pipe fitting.
8.178 VolumeFlowRateType
| Attribute | Value | |||
| BrowseName | VolumeFlowRateType | |||
| IsAbstract | False | |||
| References | NodeClass | BrowseName |
DataType /
TypeDefinition | Other |
|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | ||||
| 0:HasComponent | Variable | Value | 0:Double 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | Unit | 0:String 0:BaseDataVariableType | O |
| HasDEXPIRelationship | ObjectType | PhysicalQuantityType | -- -- | -- |
8.179 VolumeType
| Attribute | Value | |||
| BrowseName | VolumeType | |||
| IsAbstract | False | |||
| References | NodeClass | BrowseName |
DataType /
TypeDefinition | Other |
|---|---|---|---|---|
| Subtype of BaseDEXPIObjectType | ||||
| 0:HasComponent | Variable | Value | 0:Double 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | Unit | 0:String 0:BaseDataVariableType | O |
| HasDEXPIRelationship | ObjectType | PhysicalQuantityType | -- -- | -- |
