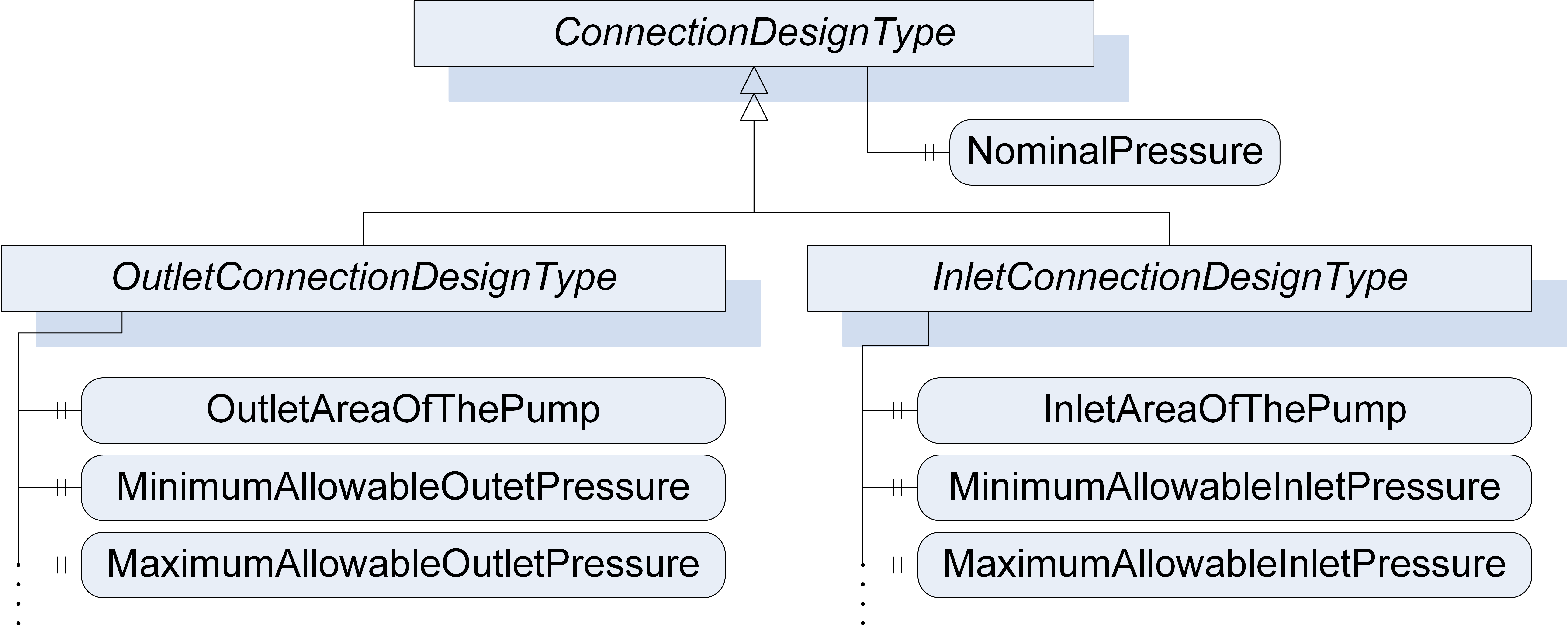

The abstract ConnectionDesignType provides static Variables for Pump inlet and outlet connection design properties. It is illustrated in Figure 20 and formally defined in Table 88.
Figure 20 – Illustration of ConnectionDesignType
Table 88 – ConnectionDesignType Definition
Attribute
Value
BrowseName
ConnectionDesignType
IsAbstract
True
References
Node Class
BrowseName
DataType
TypeDefinition
Other
Subtype of the 2:FunctionalGroupType defined in OPC 10000-100, i.e. inheriting the InstanceDeclarations of that Node.
The InstanceDeclarations of the ConnectionDesignType have additional Attributes defined in Table 89. The Variables and the associated Descriptions are based on the standard DIN EN 1333.
Table 89 – ConnectionDesignType Attribute values for child Nodes
BrowsePath
Description Attribute
NominalPressure
Alphanumeric parameter for reference purposes, referring to a combination of mechanical and dimensional properties of a component of a piping system. It comprises the letters PN followed by a dimensionless number.
