7.32 MeasurementsType ObjectType Definition
The MeasurementsType provides Objects and Variables used for measurements performed at a Pump. It is illustrated in Figure 18 and formally defined in Table 73. For the generation of events, the MeasurementsType has a reference to the 0:LimitAlarmType. The InputNode Property of the Alarm shall contain the NodeId of the Component. Measurements defined in this ObjectType have an additional Subcomponent with the TypeDefinition 0:PropertyType and the BrowseName KindOfQuantity defined in Table 72. In this Variables the measurements can be matched to a physical quantity. To comply with this Companion Specification, the default values for the Property 0:EngineeringUnits and the Property KindOfQuantity provided in Table 73 should be used. The values should be sensible to the use of the application.
| Attribute | Value | ||||
| BrowseName | MeasurementsType | ||||
| IsAbstract | False | ||||
| References | Node Class | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of the 2:FunctionalGroupType defined in OPC 10000-100, i.e. inheriting the InstanceDeclarations of that Node. | |||||
| 0:HasComponent | Object | <Vibration> | VibrationMeasurementType | OP | |
| 0:HasComponent | Variable | AmbientHumidity | 0:Double | 0:BaseAnalogType | O, RO |
| 0:HasComponent | Variable | AmbientTemperature | 0:Double | 0:BaseAnalogType | O, RO |
| 0:HasComponent | Variable | AxialLoadOfPumpRotor | 0:Double | 0:BaseAnalogType | O, RO |
| 0:HasComponent | Variable | AxialRotorPosition | 0:Double | 0:BaseAnalogType | O, RO |
| 0:HasComponent | Variable | BackPressure | 0:Double | 0:BaseAnalogType | O, RO |
| 0:HasComponent | Variable | BearingTemperature | 0:Double | 0:BaseAnalogType | O, RO |
| 0:HasComponent | Variable | ClearanceFlow | 0:Double | 0:BaseAnalogType | O, RO |
| 0:HasComponent | Variable | CoolantTemperature | 0:Double | 0:BaseAnalogType | O, RO |
| 0:HasComponent | Variable | Density | 0:Double | 0:BaseAnalogType | O, RO |
| 0:HasComponent | Variable | DifferentialPressure | 0:Double | 0:BaseAnalogType | O, RO |
| 0:HasComponent | Variable | DynamicViscosity | 0:Double | 0:BaseAnalogType | O, RO |
| 0:HasComponent | Variable | ElectronicTemperature | 0:Double | 0:BaseAnalogType | O, RO |
| 0:HasComponent | Variable | FluidTemperature | 0:Double | 0:BaseAnalogType | O, RO |
| 0:HasComponent | Variable | HousingTemperature | 0:Double | 0:BaseAnalogType | O, RO |
| 0:HasComponent | Variable | HydraulicEfficiency | 0:Double | 0:BaseAnalogType | O, RO |
| 0:HasComponent | Variable | InletPressureOfTheInstallation | 0:Double | 0:BaseAnalogType | O, RO |
| 0:HasComponent | Variable | InstallationTotalHead | 0:Double | 0:BaseAnalogType | O, RO |
| 0:HasComponent | Variable | KinematicViscosity | 0:Double | 0:BaseAnalogType | O, RO |
| 0:HasComponent | Variable | LeakageRateOfFlow | 0:Double | 0:BaseAnalogType | O, RO |
| 0:HasComponent | Variable | Level | 0:Double | 0:BaseAnalogType | O, RO |
| 0:HasComponent | Variable | LubricatingOilConsumption | 0:Double | 0:BaseAnalogType | O, RO |
| 0:HasComponent | Variable | LubricatingOilPressure | 0:Double | 0:BaseAnalogType | O, RO |
| 0:HasComponent | Variable | MassFlow | 0:Double | 0:BaseAnalogType | O, RO |
| 0:HasComponent | Variable | MeanVelocityAtThroat | 0:Double | 0:BaseAnalogType | O, RO |
| 0:HasComponent | Variable | MechanicalEfficiency | 0:Double | 0:BaseAnalogType | O, RO |
| 0:HasComponent | Variable | NetPositiveInletPressure | 0:Double | 0:BaseAnalogType | O, RO |
| 0:HasComponent | Variable | NetPositiveSuctionHead | 0:Double | 0:BaseAnalogType | O, RO |
| 0:HasComponent | Variable | NumberOfStarts | 0:UInt32 | 0:BaseAnalogType | O, RO |
| 0:HasComponent | Variable | OutletPressureOfTheInstallation | 0:Double | 0:BaseAnalogType | O, RO |
| 0:HasComponent | Variable | OverallEfficiency | 0:Double | 0:BaseAnalogType | O, RO |
| 0:HasComponent | Variable | PowerLossDueToInternalLeakage | 0:Double | 0:BaseAnalogType | O, RO |
| 0:HasComponent | Variable | ProcessPressure | 0:Double | 0:BaseAnalogType | O, RO |
| 0:HasComponent | Variable | PumpEfficiency | 0:Double | 0:BaseAnalogType | O, RO |
| 0:HasComponent | Variable | PumpHumidity | 0:Double | 0:BaseAnalogType | O, RO |
| 0:HasComponent | Variable | PumpPowerInput | 0:Double | 0:BaseAnalogType | O, RO |
| 0:HasComponent | Variable | PumpPowerOutput | 0:Double | 0:BaseAnalogType | O, RO |
| 0:HasComponent | Variable | PumpTemperature | 0:Double | 0:BaseAnalogType | O, RO |
| 0:HasComponent | Variable | PumpTotalHead | 0:Double | 0:BaseAnalogType | O, RO |
| 0:HasComponent | Variable | RadialLoadOfPumpRotor | 0:Double | 0:BaseAnalogType | O, RO |
| 0:HasComponent | Variable | SoundEnergy | 0:Double | 0:BaseAnalogType | O, RO |
| 0:HasComponent | Variable | SoundEnergyLevel | 0:Double | 0:BaseAnalogType | O, RO |
| 0:HasComponent | Variable | SoundPower | 0:Double | 0:BaseAnalogType | O, RO |
| 0:HasComponent | Variable | SoundPowerLevel | 0:Double | 0:BaseAnalogType | O, RO |
| 0:HasComponent | Variable | SoundPressure | 0:Double | 0:BaseAnalogType | O, RO |
| 0:HasComponent | Variable | SoundPressureLevel | 0:Double | 0:BaseAnalogType | O, RO |
| 0:HasComponent | Variable | Speed | 0:Double | 0:BaseAnalogType | O, RO |
| 0:HasComponent | Variable | Throughput | 0:Double | 0:BaseAnalogType | O, RO |
| 0:HasComponent | Variable | TotalHeadAtInletAreaOfTheInstallation | 0:Double | 0:BaseAnalogType | O, RO |
| 0:HasComponent | Variable | TotalHeadAtOutletAreaOfTheInstallation | 0:Double | 0:BaseAnalogType | O, RO |
| 0:HasComponent | Variable | VolumetricEfficiency | 0:Double | 0:BaseAnalogType | O, RO |
| 0:GeneratesEvent | ObjectType | 0:LimitAlarmType | Defined in OPC 10000-9 | ||
The OptionalPlaceholder Object Vibration is used for multiple vibration measurements at a Pump.
| Source Path | References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
| AmbientHumidity | 0:HasProperty | Variable | KindOfQuantity | 0:String | 0:PropertyType | O, RO |
| AmbientTemperature | 0:HasProperty | Variable | KindOfQuantity | 0:String | 0:PropertyType | O, RO |
| AxialLoadOfPumpRotor | 0:HasProperty | Variable | KindOfQuantity | 0:String | 0:PropertyType | O, RO |
| AxialRotorPosition | 0:HasProperty | Variable | KindOfQuantity | 0:String | 0:PropertyType | O, RO |
| BackPressure | 0:HasProperty | Variable | KindOfQuantity | 0:String | 0:PropertyType | O, RO |
| BearingTemperature | 0:HasProperty | Variable | KindOfQuantity | 0:String | 0:PropertyType | O, RO |
| ClearanceFlow | 0:HasProperty | Variable | KindOfQuantity | 0:String | 0:PropertyType | O, RO |
| CoolantTemperature | 0:HasProperty | Variable | KindOfQuantity | 0:String | 0:PropertyType | O, RO |
| Density | 0:HasProperty | Variable | KindOfQuantity | 0:String | 0:PropertyType | O, RO |
| DifferentialPressure | 0:HasProperty | Variable | KindOfQuantity | 0:String | 0:PropertyType | O, RO |
| DynamicViscosity | 0:HasProperty | Variable | KindOfQuantity | 0:String | 0:PropertyType | O, RO |
| ElectronicTemperature | 0:HasProperty | Variable | KindOfQuantity | 0:String | 0:PropertyType | O, RO |
| FluidTemperature | 0:HasProperty | Variable | KindOfQuantity | 0:String | 0:PropertyType | O, RO |
| HousingTemperature | 0:HasProperty | Variable | KindOfQuantity | 0:String | 0:PropertyType | O, RO |
| HydraulicEfficiency | 0:HasProperty | Variable | KindOfQuantity | 0:String | 0:PropertyType | O, RO |
| InletPressureOfTheInstallation | 0:HasProperty | Variable | KindOfQuantity | 0:String | 0:PropertyType | O, RO |
| InstallationTotalHead | 0:HasProperty | Variable | KindOfQuantity | 0:String | 0:PropertyType | O, RO |
| KinematicViscosity | 0:HasProperty | Variable | KindOfQuantity | 0:String | 0:PropertyType | O, RO |
| LeakageRateOfFlow | 0:HasProperty | Variable | KindOfQuantity | 0:String | 0:PropertyType | O, RO |
| Level | 0:HasProperty | Variable | KindOfQuantity | 0:String | 0:PropertyType | O, RO |
| LubricatingOilConsumption | 0:HasProperty | Variable | KindOfQuantity | 0:String | 0:PropertyType | O, RO |
| LubricatingOilPressure | 0:HasProperty | Variable | KindOfQuantity | 0:String | 0:PropertyType | O, RO |
| MassFlow | 0:HasProperty | Variable | KindOfQuantity | 0:String | 0:PropertyType | O, RO |
| MeanVelocityAtThroat | 0:HasProperty | Variable | KindOfQuantity | 0:String | 0:PropertyType | O, RO |
| MechanicalEfficiency | 0:HasProperty | Variable | KindOfQuantity | 0:String | 0:PropertyType | O, RO |
| NetPositiveInletPressure | 0:HasProperty | Variable | KindOfQuantity | 0:String | 0:PropertyType | O, RO |
| NetPositiveSuctionHead | 0:HasProperty | Variable | KindOfQuantity | 0:String | 0:PropertyType | O, RO |
| NumberOfStarts | 0:HasProperty | Variable | KindOfQuantity | 0:String | 0:PropertyType | O, RO |
| OutletPressureOfTheInstallation | 0:HasProperty | Variable | KindOfQuantity | 0:String | 0:PropertyType | O, RO |
| OverallEfficiency | 0:HasProperty | Variable | KindOfQuantity | 0:String | 0:PropertyType | O, RO |
| PowerLossDueToInternalLeakage | 0:HasProperty | Variable | KindOfQuantity | 0:String | 0:PropertyType | O, RO |
| ProcessPressure | 0:HasProperty | Variable | KindOfQuantity | 0:String | 0:PropertyType | O, RO |
| PumpEfficiency | 0:HasProperty | Variable | KindOfQuantity | 0:String | 0:PropertyType | O, RO |
| PumpHumidity | 0:HasProperty | Variable | KindOfQuantity | 0:String | 0:PropertyType | O, RO |
| PumpPowerInput | 0:HasProperty | Variable | KindOfQuantity | 0:String | 0:PropertyType | O, RO |
| PumpPowerOutput | 0:HasProperty | Variable | KindOfQuantity | 0:String | 0:PropertyType | O, RO |
| PumpTemperature | 0:HasProperty | Variable | KindOfQuantity | 0:String | 0:PropertyType | O, RO |
| PumpTotalHead | 0:HasProperty | Variable | KindOfQuantity | 0:String | 0:PropertyType | O, RO |
| RadialLoadOfPumpRotor | 0:HasProperty | Variable | KindOfQuantity | 0:String | 0:PropertyType | O, RO |
| SoundEnergy | 0:HasProperty | Variable | KindOfQuantity | 0:String | 0:PropertyType | O, RO |
| SoundEnergyLevel | 0:HasProperty | Variable | KindOfQuantity | 0:String | 0:PropertyType | O, RO |
| SoundPower | 0:HasProperty | Variable | KindOfQuantity | 0:String | 0:PropertyType | O, RO |
| SoundPowerLevel | 0:HasProperty | Variable | KindOfQuantity | 0:String | 0:PropertyType | O, RO |
| SoundPressure | 0:HasProperty | Variable | KindOfQuantity | 0:String | 0:PropertyType | O, RO |
| SoundPressureLevel | 0:HasProperty | Variable | KindOfQuantity | 0:String | 0:PropertyType | O, RO |
| Speed | 0:HasProperty | Variable | KindOfQuantity | 0:String | 0:PropertyType | O, RO |
| Throughput | 0:HasProperty | Variable | KindOfQuantity | 0:String | 0:PropertyType | O, RO |
| TotalHeadAtInletAreaOfTheInstallation | 0:HasProperty | Variable | KindOfQuantity | 0:String | 0:PropertyType | O, RO |
| TotalHeadAtOutletAreaOfTheInstallation | 0:HasProperty | Variable | KindOfQuantity | 0:String | 0:PropertyType | O, RO |
| VolumetricEfficiency | 0:HasProperty | Variable | KindOfQuantity | 0:String | 0:PropertyType | O, RO |

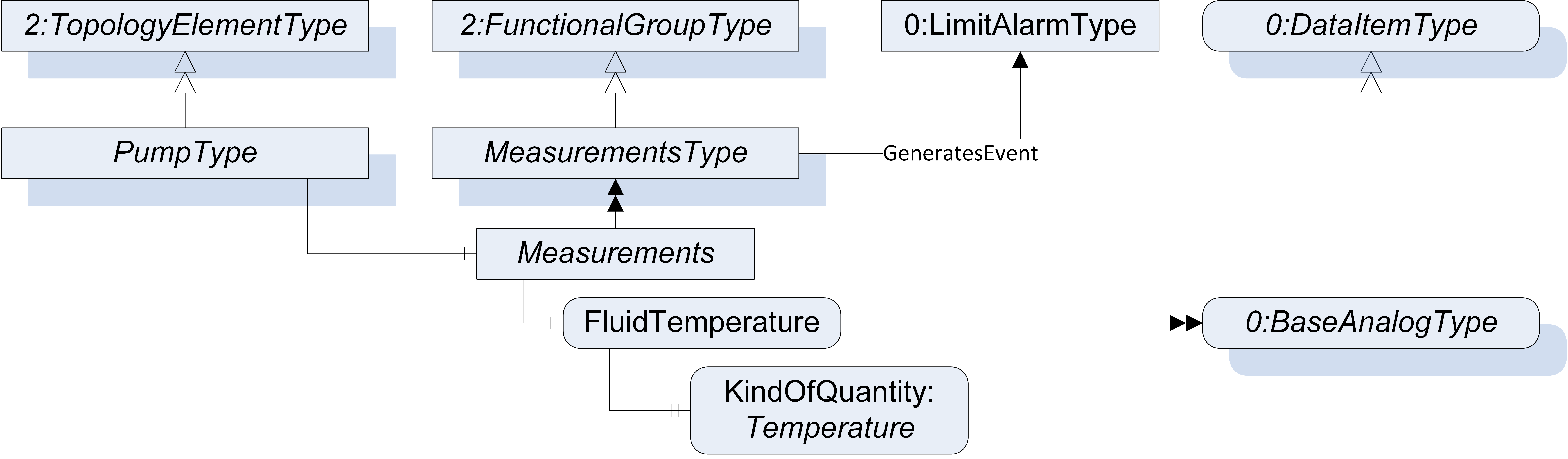

The InstanceDeclarations of the MeasurementsType have additional Attributes defined in Table 73. The Variables and the associated Descriptions are based on the standards VDMA 24223, DIN EN 13306, DIN EN ISO 17769-1, DIN ISO 21360-1, ISO 2041, DIN EN ISO 80000-8, ISO/ TR 25417, ISO 7967-6, ISO 2710-1 and IEC61987.
| BrowsePath | Value Attribute | Description Attribute | ||
| <Vibration> | Properties characterizing dynamic data which are the result of an oscillation measurement at machines with rotating movements | |||
| AmbientHumidity | Measured ambient humidity | |||
| NamespaceUri: http://www.opcfoundation.org/UA/units/un/cefact UnitId: 20529 DisplayName: % Description: percent | |||
| "relative humidity" | Quotient of partial pressure of water vapor and partial pressure at its saturation | ||
| AmbientTemperature | Measured ambient temperature | |||
| NamespaceUri: http://www.opcfoundation.org/UA/units/un/cefact UnitId: 4932940 DisplayName: K Description: kelvin | |||
| "temperature" | Quantity representing a temperature value | ||
| AxialLoadOfPumpRotor | Measured residual thrust acting through the shaft derived from hydraulic or mechanical forces | |||
| NamespaceUri: http://www.opcfoundation.org/UA/units/un/cefact UnitId: 5129559 DisplayName: N Description: newton | |||
| "force" | Vector quantity describing interaction between bodies or particles | ||
| AxialRotorPosition | Measured position of the axial rotor in bearing. | |||
| "rational number" | Element of a set of mathematical entities that includes all integers and other entities, each defined as the quotient of two integers, such that the division is defined for any two entities, except zero as a divisor | ||
| BackPressure | Measured back pressure of the pump | |||
| NamespaceUri: http://www.opcfoundation.org/UA/units/un/cefact UnitId: 5259596 DisplayName: Pa Description: pascal | |||
| "pressure" | Quotient of the component of a force normal to a surface and its area | ||
| BearingTemperature | Measured temperature of the bearing | |||
| NamespaceUri: http://www.opcfoundation.org/UA/units/un/cefact UnitId: 4932940 DisplayName: K Description: kelvin | |||
| "temperature" | Quantity representing a temperature value | ||
| ClearanceFlow | Measured clearance flow between the housing and the impeller | |||
| NamespaceUri: http://www.opcfoundation.org/UA/units/un/cefact UnitId: 5067091 DisplayName: m³/s Description: cubic metre per second | |||
| "volume flow rate" | Scalar quantity characterizing the total flow through the two-dimensional domain A with the normal vector of a flowing fluid with velocity as an integral | ||
| CoolantTemperature | Measured temperature of the coolant. | |||
| NamespaceUri: http://www.opcfoundation.org/UA/units/un/cefact UnitId: 4932940 DisplayName: K Description: kelvin | |||
| "temperature" | Quantity representing a temperature value | ||
| Density | Measured density of the fluid | |||
| NamespaceUri: http://www.opcfoundation.org/UA/units/un/cefact UnitId: 4934993 DisplayName: kg/m³ Description: kilogram per cubic metre | |||
| "density" | Quantity representing the spatial distribution of mass of a continuous material | ||
| DifferentialPressure | Determined (actual) gain in total pressure between the pump inlet and pump outlet | |||
| NamespaceUri: http://www.opcfoundation.org/UA/units/un/cefact UnitId: 5259596 DisplayName: Pa Description: pascal | |||
| "pressure" | Quotient of the component of a force normal to a surface and its area | ||
| DynamicViscosity | Measured kinematic viscosity of the fluid | |||
| NamespaceUri: http://www.opcfoundation.org/UA/units/un/cefact UnitId: 4665393 DisplayName: Pa·m³/s Description: pascal cubic metre per second | |||
| "dynamic viscosity" | For laminar flows, proportionality constant between shear stress in a fluid moving with a velocity and gradient perpendicular to the plane of shear | ||
| ElectronicTemperature | Measured temperature of the electronic | |||
| NamespaceUri: http://www.opcfoundation.org/UA/units/un/cefact UnitId: 4932940 DisplayName: K Description: kelvin | |||
| "temperature" | Quantity representing a temperature value | ||
| FluidTemperature | Measured internal temperature of pump fluid. | |||
| NamespaceUri: http://www.opcfoundation.org/UA/units/un/cefact UnitId: 4932940 DisplayName: K Description: kelvin | |||
| "temperature" | Quantity representing a temperature value | ||
| HousingTemperature | Measured temperature of the housing | |||
| NamespaceUri: http://www.opcfoundation.org/UA/units/un/cefact UnitId: 4932940 DisplayName: K Description: kelvin | |||
| "temperature" | Quantity representing a temperature value | ||
| HydraulicEfficiency | Determined proportion of pump available power input, Pa, which is delivered as pump power output, Pu, after satisfying the losses resulting from friction due to the relative motion of internal surfaces and internal leakage | |||
| NamespaceUri: http://www.opcfoundation.org/UA/units/un/cefact UnitId: 20529 DisplayName: % Description: percent | |||
| "ratio" | Quotient of two numbers or two quantities of the same kind | ||
| InletPressureOfTheInstallation | Measured pressure at the inlet area of the installation. | |||
| NamespaceUri: http://www.opcfoundation.org/UA/units/un/cefact UnitId: 5259596 DisplayName: Pa Description: pascal | |||
| "pressure" | Quotient of the component of a force normal to a surface and its area | ||
| InstallationTotalHead | Determined difference between the total head at the outlet side of the installation and the total head at the inlet side of the installation | |||
| NamespaceUri: http://www.opcfoundation.org/UA/units/un/cefact UnitId: 5067858 DisplayName: m Description: metre | |||
| "length" | Linear extent in space between any two points | ||
| KinematicViscosity | Measured dynamic viscosity of the fluid | |||
| NamespaceUri: http://www.opcfoundation.org/UA/units/un/cefact UnitId: 21300 DisplayName: m²/s Description: square metre per second | |||
| "kinematic viscosity" | Quotient of dynamic viscosity and mass density of a fluid | ||
| LeakageRateOfFlow | Measured rate of flow leaking from shaft seals | |||
| NamespaceUri: http://www.opcfoundation.org/UA/units/un/cefact UnitId: 5067091 DisplayName: m³/s Description: cubic metre per second | |||
| "volume flow rate" | Scalar quantity characterizing the total flow through the two-dimensional domain A with the normal vector of a flowing fluid with velocity as an integral | ||
| Level | Measured level | |||
| NamespaceUri: http://www.opcfoundation.org/UA/units/un/cefact UnitId: 5067858 DisplayName: m Description: metre | |||
| "length" | Linear extent in space between any two points | ||
| LubricatingOilConsumption | Measured oil consumption of the lubricating system | |||
| NamespaceUri: http://www.opcfoundation.org/UA/units/un/cefact UnitId: 5067857 DisplayName: m³ Description: cubic metre | |||
| "volume" | Extent of a three dimensional geometrical shape | ||
| LubricatingOilPressure | Measured oil pressure of the lubrication system | |||
| NamespaceUri: http://www.opcfoundation.org/UA/units/un/cefact UnitId: 5259596 DisplayName: Pa Description: pascal | |||
| "pressure" | Quotient of the component of a force normal to a surface and its area | ||
| MassFlow | Measure mass flow from the outlet area of the pump | |||
| NamespaceUri: http://www.opcfoundation.org/UA/units/un/cefact UnitId: 4933459 DisplayName: kg/s Description: kilogram per second | |||
| "mass flow" | Vector quantity characterizing a flowing fluid by the product of its local mass density and local velocity | ||
| MeanVelocityAtThroat | Measured rate of flow passing through the exit from the volute divided by the throat area | |||
| NamespaceUri: http://www.opcfoundation.org/UA/units/un/cefact UnitId: 5067859 DisplayName: m/s Description: metre per second | |||
| "velocity" | Vector quantity giving the rate of change of a position vector | ||
| MechanicalEfficiency | Determined proportion of the pump power input, P, available after satisfying the mechanical power losses, PJ, ab, at given operating conditions | |||
| NamespaceUri: http://www.opcfoundation.org/UA/units/un/cefact UnitId: 20529 DisplayName: % Description: percent | |||
| "ratio" | Quotient of two numbers or two quantities of the same kind | ||
| NetPositiveInletPressure | Total pressure (including velocity pressure) at the pump inlet connection less the liquid vapor pressure at the present temperature of the liquid | |||
| NamespaceUri: http://www.opcfoundation.org/UA/units/un/cefact UnitId: 5259596 DisplayName: Pa Description: pascal | |||
| "pressure" | Quotient of the component of a force normal to a surface and its area | ||
| NetPositiveSuctionHead | Amount of the absolute value of the total head above the head, equivalent to the vapor pressure of the liquid at the particular temperature, with reference to the NPSH datum plane | |||
| NamespaceUri: http://www.opcfoundation.org/UA/units/un/cefact UnitId: 5067858 DisplayName: m Description: metre | |||
| "length" | Linear extent in space between any two points | ||
| NumberOfStarts | Total number of starts | |||
| "rational number" | Element of a set of mathematical entities that includes all integers and other entities, each defined as the quotient of two integers, such that the division is defined for any two entities, except zero as a divisor | ||
| OutletPressureOfTheInstallation | Measured pressure at the outlet area of the installation. | |||
| NamespaceUri: http://www.opcfoundation.org/UA/units/un/cefact UnitId: 5259596 DisplayName: Pa Description: pascal | |||
| "pressure" | Quotient of the component of a force normal to a surface and its area | ||
| OverallEfficiency | Determined proportion of the driver power input, Pmot, delivered as pump power output, Pu | |||
| NamespaceUri: http://www.opcfoundation.org/UA/units/un/cefact UnitId: 20529 DisplayName: % Description: percent | |||
| "ratio" | Quotient of two numbers or two quantities of the same kind | ||
| PowerLossDueToInternalLeakage | Determined power loss due clearance flows | |||
| NamespaceUri: http://www.opcfoundation.org/UA/units/un/cefact UnitId: 5723220 DisplayName: W Description: watt | |||
| "power" | Derivative with respect to time t of energy E being transferred or transformed | ||
| ProcessPressure | Measured process pressure of the pump | |||
| NamespaceUri: http://www.opcfoundation.org/UA/units/un/cefact UnitId: 5259596 DisplayName: Pa Description: pascal | |||
| "pressure" | Quotient of the component of a force normal to a surface and its area | ||
| PumpEfficiency | Determined proportion of the pump power input, P, delivered as pump power output, Pu, at given operating conditions | |||
| NamespaceUri: http://www.opcfoundation.org/UA/units/un/cefact UnitId: 20529 DisplayName: % Description: percent | |||
| "ratio" | Quotient of two numbers or two quantities of the same kind | ||
| PumpHumidity | Measured humidity inside the pump | |||
| NamespaceUri: http://www.opcfoundation.org/UA/units/un/cefact UnitId: 20529 DisplayName: % Description: percent | |||
| "relative humidity" | Quotient of partial pressure of water vapor and partial pressure at its saturation | ||
| PumpPowerInput | Measured power transmitted to the pump by its driver | |||
| NamespaceUri: http://www.opcfoundation.org/UA/units/un/cefact UnitId: 5723220 DisplayName: W Description: watt | |||
| "mechanical power" | Scalar product of force acting to a body and its velocity | ||
| PumpPowerOutput | Measured useful mechanical power transferred to the fluid during its passage through the pump | |||
| NamespaceUri: http://www.opcfoundation.org/UA/units/un/cefact UnitId: 5723220 DisplayName: W Description: watt | |||
| "mechanical power" | Scalar product of force acting to a body and its velocity | ||
| PumpTemperature | Measured temperature of the pump | |||
| NamespaceUri: http://www.opcfoundation.org/UA/units/un/cefact UnitId: 4932940 DisplayName: K Description: kelvin | |||
| "temperature" | Quantity representing a temperature value | ||
| PumpTotalHead | Determined difference between the total head at the outlet side of the pump and the total head at the inlet side of the pump | |||
| NamespaceUri: http://www.opcfoundation.org/UA/units/un/cefact UnitId: 5067858 DisplayName: m Description: metre | |||
| "length" | Linear extent in space between any two points | ||
| RadialLoadOfPumpRotor | Measured residual force acting at right angles to the line of the shaft and derived from hydraulic forces | |||
| NamespaceUri: http://www.opcfoundation.org/UA/units/un/cefact UnitId: 5129559 DisplayName: N Description: newton | |||
| "force" | Vector quantity describing interaction between bodies or particles | ||
| SoundEnergy | Determined integral of the sound power, P, over a stated time interval of duration T (starting at t1 and ending at t2) | |||
| NamespaceUri: http://www.opcfoundation.org/UA/units/un/cefact UnitId: 4869973 DisplayName: J Description: joule | |||
| "energy" | Ability of a system to do work | ||
| SoundEnergyLevel | Determined ten times the logarithm to the base 10 of the ratio of the sound energy, J, to a reference value, J0, expressed in decibels | |||
| NamespaceUri: http://www.opcfoundation.org/UA/units/un/cefact UnitId: 12878 DisplayName: dB Description: decibel | |||
| "sound level" | Logarithm of the ratio of a given sound pressure to the reference sound pressure of 20 μPa, the sound pressure being obtained with a standard frequency weighting and with a standard exponential time weighting. Sound level in decibels is twenty times the logarithm to the base ten of that ratio | ||
| SoundPower | Determined through a surface, product of the sound pressure, p, and the component of the particle velocity, un, at a point on the surface in the direction normal to the surface, integrated over that surface | |||
| NamespaceUri: http://www.opcfoundation.org/UA/units/un/cefact UnitId: 5723220 DisplayName: W Description: watt | |||
| "power" | Derivative with respect to time t of energy E being transferred or transformed | ||
| SoundPowerLevel | Determined ten times the logarithm to the base 10 of the ratio of the sound power of a source, P, to a reference value, P0, expressed in decibels | |||
| NamespaceUri: http://www.opcfoundation.org/UA/units/un/cefact UnitId: 12878 DisplayName: dB Description: decibel | |||
| "sound level" | Logarithm of the ratio of a given sound pressure to the reference sound pressure of 20 μPa, the sound pressure being obtained with a standard frequency weighting and with a standard exponential time weighting. Sound level in decibels is twenty times the logarithm to the base ten of that ratio | ||
| SoundPressure | Measured difference between instantaneous pressure and static pressure | |||
| NamespaceUri: http://www.opcfoundation.org/UA/units/un/cefact UnitId: 5259596 DisplayName: Pa Description: pascal | |||
| "pressure" | Quotient of the component of a force normal to a surface and its area | ||
| SoundPressureLevel | Determined ten times logarithm to the base 10 of the ratio of the square of the sound pressure, p, to the square of a reference value, p0, expressed in decibels | |||
| NamespaceUri: http://www.opcfoundation.org/UA/units/un/cefact UnitId: 12878 DisplayName: dB Description: decibel | |||
| "sound level" | Logarithm of the ratio of a given sound pressure to the reference sound pressure of 20 μPa, the sound pressure being obtained with a standard frequency weighting and with a standard exponential time weighting. Sound level in decibels is twenty times the logarithm to the base ten of that ratio | ||
| Speed | Measured number of rotations or movements made by the shaft, coupling or impeller in a given time | |||
| NamespaceUri: http://www.opcfoundation.org/UA/units/un/cefact UnitId: 4405559 DisplayName: s⁻¹ Description: reciprocal second | |||
| "frequency" | Inverse of one cycle of a periodic event | ||
| Throughput | Measured throughput of the vacuum pump | |||
| NamespaceUri: http://www.opcfoundation.org/UA/units/un/cefact UnitId: 4665393 DisplayName: Pa·m³/s Description: pascal cubic metre per second | |||
| "volume flow rate" | Scalar quantity characterizing the total flow through the two-dimensional domain A with the normal vector of a flowing fluid with velocity as an integral | ||
| TotalHeadAtInletAreaOfTheInstallation | Determined total head at the inlet area of the installation, which corresponds to the sum of geodetic head, pressure head and velocity head | |||
| NamespaceUri: http://www.opcfoundation.org/UA/units/un/cefact UnitId: 5067858 DisplayName: m Description: metre | |||
| "length" | Linear extent in space between any two points | ||
| TotalHeadAtOutletAreaOfTheInstallation | Determined total head at the outlet area of the installation, which corresponds to the sum of geodetic head, pressure head and velocity head | |||
| NamespaceUri: http://www.opcfoundation.org/UA/units/un/cefact UnitId: 5067858 DisplayName: m Description: metre | |||
| "length" | Linear extent in space between any two points | ||
| VolumetricEfficiency | Determined ratio of the actual delivered volume at maximum pressure to the geometric displacement volume | |||
| NamespaceUri: http://www.opcfoundation.org/UA/units/un/cefact UnitId: 20529 DisplayName: % Description: percent | |||
| "ratio" | Quotient of two numbers or two quantities of the same kind. |
