The PumpActuationType extends its supertype by Pump specific Objects and Variables for discrete outputs according to VDMA 24223. It is illustrated in Figure 16 and formally defined in Table 59.

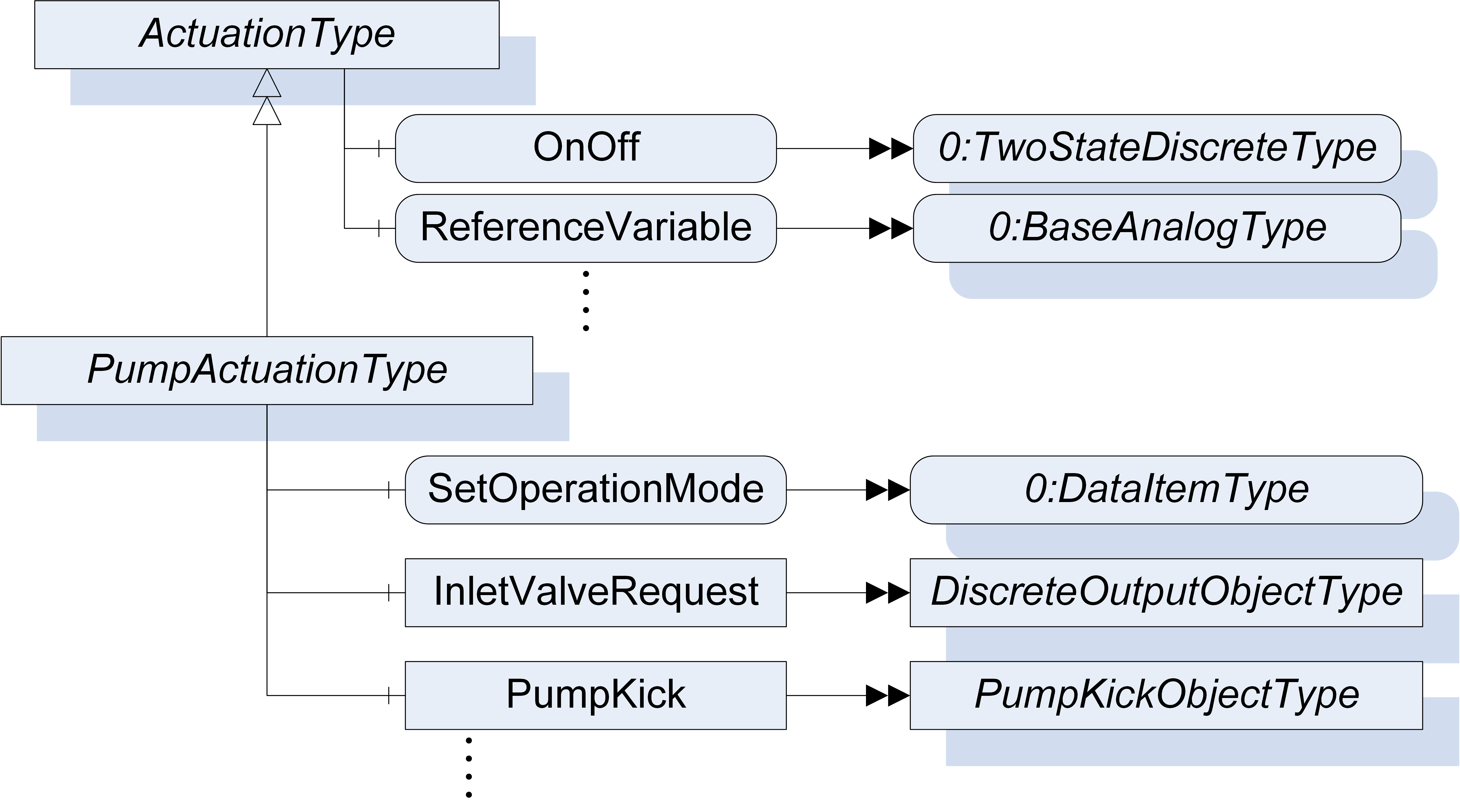

Figure 16 – Illustration of PumpActuationType
Table 59 – PumpActuationType Definition
Attribute
Value
BrowseName
PumpActuationType
IsAbstract
False
References
Node Class
BrowseName
DataType
TypeDefinition
Other
Subtype of the ActuationType defined in 7.25, i.e. inheriting the InstanceDeclarations of that Node.
0:HasComponent
Variable
ActualControlMode
ControlModeEnum
0:DataItemType
O, RO
0:HasComponent
Variable
ActualOperationMode
OperationModeEnum
0:DataItemType
O, RO
0:HasComponent
Object
CleanValveRequest
DiscreteOutputObjectType
O
0:HasComponent
Variable
ControlInversion
0:Boolean
0:TwoStateDiscreteType
O, RW
0:HasComponent
Variable
Enable
0:Boolean
0:TwoStateDiscreteType
O, RW
0:HasComponent
Variable
ExternalSignal
0:Boolean
0:TwoStateDiscreteType
O, RW
0:HasComponent
Object
FlushValveRequest
DiscreteOutputObjectType
O
0:HasComponent
Object
GasDilValveRequest
DiscreteOutputObjectType
O
0:HasComponent
Object
InletValveRequest
DiscreteOutputObjectType
O
0:HasComponent
Object
OutletValveRequest
DiscreteOutputObjectType
O
0:HasComponent
Object
PumpKick
PumpKickObjectType
O
0:HasComponent
Object
PumpStandByRequest
DiscreteOutputObjectType
O
0:HasComponent
Object
PurgeValveRequest
DiscreteOutputObjectType
O
0:HasComponent
Variable
ReverseRotatingDirection
0:Boolean
0:TwoStateDiscreteType
O, RO
0:HasComponent
Variable
SetControlMode
ControlModeEnum
0:DataItemType
O, RW
0:HasComponent
Variable
SetOperationMode
OperationModeEnum
0:DataItemType
O, RW
0:HasComponent
Object
VentValveRequest
DiscreteOutputObjectType
O
The InstanceDeclarations of the PumpActuationType have additional Attributes defined in Table 60. The Variables and the associated Descriptions are based on the standard VDMA 24223-1.
Table 60 – PumpActuationType Attribute values for child Nodes
BrowsePath
Description Attribute
ActualControlMode
This property describes the actual control mode of the pump.
ActualOperationMode
This property describes the actual operation mode of the pump.
CleanValveRequest
This element offers a request for the opening of the clean valve.
ControlInversion
This property offers the inversion of the selected control mode in operation mode AutoControl. A "True" status means that the control mode inversion is activated and a "False" status means that the control mode inversion is deactivated.
Enable
This property activates of the control function.
ExternalSignal
This property offers the activation of an external electrical interface serving the setpoint of the control function by selecting the kind of electrical (analogue) signal.
FlushValveRequest
This element offers a request for the opening of the flush valve.
GasDilValveRequest
This element offers a request for the opening of the gas dilution valve.
InletValveRequest
This element offers a request for the opening of the inlet valve.
OutletValveRequest
This element offers a request for the opening of the outlet valve.
PumpKick
This element describes a periodical operation of a pump, avoiding blockage at non operation time.
PumpStandByRequest
This element offers a request for pump standby.
PurgeValveRequest
This element offers a request for the opening of the purge valve.
ReverseRotatingDirection
This property indicates the inversion of the standard rotating direction.
SetControlMode
This property describes the desired control mode of the pump.
SetOperationMode
This property describes the desired operation mode of the pump.
VentValveRequest
This element offers a request for the opening of the vent valve.
