7.25 ActuationType ObjectType Definition

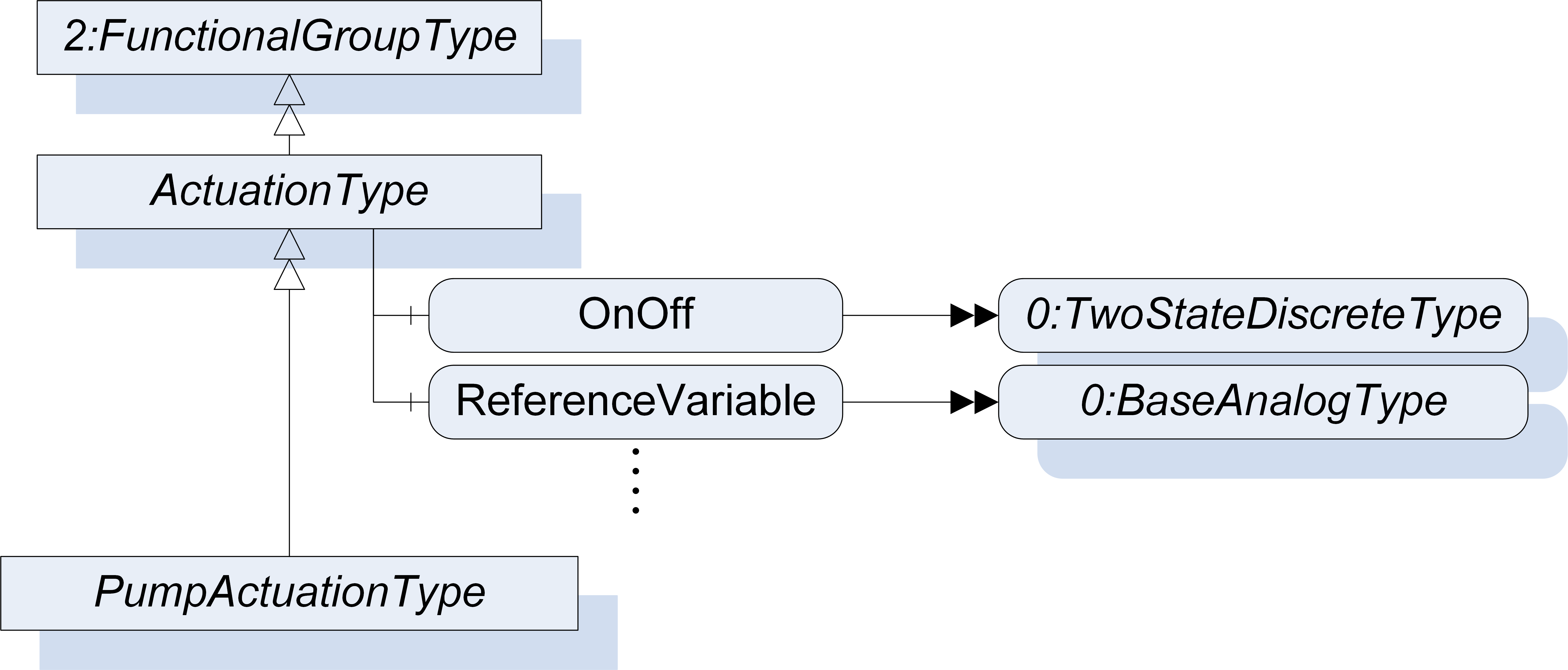

The ActuationType provides general Variables for asset actuation. It is illustrated in Figure 15 and formally defined in Table 57.
| Attribute | Value | ||||
| BrowseName | ActuationType | ||||
| IsAbstract | False | ||||
| References | Node Class | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of the 2:FunctionalGroupType defined in OPC 10000-100, i.e. inheriting the InstanceDeclarations of that Node. | |||||
| 0:HasSubtype | ObjectType | PumpActuationType | Defined in 7.26 | ||
| 0:HasComponent | Variable | FaultAction | 0:Boolean | 0:TwoStateDiscreteType | O, RW |
| 0:HasComponent | Variable | FaultValue | 0:Double | 0:BaseAnalogType | O, RW |
| 0:HasComponent | Variable | FeedbackVariable | 0:Double | 0:AnalogUnitType | O, RO |
| 0:HasComponent | Variable | ManipulatedValue | 0:Double | 0:BaseAnalogType | O, RW |
| 0:HasComponent | Variable | OnOff | 0:Boolean | 0:TwoStateDiscreteType | O, RW |
| 0:HasComponent | Variable | ReferenceVariable | 0:Double | 0:AnalogUnitType | O, RO |
| 0:HasComponent | Variable | Status | 0:Boolean | 0:TwoStateDiscreteType | O, RO |
The InstanceDeclarations of the ActuationType have additional Attributes defined in Table 58. The Variables and the associated Descriptions are based on the standards VDMA 24223-1 and DIN IEC 60050-351.
| BrowsePath | Value Attribute | Description Attribute |
| FaultAction | This property determines the action taken on variables in fault state. If the value is TRUE, the value of the property Fault value is used, if it is FALSE, the last valid value is used | |
| FaultValue | This property specifies a user-defined value for use with Fault action property | |
| FeedbackVariable | Variable quantity, which represents the controlled variable and is returned to the comparing element | |
NamespaceUri: http://www.opcfoundation.org/UA/units/un/cefact UnitId: 20529 DisplayName: % Description: percent | ||
| ManipulatedValue | Output variable of the controlling system, which is also an input variable of the controlled system | |
| OnOff | This property enables the operation. | |
| ReferenceVariable | Input variable to a comparing element in a controlling system, which sets the desired value of the controlled variable and is deducted from the command variable | |
NamespaceUri: http://www.opcfoundation.org/UA/units/un/cefact UnitId: 20529 DisplayName: % Description: percent | ||
| Status | This property contains the actual status of the element |
