7.11 SupervisionType ObjectType Definition

The SupervisionType provides collections of Variables used for Pump monitoring. It is illustrated in Figure 12 and formally defined in Table 29.

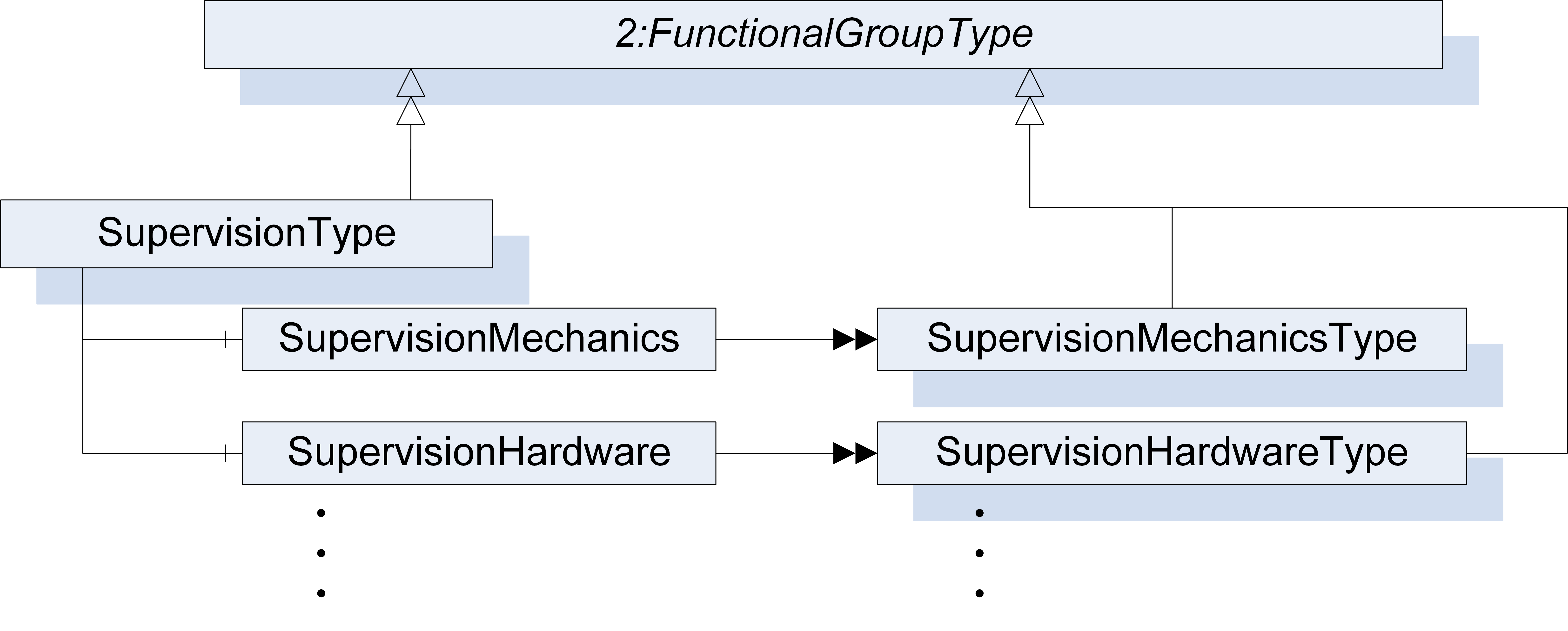

Figure 12 – Illustration of SupervisionType

Table 29 – SupervisionType Definition

Attribute	Value
BrowseName	SupervisionType
IsAbstract	False

References	Node Class	BrowseName	TypeDefinition	Other
Subtype of the 2:FunctionalGroupType defined in OPC 10000-100, i.e. inheriting the InstanceDeclarations of that Node.
0:HasComponent	Object	SupervisionAuxiliaryDevice	SupervisionAuxiliaryDeviceType	O
0:HasComponent	Object	SupervisionElectronics	SupervisionElectronicsType	O
0:HasComponent	Object	SupervisionHardware	SupervisionHardwareType	O
0:HasComponent	Object	SupervisionMechanics	SupervisionMechanicsType	O
0:HasComponent	Object	SupervisionProcessFluid	SupervisionProcessFluidType	O
0:HasComponent	Object	SupervisionPumpOperation	SupervisionPumpOperationType	O
0:HasComponent	Object	SupervisionSoftware	SupervisionSoftwareType	O

The InstanceDeclarations of the SupervisionType have additional Attributes defined in Table 30.

Table 30 – SupervisionType Attribute values for child Nodes

BrowsePath	Description Attribute
SupervisionAuxiliaryDevice	Supervision auxiliary device specifies information for monitoring an additional device.
SupervisionElectronics	Supervision Electrics specifies information for monitoring the electronics.
SupervisionHardware	Supervision hardware specifies supervising information related to device hardware.
SupervisionMechanics	Supervision mechanics specifies supervising information related to device mechanics.
SupervisionProcessFluid	Supervision process fluid specifies information for monitoring the fluid of a pump.
SupervisionPumpOperation	Supervision pump operation specifies information for monitoring the pump operation.
SupervisionSoftware	Supervision software specifies supervising information related to device software.
