13.5 Examples of combinations of motion devices in a motion device system
Figure B.8 shows four motion devices integrated in one motion device system: an articulated robot on a linear unit with two turntables.

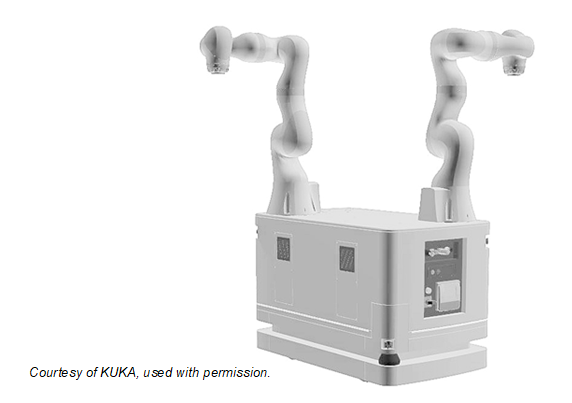

Figure B.9 shows three motion devices in one motion device system: two articulated robots on a mobile platform.
