13.10.6 Abstract example of a motion device system with three motion devices

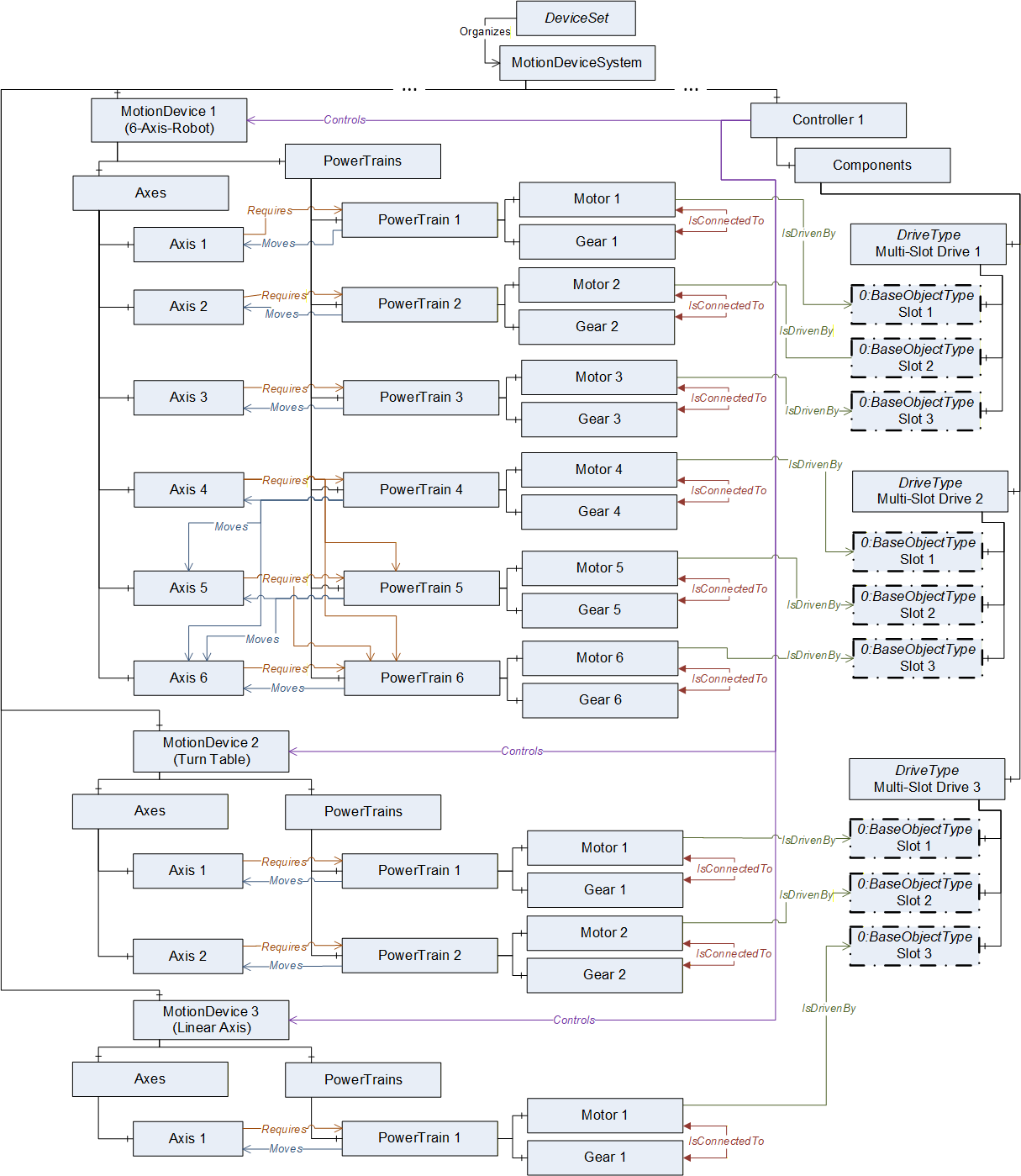

Figure B.20 describes an example view on a server with the instances of ObjectTypes and references of a motion device system consisting of a six-axis robot, a linear unit and a turntable which are controlled by one controller.

Figure B. 20 – View on a motion device system with 3 motion devices controlled by one controller
