7.9 CompressorType ObjectType Definition
The CompressorType is the representation of a compressor and extends its supertype by specific Nodes. According to EN 1012-1/ISO/DIS 18623-1, a compressor compresses a gas or vapor media to a pressure higher than that at the inlet. It is illustrated in Figure 23 and formally defined in Table 27.

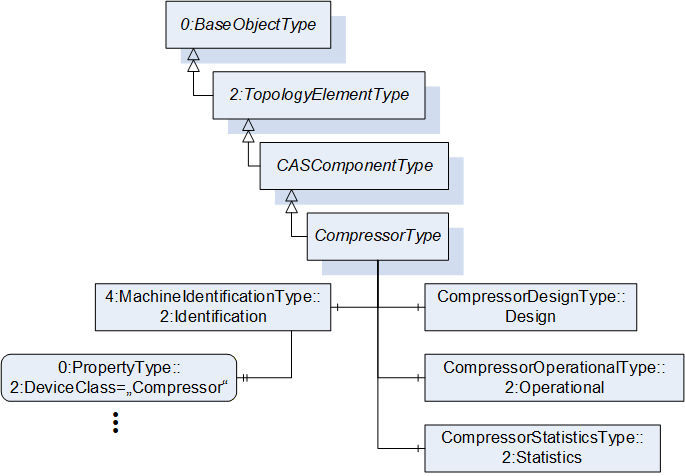

Figure 23 – CompressorType Illustration
Table 27 – CompressorType Definition
Attribute
Value
BrowseName
CompressorType
IsAbstract
False
References
Node Class
BrowseName
DataType
TypeDefinition
Other
Subtype of the CASComponentType defined in 7.7, i.e. inheriting the InstanceDeclarations of that Node.
The following nodes override nodes added by the CASComponentType
0:HasComponent
Object
Design
CompressorDesignType
O
0:HasComponent
Object
2:Identification
4:MachineIdentificationType
M
0:HasComponent
Object
2:Operational
CompressorOperationalType
O
0:HasComponent
Object
2:Statistics
CompressorStatisticsType
O
The InstanceDeclarations of the CompressorType have additional Attributes defined in Table 28.
Table 28 – CompressorType Attribute values for child Nodes
