OPC UA for Machine Vision – Part 2: Asset Management and Condition Monitoring
9.4 VisionDisplayUnitType ObjectType Definition
The VisionDisplayUnitType provides a concrete ObjectType which can be instantiated directly implementing the IDisplayUnitType interface. The instances of this object type shall be organized in the DisplayUnits folder of the VisionSystemAssetType. It is formally defined in Table 29.

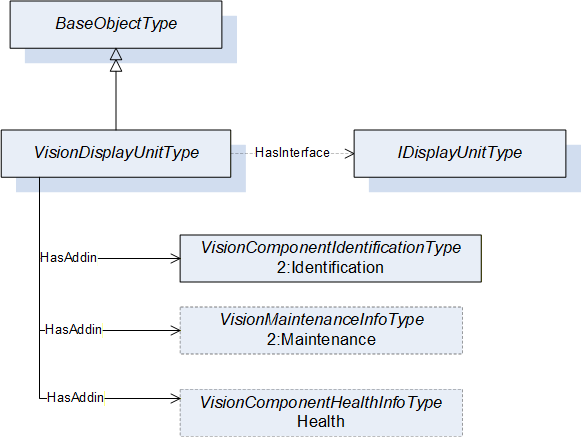

Figure 17 – VisionDisplayUnitType
Table 29 – VisionDisplayUnitType Definiton
Attribute
Value
BrowseName
VisionDisplayUnitType
IsAbstract
False
References
Node Class
BrowseName
DataType
TypeDefinition
Other
Subtype of the 0:BaseObjectType defined in OPC 10000-5, i.e. inheriting the InstanceDeclarations of that Node
