The VisionPatternGeneratorType provides a concrete ObjectType which can be instantiated directly implementing the IVisionInfoType interface. The instances of this object type shall be organized in the PatternGenerators folder of the VisionSystemAssetType. It is formally defined in Table 50.

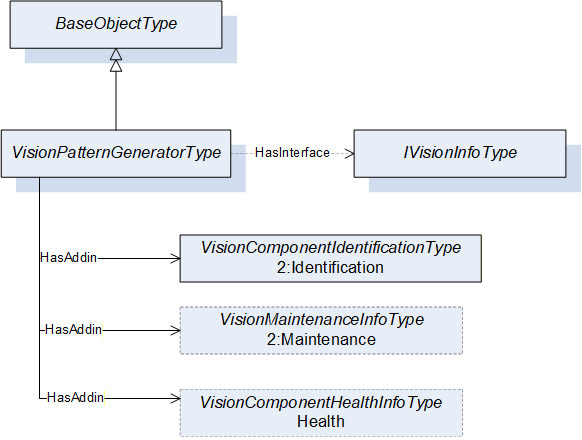

Figure 32 – VisionPatternGeneratorType
Table 50 – VisionPatternGeneratorType Definiton
Attribute
Value
BrowseName
VisionPatternGeneratorType
IsAbstract
False
References
Node Class
BrowseName
DataType
TypeDefinition
Other
Subtype of the 0:BaseObjectType defined in OPC 10000-5, i.e. inheriting the InstanceDeclarations of that Node
