9.22 VisionHousingType ObjectType Definition

The VisionHousingType provides a concrete ObjectType which can be instantiated directly implementing the IVisionInfoType interface. The instances of this object type shall be organized in the Housings folder of the VisionSystemAssetType. It is formally defined in Table 53.

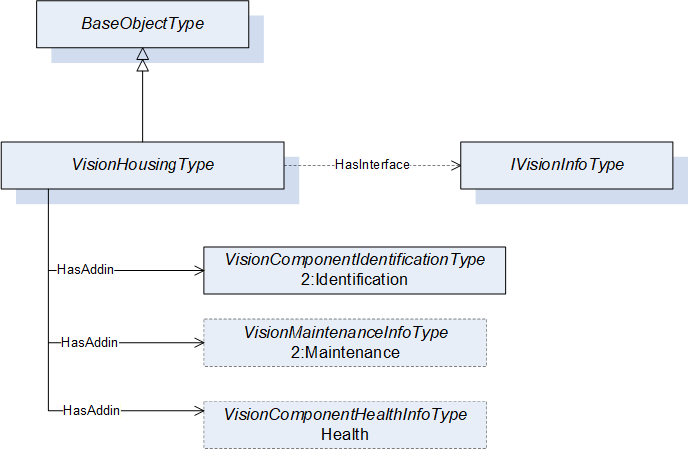

Figure 35 – VisionHousingType
Table 53 – VisionHousingType Definiton
Attribute Value
BrowseNameVisionHousingType
IsAbstractFalse
References Node Class BrowseName DataType TypeDefinition Other
Subtype of the 0:BaseObjectType defined in OPC 10000-5, i.e. inheriting the InstanceDeclarations of that Node
0:HasInterfaceObjectTypeIVisionInfoType
Applied from IVisionInfoType
0:HasAddInObject2:IdentificationVisionComponentIdentificationTypeM
0:HasAddInObject2:MaintenanceVisionMaintenanceInfoTypeO
0:HasAddInObjectHealthVisionHealthInfoTypeO
