The VisionOpticalFilterType provides a concrete ObjectType which can be instantiated directly implementing the IVisionInfoType interface. The instances of this object type shall be organized in the OpticalFilters folder of the VisionSystemAssetType. It is formally defined in Table 47.

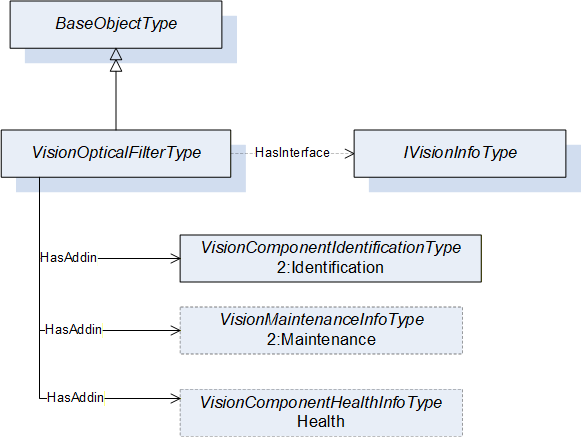

Figure 29 – VisionOpticalFilterType
Table 47 – VisionOpticalFilterType Definiton
Attribute
Value
BrowseName
VisionOpticalFilterType
IsAbstract
False
References
Node Class
BrowseName
DataType
TypeDefinition
Other
Subtype of the 0:BaseObjectType defined in OPC 10000-5, i.e. inheriting the InstanceDeclarations of that Node
