9.23 VisionPowerSupplyType ObjectType Definition

The VisionPowerSupplyType provides a concrete ObjectType which can be instantiated directly implementing the IVisionInfoType interface. The instances of this object type shall be organized in the PowerSupplies folder of the VisionSystemAssetType. It is formally defined in Table 54.

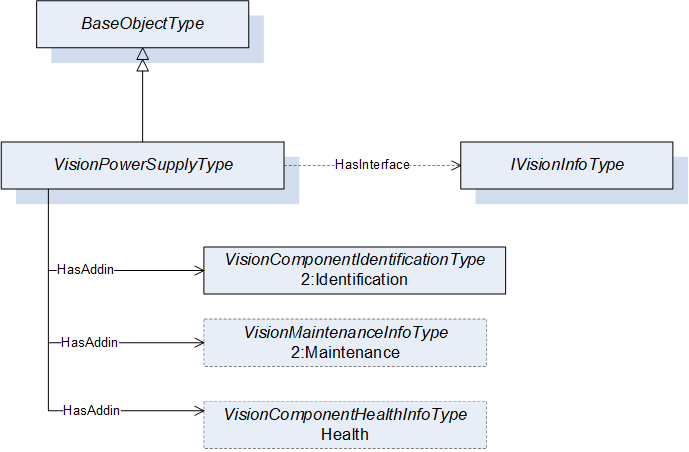

Figure 36 – VisionPowerSupplyType
Table 54 – VisionPowerSupplyType Definiton
Attribute Value
BrowseNameVisionPowerSupplyType
IsAbstractFalse
References Node Class BrowseName DataType TypeDefinition Other
Subtype of the 0:BaseObjectType defined in OPC 10000-5, i.e. inheriting the InstanceDeclarations of that Node
0:HasInterfaceObjectTypeIVisionInfoType
Applied from IVisionInfoType
0:HasAddInObject2:IdentificationVisionComponentIdentificationTypeM
0:HasAddInObject2:MaintenanceVisionMaintenanceInfoTypeO
0:HasAddInObjectHealthVisionHealthInfoTypeO
