The VisionTriggerSensorType provides a concrete ObjectType which can be instantiated directly implementing the IVisionInfoType interface. The instances of this object type shall be organized in the TriggerSensors folder of the VisionSystemAssetType. It is formally defined in Table 49.

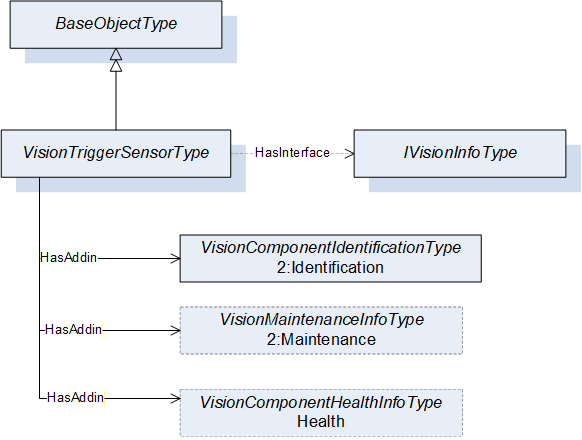

Figure 31 – VisionTriggerSensorType
Table 49 – VisionTriggerSensorType Definiton
Attribute
Value
BrowseName
VisionTriggerSensorType
IsAbstract
False
References
Node Class
BrowseName
DataType
TypeDefinition
Other
Subtype of the 0:BaseObjectType defined in OPC 10000-5, i.e. inheriting the InstanceDeclarations of that Node
