9.13 VisionLampType ObjectType Definition

The VisionLampType provides a concrete ObjectType which can be instantiated directly implementing the ILampType interface. The instances of this object type shall be organized in the Lamps folder of the VisionSystemAssetType. It is formally defined in Table 44.

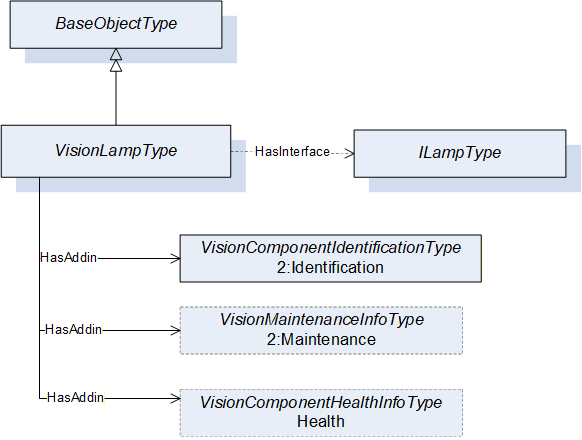

Figure 26 – VisionLampType
Table 44 – VisionLampType Definiton
Attribute Value
BrowseNameVisionLampType
IsAbstractFalse
References Node Class BrowseName DataType TypeDefinition Other
Subtype of the 0:BaseObjectType defined in OPC 10000-5, i.e. inheriting the InstanceDeclarations of that Node
0:HasInterfaceObjectTypeILampType
Applied from ILampType
0:HasAddInObject2:IdentificationVisionComponentIdentificationTypeM
0:HasAddInObject2:MaintenanceVisionMaintenanceInfoTypeO
0:HasAddInObjectHealthVisionHealthInfoTypeO
