9.20 VisionAcquisitionBackgroundType ObjectType Definition

The VisionAcquisitionBackgroundType provides a concrete ObjectType which can be instantiated directly implementing the IVisionInfoType interface. The instances of this object type shall be organized in the AcquisitionBackgrounds folder of the VisionSystemAssetType. It is formally defined in Table 51.

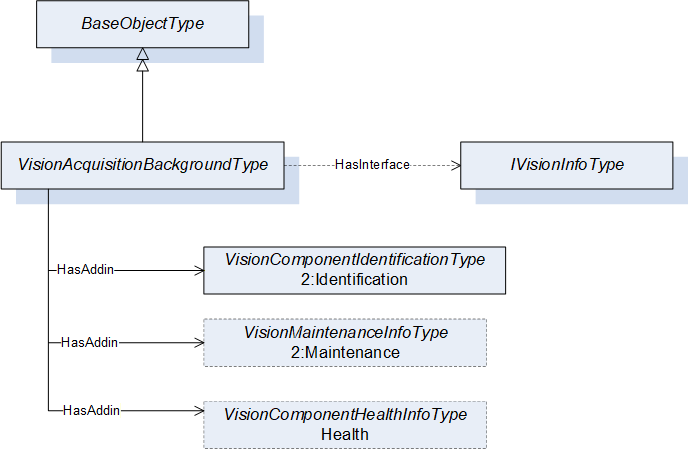

Figure 33 – VisionAcquisitionBackgroundType

Table 51 – VisionAcquisitionBackgroundType Definiton

Attribute		Value
BrowseName		VisionAcquisitionBackgroundType
IsAbstract		False

References
Subtype of the 0:BaseObjectType defined in OPC 10000-5, i.e. inheriting the InstanceDeclarations of that Node
0:HasInterface	ObjectType	IVisionInfoType

Applied from IVisionInfoType

0:HasAddIn	Object	2:Identification	VisionComponentIdentificationType	M
0:HasAddIn	Object	2:Maintenance	VisionMaintenanceInfoType	O
0:HasAddIn	Object	Health	VisionHealthInfoType	O
