7.2.2.6 SafetyConsumer sequence diagram for operator acknowledgment (informative)

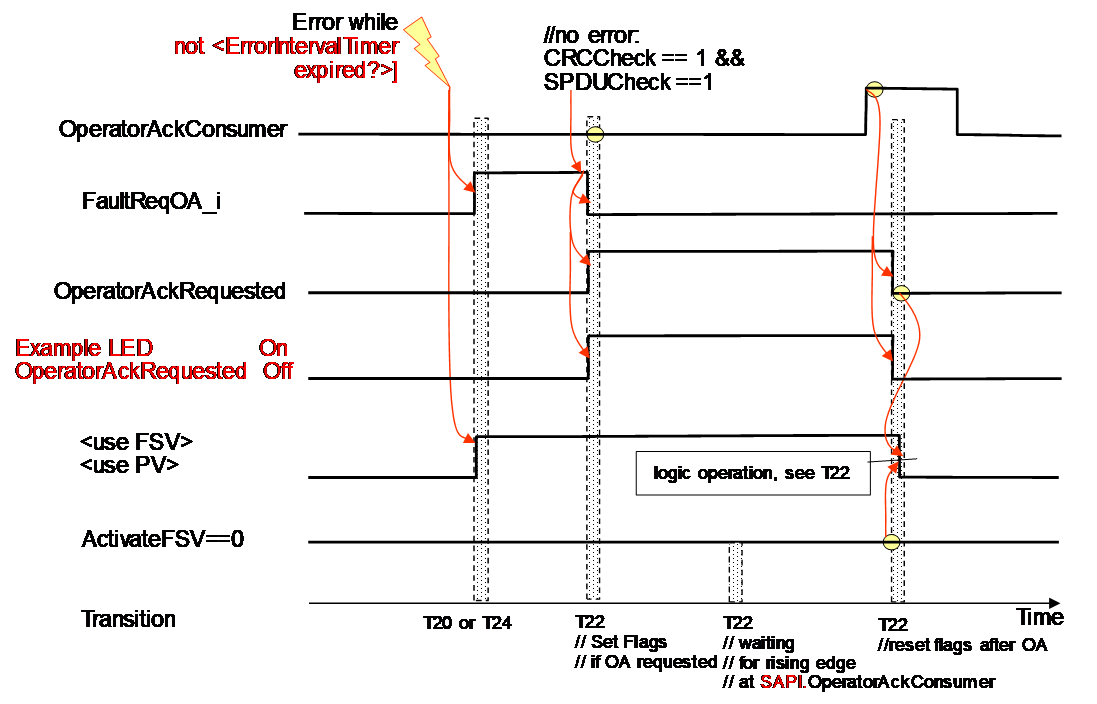

Figure 19 shows the sequence after the detection of an error requiring operator acknowledge until communication returns to delivering process values again.

After the error is gone the sequence follows the logic of T22 in Table 35.
