6.2 Textile Testing Device ObjectType hierarchy

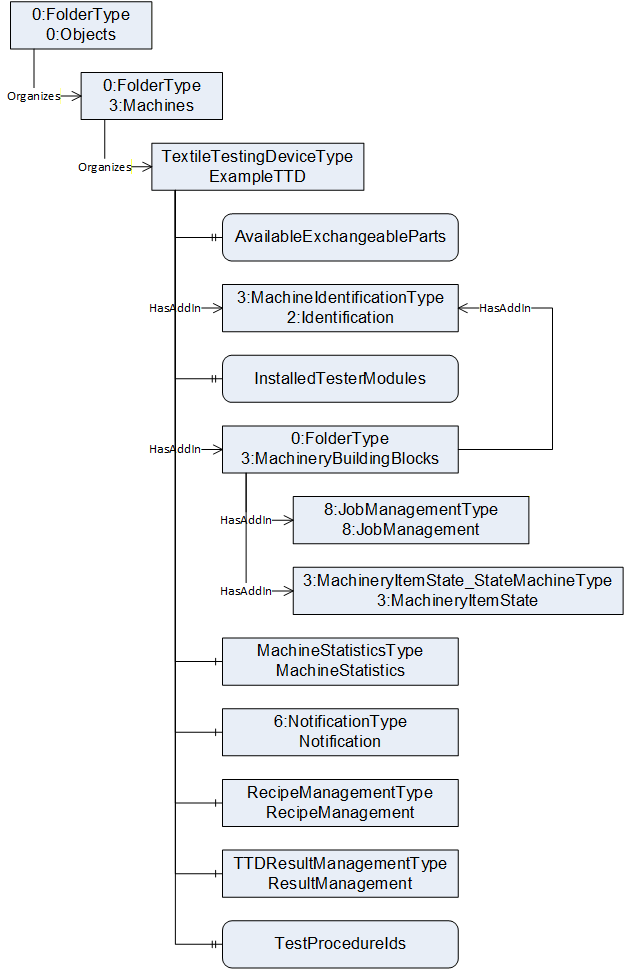

The ObjectType hierarchy of this companion specification is shown within Figure 7 to Figure 10. Objects from external specifications are positioned within greyish-green boxes.

6.2.1 ObjectTypes for Configuration

Figure 7 shows the inheritance hierarchy of all ObjectTypes used for Configuration.

6.2.2 Identification, Device Status, Job Management, Notification, Alarms and Statistics

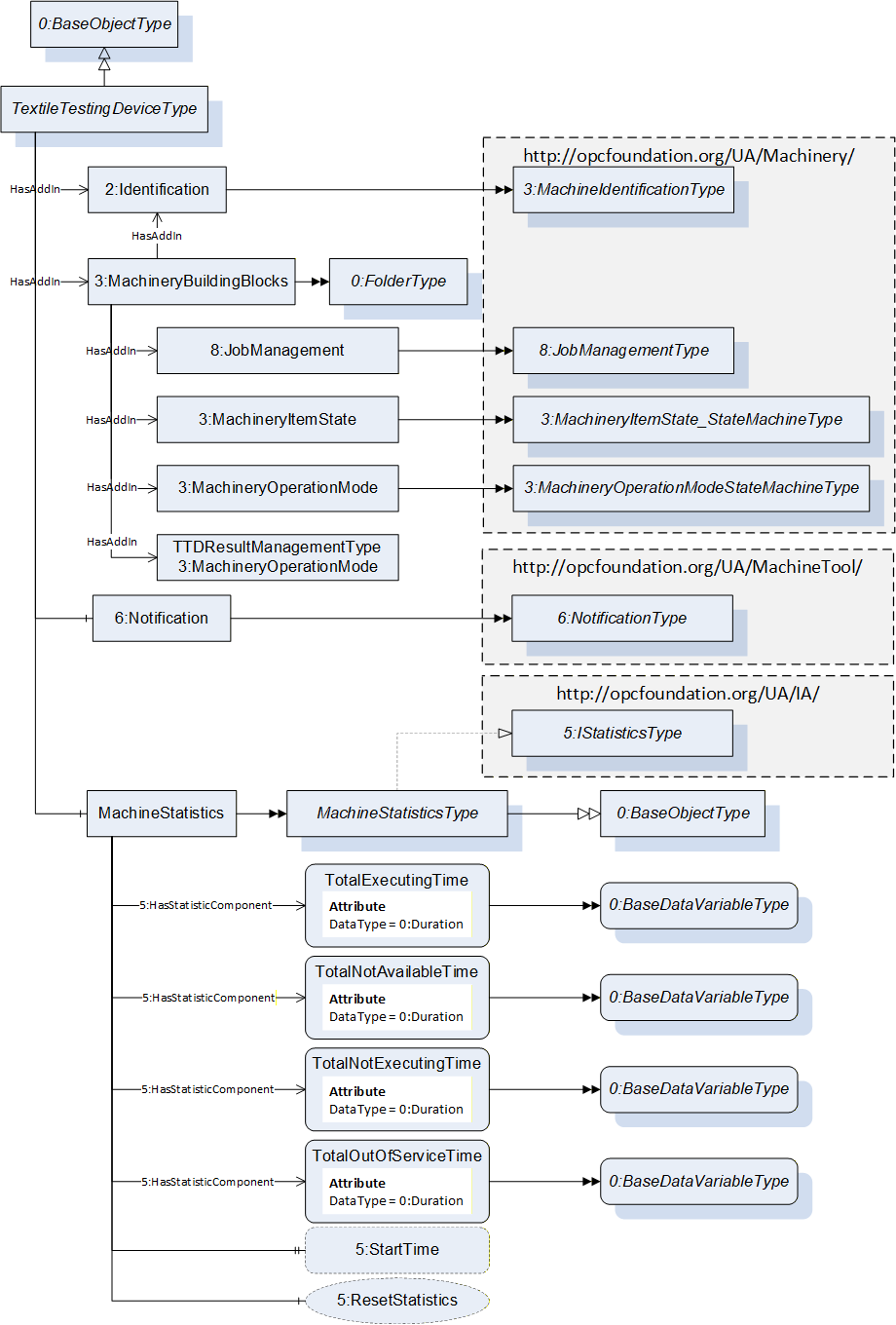

Figure 8 shows the inheritance hierarchy of all ObjectTypes used for Identification, Device Status, Job Management, Notification, Alarms and Events and Statistics.

6.2.3 Result Management

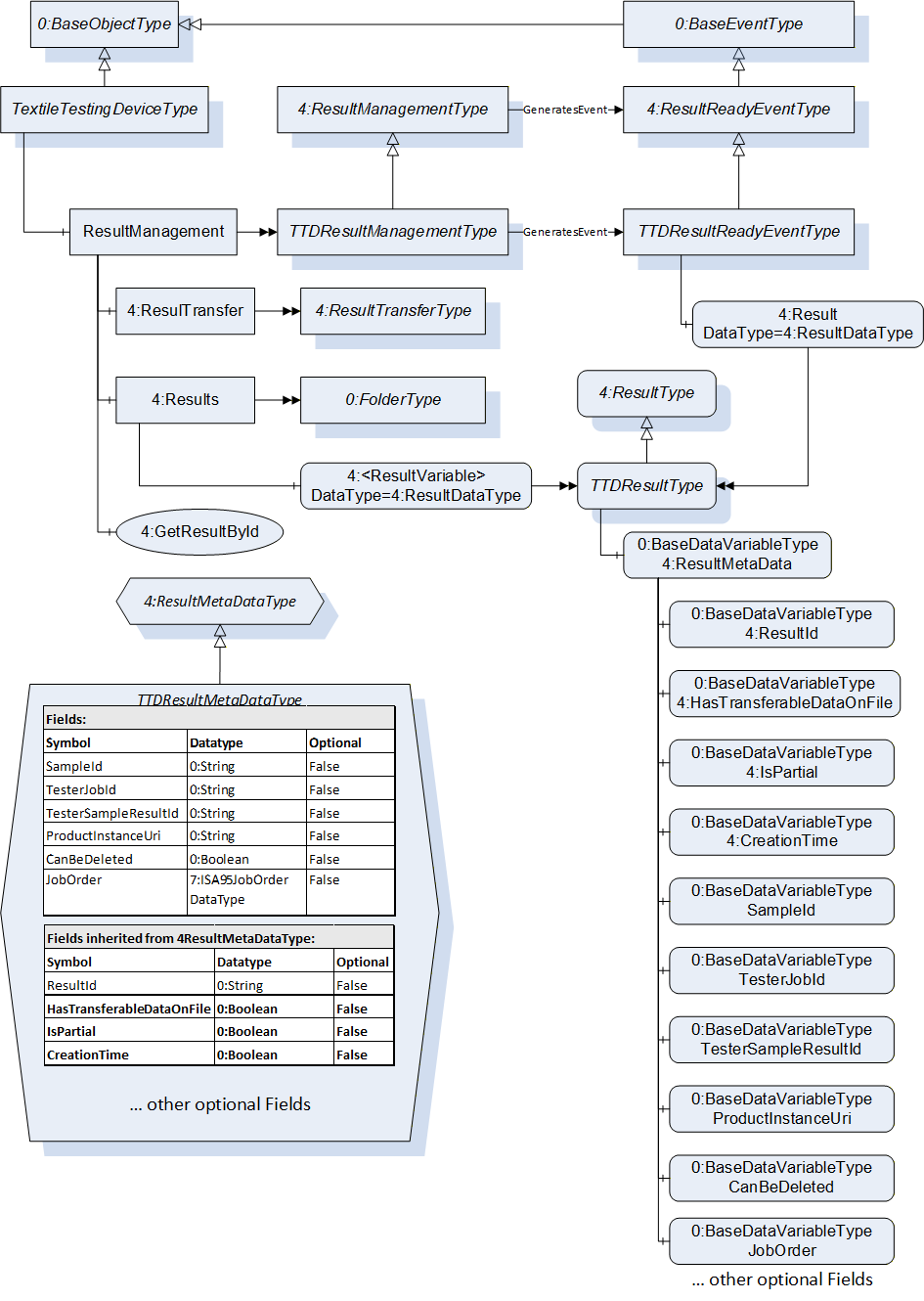

Figure 9 shows the inheritance hierarchy of all ObjectTypes used for Result Management of the TTD.

6.2.4 Recipe Management

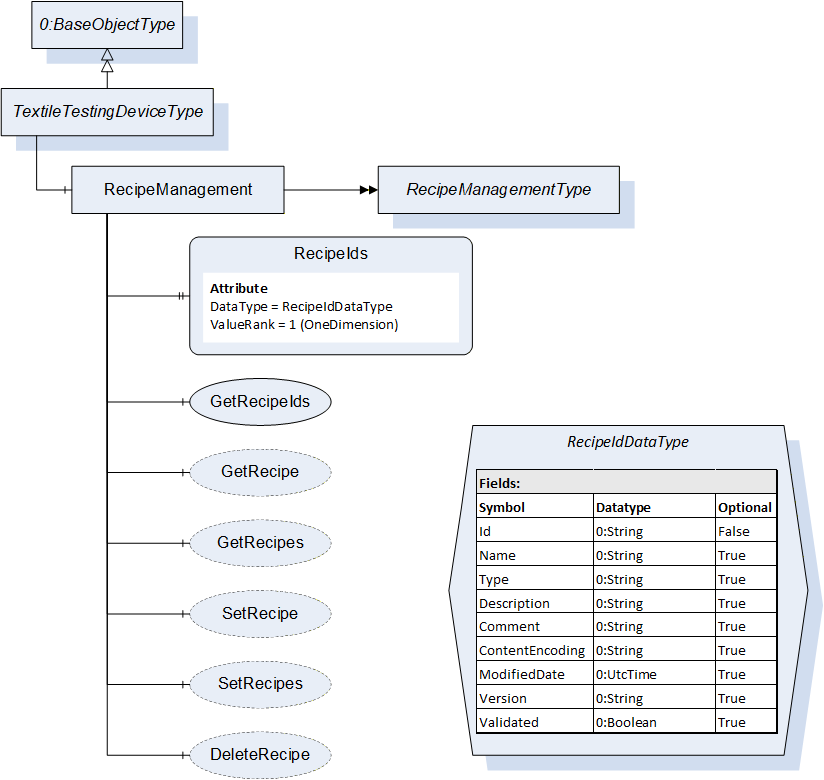

Figure 10 shows the inheritance hierarchy of all ObjectTypes used for Recipe Management of the TTD.
