15 (informative) Example of a minimal Geometric Measurement System

Example 1 – Minimal GMS

Figure B.26 shows the address space of an OPC UA Server of a simple scale. The Object SimpleGMS represents the scale. The Object has the ObjectType GMSType and all mandatory nodes. Figure B.27 shows the same nodeset in Graphical Notation.

Figure B.26 – Example of a GMS in an OPC UA Client

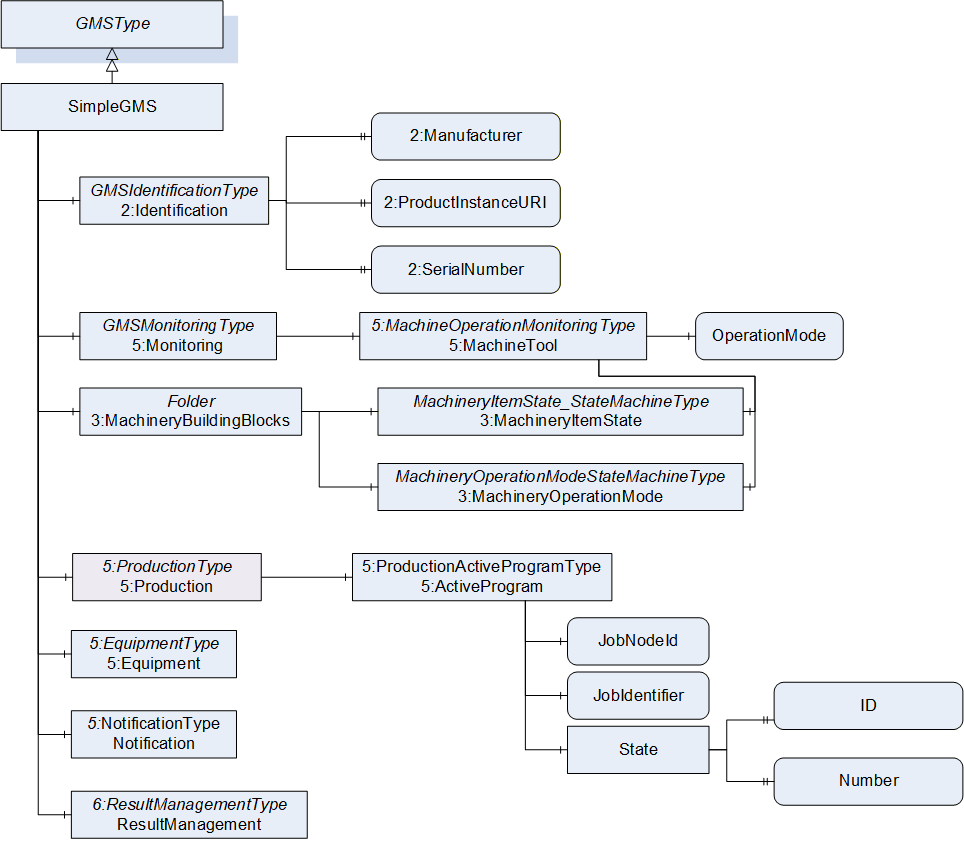

Figure B.27 – Graphical Notation of the example 1
