7.8 WSSuspendedStateMachineType Definition

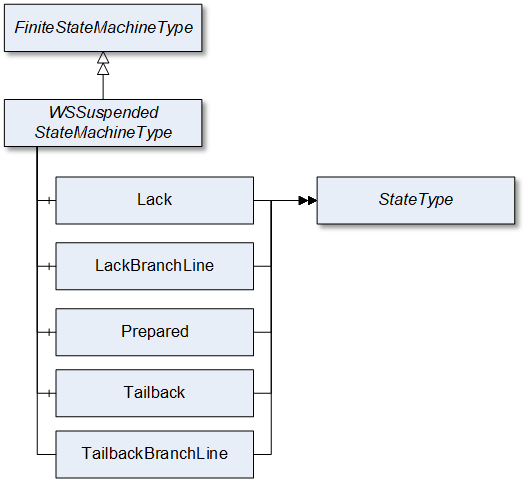

The WSSuspendedStateMachineType provides the WS-specific substates of the PackML state Suspended and is formally defined in Table 22.
| Attribute | Value | |||||
| BrowseName | WSSuspendedStateMachineType | |||||
| IsAbstract | False | |||||
| References | Node Class | BrowseName | DataType | TypeDefinition | Other | |
|---|---|---|---|---|---|---|
| Subtype of the 0:FiniteStateMachineType defined in OPC 10000-5 | ||||||
| 0:HasComponent | Object | Lack | 0:StateType | M | ||
| 0:HasComponent | Object | LackBranchLine | 0:StateType | M | ||
| 0:HasComponent | Object | Prepared | 0:StateType | M | ||
| 0:HasComponent | Object | Tailback | 0:StateType | M | ||
| 0:HasComponent | Object | TailbackBranchLine | 0:StateType | M | ||
Lack: The unit/machine shall not produce product in this state due to a lack detected in the inlet of the machine.
LackBranchLine: The unit/machine shall not produce product in this state due to a lack detected in the branch line inlet of the unit/machine.
Prepared: The unit/machine is ready to carry out its intended function. However, it is in a waiting state which was not recognized as a lack or tailback state and can automatically start again.
Tailback: The unit/machine shall not produce product in this state due to a tailback detected in the inlet of the machine.
TailbackBranchLine: The unit/machine shall not produce product in this state due to a tailback detected in the branch line inlet of the unit/machine.
