8 OPC UA DataTypes

8.1 UserProfileDataType

This structure contains the information about a logged in user with his profile data. The structure is defined in Table 23.

Table 23 – UserProfileDataType Structure

Name	Type	Description
UserProfileDataType	structure	Subtype of Structure defined in OPC UA 10000-5
Name	0:String	Human-readable name of the user profile.
LoginTime	0:DateTime	Date and Time in UTC this profile is logged in.
Language	0:LocaleId	The Language that is configured for the user
MeasurementFormat	0:String	Defines which system of measurement (collection of units of measurement) is used. Use “SI” for the International System of Units.
AccessLevel	0:String	Describes the access right the user Profile has. This is a human readable string and should be in English language, e.g. “Administrator”
OpcUaUser	0:Boolean	This flag is true if the user is logged in via OPC UA. If it is false the user is logged in another way e.g. as local user.

Its representation in the AddressSpace is defined in Table 24.

Table 24 – UserProfileDataType Definition

Attribute	Value
BrowseName	UserProfileDataType
IsAbstract	False

References	Node Class	BrowseName	DataType	TypeDefinition	Other
Subtype of Structure defined in OPC UA 10000-5

Conformance Units
FlatGlass_UserProfileDataType

8.2 FileFormatDataType

A file format describes the syntax and semantic of a document. This structure contains the information about a file format. The structure is defined in Table 25. If there are different version allowed all must be added.

Table 25 – FileFormatDataType Structure

Name	Type	Description
FileFormatDataType	structure	Subtype of Structure defined in OPC UA 10000-5
Name	0:String	The Name of the FileFormat. The following strings are examples for a FileFormat Name: “Edicut”, ”Lisec.TRF”, ”Lenhardt”
FileExtension	0:String	Is the identifier specified as a suffix to the name of a file. The FileExtention has a leading dot. So, the FileExtension should be look like “.nc”,”.json”,”.edi”
Version	0:SemanticVersionString	Version of the FileFormat. Syntax is major.minor[.build] (example 2.5 or 5.9.2)

Its representation in the AddressSpace is defined in Table 26.

Table 26 – FileFormatDataType Definition

Attribute	Value
BrowseName	FileFormatDataType
IsAbstract	False

References	Node Class	BrowseName	DataType	TypeDefinition	Other
Subtype of Structure defined in OPC UA 10000-5

Conformance Units
FlatGlass_FileFormatDataType

8.3 ReasonDescriptionType

This structure contains the information about a reason for a state or status e.g., the reason why a job is in the State “NotAllowToRun”. The structure is defined inTable 27. If there are different version allowed all must be added.

Table 27 – ReasonDescriptionType Structure

Name	Type	Description	Optional
ReasonDescriptionType	structure	Subtype of Structure defined in OPC UA 10000-5
Description	0:LocalizedText	The description is a human-readable text that describes the reason oft he state or status	False
Reference	0:String	Reference to the source of a reason. This can be an identifiable element in the WorkMaster or an NodeId	True
Category	0:String	The category helps classify the reason, and the following categories should be used:NoDetails MaterialRelated ToolRelated WorkMasterParsingInvalid WorkMasterRelated Restrictions SafetyRelated Other	True
VendorCode	0:String	A vendor-specific code may be included, which can be utilized for automatic recovery.	True

Its representation in the AddressSpace is defined in Table 28.

Table 28 – ReasonDescriptionType Definition

Attribute	Value
BrowseName	ReasonDescriptionType
IsAbstract	False

References	Node Class	BrowseName	DataType	TypeDefinition	Other
Subtype of Structure defined in OPC UA 10000-5

Conformance Units
FlatGlass_ReasonDescriptionType

8.4 CoordinateSystemEnumeration

This enumeration specifies the different options in placing the machine processing coordinate systems. The eight different options are shown in Figure 13, as well as some examples in Figure 14 and Figure 15.

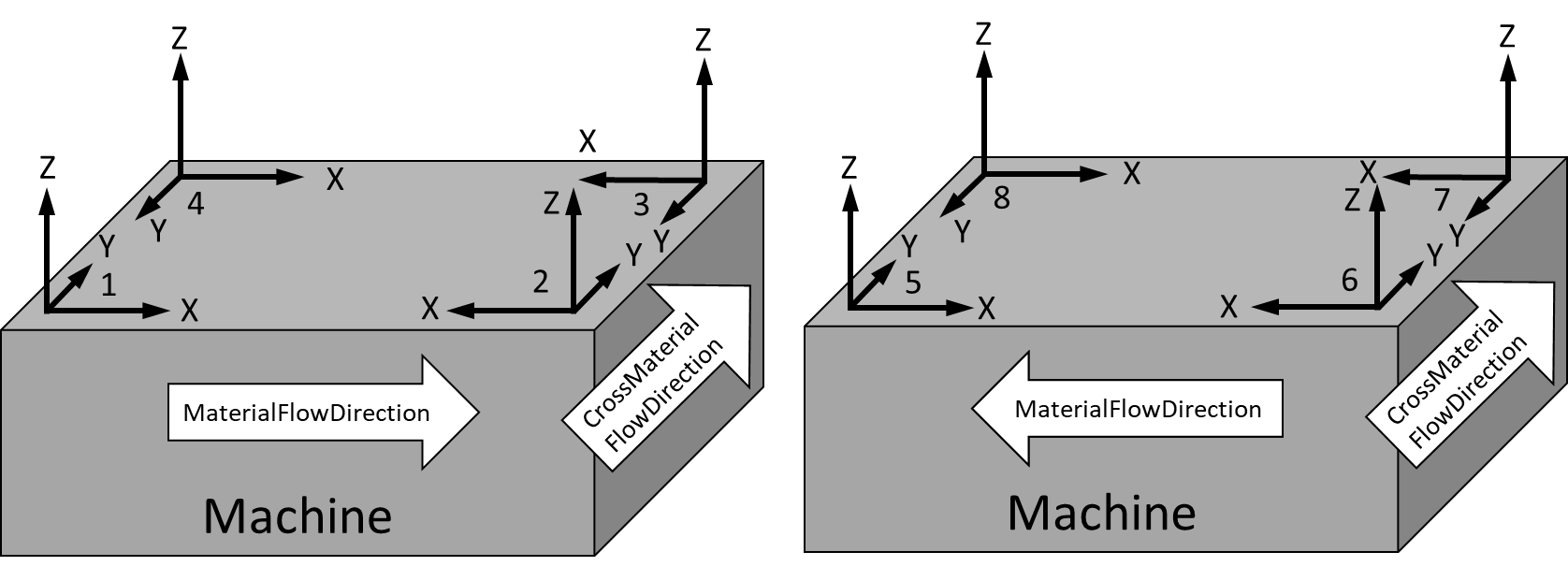

Figure 13 – Machine processing coordinate systems

This enumeration is defined in Table 29.

Table 29 – CoordinateSystemEnumeration Items

Name	Value	Description
Unknown	0	The CoordinateSystem is unknown.
System1	1	Lefthanded system, X-axis along material flow, Y-axis along cross material flow
System2	2	Righthanded system, X-axis against material flow, Y-axis along cross material flow
System3	3	Lefthanded system, X-axis against material flow, Y-axis against cross material flow
System4	4	Righthanded system, X-axis along material flow, Y-axis against cross material flow
System5	5	Lefthanded system, X-axis against material flow, Y-axis along cross material flow
System6	6	Righthanded system, X-axis along material flow, Y-axis along cross material flow
System7	7	Lefthanded system, X-axis along material flow, Y-axis against cross material flow
System8	8	Righthanded system, X-axis against material flow, Y-axis against cross material flow

Its representation in the AddressSpace is defined in Table 30.

Table 30 – CoordinateSystemEnumeration Definition

Attribute	Value
BrowseName	CoordinateSystemEnumeration
IsAbstract	False

References	Node Class	BrowseName	DataType	TypeDefinition	Other
Subtype of the Enumeration type defined in OPC 10000-5
0:HasProperty	Variable	0:EnumStrings	0:LocalizedText[]	0:PropertyType

Conformance Units
FlatGlass_CoordinateSystemEnumeration

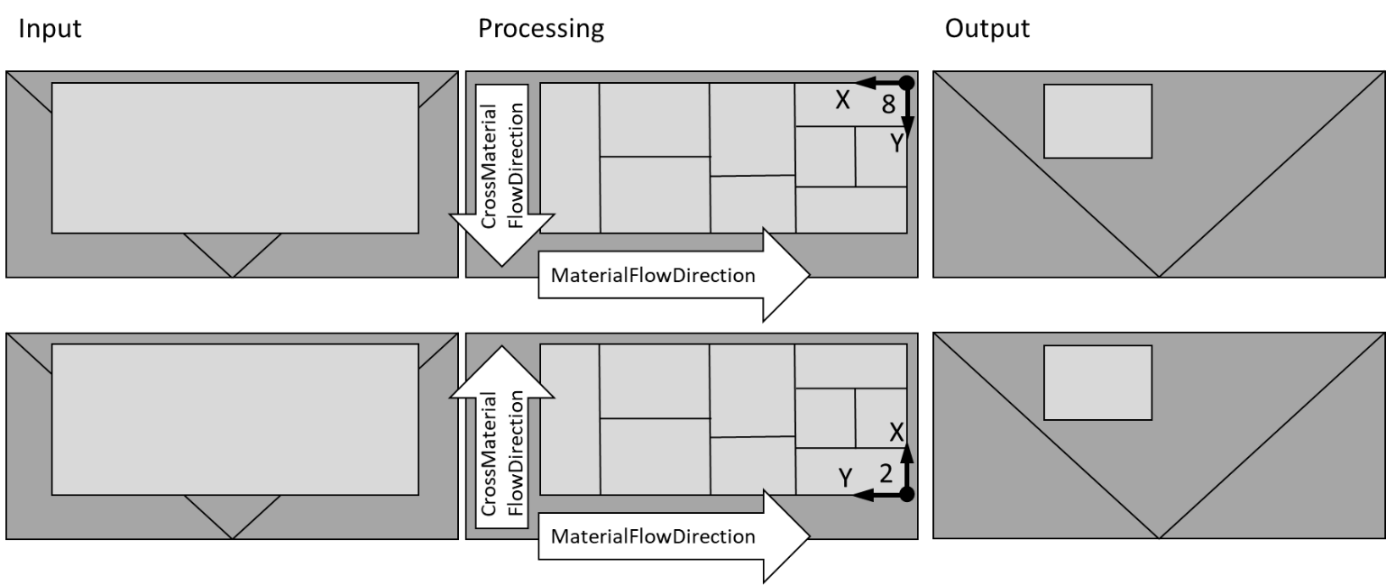

Figure 14 – Example of glass processing machines for flat lying processing (top view)

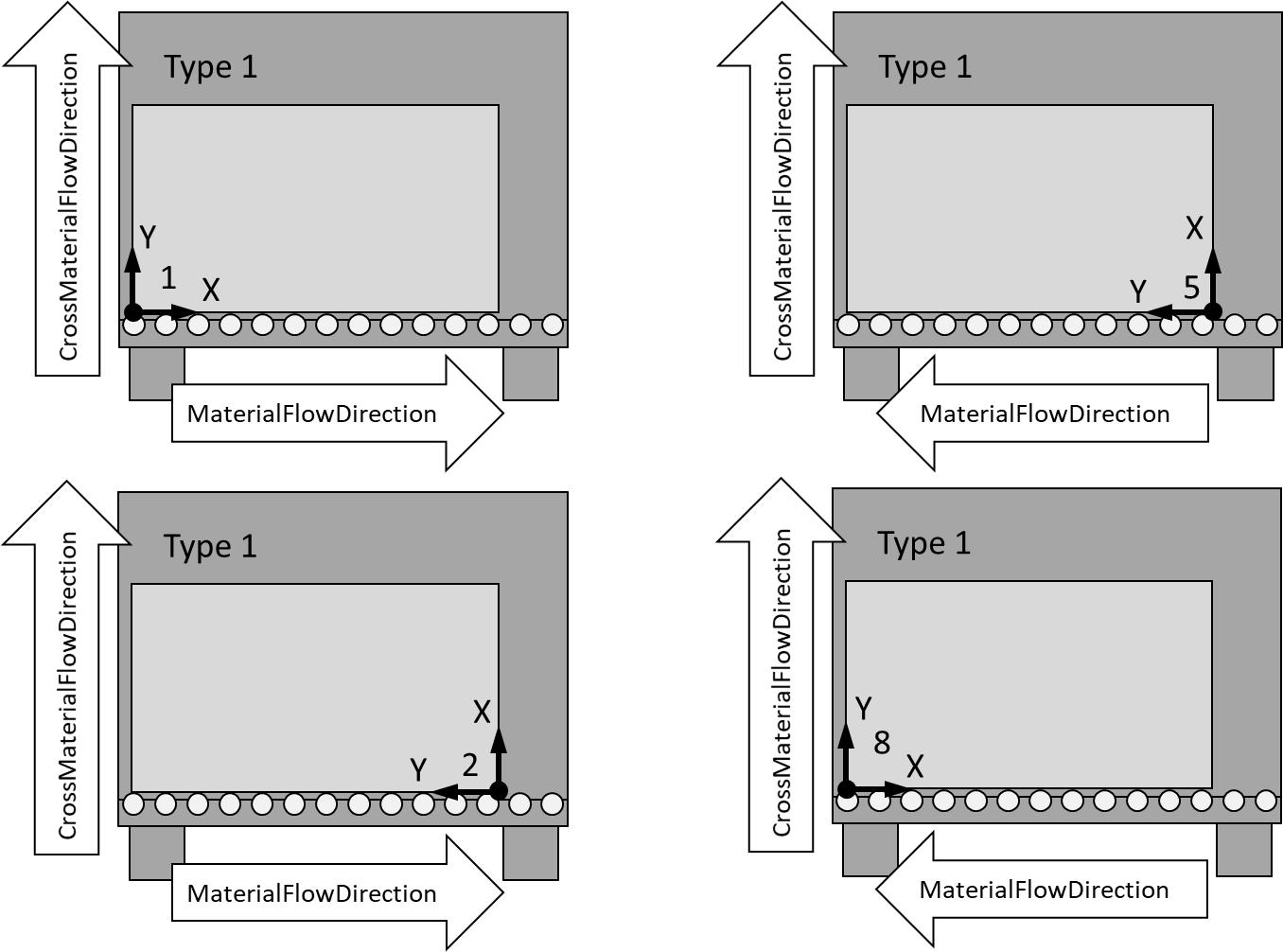

Figure 15 – Example of glass processing machines with standing processing (front view)

8.5 ProcessingParameterDataType

The structure is defined in Table 31. If there are different version allowed all must be added.

Table 31 – ProcessingParameterDataType Structure

Name	Type	Description
ProcessingParameterDataType	structure	Subtype of Structure defined in OPC UA 10000-5
Name	0:String	The identifier for the ProcessingParameter.
Description	0:String	A description of the ProcessingParameter.
ValueType	ValueDataType	Definition of the types of values (e.g.; string, percentages, etc.). See 8.8 ValueDataType.
TypicalValue	0:String	Specification of a typical value for the ProcessingParameter.
Mandatory	0:Boolean	Specification of whether the ProcessingParameter is mandatory.
EClass	EClassTermDataType	Semantic EClass identifier

Its representation in the AddressSpace is defined in Table 32.

Table 32 – ProcessingParameterDataType Definition

Attribute	Value
BrowseName	ProcessingParameterDataType
IsAbstract	False

References	Node Class	BrowseName	DataType	TypeDefinition	Other
Subtype of Structure defined in OPC UA 10000-5

Conformance Units
FlatGlass_ProcessingParameterDataType

8.6 ProcessingCategoryDataType

The structure is defined in Table 33. If there are different version allowed all must be added.

Table 33 – ProcessingCategoryDataType Structure

Name	Type	Description	Other
ProcessingCategoryDataType	structure	Subtype of Structure defined in OPC UA 10000-5
ID	0:String	The identifier for the ProcessingCategory from the predefined table above, a mandatory entry in int32 format.	M
Description	0:String	A description of the ProcessingCategory.	O
SupportedParameter	ProcessingParameterDataType[]	One or more SupportedParameter for the ProcessingCategory.	O
SupportedAssignment	0:String[]	One or more SupportedAssignment for the ProcessingCategory	O
SupportedVariable	ProcessingParameterDataType[]	Vendor-specific names	O
SupportsTransformation	0:Int32	An integer value indicating whether transformation support is not provided (0), optional (1), or mandatory (2)	O
SupportsSubProcessing	0:Int32	An integer value showing whether the category optionally (1) or mandatorily (2) supports sub-processings, or does not support them at all (0).	O

Its representation in the AddressSpace is defined in Table 34.

Table 34 – ProcessingCategoryDataType Definition

Attribute	Value
BrowseName	ProcessingCategoryDataType
IsAbstract	False

References	Node Class	BrowseName	DataType	TypeDefinition	Other
Subtype of Structure defined in OPC UA 10000-5

Conformance Units
FlatGlass_ProcessingCategoryDataType

8.7 EClassTermDataType

The structure is defined in Table 35. If there are different version allowed all must be added.

Table 35 – EClassTermDataType Structure

Name	Type	Description
EClassTermDataType	structure	Subtype of Structure defined in OPC UA 10000-5
ID	0:String	A internal identifier for the EClassTerm which is not part of the EClass dictionary
Description	0:String	A description of the EClassTerm
EClass	0:String	The unique EClass identifier e.g. 0173-1#02-AAO742#002

Its representation in the AddressSpace is defined in Table 36.

Table 36 – EClassTermDataType Definition

Attribute	Value
BrowseName	EClassTermDataType
IsAbstract	False

References	Node Class	BrowseName	DataType	TypeDefinition	Other
Subtype of Structure defined in OPC UA 10000-5

Conformance Units
FlatGlass_EClassTermDataType

8.8 ValueDataType

The structure is defined in Table 37. If there are different version allowed all must be added.

Table 37 – ValueDataType Structure

Name	Type	Description
ValueDataType	structure	Subtype of Structure defined in OPC UA 10000-5
Name	0:String	The identifier for the ValueDataType
Description	0:String	A description of the ValueDataType
BaseUnit	0:String	An optional string to define the unit of measurement for the ValueDataType.
PossibleValue	0:String	An optional string to define a list of possible values for the ValueDataType

Its representation in the AddressSpace is defined in Table 38.

Table 38 – ValueDataType Definition

Attribute	Value
BrowseName	ValueDataType
IsAbstract	False

References	Node Class	BrowseName	DataType	TypeDefinition	Other
Subtype of Structure defined in OPC UA 10000-5

Conformance Units
Subtype of Structure defined in OPC UA 10000-5
