1 Scope

This part of OPC 10000 describes the OPC Unified Architecture Field eXchange (OPC UA FX) Profiles. The Profiles in this document are used to segregate OPC UA FX features with regard to testing of OPC UA products implementing OPC UA FX functionality. This testing will be performed in the same way Profiles defined in OPC 10000‑7 are tested.

Most OPC UA FX applications will conform to several, but not all of the Profiles.

2 Normative references

The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments and errata) applies.

OPC 10000‑1, OPC Unified Architecture - Part 1: Overview and Concepts

3 Terms and definitions

For the purposes of this document, the terms and definitions given in OPC 10000‑1, OPC 10000‑7, OPC 10000‑80, OPC 10000‑81, and OPC 10000‑82 apply.

4 Overview

4.1 General

This document adds ConformanceUnits, ConformanceGroups, Profiles, and Facets grouping OPC UA FX features to the Profile Model defined in OPC 10000‑7.

4.2 Profile Categories

UAFX Profiles are grouped into categories defined in OPC 10000‑7 to help vendors and end-users understand the applicability of a Profile. A Profile can be assigned to more than one category. Table 1 lists ProfileCategories used in this document that have been added to support UAFX.

5 Conformance Units

5.1 Overview

A ConformanceUnit, defined in OPC 10000‑7, represents an individually testable entity. For improved clarity, the list of ConformanceUnits is arranged into named ConformanceGroups. Table 2 lists the ConformanceGroups that reflect the UAFX Information Models and features. These ConformanceGroups and the ConformanceUnits are detailed in the following subclauses.

5.2 UAFX Information Model

5.2.1 Overview

This subclause describes UAFX Information Model ConformanceUnits. The ConformanceGroups included are UAFX Base, UAFX AutomationComponent, UAFX FxAsset, UAFX FunctionalEntity and UAFX ConnectionManager.

5.2.2 UAFX Base

Table 3 describes Base UAFX Information Model ConformanceUnits. For additional information about these items, please refer to OPC 10000‑81.

5.2.3 UAFX AutomationComponent

Table 4 describes AutomationComponent related UAFX Information Model ConformanceUnits. For additional information about these items, please refer to OPC 10000‑81.

5.2.4 UAFX FxAsset

Table 5 describes Asset-related UAFX Information Model ConformanceUnits. For additional information about these items, please refer to OPC 10000‑81.

5.2.5 UAFX FunctionalEntity

Table 6 describes FunctionalEntity related UAFX Information Model ConformanceUnits. For additional information about these items, please refer to OPC 10000‑81.

5.2.6 UAFX ConnectionManager

Table 7 describes ConnectionManager-related UAFX Information Model ConformanceUnits. For additional information about these items, please refer to OPC 10000‑81.

5.3 UAFX Networking

5.3.1 Overview

This subclause describes UAFX Networking features and quantities ConformanceUnits. The ConformanceGroups included are UAFX Ethernet Networking Features and UAFX Ethernet Networking Quantities.

5.3.2 UAFX Ethernet networking features

Table 8 describes UAFX Ethernet Networking Features ConformanceUnits which describe IEEE 802 features of End Station Components, Bridge Components, IA-stations, and UAFX Stations. For additional information about these items, please refer to OPC 10000‑82.

5.3.3 UAFX Ethernet Networking Quantities

Table 9 describes UAFX Ethernet Networking Quantities ConformanceUnits which define concrete values or value ranges for UAFX Ethernet Networking Features ConformanceUnits listed in Table 8.

5.4 UAFX OfflineEngineering

5.4.1 Overview

This subclause describes UAFX OfflineEngineering ConformanceUnits. The ConformanceGroups included are UAFX OfflineEngineering and UAFX OfflineEngineering Security.

5.4.2 UAFX OfflineEngineering Descriptor

Table 10 describes UAFX OfflineEngineering Descriptor ConformanceUnits, which describe the structure and syntax of a Descriptor file. For additional information about these items, please refer to OPC 10000‑83.

5.4.3 UAFX OfflineEngineering Descriptor Security

Table 11 describes UAFX OfflineEngineering Security ConformanceUnits which describe the security policies for signing Descriptors. For additional information about these items, please refer to OPC 10000‑83.

5.4.4 UAFX Descriptor contents

5.4.4.1 Overview

This subclause describes UAFX Descriptor contents ConformanceUnits. The ConformanceGroups included are UAFX Descriptor Contents – UAFX Information Model, UAFX Descriptor Contents – Networking Information Model, UAFX Descriptor Contents – Core UA Information Model.

5.4.4.2 UAFX Descriptor Contents – UAFX Information Model

Table 12 describes UAFX Descriptor Contents – UAFX Information Model ConformanceUnits, which describe the UAFX Information Model contents of a Descriptor. For additional information about these items, please refer to OPC 10000‑81.

5.4.4.3 UAFX Descriptor Contents – Networking Information Model

Table 13 describes UAFX Descriptor Contents – Networking Information Model ConformanceUnits, which describe the UAFX Station Information Model contents of a Descriptor. For additional information about these items, please refer to OPC 10000‑82.

5.4.4.4 UAFX Descriptor Contents – Core UA Information Model

Table 14 describes UAFX Descriptor Contents – Core UA Information Model ConformanceUnits, which describe the Core UA Information Model contents of a Descriptor. For additional information about these items, please refer to OPC 10000‑7.

6 Profiles

6.1 Overview

This clause includes a listing of the categories that a Profile can be grouped into, a list of named Profiles, and the detailed listing of each Profile, including directly defined ConformanceUnits and any sub-Profiles included in the Profile.

Subclauses in 6.6 describe Profiles in a tabular format.

6.2 Profile list

Table 15 lists UAFX Profiles. The Profile table is ordered by in the order they appear in this document. The table includes a list of categories the Profile is associated with and a URI. The URI is used to uniquely identify a Profile. The compliance of a product related to these Profiles is described in OPC 10000‑7.

The contents of each of the listed Profiles will be described in a subclause of 6.6. Each table may contain references to additional Profiles and/or ConformanceUnits. If a Profile is referenced, it means that it is completely included. The ConformanceUnits are referenced using their name and conformance group. For the details of the ConformanceUnit, the reader should examine the ConformanceUnit details in clause 5.

6.3 Conventions for Profile definitions

The Profiles defined in this document shall follow the naming conventions defined in OPC 10000‑7.

6.4 Profile versioning

Versioning of the Profiles defined in this document shall follow the rules defined in OPC 10000‑7.

6.5 Applications

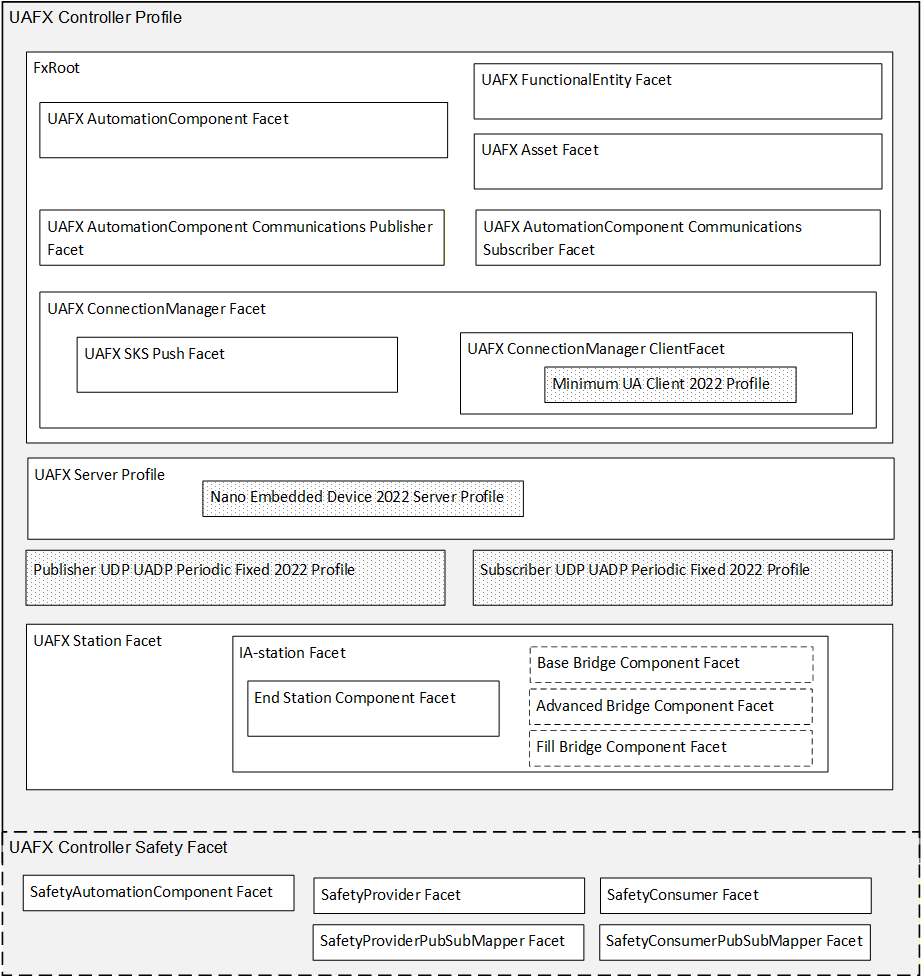

Figure 1 illustrates the Profiles and Facets that make up a UAFX Controller application.

6.6 Profile tables

6.6.1 Overview

Each table contains three columns. The first column is a description of the ConformanceGroup that the ConformanceUnit is part of (see 5.1). This allows the reader to easily find the ConformanceUnit. This column may also be empty, in which case the listed item is not a ConformanceUnit, but an included Profile or Facet. The second column is a brief description of the ConformanceUnit or included Profile or Facet. The last column indicates if the ConformanceUnit is optional or required. For an included Profile or Facet the last column is always crossed-out, indicating that the inclusion is mandated.

6.6.2 UAFX Information Model Facets

6.6.2.1 Overview

This clause defines Facets for the UAFX Information Model illustrated in Figure 2, Figure 3, and Figure 4.

6.6.2.2 UAFX AutomationComponent 2024 Facet

Table 16 describes the details of the UAFX AutomationComponent 2024 Facet.

This Facet includes the functionality common to all AutomationComponents. It supersedes the UAFX AutomationComponent Facet.

6.6.2.3 UAFX AutomationComponent Communication Publisher Facet

Table 17 describes the details of the UAFX AutomationComponent Communication Publisher Facet.

This Facet includes the functionality needed for a UAFX Publisher.

6.6.2.4 UAFX AutomationComponent Communication Subscriber Facet

Table 18 describes the details of the UAFX AutomationComponent Communication Subscriber Facet.

This Facet includes the functionality needed for a UAFX Subscriber.

6.6.2.5 UAFX AutomationComponent Diagnostic Counters Facet

Table 19 describes the details of the UAFX AutomationComponent Diagnostic Counters Facet.

This Facet includes the functionality needed for tracking AutomationComponent Connection establishment activities.

6.6.2.6 UAFX AutomationComponent Logging Facet

Table 20 describes the details of the UAFX AutomationComponent Logging Facet.

This Facet includes the functionality needed for logging AutomationComponent activities.

6.6.2.7 UAFX IFunctionalEntity Facet

Table 21 describes the details of the UAFX IFunctionalEntity Facet.

This Facet includes the functionality common to all FunctionalEntities.

6.6.2.8 UAFX IFunctionalEntity Run-Time Diagnostic Counters Facet

Table 22 describes the details of the UAFX IFunctionalEntity Run-Time Diagnostic Counters Facet.

This Facet includes the functionality needed for tracking FunctionalEntity Connection operation activities.

6.6.2.9 UAFX IFunctionalEntity Establishment Diagnostic Counters Facet

Table 23 describes the details of the UAFX IFunctionalEntity Establishment Diagnostic Counters Facet.

This Facet includes the functionality needed for tracking FunctionalEntity Connection establishment activities.

6.6.2.10 UAFX FunctionalEntity Facet

Table 24 describes the details of the UAFX FunctionalEntity Facet.

This Facet includes the base functionality for a FunctionalEntity.

6.6.2.11 UAFX top-level FunctionalEntity Facet

Table 25 describes the details of the UAFX top-level FunctionalEntity Facet.

This Facet includes the functionality needed by a FunctionalEntity that is referenced directly by the AutomationComponentType FunctionalEntities Folder.

6.6.2.12 UAFX ConnectionEndpoint Diagnostics Facet

Table 26 describes the details of the UAFX ConnectionEndpoint Diagnostics Facet.

This Facet includes the functionality needed to track ConnectionEndpoint creation and modification times.

6.6.2.13 UAFX IAssetRevision Facet

Table 27 describes the details of the UAFX IAssetRevision Facet.

This Facet includes the functionality common to all Objects implementing the IAssetRevision Interface.

6.6.2.14 UAFX IAssetExtensions Facet

Table 28 describes the details of the UAFX IAssetExtensions Facet.

This Facet includes the functionality common to all Objects implementing the IAssetExtensions Interface.

6.6.2.15 UAFX IAssetExtensions Diagnostic Counters Facet

Table 29 describes the details of the UAFX IAssetExtensions Diagnostic Counters Facet.

This Facet includes the functionality needed for tracking Asset resource utilization.

6.6.2.16 UAFX Asset Facet

Table 30 describes the details of the UAFX Asset Facet.

This Facet includes the functionality needed for an Asset that is referenced directly by the AutomationComponentType Assets Folder.

6.6.2.17 UAFX Slot AssetConnector Facet

Table 31 describes the details of the UAFX Slot AssetConnector Facet.

This Facet is used to for modelling an AssetConnector with a physical slot where a module can be attached.

6.6.2.18 UAFX Socket AssetConnector Facet

Table 32 describes the details of the UAFX Socket AssetConnector Facet.

This Facet is used for modelling an AssetConnector with a physical socket where a cable can be connected.

6.6.2.19 UAFX Clamp AssetConnector Facet

Table 33 describes the details of the UAFX Clamp AssetConnector Facet.

This Facet is used for modelling an AssetConnector with a wire connection where the wire needs to be connected to some termination connection.

6.6.2.20 UAFX ClampBlock AssetConnector Facet

Table 34 describes the details of the UAFX ClampBlock AssetConnector Facet.

This Facet is used to for modelling an AssetConnector with a wire connection block, where the block contains a number of termination points for twisted pair or single wire connections.

6.6.3 UAFX Networking Facets

6.6.3.1 Overview

This clause defines facets for Bridge Components, End Station Components, IA-stations, and UAFX Stations illustrated in Figure 5.

6.6.3.2 Base Bridge Component Facet

Table 35 describes the details of the Base Bridge Component Facet.

This Facet constitutes a minimal basis that can be relied on for any network consisting of UAFX Stations, including inherited functionality from the IA-station Facet, handling of VLAN IDs and priorities, and Remote Management. It also introduces minimum quantities for queues and VLAN IDs.

6.6.3.3 Advanced Bridge Component Facet

Table 36 describes the details of the Advanced Bridge Component Facet.

This Facet builds on the Base Bridge Component Facet and adds requirements for implementing more advanced network infrastructure capabilities. In particular, it requires time synchronization, mechanisms for network boundary protection, expedited traffic for real-time applications (preemption), and engineered loop prevention. It also introduces minimum quantities for queues, preemption fragment size, and egress buffer size.

6.6.3.4 Full Bridge Component Facet

Table 37 describes the details of the Full Bridge Component Facet.

This Facet constitutes the full feature and maximum required quantity facet for network infrastructure and builds on the Advanced Bridge Component Facet. It is designed to carry all industrial automation traffic types and guarantee full multi-vendor interoperability. In particular, it introduces enhancements for scheduled traffic and associated quantities.

6.6.3.5 End Station Component Facet

Table 38 describes the details of the End Station Component Facet.

This Facet describes the functionality needed for sending and receiving network traffic, in particular, tagged Ethernet frames.

6.6.3.6 IA-station Facet

Table 39 describes the details of the IA-station Facet.

This Facet includes industrial automation networking component requirements. In particular, it mandates an End Station Component Facet and adds the option to include Bridge Component Facets (via the UAFX EthernetIAStation ContainsBridge ConformanceUnit). It also adds functionality for Topology Discovery, Remote Management and Time Synchronization.

6.6.3.7 UAFX Station 2024 Facet

This Facet supersedes the UAFX Station Facet.

Table 40 describes the details of the UAFX Station 2024 Facet.

This Facet includes all networking functionality needed for UAFX component implementation, including an IA-station and network interface representation in the Information Model and its default configuration.

6.6.4 UAFX Controller

6.6.4.1 Overview

Figure 6, Figure 7, Figure 8, and Figure 9 illustrate the structure of UAFX Controller Profiles and Facets.

6.6.4.2 UAFX Controller Server 2024 Profile

Table 41 describes the details of the UAFX Controller 2024 Server Profile.

This Profile extends the “Nano Embedded Device 2022 Server” Profile with the functionality necessary to host a UAFX Controller application.

This Profile supersedes the UAFX Controller Server Profile.

6.6.4.3 UAFX ConnectionManager Client 2024 Facet

Table 42 describes the details of the UAFX ConnectionManager Client Facet.

This Facet extends the “Minimum UA Client 2022” Profile with the Client functionality needed by a ConnectionManager.

6.6.4.4 UAFX SubscriberConfiguration Facet

Table 43 describes the details of the UAFX SubscriberConfiguration Facet.

This Facet includes the information required for configuring the Subscriber of an information flow in the ConnectionManager Information Model.

6.6.4.5 UAFX SKS Push 2023 Facet

Table 44 describes the details of the UAFX SKS Push Facet.

This Facet includes the Security Key Server functionality needed for securing UAFX Connections using the push model.

This Facet supersedes the UAFX SKS Push Facet.

6.6.4.6 UAFX ConnectionManager 2024 Facet

Table 45 describes the details of the UAFX ConnectionManager 2024 Facet.

This Facet includes the functionality a UAFX ConnectionManager needs to establish Connections between FunctionalEntities.

This Facet supersedes the UAFX ConnectionManager Facet.

6.6.4.7 UAFX ConnectionManager Connection Monitoring Facet

Table 46 describes the details of the UAFX ConnectionManager Connection Monitoring Facet.

This Facet includes the functionality needed for a ConnectionManager to monitor Connections.

6.6.4.8 UAFX ConnectionManager Diagnostic Counters Facet

Table 47 describes the details of the UAFX ConnectionManager Diagnostic Counters Facet.

This Facet includes the functionality needed for ConnectionManager tracking of Connection establishment.

6.6.4.9 UAFX ConnectionManager Logging Facet

Table 48 describes the details of the UAFX ConnectionManager Logging Facet.

This Facet includes the functionality needed for logging ConnectionManager activities.

6.6.4.10 UAFX Controller 2024 Profile

Table 49 describes the details of the UAFX Controller 2024 Profile.

This Profile is a collection of Profiles and Facets necessary to build a functional UAFX Controller, including a ConnectionManager.

This Profile supersedes the UAFX Controller 2023 Profile.

6.6.4.11 UAFX Controller Safety Facet

Table 50 describes the details of the UAFX Controller Safety Facet.

This Facet includes the functionality needed for a UAFX Controller to exchange safety-related data. Both SafetyProvider and SafetyConsumer functionality are provided.

6.6.5 UAFX OfflineEngineering Profiles

6.6.5.1 Overview

This clause defines Profiles and Facets for the UAFX OfflineEngineering illustrated in Figure 12, Figure 11, and Figure 12.

6.6.5.2 UAFX Offline Security Policies

6.6.5.2.1 UAFX Offline Security Policy – Rsa-Pkcs-Sha256 Facet

Table 51 describes the details of the UAFX Offline Security Policy – Rsa-Pkcs-Sha256 Facet.

This security Facet defines a public-key cryptography security policy for Descriptors with average security needs.

6.6.5.2.2 UAFX Offline Security Policy – Rsa-Pss-Sha256 Facet

Table 52 describes the details of the UAFX Offline Security Policy – Rsa-Pss-Sha256 Facet.

This security Facet defines a public-key cryptography security policy for Descriptors with average security needs.

6.6.5.2.3 UAFX Offline Security Policy – Rsa-Pkcs-Sha384 Facet

Table 53 describes the details of the UAFX Offline Security Policy – Rsa-Pkcs-Sha384 Facet.

This security Facet defines a public-key cryptography security policy for Descriptors with high security needs.

6.6.5.2.4 UAFX Offline Security Policy – Rsa-Pss-Sha384 Facet

Table 54 describes the details of the UAFX Offline Security Policy – Rsa-Pss-Sha384 Facet.

This security Facet defines a public-key cryptography security policy for Descriptors with high security needs.

6.6.5.2.5 UAFX Offline Security Policy – Rsa-Pkcs-Sha512 Facet

Table 55 describes the details of the UAFX Offline Security Policy – Rsa-Pkcs-Sha512 Facet.

This security Facet defines a public-key cryptography security policy for Descriptors with very high security needs.

6.6.5.2.6 UAFX Offline Security Policy – Rsa-Pss-Sha512 Facet

Table 56 describes the details of the UAFX Offline Security Policy – Rsa-Pss-Sha512 Facet.

This security Facet defines a public-key cryptography security policy for Descriptors with very high security needs.

6.6.5.2.7 UAFX Offline Security Policy – ECC-nistP256 Facet

Table 57 describes the details of the UAFX Offline Security Policy – ECC-nistP256 Facet.

This security Facet defines an elliptic curve cryptography security policy for Descriptors with average security needs. NIST curves are widely implemented and offer better performance than RSA.

6.6.5.2.8 UAFX Offline Security Policy – ECC-nistP384 Facet

Table 58 describes the details of the UAFX Offline Security Policy – ECC-nistP384 Facet.

This security Facet defines an elliptic curve cryptography security policy for Descriptors with high security needs. NIST curves are widely implemented and offer better performance than RSA.

6.6.5.2.9 UAFX Offline Security Policy – ECC-nistP521 Facet

Table 59 describes the details of the UAFX Offline Security Policy – ECC-nistP521 Facet.

This security Facet defines an elliptic curve cryptography security policy for Descriptors with very high security needs. NIST curves are widely implemented and offer better performance than RSA.

6.6.5.3 UAFX Offline Descriptor Profile

Table 60 describes the details of the UAFX Offline Descriptor Profile.

This Profile includes the elements necessary for an interoperable UAFX Descriptor file. In particular, the contents, format, structure, and security of the file are mandated.

6.6.5.4 UAFX Offline Descriptor AutomationComponent Facet

Table 61 describes the details of the UAFX Offline Descriptor AutomationComponent Facet.

This Facet includes the content elements necessary for describing an AutomationComponent in a UAFX Descriptor file.

6.6.5.5 UAFX Offline Descriptor Asset Facet

Table 62 describes the details of the UAFX Offline Descriptor Asset Facet.

This Facet includes the content elements necessary for describing an Asset in a UAFX Descriptor file.

6.6.5.6 UAFX Offline Descriptor FuntionalEntity Facet

Table 63 describes the details of the UAFX Offline Descriptor FunctionalEntity Facet.

This Facet includes the content elements necessary for describing a FunctionalEntity in a UAFX Descriptor file.

6.6.5.7 UAFX Offline Descriptor Networking Facet

Table 64 describes the details of the UAFX Offline Descriptor Networking Facet.

This Facet includes the content elements necessary for describing Networking features in a UAFX Descriptor file.

6.6.5.8 UAFX Offline Descriptor Core UA Facet

Table 65 describes the details of the UAFX Offline Descriptor Core UA Facet.

This Facet includes the content elements necessary for describing Core UA features in a UAFX Descriptor file.

6.6.5.9 UAFX Engineering Tool Import 2024 Profile

Table 66 describes the details of the UAFX Engineering Tool Import 2024 Profile.

This Profile includes the functionality needed by an engineering tool capable of importing Descriptors.

This Profile supersedes the UAFX Engineering Tool Import Profile.

6.6.5.10 UAFX Engineering Tool Export Profile

Table 67 describes the details of the UAFX Engineering Tool Export Profile.

This Profile includes the functionality needed by an engineering tool capable of exporting Descriptors.

Agreement of Use

COPYRIGHT RESTRICTIONS

Any unauthorized use of this specification may violate copyright laws, trademark laws, and communications regulations and statutes. This document contains information which is protected by copyright. All Rights Reserved. No part of this work covered by copyright herein may be reproduced or used in any form or by any means--graphic, electronic, or mechanical, including photocopying, recording, taping, or information storage and retrieval systems--without permission of the copyright owner.

OPC Foundation members and non-members are prohibited from copying and redistributing this specification. All copies must be obtained on an individual basis, directly from the OPC Foundation Web site http://www.opcfoundation.org.

PATENTS

The attention of adopters is directed to the possibility that compliance with or adoption of OPC specifications may require use of an invention covered by patent rights. OPC shall not be responsible for identifying patents for which a license may be required by any OPC specification, or for conducting legal inquiries into the legal validity or scope of those patents that are brought to its attention. OPC specifications are prospective and advisory only. Prospective users are responsible for protecting themselves against liability for infringement of patents.

WARRANTY AND LIABILITY DISCLAIMERS

WHILE THIS PUBLICATION IS BELIEVED TO BE ACCURATE, IT IS PROVIDED "AS IS" AND MAY CONTAIN ERRORS OR MISPRINTS. THE OPC FOUDATION MAKES NO WARRANTY OF ANY KIND, EXPRESSED OR IMPLIED, WITH REGARD TO THIS PUBLICATION, INCLUDING BUT NOT LIMITED TO ANY WARRANTY OF TITLE OR OWNERSHIP, IMPLIED WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE OR USE. IN NO EVENT SHALL THE OPC FOUNDATION BE LIABLE FOR ERRORS CONTAINED HEREIN OR FOR DIRECT, INDIRECT, INCIDENTAL, SPECIAL, CONSEQUENTIAL, RELIANCE OR COVER DAMAGES, INCLUDING LOSS OF PROFITS, REVENUE, DATA OR USE, INCURRED BY ANY USER OR ANY THIRD PARTY IN CONNECTION WITH THE FURNISHING, PERFORMANCE, OR USE OF THIS MATERIAL, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

The entire risk as to the quality and performance of software developed using this specification is borne by you.

RESTRICTED RIGHTS LEGEND

This Specification is provided with Restricted Rights. Use, duplication or disclosure by the U.S. government is subject to restrictions as set forth in (a) this Agreement pursuant to DFARs 227.7202-3(a); (b) subparagraph (c)(1)(i) of the Rights in Technical Data and Computer Software clause at DFARs 252.227-7013; or (c) the Commercial Computer Software Restricted Rights clause at FAR 52.227-19 subdivision (c)(1) and (2), as applicable. Contractor / manufacturer are the OPC Foundation, 16101 N. 82nd Street, Suite 3B, Scottsdale, AZ, 85260-1830.

COMPLIANCE

The OPC Foundation shall at all times be the sole entity that may authorize developers, suppliers and sellers of hardware and software to use certification marks, trademarks or other special designations to indicate compliance with these materials. Products developed using this specification may claim compliance or conformance with this specification if and only if the software satisfactorily meets the certification requirements set by the OPC Foundation. Products that do not meet these requirements may claim only that the product was based on this specification and must not claim compliance or conformance with this specification.

Trademarks

Most computer and software brand names have trademarks or registered trademarks. The individual trademarks have not been listed here.

GENERAL PROVISIONS

Should any provision of this Agreement be held to be void, invalid, unenforceable or illegal by a court, the validity and enforceability of the other provisions shall not be affected thereby.

This Agreement shall be governed by and construed under the laws of the State of Minnesota, excluding its choice or law rules.

This Agreement embodies the entire understanding between the parties with respect to, and supersedes any prior understanding or agreement (oral or written) relating to, this specification.

ISSUE REPORTING

The OPC Foundation strives to maintain the highest quality standards for its published specifications; hence they undergo constant review and refinement. Readers are encouraged to report any issues and view any existing errata here: http://www.opcfoundation.org/errata

Revision 1.00.03 Highlights

The following table includes the Mantis issues resolved with this revision.
