C.5 Example usage of the Property Identifier in applications running on different servers

A lot of devices within an automation cell are running geometrically based on a common base frame definition.

At the setup of the automation-cell the Property Identifier might be used for a common cell-id to support the usage of the Relative Spatial Location concept in different devices using a common base coordinate system (Figure 23).

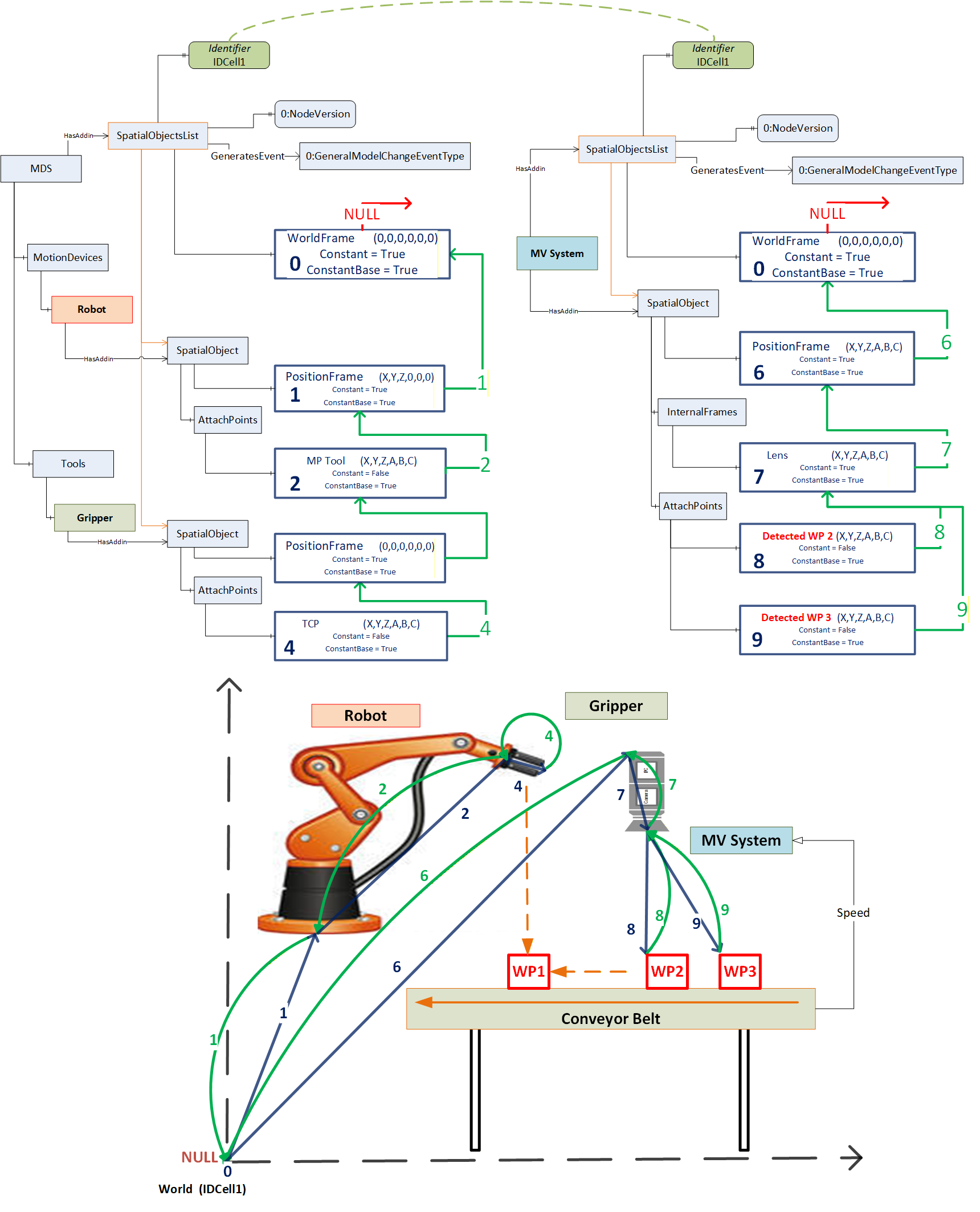

Figure 23 – Example usage of Identifier Property for systems with a common base coordinate system
