6.1 ExtrusionLine_InterfaceType Definition

This OPC UA ObjectType is used for the root Object representing an extrusion line as overall system. It is formally defined in Table 1.

The instance(s) of ExtrusionLine_InterfaceType shall be located under the Machines Object of the Server (see OPC UA for Machinery).

NOTE: In most cases the OPC UA server will be implemented in the line control of the extrusion line so only one instance of ExtrusionLine_InterfaceType will be created. But it is also possible that one OPC UA server is connected to several extrusion lines as one interface to the MES. In this case several instances of ExtrusionLine_InterfaceType will be created.

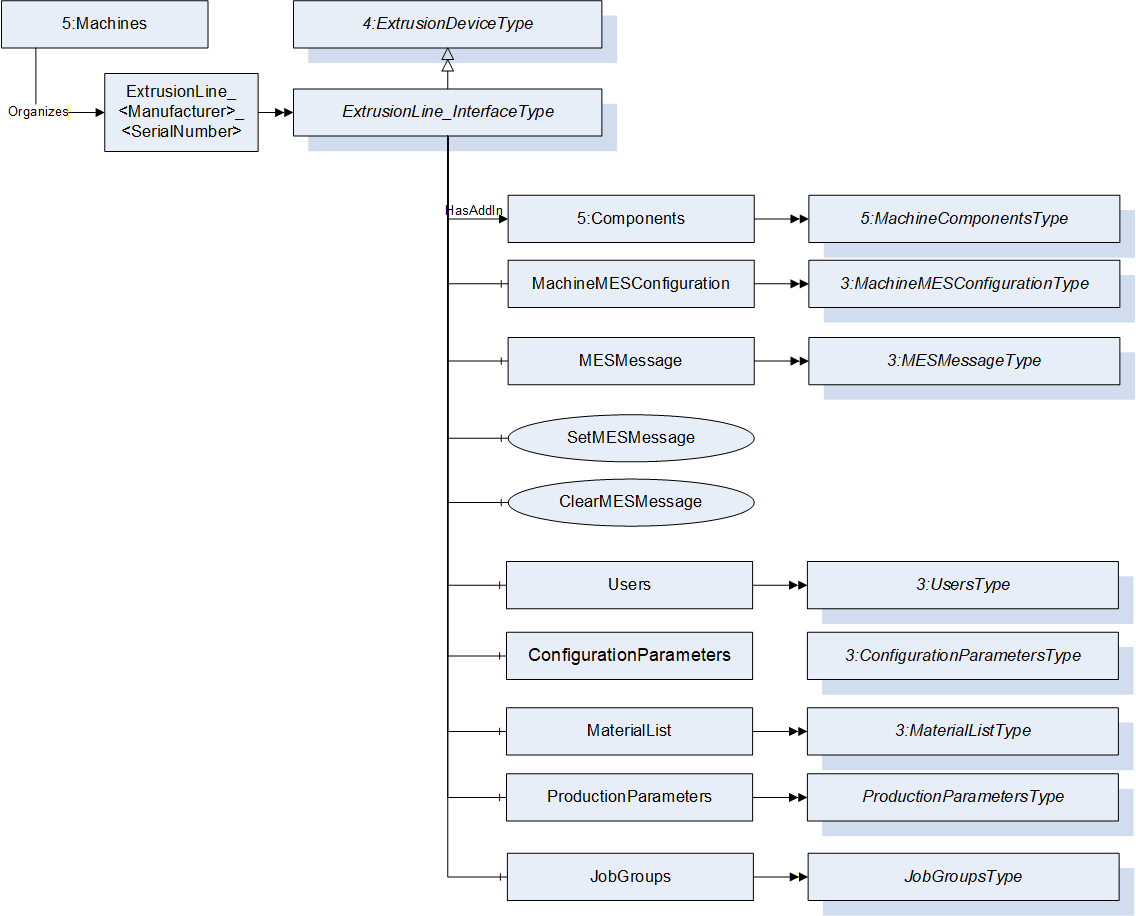

Figure 1 – ExtrusionLine_InterfaceType Overview

Table 1 – ExtrusionLine_InterfaceType Definition

Attribute	Value
BrowseName	ExtrusionLine_InterfaceType
IsAbstract	False

References	Node Class	BrowseName	DataType	TypeDefinition	Other
Subtype of 4:ExtrusionDeviceType (defined in OPC 40084-1)
0:HasAddIn	Object	5:Components		5:MachineComponentsType	O
0:HasComponent	Object	MachineMESConfiguration		3:MachineMESConfiguration Type	M
0:HasComponent	Object	MESMessage		3:MESMessageType	O
0:HasComponent	Method	SetMESMessage			O
0:HasComponent	Method	ClearMESMessage			O
0:HasComponent	Object	Users		3:UsersType	M
0:HasProperty	Variable	ConfigurationParameters	3:Configuration ParameterType[]	0:PropertyType	M, RO
0:HasComponent	Object	MaterialList		3:MaterialListType	M
0:HasComponent	Object	ProductionParameters		ProductionParametersType	M
0:HasComponent	Object	JobGroups		JobGroupsType	O

Conformance Units
OPC 40084-2 Basic

The BrowseName of the object instance shall be “ExtrusionLine_<Manufacturer>_<SerialNumber>”.

Example: “ExtrusionLine_battenfeld_4”.
