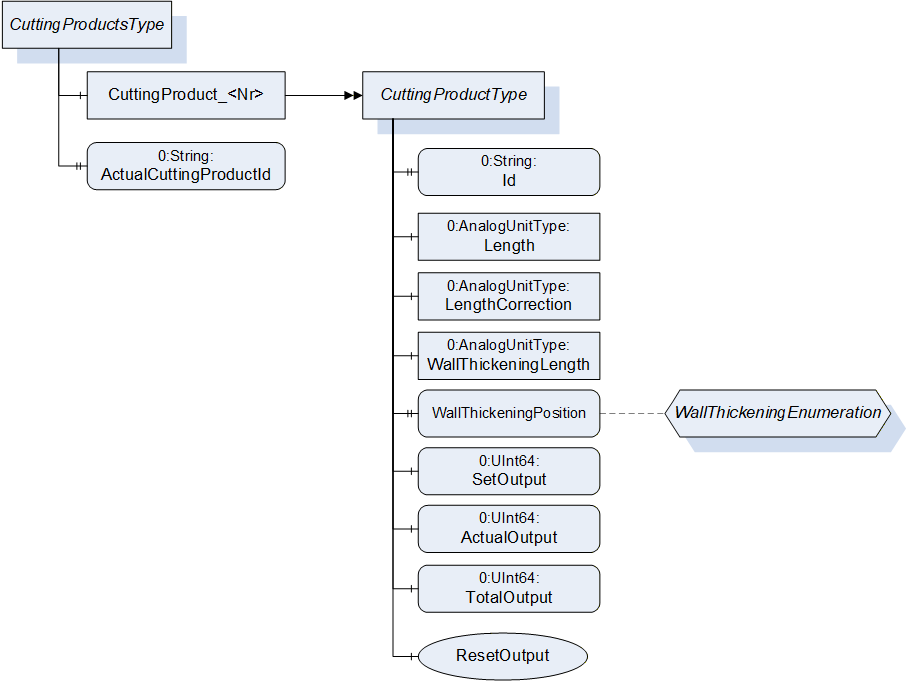

6.5 CuttingProductsType
This Object is a container for the description of the products to be cut.
| Attribute | Value | ||||
| BrowseName | CuttingProductsType | ||||
| IsAbstract | False | ||||
| References | Node Class | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of 0:BaseObjectType defined in OPC 10000-5 | |||||
| 0:HasComponent | Object | CuttingProduct_<Nr> | CuttingProductType | MP | |
| 0:HasComponent | Variable | ActualCuttingProductId | 0:String | 0:BaseDataVariableType | M |
| Conformance Units | |||||
|---|---|---|---|---|---|
| OPC 40084-9 Basic |
The number of instances of CuttingProductType is fixed by cutter (default 5)
If the current production does not use all provided instances, the SetOutput is set to 0.
The systematic of describing the products to be cut is similar to jobs described in OPC 40084-2. One CuttingProduct is produced (SetOutput) then the next. After the last CuttingProduct, the first one is active again.
ActualCuttingProductId: Id of the product which is currently produced.
