7 OPC UA ObjectTypes

7.1 BeltConveyorType ObjectType Definition

7.1.1 Overview

The BeltConveyorType describes the entry point into the information model of a belt conveyor. It is defined in Table 1.

MiningEquipmentIdentification represents numerous identification features of a mining equipment. It is a subtype of the 4:MachineIdentificationType.

Components represents a collection of all identifiable components contained below this Object.

Monitoring represents a collection of ObjectTypes and VariableTypes, representing the current state of the process, that are not assigned to a component but to this Object.

MachineryBuildingBlocks is representing a folder that directly references all those building blocks of the OPC UA for Machinery (OPC 40001-1, OPC 40001-3) which are implemented as an add-in.

The components of the BeltConveyorType have additional references which are defined in Table 2.

The components of the BeltConveyorType have additional subcomponents which are defined in Table 3.

DriveController is responsible for managing the operation of drive components, such as motors, brakes and fluid couplings, to start, stop, and regulate the speed and tension of the conveyor.

ConveyorDrive is a representation of the drive of the conveyor belt and all its associated data.

ConveyorBrake is a representation of the brake of the conveyor belt and all its associated data.

Belt is a representation of the whole belt in the conveyor involving all sections and splices.

Pulley is a rotating component that drives or redirects the belt, typically at the head or tail of the conveyor.

BeltScale is a weighing system used for the continuous measurement and recording of the mass flow of bulk materials on a conveyor belt.

WeatherStation is a sensor system that monitors environmental conditions such as temperature, wind, and precipitation near the conveyor.

Scraper is a cleaning device that removes bulk material from conveyor belts and prevents buildup on the belt.

Idler is a representation of in idler, which has at least one ConveyorRoll that supports and guides the belt.

BeltConveyorStateMachine is used to define the different states of the conveyor system which can occur during operation.

7.1.2 Extension of MachineryItemState for belt conveyor machines

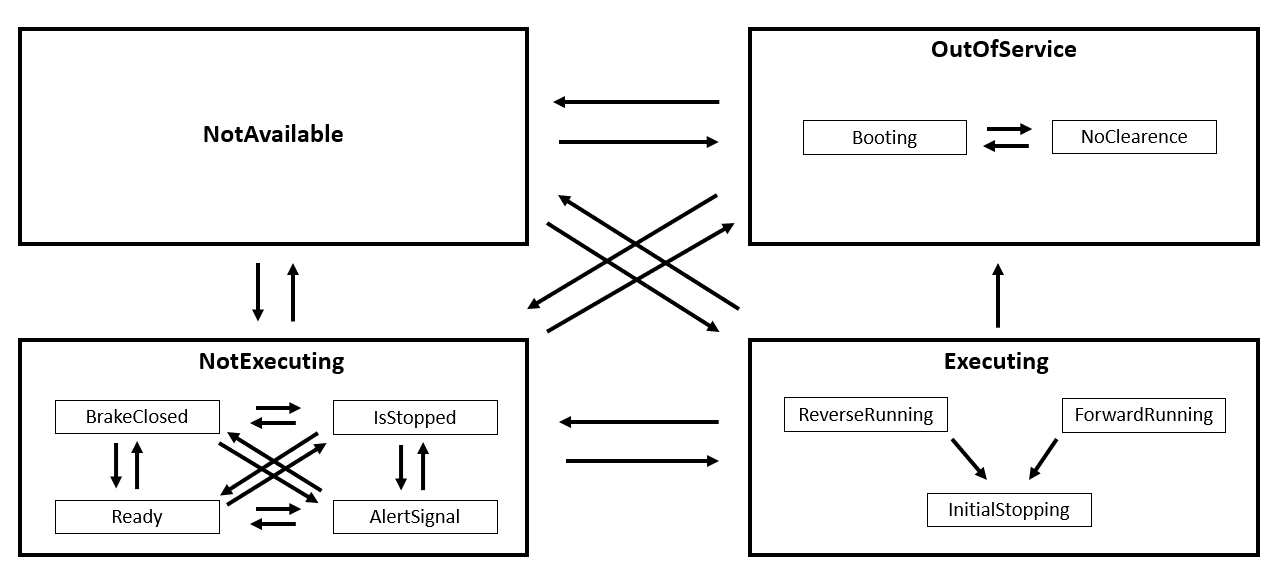

For this specification the MachineryItemState defined in OPC 40001-1 UA for Machinery is extended by a SubStateMachine for the State OutOfService, NotExecuting and Executing. An exemplary illustration can be found in Figure 7.

For this, the BeltConveyorMachineryItemState_StateMachineType is defined in Table 4.

The InstanceDeclaration of the BeltConveyorMachineryItemState_StateMachineType has additional Attributes defined in Table 5.

The States OutOfService, NotExecuting and Executing are overriden in the BeltConveyorMachineryItemState_StateMachineType to get the additional reference defined in Table 6.

7.1.3 BeltConveyorOutOfServiceSubState_StateMachineType ObjectType Definition

The BeltConveyorOutOfServiceSubState_StateMachineType is used for a SubStateMachine which divides the OutOfServices State into Booting and NoClearance. This SubStateMachine is not active if the parent State OutOfService is not active. In this case the CurrentState and LastTransition Variables of the BeltConveyorOutOfServiceSubState state machine shall have a status equal to Bad_StateNotActive.

The BeltConveyorOutOfServiceSubState_StateMachineType is formally defined in Table 7.

The InstanceDeclaration of the BeltConveyorOutOfServiceSubState_StateMachineType has additional Attributes defined in Table 8.

The components of the BeltConveyorOutOfServiceSubState_StateMachineType have additional references which are defined in Table 9.

7.1.4 BeltConveyorNotExecutingSubState_StateMachineType ObjectType Definition

The BeltConveyorNotExecutingSubState_StateMachineType is used for a SubStateMachine which divides the NotExecuting State into BrakeClosed, IsStopped, Ready and AlertSignal. This SubStateMachine is not active if the parent State NotExecuting is not active. In this case the CurrentState and LastTransition Variables of the BeltConveyorNotExecutingSubState state machine shall have a status equal to Bad_StateNotActive.

The BeltConveyorNotExecutingSubState_StateMachineType is formally defined in Table 23.

The InstanceDeclaration of the BeltConveyorNotExecutingSubState_StateMachineType has additional Attributes defined in Table 24.

The components of the BeltConveyorNotExecutingSubState_StateMachineType have additional references which are defined inTable 9 Table 25.

7.1.5 BeltConveyorExecutingSubState_StateMachineType ObjectType Definition

The BeltConveyorExecutingSubState_StateMachineType is used for a SubStateMachine which divides the Executing State into ReverseRunning, ForwardRunning and InitialStopping. This SubStateMachine is not active if the parent State Executing is not active. In this case the CurrentState and LastTransition Variables of the BeltConveyorExecutingSubState state machine shall have a status equal to Bad_StateNotActive.

The BeltConveyorExecutingSubState_StateMachineType is formally defined in Table 26.

The InstanceDeclaration of the BeltConveyorExecutingSubState_StateMachineType has additional Attributes defined in Table 27.

The components of the BeltConveyorExecutingSubState_StateMachineType have additional references which are defined in Table 9 28.

7.2 DriveControllerType ObjectType Definition

7.2.1 Overview

The DriveControllerType provides all the data required for a drive controller of a conveyor belt system that is needed to fulfil the defined use cases. It is formally defined in Table 16.

MiningEquipmentIdentification represents numerous identification features of a mining equipment. It is a subtype of the 4:MachineIdentificationType.

MethodSet is representing a collection of Methods that can be triggered by this Object.

Monitoring represents a collection of ObjectTypes and VariableTypes, representing the current state of the process, that are not assigned to a component but to this Object.

MachineryBuildingBlocks is representing a folder that directly references all those building blocks of the OPC UA for Machinery (OPC 40001-1, OPC 40001-3) which are implemented as an add-in.

The components of the DriveControllerType have additional references which are defined in Table 17.

The components of the DriveControllerType have additional subcomponents which are defined in Table 18.

7.2.2 ConveyorStart

The Method ConveyorStart enables the conveyor to be started. The signature of this Method is specified below. Table 19 and Table 20 specify the Arguments and AddressSpace representation, respectively.

Signature

	ConveyorStart (
		[in]	0:Double	SavedTorque,
		[in]	0:EUInformation	EUSavedTorque,
		[in]	0:Double	TargetSpeed,
		[in]	0:EUInformation	EUTargetSpeed,
		[out]	0:Boolean	TargetSpeedReached
	);

7.2.3 AdjustTorque

The Method AdjustTorque enables to change the torque value of the drive during the conveyor belt is running. The signature of this Method is specified below. Table 32 and Table 33 specify the Arguments and AddressSpace representation, respectively.

Signature

	AdjustTorque (
		[in]	0:DateTime	TerminationTime,
		[in]	0:Double	TargetTorque,
		[in]	0:EUInformation	EUTargetTorque,
		[out]	0:Boolean	TargetTorqueReached
	);

7.2.4 ConveyorStop

The Method ConveyorStop enables the conveyor to be stopped. The signature of this Method is specified below. Table 23 and Table 24 specify the Arguments and AddressSpace representation, respectively.

Signature

	ConveyorStop (
		[in]	0:DateTime	TerminationTime,
		[out]	0:Double	SavedTorque
		);

7.2.5 CloseBrake

The Method CloseBrake enables to close the brakes of the conveyor. The signature of this Method is specified below.

Signature

	CloseBrake (
	);

7.2.6 OpenBrake

The Method OpenBrake enables to open the brake of the conveyor . The signature of this Method is specified below.

Signature

	OpenBrake (
	);


7.3 ConveyorDriveType ObjectType Definition

The ConveyorDriveType provides all the data required for a drive of a conveyor belt system that is needed to fulfil the defined use cases. It is formally defined in Table 25.

MiningEquipmentIdentification represents numerous identification features of a mining equipment. It is a subtype of the 4:MachineIdentificationType.

Monitoring represents a collection of ObjectTypes and VariableTypes, representing the current state of the process, that are not assigned to a component but to this Object.

MachineryBuildingBlocks is representing a folder that directly references all those building blocks of the OPC UA for Machinery (OPC 40001-1, OPC 40001-3) which are implemented as an add-in.

The components of the ConveyorDriveType have additional references which are defined in Table 26.

The components of the ConveyorDriveType have additional subcomponents which are defined in Table 27.

MachineryItemState is used as defined in OPC 40001-1. It represents a StateMachine that shows the current machine state.

BeltRunningDirection is direction in which the material is conveyed forward or backward.

SavedTorqueReached is a Boolean variable which turns True when the current torque is higher or equal to the saved torque.

TargetSpeedReached is a Boolean variable which turns True when the current speed reaches the set point speed.

ConveyorStopped is a Boolean variable which turns true when the conveyor drives don't move.

AcknowledgeStart is the signal with the information that the conveyor is in the start-up phase.

ConveyorStarted is the state in which the conveyor reached the target speed after the phase AcknowledgeStart.

Torque is the measured value of the drive torque for one drive.

BeltSpeed is the linear velocity at which the conveyor belt is moving.

MotorSpeed is the rotational speed of the motor driving the conveyor.

MotorPower is the electrical drive power of one motor.

MotorCurrent is the electrical current of the motor.

SavedTorque is the last measured torque of the motor that is stored in system.

The component Variables of the ConveyorDriveType have additional Attributes defined in Table 28.

7.4 ConveyorBrakeType ObjectType Definition

The ConveyorBrakeType provides all the data required for a brake of a conveyor belt system that is needed to fulfil the defined use cases. It is formally defined in Table 29.

MiningEquipmentIdentification represents numerous identification features of a mining equipment. It is a subtype of the 4:MachineIdentificationType.

Monitoring represents a collection of ObjectTypes and VariableTypes, representing the current state of the process, that are not assigned to a component but to this Object.

MachineryBuildingBlocks is representing a folder that directly references all those building blocks of the OPC UA for Machinery (OPC 40001-1, OPC 40001-3) which are implemented as an add-in.

The components of the ConveyorBrakeType have additional references which are defined in Table 30.

The components of the ConveyorBrakeType have additional subcomponents which are defined in Table 31.

MachineryItemState is used as defined in OPC 40001-1. It represents a StateMachine that shows the current machine state.

BrakeReleased is the state in which the brake is opened and doesn't provide any braking torque.

ReleaseTime is the time taken from the brake release signal to the full disengagement of the brake.

BrakingTorque is the nominal or measured torque of one brake.

7.5 BeltType ObjectType Definition

The BeltType provides all the data required for a belt of a conveyor belt system that is needed to fulfil the defined use cases. It is formally defined in Table 32.

MiningEquipmentIdentification represents numerous identification features of a mining equipment. It is a subtype of the 4:MachineIdentificationType.

Components represents a collection of all identifiable components contained below this Object.

Monitoring represents a collection of ObjectTypes and VariableTypes, representing the current state of the process, that are not assigned to a component but to this Object.

MachineProperties is representing a collection of static information that are assigned to this Object.

MachineryBuildingBlocks is representing a folder that directly references all those building blocks of the OPC UA for Machinery (OPC 40001-1, OPC 40001-3) which are implemented as an add-in.

The components of the BeltType have additional references which are defined in Table 33.
