8 OperationType

8.1 OperationType definition

The ObjectType of OperationType contains components which are necessary to operate the GDD. It is formally defined in Table 3.

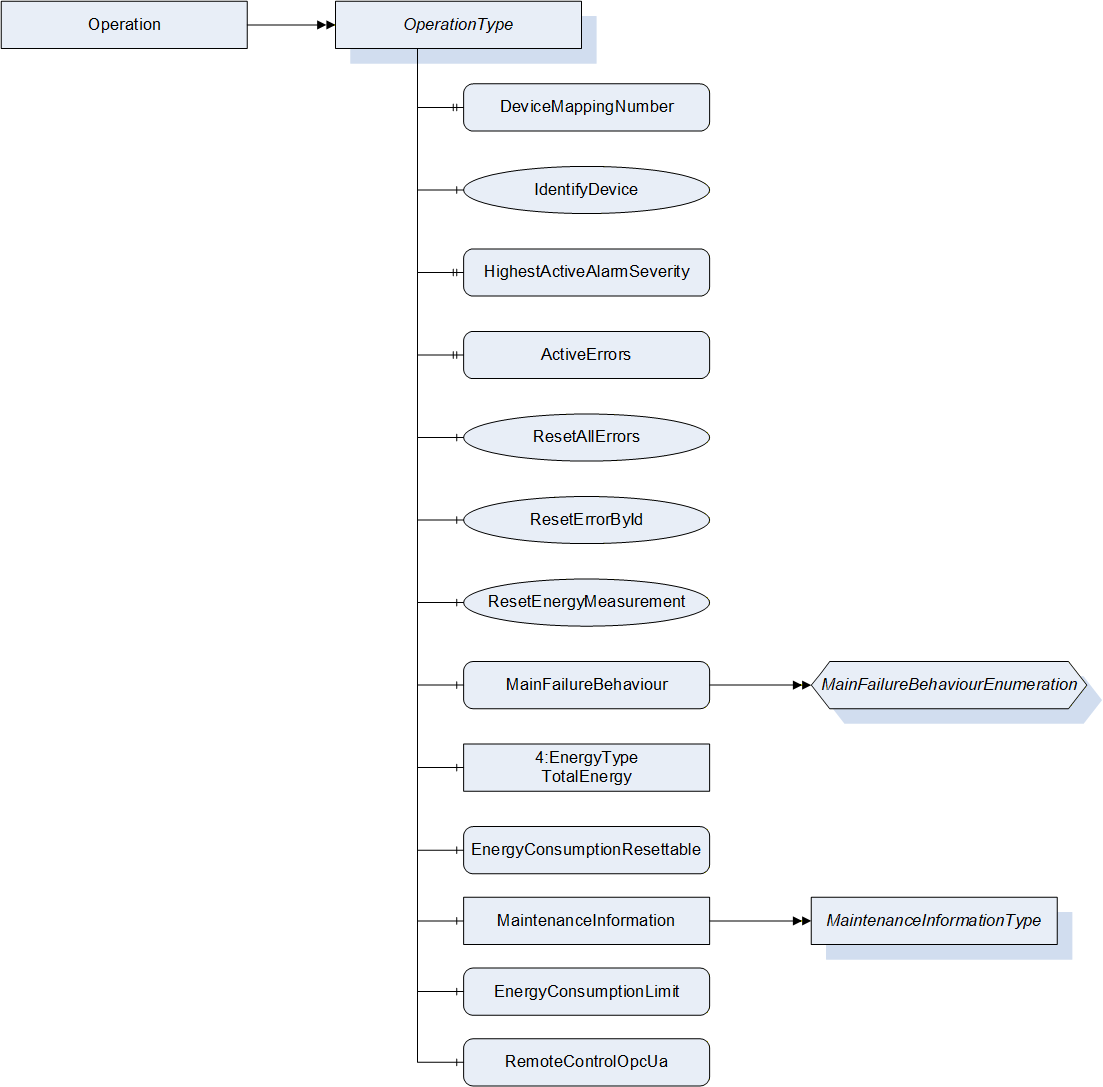

Figure 2 - OperationType overview
Table 3 - OperationType definition
Attribute Value
BrowseNameOperationType
IsAbstractFalse
References Node Class BrowseName DataType TypeDefinition Other
Subtype of 0:BaseObjectType defined in OPC 10000-5
0:HasComponentVariableDeviceMappingNumber0:UInt320:BaseDataVariableTypeM,RW
0:HasComponentMethodIdentifyDeviceO
0:HasComponentVariableHighestActiveAlarmSeverity0:UInt160:BaseDataVariableTypeM,RO
0:HasComponentVariable ActiveErrors 4:ClassifiedActiveErrorDataType[]0:BaseDataVariableType M,RO
0:HasComponentMethodResetAllErrorsO
0:HasComponentMethodResetErrorByIdO
0:HasComponentMethodResetEnergyMeasurementO
0:HasComponentVariableMainFailureBehaviourMainFailureBehaviourEnumeration0:BaseDataVariableTypeO
0:HasComponentObjectTotalEnergy4:EnergyTypeO
0:HasComponentVariableEnergyConsumptionResettable0:Double0:AnalogUnitTypeO, RO
0:HasComponentObjectMaintenanceInformationMaintenanceInformationTypeO
0:HasComponentVariableEnergyConsumptionLimit0:Double0:BaseDataVariableTypeO
0:HasComponentVariableRemoteControlOpcUa0:Boolean0:BaseDataVariableTypeM,RO
Conformance Units
OPC 40082-6 Basic
OPC 40082-6 IdentifyDevice
OPC 40082-6 ResetAllErrors
OPC 40082-6 ResetErrorById
OPC 40082-6 ResetEnergyMeasurement
OPC 40082-6 MainFailureBehaviour
OPC 40082-6 TotalEnergy
OPC 40082-6 EnergyConsumptionResettable
OPC 40082-6 MaintenanceInformation
OPC 40082-6 EnergyConsumptionLimit

8.2 DeviceMappingNumber

Description:Unique identifier/address/number for devices of the same DeviceType within a local network. Several peripheral devices of the same DeviceType can be connected to an IMM. In most applications, the IMM must map the connected peripheral devices to internal logical devices and channels in a fixed configuration (e.g. dryer systems according to the injection unit).

The mapping must be stable after reconnecting the devices and is therefore not possible via IP addresses, which can be assigned dynamically via DHCP. DeviceMappingNumber sets the mapping order of peripheral devices of the same type on the local network and is therefore of type UInt32.

Example:1

8.3 IdentifyDevice

The peripheral device on which this method is called shows itself by e.g. activation of a LED or by Message on the UI of the device.

Signature

	IdentifyDevice();
Table 4 - IdentifyDevice Method AddressSpace Definition
Attribute Value
BrowseNameIdentifyDevice
References Node Class BrowseName DataType TypeDefinition Modelling Rule

NOTE: This Method is identical to the IdentifyDevice Method in other specifications of the OPC 40082 series.

8.4 HighestActiveAlarmSeverity

Description:Indication of the severity of the highest active alarm (0 = no active alarm - 1000 = possible error, severity classes defined in OPC 40083, clause 6.4). It provides a minimal error handling for devices without alarm support. However, the variable shall be filled even if alarms are supported.
Example:400

8.5 ActiveErrors

Description: List of the active errors of the device. It provides a minimal error handling for devices without alarm support. However, the variable shall be filled even if alarms are supported. The ClassifiedActiveErrorDataType is defined in OPC 40083. If there is no active error, the array is empty.

The node id is the source id of the drying bin.

8.6 ResetAllErrors

Method to reset all errors of the device.

Signature

	ResetAllErrors();
Table 5 - ResetAllErrors Method AddressSpace Definition
Attribute Value
BrowseNameResetAllErrors
References Node Class BrowseName DataType TypeDefinition Modelling Rule

8.7 ResetErrorById

Method to reset one error of the device.

Signature

	ResetErrorById (
		[in]	0:String	Id)
Table 6 - ResetErrorById Method Arguments
Argument Description
IdId of the error, listed in ActiveErrors, that shall be reset.
Table 7 - ResetErrorById Method AddressSpace Definition
Attribute Value
BrowseNameResetErrorById
References Node Class BrowseName DataType TypeDefinition Modelling Rule
0:HasPropertyVariable0:InputArguments0:Argument[]0:PropertyType0:Mandatory

8.8 ResetEnergyMeasurement

Method to reset the EnergyConsumptionResettable Variable of the device and all components (e.g. bins, desiccant bed).

Signature

	ResetEnergyMeasurement();
Table 8 - ResetEnergyMeasurement Method AddressSpace Definition
Attribute Value
BrowseNameResetEnergyMeasurement
References Node Class BrowseName DataType TypeDefinition Modelling Rule

8.9 MainFailureBehaviour

Determines how the dryer should react after a power failure, for example. The MainFailureBehaviourEnumeration is defined in Table 9.

Table 9 - MainFailureBehaviourEnumeration Definition
Name Value Description
STANDBY0The dryer starts in standby.
CONTINUE1The dryer starts in last position.

8.10 TotalEnergy

This Object provides information about the actual power and the total lifetime energy consumption of the whole device. The EnergyType is defined in OPC 40083.

8.11 EnergyConsumptionResettable

Consumption of the granulate drying device in kWh since the last reset. For information about the reset method, see ResetEnergyMeasurement in 8.8.

8.12 MaintenanceInformation

This Object provides information about all maintenance activities related to the granulate dryer. The MaintenanceInformationType is defined in 13.49.

8.13 EnergyConsumptionLimit

This variable limits the energy consumed by the device relative to a user-defined default state (100%).

Example: Set to lower than 100 % when high drying levels are not required.

May also be used to enable more energy consumption.

Range: 0 % - 200 %

8.14 RemoteControlOpcUa

Variable to read the actual remote control state of the server instance.

If RemoteControlOpcUa is FALSE, the interface is read-only (Variables not writeable, methods not executable).

The value shall be stored persistently.
