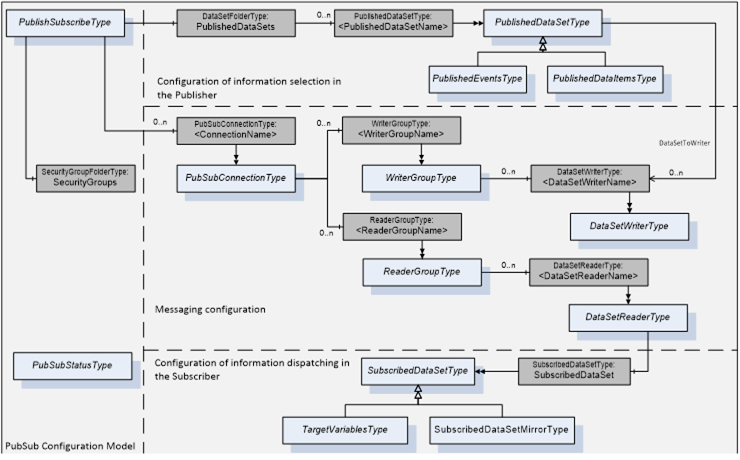

Figure 37 depicts the ObjectTypes of the message and transport protocol mapping independent part of the PubSub configuration model, their main components and their relations.


Figure 37 – PubSub configuration model overview

An instance of the PublishSubscribeType with the name PublishSubscribe represents the root Object for all PubSub related Objects. It manages a list of PubSubConnectionType Objects and the PublishedDataSetType Objects through the PublishedDataSets folder.

On the Publisher side, a PublishedDataSet represents the information to publish and the DataSetWriter represents the transport settings for creating DataSetMessages for delivery through a Message Oriented Middleware.

On the Subscriber side, a DataSetReader represents the transport settings for receiving DataSetMessages from a Message Oriented Middleware and the SubscribedDataSet represents the information to dispatch the received DataSets in the Subscriber.

The configuration can be done through Methods or product-specific configuration tools. The DataSetFolderType can be used to organize the PublishedDataSetType Objects in a tree of folders.

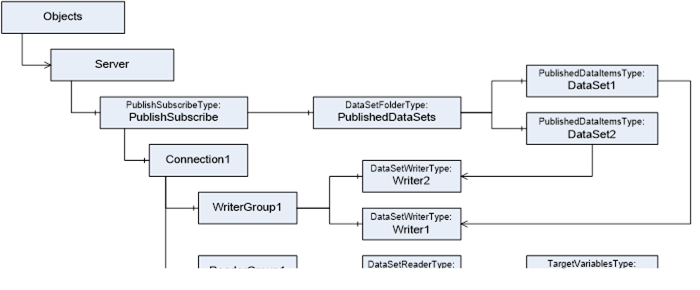

Figure 38 shows an example configuration with the root Object PublishSubscribe that is a component of the Server Object.


Figure 38 – PubSub example Objects

The example defines two PublishedDataSets published through one connection and one group and one DataSetReader used to subscribe one DataSet.

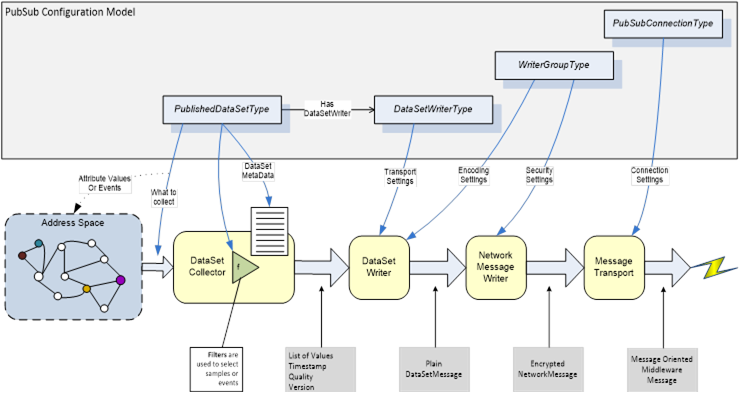

Figure 39 depicts the information flow and the related ObjectTypes from the PubSub Information M odel. The boxes in the lower part of the figure are examples for blocks necessary to implement the information flow in a Publisher.


Figure 39 – PubSub information flow

The PublishedDataSetType represents the selection and configuration of Variables or Events. An Event notification or a snapshot of the Variables comprises a DataSet. A DataSet is the content of a DataSetMessage created by a DataSetWriter. Examples of concrete PublishedDataSetTypes are PublishedEventsType and PublishedDataItemsType. An instance of PublishedDataSetType has a list of DataSetWriters used to produce DataSetMessages sent via the Message Oriented Middleware. The DataSetMetaData describes the content of a DataSet.

Instances of the PubSubConnectionType represent settings associated with Message Oriented Middleware. A connection manages a list of WriterGroupType Objects and transport protocol mapping specific parameters.

Instances of the WriterGroupType contain instances of DataSetWriter Objects that share settings such as security configuration, encoding or timing of NetworkMessages. A group manages a list of DataSetWriterType Objects that define the payload of the NetworkMessages created from the group settings.

DataSetWriters represent the configuration necessary to create DataSetMessages contained as payload in NetworkMessages.

DataSetReaders represent the configuration necessary to receive and process DataSetMessages on the Subscriber side.

NetworkMessages are sent through a transport like AMQP, MQTT or OPC UA UDP. Other transport protocols can be added as subtypes without changing the base model.

The definition of the PubSub related ObjectTypes does not prescribe how the instances are created or configured or how dynamic the configuration can be. A Publisher may have a preconfigured number of PublishedDataSets and DataSetWriters where only protocol-specific settings can be configured. If a Publisher allows dynamic creation of Objects like DataSets and DataSetWriters, this can be done through product-specific configuration tools or through the standardized configuration Methods defined in this document.

Publishers and Subscribers may be configurable through vendor-specific engineering tools or with the configuration Methods and parameters described in this document. This allows a standard OPC UA Client based configuration tool to configure an OPC UA Server that is a Publisher and/or Subscriber.

The latest configuration shall be persisted by the OPC UA Server and shall be available after a restart of the OPC UA Server. PubSub components are not persisted, if the component has the optional NotPersisted property set with a value of true. The PubSub configuration properties are defined in 6.2.2.

Configuration parameters are exposed as Variables of the configurable Objects. Methods for creation of Objects have input arguments for mandatory Variables. Optional Variables are created with a default value if they are supported for the Object or required for the current configuration. The default value can be changed by writing to the Variable after creation. The Status newly created Objects depend on the enabled flag in the configuration Structures if they are created with the standard Methods.

Variables that can be configured shall have the CurrentWrite flag set in the AccessLevel Attribute. The UserAccessLevel may be limited based on the rights of the user of the OPC UA Client.

Configuration changes shall be applied in a batch to avoid inconsistencies between different configuration parameters. The mechanism to apply changes in a batch operation is to allow changes through parameter write only when the related Object has the Status Disabled and to apply the new configuration settings when the Status is changed to Operational. Therefore write operations to configuration parameters shall be rejected with Bad_InvalidState if the Status is not Disabled.

Configuration changes based on Method calls can be applied in Status Operational since the Methods provide batch operations. If configuration changes require different Method calls, it is recommended to disable the affected Objects to apply the changes in a batch.

Add, modify and remove operations for all PubSub configuration elements including DataSets and security key exchange configuration can be executed in one atomic write operation through the PubSubConfiguration Object. It allows also read access to the complete PubSub configuration. Both read and write access are handled through FileType functionality. The related functionality is defined in 9.1.3.7.

Modifications of the PubSub configuration can happen through different mechanisms like FileType access or sequences of Method calls. The PubSub application should ensure that all mechanisms coordinate access to the configuration. The coordination should not immediately fail parallel access. It should delay access in the range of timeout settings for Method calls.

Figure 40 depicts the PublishSubscribeType and the components used to represent the PublishSubscribe Object.


Figure 40 – PublishSubscribe Object Types overview

The PublishSubscribe Object is the root node for all PubSub related configuration Objects. It is an instance of the PublishSubscribeType and a component of the Server Object.

The PublishSubscribeType contains the entry point for PublishedDataSet configuration, the entry point for PubSub connections. In addition, it provides Methods for connection management.

An instance of this ObjectType represents the root Object for all PubSub related configuration and metadata Objects. The one instance of this ObjectType that represents the root Object is defined in 8.3.2. The ObjectType is formally defined in Table 205.

Table 205 – PublishSubscribeType definition

Attribute

Value

BrowseName

PublishSubscribeType

IsAbstract

False

References

Node Class

BrowseName

DataType

TypeDefinition

Modelling Rule

Subtype of PubSubKeyServiceType defined in 8.2.

HasPubSub‌Connection

Object

<ConnectionName>

PubSubConnectionType

Optional‌Placeholder

HasComponent

Method

SetSecurityKeys

Defined in 9.1.3.3.

Optional

HasComponent

Method

AddConnection

Defined in 9.1.3.4.

Optional

HasComponent

Method

RemoveConnection

Defined in 9.1.3.5.

Optional

HasComponent

Object

PublishedDataSets

DataSetFolderType

Mandatory

HasComponent

Object

SubscribedDataSets

SubscribedDataSetFolderType

Optional

HasComponent

Object

PubSubConfiguration

PubSubConfigurationType

Optional

HasComponent

Object

Status

PubSubStatusType

Mandatory

HasComponent

Object

Diagnostics

PubSubDiagnosticsRootType

Optional

HasComponent

Object

PubSubCapablities

PubSubCapabilitiesType

Optional

HasComponent

Object

DataSetClasses

FolderType

Optional

HasProperty

Variable

SupportedTransportProfiles

String[]

PropertyType

Mandatory

HasProperty

Variable

DefaultDatagramPublisherId

UInt64

PropertyType

Optional

HasProperty

Variable

ConfigurationVersion

VersionTime

PropertyType

Optional

HasProperty

Variable

DefaultSecurityKeyServices

Endpoint‌Description[]

PropertyType

Optional

HasProperty

Variable

ConfigurationProperties

KeyValuePair []

PropertyType

Optional

Conformance Units

PubSub Model Base

The PublishSubscribeType ObjectType is a concrete type and can be used directly.

The configured connection Objects are added as components to the instance of the PublishSubscribeType. Connection Objects may be configured with product-specific configuration tools or added and removed through the Methods AddConnection and RemoveConnection. The PubSubConnectionType is defined in 9.1.5.2. The HasPubSubConnection ReferenceType is defined in 9.1.3.6.

The PublishedDataSets Object contains the configured PublishedDataSets. The DataSetFolderType is defined in 9.1.4.5.1. The DataSetFolderType can be used to build a tree of DataSetFolders.

The SubscribedDataSets Object contains the configured SubscribedDataSets. The SubscribedDataSetFolderType is defined in 9.1.9.4. The SubscribedDataSetFolderType can be used to build a tree of SubscribedDataSetFolders.

The PubSubConfiguration Object provides read and write access to the PubSub configuration through a PubSubConfigurationType with is a subtype of FileType. The read access is to the complete configuration. The write access allows add, modify and delete operations to the existing PubSub configuration. The PubSubConfigurationType and the related DataTypes are defined in 9.1.3.7.

The Status Object provides the current operational status of the PublishSubscribe functionality. The PubSubStatusType is defined in 9.1.10. The state machine for the status and the relation to other PubSub Objects like PubSubConnection, PubSubGroup, DataSetWriter and DataSetReader are defined in 6.2.1.

The Diagnostics Object provides the current diagnostic information for the PublishSubscribe Object. The PubSubDiagnosticsRootType is defined in 9.1.11.7.

The SupportedTransportProfiles Property provides a list of TransportProfileUris supported by the Server. The TransportProfileUris are defined in OPC 10000-7.

The default unique PublisherId is provided through the Property DefaultDatagramPublisherId. Further details for the PublisherId are defined in 6.2.7.1. The DefaultDatagramPublisherId can be used by configuration tools to assign a unique PublisherId when adding PubSubConnections with datagram transports or broker based transports. It is also used when the PublishedId is automatically assigned by the PubSub application or returned in ReserveIds.

The ConfigurationVersion represents the time of the last configuration change.

The DefaultSecurityKeyServices provide the default SecurityKeyServices used for the PubSub configuration. The value is used as default if not overwritten in the groups or DataSetReaders. The general definition for the SecurityKeyServices parameter is in 6.2.5.4.

The ConfigurationProperties is an array of DataType KeyValuePair that specifies additional properties for the PubSub configuration. The KeyValuePair type is defined in OPC 10000-5 and consists of a QualifiedName and a value of BaseDataType. The mapping of the namespace, name, and value to concrete functionality may be defined by transport protocol mappings, future versions of this document or vendor-specific extensions.

The PubSubCapabilities Objects provides the PubSub capablitiy information. The PubSubCapabilitiesType ObjectType is defined in 9.1.12.

The DataSetClasses Folder allows a Server to expose DataSetClasses supported. These DataSetClasses can be used to create PublishedDataSets. The Folder would also be used by standard information models to include standardized DataSetClasses into their namespace.

The DataSetClasses Folder references a list of Variables where the Value of a Variable represents a DataSetClass. For each Variable, the Name field of the BrowseName equals the Name in the DataSetMetaData. The Object is formally defined in Table 206.

Table 206 – PublishSubscribeType Additional Subcomponents

BrowsePath

References

NodeClass

BrowseName

DataType

TypeDefinition

Others

DataSetClasses

HasComponent

Variable

<DataSetName>

DataSetMetaDataType

BaseDataVariableType

OptionalPlaceholder

This Method is used to push the security keys for a SecurityGroup into a Publisher or Subscriber. It is used if Publisher or Subscriber have no OPC UA Client functionality.

Encryption is required for this Method. The Method shall return Bad_SecurityModeInsufficient if the communication is not encrypted.

The OPC UA Client calling this Method shall be the SKS application with the ApplicationUri that matches the ApplicationUri in the SecurityKeyServices parameter of the WriterGroup, ReaderGroup or DataSetReader objects using the SecurityGroupId.

Signature

SetSecurityKeys (

[in]String SecurityGroupId,

[in]String SecurityPolicyUri,

[in]IntegerId CurrentTokenId,

[in]ByteString CurrentKey,

[in]ByteString[]FutureKeys,

[in]Duration TimeToNextKey,

[in]Duration KeyLifetime

);

Argument

Description

SecurityGroupId

The identifier for the SecurityGroup.

SecurityPolicyUri

The URI for the set of algorithms and key lengths used to secure the messages. The SecurityPolicies are defined in OPC 10000-7.

CurrentTokenId

The SecurityTokenId that appears in the header of messages secured with the CurrentKey. It starts at 1 and is incremented by 1 each time the KeyLifetime elapses even if no keys are requested. If the CurrentTokenId increments past the maximum value of UInt32 it restarts at 1.

If the PubSub Object has key material from previous SetSecurityKeys Method calls, the CurrentTokenId is used to match the existing list with the fetched list and to eliminate duplicates.

If the CurrentTokenId is unknown, the existing list shall be discarded and replaced.

CurrentKey

The current key used to secure the messages. This key is not used directly since the protocol associated with the PubSubGroup(s) specifies an algorithm to generate distinct keys for different types of cryptography operations.

FutureKeys

An ordered list of future keys that are used when the KeyLifetime elapses. The SecurityTokenId associated with the first key in the list is 1 more than the CurrentTokenId. All following keys have a SecurityTokenId that is incremented by 1 for every key returned.

TimeToNextKey

The time, in milliseconds, before the CurrentKey is expected to expire.

If a Publisher uses this Method to get the keys from an SKS, the TimeToNextKey and KeyLifetime are used to calculate the time the Publisher shall use the next key. The TimeToNextKey defines the time when to switch from CurrentKey to FutureKeys and the KeyLifetime defines when to switch from one future key to the next future key.

For a Subscriber the TimeToNextKey and KeyLifetime are used to calculate the time the Subscriber expects that the Publishers use the next key. Due to network latency, out of order delivery and the use of keys for several Publishers, a Subscriber needs to expect some overlap time where NetworkMessages are received that are using the previous or the next key.

TimeToNextKey and KeyLifetime are also used to calculate the time until Publisher and Subscriber shall fetch new keys.

KeyLifetime

The lifetime of a key in milliseconds.

The returned keys may expire earlier if the keys are discarded for some reason. An unplanned key rotation is indicated in the NetworkMessage header before the next key is used to give the Subscriber some time to fetch new keys.

If the CurrentTokenId in the message is not recognized, the receiver shall call this Method again to get new keys.

Method Result Codes

ResultCode

Description

Bad_NotFound

The SecurityGroupId is unknown.

Bad_UserAccessDenied

The caller is not allowed to set the keys for the SecurityGroup.

Bad_SecurityModeInsufficient

The communication channel is not using encryption.

Table 207 specifies the AddressSpace representation for the SetSecurityKeys Method.

Table 207 – SetSecurityKeys Method AddressSpace definition

Attribute

Value

BrowseName

SetSecurityKeys

References

NodeClass

BrowseName

DataType

TypeDefinition

ModellingRule

HasProperty

Variable

InputArguments

Argument[]

PropertyType

Mandatory

ConformanceUnits

PubSub Model Base

This Method is used to add a new PubSubConnection Object to the PublishSubscribe Object.

The Client shall be authorized to modify the configuration for the PubSub functionality when invoking this Method on the Server.

Signature

AddConnection (

[in]PubSubConnectionDataTypeConfiguration,

[out]NodeId ConnectionId

);

Argument

Description

Configuration

Configuration parameters for the PubSubConnection. The parameters and the PubSubConnectionDataType are defined in 6.2.7.

ConnectionId

The NodeId of the new connection.

Method Result Codes

ResultCode

Description

Bad_InvalidArgument

The Server is not able to apply the name. The name may be too long or may contain invalid characters.

Bad_BrowseNameDuplicated

An Object with the name already exists.

Bad_ResourceUnavailable

The Server has not enough resources to add the PubSubConnection Object.

Bad_UserAccessDenied

The Session user is not allowed to create a PubSubConnection Object.

Table 208 specifies the AddressSpace representation for the AddConnection Method.

Table 208 – AddConnection Method AddressSpace definition

Attribute

Value

BrowseName

AddConnection

References

NodeClass

BrowseName

DataType

TypeDefinition

ModellingRule

HasProperty

Variable

InputArguments

Argument[]

PropertyType

Mandatory

HasProperty

Variable

OutputArguments

Argument[]

PropertyType

Mandatory

ConformanceUnits

PubSub Model Base

This Method is used to remove a PubSubConnection Object from the PublishSubscribe Object.

A successful removal of the PubSubConnection Object removes all associated groups, DataSetWriter and DataSetReader Objects. Before the Objects are removed, their state is set to Disabled.

The Client shall be authorized to modify the configuration for the PubSub functionality when invoking this Method on the Server.

Signature

RemoveConnection (

[in]NodeIdConnectionId

);

Argument

Description

ConnectionId

NodeId of the PubSubConnection Object to remove from the Server

Method Result Codes

ResultCode

Description

Bad_NodeIdUnknown

The ConnectionId is unknown.

Bad_UserAccessDenied

The Session user is not allowed to delete the PubSubConnection Object.

Table 209 specifies the AddressSpace representation for the RemoveConnection Method.

Table 209 – RemoveConnection Method AddressSpace definition

Attribute

Value

BrowseName

RemoveConnection

References

NodeClass

BrowseName

DataType

TypeDefinition

ModellingRule

HasProperty

Variable

InputArguments

Argument[]

PropertyType

Mandatory

ConformanceUnits

PubSub Model Base

The HasPubSubConnection ReferenceType is a concrete ReferenceType that can be used directly. It is a subtype of the HasComponent ReferenceType.

The SourceNode of References of this type shall be the PublishSubscribe Object defined in 8.3.2.

The TargetNode of this ReferenceType shall be an Object of type PubSubConnectionType defined in 9.1.5.2.

Servers shall provide the inverse Reference that relates a PubSubConnection Object back to the PublishSubscribe Object.

The representation of the HasPubSubConnection ReferenceType in the AddressSpace is specified in Table 210.

Table 210 – HasPubSubConnection ReferenceType

Attributes

Value

BrowseName

HasPubSubConnection

InverseName

PubSubConnectionOf

Symmetric

False

IsAbstract

False

References

NodeClass

BrowseName

Comment

Subtype of HasComponent defined in OPC 10000-5.

Conformance Units

PubSub Model Base

This ObjectType represents a FileType the can be used to access a PubSub configuration. The PubSubConfigurationType is formally defined in Table 211.

The PubSubConfigurationType file is a UA Binary encoded stream containing an instance of UABinaryFileDataType that contains a PubSubConfiguration2DataType or subtype as Body. The UABinaryFileDataType is defined in OPC 10000-5. The PubSubConfiguration2DataType is defined in 6.2.12.4. The indices of the namespaces in the PubSubConfiguration2DataType and the Namespaces in the DataTypeSchemaHeader of the UABinaryFileDataType shall match the NamespaceArray in the OPC UA Server for a Session with the Server.

The FileType functionality is used instead of passing the PubSubConfiguration2DataType to read and write Methods to overcome potential limitations of communication buffers for OPC UA Service calls. It is expected that the PubSubConfiguration2DataType is used internally in Client and Server and that the FileType is only used to be able to transfer large configurations.

The Open Method shall not support modes other than Read (0x01), Write + EraseExisting (0x06) and Read + Write (0x03).

When a Client opens the file for writing the Server will not actually update the PubSub configuration until the CloseAndUpdate Method is called. Simply calling Close will discard the updates.

When a Client opens the file for reading and writing, the Client shall follow the following steps.

Access to the PubSub configuration may be used by multiple Clients in parallel. Read access can be done in parallel but open with the Write flag set requires exclusive access. Therefore Clients that have the file open should minimize the time the file is open to the currently required actions. The Client shall close the file as soon as it completes the sequence of actions needed to read or write the file. Clients with a user interface shall not keep the file open for user configuration. Such Clients should read and close the file to initialize the user interface. If the user changes should be written to the PubSub configuration, the Client should open the file with Read + Write (0x03), read the file, compare the version information and then write the changes if the version matches the version from the intial read.

Table 211 – PubSubConfigurationType definition

Attribute

Value

BrowseName

PubSubConfigurationType

IsAbstract

False

References

NodeClass

BrowseName

DataType

TypeDefinition

ModellingRule

Subtype of FileType defined in OPC 10000-20.

HasComponent

Method

ReserveIds

Defined in 9.1.3.7.5.

Mandatory

HasComponent

Method

CloseAndUpdate

Defined in 9.1.3.7.6.

Mandatory

Conformance Units

PubSub Model Base

This OptionSet defines flags indicating the PubSubConfigurationRefDataType options. The value of the mask is null, if none of the bits is set.

The PubSubConfigurationRefDataType is used to reference a configuration element in a PubSubConfiguration2DataType structure. The PubSubConfigurationRefDataType indicates the element type referenced and defines the operation to be executed for the referenced configuration element. The possible element operations are ElementAdd, ElementMatch, ElementModify and ElementRemove.

Only one of the reference bits shall be set. If more than one of these bits are set, the operation shall fail.

The PubSubConfigurationRefMask values are formally defined in Table 212.

Table 212 – PubSubConfigurationRefMask values

Value

Bit No.

Description

ElementAdd

0

If this bit is set, the referenced elements is added to the PubSub configuration.

If the name of the element is null or empty a name is assigned.

If the PublisherId is null, the default PublisherId for the transport profile is assigned.

If WriterGroupId or DataSetWriterId are null, unique IDs are assigned.

If this bit is set, the ElementModify and ElementRemove bits shall be false. If more than one of these bits are set, the operation shall fail.

ElementMatch

1

If this bit is set, the Id and name shall be null and a matching element is searched. This is used to add children to an existing parent configuration object. This flag can be combined with the ElementAdd flag to either use an existing element or to add the element if it does not exist.

Match shall only be applied for ReferenceConnection, ReferenceWriterGroup and ReferenceReaderGroup. For all other references the match shall fail with Bad_InvalidArgument.

Match applied to ReferenceWriterGroup shall return Bad_InvalidState if the GroupHeader is active for the WriterGroup.

For the PubSubConnectionDataType, the following structure fields are used for the match, the others are ignored.

For the WriterGroupDataType, the following structure fields are used for the match, the others are ignored.

For the ReaderGroupDataType, the following structure fields are used for the match, the others are ignored.

For the ConnectionProperties and GroupProperties only the entries are compared for the match that are provided in the element to match. Additional properties contained in the existing configuration are ignored.

ElementModify

2

If this bit is set, the referenced element will be modified. The related element in the current PubSub configuration is referenced with matching the name of the elements. If no matching name is found, the element operation shall fail.

ElementRemove

3

If this bit is set, the referenced element will be removed. The related element in the current PubSub configuration is referenced with matching the name of the elements. If no matching name is found, the element operation shall fail.

A successful removal of the referenced element shall include the removal of all associated child elements.

ReferenceWriter

4

The element operation is applied to the referenced DataSetWriter.

ReferenceReader

5

The element operation is applied to the referenced DataSetReader.

ReferenceWriterGroup

6

The element operation is applied to the referenced WriterGroup.

ReferenceReaderGroup

7

The element operation is applied to the referenced ReaderGroup.

ReferenceConnection

8

The element operation is applied to the referenced PubSubConnection.

ReferencePubDataset

9

The element operation is applied to the referenced PublishedDataSet.

ReferenceSubDataset

10

The element operation is applied to the referenced SubscribedDataSet.

ReferenceSecurityGroup

11

The element operation is applied to the referenced SecurityGroup.

The access to the security groups may require different user credentials than access to the communication configuration elements.

ReferencePushTarget

12

The element operation is applied to the referenced PubSubKeyServerPushTarget.

The access to the push target configuration may require different user credentials than access to the communication configuration elements.

The PubSubConfigurationRefMask representation in the AddressSpace is formally defined in Table 213.

Table 213 – PubSubConfigurationRefMask definition

Attribute

Value

BrowseName

PubSubConfigurationRefMask

IsAbstract

False

References

NodeClass

BrowseName

DataType

TypeDefinition

ModellingRule

Subtype of the UInt32 type defined in OPC 10000-5.

0:HasProperty

Variable

OptionSetValues

LocalizedText[]

PropertyType

ConformanceUnits

PubSub Model Base

The PubSubConfigurationRefDataType allows to reference an element contained in the PubSubConfiguration2DataType Structure.

The PubSubConfigurationRefDataType is formally defined in Table 214.

Table 214 – PubSubConfigurationRefDataType structure

Name

Type

Description

PubSubConfigurationRefDataType

Structure

ConfigurationMask

PubSubConfigurationRefMask

Specifies the add, match, modify or remove element operation and the type of configuration element that is referenced.

ElementIndex

UInt16

Specifies the index into the DataSetWriters, DataSetReaders, PublishedDataSets, SubscribedDataSets, SecurityGroups or PubSubKeyPushTargets array of the PubSubConfiguration depending on the bits ReferenceWriter, ReferenceReader, ReferencePubDataset, ReferenceSubDataset, ReferenceSecurityGroup or ReferencePushTarget.

If this index is not used for referencing, it shall be set to 0.

ConnectionIndex

UInt16

Specifies the index within the Connections array of the PubSubConfiguration if the connection, group, reader or writer bits is set.

If ReferenceConnection is true, the add, modify or remove element operation is applied. If ReferenceConnection is false, the name of the connection is used to identify the matching connection in the current PubSub configuration.

If this index is not used for referencing, it shall be set to 0.

GroupIndex

UInt16

If the ReferenceReaderGroup and/or ReferenceReader bits are true, it speficies the index within the ReaderGroups array of the related connection.

If ReferenceReaderGroup is true, the add, modify or remove element operation is applied. If ReferenceReaderGroup is false, the name of the ReaderGroup is used to identify the matching group in the current PubSub configuration.

If the ReferenceWriterGroup and/or ReferenceWriter bits are true, it specifies the index within the WriterGroups array of the related connection.

If ReferenceWriterGroup is true, the add, modify or delete bit is applied. If ReferenceReaderGroup is false, the name of the ReaderGroup is used to identify the matching group in the current PubSub configuration.

If this index is not used for referencing, it shall be set to 0.

The PubSubConfigurationRefDataType representation in the AddressSpace is formally defined in Table 215.

Table 215 – PubSubConfigurationRefDataType definition

Attribute

Value

BrowseName

PubSubConfigurationRefDataType

IsAbstract

False

References

NodeClass

BrowseName

DataType

TypeDefinition

ModellingRule

Subtype of Structure defined in OPC 10000-5.

ConformanceUnits

PubSub Model Base

The PubSubConfigurationValueDataType allows to indicate specific values contained in PubSubConfiguration elements.

The PubSubConfigurationValueDataType is formally defined in Table 216.

Table 216 – PubSubConfigurationValueDataType structure

Name

Type

Description

PubSubConfigurationValueDataType

Structure

ConfigurationElement

PubSubConfigurationRefDataType

Refers to a configuration element in the related PubSubConfiguration2DataType Structure.

Name

String

The name of the referenced PubSub configuration element.

Identifier

BaseDataType

The identifier value used for the referenced element in the PubSub NetworkMessages.

The value is only provided if the element is a PubSubConneciton, WriterGroup or DataSetWriter. The value is null otherwise.

If ConfigurationElement references a PubSubConnection, Identifier will contain the value of the PublisherId.

If ConfigurationElement references a WriterGroup, Identifier will contain the value of the WriterGroupId.

If ConfigurationElement references a DataSetWriter, Identifier will contain the value of the DataSetWriterId.

The PubSubConfigurationValueDataType representation in the AddressSpace is formally defined in Table 217.

Table 217 – PubSubConfigurationValueDataType definition

Attribute

Value

BrowseName

PubSubConfigurationValueDataType

IsAbstract

False

References

NodeClass

BrowseName

DataType

TypeDefinition

ModellingRule

Subtype of Structure defined in OPC 10000-5.

ConformanceUnits

PubSub Model Base

This Method reserves unique WriterGroupIds and DataSetWriterIds to allow PubSub configuration applications to apply unique Ids to new PubSub configuration elements when preparing a update to the PubSub configuration. It also returns the related default PublisherId. See 6.2.7.1 for more details on PublisherId and default values.

The ID shall be returned from the range 0x8000 - 0xFFFF for internal assignment. The Server shall ensure that the IDs returned are not used in the current PubSub configuration or are not reserved yet.

When a Client reserves IDs, these reservations are valid while the Session is open. The reserved IDs can only be used for configuration modifications through the same Session. The reservation is only valid until the ID is used in the configuration or until the Session is closed. The IDs can be re-used if a PubSub component that uses the ID is deleted.

The Client shall be authorized to modify the configuration for the PubSub functionality when invoking this Method on the Server.

Signature

ReserveIds (

[in]String TransportProfileUri,

[in]UInt16 NumReqWriterGroupIds,

[in]UInt16 NumReqDataSetWriterIds,

[out]BaseDataTypeDefaultPublisherId,

[out]UInt16[] WriterGroupIds,

[out]UInt16[] DataSetWriterIds

);

Argument

Description

TransportProfileUri

Transport protocol and message mapping profile scope for the ID request.

NumReqWriterGroupIds

The number of requested Ids for WriterGroups.

NumReqDataSetWriterIds

The number of requested Ids for DataSetWriters.

DefaultPublisherId

The default PublisherId of the Server for the requested TransportProfileUri.

WriterGroupIds

The reserved Ids for WriterGroups for the requested TransportProfileUri.

DataSetWriterIds

The reserved Ids for DataSetWriters for the requested TransportProfileUri

Method Result Codes

ResultCode

Description

Bad_UserAccessDenied

The Session user is not allowed to modify the PubSub configuration.

Bad_ResourceUnavailable

The requested number of Ids cannot be reserved.

The maximum number of WriterGroups and DataSetWriters are exposed in the PubSubCapabilities Object.

Table 218 specifies the AddressSpace representation for the ReserveIds Method.

Table 218 – ReserveIds Method AddressSpace definition

Attribute

Value

BrowseName

ReserveIds

References

NodeClass

BrowseName

DataType

TypeDefinition

ModellingRule

HasProperty

Variable

InputArguments

Argument[]

PropertyType

Mandatory

HasProperty

Variable

OutputArguments

Argument[]

PropertyType

Mandatory

ConformanceUnits

PubSub Model Base

This Method closes the file and applies the changes to the PubSub configuration as defined in the ConfigurationReferences argument. It can only be called if the file was opened for writing. If the Close Method is called any cached data is discarded and the PubSub configuration is not changed.

The file content shall be a UABinaryFileDataType with a PubSubConfiguration2DataType as Body. The ConfigurationReferences argument specifies the configuration elements to add, modify or remove. Configuration elements in PubSubConfiguration2DataType that are not referenced by ConfigurationReferences may be used indirectly as parent elements for referencing. In this case only the name of the element is relevant and all other fields of the element are ignored. Configuration elements in PubSubConfiguration2DataType not referenced and not used as parent elements are ignored.

Remove element operations shall be processed before any other operations are processed. The PubSubConfiguration2DataType may contain duplicate names for cases where elements are removed and added with the same name.

The top-level fields in the PubSubConfiguration2DataType are not referenced in ConfigurationReferences argument. Most of them are only relevant for the read case.

The Client shall be authorized to modify the configuration for the PubSub functionality when invoking this Method on the Server.

Signature

CloseAndUpdate (

[in]UInt32 FileHandle,

[in]Boolean RequireCompleteUpdate,

[in]PubSubConfigurationRefDataType[]ConfigurationReferences,

[out]Boolean ChangesApplied,

[out]StatusCode[] ReferencesResults,

[out]PubSubConfigurationValueDataType[] ConfigurationValues,

[out]NodeId[] ConfigurationObjects

);

Argument

Description

FileHandle

The handle of the previously opened file.

RequireCompleteUpdate

If true, the modification is only applied if the all changes can be applied to all objects.

ConfigurationReferences

References to the PubSub configuration elements in the written file that should be added, modified or removed.

ChangesApplied

If true, one or more changes were applied. If RequireCompleteUpdate was set to false, the ReferencesResults argument indicates if referenced configuration elements failed.

If false, no changes were applied. The detailed errors are provided in the ReferencesResults argument.

ReferencesResults

Results of the add, modify, match or remove operation for the referenced element. The length and order of the array shall match the ConfigurationReferences array.

ConfigurationValues

The assigned names and identifiers for the elements where empty names or null identifiers where provided in the elements. The values are only provided for elements with the bits ElementAdd or ElementMatch set and where a name and identifier was assigned.

ConfigurationObjects

NodeIds of the related Objects to referenced

If NodeIds are returned, the length and order of the array shall match the ConfigurationReferences array.

If the Server does not support the creation of NodeIds, the array is null or empty.

Method Result Codes

ResultCode

Description

Bad_TypeMismatch

The file content is not a UABinaryFileDataType with a PubSubConfiguration2DataType as Body.

Bad_InvalidArgument

The file handle is not valid.

Bad_InvalidState

The file was not opened for writer access.

Bad_UserAccessDenied

The Session user is not allowed to modify the PubSub configuration.

Bad_NothingToDo

The ConfigurationReferences array is null or empty.

Element Result Codes

ResultCode

Description

Bad_BrowseNameDuplicated

An element with the name already exists. The element cannot be added.

Bad_NoMatch

An element with the name does not exist or there is no element with matching parameters. The element cannot be matched, modified or removed.

Bad_NotFound

One of the parent elements does not exist or was not added or matched. The element cannot be processed.

Bad_InvalidArgument

The element reference is invalid or has invalid index entries.

Bad_ResourceUnavailable

The maximum number of supported elements is reached.

Bad_InvalidState

A WriterGroup with active GroupHeader was references with ElementMatch.

Bad_UserAccessDenied

The user has not the rights to access the element.

Table 219 specifies the AddressSpace representation for the CloseAndUpdate Method.

Table 219 – CloseAndUpdate Method AddressSpace definition

Attribute

Value

BrowseName

CloseAndUpdate

References

NodeClass

BrowseName

DataType

TypeDefinition

ModellingRule

HasProperty

Variable

InputArguments

Argument[]

PropertyType

Mandatory

HasProperty

Variable

OutputArguments

Argument[]

PropertyType

Mandatory

ConformanceUnits

PubSub Model Base

A PublishedDataSet defines the content of a DataSetMessage and the configuration of the information source for a DataSet. See 5.2 for the introduction to DataSets, 5.3 for the introduction to DataSetMessages and 5.4.1.2 for an introduction to the different source options and the parameters for sending of DataSetMessages.

Figure 41 depicts the ObjectTypes of the published DataSet model and their components.


Figure 41 – Published DataSet overview

Instances of the DataSetFolderType are used to organize PublishedDataSetType Objects in a tree of DataSetFolders. The configuration can be made through Methods or can be made by product-specific configuration tools.

The PublishedDataSetType defines the information necessary for a Subscriber to understand and decode DataSetMessages received from the Publisher for a DataSet and to detect changes of the DataSet semantic and metadata.

The types derived from the PublishedDataSetType define the source of information for a DataSet in the OPC UA Server AddressSpace like Variables or Events.

This ObjectType is the base type for PublishedDataSets. It defines the metadata and the configuration version of the DataSets sent as DataSetMessages through DataSetWriters.

The PublishedDataSetType is the base type for configurable DataSets. Derived types like PublishedDataItemsType and PublishedEventsType define how to collect the DataSet to be published. For PublishedDataItemsType this is a list of monitored Variables used to create cyclic DataSets. For PublishedEventsType this is an Event selection used to create acyclic DataSets. The list of monitored Variables or the list of selected EventFields defines the content and metadata of the PublishedDataSetType Object.

If the content of the DataSet is defined by a product-specific configuration and the source of the DataSet is not known, the PublishedDataSetType can be used directly to expose the custom PublishedDataSet in the AddressSpace of the Publisher. If the Variable CyclicDataSet is not present, the custom PublishedDataSet shall create cyclic DataSets.

The PublishedDataSetType is formally defined in Table 220.

Table 220 – PublishedDataSetType definition

Attribute

Value

BrowseName

PublishedDataSetType

IsAbstract

False

References

NodeClass

BrowseName

DataType

TypeDefinition

ModellingRule

Subtype of BaseObjectType defined in OPC 10000-5.

DataSetToWriter

Object

<DataSetWriterName>

DataSetWriterType

Optional‌Placeholder

HasProperty

Variable

ConfigurationVersion

Configuration‌VersionDataType

PropertyType

Mandatory

HasProperty

Variable

DataSetMetaData

DataSetMeta‌DataType

PropertyType

Mandatory

HasProperty

Variable

DataSetClassId

Guid

PropertyType

Optional

HasProperty

Variable

CyclicDataSet

Boolean

PropertyType

Optional

HasComponent

Object

ExtensionFields

ExtensionFieldsType

Optional

Conformance Units

PubSub Model Base

The PublishedDataSetType ObjectType is a concrete type and can be used directly. It can be used to expose a PublishedDataSet where the data collection is not visible in the AddressSpace.

The Object has a list of DataSetWriters. A DataSetWriter sends DataSetMessages created from DataSets through a Message Oriented Middleware. The link between the PublishedDataSet Object and a DataSetWriter shall be created when an instance of the DataSetWriterType is created. The DataSetWriterType is defined in 9.1.7.2. If a DataSetWriter is created for the PublishedDataSet, it is added to the list using the ReferenceType DataSetToWriter. The DataSetToWriter ReferenceType is defined in 9.1.4.2.5. If a DataSetWriter for the PublishedDataSet is removed from a group, the Reference to this DataSetWriter shall also be removed from this list. The group model is defined in 9.1.6.

The Property ConfigurationVersion is related to configuration of the DataSet produced by the PublishedDataSet Object. The PublishedDataSet parameters affecting the version are defined in the concrete types derived from this base type. The Property value shall match the ConfigurationVersion in the DataSetMetaData Property. The ConfigurationVersionDataType and the rules for setting the version are defined in 6.2.3.2.6.

The Property DataSetMetaData provides the information necessary to decode DataSetMessages on the Subscriber side if the DataSetMessages are not self-describing. The information in this Property is automatically updated if the ConfigurationVersion is changed based on DataSet configuration change. The DataSetMetaDataType is defined in 6.2.3.2.3. The Name field in the DataSetMetaDataType shall match the name of the PublishedDataSetType Object if the DataSetMetaData is not based on a DataSetClass.

The MajorVersion part of the ConfigurationVersion contained in the DataSetMessage needs to match the ConfigurationVersion of the DataSetMetaData available on the Subscriber side.

The DataSetClassId is the globally unique identifier for a DataSetClass. The optional Property shall be present if the DataSetClassId of the DataSetMetaData is not null. If the DataSetClassId is not null, the Publisher shall reject any configuration changes that change the DataSetMetaData. The Property value shall match the DataSetClassId in the DataSetMetaData Property.

The Property CyclicDataSet provides the information if the DataSets created by the PublishedDataSet are cyclic or acyclic. If the Property is provided by an instance of PublishedDataSetType, the Value shall be true. If the Property is provided by an instance of PublishedEventsType, the Value shall be false.

The ExtensionFields Object allows the configuration of fields with values to be included in the DataSet in case the existing AddressSpace of the Publisher does not provide the necessary information. The extension fields are added as Properties to the ExtensionFields Object. For PublishedDataItemsType base PublishedDataSets, an extension field is included as a Variable in the published DataSet. For PublishedEventsType base PublishedDataSets, an extension field is included into the SelectedFields for the DataSet.

The ExtensionFieldsType is formally defined in Table 221. It allows the configuration of fields with values to be included in the DataSet in case the existing AddressSpace of the Publisher does not provide the necessary information.

Table 221 – ExtensionFieldsType definition

Attribute

Value

BrowseName

ExtensionFieldsType

IsAbstract

False

References

NodeClass

BrowseName

DataType

TypeDefinition

ModellingRule

Subtype of BaseObjectType defined in OPC 10000-5.

HasProperty

Variable

<ExtensionFieldName>

BaseDataType

PropertyType

OptionalPlaceholder

HasComponent

Method

AddExtensionField

Defined in 9.1.4.2.3.

Mandatory

HasComponent

Method

RemoveExtensionField

Defined in 9.1.4.2.4.

Mandatory

Conformance Units

PubSub Model Base

The ExtensionFieldsType ObjectType is a concrete type and can be used directly.

The configured list of extension fields is exposed through Properties and managed through the Methods AddExtensionField and RemoveExtensionField. An ExtensionField is not automatically included in the DataSet. The ExtensionField can be added to the DataSet after creation.

Metadata that normally appear in message headers can be included in the body by adding extension fields with well-known QualifiedNames. These well-known QualifiedNames are shown in Table 222. The qualifying namespace is the OPC UA namespace.

Table 222 – Well-Known Extension Field Names

Name

Type

Description

PublisherId

BaseDataType

The PublisherId from the Connection Object.

DataSetName

String

The Name from the DataSetMetaData.

DataSetClassId

Guid

The DataSetClassId from the DataSetMetaData.

MajorVersion

UInt32

The MajorVersion from the ConfigurationVersion

MinorVersion

UInt32

The MinorVersion from the ConfigurationVersion

DataSetWriterId

BaseDataType

The DataSetWriterId from the DataSetWriterTransport Object.

MessageSequenceNumber

UInt16

The sequence number from the DataSetMessage.

If a well-known name is used, the value placed in the message body is dynamically generated from the current settings. The value set in the AddExtensionField Method is ignored. Subtypes of DataSetWriterTransportType may extend this list.

This Method is used to add a Property to the Object ExtensionFields.

The Client shall be authorized to modify the configuration for the PubSub functionality when invoking this Method on the Server.

Signature

AddExtensionField (

[in]QualifiedNameFieldName,

[in]BaseDataTypeFieldValue,

[out]NodeId FieldId

);

Argument

Description

FieldName

Name of the field to add.

FieldValue

The value of the field to add.

FieldId

The NodeId of the added field Property.

Method Result Codes

ResultCode

Description

Bad_NodeIdExists

A field with the name already exists.

Bad_InvalidArgument

The Server is not able to apply the Name. The Name may be too long or may contain invalid characters.

Bad_UserAccessDenied

The Session user is not allowed to configure the Object.

Table 223 specifies the AddressSpace representation for the AddExtensionField Method.

Table 223 – AddExtensionField Method AddressSpace definition

Attribute

Value

BrowseName

AddExtensionField

References

NodeClass

BrowseName

DataType

TypeDefinition

ModellingRule

HasProperty

Variable

InputArguments

Argument[]

PropertyType

Mandatory

HasProperty

Variable

OutputArguments

Argument[]

PropertyType

Mandatory

ConformanceUnits

PubSub Model Base

This Method is used to remove a Property from the Object ExtensionFields.

The Client shall be authorized to modify the configuration for the PubSub functionality when invoking this Method on the Server.

Signature

RemoveExtensionField (

[in]NodeId FieldId

);

Argument

Description

FieldId

The NodeId field Property to remove.

Method Result Codes

ResultCode

Description

Bad_NodeIdUnknown

A field with the NodeId does not exist.

Bad_NodeIdInvalid

The FieldId is not a NodeId of a Property of the ExtensionFieldsType Object.

Bad_UserAccessDenied

The Session user is not allowed to configure the Object.

Table 224 specifies the AddressSpace representation for the RemoveExtensionField Method.

Table 224 – RemoveExtensionField Method AddressSpace definition

Attribute

Value

BrowseName

RemoveExtensionField

References

NodeClass

BrowseName

DataType

TypeDefinition

ModellingRule

HasProperty

Variable

InputArguments

Argument[]

PropertyType

Mandatory

ConformanceUnits

PubSub Model Base

The DataSetToWriter ReferenceType is a concrete ReferenceType that can be used directly. It is a subtype of the HierarchicalReferences ReferenceType.

The SourceNode of References of this type shall be an Object of ObjectType PublishedDataSetType or an ObjectType that is a subtype of PublishedDataSetType defined in 9.1.4.2.1.

The TargetNode of this ReferenceType shall be an Object of the ObjectType DataSetWriterType defined in 9.1.7.1.

Each DataSetWriter Object shall be the TargetNode of exactly one DataSetToWriter Reference.

Servers shall provide the inverse Reference that relates a DataSetWriter Object back to a PublishedDataSetType Object.

The representation of the DataSetToWriter ReferenceType in the AddressSpace is specified in Table 225.

Table 225 – DataSetToWriter ReferenceType

Attributes

Value

BrowseName

DataSetToWriter

InverseName

WriterToDataSet

Symmetric

False

IsAbstract

False

References

NodeClass

BrowseName

Comment

Subtype of HierarchicalReferences defined in OPC 10000-5.

Conformance Units

PubSub Model Base

The PublishedDataItemsType is used to select a list of OPC UA Variables as the source for the creation of DataSets sent through one or more DataSetWriters.

The PublishedDataItemsType is formally defined Table 226.

Table 226 – PublishedDataItemsType definition

Attribute

Value

BrowseName

PublishedDataItemsType

IsAbstract

False

References

NodeClass

BrowseName

DataType

TypeDefinition

ModellingRule

Subtype of PublishedDataSetType defined in 9.1.4.2.

HasProperty

Variable

PublishedData

PublishedVariable‌DataType[]

PropertyType

Mandatory

HasComponent

Method

AddVariables

Defined in 9.1.4.3.2.

Optional

HasComponent

Method

RemoveVariables

Defined in 9.1.4.3.3.

Optional

Conformance Units

PubSub Model PublishedDataSet

The PublishedDataItemsType ObjectType is a concrete type and can be used directly.

The PublishedData is defined in 6.2.3.7.1. Existing entries in the array can be changed by writing the new settings to the Variable Value. A new Value shall be rejected with Bad_OutOfRange if the array size would be changed. Entries in the array can be added and removed with the Methods AddVariables and RemoveVariables.

The index into the list of entries in the PublishedData has an important role for Subscribers and for configuration tools. It is used as a handle to reference the entry in configuration actions like RemoveVariables or the Value in DataSetMessages received by Subscribers. The index may change after configuration changes. Changes are indicated by the ConfigurationVersion and applications working with the index shall always check the ConfigurationVersion before using the index.

This Method is used to add Variables to the PublishedData Property. The PublishedData contains a list of published Variables of a PublishedDataItemsType Object. The information provided in the input Arguments and information available for the added Variables is also used to create the content of the DataSetMetaData Property. The mapping to the DataSetMetaData is described for the input Arguments.

Variables shall be added at the end of the list in PublishedData. This ensures that Subscribers are only affected by the change if they are interested in the added Variables.

If at least one Variable was added to the PublishedData, the MinorVersion of the ConfigurationVersion shall be updated. The ConfigurationVersionDataType and the rules for setting the version are defined in 6.2.3.2.6.

The Client shall be authorized to modify the configuration for the PubSub functionality when invoking this Method on the Server.

Signature

AddVariables (

[in]ConfigurationVersionDataType ConfigurationVersion,

[in]String[] FieldNameAliases,

[in]Boolean[] PromotedFields,

[in]PublishedVariableDataType[] VariablesToAdd,

[out]ConfigurationVersionDataType NewConfigurationVersion,

[out] StatusCode[] AddResults

);

Argument

Description

ConfigurationVersion

Configuration version of the DataSet. The configuration version shall match the entire current configuration version of the Object when the Method call is processed. If it does not match, the result Bad_InvalidState shall be returned.

The ConfigurationVersionDataType is defined in 6.2.3.2.6.

FieldNameAliases

The names assigned to the selected Variables for the fields in the DataSetMetaData and in the DataSetMessages for tagged message encoding. The size and the order of the array shall match the VariablesToAdd.

The string shall be used to set the name field in the FieldMetaData that is part of the DataSetMetaData.

PromotedFields

The flags indicating if the corresponding field is promoted to the DataSetMessage header. The size and the order of the array shall match the VariablesToAdd.

The flag is used to set the PromotedField flag in the fieldFlags parameter in the FieldMetaData.

VariablesToAdd

Array of Variables to add to PublishedData and the related configuration settings. Successfully added variables are appended to the end of the list of published variables configured in the PublishedData Property. Failed variables are not added to the list.

The PublishedVariableDataType is defined in 6.2.3.7.1.

The parameters builtInType, dataType, valueRank and arrayDimensions of the FieldMetaData are filled from corresponding Variable Attributes.

NewConfigurationVersion

Returns the new configuration version of the PublishedDataSet.

AddResults

The result codes for the variables to add.

Variables exceeding the maximum number of items in the Object are rejected with Bad_TooManyVariables.

Method Result Codes

ResultCode

Description

Bad_NothingToDo

An empty list of variables was provided.

Bad_InvalidState

The configuration version did not match the current state of the object.

Bad_NotWritable

The DataSet is based on a DataSetClass and the size of the PublishedData array cannot be changed.

Bad_UserAccessDenied

The Session user is not allowed to configure the object.

Operation Result Codes

ResultCode

Description

Bad_NodeIdInvalid

See OPC 10000-4 for the description of this result code.

Bad_NodeIdUnknown

See OPC 10000-4 for the description of this result code.

Bad_IndexRangeInvalid

See OPC 10000-4 for the description of this result code.

Bad_IndexRangeNoData

See OPC 10000-4 for the description of this result code.

If the ArrayDimensions have a fixed length that cannot change and no data exists within the range of indexes specified, Bad_IndexRangeNoData is returned in AddVariables. Otherwise, if the length of the array is dynamic, the Publisher shall insert this status in a DataSet if no data exists within the range.

Bad_TooManyVariables

The Publisher has reached its maximum number of items for the PublishedDataItemsType object.

Table 227 specifies the AddressSpace representation for the AddVariables Method.

Table 227 – AddVariables Method AddressSpace definition

Attribute

Value

BrowseName

AddVariables

References

NodeClass

BrowseName

DataType

TypeDefinition

ModellingRule

HasProperty

Variable

InputArguments

Argument[]

PropertyType

Mandatory

HasProperty

Variable

OutputArguments

Argument[]

PropertyType

Mandatory

ConformanceUnits

PubSub Model PublishedDataSet

This Method is used to remove Variables from the PublishedData list. It contains the list of published Variables of a PublishedDataItemsType Object.

A caller shall read the current Values of PublishedData and ConfigurationVersion prior to calling this Method, to ensure the use of the correct index of the Variables that are being removed.

If at least one Variable was successfully removed from the PublishedData, the MajorVersion of the ConfigurationVersion shall be updated. The ConfigurationVersionDataType and the rules for setting the version are defined in 6.2.3.2.6.

The order of the remaining Variables in the PublishedData shall be preserved.

The Client shall be authorized to modify the configuration for the PubSub functionality when invoking this Method on the Server.

Signature

RemoveVariables (

[in]ConfigurationVersionDataType ConfigurationVersion,

[in]UInt32[] VariablesToRemove,

[out]ConfigurationVersionDataType NewConfigurationVersion,

[out] StatusCode[] RemoveResults

);

Argument

Description

ConfigurationVersion

Configuration version of the DataSet. The configuration version and the indices passed through VariablesToRemove shall match the entire current configuration version of the Object when the Method call is processed. If it does not match, the result Bad_InvalidState shall be returned. The ConfigurationVersionDataType is defined in 6.2.3.2.6.

VariablesToRemove

Array of indices of Variables to remove from the list of Variables configured in PublishedData of the PublishedDataItemsType. This matches the list of fields configured in the DataSetMetaData of the PublishedDataSetType.

NewConfigurationVersion

Returns the new configuration version of the DataSet.

RemoveResults

The result codes for each of the variables to remove.

Method Result Codes

ResultCode

Description

Bad_NothingToDo

An empty list of variables was provided.

Bad_InvalidState

The configuration version did not match the current state of the Object.

Bad_UserAccessDenied

The Session user is not allowed to configure the Object.

Operation Result Codes

ResultCode

Description

Bad_InvalidArgument

The passed index was invalid.

Table 228 specifies the AddressSpace representation for the RemoveVariables Method.

Table 228 – RemoveVariables Method AddressSpace definition

Attribute

Value

BrowseName

RemoveVariables

References

NodeClass

BrowseName

DataType

TypeDefinition

ModellingRule

HasProperty

Variable

InputArguments

Argument[]

PropertyType

Mandatory

HasProperty

Variable

OutputArguments

Argument[]

PropertyType

Mandatory

ConformanceUnits

PubSub Model PublishedDataSet

This PublishedDataSetType is used to configure the collection of OPC UA Events.

The PublishedEventsType is formally defined in Table 229.

Table 229 – PublishedEventsType definition

Attribute

Value

BrowseName

PublishedEventsType

IsAbstract

False

References

NodeClass

BrowseName

DataType

TypeDefinition

ModellingRule

Subtype of PublishedDataSetType defined in 9.1.4.2.1.

HasProperty

Variable

EventNotifier

NodeId

PropertyType

Mandatory

HasProperty

Variable

SelectedFields

SimpleAttributeOperand[]

PropertyType

Mandatory

HasProperty

Variable

Filter

ContentFilter

PropertyType

Mandatory

HasComponent

Method

ModifyFieldSelection

Defined in 9.1.4.4.2.

Optional

Conformance Units

PubSub Model PublishedDataSet Events

The PublishedEventsType ObjectType is a concrete type and can be used directly.

The EventNotifier is defined in 6.2.3.8.1.

The SelectedFields is defined in 6.2.3.8.2.

The index into the list of entries in the SelectedFields has an important role for Subscribers. It is used as handle to reference the Event field in DataSetMessages received by Subscribers. The index may change after configuration changes. Changes are indicated by the ConfigurationVersion and applications working with the index shall always check the ConfigurationVersion before using the index. If a change of the SelectedFields adds additional fields, the MinorVersion of the ConfigurationVersion shall be updated. If a change of the SelectedFields removes fields, the MajorVersion of the ConfigurationVersion shall be updated. The Property ConfigurationVersion is defined in the base ObjectType PublishedDataSetType.

The Filter is defined in 6.2.3.8.3. A change of the Filter does not affect the ConfigurationVersion since the content of the DataSet does not change.

This Method is used to modify the event field selection of a PublishedEventsType Object.

The Client shall be authorized to modify the configuration for the PubSub functionality when invoking this Method on the Server.

Signature

ModifyFieldSelection (

[in]ConfigurationVersionDataType ConfigurationVersion,

[in]String[] FieldNameAliases,

[in]Boolean[] PromotedFields,

[in]SimpleAttributeOperand[] SelectedFields

[out]ConfigurationVersionDataType NewConfigurationVersion

);

Argument

Description

ConfigurationVersion

Configuration version of the DataSet. The configuration version shall match the entire current configuration version of the Object when the Method call is processed. If it does not match, the result Bad_InvalidState shall be returned.

The ConfigurationVersionDataType is defined in 6.2.3.2.6.

FieldNameAliases

The names assigned to the selected fields in the DataSetMetaData and in the DataSetMessages for tagged message encoding. The size and the order of the array shall match the SelectedFields.

The string is used to set the name field in the FieldMetaData that is part of the DataSetMetaData.

PromotedFields

The flags indicating if the corresponding field is promoted to the DataSetMessage header. The size and the order of the array shall match the SelectedFields.

The flag is used to set the corresponding field in the FieldMetaData that is part of the DataSetMetaData.

SelectedFields

The selection of Event fields contained in the DataSet generated for an Event and sent through the DataSetWriter. The SimpleAttributeOperand DataType is defined in OPC 10000-4.

A change to the selected fields requires a change of the ConfigurationVersion.

NewConfigurationVersion

Return the new configuration version of the DataSet.

Method Result Codes

ResultCode

Description

Bad_InvalidState

The configuration version did not match the current state of the Object.

Bad_EventFilterInvalid

The event filter is not valid.

Bad_UserAccessDenied

The Session user is not allowed to configure the Object.

Table 230 specifies the AddressSpace representation for the ModifyFieldSelection Method.

Table 230 – ModifyFieldSelection Method AddressSpace definition

Attribute

Value

BrowseName

ModifyFieldSelection

References

NodeClass

BrowseName

DataType

TypeDefinition

ModellingRule

HasProperty

Variable

InputArguments

Argument[]

PropertyType

Mandatory

HasProperty

Variable

OutputArguments

Argument[]

PropertyType

Mandatory

ConformanceUnits

PubSub Model PublishedDataSet Events

The DataSetFolderType is formally defined in Table 231.

Table 231 – DataSetFolderType definition

Attribute

Value

BrowseName

DataSetFolderType

IsAbstract

False

References

NodeClass

BrowseName

DataType

TypeDefinition

ModellingRule

Subtype of FolderType defined in OPC 10000-5.

Organizes

Object

<DataSetFolderName>

DataSetFolderType

OptionalPlaceholder

HasComponent

Object

<PublishedDataSetName>

PublishedDataSetType

OptionalPlaceholder

HasComponent

Method

AddPublishedDataItems

Defined in 9.1.4.5.2.

Optional

HasComponent

Method

AddPublishedEvents

Defined in 9.1.4.5.3.

Optional

HasComponent

Method

AddPublishedDataItemsTemplate

Defined in 9.1.4.5.4.

Optional

HasComponent

Method

AddPublishedEventsTemplate

Defined in 9.1.4.5.5.

Optional

HasComponent

Method

RemovePublishedDataSet

Defined in 9.1.4.5.6.

Optional

HasComponent

Method

AddDataSetFolder

Defined in 9.1.4.5.7.

Optional

HasComponent

Method

RemoveDataSetFolder

Defined in 9.1.4.5.8.

Optional

Conformance Units

PubSub Model Base

The DataSetFolderType ObjectType is a concrete type and can be used directly.

Instances of the DataSetFolderType can contain PublishedDataSets or other instances of the DataSetFolderType. This can be used to build a tree of Folder Objects used to group the configured PublishedDataSets.

The PublishedDataSetType Objects are added as components to the instance of the DataSetFolderType. An instance of a PublishedDataSetType is referenced only from one DataSetFolder. If the DataSetFolder is deleted, all referenced PublishedDataSetType Objects are deleted with the folder.

PublishedDataSetType Objects may be configured with product-specific configuration tools or added and removed through the Methods AddPublishedDataItems, AddPublishedEvents and RemovePublishedDataSet. The PublishedDataSetType is defined in 9.1.4.2.1.

This Method is used to create a PublishedDataSets Object of type PublishedDataItemsType and to add it to the DataSetFolderType Object. The configuration parameters provided with this Method are further described in the PublishedDataItemsType defined in 9.1.4.3.1 and the PublishedDataSetType defined in 9.1.4.2.

The settings in the VariablesToAdd are used to configure the data acquisition for the DataSet and are used to initialize the PublishedData Property of the PublishedDataItemsType.

The DataSetMetaData of the PublishedDataSetType is created from meta-data of the Variables referenced in VariablesToAdd and the settings in FieldNameAliases and FieldFlags.

The Client shall be authorized to modify the configuration for the PubSub functionality when invoking this Method on the Server.

Signature

AddPublishedDataItems (

[in]String Name,

[in]String[] FieldNameAliases,

[in]DataSetFieldFlags[] FieldFlags,

[in]PublishedVariableDataType[] VariablesToAdd,

[out] NodeId DataSetNodeId,

[out]ConfigurationVersionDataType ConfigurationVersion,

[out] StatusCode[] AddResults

);

Argument

Description

Name

Name of the Object to create.

FieldNameAliases

The names assigned to the selected Variables for the fields in the DataSetMetaData and in the DataSetMessages for tagged message encoding. The size and the order of the array shall match the VariablesToAdd.

The string shall be used to set the name field in the FieldMetaData that is part of the DataSetMetaData.

The name shall be unique in the DataSet.

FieldFlags

The field flags assigned to the selected Variables for the fields in the DataSetMetaData. The size and the order of the array shall match the VariablesToAdd.

The flag is used to set the corresponding field in the FieldMetaData that is part of the DataSetMetaData.

VariablesToAdd

Array of Variables to add to PublishedData and the related configuration settings. Successfully added variables are appended to the end of the list of published variables configured in the PublishedData Property. Failed variables are not added to the list.

The PublishedVariableDataType is defined in 6.2.3.7.1.

DataSetNodeId

NodeId of the created PublishedDataSets Object.

ConfigurationVersion

Returns the initial configuration version of the DataSet.

AddResults

The result codes for the variables to add.

Variables exceeding the maximum number of items in the Object are rejected with Bad_TooManyMonitoredItems.

Method Result Codes

ResultCode

Description

Bad_InvalidState

The current state of the Object does not allow a configuration change.

Bad_BrowseNameDuplicated

A data set Object with the name already exists.

Bad_UserAccessDenied

The Session user is not allowed to configure the Object.

Bad_InvalidArgument

The Server is not able to apply the Name. The Name may be too long or may contain invalid characters.

Operation Result Codes

ResultCode

Description

Bad_NodeIdInvalid

See OPC 10000-4 for the description of this result code.

Bad_NodeIdUnknown

See OPC 10000-4 for the description of this result code.

Bad_IndexRangeInvalid

See OPC 10000-4 for the description of this result code.

Bad_IndexRangeNoData

See OPC 10000-4 for the description of this result code.

If the ArrayDimensions have a fixed length that cannot change and no data exists within the range of indexes specified, Bad_IndexRangeNoData is returned in AddVariables. Otherwise if the length of the array is dynamic, the Publisher shall insert this status in a DataSet if no data exists within the range.

Bad_TooManyMonitoredItems

The Server has reached its maximum number of items for the PublishedDataItemsType object.

Bad_DuplicateName

The passed field name alias already exists.

Table 232 specifies the AddressSpace representation for the AddPublishedDataItems Method.

Table 232 – AddPublishedDataItems Method AddressSpace definition

Attribute

Value

BrowseName

AddPublishedDataItems

References

NodeClass

BrowseName

DataType

TypeDefinition

ModellingRule

HasProperty

Variable

InputArguments

Argument[]

PropertyType

Mandatory

HasProperty

Variable

OutputArguments

Argument[]

PropertyType

Mandatory

ConformanceUnits

PubSub Model PublishedDataSet

This Method is used to add a PublishedEventsType Object to the DataSetFolderType Object. The configuration parameters provided with this Method are further described in the PublishedEventsType defined in 9.1.4.4.1 and the PublishedDataSetType defined in 9.1.4.2.

The settings in the EventNotifier, SelectedFields and Filter are used to configure the data acquisition for the DataSet and are used to initialize the corresponding Properties of the PublishedEventsType.

The DataSetMetaData of the PublishedDataSetType is created from metadata of the selected Event fields and the settings in FieldNameAliases and FieldFlags.

The Client shall be authorized to modify the configuration for the PubSub functionality when invoking this Method on the Server.

Signature

AddPublishedEvents (

[in]String Name,

[in]NodeId EventNotifier,

[in]String[] FieldNameAliases,

[in]DataSetFieldFlags[] FieldFlags,

[in]SimpleAttributeOperand[]SelectedFields,

[in]ContentFilter Filter,

[out]ConfigurationVersionDataTypeConfigurationVersion,

[out]NodeId DataSetNodeId

);

Argument

Description

Name

Name of the DataSet Object to create.

EventNotifier

The NodeId of the Object in the event notifier tree of the OPC UA Server from which Events are collected.

FieldNameAliases

The names assigned to the selected fields in the DataSetMetaData and in the DataSetMessages for tagged message encoding. The size and the order of the array shall match the SelectedFields.

The string is used to set the name field in the FieldMetaData that is part of the DataSetMetaData.

FieldFlags

The field flags assigned to the selected fields in the DataSetMetaData. The size and the order of the array shall match the SelectedFields.

The flag is used to set the corresponding field in the FieldMetaData that is part of the DataSetMetaData.

SelectedFields

The selection of Event Fields contained in the DataSet generated for an Event and sent through the DataSetWriter. The SimpleAttributeOperand DataType is defined in OPC 10000-4.

Filter

The filter applied to the Events. It allows the reduction of the DataSets generated from Events through a filter like filtering for a certain EventType. The ContentFilter DataType is defined in OPC 10000-4.

ConfigurationVersion

Returns the initial configuration version of the PublishedDataSets.

DataSetNodeId

NodeId of the created PublishedDataSets Object.

Method Result Codes

ResultCode

Description

Bad_InvalidState

The current state of the Object does not allow a configuration change.

Bad_NodeIdExists

A data set Object with the name already exists.

Bad_NodeIdUnknown

The Event notifier node is not known in the Server.

Bad_EventFilterInvalid

The Event filter is not valid.

Bad_UserAccessDenied

The Session user is not allowed to configure the Object.

Bad_InvalidArgument

The Server is not able to apply the Name. The Name may be too long or may contain invalid characters.

Table 233 specifies the AddressSpace representation for the AddPublishedEvents Method.

Table 233 – AddPublishedEvents Method AddressSpace definition

Attribute

Value

BrowseName

AddPublishedEvents

References

NodeClass

BrowseName

DataType

TypeDefinition

ModellingRule

HasProperty

Variable

InputArguments

Argument[]

PropertyType

Mandatory

HasProperty

Variable

OutputArguments

Argument[]

PropertyType

Mandatory

ConformanceUnits

PubSub Model PublishedDataSet Events

This Method is used to create a PublishedDataSets Object of type PublishedDataItemsType and to add it to the DataSetFolderType Object. The configuration parameters provided with this Method are further described in the PublishedDataItemsType defined in 9.1.4.3.1 and the PublishedDataSetType defined in 9.1.4.2.

The Client shall be authorized to modify the configuration for the PubSub functionality when invoking this Method on the Server.

Signature

AddPublishedDataItemsTemplate (

[in]String Name,

[in]DataSetMetaDataType DataSetMetaData,

[in]PublishedVariableDataType[] VariablesToAdd,

[out]NodeId DataSetNodeId,

[out]StatusCode[] AddResults

);

Argument

Description

Name

Name of the Object to create.

DataSetMetaData

The DataSetMetaData predefined by the caller. The initial setting shall not be changed by the Publisher. If the dataSetClassId of the DataSetMetaData is not null, the DataSetClassId Property of the PublishedDataSetType shall be created and initialized with the dataSetClassId value.

The name of the PublishedDataSet Object is defined by the name in the DataSetMetaData.

VariablesToAdd

Array of variable settings for the data acquisition for the fields in the DataSetMetaData.

The size of the array shall match the size of the fields array in the DataSetMetaData.

The substituteValue in the VariablesToAdd entries shall be configured.

For failed variables the publishedVariable field of entry in the resulting PublishedData Property shall be set to a null NodeId.

If there is no Variable available for a field in the DataSetMetaData the publishedVariable field for the entry shall be set to a null NodeId.

The PublishedVariableDataType is defined in 6.2.3.7.1.

DataSetNodeId

NodeId of the created PublishedDataSets Object.

AddResults

The result codes for the variables to add.

Method Result Codes

ResultCode

Description

Bad_InvalidState

The current state of the Object does not allow a configuration change.

Bad_BrowseNameDuplicated

A data set Object with the name already exists.

Bad_UserAccessDenied

The Session user is not allowed to configure the Object.

Bad_InvalidArgument

The VariablesToAdd parameter does not match the array size of the fields in the DataSetMetaData or the configuration of the VariablesToAdd contains invalid settings.

Bad_TooManyMonitoredItems

The Object cannot be created since the number of items in the PublishedDataSet exceeds the capabilities of the Publisher.

Operation Result Codes

ResultCode

Description

Bad_NodeIdInvalid

See OPC 10000-4 for the description of this result code.

Bad_NodeIdUnknown

See OPC 10000-4 for the description of this result code.

Bad_IndexRangeInvalid

See OPC 10000-4 for the description of this result code.

Bad_IndexRangeNoData

See OPC 10000-4 for the description of this result code.

If the ArrayDimensions have a fixed length that cannot change and no data exists within the range of indexes specified, Bad_IndexRangeNoData is returned in AddVariables. Otherwise if the length of the array is dynamic, the Publisher shall insert this status in a DataSet if no data exists within the range.

Bad_TooManyMonitoredItems

The Server has reached its maximum number of items for the PublishedDataItemsType Object.

Bad_DuplicateName

The passed field name alias already exists.

Table 234 specifies the AddressSpace representation for the AddPublishedDataItemsTemplate Method.

Table 234 – AddPublishedDataItemsTemplate Method AddressSpace definition

Attribute

Value

BrowseName

AddPublishedDataItemsTemplate

References

NodeClass

BrowseName

DataType

TypeDefinition

ModellingRule

HasProperty

Variable

InputArguments

Argument[]

PropertyType

Mandatory

HasProperty

Variable

OutputArguments

Argument[]

PropertyType

Mandatory

ConformanceUnits

PubSub Model PublishedDataSet

This Method is used to add a PublishedEventsType Object to the DataSetFolderType Object. The configuration parameters provided with this Method are further described in the PublishedEventsType defined in 9.1.4.4.1 and the PublishedDataSetType defined in 9.1.4.2.

The Client shall be authorized to modify the configuration for the PubSub functionality when invoking this Method on the Server.

Signature

AddPublishedEventsTemplate (

[in]String Name,

[in]DataSetMetaDataType DataSetMetaData,

[in]NodeId EventNotifier,

[in]SimpleAttributeOperand[]SelectedFields,

[in]ContentFilter Filter,

[out]NodeId DataSetNodeId

);

Argument

Description

Name

Name of the Object to create.

DataSetMetaData

The DataSetMetaData predefined by the caller. The initial setting shall not be changed by the Publisher. If the dataSetClassId of the DataSetMetaData is not null, the DataSetClassId Property of the PublishedDataSetType shall be created and initialized with the dataSetClassId value.

The name of the PublishedDataSet Object is defined by the name in the DataSetMetaData.

EventNotifier

The NodeId of the Object in the event notifier tree of the OPC UA Server from which Events are collected.

SelectedFields

The selection of Event Fields contained in the DataSet generated for an Event and sent through the DataSetWriter.

The size of the array shall match the size of the fields array in the DataSetMetaData.

If there is no Event field available for a field in the DataSetMetaData the browsePath field for the SimpleAttributeOperand entry shall be set to null.

The SimpleAttributeOperand DataType is defined in OPC 10000-4.

Filter

The filter applied to the Events. It allows the reduction of the DataSets generated from Events through a filter like filtering for a certain EventType. The ContentFilter DataType is defined in OPC 10000-4.

DataSetNodeId

NodeId of the created PublishedDataSets Object.

Method Result Codes

ResultCode

Description

Bad_InvalidState

The current state of the Object does not allow a configuration change.

Bad_NodeIdExists

A DataSet Object with the name already exists.

Bad_NodeIdUnknown

The Event notifier node is not known in the Server.

Bad_EventFilterInvalid

The Event filter is not valid.

Bad_UserAccessDenied

The Session user is not allowed to configure the Object.

Bad_InvalidArgument

The Server is not able to apply the Name. The Name may be too long or may contain invalid characters.

Table 235 specifies the AddressSpace representation for the AddPublishedEventsTemplate Method.

Table 235 – AddPublishedEventsTemplate Method AddressSpace definition

Attribute

Value

BrowseName

AddPublishedEventsTemplate

References

NodeClass

BrowseName

DataType

TypeDefinition

ModellingRule

HasProperty

Variable

InputArguments

Argument[]

PropertyType

Mandatory

HasProperty

Variable

OutputArguments

Argument[]

PropertyType

Mandatory

ConformanceUnits

PubSub Model PublishedDataSet Events

This Method is used to remove a PublishedDataSetType Object from the DataSetFolderType Object.

A successful removal of the PublishedDataSetType Object removes all associated DataSetWriter Objects. Before the Objects are removed, their state is changed to Disabled.

The Client shall be authorized to modify the configuration for the PubSub functionality when invoking this Method on the Server.

Signature

RemovePublishedDataSet (

[in]NodeIdDataSetNodeId

);

Argument

Description

DataSetNodeId

NodeId of the PublishedDataSets Object to remove from the Server. The DataSetId is either returned by the AddPublishedDataItems or AddPublishedEvents Methods or can be discovered by browsing the list of configured PublishedDataSets in the PublishSubscribe Object.

Method Result Codes

ResultCode

Description

Bad_NodeIdUnknown

The DataSetNodeId is unknown.

Bad_NodeIdInvalid

The DataSetNodeId is not a NodeId of a published DataSet.

Bad_UserAccessDenied

The Session user is not allowed to delete a PublishedDataSetType.

Table 236 specifies the AddressSpace representation for the RemovePublishedDataSet Method.

Table 236 – RemovePublishedDataSet Method AddressSpace definition

Attribute

Value

BrowseName

RemovePublishedDataSet

References

NodeClass

BrowseName

DataType

TypeDefinition

ModellingRule

HasProperty

Variable

InputArguments

Argument[]

PropertyType

Mandatory

ConformanceUnits

PubSub Model PublishedDataSet

This Method is used to add a DataSetFolderType Object to a DataSetFolderType Object.

The Client shall be authorized to modify the configuration for the PubSub functionality when invoking this Method on the Server.

Signature

AddDataSetFolder (

[in]StringName,

[out]NodeIdDataSetFolderNodeId

);

Argument

Description

Name

Name of the Object to create.

DataSetFolderNodeId

NodeId of the created DataSetFolderType Object.

Method Result Codes

ResultCode

Description

Bad_BrowseNameDuplicated

A folder Object with the name already exists.

Bad_InvalidArgument

The Server is not able to apply the Name. The Name may be too long or may contain invalid characters.

Bad_UserAccessDenied

The Session user is not allowed to add a folder.

Table 237 specifies the AddressSpace representation for the AddDataSetFolder Method.

Table 237 – AddDataSetFolder Method AddressSpace definition

Attribute

Value

BrowseName

AddDataSetFolder

References

NodeClass

BrowseName

DataType

TypeDefinition

ModellingRule

HasProperty

Variable

InputArguments

Argument[]

PropertyType

Mandatory

HasProperty

Variable

OutputArguments

Argument[]

PropertyType

Mandatory

ConformanceUnits

PubSub Model PublishedDataSet

This Method is used to remove a DataSetFolderType Object from the parent DataSetFolderType Object.

A successful removal of the DataSetFolderType Object removes all associated PublishedDataSetType Objects and their associated DataSetWriter Objects. Before the Objects are removed, their state is changed to Disabled.

The Client shall be authorized to modify the configuration for the PubSub functionality when invoking this Method on the Server.

Signature

RemoveDataSetFolder (

[in]NodeIdDataSetFolderNodeId

);

Argument

Description

DataSetFolderNodeId

NodeId of the DataSetFolderType Object to remove from the Server.

Method Result Codes

ResultCode

Description

Bad_NodeIdUnknown

The DataSetFolderNodeId is unknown.

Bad_UserAccessDenied

The Session user is not allowed to delete a data set.

Table 238 specifies the AddressSpace representation for the RemoveDataSetFolder Method.

Table 238 – RemoveDataSetFolder Method AddressSpace definition

Attribute

Value

BrowseName

RemoveDataSetFolder

References

NodeClass

BrowseName

DataType

TypeDefinition

ModellingRule

HasProperty

Variable

InputArguments

Argument[]

PropertyType

Mandatory

ConformanceUnits

PubSub Model PublishedDataSet

Figure 42 depicts the ObjectType for the PubSub connection model and its components and the relations to other parts of the model.


Figure 42 – PubSubConnectionType overview

This ObjectType is a concrete type for Objects representing PubSubConnections. A PubSubConnection is a combination of protocol selection, protocol settings and addressing information. The PubSubConnectionType is formally defined in Table 239.

Table 239 – PubSubConnectionType definition

Attribute

Value

BrowseName

PubSubConnectionType

IsAbstract

False

References

Node Class

BrowseName

DataType

TypeDefinition

ModellingRule

Subtype of BaseObjectType defined in OPC 10000-5.

HasProperty

Variable

PublisherId

BaseDataType

PropertyType

Mandatory

HasComponent

Variable

TransportProfileUri

String

SelectionListType

Mandatory

HasProperty

Variable

ConnectionProperties

KeyValuePair[]

PropertyType

Mandatory

HasComponent

Object

Address

NetworkAddressType

Mandatory

HasComponent

Object

TransportSettings

ConnectionTransportType

Optional

HasWriterGroup

Object

<WriterGroupName>

WriterGroupType

OptionalPlaceholder

HasReaderGroup

Object

<ReaderGroupName>

ReaderGroupType

OptionalPlaceholder

HasComponent

Object

Status

PubSubStatusType

Mandatory

HasComponent

Object

Diagnostics

PubSubDiagnostics‌ConnectionType

Optional

HasComponent

Method

AddWriterGroup

Defined in 9.1.5.3.

Optional

HasComponent

Method

AddReaderGroup

Defined in 9.1.5.4.

Optional

HasComponent

Method

RemoveGroup

Defined in 9.1.5.5.

Optional

Conformance Units

PubSub Model Base

The PublisherId is defined in 6.2.7.1.

The TransportProfileUri is defined in 6.2.7.2. The Property is initialized with the default transport protocol for the Address during the creation of the connection. The SelectionValues Property of the SelectionListType shall contain the list of supported TransportProfileUris. The SelectionListType is defined in OPC 10000-5.

The ConnectionProperties is defined in 6.2.7.4.

The Address is defined in 6.2.7.3. The abstract NetworkAddressType is defined in 9.1.5.6. The default type used for concrete instances is the NetworkAddressUrlType defined in 9.1.5.7. It represents the Address in the form of a URL String.

The transport protocol mapping specific settings are provided in the optional Object TransportSettings. The ConnectionTransportType is defined in 9.1.5.8. The Object shall be present if the transport protocol mapping defines specific parameters.

The configured WriterGroup and ReaderGroup Objects are added as components to the instance of the PubSubConnectionType. PubSubGroup Objects may be configured with product- specific configuration tools or added and removed through the OPC UA Methods AddWriterGroup, AddReaderGroup and RemoveGroup.

The Status Object provides the current operational status of the connection. The PubSubStatusType is defined in 9.1.10. The state machine for the status and the relation to other PubSub Objects like PublishSubscribe, PubSubGroup, DataSetWriter and DataSetReader are defined in 6.2.1.

The Diagnostics Object provides the current diagnostic information for a PubSubConnectionType Object. The PubSubDiagnosticsConnectionType is defined in 9.1.11.8.

This Method is used to add a new WriterGroup Object to an instance of the PubSubConnection.

The Client shall be authorized to modify the configuration for the PubSub functionality when invoking this Method on the Server.

Signature

AddWriterGroup (

[in]WriterGroupDataType Configuration,

[out]NodeId GroupId

);

Argument

Description

Configuration

Configuration parameters for the WriterGroup. The parameters and the WriterGroupDataType are defined in 6.2.6.

GroupId

The NodeId of the new WriterGroup Object.

Method Result Codes

ResultCode

Description

Bad_InvalidArgument

The Server is not able to apply the GroupName. The name may be too long or may contain invalid characters.

Bad_BrowseNameDuplicated

An Object with the name already exists in the connection.

Bad_ResourceUnavailable

The Server does not have enough resources to add the group.

Bad_UserAccessDenied

The Session user does not have rights to create the group.

Table 240 specifies the AddressSpace representation for the AddWriterGroup Method.

Table 240 – AddWriterGroup Method AddressSpace definition

Attribute

Value

BrowseName

AddWriterGroup

References

NodeClass

BrowseName

DataType

TypeDefinition

ModellingRule

HasProperty

Variable

InputArguments

Argument[]

PropertyType

Mandatory

HasProperty

Variable

OutputArguments

Argument[]

PropertyType

Mandatory

ConformanceUnits

PubSub Model Base

This Method is used to add a new ReaderGroup Object to an instance of the PubSubConnection.

The Client shall be authorized to modify the configuration for the PubSub functionality when invoking this Method on the Server.

Signature

AddReaderGroup (

[in]ReaderGroupDataType Configuration,

[out]NodeId GroupId

);

Argument

Description

Configuration

Configuration parameters for the ReaderGroup. The parameters and the ReaderGroupDataType are defined in 6.2.8.

GroupId

The NodeId of the new ReaderGroup Object.

Method Result Codes

ResultCode

Description

Bad_InvalidArgument

The Server is not able to apply the GroupName. The name may be too long or may contain invalid characters.

Bad_BrowseNameDuplicated

An Object with the name already exists in the connection.

Bad_ResourceUnavailable

The Server does not have enough resources to add the group.

Bad_UserAccessDenied

The Session user does not have rights to create the group.

Table 241 specifies the AddressSpace representation for the AddReaderGroup Method.

Table 241 – AddReaderGroup Method AddressSpace definition

Attribute

Value

BrowseName

AddReaderGroup

References

NodeClass

BrowseName

DataType

TypeDefinition

ModellingRule

HasProperty

Variable

InputArguments

Argument[]

PropertyType

Mandatory

HasProperty

Variable

OutputArguments

Argument[]

PropertyType

Mandatory

ConformanceUnits

PubSub Model Base

This Method is used to remove a PubSubGroup Object from the connection.

A successful removal of the PubSubGroup Object removes all associated DataSetWriter or DataSetReader Objects. Before the Objects are removed, their state is set to Disabled.

The Client shall be authorized to modify the configuration for the PubSub functionality when invoking this Method on the Server.

Signature

RemoveGroup (

[in]NodeIdGroupId

);

Argument

Description

GroupId

NodeId of the group to remove from the connection

Method Result Codes

ResultCode

Description

Bad_NodeIdUnknown

The GroupId is unknown.

Bad_UserAccessDenied

The Session user does not have rights to delete the group.

Table 242 specifies the AddressSpace representation for the RemoveGroup Method.

Table 242 – RemoveGroup Method AddressSpace definition

Attribute

Value

BrowseName

RemoveGroup

References

NodeClass

BrowseName

DataType

TypeDefinition

ModellingRule

HasProperty

Variable

InputArguments

Argument[]

PropertyType

Mandatory

ConformanceUnits

PubSub Model Base

An instance of a subtype of this abstract ObjectType represents network address information. The NetworkAddressType is formally defined in Table 243.

Table 243 – NetworkAddressType definition

Attribute

Value

BrowseName

NetworkAddressType

IsAbstract

True

References

NodeClass

BrowseName

DataType

TypeDefinition

ModellingRule

Subtype of BaseObjectType defined in OPC 10000-5.

HasComponent

Variable

NetworkInterface

String

SelectionListType

Mandatory

Conformance Units

PubSub Model Base

The NetworkInterface Variable allows the selection of the network interface used for the communication relation. The network interface can be listed by name, by IP address or a combination of name and IP address. The SelectionValues Property of the SelectionListType shall contain the list of available network interfaces as application-specific strings. The Value of the Variable contains the selected network interface as String. The SelectionListType is defined in OPC 10000-5. The Object may allow providing additional Strings not defined in the SelectionValues. In this case the NotRestrictToList Property of the SelectionListType is set to true.

An instance of this ObjectType represents network address information in the form of a URL String. The NetworkAddressUrlType is formally defined in Table 244.

Table 244 – NetworkAddressUrlType definition

Attribute

Value

BrowseName

NetworkAddressUrlType

IsAbstract

False

References

NodeClass

BrowseName

DataType

TypeDefinition

ModellingRule

Subtype of NetworkAddressType defined in 9.1.5.6.

HasComponent

Variable

Url

String

BaseDataVariableType

Mandatory

Conformance Units

PubSub Model Base

The URL Variable contains the address string for the communication middleware or the communication relation. The syntax of the URL is defined by the transport protocol.

This ObjectType is the abstract base type for Objects representing transport protocol mapping specific settings for PubSubConnections. The ConnectionTransportType is formally defined in Table 245.

Table 245 – ConnectionTransportType definition

Attribute

Value

BrowseName

ConnectionTransportType

IsAbstract

True

References

NodeClass

BrowseName

DataType

TypeDefinition

ModellingRule

Subtype of BaseObjectType

Conformance Units

PubSub Model Base

The HasWriterGroup ReferenceType is a concrete ReferenceType that can be used directly. It is a subtype of the HasComponent ReferenceType.

The SourceNode of References of this type shall be an instance of the PubSubConnectionType defined in 9.1.5.2.

The TargetNode of this ReferenceType shall be an instance of the WriterGroupType defined in 9.1.6.3.

Servers shall provide the inverse Reference that relates a WriterGroup Object back to a PubSubConnectionType Object.

The representation of the HasWriterGroup ReferenceType in the AddressSpace is specified in Table 246.

Table 246 – HasWriterGroup ReferenceType

Attributes

Value

BrowseName

HasWriterGroup

InverseName

IsWriterGroupOf

Symmetric

False

IsAbstract

False

References

NodeClass

BrowseName

Comment

Subtype of HasComponent defined in OPC 10000-5.

Conformance Units

PubSub Model Base

The HasReaderGroup ReferenceType is a concrete ReferenceType that can be used directly. It is a subtype of the HasComponent ReferenceType.

The SourceNode of References of this type shall be an instance of the PubSubConnectionType defined in 9.1.5.2.

The TargetNode of this ReferenceType shall be an instance of the ReaderGroupType defined in 9.1.6.6.

Servers shall provide the inverse Reference that relates a ReaderGroup Object back to a PubSubConnectionType Object.

The representation of the HasReaderGroup ReferenceType in the AddressSpace is specified in Table 247.

Table 247 – HasReaderGroup ReferenceType

Attributes

Value

BrowseName

HasReaderGroup

InverseName

IsReaderGroupOf

Symmetric

False

IsAbstract

False

References

NodeClass

BrowseName

Comment

Subtype of HasComponent defined in OPC 10000-5.

Conformance Units

PubSub Model Base

Figure 43 depicts the ObjectType for the PubSub group model and its components and the relations to other parts of the model.


Figure 43 – PubSubGroupType overview

This ObjectType is the abstract base type for Objects representing communication groupings for PubSub connections. The PubSubGroupType is formally defined in Table 248.

Table 248 – PubSubGroupType definition

Attribute

Value

BrowseName

PubSubGroupType

IsAbstract

True

References

Node Class

BrowseName

DataType

TypeDefinition

Modelling Rule

Subtype of BaseObjectType defined in OPC 10000-5.

HasProperty

Variable

SecurityMode

MessageSecurityMode

PropertyType

Mandatory

HasProperty

Variable

SecurityGroupId

String

PropertyType

Optional

HasProperty

Variable

SecurityKeyServices

EndpointDescription[]

PropertyType

Optional

HasProperty

Variable

MaxNetworkMessageSize

UInt32

PropertyType

Mandatory

HasProperty

Variable

GroupProperties

KeyValuePair[]

PropertyType

Mandatory

HasComponent

Object

Status

PubSubStatusType

Mandatory

Conformance Units

PubSub Model Base

The SecurityMode is defined in 6.2.5.2.

The SecurityGroupId is defined in 6.2.5.3. If the SecurityMode is not NONE, the Property shall provide the SecurityGroupId. The value of the Property is null or the Property is not present if the SecurityMode is NONE.

The SecurityKeyServices parameter is defined in 6.2.5.4. If the SecurityMode is not NONE, the Property shall provide the list of Security Key Services for the SecurityGroupId.

The MaxNetworkMessageSize is defined in 0.

The GroupProperties is defined in 6.2.5.6.

The Status Object provides the current operational status of the group. The PubSubStatusType is defined in 9.1.10. The state machine for the status and the relation to other PubSub Objects like PubSubConnection, DataSetWriter and DataSetReader are defined in 6.2.1.

Instances of WriterGroupType contain settings for a group of DataSetWriters. The WriterGroupType is formally defined in Table 249.

Table 249 – WriterGroupType definition

Attribute

Value

BrowseName

WriterGroupType

IsAbstract

False

References

Node Class

BrowseName

DataType

TypeDefinition

ModellingRule

Subtype of PubSubGroupType defined in 9.1.6.2

HasProperty

Variable

WriterGroupId

UInt16

PropertyType

Mandatory

HasProperty

Variable

PublishingInterval

Duration

PropertyType

Mandatory

HasProperty

Variable

KeepAliveTime

Duration

PropertyType

Mandatory

HasProperty

Variable

Priority

Byte

PropertyType

Mandatory

HasProperty

Variable

LocaleIds

LocaleId[]

PropertyType

Mandatory

HasProperty

Variable

HeaderLayoutUri

String

PropertyType

Mandatory

HasComponent

Object

TransportSettings

WriterGroupTransportType

Optional

HasComponent

Object

MessageSettings

WriterGroupMessageType

Optional

HasDataSetWriter

Object

<DataSetWriterName>

DataSetWriterType

OptionalPlaceholder

HasComponent

Object

Diagnostics

PubSubDiagnostics‌WriterGroupType

Optional

HasComponent

Method

AddDataSetWriter

Defined in 9.1.6.4.

Optional

HasComponent

Method

RemoveDataSetWriter

Defined in 9.1.6.5.

Optional

Conformance Units

PubSub Model Base

The WriterGroupId is defined in 6.2.6.1.

The PublishingInterval is defined in 6.2.6.2.

The KeepAliveTime is defined in 6.2.6.3.

The Priority is defined in 6.2.6.4.

The LocaleIds parameter is defined in 6.2.6.5.

The HeaderLayoutUri is defined in 6.2.6.6.

The transport protocol mapping specific setting settings are provided in the optional Object TransportSettings. The WriterGroupTransportType is defined in 9.1.6.7. The Object shall be present if the transport protocol mapping requires specific settings.

The message mapping specific setting settings are provided in the optional Object MessageSettings. The WriterGroupMessageType is defined in 9.1.6.8. The Object shall be present if the message mapping defines specific parameters.

The configured DataSetWriterType Objects are added as components to the instance of the group. DataSetWriterType Objects may be configured with product- specific configuration tools or through OPC UA Methods AddDataSetWriter and RemoveDataSetWriter. The DataSetWriterType is defined in 9.1.7.1. The ReferenceType HasDataSetWriter is defined in 9.1.6.6.

The Diagnostics Object provides the current diagnostic information for a WriterGroupType Object. The PubSubDiagnosticsWriterGroupType is defined in 9.1.11.9.

This Method is used to add a new DataSetWriterType Object to an instance of the WriterGroup. A successful creation of the DataSetWriter shall also create a Reference from the related PublishedDataSet Object to the created DataSetWriter.

The Client shall be authorized to modify the configuration for the PubSub functionality when invoking this Method on the Server.

Signature

AddDataSetWriter (

[in]DataSetWriterDataType Configuration,

[out]NodeId DataSetWriterNodeId

);

Argument

Description

Configuration

Configuration parameters for the DataSetWriter. The parameters and the DataSetWriterDataType are defined in 6.2.4.

DataSetWriterNodeId

The NodeId of the new DataSetWriter Object.

Method Result Codes

ResultCode

Description

Bad_InvalidArgument

The Server is not able to apply the name. The name may be too long or may contain invalid characters.

Bad_DataSetIdInvalid

The DataSet specified for the DataSetWriter creation is invalid.

Bad_BrowseNameDuplicated

An Object with the name already exists in the group.

Bad_ResourceUnavailable

The Server has not enough resources to add the DataSetWriter.

Bad_UserAccessDenied

The Session user does not have rights to create the DataSetWriter.

Table 250 specifies the AddressSpace representation for the AddDataSetWriter Method.

Table 250 – AddDataSetWriter Method AddressSpace definition

Attribute

Value

BrowseName

AddDataSetWriter

References

NodeClass

BrowseName

DataType

TypeDefinition

ModellingRule

HasProperty

Variable

InputArguments

Argument[]

PropertyType

Mandatory

HasProperty

Variable

OutputArguments

Argument[]

PropertyType

Mandatory

ConformanceUnits

PubSub Model Base

This Method is used to remove a DataSetWriter Object from the group. The state of the DataSetWriter is set to Disabled before removing the Object. A successful removal of the DataSetWriter shall also delete the Reference from the related PublishedDataSetType Object to the removed DataSetWriter.

The Client shall be authorized to modify the configuration for the PubSub functionality when invoking this Method on the Server.

Signature

RemoveDataSetWriter (

[in]NodeIdDataSetWriterNodeId

);

Argument

Description

DataSetWriterNodeId

NodeId of the DataSetWriter to remove from the group.

Method Result Codes

ResultCode

Description

Bad_NodeIdUnknown

The DataSetWriterNodeId is unknown.

Bad_NodeIdInvalid

The DataSetWriterNodeId is not a NodeId of a DataSetWriter.

Bad_UserAccessDenied

The Session user is not allowed to delete a DataSetWriter.

Table 251 specifies the AddressSpace representation for the RemoveDataSetWriter Method.

Table 251 – RemoveDataSetWriter Method AddressSpace definition

Attribute

Value

BrowseName

RemoveDataSetWriter

References

NodeClass

BrowseName

DataType

TypeDefinition

ModellingRule

HasProperty

Variable

InputArguments

Argument[]

PropertyType

Mandatory

ConformanceUnits

PubSub Model Base

The HasDataSetWriter ReferenceType is a concrete ReferenceType that can be used directly. It is a subtype of the HasComponent ReferenceType.

The SourceNode of References of this type shall be an instance of the WriterGroupType defined in 9.1.6.3.

The TargetNode of this ReferenceType shall be an instance of the DataSetWriterType defined in 9.1.7.1.

Servers shall provide the inverse Reference that relates a DataSetWriter Object back to a WriterGroupType Object.

The representation of the HasDataSetWriter ReferenceType in the AddressSpace is specified in Table 252.

Table 252 – HasDataSetWriter ReferenceType

Attributes

Value

BrowseName

HasDataSetWriter

InverseName

IsWriterInGroup

Symmetric

False

IsAbstract

False

References

NodeClass

BrowseName

Comment

Subtype of HasComponent defined in OPC 10000-5.

Conformance Units

PubSub Model Base

This ObjectType is the abstract base type for Objects representing transport protocol mapping specific settings for WriterGroups. The WriterGroupTransportType is formally defined in Table 253.

Table 253 – WriterGroupTransportType definition

Attribute

Value

BrowseName

WriterGroupTransportType

IsAbstract

True

References

NodeClass

BrowseName

DataType

TypeDefinition

ModellingRule

Subtype of BaseObjectType

Conformance Units

PubSub Model Base

This ObjectType is the abstract base type for Objects representing message mapping specific settings for WriterGroups. The WriterGroupMessageType is formally defined in Table 254.

Table 254 – WriterGroupMessageType definition

Attribute

Value

BrowseName

WriterGroupMessageType

IsAbstract

True

References

NodeClass

BrowseName

DataType

TypeDefinition

ModellingRule

Subtype of BaseObjectType

Conformance Units

PubSub Model Base

This ObjectType is a concrete type for Objects representing DataSetReader groupings for PubSub connections. The ReaderGroupType is formally defined in Table 255.

Table 255 – ReaderGroupType definition

Attribute

Value

BrowseName

ReaderGroupType

IsAbstract

False

References

Node Class

BrowseName

Data Type

TypeDefinition

ModellingRule

Subtype of PubSubGroupType defined in 9.1.6.2

HasDataSetReader

Object

<DataSetReaderName>

DataSetReaderType

OptionalPlaceholder

HasComponent

Object

Diagnostics

PubSubDiagnostics‌ReaderGroupType

Optional

HasComponent

Object

TransportSettings

ReaderGroupTransportType

Optional

HasComponent

Object

MessageSettings

ReaderGroupMessageType

Optional

HasComponent

Method

AddDataSetReader

Defined in 9.1.6.10.

Optional

HasComponent

Method

RemoveDataSetReader

Defined in 9.1.6.11.

Optional

Conformance Units

PubSub Model Base

The configured DataSetReaderType Objects are added as components to the instance of the group. DataSetReaderType Objects may be configured with product- specific configuration tools or through OPC UA Methods AddDataSetReader and RemoveDataSetReader. The DataSetReaderType is defined in 9.1.8.1. The ReferenceType HasDataSetReader is defined in 9.1.6.12.

The Diagnostics Object provides the current diagnostic information for a ReaderGroupType Object. The PubSubDiagnosticsReaderGroupType is defined in 9.1.11.10.

The transport protocol mapping specific setting settings are provided in the optional Object TransportSettings. The ReaderGroupTransportType is defined in 9.1.6.13. The Object shall be present if the transport protocol mapping defines specific parameters.

The message mapping specific setting settings are provided in the optional Object MessageSettings. The ReaderGroupMessageType is defined in 9.1.6.14. The Object shall be present if the message mapping defines specific parameters.

This Method is used to add a new DataSetReaderType Object to an instance of the ReaderGroup.

The Client shall be authorized to modify the configuration for the PubSub functionality when invoking this Method on the Server.

Signature

AddDataSetReader (

[in]DataSetReaderDataType Configuration,

[out]NodeId DataSetReaderNodeId

);

Argument

Description

Configuration

Configuration parameters for the DataSetWriter. The parameters and the DataSetReaderDataType are defined in 6.2.9.

DataSetReaderNodeId

The NodeId of the new DataSetReader Object.

Method Result Codes

ResultCode

Description

Bad_InvalidArgument

The Server is not able to apply the name. The name may be too long or may contain invalid characters.

Bad_BrowseNameDuplicated

An Object with the name already exists in the group.

Bad_ResourceUnavailable

The Server does not have enough resources to add the DataSetReader.

Bad_UserAccessDenied

The Session user does not have rights to create the DataSetReader.

Table 256 specifies the AddressSpace representation for the AddDataSetReader Method.

Table 256 – AddDataSetReader Method AddressSpace definition

Attribute

Value

BrowseName

AddDataSetReader

References

NodeClass

BrowseName

DataType

TypeDefinition

ModellingRule

HasProperty

Variable

InputArguments

Argument[]

PropertyType

Mandatory

HasProperty

Variable

OutputArguments

Argument[]

PropertyType

Mandatory

ConformanceUnits

PubSub Model Base

This Method is used to remove a DataSetReader Object from the group. The state of the DataSetReader is set to Disabled before the Object is removed.

The Client shall be authorized to modify the configuration for the PubSub functionality when invoking this Method on the Server.

Signature

RemoveDataSetReader (

[in]NodeIdDataSetReaderNodeId

);

Argument

Description

DataSetReaderNodeId

NodeId of the DataSetReader to remove from the group.

Method Result Codes

ResultCode

Description

Bad_NodeIdUnknown

The DataSetReaderNodeId is unknown.

Bad_NodeIdInvalid

The DataSetReaderNodeId is not a NodeId of a DataSetReader.

Bad_UserAccessDenied

The Session user does not have rights to delete the DataSetReader.

Table 257 specifies the AddressSpace representation for the RemoveDataSetReader Method.

Table 257 – RemoveDataSetReader Method AddressSpace definition

Attribute

Value

BrowseName

RemoveDataSetReader

References

NodeClass

BrowseName

DataType

TypeDefinition

ModellingRule

HasProperty

Variable

InputArguments

Argument[]

PropertyType

Mandatory

ConformanceUnits

PubSub Model Base

The HasDataSetReader ReferenceType is a concrete ReferenceType that can be used directly. It is a subtype of the HasComponent ReferenceType.

The SourceNode of References of this type shall be an instance of the ReaderGroupType defined in 9.1.6.6.

The TargetNode of this ReferenceType shall be an instance of the DataSetReaderType defined in 9.1.8.1.

Servers shall provide the inverse Reference that relates a DataSetReader Object back to a ReaderGroupType Object.

The representation of the HasDataSetReader ReferenceType in the AddressSpace is specified in Table 258.

Table 258 – HasDataSetReader ReferenceType

Attributes

Value

BrowseName

HasDataSetReader

InverseName

IsReaderInGroup

Symmetric

False

IsAbstract

False

References

NodeClass

BrowseName

Comment

Subtype of HasComponent defined in OPC 10000-5.

Conformance Units

PubSub Model Base

This ObjectType is the abstract base type for Objects representing transport protocol mapping specific settings for ReaderGroups. The ReaderGroupTransportType is formally defined in Table 259.

There is currently no transport protocol mapping specific setting defined.

Table 259 – ReaderGroupTransportType definition

Attribute

Value

BrowseName

ReaderGroupTransportType

IsAbstract

True

References

NodeClass

BrowseName

DataType

TypeDefinition

ModellingRule

Subtype of BaseObjectType

Conformance Units

PubSub Model Base

This ObjectType is the abstract base type for Objects representing message mapping specific settings for ReaderGroups. The ReaderGroupMessageType is formally defined in Table 260.

There is currently no message mapping specific setting defined.

Table 260 – ReaderGroupMessageType definition

Attribute

Value

BrowseName

ReaderGroupMessageType

IsAbstract

True

References

NodeClass

BrowseName

DataType

TypeDefinition

ModellingRule

Subtype of BaseObjectType

Conformance Units

PubSub Model Base

Figure 44 depicts the ObjectType for the PubSub DataSetWriter model and its components and the relations to other parts of the model.


Figure 44 – DataSet Writer model overview

An instance of this ObjectType represents the configuration for a DataSetWriter. The DataSetWriterType is formally defined Table 261.

A DataSetWriter that creates DataSetMessages based on a PublishedDataSet shall reference the related PublishedDataSet with an inverse DataSetToWriter Reference.

A DataSetWriter that creates heartbeat DataSetMessages shall not have a reference to a PublishedDataSet.

Table 261 – DataSetWriterType definition

Attribute

Value

BrowseName

DataSetWriterType

IsAbstract

False

References

NodeClass

BrowseName

DataType

TypeDefinition

Modelling Rule

Subtype of BaseObjectType defined in OPC 10000-5

HasProperty

Variable

DataSetWriterId

UInt16

PropertyType

Mandatory

HasProperty

Variable

DataSetField‌ContentMask

DataSetField ContentMask

PropertyType

Mandatory

HasProperty

Variable

KeyFrameCount

UInt32

PropertyType

Optional

HasProperty

Variable

DataSetWriterProperties

KeyValuePair[]

PropertyType

Mandatory

HasComponent

Object

TransportSettings

DataSetWriterTransportType

Optional

HasComponent

Object

MessageSettings

DataSetWriterMessageType

Optional

HasComponent

Object

Status

PubSubStatusType

Mandatory

HasComponent

Object

Diagnostics

PubSubDiagnostics‌DataSetWriterType

Optional

Conformance Units

PubSub Model Base

The DataSetWriterId is defined in 6.2.4.1.

The DataSetFieldContentMask is defined in 6.2.4.2.

The KeyFrameCount is defined in 6.2.4.3. The Property shall be present for PublishedDataSets that provide cyclic updates of the DataSet.

The DataSetWriterProperties is defined in 6.2.4.4.

The transport protocol mapping specific setting settings are provided in the optional Object TransportSettings. The DataSetWriterTransportType is defined in 9.1.7.3. The Object shall be present if the transport protocol mapping defines specific parameters.

The message mapping specific setting settings are provided in the optional Object MessageSettings. The DataSetWriterMessageType is defined in 9.1.7.4. The Object shall be present if the message mapping defines specific parameters.

The Status Object provides the current operational status of the DataSetWriter. The PubSubStatusType is defined in 9.1.10. The state machine for the status and the relation to other PubSub Objects like PubSubConnection and PubSubGroup is defined in 6.2.1.

The Diagnostics Object provides the current diagnostic information for a DataSetWriterType Object. The PubSubDiagnosticsDataSetWriterType is defined in 9.1.11.11.

This ObjectType is the abstract base type for Objects defining protocol-specific transport settings of DataSetMessages. The DataSetWriterTransportType is formally defined Table 262.

Table 262 – DataSetWriterTransportType definition

Attribute

Value

BrowseName

DataSetWriterTransportType

IsAbstract

True

References

NodeClass

BrowseName

DataType

TypeDefinition

ModellingRule

Subtype of BaseObjectType defined in OPC 10000-5

Conformance Units

PubSub Model Base

This ObjectType is the abstract base type for Objects representing message mapping specific settings for DataSetWriters. The DataSetWriterMessageType is formally defined in Table 263.

Table 263 – DataSetWriterMessageType definition

Attribute

Value

BrowseName

DataSetWriterMessageType

IsAbstract

True

References

NodeClass

BrowseName

DataType

TypeDefinition

ModellingRule

Subtype of BaseObjectType defined in OPC 10000-5

Conformance Units

PubSub Model Base

Figure 45 depicts the ObjectType for the PubSub DataSetReader model and its components and the relations to other parts of the model.


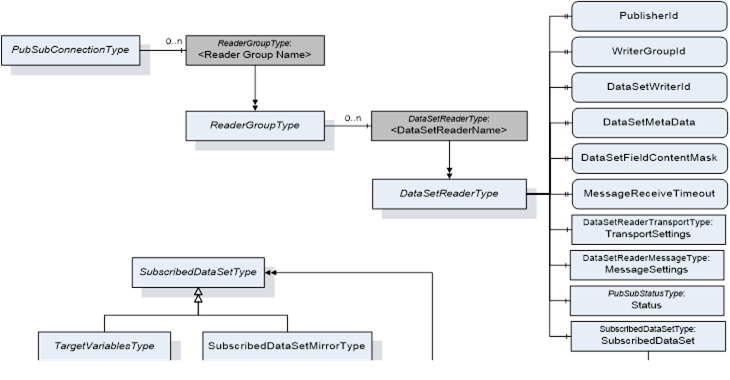

Figure 45 – DataSet Reader model overview

This ObjectType defines receiving behaviour of DataSetMessages and the decoding to DataSets. The DataSetReaderType is formally defined in Table 264.

The SubscribedDataSetType defined in 9.1.9.1 describes the processing of the received DataSet in a Subscriber.

Table 264 – DataSetReaderType definition

Attribute

Value

BrowseName

DataSetReaderType

IsAbstract

False

References

Node Class

BrowseName

DataType

TypeDefinition

Modelling Rule

Subtype of BaseObjectType defined in OPC 10000-5

HasProperty

Variable

PublisherId

BaseDataType

PropertyType

Mandatory

HasProperty

Variable

WriterGroupId

UInt16

PropertyType

Mandatory

HasProperty

Variable

DataSetWriterId

UInt16

PropertyType

Mandatory

HasProperty

Variable

DataSetMetaData

DataSetMetaDataType

PropertyType

Mandatory

HasProperty

Variable

DataSetFieldContentMask

DataSetFieldContentMask

PropertyType

Mandatory

HasProperty

Variable

MessageReceiveTimeout

Duration

PropertyType

Mandatory

HasProperty

Variable

KeyFrameCount

UInt32

PropertyType

Mandatory

HasProperty

Variable

HeaderLayoutUri

String

PropertyType

Mandatory

HasProperty

Variable

SecurityMode

MessageSecurityMode

PropertyType

Optional

HasProperty

Variable

SecurityGroupId

String

PropertyType

Optional

HasProperty

Variable

SecurityKeyServices

EndpointDescription[]

PropertyType

Optional

HasProperty

Variable

DataSetReaderProperties

KeyValuePair[]

PropertyType

Mandatory

HasComponent

Object

TransportSettings

DataSetReader‌TransportType

Optional

HasComponent

Object

MessageSettings

DataSetReader‌MessageType

Optional

HasComponent

Object

Status

PubSubStatusType

Mandatory

HasComponent

Object

Diagnostics

PubSubDiagnostics‌DataSetReaderType

Optional

HasComponent

Object

SubscribedDataSet

Subscribed‌DataSetType

Mandatory

HasComponent

Method

CreateTargetVariables

Defined in 9.1.8.5.

Optional

HasComponent

Method

CreateDataSetMirror

Defined in 9.1.8.6.

Optional

Conformance Units

PubSub Model Base

The Properties PublisherId, WriterGroupId, DataSetWriterId and DataSetClassId define filters for received NetworkMessages. If the value of the Property is set, it is used as filter and all messages that do not match the filter are dropped.

The PublisherId is defined in 6.2.9.1.

The WriterGroupId is defined in 6.2.9.2.

The DataSetWriterId is defined in 6.2.9.3.

The DataSetMetaData is defined in 6.2.9.4. If the DataSetReader receives an updated DataSetMetaData, the DataSetReader shall update the Property DataSetMetaData.

The DataSetFieldContentMask is defined in 6.2.9.5.

The MessageReceiveTimeout is defined in 6.2.9.6.

The KeyFrameCount is defined in 6.2.9.7.

The HeaderLayoutUri is defined in 6.2.9.8.

The SecurityMode is defined in 6.2.9.9. If present or if the value is not INVALID, it overwrites the settings on the group.

The SecurityGroupId is defined in 6.2.9.10.

The SecurityKeyServices is defined in 6.2.9.11.

The DataSetReaderProperties is defined in 6.2.9.12.

The transport protocol mapping specific setting settings are provided in the optional Object TransportSettings. The DataSetReaderTransportType is defined in 9.1.8.3. The Object shall be present if the transport protocol mapping defines specific parameters.

The message mapping specific setting settings are provided in the optional Object MessageSettings. The DataSetReaderMessageType is defined in 9.1.8.4. The Object shall be present if the message mapping defines specific parameters.

The Status Object provides the current operational state of the DataSetReader. The PubSubStatusType is defined in 9.1.10. The state machine for the status and the relation to other PubSub Objects like PubSubConnection and PubSubGroup are defined in 6.2.1.

The Diagnostics Object provides the current diagnostic information for a DataSetReaderType Object. The PubSubDiagnosticsDataSetReaderType is defined in 9.1.11.12.

The SubscribedDataSet Object contains the metadata for the subscribed DataSet and the information for the processing of a DataSetMessage. The SubscribedDataSetType and the available subtypes are defined in 9.1.9. If the DataSetReader is configured to receive heartbeat DataSetMessages, the Object shall be of the base type SubscribedDataSetType.

This ObjectType is the abstract base type for Objects defining the transport protocol-specific parameters for DataSetReaders. The DataSetReaderTransportType is formally defined in Table 265.

Table 265 – DataSetReaderTransportType definition

Attribute

Value

BrowseName

DataSetReaderTransportType

IsAbstract

True

References

NodeClass

BrowseName

DataType

TypeDefinition

ModellingRule

Subtype of BaseObjectType defined in OPC 10000-5

Conformance Units

PubSub Model Base

This ObjectType is the abstract base type for Objects representing message mapping specific settings for DataSetReaders. The DataSetReaderMessageType is formally defined in Table 266.

Table 266 – DataSetReaderMessageType definition

Attribute

Value

BrowseName

DataSetReaderMessageType

IsAbstract

True

References

NodeClass

BrowseName

DataType

TypeDefinition

ModellingRule

Subtype of BaseObjectType defined in OPC 10000-5

Conformance Units

PubSub Model Base

This Method is used to initially set the SubscribedDataSet to TargetVariablesType and to create the list of target Variables of a SubscribedDataSetType.

The Client shall be authorized to modify the configuration for the PubSub functionality when invoking this Method on the Server.

Signature

CreateTargetVariables (

[in]ConfigurationVersionDataType ConfigurationVersion,

[in]FieldTargetDataType[] TargetVariablesToAdd,

[out] StatusCode[] AddResults

);

Argument

Description

ConfigurationVersion

Configuration version of the DataSet. The configuration version passed through CreateTargetVariables shall match the current configuration version in DataSetMetaData Property. If it does not match, the result Bad_InvalidState shall be returned. The ConfigurationVersionDataType is defined in 6.2.3.2.6.

TargetVariablesToAdd

The list of target Variables to write received DataSet fields to. The FieldTargetDataType is defined in 6.2.10.2.3. The succeeded targets are added to the TargetVariables Property.

AddResults

The result codes for the Variables to connect.

Method Result Codes

ResultCode

Description

Bad_NothingToDo

An empty list of Variables was provided.

Bad_InvalidState

The DataSetReader is not configured yet or the ConfigurationVersion does not match the version in the Publisher.

Bad_UserAccessDenied

The Session user is not allowed to configure the Object.

Operation Result Codes

ResultCode

Description

Bad_NodeIdInvalid

See OPC 10000-4 for the description of this result code.

This status code is related to the TargetNodeId.

Bad_NodeIdUnknown

See OPC 10000-4 for the description of this result code.

This status code is related to the TargetNodeId.

Bad_AttributeIdInvalid

See OPC 10000-4 for the description of this result code.

This status code is related to the AttributeId.

Bad_NoMatch

This status code indicates that the DataSetFieldId is invalid.

Bad_IndexRangeInvalid

See OPC 10000-4 for the description of this result code.

This status code indicates either an invalid ReceiverIndexRange or an invalid WriterIndexRange or if the two settings result in a different size.

Bad_IndexRangeNoData

See OPC 10000-4 for the description of this result code.

If the ArrayDimensions have a fixed length that cannot change and no data exists within the range of indexes specified, Bad_IndexRangeNoData is returned in AddDataConnections.

Bad_TooManyMonitoredItems

The Server has reached its maximum number of items for the DataSetReader object.

Bad_InvalidState

The TargetNodeId is already used by another connection.

Bad_TypeMismatch

The Server shall return a Bad_TypeMismatch error if the data type of the DataSet field is not the same type or subtype as the target Variable DataType. Based on the DataType hierarchy, subtypes of the Variable DataType shall be accepted by the Server. A ByteString is structurally the same as a one dimensional array of Byte. A Server shall accept a ByteString if an array of Byte is expected.

Table 267 specifies the AddressSpace representation for the CreateTargetVariables Method.

Table 267 – CreateTargetVariables Method AddressSpace definition

Attribute

Value

BrowseName

CreateTargetVariables

References

NodeClass

BrowseName

DataType

TypeDefinition

ModellingRule

HasProperty

Variable

InputArguments

Argument[]

PropertyType

Mandatory

HasProperty

Variable

OutputArguments

Argument[]

PropertyType

Mandatory

ConformanceUnits

PubSub Model SubscribedDataSet

This Method is used to set the SubscribedDataSet to SubscribedDataSetMirrorType used to represents the fields of the DataSet as Variables in the Subscriber Address Space. This Method creates an Object below the SubscribedDataSet and below this Object it creates a Variable Node for every field in the DataSetMetaData. The detailed rules for the Object creation are defined in 9.1.9.3.

If the SubscribedDataSet already has a specific subtype, this subtype is replaced with a SubscribedDataSetMirrorType instance.

The Client shall be authorized to modify the configuration for the PubSub functionality when invoking this Method on the Server.

Signature

CreateDataSetMirror (

[in]String ParentNodeName,

[in]RolePermissionType[]RolePermissions,

[out]NodeId ParentNodeId

);

Argument

Description

ParentNodeName

This parameter defines the BrowseName and DisplayName of the parent Node for the Variables representing the fields of the subscribed DataSet.

RolePermissions

Value of the RolePermissions Attribute to be set on the parent Node. This value is also used as RolePermissions for all Variables of the DataSet mirror.

ParentNodeId

NodeId of the created parent Node.

Method Result Codes

ResultCode

Description

Bad_InvalidState

The DataSetReader is not configured yet or the ConfigurationVersion does not match the version in the Publisher.

Bad_UserAccessDenied

The Session user is not allowed to configure the Object.

Table 268 specifies the AddressSpace representation for the CreateDataSetMirror Method.

Table 268 – CreateDataSetMirror Method AddressSpace definition

Attribute

Value

BrowseName

CreateDataSetMirror

References

NodeClass

BrowseName

DataType

TypeDefinition

ModellingRule

HasProperty

Variable

InputArguments

Argument[]

PropertyType

Mandatory

HasProperty

Variable

OutputArguments

Argument[]

PropertyType

Mandatory

ConformanceUnits

PubSub Model SubscribedDataSet Mirror

This ObjectType defines the metadata for the subscribed DataSet and the information for the processing of DataSetMessages. See 5.4.2.2 for an introduction to the processing options for received DataSetMessages.

The SubscribedDataSetType is formally defined in Table 269.

Table 269 – SubscribedDataSetType definition

Attribute

Value

BrowseName

SubscribedDataSetType

IsAbstract

False

References

NodeClass

BrowseName

DataType

TypeDefinition

ModellingRule

Subtype of BaseObjectType defined in OPC 10000-5

Conformance Units

PubSub Model Base

This ObjectType defines the metadata for the subscribed DataSet and the information for the processing of DataSetMessages. The TargetVariablesType is formally defined in Table 270.

Table 270 – TargetVariablesType definition

Attribute

Value

BrowseName

TargetVariablesType

IsAbstract

False

References

NodeClass

BrowseName

DataType

TypeDefinition

ModellingRule

Subtype of SubscribedDataSetType defined in 9.1.9.1.

HasProperty

Variable

TargetVariables

FieldTarget‌DataType[]

PropertyType

Mandatory

HasComponent

Method

AddTargetVariables

Defined in 9.1.9.2.2.

Optional

HasComponent

Method

RemoveTargetVariables

Defined in 9.1.9.2.3.

Optional

Conformance Units

PubSub Model SubscribedDataSet

The TargetVariables is defined in 6.2.10.2.

This Method is used to add target Variables to an existing list of target Variables of a TargetVariablesType Object.

The Client shall be authorized to modify the configuration for the PubSub functionality when invoking this Method on the Server.

Signature

AddTargetVariables (

[in]ConfigurationVersionDataType ConfigurationVersion,

[in]FieldTargetDataType[] TargetVariablesToAdd,

[out]StatusCode[] AddResults

);

Argument

Description

ConfigurationVersion

Configuration version of the DataSet. The configuration version passed through AddDataConnections shall match the current configuration version in DataSetMetaData Property. If it does not match, the result Bad_InvalidState shall be returned. The ConfigurationVersionDataType is defined in 6.2.3.2.6.

TargetVariablesToAdd

The list of target Variables to write received DataSet fields to. The FieldTargetDataType is defined in 6.2.10.2.3. The succeeded connections are added to the TargetVariables Property.

AddResults

The result codes for the Variables to connect.

Method Result Codes

ResultCode

Description

Bad_NothingToDo

An empty list of Variables was provided.

Bad_InvalidState

The DataSetReader is not configured yet or the ConfigurationVersion does not match the version in the Publisher.

Bad_UserAccessDenied

The Session user is not allowed to configure the Object.

Operation Result Codes

ResultCode

Description

Bad_NodeIdInvalid

See OPC 10000-4 for the description of this result code.

Bad_NodeIdUnknown

See OPC 10000-4 for the description of this result code.

Bad_IndexRangeInvalid

See OPC 10000-4 for the description of this result code.

This status code indicates either an invalid ReceiverIndexRange or an invalid WriterIndexRange or if the two settings result in a different size.

Bad_IndexRangeNoData

See OPC 10000-4 for the description of this result code.

If the ArrayDimensions have a fixed length that cannot change and no data exists within the range of indexes specified, Bad_IndexRangeNoData is returned in AddDataConnections.

Bad_TooManyMonitoredItems

The Server has reached its maximum number of items for the DataSetReader object.

Bad_InvalidState

The TargetNodeId is already used by another target Variable.

Bad_TypeMismatch

The Server shall return a Bad_TypeMismatch error if the data type of the DataSet field is not the same type or subtype as the target Variable DataType. Based on the DataType hierarchy, subtypes of the Variable DataType shall be accepted by the Server. A ByteString is structurally the same as a one dimensional array of Byte. A Server shall accept a ByteString if an array of Byte is expected.

Table 271 specifies the AddressSpace representation for the AddTargetVariables Method.

Table 271 – AddTargetVariables Method AddressSpace definition

Attribute

Value

BrowseName

AddTargetVariables

References

NodeClass

BrowseName

DataType

TypeDefinition

ModellingRule

HasProperty

Variable

InputArguments

Argument[]

PropertyType

Mandatory

HasProperty

Variable

OutputArguments

Argument[]

PropertyType

Mandatory

ConformanceUnits

PubSub Model SubscribedDataSet

This Method is used to remove entries from the list of target Variables of a TargetVariablesType Object.

The Client shall be authorized to modify the configuration for the PubSub functionality when invoking this Method on the Server.

Signature

RemoveTargetVariables (

[in]ConfigurationVersionDataType ConfigurationVersion,

[in]UInt32[] TargetsToRemove,

[out]StatusCode[] RemoveResults

);

Argument

Description

ConfigurationVersion

Configuration version of the DataSet. The configuration version passed through RemoveTargetVariables shall match the current configuration version in DataSetMetaData Property. If it does not match, the result Bad_InvalidState shall be returned. The ConfigurationVersionDataType is defined in 6.2.3.2.6.

TargetsToRemove

Array of indices of connections to remove from the list of target Variables.

RemoveResults

The result codes for the connections to remove.

Method Result Codes

ResultCode

Description

Bad_NothingToDo

An empty list of Variables was provided.

Bad_InvalidState

The DataSetReader is not configured yet or the ConfigurationVersion does not match the version in the DataSetMetaData.

Bad_UserAccessDenied

The Session user is not allowed to configure the Object.

Operation Result Codes

ResultCode

Description

Bad_InvalidArgument

The provided index is invalid.

Table 272 specifies the AddressSpace representation for the RemoveTargetVariables Method.

Table 272 – RemoveTargetVariables Method AddressSpace definition

Attribute

Value

BrowseName

RemoveTargetVariables

References

NodeClass

BrowseName

DataType

TypeDefinition

ModellingRule

HasProperty

Variable

InputArguments

Argument[]

PropertyType

Mandatory

HasProperty

Variable

OutputArguments

Argument[]

PropertyType

Mandatory

ConformanceUnits

PubSub Model SubscribedDataSet

This ObjectType defines the information for the processing of DataSetMessages as mirror Variables. For each field of the DataSet a mirror Variable is created in the Subscriber AddressSpace. The SubscribedDataSetMirrorType is formally defined in Table 273.

Table 273 – SubscribedDataSetMirrorType definition

Attribute

Value

BrowseName

SubscribedDataSetMirrorType

IsAbstract

False

References

NodeClass

BrowseName

DataType

TypeDefinition

ModellingRule

Subtype of SubscribedDataSetType defined in 9.1.9.1.

Conformance Units

PubSub Model SubscribedDataSet Mirror

An Object of this type shall reference a mirror Object with HasComponent where the name of the Object is based on the ParentNodeName. The Method CreateDataSetMirror can be used to set the SubscribedDataSet into the mirror mode.

The mirror Object shall reference Variables for each DataSet field in the DataSetMetaData with HasComponent. The name, DataType, ValueRank and ArrayDimensions of the Variables shall match the settings for the corresponding DataSet field in the DataSetMetaData.

A Variable representing a field of the DataSet shall be created with the following rules

The DataTypes are created in the Subscriber from the DataSetMetaData if they do not exist. The NamespaceUri of the created DataTypes shall match the namespace contained in the DataSetMetaData.

The SubscribedDataSetFolderType is formally defined in Table 274.

Table 274 – SubscribedDataSetFolderType definition

Attribute

Value

BrowseName

SubscribedDataSetFolderType

IsAbstract

False

References

NodeClass

BrowseName

DataType

TypeDefinition

ModellingRule

Subtype of FolderType defined in OPC 10000-5.

Organizes

Object

<SubscribedDataSetFolderName>

SubscribedDataSetFolderType

OptionalPlaceholder

HasComponent

Object

<StandaloneSubscribedDataSetName>

StandaloneSubscribedDataSetType

OptionalPlaceholder

HasComponent

Method

AddSubscribedDataSet

Defined in 9.1.9.4.2

Optional

HasComponent

Method

RemoveSubscribedDataSet

Defined in 9.1.9.4.3

Optional

HasComponent

Method

AddDataSetFolder

Defined in 9.1.9.4.4.

Optional

HasComponent

Method

RemoveDataSetFolder

Defined in 9.1.9.4.5.

Optional

Conformance Units

PubSub Model SubscribedDataSet Standalone

The SubscribedDataSetFolderType ObjectType is a concrete type and can be used directly.

Instances of the SubscribedDataSetFolderType can contain StandaloneSubscribedDataSets or other instances of the SubscribedDataSetFolderType. This can be used to build a tree of Folder Objects used to group the configured StandaloneSubscribedDataSets.

The StandaloneSubscribedDataSetType Objects are added as components to the instance of the SubscribedDataSetFolderType. An instance of a StandaloneSubscribedDataSetType is referenced only from one SubscribedDataSetFolder. If the SubscribedDataSetFolder is deleted, all referenced StandaloneSubscribedDataSetType Objects are deleted with the folder.

StandaloneSubscribedDataSetType Objects may be configured with product-specific configuration tools or added and removed through the Methods AddSubscribedDataSet and RemoveSubscribedDataSet.

This Method is used to add a new standalone subscribed DataSet Object to an instance of the DataSet Folder.

The Client shall be authorized to modify the configuration for the PubSub functionality when invoking this Method on the Server.

Signature

AddSubscribedDataSet (

[in]StandaloneSubscribedDataSetDataType SubscribedDataSet,

[out]NodeId SubscribedDataSetNodeId

);

Argument

Description

SubscribedDataSet

The standalone subscribed DataSet to add.

SubscribedDataSetNodeId

The NodeId of the new standalone subscribed DataSet Object.

Method Result Codes

ResultCode

Description

Bad_InvalidArgument

The Server is not able to apply the name. The name may be too long or may contain invalid characters.

Bad_BrowseNameDuplicated

An Object with the name already exists in the folder.

Bad_ResourceUnavailable

The Server does not have enough resources to add the subscribed DataSet.

Bad_UserAccessDenied

The Session user does not have rights to create the subscribed DataSet.

Table 275 specifies the AddressSpace representation for the AddSubscribedDataSet Method.

Table 275 – AddSubscribedDataSet Method AddressSpace definition

Attribute

Value

BrowseName

AddSubscribedDataSet

References

NodeClass

BrowseName

DataType

TypeDefinition

ModellingRule

HasProperty

Variable

InputArguments

Argument[]

PropertyType

Mandatory

HasProperty

Variable

OutputArguments

Argument[]

PropertyType

Mandatory

ConformanceUnits

PubSub Model SubscribedDataSet Standalone

This Method is used to remove a standalone subscribed DataSet Object from a subscribed DataSet Folder. If a DataSetReader is connected, the DataSetReader is removed too.

The Client shall be authorized to modify the configuration for the PubSub functionality when invoking this Method on the Server.

Signature

RemoveSubscribedDataSet (

[in]NodeIdSubscribedDataSetNodeId

);

Argument

Description

SubscribedDataSetNodeId

NodeId of the standalone subscribed DataSet to remove from the folder.

Method Result Codes

ResultCode

Description

Bad_NodeIdUnknown

The SubscribedDataSetNodeId is unknown.

Bad_NodeIdInvalid

The SubscribedDataSetNodeId is not a NodeId of a standalone subscribed DataSet.

Bad_UserAccessDenied

The Session user does not have rights to delete the Object.

Table 276 specifies the AddressSpace representation for the RemoveSubscribedDataSet Method.

Table 276 – RemoveSubscribedDataSet Method AddressSpace definition

Attribute

Value

BrowseName

RemoveSubscribedDataSet

References

NodeClass

BrowseName

DataType

TypeDefinition

ModellingRule

HasProperty

Variable

InputArguments

Argument[]

PropertyType

Mandatory

ConformanceUnits

PubSub Model SubscribedDataSet Standalone

This Method is used to add a SubscribedDataSetFolderType Object to a SubscribedDataSetFolderType Object.

The Client shall be authorized to modify the configuration for the PubSub functionality when invoking this Method on the Server.

Signature

AddDataSetFolder (

[in]StringName,

[out]NodeIdDataSetFolderNodeId

);

Argument

Description

Name

Name of the Object to create.

DataSetFolderNodeId

NodeId of the created SubscribedDataSetFolderType Object.

Method Result Codes

ResultCode

Description

Bad_BrowseNameDuplicated

A folder Object with the name already exists.

Bad_InvalidArgument

The Server is not able to apply the Name. The Name may be too long or may contain invalid characters.

Bad_UserAccessDenied

The Session user is not allowed to add a folder.

Table 277 specifies the AddressSpace representation for the AddDataSetFolder Method.

Table 277 – AddDataSetFolder Method AddressSpace definition

Attribute

Value

BrowseName

AddDataSetFolder

References

NodeClass

BrowseName

DataType

TypeDefinition

ModellingRule

HasProperty

Variable

InputArguments

Argument[]

PropertyType

Mandatory

HasProperty

Variable

OutputArguments

Argument[]

PropertyType

Mandatory

ConformanceUnits

PubSub Model SubscribedDataSet Standalone

This Method is used to remove a SubscribedDataSetFolderType Object from the parent SubscribedDataSetFolderType Object.

A successful removal of the SubscribedDataSetFolderType Object removes all associated StandaloneSubscribedDataSetType Objects and their associated DataSetReader Objects. Before the Objects are removed, their state is changed to Disabled.

The Client shall be authorized to modify the configuration for the PubSub functionality when invoking this Method on the Server.

Signature

RemoveDataSetFolder (

[in]NodeIdDataSetFolderNodeId

);

Argument

Description

DataSetFolderNodeId

NodeId of the SubscribedDataSetFolderType Object to remove from the Server.

Method Result Codes

ResultCode

Description

Bad_NodeIdUnknown

The DataSetFolderNodeId is unknown.

Bad_UserAccessDenied

The Session user is not allowed to delete the folder.

Table 278 specifies the AddressSpace representation for the RemoveDataSetFolder Method.

Table 278 – RemoveDataSetFolder Method AddressSpace definition

Attribute

Value

BrowseName

RemoveDataSetFolder

References

NodeClass

BrowseName

DataType

TypeDefinition

ModellingRule

HasProperty

Variable

InputArguments

Argument[]

PropertyType

Mandatory

ConformanceUnits

PubSub Model SubscribedDataSet Standalone

This ObjectType represents a Subscriber defined standalone DataSet. A standalone subscribed DataSet can exist without DataSetReader and is used to define a DataSet from the Subscriber side. A DataSetReader can be configured and connected to the standalone DataSet if a Publisher provides the DataSetMessages defined by the DataSetMetaData in the standalone DataSet. The StandaloneSubscribedDataSetType is formally defined in Table 279.

Table 279 – StandaloneSubscribedDataSetType definition

Attribute

Value

BrowseName

StandaloneSubscribedDataSetType

IsAbstract

False

References

Node Class

BrowseName

DataType

TypeDefinition

Modelling Rule

Subtype of BaseObjectType defined in OPC 10000-5

HasComponent

Object

SubscribedDataSet

Subscribed‌DataSetType

Mandatory

HasProperty

Variable

DataSetMetaData

DataSetMetaDataType

PropertyType

Mandatory

HasProperty

Variable

IsConnected

Boolean

PropertyType

Mandatory

Conformance Units

PubSub Model SubscribedDataSet Standalone

The SubscribedDataSetType defined in 9.1.9.1 describes the processing of the received DataSet in a Subscriber.

The DataSetMetaData is defined in 6.2.9.4. A Publisher must be configured to send DataSetMessages that comply with the DataSetMetaData in the standalone subscribed DataSet.

The IsConnected Property with DataType Boolean indicates if the standalone subscribed DataSet is connected to a DataSetReader. A standalone subscribed DataSet can only be connected to one DataSetReader. If a DataSetReader is connected, the DataSetReader Object shall share the Nodes SubscribedDataSet and DataSetMetaData with the StandaloneSubscribedDataSet Object. The relation between standalone SubscribedDataSet and the connected DataSetReader is provided in both directions through the inverse References from the SubscribedDataSet Object.

This ObjectType is used to indicate and change the status of a PubSub Object like PubSubConnection, DataSetWriter or DataSetReader. The PubSubStatusType is formally defined in Table 280.

Table 280 – PubSubStatusType definition

Attribute

Value

BrowseName

PubSubStatusType

IsAbstract

False

References

NodeClass

BrowseName

DataType

TypeDefinition

ModellingRule

Subtype of BaseObjectType defined in OPC 10000-5.

HasComponent

Variable

State

PubSubState

BaseDataVariableType

Mandatory

HasComponent

Method

Enable

Defined in 9.1.10.2.

Optional

HasComponent

Method

Disable

Defined in 9.1.10.3.

Optional

Conformance Units

PubSub Model Base

The State Variable provides the current operational state of the PubSub Object. The default value is Disabled. The PubSubState Enumeration and the related state machine are defined in 6.2.1.

The State may be changed with product-specific configuration tools or with the Methods Enable and Disable.

This Method is used to enable a configured PubSub Object. The related state machine and the transitions triggered by a successful call to this Method are defined in 6.2.1.

The Server shall reject Enable Method calls if the current State is not Disabled.

The Client shall be authorized to modify the configuration for the PubSub functionality when invoking this Method on the Server.

Signature

Enable ();

Method Result Codes

ResultCode

Description

Bad_InvalidState

The state of the Object is not disabled.

Bad_UserAccessDenied

The Session user is not allowed to configure the Object.

Table 281 specifies the AddressSpace representation for the Enable Method.

Table 281 – Enable Method AddressSpace definition

Attribute

Value

BrowseName

Enable

ConformanceUnits

PubSub Model Base

This Method is used to disable a PubSub Object. The related state machine and the transitions triggered by a successful call to this Method are defined in 6.2.1.

The Server shall reject Disable Method calls if the current State is Disabled.

The Client shall be authorized to modify the configuration for the PubSub functionality when invoking this Method on the Server.

Signature

Disable ();

Method Result Codes

ResultCode

Description

Bad_InvalidState

The state of the Object is not operational.

Bad_UserAccessDenied

The Session user is not allowed to configure the Object.

Table 282 specifies the AddressSpace representation for the Disable Method.

Table 282 – Disable Method AddressSpace definition

Attribute

Value

BrowseName

Disable

ConformanceUnits

PubSub Model Base

PubSub ObjectTypes that require a status Object add a component with the BrowseName Status.

The following types are used to expose diagnostics information in the PubSub information model. Each level of the PubSub hierarchy shall contain its own diagnostics element in a standardized format. An overview over the proposed diagnostics architecture is given in Figure 46.


Figure 46 – PubSub Diagnostics overview

Figure 47 shows the structure of a Variable which holds a diagnostics counter with defined Properties. The PubSubDiagnosticsCounterType is formally defined in 9.1.11.5.


Figure 47 – PubSubDiagnosticsCounterType

The PubSubDiagnosticsType is the base type for the diagnostics objects and is formally defined in Table 283.

Table 283 – PubSubDiagnosticsType

Attribute

Value

BrowseName

PubSubDiagnosticsType

IsAbstract

True

References

Node Class

BrowseName

DataType

TypeDefinition

Modelling Rule

Subtype of BaseObjectType defined in OPC 10000-5.

HasComponent

Variable

DiagnosticsLevel

DiagnosticsLevel

BaseDataVariableType

Mandatory

HasComponent

Variable

TotalInformation

UInt32

PubSubDiagnosticsCounterType

Mandatory

HasComponent

Variable

TotalError

UInt32

PubSubDiagnosticsCounterType

Mandatory

HasComponent

Method

Reset

Defined in 9.1.11.3.

Mandatory

HasComponent

Variable

SubError

Boolean

BaseDataVariableType

Mandatory

HasComponent

Object

Counters

BaseObjectType

Mandatory

HasComponent

Object

LiveValues

BaseObjectType

Mandatory

Conformance Units

PubSub Model Diagnostics

The DiagnosticsLevel Variable configures the current diagnostics level used for the Object. The DiagnosticsLevel DataType is defined in 9.1.11.4.

The TotalInformation Variable provides the sum of all diagnostics counters with classification Information.

The TotalError Variable provides the sum of all diagnostics counters with classification Error.

The SubError Variable indicates if any statistics Object of the next PubSub layer Objects shows a value > 0 in TotalError.

The Object Counters contains all diagnostics counters for the diagnostics Object. The counters use the VariableType PubSubDiagnosticsCounterType defined in 9.1.11.5. The counter Variables of the PubSubDiagnosticsType are defined in Table 284.

Table 284 – Counters for PubSubDiagnosticsType

BrowseName

Modelling Rule

Diagnostics

Level

Class

Description

StateError

Mandatory

Basic

Error

PubSubState state machine defined in 6.2.1 changed to Error state

StateOperationalByMethod

Mandatory

Basic

Information

State changed to Operational state triggered by Enable Method call.

StateOperationalByParent

Mandatory

Basic

Information

State changed to Operational state triggered by an operational parent

StateOperationalFromError

Mandatory

Basic

Information

State changed from Error to Operational.

StatePausedByParent

Mandatory

Basic

Information

State changed to Paused state triggered by a paused or disabled parent.

StateDisabledByMethod

Mandatory

Basic

Information

State changed to Disabled state triggered by Disable Method call.

The Object LiveValues contains all live values of the diagnostics Object. If not further specified, the live values Variables use the VariableType BaseDataVariableType.

The nodes in the Objects Counters and LiveValues may be activated/deactivated by the parameter DiagnosticsLevel in the PubSubDiagnosticsType.

The value of a node in the Object Counters shall be set to 0 whenever the counter changes from inactive to active.

The Server should dynamically remove inactive nodes from the Address Space in order to avoid confusion of the user by long lists of counters where only a few of them might be active. In case inactive nodes cannot be removed from the Address Space the Server shall set the StatusCode of the Variable Value to Bad_OutOfService.

This Method is used to set all counters in the Object diagnostics counters to the initial value.

The Client shall be authorized to modify the configuration for the PubSub functionality when invoking this Method on the Server.

Signature

Reset ();

Method Result Codes

ResultCode

Description

Bad_UserAccessDenied

The Session user is not allowed to configure the Object.

Table 285 specifies the AddressSpace representation for the Reset Method.

Table 285 – Reset Method AddressSpace definition

Attribute

Value

BrowseName

Reset

ConformanceUnits

PubSub Model Diagnostics

PubSub diagnostics are intended to assure users about the correct operation of a PubSub system and to help in the discovery of potential faults. Depending on the situation, not all diagnostic Objects might be needed, and on the other hand providing them requires resources. As a result, diagnostic objects are assigned to different diagnostic levels. Only diagnostic Objects belonging to the currently set diagnostic level or a more severe level shall be provided. This mechanism provides the user with the ability to select a suitable diagnostic configuration depending on the application.

The DiagnosticsLevel is an enumeration that specifies the possible diagnostics levels. The possible enumeration values are described in Table 286.

Table 286 – DiagnosticsLevel values

Value

Value

Description

Basic

0

Diagnostic objects from this level cannot be disabled, and thus objects from this level are the minimum diagnostic feature set that can be expected on any device that supports PubSub diagnostics at all.

Advanced

1

Diagnostic objects related to exceptional behaviour are contained in the Advanced diagnostic level.

Info

2

The Info diagnostic level contains high-level diagnostic objects related to the normal operation of a PubSub system.

Log

3

Diagnostic objects for the detailed logging of the operation of a PubSub system are contained in the Log diagnostic level.

Debug

4

Diagnostic objects with debug information specific to a given implementation of PubSub are contained in the Debug diagnostic level. As this level is intended for implementation-specific diagnostics, no such objects are specified by the document.

The PubSubDiagnosticsCounterType is formally defined in Table 287.

Table 287 – PubSubDiagnosticsCounterType

Attribute

Value

BrowseName

PubSubDiagnosticsCounterType

IsAbstract

False

ValueRank

-1 (-1 = ‘Scalar’)

DataType

UInt32

References

NodeClass

BrowseName

DataType

TypeDefinition

ModellingRule

Subtype of BaseDataVariableType defined in OPC 10000-5.

HasProperty

Variable

Active

Boolean

PropertyType

Mandatory

HasProperty

Variable

Classification

PubSubDiagnostics‌Counter‌Classification

PropertyType

Mandatory

HasProperty

Variable

DiagnosticsLevel

DiagnosticsLevel

PropertyType

Mandatory

HasProperty

Variable

TimeFirstChange

DateTime

PropertyType

Optional

Conformance Units

PubSub Model Diagnostics

The Value shall be reset to 0 when the Method Reset of the parent PubSubDiagnosticsType Object is called.

The Value shall be incremented by 1 for each corresponding event.

The Value shall not be incremented anymore when the maximum is reached (0xFFFFFFFF).

If the maximum is reached and a new event occurs, the SourceTimestamp of the Value shall be updated, even if the Value does not change. The Property Active indicates if the counter is active.

The Property Classification indicates whether this counter counts errors or other events according to PubSubDiagnosticsCounterClassification defined in 9.1.11.6.

The Property DiagnosticsLevel indicates the diagnostics level the counter belongs to. The DiagnosticsLevel is defined in 9.1.11.4.

The Property TimeFirstChange contains the Server time when the counter value changed from 0 to 1. If the counter value is 0 the Value is null.

The PubSubDiagnosticsCounterClassification is an enumeration that specifies the possible diagnostics counter classifications. The possible enumeration values are described in Table 288.

Table 288 – PubSubDiagnosticsCounterClassification values

Name

Value

Description

Information

0

The semantic of this diagnostics counter indicates expected events, which are not considered as errors.

Error

1

The semantic of this diagnostics counter indicates errors.

The PubSubDiagnosticsRootType defines the diagnostic information for the PublishSubscribe Object and is formally defined in Table 289.

Table 289 – PubSubDiagnosticsRootType

Attribute

Value

BrowseName

PubSubDiagnosticsRootType

IsAbstract

False

References

NodeClass

BrowseName

DataType

TypeDefinition

ModellingRule

Subtype of PubSubDiagnosticsType defined in 9.1.11.2.

HasComponent

Object

LiveValues

BaseObjectType

Mandatory

Conformance Units

PubSub Model Diagnostics

The Object LiveValues contains all live values of the diagnostics Object. If not further specified, the live values Variables use the VariableType BaseDataVariableType. The live values Variables of the PubSubDiagnosticsRootType are defined in Table 290.

Table 290 – LiveValues for PubSubDiagnosticsRootType

BrowseName

Modelling Rule

Diagnostics

Level

DataType

Description

ConfiguredDataSetWriters

Mandatory

Basic

UInt16

Number of configured DataSetWriters on this Server

ConfiguredDataSetReaders

Mandatory

Basic

UInt16

Number of configured DataSetReaders on this Server

OperationalDataSetWriters

Mandatory

Basic

UInt16

Number of DataSetWriters with state Operational

OperationalDataSetReaders

Mandatory

Basic

UInt16

Number of DataSetReaders with state Operational

The PubSubDiagnosticsConnectionType defines the diagnostic information for a PubSubConnectionType Object and is formally defined in Table 291.

Table 291 – PubSubDiagnosticsConnectionType

Attribute

Value

BrowseName

PubSubDiagnosticsConnectionType

IsAbstract

False

References

NodeClass

BrowseName

DataType

TypeDefinition

ModellingRule

Subtype of PubSubDiagnosticsType defined in 9.1.11.2.

HasComponent

Object

LiveValues

BaseObjectType

Mandatory

Conformance Units

PubSub Model Diagnostics

The Object LiveValues contains all live values of the diagnostics Object. If not further specified, the live values Variables use the VariableType BaseDataVariableType. The live values Variables of the PubSubDiagnosticsConnectionType are defined in Table 292.

Table 292 – LiveValues for PubSubDiagnosticsConnectionType

BrowseName

Modelling Rule

Diagnostics

Level

DataType

Description

ResolvedAddress

Mandatory

Basic

String

Resolved address of the connection (e.g. IP Address)

The PubSubDiagnosticsWriterGroupType defines the diagnostic information for a WriterGroupType Object and is formally defined in Table 293.

Table 293 – PubSubDiagnosticsWriterGroupType

Attribute

Value

BrowseName

PubSubDiagnosticsWriterGroupType

IsAbstract

False

References

NodeClass

BrowseName

DataType

TypeDefinition

ModellingRule

Subtype of PubSubDiagnosticsType defined in 9.1.11.2.

HasComponent

Object

Counters

BaseObjectType

Mandatory

HasComponent

Object

LiveValues

BaseObjectType

Mandatory

Conformance Units

PubSub Model Diagnostics

The Object Counters contains all diagnostics counters for the diagnostics Object. The counters use the VariableType PubSubDiagnosticsCounterType defined in 9.1.11.5. The counter Variables of the PubSubDiagnosticsWriterGroupType are defined in Table 294.

Table 294 – Counters for PubSubDiagnosticsWriterGroupType

BrowseName

Modelling Rule

Diagnostics

Level

Class

Description

Inherited counters from PubSubDiagnosticsType

SentNetworkMessages

Mandatory

Basic

Information

Sent NetworkMessages

FailedTransmissions

Mandatory

Basic

Error

Error on NetworkMessage transmission

EncryptionErrors

Optional

Advanced

Error

Error on signing or encrypting NetworkMessage

The Object LiveValues contains all live values of the diagnostics Object. If not further specified, the live values Variables use the VariableType BaseDataVariableType. The live values Variables of the PubSubDiagnosticsWriterGroupType are defined in Table 295.

Table 295 – LiveValues for PubSubDiagnosticsWriterGroupType

BrowseName

Modelling Rule

Diagnostics

Level

DataType

Description

ConfiguredDataSetWriters

Mandatory

Basic

UInt16

Number of configured DataSetWriters in this group

OperationalDataSetWriters

Mandatory

Basic

UInt16

Number of DataSetWriters with state Operational

SecurityTokenID

Optional

Info

UInt32

Currently used SecurityTokenID

TimeToNextTokenID

Optional

Info

Duration

Time until the next key change is expected

The PubSubDiagnosticsReaderGroupType defines the diagnostic information for a ReaderGroupType Object and is formally defined in Table 296.

Table 296 – PubSubDiagnosticsReaderGroupType

Attribute

Value

BrowseName

PubSubDiagnosticsReaderGroupType

IsAbstract

False

References

NodeClass

BrowseName

DataType

TypeDefinition

ModellingRule

Subtype of PubSubDiagnosticsType defined in 9.1.11.2.

HasComponent

Object

Counters

BaseObjectType

Mandatory

HasComponent

Object

LiveValues

BaseObjectType

Mandatory

Conformance Units

PubSub Model Diagnostics

The Object Counters contains all diagnostics counters for the diagnostics Object. The counters use the VariableType PubSubDiagnosticsCounterType defined in 9.1.11.5. The counter Variables of the PubSubDiagnosticsReaderGroupType are defined in Table 297.

Table 297 – Counters for PubSubDiagnosticsReaderGroupType

BrowseName

Modelling Rule

Diagnostics

Level

Class

Description

Inherited counters from PubSubDiagnosticsType

ReceivedNetworkMessages

Mandatory

Basic

Information

Received and processed NetworkMessages

ReceivedInvalidNetwork‌Messages

Optional

Advanced

Error

Invalid format of NetworkMessage Header

DecryptionErrors

Optional

Advanced

Error

Decryption or signature check errors

The Object LiveValues contains all live values of the diagnostics Object. If not further specified, the live values Variables use the VariableType BaseDataVariableType. The live values Variables of the PubSubDiagnosticsReaderGroupType are defined in Table 298.

Table 298 – LiveValues for PubSubDiagnosticsReaderGroupType

BrowseName

Modelling Rule

Diagnostics

Level

DataType

Description

ConfiguredDataSetReaders

Mandatory

Basic

UInt16

Number of configured DataSetReaders in this group

OperationalDataSetReaders

Mandatory

Basic

UInt16

Number of DataSetReaders with state Operational

The PubSubDiagnosticsDataSetWriterType defines the diagnostic information for a DataSetWriterType Object and is formally defined in Table 299.

Table 299 – PubSubDiagnosticsDataSetWriterType

Attribute

Value

BrowseName

PubSubDiagnosticsDataSetWriterType

IsAbstract

False

References

NodeClass

BrowseName

DataType

TypeDefinition

ModellingRule

Subtype of PubSubDiagnosticsType defined in 9.1.11.2.

HasComponent

Object

Counters

BaseObjectType

Mandatory

HasComponent

Object

LiveValues

BaseObjectType

Mandatory

Conformance Units

PubSub Model Diagnostics

The Object Counters contains all diagnostics counters for the diagnostics Object. The counters use the VariableType PubSubDiagnosticsCounterType defined in 9.1.11.5. The counter Variables of the PubSubDiagnosticsDataSetWriterType are defined in Table 300.

Table 300 – Counters for PubSubDiagnosticsDataSetWriterType

BrowseName

Modelling Rule

Diagnostics

Level

Class

Description

Inherited counters from PubSubDiagnosticsType

FailedDataSetMessages

Mandatory

Basic

Error

Number of failed DataSetMessages

The Object LiveValues contains all live values of the diagnostics Object. If not further specified, the live values Variables use the VariableType BaseDataVariableType. The live values Variables of the PubSubDiagnosticsDataSetWriterType are defined in Table 301.

Table 301 – LiveValues for PubSubDiagnosticsDataSetWriterType

BrowseName

Modelling Rule

Diagnostics

Level

DataType

Description

MessageSequenceNumber

Optional

Info

UInt16

Sequence number of last DataSetMessage

StatusCode

Optional

Info

StatusCode

Status of last DataSetMessage

MajorVersion

Optional

Info

UInt32

MajorVersion used for DataSet

MinorVersion

Optional

Info

UInt32

MinorVersion used for DataSet

The PubSubDiagnosticsDataSetReaderType defines the diagnostic information for a DataSetReaderType Object and is formally defined in Table 302.

Table 302 – PubSubDiagnosticsDataSetReaderType

Attribute

Value

BrowseName

PubSubDiagnosticsDataSetReaderType

IsAbstract

False

References

NodeClass

BrowseName

DataType

TypeDefinition

ModellingRule

Subtype of PubSubDiagnosticsType defined in 9.1.11.2.

HasComponent

Object

Counters

BaseObjectType

Mandatory

HasComponent

Object

LiveValues

BaseObjectType

Mandatory

Conformance Units

PubSub Model Diagnostics

The Object Counters contains all diagnostics counters for the diagnostics Object. The counters use the VariableType PubSubDiagnosticsCounterType defined in 9.1.11.5. The counter Variables of the PubSubDiagnosticsDataSetReaderType are defined in Table 303.

Table 303 – Counters for PubSubDiagnosticsDataSetReaderType

BrowseName

Modelling Rule

Diagnostics

Level

Class

Description

Inherited counters from PubSubDiagnosticsType

FailedDataSetMessages

Mandatory

Basic

Error

e.g. because of unknown MajorVersion

DecryptionErrors

Optional

Advanced

Error

The Object LiveValues contains all live values of the diagnostics Object. If not further specified, the live values Variables use the VariableType BaseDataVariableType. The live values Variables of the PubSubDiagnosticsDataSetReaderType are defined in Table 304.

Table 304 – LiveValues for PubSubDiagnosticsDataSetReaderType

BrowseName

Modelling Rule

Diagnostics

Level

DataType

Description

MessageSequenceNumber

Optional

Info

UInt16

SequenceNumber of last DataSetMessage

StatusCode

Optional

Info

StatusCode

Status of last DataSetMessage

MajorVersion

Optional

Info

UInt32

MajorVersion of available DataSetMetaData

MinorVersion

Optional

Info

UInt32

MinorVersion of available DataSetMetaData

SecurityTokenID

Optional

Info

UInt32

Currently used SecurityTokenID

TimeToNextTokenID

Optional

Info

Duration

Time until the next key change is expected

This ObjectType is used to indicate the configuration capabilities of the PubSub functionality in the OPC UA Application.

The PubSubCapabilitiesType is formally defined in Table 305.

Table 305 – PubSubCapabilitiesType definition

Attribute

Value

BrowseName

PubSubCapabilitiesType

IsAbstract

False

References

NodeClass

BrowseName

DataType

TypeDefinition

ModellingRule

Subtype of BaseObjectType defined in OPC 10000-5.

HasProperty

Variable

MaxPubSubConnections

UInt32

PropertyType

Mandatory

HasProperty

Variable

MaxWriterGroups

UInt32

PropertyType

Mandatory

HasProperty

Variable

MaxReaderGroups

UInt32

PropertyType

Mandatory

HasProperty

Variable

MaxDataSetWriters

UInt32

PropertyType

Mandatory

HasProperty

Variable

MaxDataSetReaders

UInt32

PropertyType

Mandatory

HasProperty

Variable

MaxFieldsPerDataSet

UInt32

PropertyType

Mandatory

HasProperty

Variable

MaxDataSetWritersPerGroup

UInt32

PropertyType

Optional

HasProperty

Variable

MaxSecurityGroups

UInt32

PropertyType

Optional

HasProperty

Variable

MaxPushTargets

UInt32

PropertyType

Optional

HasProperty

Variable

MaxPublishedDataSets

UInt32

PropertyType

Optional

HasProperty

Variable

MaxStandaloneSubscribedDataSets

UInt32

PropertyType

Optional

HasProperty

Variable

MaxNetworkMessageSizeDatagram

UInt32

PropertyType

Optional

HasProperty

Variable

MaxNetworkMessageSizeBroker

UInt32

PropertyType

Optional

HasProperty

Variable

SupportSecurityKeyPull

Boolean

PropertyType

Optional

HasProperty

Variable

SupportSecurityKeyPush

Boolean

PropertyType

Optional

HasProperty

Variable

SupportSecurityKeyServer

Boolean

PropertyType

Optional

Conformance Units

PubSub Model Base

The maximum numbers of objects related to configuration capabilities are expected to be configurable in the OPC UA Application but the capability to operate all configured objects at the same time depends on different parameters like timing settings and it is not ensured that any combination of enabled objects in the configuration can be executed.

The MaxPubSubConnections Variable defines the maximum number of PubSubConnections that can be configured for the OPC UA Application. A value of 0 indicates that the OPC UA Application forces no limit on the number of connections.

The MaxWriterGroups Variable defines the maximum number of WriterGroups that can be configured for the OPC UA Application. A value of 0 indicates that the OPC UA Application forces no limit on the number of WriterGroups.

The MaxReaderGroups Variable defines the maximum number of ReaderGroups that can be configured for the OPC UA Application. A value of 0 indicates that the OPC UA Application forces no limit on the number of ReaderGroups.

The MaxDataSetWriters Variable defines the maximum number of DataSetWriters that can be configured for the OPC UA Application. A value of 0 indicates that the OPC UA Application forces no limit on the number of DataSetWriters.

The MaxDataSetReaders Variable defines the maximum number of DataSetReaders that can be configured for the OPC UA Application. A value of 0 indicates that the OPC UA Application forces no limit on the number of DataSetReaders.

The MaxFieldsPerDataSet Variable defines the maximum number of fields that can be configured for a PublishedDataSet. A value of 0 indicates that the OPC UA Application forces no limit on the number of fields.

The MaxDataSetWritersPerGroup Variable defines the maximum number of DataSetWriters that can be configured in one WriterGroup. A value of 0 indicates that the OPC UA Application forces no limit on the number of DataSetWriters in one WriterGroup.

The MaxSecurityGroups Variable defines the maximum number of SecurityGroups that can be configured. A value of 0 indicates that the OPC UA Application forces no limit on the number of SecurityGroups.

The MaxPushTargets Variable defines the maximum number of PushTargets that can be configured. A value of 0 indicates that the OPC UA Application forces no limit on the number of PushTargets.

The MaxPublishedDataSets Variable defines the maximum number of PublishedDataSets that can be configured. A value of 0 indicates that the OPC UA Application forces no limit on the number of PublishedDataSets.

The MaxStandaloneSubscribedDataSets Variable defines the maximum number of StandaloneSubscribedDataSets that can be configured. A value of 0 indicates that the OPC UA Application forces no limit on the number of StandaloneSubscribedDataSets.

The MaxNetworkMessageSizeDatagram Variable defines the maximum number of bytes that can be configured as MaxNetworkMessageSize for NetworkMessages sent or received through datagram transport protocol mappings. A value of 0 indicates that the OPC UA Application forces no limit on the maximum size.

The MaxNetworkMessageSizeBroker Variable defines the maximum number of bytes that can be configured as MaxNetworkMessageSize for NetworkMessages sent or received through broker transport protocol mappings. A value of 0 indicates that the OPC UA Application forces no limit on the maximum size.

The SupportSecurityKeyPull Variable indicates if the OPC UA Application is able to pull PubSub security keys from a SKS.

The SupportSecurityKeyPush Variable indicates if the OPC UA Application is able to accept PubSub security keys pushed from a SKS.

The SupportSecurityKeyServer Variable indicates if the OPC UA Application is able to act as a Security Key Server and to manage SecurityGroups.

The PubSub components have KeyValuePair arrays for additional configuration property lists. These optional configuration properties extend the configuration parameters defined for the different PubSub components.

A configuration property is described by Variables with the following information:

The configuration property descriptions are referenced from the related configuration propeties Node with the HasKeyValueDescription ReferenceType defined in OPC 10000-5.

The SourceNode of References of this type shall be one of the following Nodes:

This EventType is a base type for events which indicate an error or status change associated with a PubSubConnectionType, PubSubGroupType, DataSetWriterType or DataSetReaderType Object. The PubSubStatusEventType is formally defined in Table 306.

Table 306 – PubSubStatusEventType definition

Attribute

Value

BrowseName

PubSubStatusEventType

IsAbstract

True

References

NodeClass

BrowseName

DataType

TypeDefinition

ModellingRule

Subtype of SystemEventType defined in OPC 10000-5.

HasProperty

Variable

ConnectionId

NodeId

PropertyType

Mandatory

HasProperty

Variable

GroupId

NodeId

PropertyType

Mandatory

HasProperty

Variable

State

PubSubState

PropertyType

Mandatory

Conformance Units

PubSub Model Status Event

This EventType inherits all Properties of the SystemEventType. Their semantic is defined in OPC 10000-5.

The SourceNode is the NodeId of the PubSubConnectionType, PubSubGroupType, DataSetWriterType or DataSetReaderType Object associated with the Event.

The SourceName is the BrowseName of the SourceNode.

The ConnectionId Property is the NodeId of the PubSubConnectionType Object associated with the source of the status Event.

The GroupId Property is the NodeId of the PubSubGroupType Object associated with the source of the status Event. The GroupId is Null if a PubSubConnection is the source of the Event.

The State Variable is the current state of the Status Object associated with the SourceNode of the status Event.

This EventType indicates that a NetworkMessage could not be published because it exceeds the limits of transport. The PubSubTransportLimitsExceedEventType is formally defined in Table 307.

Table 307 – PubSubTransportLimitsExceedEventType definition

Attribute

Value

BrowseName

PubSubTransportLimitsExceedEventType

IsAbstract

True

References

NodeClass

BrowseName

DataType

TypeDefinition

ModellingRule

Subtype of PubSubStatusEventType defined in 9.1.13.2.

HasProperty

Variable

Actual

UInt32

PropertyType

Mandatory

HasProperty

Variable

Maximum

UInt32

PropertyType

Mandatory

Conformance Units

PubSub Model Diagnostics Events

This EventType inherits all Properties of the PubSubStatusEventType.

The Actual Property has the size in bytes of the actual NetworkMessage.

The Maximum Property has the maximum size of NetworkMessages in bytes allowed by the transport.

This EventType indicates that a NetworkMessage could not be published because of a communication failure. The PubSubCommunicationFailureEventType is formally defined in Table 308.

Table 308 – PubSubCommunicationFailureEventType definition

Attribute

Value

BrowseName

PubSubCommunicationFailureEventType

IsAbstract

True

References

NodeClass

BrowseName

DataType

TypeDefinition

ModellingRule

Subtype of PubSubStatusEventType defined in 9.1.13.2.

HasProperty

Variable

Error

StatusCode

PropertyType

Mandatory

Conformance Units

PubSub Model Diagnostics Events

This EventType inherits all Properties of the PubSubStatusEventType.

The Message Event field inherited from BaseEventType has a localized description of the error.

The Error Property has the StatusCode associated with the error.
