The purpose of subclause 5.4 is to detail the requirements and behaviour for OPC UA Servers supporting Aggregates. The intent is to standardize the Aggregates so users can reliably predict the results of an Aggregate computation and understand its meaning. If users require custom functionality in the Aggregates, those Aggregates should be written as custom vendor defined Aggregates.
The standard Aggregates shall be as consistent as possible, meaning that each Aggregate’s behaviour shall be similar to every other Aggregate’s behaviour where input parameters, Raw data, and boundary conditions are similar. Where possible, the Aggregates should deal with input and preconditions in a similar manner.
Subclause 5.4 is divided up into two parts. Subclause 5.4.2 deals with Aggregate characteristics and behaviour that are common to all Aggregates. Subclause 5.4.3 deals with the characteristics and behaviour of Aggregates that are aggregatespecific.
Subclause 5.4.2 deals with Aggregate characteristics and behaviour that are common to all Aggregates.
To read Historical Aggregates, OPC clients shall specify three time parameters:
 startTime (Start)
 endTime (End)
 ProcessingInterval (Int)
The OPC Server shall use these three parameters to generate a sequence of time intervals and then calculate an Aggregate for each interval. Subclause 5.4.2.2 specifies, given the three parameters, which time intervals are generated. Table 12 provides information on the intervals for each Start and End time combination. The range is defined to be End  Start.
All Aggregates return a timestamp of the start of the interval unless otherwise noted for the particular Aggregate.
Table 12 – History Aggregate interval information
Start/End Time
Interval
Resulting intervals
Int = Anything
No intervals. Returns a Bad_InvalidArgument StatusCode, regardless of whether there is data at the specified time or not.

One interval, starting at Start and ending at End. Includes Start, excludes End, i.e., [Start, End).

Int ≠ 0, Int < Range, Int divides Range evenly.
Range/Int intervals. Intervals are [Start, Start + Int), [Start + Int, Start + 2 x Int),..., [End  Int, End).

Int ≠ 0, Int < Range, Int does not divide Range evenly.
Range/Int intervals. Intervals are [Start, Start + Int), [Start + Int, Start + 2 x Int),..., [Start + ( Range/Int  1) x Int, Start + Range/Int x Int), [Start + Range/Int x Int, End). In other words, the last interval contains the “rest” that remains in the range after taking away Range/Int intervals of size Int.

One interval, starting at Start and ending at End. Includes Start, excludes End, i.e.,[Start, End). a

Int ≠ 0, Int < Range, Int divides Range evenly.
Range/Int intervals. Intervals are [Start, Start Int), [Start– Int, Start – 2 x Int),..., [End + Int, End). a

Int ≠ 0, Int < Range, Int does not divide Range evenly.
Range/Int intervals. Intervals are [Start, Start  Int), [Start –Int,Start  2 x Int),..., [Start – ( Range/Int  1) x Int , Start  Range/Int x Int), [Start  Range/Int x Int , End). In other words, the last interval contains the “rest” that remains in the range after taking away Range/Int intervals of size Int starting at Start. a

a In this case time is running backwards on the intervals.
The calculation of all Aggregates when time flows backwards is the same as when time flows forwards with the exception that the ‘early time’ is excluded from the interval and the ‘late time’ is included. In most cases this means the value will be the same except the timestamps are shifted by one ProcessingInterval. E.g. when time flows forward the value at T = n is the same as the value at T = n + 1 when time flows backward.
Note that when determining Aggregates with MonitoredItem, the interval is simply the ProcessingInterval parameter as defined in the AggregateFilter structure. See OPC 100004 for more details.
Table 13 outlines the valid DataType for each Aggregate. Some Aggregates are intended for numeric data types – i.e. integers or real/floating point numbers. Dates, strings, arrays, etc. are not supported. Other Aggregates are intended for digital data types – i.e. Boolean or enumerations. In addition some Aggregates may return results with a different DataType than those used to calculate the Aggregate. Table 13 also outlines the data type returned for each Aggregate.
Table 13 – Standard History Aggregate Data Type information
BrowseName
Valid Data Type


Interpolation Aggregate

Interpolative
Numeric
Raw Data Type

Data Averaging Aggregates

Average
Numeric
Double
TimeAverage
Numeric
Double
TimeAverage2
Numeric
Double
Total
Numeric
Double
Total2
Numeric
Double

Data Variation Aggregates

Minimum
Numeric
Raw data type
Maximum
Numeric
Raw data type
MinimumActualTime
Numeric
Raw data type
MaximumActualTime
Numeric
Raw data type
Range
Numeric
Raw data type
Minimum2
Numeric
Raw data type
Maximum2
Numeric
Raw data type
MinimumActualTime2
Numeric
Raw data type
MaximumActualTime2
Numeric
Raw data type
Range2
Numeric
Raw data type

Counting Aggregates

AnnotationCount
All
Integer
Count
All
Integer
DurationInStateZero
Numeric or Boolean
Duration
DurationInStateNonZero
Numeric or Boolean
Duration
NumberOfTransitions
Numeric or Boolean
Integer

Time Aggregates

Start
All
Raw data type
End
All
Raw data type
Delta
Numeric
Raw data type
StartBound
All
Raw data type
EndBound
All
Raw data type
DeltaBounds
Numeric
Raw data type

Data Quality Aggregates

DurationGood
All
Duration
DurationBad
All
Duration
PercentGood
All
Double
PercentBad
All
Double
WorstQuality
All

WorstQuality2
All


Statistical Aggregates

StandardDeviationSample
Numeric
Double
VarianceSample
Numeric
Double
StandardDeviationPopulation
Numeric
Double
VariancePopulation
Numeric
Double
The following issues may come up when calculating Aggregates that include time as part of the calculation.
 All Aggregate calculations include the startTime but exclude the endTime. However, it is sometimes necessary to return an Interpolated End Bound as the value for an Interval with a timestamp that is in the Interval. Servers are expected to use the time immediately before endTime where the time resolution of the Server determines the exact value (do not confuse this with hardware or operating system time resolution). For example, if the endTime is 12:01:00, the time resolution is 1 second, then the EffectiveEndTime is 12:00:59. If the Server time resolution is 1 millisecond the EffectiveEndTime is 12:00:59.999.
If time is flowing backwards, Servers are expected to use the time immediately after endTime where the time resolution of the Server determines the exact value.
 If there is one data point in the Interval and it falls on the StartTime the time duration used in calculations is one unit of the time resolution of the Server.
When accessing aggregated data using the HistoryRead or the CreateMonitoredItems Service, the following rules are used to handle specific Aggregate use cases.
If ProcessingInterva l is 0, the Server shall create one Aggregate value for the entire time range. This allows Aggregates over large periods of time. A value with a timestamp equal to endTime will be excluded from that Aggregate, just as it would be excluded from an interval with that ending time. If the ProcessingInterval of 0 is passed in the MonitoredItemFilter it shall be revised to a suitable nonzero value.
The timestamp returned with the Aggregate shall be the time at the beginning of the interval, except where the Aggregate specifies a different timestamp.
If a requested timestamp is set to anything but the source timestamp the operation shall return the Bad_TimestampToReturnInvalid StatusCode. If a requested timestamp is not supported in any other way for a HistoricalDataNode, the operation shall return the Bad_TimestampNotSupported StatusCode. For MonitoredItem the Server shall not return past data if a requested timestamp is not supported by the history collection.
StatusCodes for an Aggregate value shall take into account the values used to calculate them. In addition, the configuration parameters PercentDataGood and PercentDataBad allow the client to control how this calculation is done if supported by the Server.
If an Aggregate operates on raw values (e.g. Average) the calculation is done by counting values. If an Aggregate operates on raw values but can also return a Bounding Value then the Bounding Values are included in the count when computing the StatusCode. If an Aggregate does any sort of a time weighted calculation (e.g. TimeAverage or TimeAverage2) then the StatusCode calculation shall also be time weighted.
For purposes of calculating time weighted StatusCodes each interval shall be divided into regions of Good or Bad data. Creating these regions requires that the bounding values be calculated for each interval and the type of bounding value depends on the Aggregate.
Use the following to determine the StatusCode of a given aggregate. If TreatUncertainAsBad = False then Uncertain regions are included with the Good regions when calculating the above ratios, if the TreatUncertainAsBad = True then the Uncertain regions are included as Bad regions. If no Bad regions are in the interval then the StatusCode for the interval is Good. For any intervals containing regions where the StatusCodes are Bad, the total duration of all Bad regions is calculated and divided by the width of the interval. The resulting ratio is multiplied by 100 and compared to the PercentDataBad parameter. The StatusCode for the interval is Bad if the ratio is greater than or equal to the PercentDataBad parameter. For any interval which is not Bad, the total duration of all Good regions is then calculated and divided by the width of the interval. The resulting ratio is multiplied by 100 and compared to the PercentDataGood parameter. The StatusCode for the interval is Good if the ratio is greater than or equal to the PercentDataGood parameter. If for an interval neither ratio applies then that interval is Uncertain_DataSubNormal.
If there is no data in the interval and the interval is inside the range [start of data, end of data] and the Aggregate return data type is raw data type then the StatusCodes for the interval will be Bad_NoData unless an alternate status code is defined for a specific Aggregate.
The width of an interval is the ProcessingInterval unless it is a partial interval (i.e. has the Partial bit set). In these cases, the width is the time used when calculating the partial interval.
Subclauses 5.4.3.2.2 and 5.4.3.2.3 include diagrams that illustrate a request and data series. The colour of the time axis indicates the status for different regions. Red indicates Bad, green indicates Good and orange indicates Uncertain. These examples assume TreatUncertainAsBad = False.
Figure 2 illustrates a data series for Variable with Stepped = False and an Aggregate that uses Simple Bounding Values. The request being processed has a Start Time that falls before the first point in the series and an End Time that does not fall on an integer multiple of the ProcessingInterval.

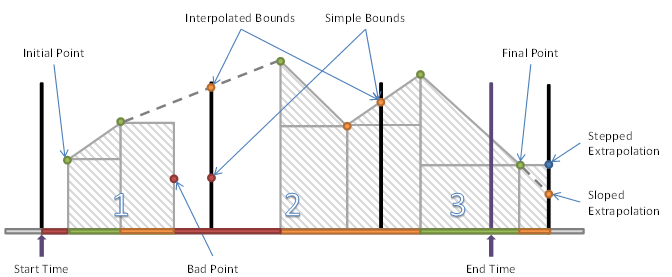

Figure 2 – Variable with Stepped = False and Simple Bounding Values
The first interval has four regions:
 the period before the first data point;
 the period between the first and second where SlopedInterpolation can be used;
 the period between the second and third point where SteppedInterpolation is used;
 the period after the Bad point where no data exists.
A region is Uncertain if a region ends in a Bad or Uncertain value and SlopedInterpolation is used. The end point has no effect on the region if SteppedInterpolation is used.
The second interval has three regions:
 the period before the first Good data point where no data exists;
 the period between the first and second where SlopedInterpolation can be used;
 the period between the second point and the bound calculated with SlopedInterpolation.
The third interval has three regions:
 the period between the simple bound and the first data point;
 the period between the first point and an interpolated point that falls on the end time;
 the period after the end time which is ignored.
This is a partial region and the data after the end time is not used, however, if sloped interpolation is used and the point after the endpoint is Uncertain then the region between the last point and the end time will be Uncertain.
Figure 3 illustrates a data series for Variable with Stepped = True and an Aggregate that uses Interpolated Bounding Values. The request being processed has a Start Time that falls before the first point in the series and an End Time that does not fall on an integer multiple of the ProcessingInterval.

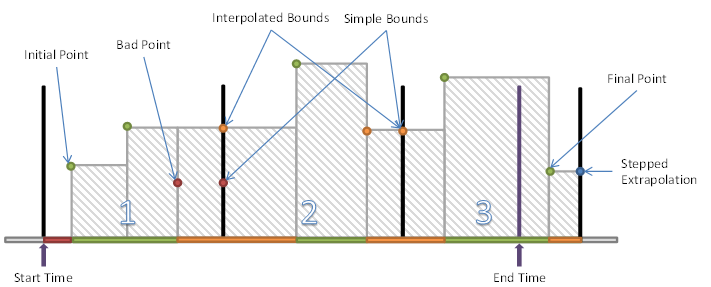

Figure 3 – Variable with Stepped = True and Interpolated Bounding Values
The first interval has three regions:
 the period before the first data point;
 the period between the first and second where SteppedInterpolation is used;
 the period between the second and the interpolated end bound.
The Bad point is ignored because of the interpolated end bound but this does create Uncertain regions. If SlopedInterpolation was used the Uncertain region would start at the second point. In this case, it only starts when the first Bad value is ignored.
The second interval has three regions:
 the period between the start bound and the first data point;
 the period between the first and second where SteppedInterpolation is used;
 the period between the second and the interpolated end bound.
The third interval has three regions:
 the period between the interpolated bound and the first data point;
 the period between the first point and an interpolated point that falls on the end time;
 the period after the end time which is ignored.
This is a partial region and the data after the end time is not used.
Subclause 5.4.3.3 deals with Aggregate specific characteristics and behaviour that is specific to a particular Aggregate.
Each subclause has a table which formally expresses the Aggregate behaviour (including any exceptions). The meaning of each of the fields in the table is described in Table 14.
Description of Table 14:
 The first column is the common name for the item.
 The second column includes a description of the item and a list of the valid selections with for the item including a description of each selection.
 The second part of the table describes how the status associated with the Aggregate calculation is computed.
 The last part of the table lists what behaviour is expected from the Aggregate for some common special cases. These behaviours require text descriptions so there is no list of valid selections.
Table 14 – Aggregate table description
Aggregate Characteristics

Type
The type of Aggregate. <Interpolated  Calculated  Raw>
Interpolated: See definition for Interpolated. Calculated: Computed from defined calculation. Raw: Selects a raw value from within an interval.
Data Type
The data type of the result. <Double  Int32  Same as Source>
Use Bounds
How the Aggregate deals with bounds. <None  Interpolated  Simple>
None: Bounds do not apply to the Aggregate. Interpolated: Uses Interpolated Bounds. Simple: Uses Simple Bounds.
Timestamp
What is the time stamp of the resulting Aggregate value:
startTime: The time at the start of the interval. endTime: The time at the end of the interval. Raw: The time associated with a value in the interval.


StatusCode Calculations

Calculation Method
How the status code is calculated: <PercentValues  PercentTime  Custom>
PercentValues: Based on percentage of value counts. PercentTime: Based on percentage of time interval. Custom: Specific to the Aggregate (description included).
Partial
For partial intervals does the Aggregate set this bit <Set Sometimes  Not Set>
It may also describe any special cases for setting this bit
Calculated
Describes the usage of the calculated bit. <Set Always  Set Sometimes  Not Set>
Set Always: The bit is always set. Set Sometimes: The bit is sometimes set (describes when). Not Set: The bit is never set.
Interpolated
Describes the usage of the interpolated bit. <Set Always  Set Sometimes  Not Set>
Set Always: The bit is always set. Set Sometimes: The bit is sometimes set (describes when). Not Set: The bit is never set.
Raw
Describes the usage of the Raw bit. <Set Always  Set Sometimes  Not Set>
Set Always: The bit is always set. Set Sometimes: The bit is sometimes set (describes when). Not Set: The bit is never set.
Multi Value
Describes the usage of the multi value bit. <Set Sometimes  Not Set>
Set Sometimes: The bit is used (see OPC 1000011). Not Set: The bit is never set.


StatusCode Common Special Cases

Before Start of Data
If the entire interval is before the start of data.
After End of Data
If the entire interval is after the end of data (as determined by the Historian).
Start Bound Not Found
If the starting bound is not found for the earliest interval and it is not partial, then what, if any, special processing should be done.
End Bound Not Found
If the ending bound is not found for the latest interval and it is not partial, then what, if any, special processing should be done.
Bound Bad
If the Bounding value is Bad, then what, if any, special processing should be done.
Bound Uncertain
If the Bounding value is uncertain, then what, if any, special processing should be done.
The Interpolative Aggregate defined in Table 15 returns the Interpolated Bounding Value (see 3.1.8) for the startTime of each interval.
When searching for Good values before or after the bounding value, the time period searched is Server specific, but the Server should search a time range which is at least the size of the ProcessingInterval.
Table 15 – Interpolative Aggregate summary
Interpolated Aggregate Characteristics

Type
Interpolated
Data Type
Same as Source
Use Bounds
Interpolated
Timestamp
StartTime


StatusCode Calculations

Calculation Method
Custom Good if no Bad values skipped and Good values are used, Uncertain if Bad values skipped or if Uncertain values are used. If no starting value then Bad_NoData. See description of Interpolated Bounds (see 3.1.8) for more details
Partialbit
Not Set
Calculated bit
Not Set
Interpolated bit
Set Sometimes Always set except for when the Raw bit is set
Raw bit
Set Sometimes If a value exists with the exact time of interval Start
Multi Value bit
Not Set


StatusCode Common Special Cases

Before Start of Data
Return Bad_NoData
After End of Data
Return extrapolated value (see 3.1.8) (sloped or stepped according to settings) Status code is Uncertain_DataSubNormal.
Start Bound Not Found

End Bound Not Found

Bound Bad
Does not return a Bad bound except as noted above
Bound Uncertain
Returned Uncertain_DataSubNormal if any Bad value(s) was/were skipped to calculate the bounding value.
The Average Aggregate defined in Table 16 adds up the values of all Good Raw data for each interval, and divides the sum by the number of Good values. If any nonGood values are ignored in the computation, the Aggregate StatusCode will be determined using the StatusCode Calculation (see 5.3). This Aggregate is not time based so the PercentGood/PercentBad applies to the number of values in the interval.
Table 16 – Average Aggregate summary
Average Aggregate Characteristics

Type
Calculated
Data Type
Double
Use Bounds
None
Timestamp
StartTime


StatusCode Calculations

Calculation Method
PercentValues
Partial
Not Set
Calculated
Set Always
Interpolated
Not Set
Raw
Not Set
Multi Value
Not Set


StatusCode Common Special Cases

Before Start of Data
Bad_NoData
After End of Data
Bad_NoData
No Start Bound
Bounds not used
No End Bound
Bounds not used
Bound Bad
Bounds not used
Bound Uncertain
Bounds not used
The TimeAverage Aggregate defined in Table 17 uses Interpolated Bounding Values (see 3.1.8) to find the value of a point at the beginning and end of an interval. Starting at the starting bounding value a straight line is drawn between each value in the interval ending at the ending bounding value (see examples for illustrations). The area under the lines is divided by the length of the ProcessingInterval to yield the average. Note that this calculation always uses a sloped line between points; TimeAverage2 uses a stepped or sloped line depending on the value of the Stepped Property for the Variable.
If one or more Bad Values exist in the interval then they are omitted from the calculation and the StatusCode is set to Uncertain_DataSubNormal. Sloped lines are drawn between the Good values when calculating the area.
The time resolution used in this calculation is Server specific.
Table 17 – TimeAverage Aggregate summary
TimeAverage Aggregate Characteristics

Type
Calculated
Data Type
Double
Use Bounds
Interpolated
Timestamp
StartTime


StatusCode Calculations

Calculation Method
Custom Good if no Bad values skipped and Good values are used, Uncertain if Bad values are skipped or if Uncertain values are used
Partial
Set Sometimes If an interval is not a complete interval
Calculated
Set Always
Interpolated
Not Set
Raw
Not Set
Multi Value
Not Set


StatusCode Common Special Cases

Before Start of Data
Bad_NoData
After End of Data
Value extrapolated, Uncertain status
No Start Bound
Calculate Partial Interval
No End Bound
Extrapolate data, Uncertain status
Bound Bad
NA
Bound Uncertain
NA
The TimeAverage2 Aggregate defined in Table 18 uses Simple Bounding Values (see 3.1.9) to find the value of a point at the beginning and end of an interval. Starting at the starting bounding value a straight line is drawn between each value in the interval ending at the ending bounding value (see examples for illustrations). The area under the lines is divided by the length of the ProcessingInterval to yield the average. Note that this calculation uses a stepped or sloped line depending on what the value of the Stepped Property for the Variable; TimeAverage always uses a sloped line between points.
The time resolution used in this calculation is Server specific.
If any nonGood data exists in the interval, this data is omitted from the calculation and the time interval is reduced by the duration of the nonGood data; i.e. if a value was Bad for 1 minute in a 5minute interval then the TimeAverage2 would be the area under the 4minute period of Good values divided by 4 minutes. If a subinterval ends at a Bad value then only the Good starting value is used to calculate the area of subinterval preceding the Bad value.
The Aggregate StatusCode will be determined using the StatusCode Calculation (see 5.3).
Table 18 – TimeAverage2 Aggregate summary
TimeAverage2 Aggregate Characteristics

Type
Calculated
Data Type
Double
Use Bounds
Simple
Timestamp
StartTime


StatusCode Calculations

Calculation Method
PercentTime
Partial
Set Sometimes If an interval is not a complete interval
Calculated
Set Always
Interpolated
Not Set
Raw
Not Set
Multi Value
Not Set


StatusCode Common Special Cases

Before Start of Data
Bad_NoData
After End of Data
Bad_NoData
No Start Bound
Bound is Bad_NoData and treated as any other Bad value in the interval
No End Bound
Bound is Bad_NoData and treated as any other Bad value in the interval
Bound Bad
Treated as any other Bad value in the interval
Bound Uncertain
Treated as any other Uncertain value in the interval
The Total Aggregate defined in Table 19 performs the following calculation for each interval:
Total = TimeAverage x ProcessingInterval (seconds)
where: TimeAverage is the result from the TimeAverage Aggregate, using the ProcessingInterval supplied to the Total call.
The resulting units would be normalized to seconds, i.e. [TimeAverage Units] x seconds.
The Aggregate StatusCode will be determined using the StatusCode Calculation (see 5.3).
Note that this calculation always uses a SlopedInterpolation between points; Total2 uses a Stepped Attribute or SlopedInterpolation depending on the value of the Stepped Attribute for the Variable.
Table 19 – Total Aggregate summary
Total Aggregate Characteristics

Type
Calculated

Data Type
Double

Use Bounds
Interpolated

Timestamp
StartTime



StatusCode Calculations

Calculation Method
Custom Good if no Bad values are skipped and Good values are used, Uncertain if Bad values are skipped or if Uncertain values are used

Partial
Set Sometimes If an interval is not a complete interval

Calculated
Set Always

Interpolated
Not Set

Raw
Not Set

Multi Value
Not Set



StatusCode Common Special Cases

Before Start of Data
Bad_NoData

After End of Data
Value extrapolated, Uncertain status

No Start Bound
Calculate Partial Interval

No End Bound
Extrapolate data, Uncertain status

Bound Bad
NA

Bound Uncertain
NA
The Total2 Aggregate defined in Table 20 performs the following calculation for each interval:
Total2 = TimeAverage2 x ProcessingInterval of Good data (seconds)
where TimeAverage2 is the result from the TimeAverage2 Aggregate, using the ProcessingInterval supplied to the Total2 call.
The interval of Good data is the sum of all subintervals where nonBad data exists; i.e. if a value was Bad for 1 minute in a 5minute interval then the interval of Good data would be the 4minute period.
The resulting units would be normalized to seconds, i.e. [TimeAverage2 Units] x seconds.
The Aggregate StatusCode will be determined using the StatusCode Calculation (see 5.3).
Table 20 – Total2 Aggregate summary
Total2 Aggregate Characteristics

Type
Calculated

Data Type
Double

Use Bounds
Simple

Timestamp
StartTime



StatusCode Calculations

Calculation Method
PercentTime

Partial
Set Sometimes If an interval is not a complete interval

Calculated
Set Always

Interpolated
Not Set

Raw
Not Set

Multi Value
Not Set



StatusCode Common Special Cases

Before Start of Data
Bad_NoData

After End of Data
Bad_NoData

No Start Bound
Value for Bound is Bad_NoData and is treated like any other Bad quality value in the calculation (ignored)

No End Bound
Value for Bound is Bad_NoData and is treated like any other Bad quality value in the calculation (ignored)

Bound Bad
Value is treated like any other Bad quality value in the calculation (ignored)

Bound Uncertain
Value is treated like any other nonGood quality value in the calculation (ignored)
The Minimum Aggregate defined in Table 21 retrieves the minimum Good raw value within the interval, and returns that value with the timestamp at the start of the interval. Note that if the same minimum exists at more than one timestamp the MultipleValues bit is set.
Unless otherwise indicated, StatusCodes are Good, Calculated. If the minimum value is on the start time the status code will be Good, Raw. If only Bad quality values are available then the status is returned as Bad_NoData.
The timestamp of the Aggregate will always be the start of the interval for every ProcessingInterval.
Table 21 – Minimum Aggregate summary
Minimum Aggregate Characteristics

Type
Calculated

Data Type
Same as Source

Use Bounds
None

Timestamp
StartTime



StatusCode Calculations

Calculation Method
Custom If no Bad values then the Status is Good. If Bad values exist then the Status is Uncertain_SubNormal. If an Uncertain value is less than the minimum Good value the Status is Uncertain_SubNormal.

Partial
Set Sometimes If an interval is not a complete interval

Calculated
Set Sometimes If the Minimum value is not on the StartTime of the interval or if the Status was set to Uncertain_SubNormal because of nonGood values in the interval

Interpolated
Not Set

Raw
Set Sometimes If Minimum value is on the StartTime of the interval

Multi Value
Set Sometimes If multiple Good values exist with the Minimum value



StatusCode Common Special Cases

Before Start of Data
Bad_NoData

After End of Data
Bad_NoData

No Start Bound
Not Applicable

No End Bound
Not Applicable

Bound Bad
Not Applicable

Bound Uncertain
Not Applicable
The Maximum Aggregate defined in Table 22 retrieves the maximum Good raw value within the interval, and returns that value with the timestamp at the start of the interval. Note that if the same maximum exists at more than one timestamp the MultipleValues bit is set.
Unless otherwise indicated, StatusCodes are Good, Calculated. If the maximum value is on the interval start time the status code will be Good, Raw. If only Bad quality values are available then the status is returned as Bad_NoData.
The timestamp of the Aggregate will always be the start of the interval for every ProcessingInterval.
Table 22 – Maximum Aggregate summary
Maximum Aggregate Characteristics

Type
Calculated

Data Type
Same as Source

Use Bounds
None

Timestamp
StartTime



StatusCode Calculations

Calculation Method
Custom If no Bad values then the Status is Good. If Bad values exist then the Status is Uncertain_SubNormal. If an Uncertain value is greater than the maximum Good value the Status is Uncertain_SubNormal

Partial
Set Sometimes If an interval is not a complete interval

Calculated
Set Sometimes If the Maximum value is not on the startTime of the interval or if the Status was set to Uncertain_SubNormal because of nonGood values in the interval

Interpolated
Not Set

Raw
Set Sometimes If Maximum value is on the startTime of the interval

Multi Value
Set Sometimes If multiple Good values exist with the Maximum value



StatusCode Common Special Cases

Before Start of Data
Bad_NoData

After End of Data
Bad_NoData

No Start Bound
Not Applicable

No End Bound
Not Applicable

Bound Bad
Not Applicable

Bound Uncertain
Not Applicable
The MinimumActualTime Aggregate defined in Table 23 retrieves the minimum Good raw value within the interval, and returns that value with the timestamp at which that value occurs. Note that if the same minimum exists at more than one timestamp, the oldest one is retrieved and the Aggregate Bits are set to MultipleValues.
Table 23 – MinimumActualTime Aggregate summary
MinimumActualTime Aggregate Characteristics

Type
Calculated

Data Type
Same as Source

Use Bounds
None

Timestamp
Time of Minimum



StatusCode Calculations

Calculation Method
Custom If no Bad values then the Status is Good. If Bad values exist then the Status is Uncertain_SubNormal. If an Uncertain value is less than the minimum Good value the Status is Uncertain_SubNormal

Partial
Set Sometimes If an interval is not a complete interval

Calculated
Set Sometimes If the Status was set to Uncertain_SubNormal because of nonGood values in the interval

Interpolated
Not Set

Raw
Set Sometimes If a Good minimum value is returned

Multi Value
Set Sometimes If multiple Good values exist with the Minimum value



StatusCode Common Special Cases

Before Start of Data
Bad_NoData

After End of Data
Bad_NoData

No Start Bound
Not Applicable

No End Bound
Not Applicable

Bound Bad
Not Applicable

Bound Uncertain
Not Applicable
The MaximumActualTime Aggregate defined in Table 24 is the same as the MinimumActualTime Aggregate, except that the value is the maximum raw value within the interval. Note that if the same maximum exists at more than one timestamp, the oldest one is retrieved and the Aggregate Bits are set to MultipleValues.
Table 24 – MaximumActualTime Aggregate summary
MaximumActualTime Aggregate Characteristics

Type
Calculated

Data Type
Same as Source

Use Bounds
None

Timestamp
Time of Maximum



StatusCode Calculations

Calculation Method
Custom If no Bad values then the Status is Good. If Bad values exist then the Status is Uncertain_SubNormal. If an Uncertain value is greater than the maximum Good value the Status is Uncertain_SubNormal

Partial
Set Sometimes If an interval is not a complete interval

Calculated
Set Sometimes If the Status was set to Uncertain_SubNormal because of nonGood values in the interval

Interpolated
Not Set

Raw
Set Sometimes If a Good maximum value is returned

Multi Value
Set Sometimes If multiple Good values exist with the maximum value



StatusCode Common Special Cases

Before Start of Data
Bad_NoData

After End of Data
Bad_NoData

No Start Bound
Not Applicable

No End Bound
Not Applicable

Bound Bad
Not Applicable

Bound Uncertain
Not Applicable
The Range Aggregate defined in Table 25 finds the difference between the maximum and minimum Good raw values in the interval. If only one Good value exists in the interval, the range is zero. Note that the range is always zero or positive. If nonGood values are ignored when finding the minimum or maximum values or if Bad values exist then the status is Uncertain_DataSubNormal.
Table 25 – Range Aggregate summary
Range Aggregate Characteristics

Type
Calculated

Data Type
Same as Source

Use Bounds
None

Timestamp
StartTime



StatusCode Calculations

Calculation Method
Custom If no Bad values then the Status is Good. If Bad values exist then the Status is Uncertain_SubNormal. If an Uncertain value is greater than the maximum or less than the minimum Good value the Status is Uncertain_SubNormal

Partial
Set Sometimes If an interval is not a complete interval

Calculated
Set Always

Interpolated
Not Set

Raw
Not Set

Multi Value
Not Set



StatusCode Common Special Cases

Before Start of Data
Bad_NoData

After End of Data
Bad_NoData

No Start Bound
Not Applicable

No End Bound
Not Applicable

Bound Bad
Not Applicable

Bound Uncertain
Not Applicable
The Minimum2 Aggregate defined in Table 26 retrieves the minimum Good value for each interval as defined for Minimum except that Simple Bounding Values are included. The Simple Bounding Values for the interval are found according to the definition of Simple Bounding Values (see 3.1.9). Any Bad values are ignored in the computation. The Aggregate StatusCode will be determined using the StatusCode Calculation (see 5.3) for time based Aggregates. If a bounding value is returned then the status will indicate, Raw, Calculated or Interpolated.
If TreatUncertainAsBad is false and an Uncertain raw value is the minimum then that Uncertain value is used. Uncertain values are ignored otherwise.
If sloped interpolation is used and the End bound is the minimum value then End bound is used as the Minimum with the timestamp set to the startTime of the interval. The End bound is ignored in all other cases.
Table 26 – Minimum2 Aggregate summary
Minimum2 Aggregate Characteristics

Type
Calculated

Data Type
Same as Source

Use Bounds
Simple

Timestamp
StartTime



StatusCode Calculations

Calculation Method
PercentTime

Partial
Set Sometimes If an interval is not a complete interval

Calculated
Set SometimesSet unless the StartBound is the Minimum

Interpolated
Set Sometimes If an Interpolated bound is the Minimum

Raw
Set Sometimes If a raw value is the Minimum.

Multi Value
Set Sometimes If more than one Good values exist with the same



StatusCode Common Special Cases

Before Start of Data
Bad_NoData

After End of Data
Bad_NoData

No Start Bound
Treat the beginning value as Bad_NoData and compute the Aggregate

No End Bound
Treat the ending value as Bad_NoData and compute the Aggregate

Bound Bad
Use as value and compute the Aggregate as defined

Bound Uncertain
Use as value and compute the Aggregate as defined
The Maximum2 Aggregate defined in Table 27 retrieves the maximum Good value for each interval as defined for Maximum except that Simple Bounding Values are included. The Simple Bounding Values for the interval are found according to the definition of Simple Bounding Values (see 3.1.9). Any Bad values are ignored in the computation. The Aggregate StatusCode will be determined using the StatusCode Calculation (see 5.3) for time based Aggregates. If a bounding value is returned then the status will indicate, Raw, Calculated or Interpolated.
If TreatUncertainAsBad is false and an Uncertain raw value is the maximum then that Uncertain value is used. Uncertain values are ignored otherwise.
If sloped interpolation is used and the End bound is the maximum value then End bound is used as the maximum with the timestamp set to the startTime of the interval. The End bound is ignored in all other cases.
Table 27 – Maximum2 Aggregate summary
Maximum2 Aggregate Characteristics

Type
Calculated

Data Type
Same as Source

Use Bounds
Simple

Timestamp
StartTime



StatusCode Calculations

Calculation Method
PercentTime

Partial
Set Sometimes If an interval is not a complete interval

Calculated
Set Sometimes Set unless the StartBound is the Maximum

Interpolated
Set Sometimes If an Interpolated bound is the Maximum

Raw
Set Sometimes If a raw value is the Maximum.

Multi Value
Set Sometimes If more than one Good values exist with the same



StatusCode Common Special Cases

Before Start of Data
Bad_NoData

After End of Data
Bad_NoData

No Start Bound
Treat the beginning value as Bad_NoData and compute the Aggregate

No End Bound
Treat the ending value as Bad_NoData and compute the Aggregate

Bound Bad
Use as value and compute the Aggregate as defined

Bound Uncertain
Use as value and compute the Aggregate as defined
The MinimumActualTime2 Aggregate defined in Table 28 retrieves the minimum Good value for each interval as defined for MinimumActualTime except that Simple Bounding Values are included. The Simple Bounding Values for the interval are found according to the definition of Simple Bounding Values (see 3.1.9). Any Bad values are ignored in the computation. The Aggregate StatusCode will be determined using the StatusCode Calculation (see 5.3) for time based Aggregates. If a bounding value is returned then the status will indicate, Raw, Calculated or Interpolated.
If TreatUncertainAsBad is false and an Uncertain raw value is the minimum then that Uncertain value is used. Uncertain values are ignored otherwise.
If sloped interpolation is used and the End bound is the minimum value then End bound is used as the minimum with the timestamp set to the EffectiveEndTime of the interval. The End bound is ignored in all other cases.
Table 28 – MinimumActualTime2 Aggregate summary
MinumumActualTime2 Aggregate Characteristics

Type
Calculated

Data Type
Same as Source

Use Bounds
Simple

Timestamp
Time of minimum



StatusCode Calculations

Calculation Method
PercentTime

Partial
Set Sometimes If an interval is not a complete interval

Calculated
Not Set

Interpolated
Set Sometimes If an Interpolated bound is the Minimum

Raw
Set Sometimes If a raw value is the Minimum

Multi Value
Set Sometimes If more than one Good values exist with the same value



StatusCode Common Special Cases

Before Start of Data
Bad_NoData

After End of Data
Bad_NoData

No Start Bound
Treat the beginning value as Bad_NoData and compute the Aggregate

No End Bound
Treat the ending value as Bad_NoData and compute the Aggregate

Bound Bad
Use as value and compute the Aggregate as defined

Bound Uncertain
Use as value and compute the Aggregate as defined
The MaximumActualTime2 Aggregate defined in Table 29 retrieves the maximum Good value for each interval as defined for MaximumActualTime except that Simple Bounding Values are included. The Simple Bounding Values for the interval are found according to the definition of Simple Bounding Values (see 3.1.9). Any Bad values are ignored in the computation. The Aggregate StatusCode will be determined using the StatusCode Calculation (see 5.3) for time based Aggregates. If a bounding value is returned then the status will indicate, Raw, Calculated or Interpolated.
If TreatUncertainAsBad is false and an Uncertain raw value is the maximum then that Uncertain value is used. Uncertain values are ignored otherwise.
If sloped interpolation is used and the End bound is the maximum value then End bound is used as the maximum with the timestamp set to the EffectiveEndTime of the interval. The End bound is ignored in all other cases.
Table 29 – MaximumActualTime2 Aggregate summary
MaximumActualTime2 Aggregate Characteristics

Type
Calculated

Data Type
Same as Source

Use Bounds
Simple

Timestamp
Time of maximum



StatusCode Calculations

Calculation Method
PercentTime

Partial
Set Sometimes If an interval is not a complete interval

Calculated
Not Set

Interpolated
Set Sometimes If an Interpolated bound is the Maximum

Raw
Set Sometimes If a raw value is the Maximum

Multi Value
Set Sometimes If more than one value is equal to the Maximum



StatusCode Common Special Cases

Before Start of Data
Bad_NoData

After End of Data
Bad_NoData

No Start Bound
Treat the beginning value as Bad_NoData and compute the Aggregate

No End Bound
Treat the ending value as Bad_NoData and compute the Aggregate

Bound Bad
Use as value and compute the Aggregate as defined

Bound Uncertain
Use as value and compute the Aggregate as defined
The Range2 Aggregate defined in Table 30 finds the difference between the maximum and minimum values in the interval as returned by the Minimum2 and Maximum2 Aggregates. Note that the range is always zero or positive.
Table 30 – Range2 Aggregate summary
Range2 Aggregate Characteristics

Type
Calculated

Data Type
Same as Source

Use Bounds
Simple (used in Minimum2 and Maximum2 calculations)

Timestamp
StartTime



StatusCode Calculations

Calculation Method
Custom If Minimum2 or Maximum2 are Bad then the status is Bad_NoData. If Minimum2 or Maximum2 are Uncertain then the status is Uncertain_DataSubNormal. Good otherwise

Partial
Set Sometimes If an interval is not a complete interval

Calculated
Set Always

Interpolated
Not Set

Raw
Not Set

Multi Value
Not Set



StatusCode Common Special Cases

Before Start of Data
Bad_NoData

After End of Data
Bad_NoData

No Start Bound
Handled by Minimum2 and Maximum2

No End Bound
Handled by Minimum2 and Maximum2

Bound Bad
Handled by Minimum2 and Maximum2

Bound Uncertain
Handled by Minimum2 and Maximum2
The AnnotationCount Aggregate defined in Table 31 returns a count of all Annotations in the interval.
The StatusCodes are Good, Calculated.
Table 31 – AnnotationCount Aggregate summary
AnnotationCount Aggregate Characteristics

Type
Calculated

Data Type
Int32 (negative values are not allowed)

Use Bounds
None

Timestamp
StartTime



StatusCode Calculations

Calculation Method
Custom Good unless the interval is before the start of data or after the end of data

Partial
Set Sometimes If an interval is not a complete interval

Calculated
Set Always

Interpolated
Not Set

Raw
Not Set

Multi Value
Not Set



StatusCode Common Special Cases

Before Start of Data
Bad_NoData

After End of Data
Bad_NoData

No Start Bound
Does not apply

No End Bound
Does not apply

Bound Bad
Does not apply

Bound Uncertain
Does not apply
The Count Aggregate defined in Table 32 retrieves a count of all the raw values within an interval. If one or more raw values are nonGood, they are not included in the count, and the Aggregate StatusCode is determined using the StatusCode Calculation (see 5.4.3) for nontime based Aggregates. If no Good data exists for an interval, the count is zero.
Unless otherwise indicated, StatusCodes are Good, Calculated.
Table 32 – Count Aggregate summary
Count Aggregate Characteristics

Type
Calculated

Data Type
Int32 (negative values are not allowed)

Use Bounds
None

Timestamp
StartTime



StatusCode Calculations

Calculation Method
PercentValues

Partial
Set Sometimes If an interval is not a complete interval

Calculated
Set Always

Interpolated
Not Set

Raw
Not Set

Multi Value
Not Set



StatusCode Common Special Cases

Before Start of Data
Bad_NoData

After End of Data
Bad_NoData

No Start Bound
Does not apply

No End Bound
Does not apply

Bound Bad
Does not apply

Bound Uncertain
Does not apply
The DurationInStateZero Aggregate defined in Table 33 returns the time Duration during the interval that the Variable was in the zero state. The Simple Bounding Values for the interval are used to determine initial value (start time < end time) or ending value (if start time > end time). If one or more raw values are nonGood, they are not included in the Duration, and the Aggregate StatusCode is determined using the StatusCode Calculation (see 5.3) for time based Aggregates. Duration is in milliseconds. Unless otherwise indicated, StatusCodes are Good, Calculated.
Table 33 – DurationInStateZero Aggregate summary
DurationInStateZero Aggregate Characteristics

Type
Calculated

Data Type
Duration

Use Bounds
Simple

Timestamp
StartTime



StatusCode Calculations

Calculation Method
PercentTime

Partial
Set Sometimes If an interval is not a complete interval

Calculated
Set Always

Interpolated
Not Set

Raw
Not Set

Multi Value
Not Set



StatusCode Common Special Cases

Before Start of Data
Bad_NoData

After End of Data
Bad_NoData

No Start Bound
Treat the beginning value as Bad_NoData and compute the Aggregate

No End Bound
Treat the ending value as Bad_NoData and compute the Aggregate

Bound Bad
Use as value and compute the Aggregate as defined

Bound Uncertain
Use as value and compute the Aggregate as defined
The DurationInStateNonZero Aggregate defined in Table 34 returns the time Duration during the interval that the Variable was in the one state. The Simple Bounding Values for the interval are used to determine initial value (start time < end time) or ending value (if start time > end time). If one or more raw values are nonGood, they are not included in the Duration, and the Aggregate StatusCode is determined using the StatusCode Calculation (see 5.3) for time based Aggregates.
Duration is in milliseconds. Unless otherwise indicated, StatusCodes are Good, Calculated.
Table 34 – DurationInStateNonZero Aggregate summary
DurationInStateNonZero Aggregate Characteristics

Type
Calculated

Data Type
Duration

Use Bounds
Simple

Timestamp
StartTime



StatusCode Calculations

Calculation Method
PercentTime

Partial
Set Sometimes If an interval is not a complete interval

Calculated
Set Always

Interpolated
Not Set

Raw
Not Set

Multi Value
Not Set



StatusCode Common Special Cases

Before Start of Data
Bad_NoData

After End of Data
Bad_NoData

No Start Bound
Treat the beginning value as Bad_NoData and compute the Aggregate

No End Bound
Treat the ending value as Bad_NoData and compute the Aggregate

Bound Bad
Use as value and compute the Aggregate as defined

Bound Uncertain
Use as value and compute the Aggregate as defined
The NumberOfTransitions Aggregate defined in Table 35 returns a count of the number of transition the Variable had during the interval. If one or more raw values are Bad, they are not included in the count, and the Aggregate StatusCode is determined using the StatusCode Calculation (see 5.3) for nontime based Aggregates.
The earliest transition shall be calculated by comparing the earliest nonBad value in the interval to the previous nonBad value. A transition occurred if no previous nonBad value exists or if the earliest nonBad value is different. The endTime is not considered part of the interval, so a transition occurring at the endTime is not included.
Unless otherwise indicated, StatusCodes are Good, Calculated.
Table 35 – NumberOfTransitions Aggregate summary
NumberOfTransitions Aggregate Characteristics

Type
Calculated

Data Type
Int32 (negative values are not allowed)

Use Bounds
Custom, a nonBad value prior to the interval is used

Timestamp
StartTime



StatusCode Calculations

Calculation Method
PercentValues

Partial
Set Sometimes If an interval is not a complete interval

Calculated
Set Always

Interpolated
Not Set

Raw
Not Set

Multi Value
Not Set





StatusCode Common Special Cases

Before Start of Data
Bad_NoData

After End of Data
Bad_NoData

No Start Bound
Treat the beginning value as Bad_NoData and compute the Aggregate

No End Bound
Treat the ending value as Bad_NoData and compute the Aggregate

Bound Bad
Use as value and compute the Aggregate as defined

Bound Uncertain
Use as value and compute the Aggregate as defined
The Start Aggregate defined in Table 36 retrieves the earliest raw value within the interval, and returns that value and status with the timestamp at which that value occurs. If no values are in the interval then the StatusCode is Bad_NoData.
Table 36 – Start Aggregate summary
Start Aggregate Characteristics

Type
Calculated

Data Type
Same as Source

Use Bounds
None

Timestamp
Time of Raw Value



StatusCode Calculations

Calculation Method
Custom The raw value status is returned

Partial
Set Sometimes If an interval is not a complete interval

Calculated
Not Set

Interpolated
Not Set

Raw
Always

Multi Value
Not Set



StatusCode Common Special Cases

Before Start of Data
Bad_NoData

After End of Data
Bad_NoData

No Start Bound
Does not apply

No End Bound
Does not apply

Bound Bad
Does not apply

Bound Uncertain
Does not apply
The End Aggregate defined in Table 37 retrieves the latest raw value within the interval, and returns that value and status with the timestamp at which that value occurs. If no values are in the interval then the StatusCode is Bad_NoData.
Table 37 – End Aggregate summary
End Aggregate Characteristics

Type
Calculated

Data Type
Same as Source

Use Bounds
None

Timestamp
Time of Raw Value



StatusCode Calculations

Calculation Method
Custom The raw value status is returned

Partial
Set Sometimes If an interval is not a complete interval

Calculated
Not Set

Interpolated
Not Set

Raw
Always

Multi Value
Not Set



StatusCode Common Special Cases

Before Start of Data
Bad_NoData

After End of Data
Bad_NoData

No Start Bound
Does not apply

No End Bound
Does not apply

Bound Bad
Does not apply

Bound Uncertain
Does not apply
The Delta Aggregate defined in Table 38 retrieves the difference between the earliest and latest Good raw values in the interval. The Aggregate is negative if the latest value is less than the earliest value. The status is Uncertain_DataSubNormal if nonGood values are skipped while looking for the first or last values. The status is Good otherwise. The status is Bad_NoData if no Good raw values exist.
Table 38 – Delta Aggregate summary
Delta Aggregate Characteristics

Type
Calculated

Data Type
Same as Source

Use Bounds
None

Timestamp
StartTime



StatusCode Calculations

Calculation Method
Custom Uncertain_DataSubNormal if nonGood values are skipped while looking for the first or last values

Partial
Set Sometimes If an interval is not a complete interval

Calculated
Set Always


Interpolated
Not Set

Raw
Not Set

Multi Value
Not Set



StatusCode Common Special Cases

Before Start of Data
Bad_NoData

After End of Data
Bad_NoData

No Start Bound
Does not apply

No End Bound
Does not apply

Bound Bad
Does not apply

Bound Uncertain
Does not apply
The StartBound Aggregate defined in Table 39 returns the value and status at the StartTime for the interval by calculating the Simple Bounding Values for the interval (see 3.1.9).
Table 39 – StartBound Aggregate summary
StartBound Aggregate Characteristics

Type
Calculated

Data Type
Same as Source

Use Bounds
Simple

Timestamp
StartTime



StatusCode Calculations

Calculation Method
Custom The status of the start bound.

Partial
Set Sometimes If an interval is not a complete interval

Calculated
Not Set

Interpolated
Set Sometimes If the bound is interpolated

Raw
Set Sometimes If a value exists at the start time

Multi Value
Not Set



StatusCode Common Special Cases

Before Start of Data
Bad_NoData

After End of Data
Bad_NoData

No Start Bound
Bad_NoData

No End Bound
Does not apply

Bound Bad
Same as bound

Bound Uncertain
Same as bound
The EndBound Aggregate defined in Table 40 returns the value and status at the EndTime for the interval by calculating the Simple Bounding Values for the interval (see 3.1.9).
The timestamp returned is always the start of the interval and Calculated bit is set.
Table 40 – EndBound Aggregate summary
EndBound Aggregate Characteristics

Type
Calculated

Data Type
Same as Source

Use Bounds
Simple

Timestamp
StartTime



StatusCode Calculations

Calculation Method
Custom The status of the end bound.

Partial
Set Sometimes If an interval is not a complete interval

Calculated
Set Always

Interpolated
Not Set

Raw
Not Set

Multi Value
Not Set



StatusCode Common Special Cases

Before Start of Data
Bad_NoData

After End of Data
Bad_NoData

No Start Bound
Does not apply

No End Bound
Bad_NoData

Bound Bad
Same as bound

Bound Uncertain
Same as bound
The DeltaBounds Aggregate defined in Table 41 returns the difference between the StartBound and the EndBound Aggregates with the exception that both the start and end shall be Good. If the end value is less than the start value, the result will be negative. If the end value is the same as the start value the result will be zero. If the end value is greater than the start value, the result will be positive. If one or both values are Bad the return status will be Bad_NoData. If one or both values are Uncertain the status will be Uncertain_DataSubNormal.
Table 41 – DeltaBounds Aggregate summary
DeltaBounds Aggregate Characteristics

Type
Calculated

Data Type
Same as Source

Use Bounds
Simple

Timestamp
StartTime



StatusCode Calculations

Calculation Method
Custom Good if both bounds are Good Uncertain_DataSubNormal if either bound is uncertain Bad_NoData if either bound is Bad

Partial
Set Sometimes If an interval is not a complete interval

Calculated
Set Always

Interpolated
Not Set

Raw
Not Set

Multi Value
Not Set



StatusCode Common Special Cases

Before Start of Data
Bad_NoData

After End of Data
Bad_NoData

No Start Bound
Bad_NoData

No End Bound
Bad_NoData

Bound Bad
Bad_NoData

Bound Uncertain
Uncertain_DataSubNormal
The DurationGood Aggregate defined in Table 42 divides the interval into regions of Good and nonGood data. Each region starts with a data point in the interval. If that data point is Good the region is Good. The Aggregate is the sum of the duration of all Good regions expressed in milliseconds.
The status of the first region is determined by finding the first data point at or before the start of the interval. If no value exists, the first region is Bad.
Each Aggregate is returned with timestamp of the start of the interval. StatusCodes are Good, Calculated.
Table 42 – DurationGood Aggregate summary
DurationGood Aggregate Characteristics

Type
Calculated

Data Type
Duration

Use Bounds
Uses status of bounding value

Timestamp
StartTime



StatusCode Calculations

Calculation Method
Custom StatusCode is always Good, Calculated

Partial
Set Sometimes If an interval is not a complete interval

Calculated
Set Always

Interpolated
Not Set

Raw
Not Set

Multi Value
Not Set



StatusCode Common Special Cases

Before Start of Data
Bad_NoData

After End of Data
Bad_NoData

No Start Bound
No special handing required

No End Bound
No special handing required

Bound Bad
No special handing required

Bound Uncertain
No special handing required
The DurationBad Aggregate defined in Table 43 divides the interval into regions of Bad and nonBad data. Each region starts with a data point in the interval. If that data point is Bad the region is Bad. The Aggregate is the sum of the duration of all Bad regions expressed in milliseconds.
The status of the first region is determined by finding the first data point at or before the start of the interval. If no value exists, the first region is Bad.
Each Aggregate is returned with timestamp of the start of the interval. StatusCodes are Good, Calculated.
Table 43 – DurationBad Aggregate summary
DurationBad Aggregate Characteristics

Type
Calculated

Data Type
Duration

Use Bounds
Uses status of bounding value

Timestamp
StartTime



StatusCode Calculations

Calculation Method
Custom StatusCode is always Good, Calculated

Partial
Set Sometimes If an interval is not a complete interval

Calculated
Set Always

Interpolated
Not Set

Raw
Not Set

Multi Value
Not Set



StatusCode Common Special Cases

Before Start of Data
Bad_NoData

After End of Data
Bad_NoData

No Start Bound
No special handing required

No End Bound
No special handing required

Bound Bad
No special handing required

Bound Uncertain
No special handing required
The PercentGood Aggregate defined in Table 44 performs the following calculation:
PercentGood = DurationGood / ProcessingInterval x 100
where:
DurationGood is the result from the DurationGood Aggregate, calculated using the ProcessingInterval supplied to PercentGood call.
ProcessingInterval is the duration of interval.
If the last interval is a partial interval then the duration of the partial interval is used in the calculation. Each Aggregate is returned with timestamp of the start of the interval. StatusCodes are Good, Calculated.
Table 44 – PercentGood Aggregate summary
PercentGood Aggregate Characteristics

Type
Calculated

Data Type
Double (percent)

Use Bounds
Simple (used in DurationGood calculation)

Timestamp
StartTime



StatusCode Calculations

Calculation Method
Custom Always Good

Partial
Set Sometimes If an interval is not a complete interval

Calculated
Set Always

Interpolated
Not Set

Raw
Not Set

Multi Value
Not Set



StatusCode Common Special Cases

Before Start of Data
Bad_NoData

After End of Data
Bad_NoData

No Start Bound
No special handing required

No End Bound
No special handing required

Bound Bad
No special handing required

Bound Uncertain
No special handing required
The PercentBad Aggregate defined in Table 45 performs the following calculation:
PercentBad = DurationBad / ProcessingInterval x 100
where:
DurationBad is the result from the DurationBad Aggregate, calculated using the ProcessingInterval supplied to PercentBad call.
ProcessingInterval is the duration of interval.
If the last interval is a partial interval then the duration of the partial interval is used in the calculation. Each Aggregate is returned with timestamp of the start of the interval. StatusCodes are Good, Calculated.
Table 45 – PercentBad Aggregate summary
PercentBad Aggregate Characteristics

Type
Calculated

Data Type
Double (percent)

Use Bounds
Simple (used in DurationBad calculation)

Timestamp
StartTime



StatusCode Calculations

Calculation Method
Custom Always Good.

Partial
Set Sometimes If an interval is not a complete interval

Calculated
Set Always

Interpolated
Not Set

Raw
Not Set

Multi Value
Not Set



StatusCode Common Special Cases

Before Start of Data
Bad_NoData

After End of Data
Bad_NoData

No Start Bound
No special handing required

No End Bound
No special handing required

Bound Bad
No special handing required

Bound Uncertain
No special handing required
The WorstQuality Aggregate defined in Table 46 returns the worst status of the raw values in the interval where a Bad status is worse than Uncertain, which is worse than Good. No distinction is made between the specific reasons for the status. The server shall ignore the TreatUncertainAsBad for this aggregate.
If multiple values exist with the worst quality the MultipleValues bit is set. If multiple values exist with the worst quality but different StatusCodes then the StatusCode of the first value is returned.
This Aggregate returns the worst StatusCode as the value of the Aggregate.
The timestamp is always the start of the interval. The StatusCodes are Good, Calculated.
Table 46 – WorstQuality Aggregate summary
WorstQuality Aggregate Characteristics

Type
Calculated

Data Type
StatusCode

Use Bounds
None

Timestamp
StartTime



StatusCode Calculations

Calculation Method
Custom Always Good

Partial
Set Sometimes If an interval is not a complete interval

Calculated
Set Always

Interpolated
Not Set

Raw
Not Set

Multi Value
Used



StatusCode Common Special Cases

Before Start of Data
Bad_NoData

After End of Data
Bad_NoData

No Start Bound
No special handing required

No End Bound
No special handing required

Bound Bad
No special handing required

Bound Uncertain
No special handing required
The WorstQuality2 Aggregate defined in Table 47 returns the worst status of the raw values in the interval where a Bad status is worse than Uncertain, which is worse than Good. No distinction is made between the specific reasons for the status. The server shall ignore the TreatUncertainAsBad for this aggregate.
The start bound calculated using Simple Bounding Values (see 3.1.9) is always included when determining the worst quality.
If multiple values exist with the worst quality the MultipleValues bit is set. If multiple values exist with the worst quality but different StatusCodes then the StatusCode of the first value is returned.
This Aggregate returns the worst StatusCode as the value of the Aggregate.
The timestamp is always the start of the interval. The StatusCodes are Good, Calculated.
Table 47 – WorstQuality2 Aggregate summary
WorstQuality2 Aggregate Characteristics

Type
Calculated

Data Type
StatusCode

Use Bounds
Simple

Timestamp
StartTime



StatusCode Calculations

Calculation Method
Custom Always Good

Partial
Set Sometimes If an interval is not a complete interval

Calculated
Set Always

Interpolated
Not Set

Raw
Not Set

Multi Value
Used



StatusCode Common Special Cases

Before Start of Data
Bad_NoData

After End of Data
Bad_NoData

No Start Bound
No special handing required

No End Bound
No special handing required

Bound Bad
No special handing required

Bound Uncertain
No special handing required
The StandardDeviationSample Aggregate defined in Table 48 uses the formula:
where X is each Good raw value in the interval, Avg(X) is the average of the Good raw values, and n is the number of Good raw values in the interval.
For every interval where n = 1, a value of 0 is returned.
If any nonGood values were ignored, the Aggregate quality is uncertain/subnormal.
All interval Aggregates return timestamp of the start of the interval. Unless otherwise indicated, qualities are Good, Calculated.
This calculation is for a sample population where the calculation is done on a subset of the full set of data. Use StandardDeviationPopulation to calculate the standard deviation of a full set of data (see 5.4.3.39). An example would be when the underlying data is sampled from the data source versus stored on an exception basis.
Table 48 – StandardDeviationSample Aggregate summary
StandardDeviationSample Aggregate Characteristics

Type
Calculated

Data Type
Double

Use Bounds
None

Timestamp
StartTime



StatusCode Calculations

Calculation Method
Custom Always Good

Partial
Set Sometimes If an interval is not a complete interval

Calculated
Set Always

Interpolated
Not Set

Raw
Not Set

Multi Value
Not Set



StatusCode Common Special Cases

Before Start of Data
Bad_NoData

After End of Data
Bad_NoData

No Start Bound
No special handing required

No End Bound
No special handing required

Bound Bad
No special handing required

Bound Uncertain
No special handing required

Conformance Units

Aggregates StandardDeviationSample
The VarianceSample Aggregate defined in Table 49 retrieves the square of the standard deviation. Its behaviour is the same as the StandardDeviationSample Aggregate. Unless otherwise indicated, qualities are Good, Calculated.
This calculation is for a sample population where the calculation is done on a subset of the full population. Use VariancePopulation to calculate the variance of a full set of data (5.4.3.40).
Table 49 – VarianceSample Aggregate summary
VarianceSample Aggregate Characteristics

Type
Calculated

Data Type
Double

Use Bounds
None

Timestamp
StartTime



StatusCode Calculations

Calculation Method
Custom Always Good

Partial
Set Sometimes If an interval is not a complete interval

Calculated
Set Always

Interpolated
Not Set

Raw
Not Set

Multi Value
Not Set



StatusCode Common Special Cases

Before Start of Data
Bad_NoData

After End of Data
Bad_NoData

No Start Bound
No special handing required

No End Bound
No special handing required

Bound Bad
No special handing required

Bound Uncertain
No special handing required
The StandardDeviationPopulation Aggregate defined in Table 50 uses the formula:
where X is each Good raw value in the interval, Avg(X) is the average of the Good raw values, and n is the number of Good raw values in the interval.
For every interval where n = 1, a value of 0 is returned.
If any nonGood values were ignored, the Aggregate quality is uncertain/subnormal.
All interval Aggregates return timestamp of the start of the interval. Unless otherwise indicated, qualities are Good, Calculated.
This calculation is for a full population where the calculation is done on the full set of data. Use StandardDeviationSample to calculate the standard deviation of a subset of the full population (5.4.3.37). An example would be when the underlying data is collected on an exception basis versus sampled from the data source.
Table 50 – StandardDeviationPopulation Aggregate summary
StandardDeviationPopulation Aggregate Characteristics

Type
Calculated

Data Type
Double

Use Bounds
None

Timestamp
StartTime



StatusCode Calculations

Calculation Method
Custom Always Good

Partial
Set Sometimes If an interval is not a complete interval

Calculated
Set Always

Interpolated
Not Set

Raw
Not Set

Multi Value
Not Set



StatusCode Common Special Cases

Before Start of Data
Bad_NoData

After End of Data
Bad_NoData

No Start Bound
No special handing required

No End Bound
No special handing required

Bound Bad
No special handing required

Bound Uncertain
No special handing required
The VariancePopulation Aggregate defined in Table 51 retrieves the square of the standard deviation. Its behaviour is the same as the StandardDeviationPopulation Aggregate. Unless otherwise indicated, qualities are Good, Calculated.
This calculation is for a full population where the calculation is done on the full set of data. Use VarianceSample to calculate the variance of a subset of the full population (5.4.3.38).
Table 51 – VariancePopulation Aggregate summary
VariancePopulation Aggregate Characteristics

Type
Calculated

Data Type
Double

Use Bounds
None

Timestamp
StartTime



StatusCode Calculations

Calculation Method
Custom Always Good

Partial
Set Sometimes If an interval is not a complete interval

Calculated
Set Always

Interpolated
Not Set

Raw
Not Set

Multi Value
Not Set



StatusCode Common Special Cases

Before Start of Data
Bad_NoData

After End of Data
Bad_NoData

No Start Bound
No special handing required

No End Bound
No special handing required

Bound Bad
No special handing required

Bound Uncertain
No special handing required
