1 Scope

OPC 40084-12 describes the data exchange interface for calenders as part of an extrusion line. The interface is used by

MES (Manufacturing Execution System) for collecting the information generated by extrusion lines at a central point for easier quality assurance and job and dataset management.

Line controllers to monitor and set process parameters.

Safety related signals like emergency stop are not included.

2 Normative references

The following documents are referred to in the text in such a way that some or all of their content constitutes requirements of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies

OPC 10000-1, OPC Unified Architecture - Part 1: Overview and Concepts

OPC 10000-1

OPC 10000-3, OPC Unified Architecture - Part 3: Address Space Model

OPC 10000-3

OPC 10000-4, OPC Unified Architecture - Part 4: Services

OPC 10000-4

OPC 10000-5, OPC Unified Architecture - Part 5: Information Model

OPC 10000-5

OPC 10000-6, OPC Unified Architecture - Part 6: Mappings

OPC 10000-6

OPC 10000-7, OPC Unified Architecture - Part 7: Profiles

OPC 10000-7

OPC 10000-8, OPC Unified Architecture - Part 8: Data Access

OPC 10000-8

OPC 10000-100, OPC Unified Architecture - Part 100: Devices

OPC 10000-100

OPC 40001-1, OPC UA for Machinery - Part 1: Basic Building Blocks

http://www.opcfoundation.org/UA/Machinery/

OPC 40083: OPC UA interfaces for plastics and rubber machinery – General Type definitions

http://www.opcfoundation.org/UA/PlasticsRubber/GeneralTypes

OPC 40084-1: OPC UA interfaces for plastics and rubber machinery – Extrusion – Part 1: General Type Definitions

http://www.opcfoundation.org/UA/PlasticsRubber/Extrusion_v2/GeneralTypes/

3 Terms, definitions and conventions

3.1 Overview

It is assumed that basic concepts of OPC UA information modelling are understood in this specification. This specification will use these concepts to describe the OPC 40084-5 Information Model. For the purposes of this document, the terms and definitions given in the documents referenced in Clause 2 apply.

Note that OPC UA terms and terms defined in this specification are italicized in the specification.

3.2 Conventions used in this document

The conventions described in OPC 40083 apply.

3.3 Abbreviations

4 General information to OPC UA interfaces for plastics and rubber machinery and OPC UA

For general information on OPC UA interfaces for plastics and rubber machinery and OPC UA see OPC 40083.

5 Use cases

OPC 40084-12 describes the data exchange interface for calenders as part of an extrusion line. The interface is used by

MES (Manufacturing Execution System) for collecting the information generated by extrusion lines at a central point for easier quality assurance and job and dataset management.

Line controllers to monitor and set process parameters.

6 Calender_InterfaceType

6.1 Calender_InterfaceType Definition

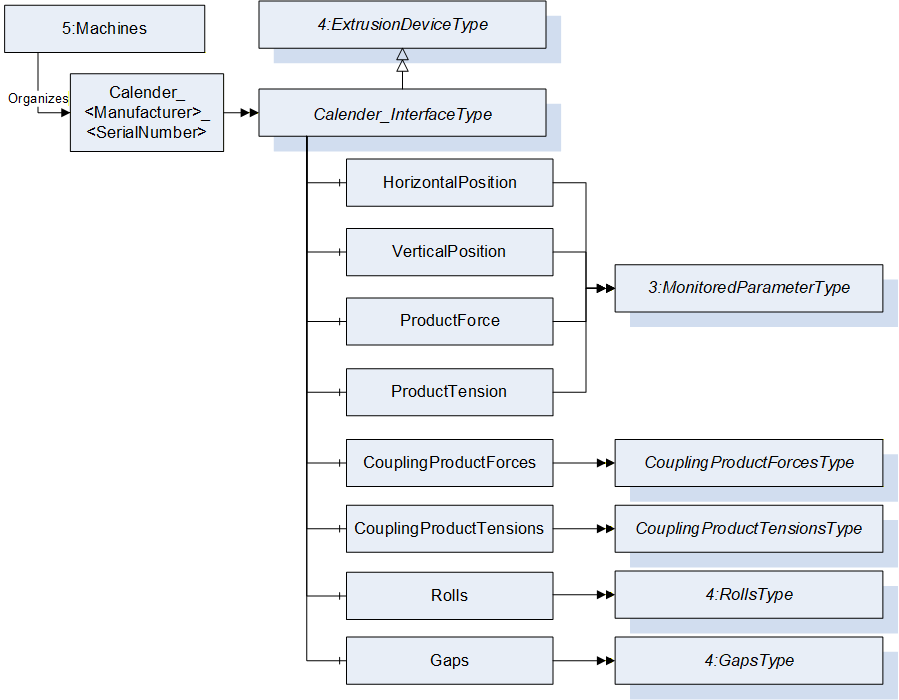

The Calender_InterfaceType is used for the root Object representing a calender as part of an extrusion line. It is based on the ExtrusionDeviceType (defined in OPC 40084-1) and formally defined in Table 1.

The instance(s) of Calender_InterfaceType shall be located under the Machines Object of the Server (see OPC UA for Machinery).

NOTE: If the OPC UA server is implemented directly in the control of a calender then only one instance of Calender_InterfaceType will be created. But it is also possible that one OPC UA server is connected to several machine controls as one interface to the MES. In this case several instances of Calender_InterfaceType will be created.

The BrowseName of the object instance shall start with “Calender”. It may be extended with additional information, e.g. a number (”Calender_1”) or manufacturer/serial number (“Calender_Bandera_0123456”).

NOTE: Clients will browse the root node by type and not by BrowseName.

6.2 DeviceClass

The DeviceClass Property in the Identification Object inside the ExtrusionDeviceType shall have the value “Calender”.

6.3 HorizontalPosition, VerticalPosition

Position of the calender from a reference point (e.g. floor for vertical position, centre of exit of feeding device (e.g. flat die) for horizontal position).

Unit: mm or inch

6.4 ProductForce

Force of outgoing product.

Unit: N or lbf

6.5 ProductTension

Tension of outgoing product.

Unit: N/mm² or lbf/in²

6.6 CouplingProductForces

Force of ingoing “sub product”

Unit: N or lbf

6.7 CouplingProductTensions

Tension of ingoing “sub product”

Unit: N/mm² or lbf/in²

6.8 Rolls and Gaps

These containers represent the calender rolls and the gaps between them. The RollsType and GapsType are defined in OPC 40084-1.

7 Profiles and Conformance Units

7.1 Conformance Units

This chapter defines the corresponding Conformance Unit for OPC 40084-12.

7.2 Profiles

7.2.1 Profile list

Table 5 lists all Profiles defined in this document and defines their URIs.

7.2.2 Server Facets

This version of OPC 40084-12 defined only one Profile.

NOTE: OPC 40084-1 includes the Facet “Extrusion v2 Production Dataset Management Server Facet“ which indicates that the server supports the 3:ProductionDatasetManagementType (defined in OPC 40083) with all its mandatory InstanceDeclarations and that there is the component ProductionDatasetManagement available in the instance of the Calender_InterfaceType.

NOTE: The names of the supported profiles are available in the Server Object under ServerCapabilities.ServerProfileArray

8 Namespaces

8.1 Namespace Metadata

Table 7 defines the namespace metadata for this document. The Object is used to provide version information for the namespace and an indication about static Nodes. Static Nodes are identical for all Attributes in all Servers, including the Value Attribute. See OPC 10000-5 for more details.

The information is provided as Object of type NamespaceMetadataType. This Object is a component of the Namespaces Object that is part of the Server Object. The NamespaceMetadataType ObjectType and its Properties are defined in OPC 10000-5.

The version information is also provided as part of the ModelTableEntry in the UANodeSet XML file. The UANodeSet XML schema is defined in OPC 10000-6.

8.2 Handling of OPC UA Namespaces

Namespaces are used by OPC UA to create unique identifiers across different naming authorities. The Attributes NodeId and BrowseName are identifiers. A Node in the UA AddressSpace is unambiguously identified using a NodeId. Unlike NodeIds, the BrowseName cannot be used to unambiguously identify a Node. Different Nodes may have the same BrowseName. They are used to build a browse path between two Nodes or to define a standard Property.

Servers may often choose to use the same namespace for the NodeId and the BrowseName. However, if they want to provide a standard Property, its BrowseName shall have the namespace of the standards body although the namespace of the NodeId reflects something else, for example the EngineeringUnits Property. All NodeIds of Nodes not defined in this document shall not use the standard namespaces.

Table 8 provides a list of mandatory and optional namespaces used in an OPC 40084-12 OPC UA Server.

Table 9 provides a list of namespaces and their index used for BrowseNames in this document. The default namespace of this document is not listed since all BrowseNames without prefix use this default namespace.

9 (normative) OPC 40084-12 Namespace and mappings

Namespace and identifiers for OPC 40084-12 Information Model

This appendix defines the numeric identifiers for all of the numeric NodeIds defined in this specification. The identifiers are specified in a CSV file with the following syntax:

<SymbolName>, <Identifier>, <NodeClass>

Where the SymbolName is either the BrowseName of a Type Node or the BrowsePath for an Instance Node that appears in the specification and the Identifier is the numeric value for the NodeId.

The BrowsePath for an Instance Node is constructed by appending the BrowseName of the instance Node to the BrowseName for the containing instance or type. An underscore character is used to separate each BrowseName in the path. Let’s take for example, the MachineInformationType ObjectType Node which has the ControllerName Property. The Name for the ControllerName InstanceDeclaration within the MachineInformationType declaration is: MachineInformationType_ControllerName.

The NamespaceUri for all NodeIds defined here is http://opcfoundation.org/UA/PlasticsRubber/Extrusion_v2/Calender/

The CSV released with this version of the specification can be found here:

http://www.opcfoundation.org/UA/schemas/PlasticsRubber/Extrusion_v2/calender/2.00/NodeIds.csv

NOTE: The latest CSV that is compatible with this version of the specification can be found here:

http://www.opcfoundation.org/UA/schemas/PlasticsRubber/Extrusion_v2/Calender/NodeIds.csv

A computer processible version of the complete Information Model defined in this specification is also provided. It follows the XML Information Model schema syntax defined in OPC 10000-6.

The Information Model Schema released with this version of the specification can be found here:

http://www.opcfoundation.org/UA/schemas/PlasticsRubber/Extrusion_v2/Calender/2.00/Opc.Ua.PlasticsRubber.Extrusion_v2.Calender.NodeSet2.xml

NOTE: The latest Information Model schema that is compatible with this version of the specification can be found here:

http://www.opcfoundation.org/UA/schemas/PlasticsRubber/Extrusion_v2/Calender/Opc.Ua.PlasticsRubber.Extrusion_v2.Calender.NodeSet2.xml
