1 Scope
OPC 40082-6 describes the interface between plastics and rubber production machines (e.g. injection moulding machines, extruder, blow moulding machines) and granulate drying devices for data exchange via OPC UA. The target of OPC 40082-6 is to provide a unique interface for granulate drying devices and machines from different manufacturers to ensure compatibility.
Intended to have only one client at the time.
The following functionalities are covered:
General information about the granulate drying device (manufacturer, model, serial number…), current configuration and status.
Process information like temperatures and air flow for monitoring and process optimization.
Energy consumption
Errors and alarm handling
Remote control by Start / Stop methods
Login of the machine user on the granulate drying device
Maintenance activities
Following functions are not included:
Safety related signals like emergency stop
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content constitutes requirements of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments and errata) applies
OPC 10000-1, OPC Unified Architecture - Part 1: Overview and Concepts
OPC 10000-1
OPC 10000-3, OPC Unified Architecture - Part 3: Address Space Model
OPC 10000-3
OPC 10000-5, OPC Unified Architecture - Part 5: Information Model
OPC 10000-5
OPC 10000-6, OPC Unified Architecture - Part 6: Mappings
OPC 10000-6
OPC 10000-7, OPC Unified Architecture - Part 7: Profiles
OPC 10000-9
OPC 10000-100, OPC Unified Architecture - Part 100: Devices
OPC 10000-100
OPC 40001-1, OPC UA for Machinery - Part 1: Basic Building Blocks
http://www.opcfoundation.org/UA/Machinery/
OPC 40083: OPC UA interfaces for plastics and rubber machinery - General Type definitions
http://www.opcfoundation.org/UA/PlasticsRubber/GeneralTypes
3 Terms, definitions and conventions
3.1 Overview
It is assumed that basic concepts of OPC UA information modelling are understood in this specification. This specification will use these concepts to describe the OPC 40082-6 Information Model. For the purposes of this document, the terms and definitions given in the documents referenced in Clause 2 apply.
3.2 Conventions used in this document
The conventions described in OPC 40083 apply.
The same applies to the Container Concept described in OPC 40083, especially the use of the Property NodeVersion:
"Several objects can occur several times in the parent object (e.g. several moulds in one machine). For these, container objects are modelled. The benefit is that all instances are collected in one object so that changes can be easily recognized by using a Property NodeVersion which can be subscribed by clients. According to OPC 10000-3 the instances of the container objects shall also trigger a GeneralModelChangeEvent."
3.3 Abbreviations
| MES | Manufacturing Execution System |
| IMM | Injection Moulding Machine |
| GDD | Granulate drying device |
4 General information to OPC UA interfaces for plastics and rubber machinery and OPC UA
For general information on OPC UA interfaces for plastics and rubber machinery and OPC UA see OPC 40083.
5 Use cases
The following functionalities are covered:
General information about the granulate drying device (manufacturer, model, serial number…), current configuration and status.
Process information like temperatures and air flow for monitoring and process optimization.
Energy consumption
Errors and alarm handling
Remote control by Start / Stop methods
Login of the machine user on the granulate drying device
Maintenance activities
Following functions are not included:
Safety related signals like emergency stop
6 OPC 40082-6 Information Model Overview
The information model structure of OPC 40082-6 consists of the root ObjectType GranulateDryingDeviceType, which contains instances of all other ObjectTypes defined in this specification.
The GranulateDryingDeviceType is defined in chapter 7. The top level objects are separated by use cases:
Identification, Machine state, Configuration, User Login handling, Operation, Process Monitoring, Maintenance.
7 GranulateDryingDeviceType
7.1 GranulateDryingDeviceType definition
This OPC UA ObjectType is used for the root Object representing a granulate drying device. It is formally defined in Table 1.
The instance(s) of GranulateDryingDeviceType shall be located under the Machines Object of the Server (see OPC UA for Machinery).
| Attribute | Value | ||||
| BrowseName | GranulateDryingDeviceType | ||||
| IsAbstract | False | ||||
| References | Node Class | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of 0:BaseObjectType defined in OPC 10000-5 | |||||
| 0:HasAddIn | Object | 2:Identification | 3:MachineIdentificationType | M | |
| 0:HasComponent | Object | 3:MachineryBuildingBlocks | 0:FolderType | M | |
| 0:HasComponent | Object | MachineConfiguration | 4:MachineConfigurationType | M | |
| 0:HasComponent | Object | UserLogin | UserLoginType | O | |
| 0:HasComponent | Object | Operation | OperationType | M | |
| 0:HasComponent | Object | Dryer | DryerType | M | |
| 0:HasComponent | Variable | DisplayLanguage | 0:LocaleId | 0:BaseDataVariableType | O,RW |
| 0:GeneratesEvent | Object Type | 4:HelpOffNormalAlarmType | Defined in OPC 40083 | ||
| Conformance Units | |||||
|---|---|---|---|---|---|
| OPC 40082-6 Basic | |||||
| OPC 40082-6 DisplayLanguage | |||||
| OPC 40082-6 Users |
The MachineIdentificationType is defined in OPC UA for Machinery (OPC 40001-1) and provides basic information on a machine/device.
For the InstanceDeclaration the ModellingRules of the Properties Model and DeviceClass are overridden to mandatory.
The Object MachineryBuildingBlocks contains building blocks from OPC UA for Machinery as defined in OPC 40001-1. For this version of OPC 40082-6, the Object uses the two AddIns MachineryItemState and MachineryOperationMode.
| BrowsePath | References | NodeClass | BrowseName | DataType | TypeDefinition | Other |
| 2:Identification | 0:HasProperty | Variable | 2:Model | 0:LocalizedText | 0:PropertyType | M, RO |
| 2:Identification | 0:HasProperty | Variable | 2:DeviceClass | 0:String | 0:PropertyType | M, RO |
| 3:MachineryBuildingBlocks | 0:HasAddIn | Object | 2:Identification | 3:MachineIdentificationType | M | |
| 3:MachineryBuildingBlocks | 0:HasAddIn | Object | 3:MachineryItemState | 3:MachineryItemState_StateMachineType | M | |
| 3:MachineryBuildingBlocks | 0:HasAddIn | Object | 3:MachineryOperationMode | 3:MachineryOperationModeStateMachineType | O |
The DeviceClass Property shall have the value "Granulate Drying Device".
7.2 MachineConfiguration
The MachineConfiguration Object represents the current configuration of the granulate drying device. The MachineConfigurationType is defined in OPC 40083.
7.3 UserLogin
This Object provides the option of logging the user of the production machine on and off the GDD system. The UserLoginType is defined in chapter 17.
7.4 Operation
This Object provides variables and methods required to operate the device. The OperationType is defined in chapter 8.
7.5 Dryer
This Object contains parameters and process values of the dryer device. The DryerType is defined in chapter 9.
7.6 DisplayLanguage
With the DisplayLanguage Variable the client can set the desired language on the user interface at the GDD. If the peripheral device does not support the configured language, it can keep the previous setting or use English as the default.
8 OperationType
8.1 OperationType definition
The ObjectType of OperationType contains components which are necessary to operate the GDD. It is formally defined in Table 3.
| Attribute | Value | ||||
| BrowseName | OperationType | ||||
| IsAbstract | False | ||||
| References | Node Class | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of 0:BaseObjectType defined in OPC 10000-5 | |||||
| 0:HasComponent | Variable | DeviceMappingNumber | 0:UInt32 | 0:BaseDataVariableType | M,RW |
| 0:HasComponent | Method | IdentifyDevice | O | ||
| 0:HasComponent | Variable | HighestActiveAlarmSeverity | 0:UInt16 | 0:BaseDataVariableType | M,RO |
| 0:HasComponent | Variable | ActiveErrors | 4:ClassifiedActiveErrorDataType[] | 0:BaseDataVariableType | M,RO |
| 0:HasComponent | Method | ResetAllErrors | O | ||
| 0:HasComponent | Method | ResetErrorById | O | ||
| 0:HasComponent | Method | ResetEnergyMeasurement | O | ||
| 0:HasComponent | Variable | MainFailureBehaviour | MainFailureBehaviourEnumeration | 0:BaseDataVariableType | O |
| 0:HasComponent | Object | TotalEnergy | 4:EnergyType | O | |
| 0:HasComponent | Variable | EnergyConsumptionResettable | 0:Double | 0:AnalogUnitType | O, RO |
| 0:HasComponent | Object | MaintenanceInformation | MaintenanceInformationType | O | |
| 0:HasComponent | Variable | EnergyConsumptionLimit | 0:Double | 0:BaseDataVariableType | O |
| 0:HasComponent | Variable | RemoteControlOpcUa | 0:Boolean | 0:BaseDataVariableType | M,RO |
| Conformance Units | |||||
|---|---|---|---|---|---|
| OPC 40082-6 Basic | |||||
| OPC 40082-6 IdentifyDevice | |||||
| OPC 40082-6 ResetAllErrors | |||||
| OPC 40082-6 ResetErrorById | |||||
| OPC 40082-6 ResetEnergyMeasurement | |||||
| OPC 40082-6 MainFailureBehaviour | |||||
| OPC 40082-6 TotalEnergy | |||||
| OPC 40082-6 EnergyConsumptionResettable | |||||
| OPC 40082-6 MaintenanceInformation | |||||
| OPC 40082-6 EnergyConsumptionLimit |
8.2 DeviceMappingNumber
| Description: | Unique identifier/address/number for devices of the same DeviceType within a local network. Several peripheral devices of the same DeviceType can be connected to an IMM. In most applications, the IMM must map the connected peripheral devices to internal logical devices and channels in a fixed configuration (e.g. dryer systems according to the injection unit). |
The mapping must be stable after reconnecting the devices and is therefore not possible via IP addresses, which can be assigned dynamically via DHCP. DeviceMappingNumber sets the mapping order of peripheral devices of the same type on the local network and is therefore of type UInt32.
| Example: | 1 |
8.3 IdentifyDevice
The peripheral device on which this method is called shows itself by e.g. activation of a LED or by Message on the UI of the device.
Signature
IdentifyDevice();| Attribute | Value | ||||
| BrowseName | IdentifyDevice | ||||
| References | Node Class | BrowseName | DataType | TypeDefinition | Modelling Rule |
|---|
NOTE: This Method is identical to the IdentifyDevice Method in other specifications of the OPC 40082 series.
8.4 HighestActiveAlarmSeverity
| Description: | Indication of the severity of the highest active alarm (0 = no active alarm - 1000 = possible error, severity classes defined in OPC 40083, clause 6.4). It provides a minimal error handling for devices without alarm support. However, the variable shall be filled even if alarms are supported. |
| Example: | 400 |
8.5 ActiveErrors
Description: List of the active errors of the device. It provides a minimal error handling for devices without alarm support. However, the variable shall be filled even if alarms are supported. The ClassifiedActiveErrorDataType is defined in OPC 40083. If there is no active error, the array is empty.
The node id is the source id of the drying bin.
8.6 ResetAllErrors
Method to reset all errors of the device.
Signature
ResetAllErrors();| Attribute | Value | ||||
| BrowseName | ResetAllErrors | ||||
| References | Node Class | BrowseName | DataType | TypeDefinition | Modelling Rule |
|---|
8.7 ResetErrorById
Method to reset one error of the device.
Signature
ResetErrorById (
[in] 0:String Id)| Argument | Description |
| Id | Id of the error, listed in ActiveErrors, that shall be reset. |
| Attribute | Value | ||||
| BrowseName | ResetErrorById | ||||
| References | Node Class | BrowseName | DataType | TypeDefinition | Modelling Rule |
|---|---|---|---|---|---|
| 0:HasProperty | Variable | 0:InputArguments | 0:Argument[] | 0:PropertyType | 0:Mandatory |
8.8 ResetEnergyMeasurement
Method to reset the EnergyConsumptionResettable Variable of the device and all components (e.g. bins, desiccant bed).
Signature
ResetEnergyMeasurement();| Attribute | Value | ||||
| BrowseName | ResetEnergyMeasurement | ||||
| References | Node Class | BrowseName | DataType | TypeDefinition | Modelling Rule |
|---|
8.9 MainFailureBehaviour
Determines how the dryer should react after a power failure, for example. The MainFailureBehaviourEnumeration is defined in Table 9.
| Name | Value | Description |
| STANDBY | 0 | The dryer starts in standby. |
| CONTINUE | 1 | The dryer starts in last position. |
8.10 TotalEnergy
This Object provides information about the actual power and the total lifetime energy consumption of the whole device. The EnergyType is defined in OPC 40083.
8.11 EnergyConsumptionResettable
Consumption of the granulate drying device in kWh since the last reset. For information about the reset method, see ResetEnergyMeasurement in 8.8.
8.12 MaintenanceInformation

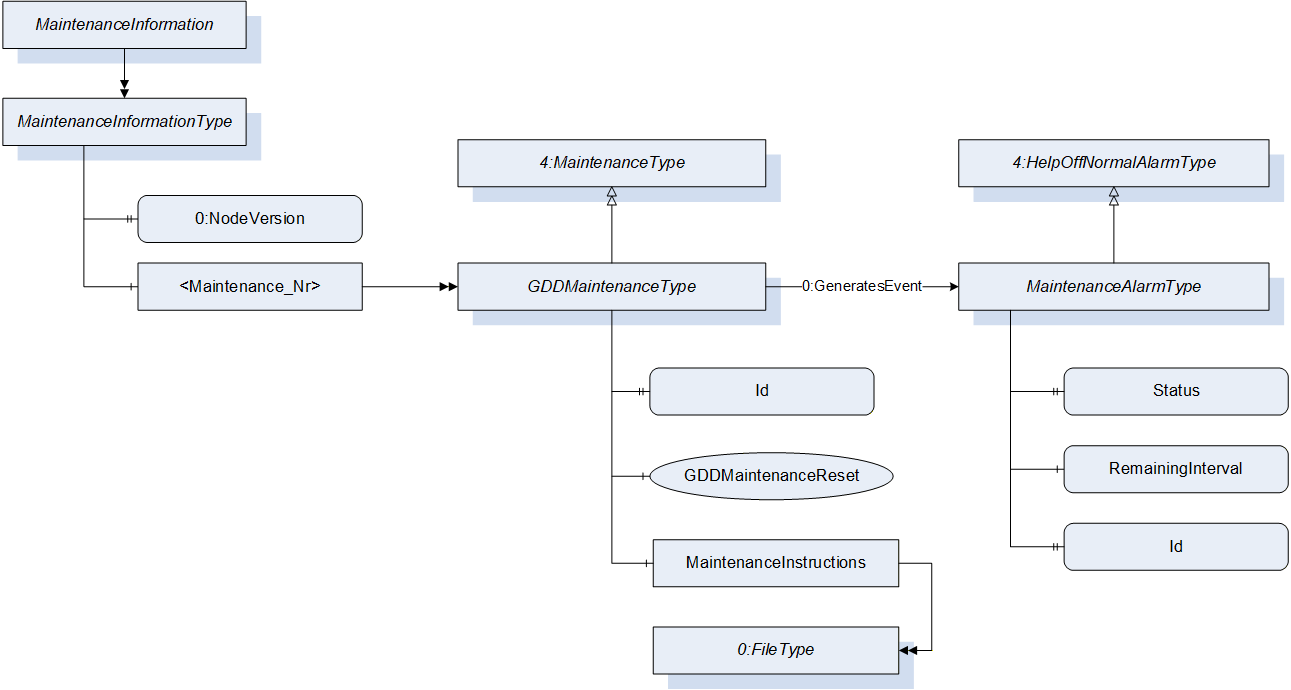

This Object provides information about all maintenance activities related to the granulate dryer. The MaintenanceInformationType is defined in 13.49.
8.13 EnergyConsumptionLimit
This variable limits the energy consumed by the device relative to a user-defined default state (100%).
Example: Set to lower than 100 % when high drying levels are not required.
May also be used to enable more energy consumption.
Range: 0 % - 200 %
8.14 RemoteControlOpcUa
Variable to read the actual remote control state of the server instance.
If RemoteControlOpcUa is FALSE, the interface is read-only (Variables not writeable, methods not executable).
The value shall be stored persistently.
9 DryerType
9.1 DryerType definition
The DryerType represents a device which dries the material.
The DyerType is formally defined in Table 10.
| Attribute | Value | ||||||
| BrowseName | DryerType | ||||||
| IsAbstract | False | ||||||
| References | Node Class | BrowseName | DataType | TypeDefinition | Other | |||
|---|---|---|---|---|---|---|---|---|
| Subtype of 0:BaseObjectType defined in OPC 10000-5 | ||||||||
| 0:HasComponent | Object | DesiccantBeds | DesiccantBedsType | O | ||||
| 0:HasComponent | Object | Bins | BinsType | M | ||||
| Conformance Units | ||||||||
|---|---|---|---|---|---|---|---|---|
| OPC 40082-6 Basic | ||||||||
| OPC 40082-6 DesiccantBed |
9.2 DesiccantBeds
This Object is a container for all DesiccantBeds in the Dryer.The DesiccantBedsType is defined in chapter 10.
9.3 Bins
This Object is a container for all Bins in the Dryer.The BinsType is defined in chapter 12.
10 DesiccantBedsType
10.1 DesicantBedsType definition
The DesiccantBedsType provides a list of all placeholder objects representing desiccant beds of the granulate drying device. The ObjectType is defined in Table 11.
| Attribute | Value | ||||
| BrowseName | DesiccantBedsType | ||||
| IsAbstract | False | ||||
| References | Node Class | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of 0:BaseObjectType defined in OPC 10000-5 | |||||
| 0:HasComponent | Object | <DesiccantBed_Nr> | DesiccantBedType | MP | |
| Conformance Units | |||||
|---|---|---|---|---|---|
| OPC 40082-6 Basic | |||||
| OPC 40082-6 DesiccantBed |
10.2 DesiccantBed
The DesiccantBed Object provides information about the desiccant and the desiccant bed used typically in adsorption dryers. The DesiccantBedType is defined in chapter 11.
When instances for device DesiccantBed are created, the BrowseNames shall be "<DesiccantBed_Nr>" ("Nr" starting with 001).
Examples: "DesiccantBed_001", " DesiccantBed_002", " DesiccantBed_012", "DesiccantBed_113".
11 DesiccantBedType
11.1 DesiccantBedType definition

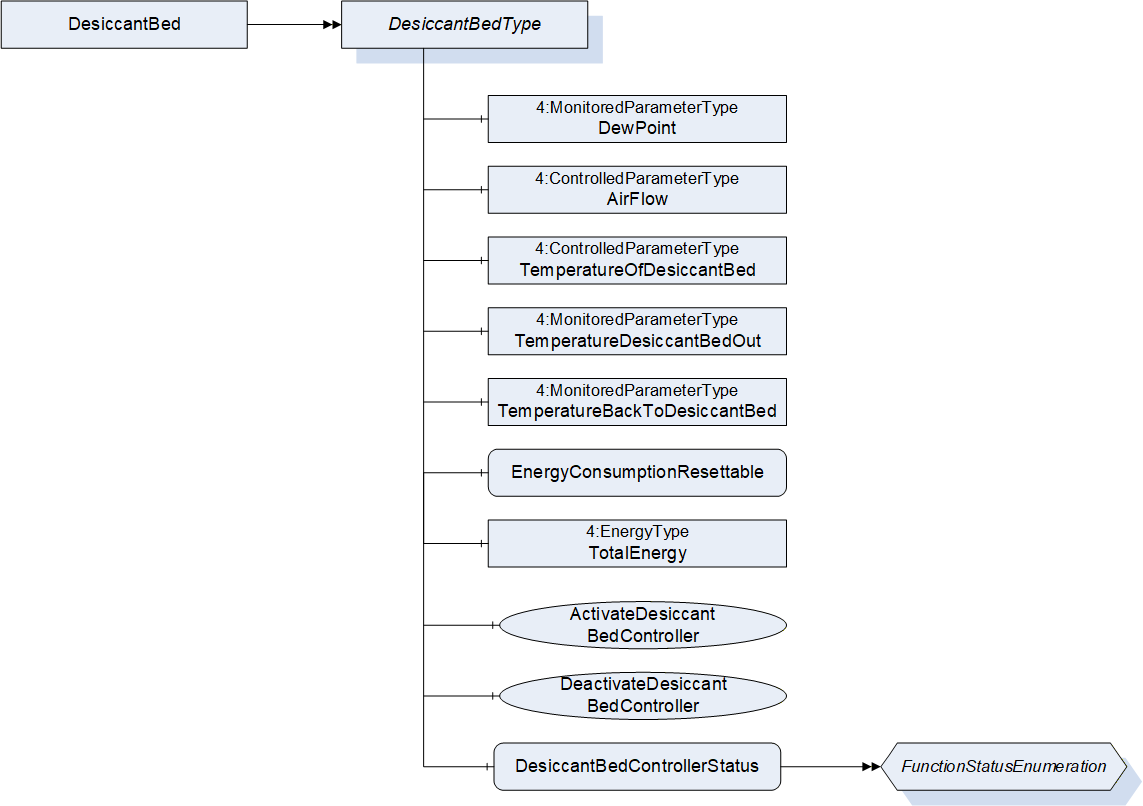

The DesiccantBedType represents a desiccant bed (e.g. used in adsorption dryers) and is defined in Table 12.
| Attribute | Value | ||||
| BrowseName | DesiccantBedType | ||||
| IsAbstract | False | ||||
| References | Node Class | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of 0:BaseObjectType defined in OPC 10000-5 | |||||
| 0:HasComponent | Object | DewPoint | 4:MonitoredParameterType | O | |
| 0:HasComponent | Object | AirFlow | 4:ControlledParameterType | O | |
| 0:HasComponent | Object | TemperatureOfDesiccantBed | 4:ControlledParameterType | O | |
| 0:HasComponent | Object | TemperatureDesiccantBedOut | 4:MonitoredParameterType | O | |
| 0:HasComponent | Object | TemperatureBackToDesiccantBed | 4:MonitoredParameterType | O | |
| 0:HasComponent | Variable | EnergyConsumptionResettable | 0:Double | 0:AnalogUnitType | O,RO |
| 0:HasComponent | Object | TotalEnergy | 4:EnergyType | O | |
| 0:HasComponent | Method | ActivateDesiccantBedController | O | ||
| 0:HasComponent | Method | DeactivateDesiccantBedController | O | ||
| 0:HasComponent | Variable | DesiccantBedControllerStatus | FunctionStatusEnumeration | 0:BaseDataVariableType | O,RO |
| Conformance Units | |||||
|---|---|---|---|---|---|
| OPC 40082-6 DesiccantBed | |||||
| OPC 40082-6 DesiccantBedController | |||||
| OPC 40082-6 DewPoint | |||||
| OPC 40082-6 AirFlow | |||||
| OPC 40082-6 TemperatureOfDesiccantBed | |||||
| OPC 40082-6 TemperatureDesiccantBedOut | |||||
| OPC 40082-6 TemperatureBackToDesiccantBed | |||||
| OPC 40082-6 TotalEnergy | |||||
| OPC 40082-6 EnergyConsumptionResettable |
11.2 DewPoint
Setpoint and actual value of dewpoint monitored in °C or °F.
11.3 AirFlow
AirDryer with flow control for setting the mass of flow in l/s or cfm.
11.4 TemperatureOfDesiccantBed
Controlled temperature in the desiccant bed in °C or °F.
11.5 TemperatureDesiccantBedOut
Monitored temperature outlet of the desiccant bed in °C or °F.
11.6 TemperatureBackToDesiccantBed
Monitored temperature air flow back to the desiccant bed in °C or °F.
11.7 EnergyConsumptionResettable
Monitored energy consumption of the heater in the desiccant bed in kWh.
Resettable with ResetEnergyMeasurement Method.
11.8 TotalEnergy
This Object provides information about the actual power and the total lifetime energy consumption of the whole device. The EnergyType is defined in OPC 40083.
11.9 ActivateDesiccantBedController
Method to request the desiccant bed controller to be switched on. The Server response is provided in the DesiccantBedControllerStatus Variable.
When it is switched off, there is no power control. Only the actual temperature value is measured cyclically.
Signature
ActivateDesiccantBedController();| Attribute | Value | ||||
| BrowseName | ActivateDesiccantBedController | ||||
| References | Node Class | BrowseName | DataType | TypeDefinition | Modelling Rule |
|---|
11.10 DeactivateDesiccantBedController
Method to request the desiccant bed controller to be switched off. The Server response is provided in the DesiccantBedControllerStatus Variable.
When it is switched off, there is no power control. Only the actual temperature value is measured cyclically.
Signature
DeactivateDesiccantBedController();| Attribute | Value | ||||
| BrowseName | DeactivateDesiccantBedController | ||||
| References | Node Class | BrowseName | DataType | TypeDefinition | Modelling Rule |
|---|
11.11 DesiccantBedControllerStatus
Provides information about the current operation state of the desiccant bed controller.
The FunctionStatusEnumeration is defined in Table 15.
| Name | Value | Description |
| OFF | 0 | Function is switched off |
| ON | 1 | Function is switched on |
| REQUESTED_OFF | 2 | Function is switched on AND requested to be switched off by the client |
| REQUESTED_ON | 3 | Function is switched off AND requested to be switched on by the client |
12 BinsType
12.1 BinsType definition
The BinsType provides a list of all placeholder objects representing bins of the granulate drying device.
The ObjectType is formally defined in Table 16.
| Attribute | Value | ||||
| BrowseName | BinsType | ||||
| IsAbstract | False | ||||
| References | Node Class | BrowseName | DataType | TypeDefinition | Other | |
|---|---|---|---|---|---|---|
| Subtype of 0:BaseObjectType defined in OPC 10000-5 | ||||||
| 0:HasComponent | Object | <Bin_Nr> | BinType | MP | ||
| Conformance Units | ||||||
|---|---|---|---|---|---|---|
| OPC 40082-6 Basic |
12.2 Bin
Mandatory Placeholder Object which contains all bins of the dryer. The BinType is defined in chapter 13.
When instances for device bins are created, the BrowseNames shall be "<Bin_Nr>" ("Nr" starting with 001).
Examples: "Bin_001", "Bin_002", "Bin_012", "Bin_113".
13 BinType
13.1 BinType definition
The BinType represents all functionalities of a bin, such as temperature monitoring or control and is formally defined in Table 17.
| Attribute | Value |
| BrowseName | BinType |
| IsAbstract | False |
| References | Node Class | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of 0:BaseObjectType defined in OPC 10000-5 | |||||
| 0:HasProperty | Variable | MaterialIdentification | 0:String | 0:PropertyType | O,RW |
| 0:HasProperty | Variable | BatchNumber | 0:String | 0:PropertyType | O,RW |
| 0:HasComponent | Object | Temperature | 4:MonitoredParameterType | M | |
| 0:HasProperty | Variable | MaterialDryingTime | 0:Duration | 0:PropertyType | O,RW |
| 0:HasComponent | Variable | RemainingMaterialDryingTime | 0:Duration | 0:BaseDataVariableType | O, RO |
| 0:HasComponent | Variable | ExpiredDryingTime | 0:Duration | 0:BaseDataVariableType | O, RO |
| 0:HasComponent | Variable | TemperatureReduction | 0:Double | 0:AnalogUnitRangeType | O, RW |
| 0:HasComponent | Method | ActivateDryingProtection | O | ||
| 0:HasComponent | Method | DeactivateDryingProtection | O | ||
| 0:HasComponent | Variable | DryingProtectionStatus | FunctionStatusEnumeration | 0:BaseDataVariableType | O,RO |
| 0:HasComponent | Variable | MaterialAvailableDryer | 0:Boolean | 0:BaseDataVariableType | O, RO |
| 0:HasComponent | Variable | MaterialAvailableMachine | 0:Boolean | 0:BaseDataVariableType | O, RO |
| 0:HasComponent | Method | ActivateMaterialFeederDryer | O | ||
| 0:HasComponent | Method | DeactivateMaterialFeederDryer | O | ||
| 0:HasComponent | Variable | MaterialFeederDryerStatus | FunctionStatusEnumeration | 0:BaseDataVariableType | O,RO |
| 0:HasComponent | Method | ActivateMaterialFeederMachine | O | ||
| 0:HasComponent | Method | DeactivateMaterialFeederMachine | O | ||
| 0:HasComponent | Variable | MaterialFeederMachineStatus | FunctionStatusEnumeration | 0:BaseDataVariableType | O,RO |
| 0:HasComponent | Method | ActivateAllFeeders | O | ||
| 0:HasComponent | Method | DeactivateAllFeeders | O | ||
| 0:HasComponent | Variable | AllFeedersStatus | FunctionStatusEnumeration | 0:BaseDataVariableType | O,RO |
| 0:HasComponent | Method | ActivateTemperatureController | O | ||
| 0:HasComponent | Method | DeactivateTemperatureController | O | ||
| 0:HasComponent | Variable | TemperatureControllerStatus | FunctionStatusEnumeration | 0:BaseDataVariableType | O,RO |
| 0:HasComponent | Variable | DustRemovalPulses | 0:UInt16 | 0:BaseDataVariableType | O, RW |
| 0:HasComponent | Variable | DryingMode | DryingModeEnumeration | 0:BaseDataVariableType | M, RW |
| 0:HasComponent | Variable | DryingLevel | DryingLevelEnumeration | 0:BaseDataVariableType | O, RW |
| 0:HasComponent | Variable | AirFlowMode | AirFlowModeEnumeration | 0:BaseDataVariableType | O, RW |
| 0:HasComponent | Variable | IntervalTimeOn | 0:Duration | 0:BaseDataVariableType | O, RW |
| 0:HasComponent | Variable | IntervalTimeOff | 0:Duration | 0:BaseDataVariableType | O, RW |
| 0:HasComponent | Variable | InitialFillingActive | 0:Boolean | 0:BaseDataVariableType | O, RO |
| 0:HasComponent | Method | ResetDryingTime | O | ||
| 0:HasComponent | Variable | ResetDryingTimeResponseStatus | 0:UtcTime | 0:BaseDataVariableType | O, RO |
| 0:HasComponent | Variable | AirSource | AirSourceEnumeration | 0:BaseDataVariableType | O, RW |
| 0:HasComponent | Object | AirFlow | 4:MonitoredParameterType | O | |
| 0:HasComponent | Variable | TotalAirConsumption | 0:Double | 0:AnalogUnitType | O, RO |
| 0:HasComponent | Variable | DewPoint | 0:Double | 0:AnalogUnitType | O, RO |
| 0:HasComponent | Method | ActivateDryingProtectionAirVolumeFlowReduction | O | ||
| 0:HasComponent | Method | DeactivateDryingProtectionAirVolumeFlowReduction | O | ||
| 0:HasComponent | Variable | DryingProtectionAirVolumeFlowMode | FunctionStatusEnumeration | 0:BaseDataVariableType | O,RO |
| 0:HasComponent | Object | DryAirTemperature | 4:MonitoredParameterType | O | |
| 0:HasComponent | Object | AmbientAirTemperature | 4:MonitoredParameterType | O | |
| 0:HasComponent | Object | TopTemperature | 4:MonitoredParameterType | O | |
| 0:HasComponent | Object | ConeTemperature | 4:MonitoredParameterType | O | |
| 0:HasComponent | Object | CylinderTemperature | 4:MonitoredParameterType | O | |
| 0:HasComponent | Variable | LooseningAid | 0:UInt16 | 0:BaseDataVariableType | O, RW |
| 0:HasComponent | Object | TotalEnergy | 4:EnergyType | O | |
| 0:HasComponent | Variable | EnergyConsumptionResettable | 0:Double | 0:AnalogUnitType | O, RO |
| Conformance Units | |||||
|---|---|---|---|---|---|
| OPC 40082-6 Basic | |||||
| OPC 40082-6 DryingProtection | |||||
| OPC 40082-6 AllFeeders | |||||
| OPC 40082-6 MaterialFeeder | |||||
| OPC 40082-6 MachineFeeder | |||||
| OPC 40082-6 TemperatureController | |||||
| OPC 40082-6 AirFlowInterval | |||||
| OPC 40082-6 MaterialIdentification | |||||
| OPC 40082-6 BatchNumber | |||||
| OPC 40082-6 MaterialDryingTime | |||||
| OPC 40082-6 RemainingMaterialDryingTime | |||||
| OPC 40082-6 ExpiredDryingTime | |||||
| OPC 40082-6 TemperatureReduction | |||||
| OPC 40082-6 MaterialAvailableDryer | |||||
| OPC 40082-6 MaterialAvailableMachine | |||||
| OPC 40082-6 DustRemovalPulses | |||||
| OPC 40082-6 DryingLevel | |||||
| OPC 40082-6 AirFlowMode | |||||
| OPC 40082-6 IntervalTimeOn | |||||
| OPC 40082-6 IntervalTimeOff | |||||
| OPC 40082-6 InitialFillingActive | |||||
| OPC 40082-6 ResetDryingTime | |||||
| OPC 40082-6 AirSource | |||||
| OPC 40082-6 TotalAirConsumption | |||||
| OPC 40082-6 DryAirTemperature | |||||
| OPC 40082-6 AmbientAirTemperature | |||||
| OPC 40082-6 TopTemperature | |||||
| OPC 40082-6 ConeTemperature | |||||
| OPC 40082-6 CylinderTemperature | |||||
| OPC 40082-6 LooseningAid | |||||
| OPC 40082-6 DewPoint | |||||
| OPC 40082-6 AirFlow | |||||
| OPC 40082-6 TotalEnergy | |||||
| OPC 40082-6 EnergyConsumptionResettable |
13.2 Materialldentification
The product name of the material.
13.3 BatchNumber
A number for the specific production line and time.
13.4 Temperature
The drying temperature for the material in °C or °F.
The MonitoredParameterType is defined in OPC 40083.
13.5 MaterialDryingTime
Material manufacturer time value as setpoint to dry the material until ready for production.
13.6 RemainingMaterialDryingTime
Actual remaining time to dry the material until ready for production.
13.7 ExpiredDryingTime
Elapsed drying time, useful for a continuous drying process.
13.8 TemperatureReduction
To protect or store the material after drying, it's possible to reduce the temperature inside the bin. The value indicates by how much the temperature is lowered (relative value) in K.
In CONTINUOUS DryingMode, the reduction is applied during drying protection if activated.
In BATCH DryingMode, the reduction is applied as storage temperature reduction for (long time) storage of dried material.
Storage reduction is usually higher than drying protection reduction.
13.9 ActivateDryingProtection
Method to activate the drying protection. Does not affect storage temperature reduction (in batch drying mode temperature will be reduced to storage temperature even when drying protection is switched off).
When activated, the temperature reduction given in the TemperatureReduction Variable gets applied after drying time. In a continuous process, the temperature reduction gets applied immediately. The protection will be reset after each material load.
Signature
ActivateDryingProtection();| Attribute | Value | ||||
| BrowseName | ActivateDryingProtection | ||||
| References | Node Class | BrowseName | DataType | TypeDefinition | Modelling Rule |
|---|
13.10 DeactivateDryingProtection
Method to deactivate the drying protection.
Signature
DeactivateDryingProtection();| Attribute | Value | ||||
| BrowseName | DeactivateDryingProtection | ||||
| References | Node Class | BrowseName | DataType | TypeDefinition | Modelling Rule |
|---|
13.11 DryingProtectionStatus
Provides information about the current activation state of the drying protection.
The FunctionStatusEnumeration is defined in Table 15.
13.12 MaterialAvailableDryer
Feedback from the dryer about the filling level of the conveyor for filling the dryer (only if controlled via dryer).
Provides information, if material is available to fill the dryer.
13.13 MaterialAvailableMachine
Feedback from the dryer about the fill level of the conveyor for removal from the dryer to the injection molding machine (only if controlled via dryer).
Provides only the information, if material is available without information about the material condition (dry / wet). Consider RemainingMaterialDryingTime to check the material condition.
13.14 ActivateMaterialFeederDryer
Method to activate the material feeder of the dryer.
If the material level is low, the material feeder starts automatic filling the Dryer.
Signature
ActivateMaterialFeederDryer();| Attribute | Value | ||||
| BrowseName | ActivateMaterialFeederDryer | ||||
| References | Node Class | BrowseName | DataType | TypeDefinition | Modelling Rule |
|---|
13.15 DeactivateMaterialFeederDryer
Method to deactivate the material feeder of the dryer.
Signature
DeactivateMaterialFeederDryer();| Attribute | Value | ||||
| BrowseName | DeactivateMaterialFeederDryer | ||||
| References | Node Class | BrowseName | DataType | TypeDefinition | Modelling Rule |
|---|
13.16 MaterialFeederDryerStatus
Provides information about the current activation state of the material feeder of the dryer.
The FunctionStatusEnumeration is defined in Table 15.
13.17 ActivateMaterialFeederMachine
Method to activate the material feeder of the machine.
If the material level is low, the material feeder starts automatic filling the injection molding machine.
Signature
ActivateMaterialFeederMachine();| Attribute | Value | ||||
| BrowseName | ActivateMaterialFeederMachine | ||||
| References | Node Class | BrowseName | DataType | TypeDefinition | Modelling Rule |
|---|
13.18 DeactivateMaterialFeederMachine
Method to deactivate the material feeder of the machine.
Signature
DeactivateMaterialFeederMachine();| Attribute | Value | ||||
| BrowseName | DeactivateMaterialFeederMachine | ||||
| References | Node Class | BrowseName | DataType | TypeDefinition | Modelling Rule |
|---|
13.19 MaterialFeederMachineStatus
Provides information about the current activation state of the material feeder of the machine.
The FunctionStatusEnumeration is defined in Table 15.
13.20 ActivateAllFeeders
Method to activate all feeders at once.
Used if the feeders can not be activated seperately. ActivateMaterialFeeder ist the same as activate both ActivateMaterialFeederDryer and ActivateMaterialFeederMachine.
Signature
ActivateAllFeeders();| Attribute | Value | ||||
| BrowseName | ActivateAllFeeders | ||||
| References | Node Class | BrowseName | DataType | TypeDefinition | Modelling Rule |
|---|
13.21 DeactivateAllFeeders
Method to deactivate all feeders at once.
Signature
DeactivateAllFeeders();| Attribute | Value | ||||
| BrowseName | DeactivateAllFeeders | ||||
| References | Node Class | BrowseName | DataType | TypeDefinition | Modelling Rule |
|---|
13.22 AllFeederStatus
Provides information about the current activation state of all feeders of the machine.
The FunctionStatusEnumeration is defined in Table 15.
13.23 ActivateTemperatureController
Method to request the activation of the temperature controller of the bin. When it is switched off, there is no power control. Only the actual temperature value is measured cyclically.
Signature
ActivateTemperatureController();| Attribute | Value | ||||
| BrowseName | ActivateTemperatureController | ||||
| References | Node Class | BrowseName | DataType | TypeDefinition | Modelling Rule |
|---|
13.24 DeactivateTemperatureController
Method to request the deactivation of the temperature controller of the bin.
Signature
DeactivateTemperatureController();| Attribute | Value | ||||
| BrowseName | DeactivateTemperatureController | ||||
| References | Node Class | BrowseName | DataType | TypeDefinition | Modelling Rule |
|---|
13.25 TemperatureControllerStatus
Provides information about the current activation state of the bin temperature controller.
The FunctionStatusEnumeration is defined in Table 15.
13.26 DustRemovalPulses
Number of dust removal pulses, automatically triggered after filling.
13.27 DryingMode
The drying mode determines the drying process. The DryingModeEnumeration is defined in Table 28.
| Name | Value | Description |
| BATCH | 0 | The granulate in the dryer is dried for a certain period of time and then switched to drying protection. |
| CONTINUOUS | 1 | The granulate in the dryer is dried continuously. |
| COMBINED | 2 | The very wet granulate in the dryer is dried for a certain period of time, after which it is dried continuously. |
13.28 DryingLevel
The drying level indicates how much drying is required. The DryingLevelEnumeration is defined in Table 29.
| Name | Value | Description |
| LOW | 0 | The granulate requires a low level drying. |
| MEDIUM | 1 | The granulate requires a medium level drying. |
| HIGH | 2 | The granulate requires a high level drying. |
13.29 AirFlowMode
The AirFlowMode determines the air flow, either from a fan or from compressed air. The AirFlowModeEnumeration is defined in Table 30.
| Name | Value | Description |
| CONTINUOUS | 0 | constant flow |
| INTERVAL | 1 | changing cyclic between low or no and high or normal flow |
| OPTIMIZED | 2 | Energy optimized mode (depending e.g. on throughput / humidity…) |
13.30 IntervallTimeOn
If AirFlowMode in INTERVAL mode is activated, this parameter determines the time for normal or high rotation.
13.31 IntervallTimeOff
If AirFlowMode in INTERVAL mode is activated, this parameter determines the time for no or low rotation.
13.32 InitialFillingActive
True, while the initial filling process is active (e.g. to prevent conveyor timeout error).
13.33 ResetDryingTime
Method to restart the drying timer (Resets RemainingMaterialDryingTime to its initial value).
Signature
ResetDryingTime();| Attribute | Value | ||||
| BrowseName | ResetDryingTime | ||||
| References | Node Class | BrowseName | DataType | TypeDefinition | Modelling Rule |
|---|
13.34 ResetDryingTimeResponseStatus
Provides the timestamp since the last ResetDryingTime method was received as a response value.
13.35 AirSource
Determines the source of the air.
| Name | Value | Description |
| FRESH_AIR | 0 | The dryer is working with fresh air |
| RETURN_AIR | 1 | The dryer is working with return air, closed loop |
13.36 AirFlow
Air consumption currently required for the drying process.
Unit: m³/h (Note: norm m³/h Nm³/h) or cfm.
13.37 TotalAirConsumption
The total air consumption during the current drying process.
Unit: m³ or cf.
13.38 DewPoint
Dew point of the air used to dry the granulate in °C or °F.
13.39 ActivateDryingProtectionAirVolumeFlowReduction
Request to reduce the (compressed) air flow during drying protection or storage reduction (TemperatureReduction is active).
The Server response is provided in the DryingProtectionAirVolumeFlowMode Variable.
Signature
ActivateDryingProtectionAirVolumeFlowReduction();| Attribute | Value | ||||
| BrowseName | ActivateDryingProtectionAirVolumeFlowReduction | ||||
| References | Node Class | BrowseName | DataType | TypeDefinition | Modelling Rule |
|---|
13.40 DeactivateDryingProtectionAirVolumeFlowReduction
Request to deactivate the use of reduced air flow during drying protection or storage reduction.
The Server response is provided in the DryingProtectionAirVolumeFlowMode Variable.
Signature
DeactivateDryingProtectionAirVolumeFlowReduction();| Attribute | Value | ||||
| BrowseName | DeactivateDryingProtectionAirVolumeFlowReduction | ||||
| References | Node Class | BrowseName | DataType | TypeDefinition | Modelling Rule |
|---|
13.41 DryingProtectionAirVolumeFlowMode
Response to the ActivateDryingProtectionAirVolumeFlowReduction Method.
The FunctionStatusEnumeration is defined in Table 15.
13.42 DryAirTemperature
Drying temperature in the dry air circuit in °C or °F.
13.43 AmbientAirTemperature
Drying temperature in the circulating air circuit in °C or °F.
13.44 TopTemperature
Temperature in drying container top in °C or °F.
13.45 LooseningAid
Number of air impulses as loosening aid at outlet of granulate dryer.
13.46 ConeTemperature
Temperature in the cone (usually at the bottom of the bin) in °C or °F
13.47 CylinderTemperature
Temperature in the cylinder of the bin, often measured at about half the height of the bin. Unit: °C or °F
13.48 TotalEnergy
This Object provides information about the actual power and the total lifetime energy consumption of the single bin. The EnergyType is defined in OPC 40083.
13.49 EnergyConsumptionResettable
Consumption of the Bin in kWh since the last reset. For information about the reset method, see ResetEnergyMeasurement in 8.8.
14 MaintenanceInformationType
14.1 MaintenanceInformationType definition
The MaintenanceInformationType provides information about all maintenance activities related to the granulate dryer and is formally defined in Table 35. Each instance of the <Maintenance_Nr> placeholder represents a maintenance activity category (examples: lubrication, inspection…).
| Attribute | Value | ||||
| BrowseName | MaintenanceInformationType | ||||
| IsAbstract | False | ||||
| References | Node Class | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of the 0:BaseObjectType defined in OPC 10000-5 | |||||
| 0:HasProperty | Variable | 0:NodeVersion | 0:String | 0:PropertyType | M, RO |
| 0:HasComponent | Object | <Maintenance_Nr> | GDDMaintenanceType | MP | |
| Conformance Units | |||||
|---|---|---|---|---|---|
| OPC 40082-6 Maintenance |
When instances for Maintenance are created, the BrowseNames shall be "<Maintenance_Nr>" where Nr is a three-digit number with leading zeros, starting with "001". The GDDMaintenanceType is defined in chapter 15.
15 GDDMaintenanceType
15.1 GDDMaintenanceType definition
The GDDMaintenanceType provides information about a single maintenance activity related to the granulate dryer and is formally defined in. The GDDMaintenanceType is a subtype of the MaintenanceType defined in OPC 40083.
For identification of the maintenance activity (examples: lubrication, inspection…) the Node Attributes DisplayName and Description shall be used.
| Attribute | Value | ||||
| BrowseName | GDDMaintenanceType | ||||
| IsAbstract | False | ||||
| References | Node Class | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of the 4:MaintenanceType defined in OPC 40083 | |||||
| 0:HasProperty | Variable | Id | 0:String | 0:PropertyType | M,RO |
| 0:HasComponent | Method | GDDMaintenanceReset | M | ||
| 0:HasComponent | Object | MaintenanceInstructions | 0:FileType | O | |
| 0:GeneratesEvent | ObjectType | MaintenanceAlarmType | Defined in chapter 16 | ||
| Conformance Units | |||||
|---|---|---|---|---|---|
| OPC 40082-6 Maintenance | |||||
| OPC 40082-6 MaintenanceInstructions |
15.2 Id
Unique Id of the maintenance activity.
15.3 GDDMaintenanceReset
The Method GDDMaintenanceReset is used to indicate that the maintenance activity has been carried out. Although the Method Reset is mandatory in the MaintenanceType of OPC 40083, the Method GDDMaintenanceReset shall be used when performing maintenance activities at the mould.
The signature of this Method is specified below. Table 37 and Table 38 specify the Arguments and AdressSpace representation, respectively.
Signature
GDDMaintenanceReset (
[in] 0:String OperatorName,
[in] 0:String MachineManufacturer,
[in] 0:String MachineSerialNumber
)| Argument | Description |
| OperatorName | Name of the operator that has carried out the maintenance |
| MachineManufacturer | Manufacturer of the machine on which the GDD was mounted during maintenance |
| MachineSerialNumber | Serial number of the machine on which the GDD was mounted during maintenance |
| Attribute | Value | ||||
| BrowseName | GDDMaintenanceReset | ||||
| References | Node Class | BrowseName | DataType | TypeDefinition | ModellingRule |
|---|---|---|---|---|---|
| 0:HasProperty | Variable | 0:InputArguments | 0:Argument[] | 0:PropertyType | M |
15.4 MaintenanceInstructions
The MaintenanceInstructions Object provides any file with further information to support the maintenance activity (e.g. Maintenance instructions with pictures and graphics).
16 MaintenanceAlarmType
16.1 MaintenanceAlarmType definition
The MaintenanceAlarmType is active when the maintenance Status is DUE or WARNING. It is a SubType of the HelpOffNormalAlarmType (defined in OPC 40083) and is formally defined in Table 39.
e.g.: HelpText = AdditionalInformation string.
| Attribute | Value | ||||
| BrowseName | MaintenanceAlarmType | ||||
| IsAbstract | True | ||||
| References | Node Class | BrowseName | DataType | TypeDefinition | Other |
|---|---|---|---|---|---|
| Subtype of the 4:HelpOffNormalAlarmType defined in OPC 40083 | |||||
| 0:HasComponent | Variable | Status | 4:MaintenanceStatusEnumeration | 0:BaseDataVariableType | M |
| 0:HasComponent | Variable | RemainingInterval | 0:Double | 0:AnalogUnitType | O |
| 0:HasProperty | Variable | Id | 0:String | 0:PropertyType | M |
| Conformance Units | |||||
|---|---|---|---|---|---|
| OPC 40082-6 Maintenance | |||||
| OPC 40082-6 RemainingInterval |
16.2 Status
Maintenance status of the respective maintenance activity. The MaintenanceStatusEnumeration Enumeration is defined in OPC 40083.
16.3 RemainingInterval
Interval before next maintenance is due.
For units, see the Interval variable in the GDDMaintenanceType respectively its parent object 4:MaintenanceType.
16.4 Id
Unique Id of the maintenance activity.
17 UserLoginType
17.1 UserLoginType definition
This ObjectType allows to automatically transfer the login information of the user logged in on the production machine to the granulate dryer so that there no separate login is necessary.
The GDD as server shows the user who is currently logged in at the device and provides Methods to pass the user currently logged in to the machine to the GDD. The Methods for the remote logging in/out shall be called automatically by the machine when a user logs in/out there. The device can decide whether to accept the login of the machine user via OPC UA or to deny the Method with an error code, e.g. if a user is already logged in at the device itself or the machine is not authorized.
| Attribute | Value | |||||
| BrowseName | UserLoginType | |||||
| IsAbstract | False | |||||
| References | Node Class | BrowseName | DataType | TypeDefinition | Other | |
|---|---|---|---|---|---|---|
| Subtype of the 0:BaseObjectType defined in OPC 10000-5 | ||||||
| HasComponent | Object | ActualUser | 4:UserType | M | ||
| HasComponent | Method | LoginMachineUser | M | |||
| HasComponent | Method | LogoutMachineUser | M | |||
| Conformance Units |
| OPC 40082-6 Users |
17.2 ActualUser
The ActualUser Object holds always the actual active user on the GDD system (HMI). If a remote login of a machine user via the Method LoginMachineUser is successful, the user should appear in this variable. If the machine user is logged out via the Method LogoutMachineUser, the IsPresent property of the ActualUser becomes false. The UserType is defined in OPC 40083.
17.3 LoginMachineUser
When the Method LoginMachineUser from the GDD is called by the machine, the requested user can be logged in to the device system. If a user is already logged in to the device or the passed arguments cannot be interpreted or supported, the server can deny the Method and ActualUser remains unchanged.
Signature
LoginMachineUser (
[in] 0:String Id,
[in] 0:String Name,
[in] 0:String CardUid,
[in] 0:String UserLevel,
[in] 0:String UserRole,
[in] 0:LocaleId Language);| Argument | Description |
| Id | The Id of the user according to 4:UserType |
| Name | The Name of the user according to 4:UserType |
| CardUid | The CardUid of the user according to 4:UserType |
| UserLevel | The UserLevel of the user according to 4:UserType |
| UserRole | The UserRole of the user according to 4:UserType |
| Language | The Language of the user according to 4:UserType |
All arguments may contain empty Strings if not supported.
| Attribute | Value | ||||
| BrowseName | LoginMachineUser | ||||
| References | Node Class | BrowseName | DataType | TypeDefinition | ModellingRule |
|---|---|---|---|---|---|
| 0:HasProperty | Variable | 0:InputArguments | 0:Argument[] | 0:PropertyType | 0:Mandatory |
17.4 LogoutMachineUser
The machine shall report to the device via the Method LogoutMachineUser when a user is logged out. The IsPresent property of the ActualUser then becomes false again.
Signature
LogoutMachineUser(); The Method has no Input- or OutputArguments.
| Attribute | Value | ||||
| BrowseName | LogoutMachineUser | ||||
| References | Node Class | BrowseName | DataType | TypeDefinition | ModellingRule |
|---|
18 Profiles and Conformance Units
This chapter defines the corresponding profiles and conformance units for the OPC UA Information Model for OPC 40082-6. Profiles are named groupings of conformance units. Facets are profiles that will be combined with other Profiles to define the complete functionality of an OPC UA Server or Client.
18.1 Conformance Units
This chapter defines the corresponding Conformance Unit for OPC 40082-6.
| Category | Title | Description |
| Server | OPC 40082-6 Basic | Support of GranulateDryingDeviceType and all mandatory child elements giving information on the dosing system and its status. There is at least one instance of the GranulateDryingDeviceType in the Machines Object. |
| Server | OPC 40082-6 Maintenance | Support of MaintenanceInformationType and all mandatory child elements giving information on the maintenance activities on the mould. |
| Server | OPC 40082-6 Users | Support of UserLoginType to enable automatic login of the machine user onto the mould controller. |
| Server | OPC 40082-6 DesiccantBed | Support of DessicantBedsType and at least one child element in at least one instance of DessicantBedType |
| Server | OPC 40082-6 DryingProtection | Support of ActivateDryingProtection, DeactivateDryingProtection and DryingProtectionStatus |
| Server | OPC 40082-6 AllFeeders | Support of ActivateAllFeeders, DeactivateAllFeeders and AllFeedersStatus |
| Server | OPC 40082-6 MaterialFeeder | Support of ActivateMaterialFeederDryer, DeactivateMaterialFeederDryer and MaterialFeederDryerStatus |
| Server | OPC 40082-6 MachineFeeder | Support of ActivateMaterialFeederMachine, DeactivateMaterialFeederMachine and MaterialFeederMachineStatus |
| Server | OPC 40082-6 TemperatureController | Support of ActivateTemperatureController, DeactivateTemperatureController and TemperatureControllerStatus |
| Server | OPC 40082-6 AirFlowInterval | Support of AirFlowMode, IntervalTimeOn and IntervalTimeOff |
| Server | OPC 40082-6 ResetDryingTime | Support of ResetDryingTime and ResetDryingTimeResponseStatus |
| Server | OPC 40082-6 DesiccantBedController | Support of ActivateDesiccantBedController, DeactivateDesiccantBedController and DesiccantBedControllerStatus |
| Server | OPC 40082-6 MaterialIdentification | Support of MaterialIdentification |
| Server | OPC 40082-6 BatchNumber | Support of BatchNumber |
| Server | OPC 40082-6 MaterialDryingTime | Support of DryingTime |
| Server | OPC 40082-6 RemainingMaterialDryingTime | Support of RemainingMaterialDryingTime |
| Server | OPC 40082-6 DisplayLanguage | Support of DisplayLanguage |
| Server | OPC 40082-6 IdentifyDevice | Support of IdentifyDevice |
| Server | OPC 40082-6 ResetAllErrors | Support of ResetAllErrors |
| Server | OPC 40082-6 ResetErrorById | Support of ResetErrorById |
| Server | OPC 40082-6 ResetEnergyMeasurement | Support of ResetEnergyMeasurement |
| Server | OPC 40082-6 MainFailureBehaviour | Support of MainFailureBehaviour |
| Server | OPC 40082-6 TotalEnergy | Support of TotalEnergy |
| Server | OPC 40082-6 EnergyConsumptionResettable | Support of EnergyConsumptionResettable |
| Server | OPC 40082-6 MaintenanceInformation | Support of MaintenanceInformation |
| Server | OPC 40082-6 EnergyConsumptionLimit | Support of EnergyConsumptionLimit |
| Server | OPC 40082-6 DewPoint | Support of DewPoint |
| Server | OPC 40082-6 AirFlow | Support of AirFlow |
| Server | OPC 40082-6 TemperatureOfDesiccantBed | Support of TemperatureOfDesiccantBed |
| Server | OPC 40082-6 TemperatureDesiccantBedOut | Support of TemperatureDesiccantBedOut |
| Server | OPC 40082-6 TemperatureBackToDesiccantBed | Support of TemperatureBackToDesiccantBed |
| Server | OPC 40082-6 ExpiredDryingTime | Support of ExpiredDryingTime |
| Server | OPC 40082-6 TemperatureReduction | Support of TemperatureReduction |
| Server | OPC 40082-6 MaterialAvailableDryer | Support of MaterialAvailableDryer |
| Server | OPC 40082-6 MaterialAvailableMachine | Support of MaterialAvailableMachine |
| Server | OPC 40082-6 DustRemovalPulses | Support of DustRemovalPulses |
| Server | OPC 40082-6 DryingLevel | Support of DryingLevel |
| Server | OPC 40082-6 AirFlowMode | Support of AirFlowMode |
| Server | OPC 40082-6 IntervalTimeOn | Support of IntervalTimeOn |
| Server | OPC 40082-6 IntervalTimeOff | Support of IntervalTimeOff |
| Server | OPC 40082-6 InitialFillingActive | Support of InitialFillingActive |
| Server | OPC 40082-6 AirSource | Support of AirSource |
| Server | OPC 40082-6 TotalAirConsumption | Support of TotalAirConsumption |
| Server | OPC 40082-6 DryAirTemperature | Support of DryAirTemperature |
| Server | OPC 40082-6 AmbientAirTemperature | Support of AmbientAirTemperature |
| Server | OPC 40082-6 TopTemperature | Support of TopTemperature |
| Server | OPC 40082-6 ConeTemperature | Support of ConeTemperature |
| Server | OPC 40082-6 CylinderTemperature | Support of CylinderTemperature |
| Server | OPC 40082-6 LooseningAid | Support of LooseningAid |
| Server | OPC 40082-6 MaintenanceInstructions | Support of MaintenanceInstructions |
| Server | OPC 40082-6 RemainingInterval | Support of RemainingInterval |
18.2 Profiles
18.2.1 Profile list
The following tables specify the facets available for Servers that implement the OPC 40082-6 Information Model companion specification.
Table 45 lists all Profiles defined in this document and defines their URIs.
| Profile | URI |
| OPC 40082-6 Basic Server Profile | http://opcfoundation.org/UA-Profile/PlasticsRubber/GDD/Server/Basic |
| OPC 40082-6 DesiccantBedDryer Server Facet | http://opcfoundation.org/UA-Profile/PlasticsRubber/GDD/Server/DesiccantBed |
| OPC 40082-6 Full Server Facet | http://opcfoundation.org/UA-Profile/PlasticsRubber/GDD/Server/Full |
18.2.2 Server Facets
18.2.2.1 Overview
The following sections specify the Facets available for Servers that implement the OPC 40082-6 companion specification. Each section defines and describes a Facet or Profile.
18.2.2.2 OPC 40082-6 Basic Server Profile
| Group | Conformance Unit / Profile Title | Mandatory / Optional |
| Profile | 0:Embedded Server 2017 (defined in OPC 10000-7) | M |
| Profile | 0:ComplexType Server Facet (defined in OPC 10000-7) | M |
| Profile | 0:Standard Event Subscription Server Facet (defined in OPC 10000-7) | M |
| Profile | 0:Method Server Facet (defined in OPC 10000-7) | M |
| Profile | 2:BaseDevice Server Facet (defined in OPC 10000-100) | M |
| Profile | 3:Machinery Machine Identification Server Facet | M |
| Profile | 3:Machinery State Server Facet | M |
| Profile | 0:A & C Alarm Server Facet | M |
| OPC 40082-6 | OPC 40082-6 Basic | M |
18.2.2.3 DesiccantBedDryer Server Facet
| Group | Conformance Unit / Profile Title | Mandatory / Optional |
| OPC 40082-6 | OPC 40082-6 Basic | M |
| OPC 40082-6 | OPC 40082-6 DesiccantBed | M |
18.2.2.4 Full Server Facet
| Group | Conformance Unit / Profile Title | Mandatory / Optional |
| OPC 40082-6 | OPC 40082-6 Basic | M |
| OPC 40082-6 | OPC 40082-6 Maintenance | O |
| OPC 40082-6 | OPC 40082-6 Users | O |
| OPC 40082-6 | OPC 40082-6 DryingProtection | O |
| OPC 40082-6 | OPC 40082-6 AllFeeders | O |
| OPC 40082-6 | OPC 40082-6 MaterialFeeder | O |
| OPC 40082-6 | OPC 40082-6 MachineFeeder | O |
| OPC 40082-6 | OPC 40082-6 TemperatureController | O |
| OPC 40082-6 | OPC 40082-6 AirFlowInterval | O |
| OPC 40082-6 | OPC 40082-6 ResetDryingTime | O |
| OPC 40082-6 | OPC 40082-6 DesiccantBedController | O |
| OPC 40082-6 | OPC 40082-6 MaterialIdentification | O |
| OPC 40082-6 | OPC 40082-6 BatchNumber | O |
| OPC 40082-6 | OPC 40082-6 MaterialDryingTime | O |
| OPC 40082-6 | OPC 40082-6 RemainingMaterialDryingTime | O |
| OPC 40082-6 | OPC 40082-6 DisplayLanguage | O |
| OPC 40082-6 | OPC 40082-6 IdentifyDevice | O |
| OPC 40082-6 | OPC 40082-6 ResetAllErrors | O |
| OPC 40082-6 | OPC 40082-6 ResetErrorById | O |
| OPC 40082-6 | OPC 40082-6 ResetEnergyMeasurement | O |
| OPC 40082-6 | OPC 40082-6 MainFailureBehaviour | O |
| OPC 40082-6 | OPC 40082-6 TotalEnergy | O |
| OPC 40082-6 | OPC 40082-6 EnergyConsumptionResettable | O |
| OPC 40082-6 | OPC 40082-6 MaintenanceInformation | O |
| OPC 40082-6 | OPC 40082-6 EnergyConsumptionLimit | O |
| OPC 40082-6 | OPC 40082-6 DewPoint | O |
| OPC 40082-6 | OPC 40082-6 AirFlow | O |
| OPC 40082-6 | OPC 40082-6 TemperatureOfDesiccantBed | O |
| OPC 40082-6 | OPC 40082-6 TemperatureDesiccantBedOut | O |
| OPC 40082-6 | OPC 40082-6 TemperatureBackToDesiccantBed | O |
| OPC 40082-6 | OPC 40082-6 ExpiredDryingTime | O |
| OPC 40082-6 | OPC 40082-6 TemperatureReduction | O |
| OPC 40082-6 | OPC 40082-6 MaterialAvailableDryer | O |
| OPC 40082-6 | OPC 40082-6 MaterialAvailableMachine | O |
| OPC 40082-6 | OPC 40082-6 DustRemovalPulses | O |
| OPC 40082-6 | OPC 40082-6 DryingLevel | O |
| OPC 40082-6 | OPC 40082-6 AirFlowMode | O |
| OPC 40082-6 | OPC 40082-6 IntervalTimeOn | O |
| OPC 40082-6 | OPC 40082-6 IntervalTimeOff | O |
| OPC 40082-6 | OPC 40082-6 InitialFillingActive | O |
| OPC 40082-6 | OPC 40082-6 ResetDryingTime | O |
| OPC 40082-6 | OPC 40082-6 AirSource | O |
| OPC 40082-6 | OPC 40082-6 TotalAirConsumption | O |
| OPC 40082-6 | OPC 40082-6 DryAirTemperature | O |
| OPC 40082-6 | OPC 40082-6 AmbientAirTemperature | O |
| OPC 40082-6 | OPC 40082-6 TopTemperature | O |
| OPC 40082-6 | OPC 40082-6 ConeTemperature | O |
| OPC 40082-6 | OPC 40082-6 CylinderTemperature | O |
| OPC 40082-6 | OPC 40082-6 LooseningAid | O |
| OPC 40082-6 | OPC 40082-6 MaintenanceInstructions | O |
| OPC 40082-6 | OPC 40082-6 RemainingInterval | O |
19 Namespaces
19.1 Namespace Metadata
Table 49 defines the namespace metadata for this document. The Object is used to provide version information for the namespace and an indication about static Nodes. Static Nodes are identical for all Attributes in all Servers, including the Value Attribute. See OPC 10000-5 for more details.
The information is provided as Object of type NamespaceMetadataType. This Object is a component of the Namespaces Object that is part of the Server Object. The NamespaceMetadataType ObjectType and its Properties are defined in OPC 10000-5.
The version information is also provided as part of the ModelTableEntry in the UANodeSet XML file. The UANodeSet XML schema is defined in OPC 10000-6.
| Attribute | Value | ||
| BrowseName | http://opcfoundation.org/UA/PlasticsRubber/GDD/ | ||
| Property | DataType | Value | |
|---|---|---|---|
| NamespaceUri | String | http://opcfoundation.org/UA/PlasticsRubber/GDD/ | |
| NamespaceVersion | String | 1.0.0 | |
| NamespacePublicationDate | DateTime | 2026-10-01 | |
| IsNamespaceSubset | Boolean | False | |
| StaticNodeIdTypes | IdType [] | 0 | |
| StaticNumericNodeIdRange | NumericRange [] | ||
| StaticStringNodeIdPattern | String | ||
19.2 Handling of OPC UA Namespaces
Namespaces are used by OPC UA to create unique identifiers across different naming authorities. The Attributes NodeId and BrowseName are identifiers. A Node in the UA AddressSpace is unambiguously identified using a NodeId. Unlike NodeIds, the BrowseName cannot be used to unambiguously identify a Node. Different Nodes may have the same BrowseName. They are used to build a browse path between two Nodes or to define a standard Property.
Servers may often choose to use the same namespace for the NodeId and the BrowseName. However, if they want to provide a standard Property, its BrowseName shall have the namespace of the standards body although the namespace of the NodeId reflects something else, for example the EngineeringUnits Property. All NodeIds of Nodes not defined in this document shall not use the standard namespaces.
Table 50 provides a list of mandatory and optional namespaces used in an OPC 40082-6 OPC UA Server.
| NamespaceURI | Description | Use |
| http://opcfoundation.org/UA/ | Namespace for NodeIds and BrowseNames defined in the OPC UA specification. This namespace shall have namespace index 0. | Mandatory |
| Local Server URI | Namespace for nodes defined in the local server. This namespace shall have namespace index 1. | Mandatory |
| http://opcfoundation.org/UA/DI/ | Namespace for NodeIds and BrowseNames defined in OPC 10000-100. The namespace index is Server specific. | Mandatory |
| http://opcfoundation.org/UA/Machinery/ | Namespace for NodeIds and BrowseNames defined in OPC UA for Machinery - Part 1: Basic Building Blocks (OPC 40001-1). The namespace index is Server specific. | Mandatory |
http://opcfoundation.org/UA/PlasticsRubber/ GeneralTypes/ | Namespace for NodeIds and BrowseNames defined in OPC 40083. The namespace index is server specific. | Mandatory |
| http://opcfoundation.org/UA/PlasticsRubber/GDD/ | Namespace for NodeIds and BrowseNames defined in this document. The namespace index is Server specific. | Mandatory |
| Vendor specific types | A Server may provide vendor-specific types like types derived from ObjectTypes defined in this document in a vendor-specific namespace. | Optional |
| Vendor specific instances | A Server provides vendor-specific instances of the standard types or vendor-specific instances of vendor-specific types in a vendor-specific namespace. It is recommended to separate vendor specific types and vendor specific instances into two or more namespaces. | Mandatory |
Table 51 provides a list of namespaces and their indices used for BrowseNames in this document. The default namespace of this document is not listed since all BrowseNames without prefix use this default namespace.
| NamespaceURI | Namespace Index | Example |
| http://opcfoundation.org/UA/ | 0 | 0:EngineeringUnits |
| http://opcfoundation.org/UA/DI/ | 2 | 2:DeviceClass |
| http://opcfoundation.org/UA/Machinery/ | 3 | 3:MachineIdentificationType |
| http://opcfoundation.org/UA/PlasticsRubber/GeneralTypes/ | 4 | 4:MachineInformationType |
Annex A OPC 40082-6 Namespace and mappings (Normative)
A.1 NodeSet and supplementary files for OPC 40082-6 Information Model
The OPC 40082-6 Information Model is identified by the following URI:
http://opcfoundation.org/UA/PlasticsRubber/GDD/
Documentation for the NamespaceUri can be found here.
The NodeSet associated with this version of specification can be found here:
The NodeSet associated with the latest version of the specification can be found here:
https://reference.opcfoundation.org/nodesets/?u=http://opcfoundation.org/UA/PlasticsRubber/GDD/&i=1
Supplementary files for the OPC 40082-6 Information Model can be found here:
The files associated with the latest version of the specification can be found here:
https://reference.opcfoundation.org/nodesets/?u=http://opcfoundation.org/UA/PlasticsRubber/GDD/&i=2
___________
Agreement of Use
COPYRIGHT RESTRICTIONS
This document is provided "as is" by the OPC Foundation and EUROMAP.
Right of use for this specification is restricted to this specification and does not grant rights of use for referred documents.
Right of use for this specification will be granted without cost.
This document may be distributed through computer systems, printed or copied as long as the content remains unchanged and the document is not modified.
OPC Foundation and EUROMAP do not guarantee usability for any purpose and shall not be made liable for any case using the content of this document.
The user of the document agrees to indemnify OPC Foundation and EUROMAP and their officers, directors and agents harmless from all demands, claims, actions, losses, damages (including damages from personal injuries), costs and expenses (including attorneys' fees) which are in any way related to activities associated with its use of content from this specification.
The document shall not be used in conjunction with company advertising, shall not be sold or licensed to any party.
The intellectual property and copyright is solely owned by the OPC Foundation and EUROMAP.
PATENTS
The attention of adopters is directed to the possibility that compliance with or adoption of OPC or EUROMAP specifications may require use of an invention covered by patent rights. OPC Foundation or EUROMAP shall not be responsible for identifying patents for which a license may be required by any OPC or EUROMAP specification, or for conducting legal inquiries into the legal validity or scope of those patents that are brought to its attention. OPC or EUROMAP specifications are prospective and advisory only. Prospective users are responsible for protecting themselves against liability for infringement of patents.
WARRANTY AND LIABILITY DISCLAIMERS
WHILE THIS PUBLICATION IS BELIEVED TO BE ACCURATE, IT IS PROVIDED "AS IS" AND MAY CONTAIN ERRORS OR MISPRINTS. THE OPC FOUDATION NOR EUROMAP MAKES NO WARRANTY OF ANY KIND, EXPRESSED OR IMPLIED, WITH REGARD TO THIS PUBLICATION, INCLUDING BUT NOT LIMITED TO ANY WARRANTY OF TITLE OR OWNERSHIP, IMPLIED WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE OR USE. IN NO EVENT SHALL THE OPC FOUNDATION NOR EUROMAP BE LIABLE FOR ERRORS CONTAINED HEREIN OR FOR DIRECT, INDIRECT, INCIDENTAL, SPECIAL, CONSEQUENTIAL, RELIANCE OR COVER DAMAGES, INCLUDING LOSS OF PROFITS, REVENUE, DATA OR USE, INCURRED BY ANY USER OR ANY THIRD PARTY IN CONNECTION WITH THE FURNISHING, PERFORMANCE, OR USE OF THIS MATERIAL, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
The entire risk as to the quality and performance of software developed using this specification is borne by you.
RESTRICTED RIGHTS LEGEND
This Specification is provided with Restricted Rights. Use, duplication or disclosure by the U.S. government is subject to restrictions as set forth in (a) this Agreement pursuant to DFARs 227.7202-3(a); (b) subparagraph (c)(1)(i) of the Rights in Technical Data and Computer Software clause at DFARs 252.227-7013; or (c) the Commercial Computer Software Restricted Rights clause at FAR 52.227-19 subdivision (c)(1) and (2), as applicable. Contractor / manufacturer are the OPC Foundation, 16101 N. 82nd Street, Suite 3B, Scottsdale, AZ, 85260-1830
COMPLIANCE
The combination of EUROMAP and OPC Foundation shall at all times be the sole entities that may authorize developers, suppliers and sellers of hardware and software to use certification marks, trademarks or other special designations to indicate compliance with these materials as specified within this document. Products developed using this specification may claim compliance or conformance with this specification if and only if the software satisfactorily meets the certification requirements set by EUROMAP or the OPC Foundation. Products that do not meet these requirements may claim only that the product was based on this specification and must not claim compliance or conformance with this specification.
TRADEMARKS
Most computer and software brand names have trademarks or registered trademarks. The individual trademarks have not been listed here.
GENERAL PROVISIONS
Should any provision of this Agreement be held to be void, invalid, unenforceable or illegal by a court, the validity and enforceability of the other provisions shall not be affected thereby.
This Agreement shall be governed by and construed under the laws of Germany.
This Agreement embodies the entire understanding between the parties with respect to, and supersedes any prior understanding or agreement (oral or written) relating to, this specification.
ISSUE REPORTING
If an error or problem is found in this specification, the UaNodeSet, or any associated supplementary files, it should be reported as an issue.
The reporting process can be found here: https://opcfoundation.org/resources/issue-tracking/
The Link to the issue tracking project for this document is here:
https://mantis.opcfoundation.org/set_project.php?project_id=263&make_default=no
